Product type	Battery lawn mower
Brand	Kärcher
Model	LMO 1836 Battery
Cutting width	36 cm
Cutting height range	30 to 70 mm
Grass bag volume	45 L
Rated voltage	18 V
No-load speed	4000 ±10% min⁻¹
Sound pressure level (LpA)	78 dB(A)
Sound power level (LWA)	94 dB(A)
Hand-arm vibration (right handle)	0.5 m/s²
Hand-arm vibration (left handle)	1.4 m/s²
Dimensions (L x W x H)	1309 x 398 x 1042 mm
Weight (without battery)	13.4 kg
Power supply	18 V battery (Kärcher Battery Power)
Main functions	Mowing, mulching, collecting
Maintenance and cleaning	Clean after each use, replace blade if worn
Safety	Safety key, overload protection, automatic blade stop
Spare parts and repairability	Accessories and spare parts available at www.kaercher.com
General information	For outdoor use only, for private lawns

Frequently Asked Questions - LMO 1836 Battery Kärcher

What is the battery runtime?

Runtime depends on the grass and cutting height. With a 5 Ah battery, the maximum area is about 350 m².

Can the mower be used in the rain?

No, do not use the device on wet grass or in the rain. Risk of electric shock and poor performance.

How to adjust the cutting height?

Use the cutting height adjustment lever to set the height between 30 and 70 mm. Cut at most one third of the grass height.

What to do in case of chute blockage?

Stop the device, remove the safety key, wear gloves and remove the blockage manually. Check the blade and grass bag.

How to replace the blade?

Remove the battery, tilt the device on its side, loosen the fixing screw, replace the blade and tighten the screw firmly.

The mower stops while operating, why?

The overload protection or battery overheating has triggered. Wait a few minutes, then restart.

What type of battery to use?

Use exclusively a Kärcher Battery Power 18 V battery pack. Do not use other batteries.

How to store the mower?

Clean it, fold the handle, remove the battery and store it in a dry, ventilated place, protected from frost.

What regular maintenance is needed?

Clean the device after each use, check the blade and grass bag, and replace the blade if it is dull or damaged.

Where to find spare parts?

Original spare parts and accessories are available on the website www.kaercher.com or from your dealer.

USER MANUAL LMO 1836 Battery Kärcher

Deutsch 7

English 12

Français 17

Italiano 23

Nederlands 28

Español 33

Português 39

Dansk 44

Norsk 49

Svenska 54

Suomi 59

Ελληνικά 64

Türkçe 70

Русский 75

Magyar 81

Czech 86

Slovenian 91

Polish 96

Romanian 102

Slovak 107

Croatian 113

Serbian 118

Bulgarian 123

Estonian 129

Latvian 134

Lithuanian 139

Ukrainian 144

Kazakh 150

Japanese 156

Arabic 161

A

Contents

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2018/11/01

Contents

Safety instructions.... 12

Intended use 14

Environmental protection 14

Accessories and spare parts.... 14

Scope of delivery.... 14

Safety devices.... 14

Device description.... 14

Installation 15

Initial startup.... 15

Operation 15

Transport.... 16

Storage.... 16

Care and service.... 16

Troubleshooting guide.... 16

Technical data 16

Warranty.... 17

EU Declaration of Conformity.... 17

Safety instructions

Read these safety instructions, these original instructions, the safety instructions provided with the battery pack and

the operating instructions supplied with the battery pack/standard charger before using the device for the first time. Proceed accordingly. Keep the booklets for future reference or for future owners.

In addition to the notes in the operating instructions, you also need to take into consideration the general safety regulations and accident prevention guidelines applicable by law.

Hazard levels

⚠️ DANGER

- Indication of an imminent threat of danger that will lead to severe injuries or even death.

⚠ WARNING

- Indication of a potentially dangerous situation that may lead to severe injuries or even death.

⚠ CAUTION

- Indication of a potentially dangerous situation that may lead to minor injuries.

ATTENTION

- Indication of a potentially dangerous situation that may lead to damage to property.

General safety instructions

⚠️ DANGER • The device can amputate hands and feet, causing death or severe personal injury, and can fling objects unpredictably. • Severe injuries through a lack of concentration when working. Do not use the device when under the influence of drugs, alcohol, or medication, or when you are tired.

⚠ WARNING • Children and persons unfamiliar with these instructions are not allowed to operate the device. The age of the operator may be limited by local restrictions. • Children must not play with the appliance.

- Children must be supervised to prevent them from playing with the appliance. Use only the battery pack specified in these operating instructions with the device. Observe the basic precautionary measures when using battery operated devices, to reduce the risk of injuries, fire and a leaking battery. Wear long, heavy trousers,

clothing with long arms and non-slip boots when working with the device. Do not work barefoot. Do not wear sandals or short trousers. Avoid wearing loose clothing or clothing with cords and straps. • Wear protective goggles or safety goggles with side protection. • Always guide the device along the face of a gradient. Danger of severe injuries when you guide the device up and down a gradient. • Do not run but rather walk when working with the device. Maintain a solid and safe footing and keep your balance, especially when working on gradients. • Danger of accident due to slipping. Do not use the device at the edges of steep slopes or trenches, on steep slopes or embankments.

⚠️ CAUTION • Familiarize yourself with the controls and the correct use of the device.

Occupational safety

⚠️ DANGER • Severe injuries when objects are flung by the cutting blade or when the cutting tool becomes entangled in wires or cords. Inspect the work area thoroughly for objects such as stones, sticks, metal, wires, bones or toys and remove these before using the device. • Never use the device when persons, especially children, are within a radius of 15 m of the working area, because the danger exists of objects being flung out by the cutting blade. • Danger of explosion. The device creates sparks that may ignite dust, gas or vapours. Do not operate the device in explosive atmospheres, such as in the presence of flammable liquids, gases or dusts. • Severe accidents with children. Children can be attracted by the device and your activities. Keep an eye on children because they do not always remain where you have last seen them.

⚠ WARNING • Do not operate the device on wet grass or in the rain. • Do not use the device if there is a danger of lightning. • Always mow in daylight or under good artificial lighting. • Keep children away from the mowing area and have them supervised by an adult who is not the operator, be alert and switch the device off if a child enters the mowing area. • Be careful when approaching blind corners, bushes, trees or objects that might restrict your view.

ATTENTION • The device operator is responsible for accidents with other people and their property.

Safe operation

⚠️ DANGER • Check that the blade, blade bolts and blade unit are undamaged each time before using the device. • Never lock the On/Off switch in the ON position, this is extremely dangerous. • Pull the device backwards only when absolutely necessary. If you need to pull the device away from a wall or obstacle, first pull downwards to prevent yourself from stumbling or pulling the device over your feet. • Danger of coming into contact with the open blade or being hit by flung objects. Do not tip the device when starting the motor or while the motor is running. If tipping is absolutely necessary, e.g. to make starting easier, then you can raise the front of the device by 5 cm. Press the handle carefully downwards for this. You must return the device to the normal operating position (i.e. all four wheels on the ground) before starting to mow. • Knives that come into contact with a live cable may energize exposed metal parts of the device and cause an electric shock.

⚠ WARNING • The blades on the device are sharp. Wear sturdy protective gloves and work carefully

when installing, replacing, cleaning or checking the seating of screws. ● Replace worn or damaged parts as a complete set to maintain the correct balance. ● Ensure that the device is in a safe condition by regularly checking that all bolts, nuts and screws are screwed tight. ● Replace any worn or damaged parts before operating the device. ● Never use the device if the on/off switch on the handle does not switch on and off correctly. ● Do not forcefully operate the device. ● Stop the motor, in order to stop the blade when transporting the device to and from the mowing area or when tipping the device for crossing ground that is not covered with grass. ● Stop the blade before crossing gravel surfaces.

- Never use the device with defective or absent protective devices, such as e.g. deflectors and/or the grass catcher. - Do not bring your hands or feet in the vicinity of, or underneath rotating parts. Switch the motor on according to the operating instructions. - Never lift or carry the device while the motor is running. - Uneven terrain carries an increased risk of slipping and accidents. Avoid holes, furrows, uneven areas, stones and other hidden objects. - Start the device only when you are positioned in the safe area behind the handle.

• All four wheels are on the ground.
• The grass ejection chute is not open but rather protected by the grass catcher or the ejection chute cover.
• The hands and feet of all persons are away from the cutting housing.

- Switch the motor off and remove the safety key. Ensure that all moving parts have completely stopped moving:

- Always when you leave the device unattended, including the periods when disposing of the mown grass.

- Before removing a blockage or cleaning the ejection chute.

- Before checking, cleaning or working on the device.

- After hitting a foreign object. First check the device for damage and repair any damage before restarting the device.

- Before removing the grass catcher or the grass ejection chute cover.

- When the device starts to vibrate unusually. Immediately check the device:

— For loose parts. Tighten any loose parts if necessary. — For damage, especially to the blade. Repair or replace any damaged parts.

⚠️ CAUTION • Check the grass catcher regularly for wear and tear.

ATTENTION • Take care to ensure that the motor control cable is not jammed or damaged in any other way during installation or when folding the handle.

Residual risks

⚠ WARNING

• Certain residual risks remain present, even when the device is operated in the prescribed manner. The following dangers can be present when using the device:
• Vibration can cause injuries. Use the correct tools for the job, use the handles provided and restrict the working time and hazard exposure time.
• Noise can cause hearing injuries. Wear hearing protection and limit the duration of exposure. • Injuries through contact with the blades.

• Injuries due to flung objects.

Risk reduction

⚠ CAUTION

• Using the device for longer periods can cause poor circulation in the hands due to vibrations. A general period of use cannot be set, because this depends on several influencing factors:
• Personal tendency to suffer from poor circulation (frequently cold fingers, tingling sensation in the fingers)
• Low ambient temperature. Wear warm gloves to protect your hands.
• Holding the device too tightly hindering blood circulation.
• Continuous operation is more harmful than operation interrupted by work breaks.

You should see a doctor if using the device regularly and for lengthy periods of time, and in the event of repeated occurrences of symptoms such as tingling in the fingers or cold fingers.

Intended use

⚠️DANGER

Improper use

Danger of death from incision injuries Only use the device for its proper use

• Use the battery lawnmower in private households only.
• The device is intended for outdoor use only.
• The device is designed for mowing private lawns.
• The device is designed for being pushed by hand. The device should not be pulled.
• Riding on the device is prohibited.

Any other use is prohibited. The user carries full liability for damage resulting from improper use.

Environmental protection

The packing materials can be recycled. Please dispose of packaging in accordance with the environmental regulations.

Electrical and electronic appliances contain valuable, recyclable materials and often components such as batteries, rechargeable batteries or oil,

which - if handled or disposed of incorrectly - can pose a potential threat to human health and the environment. However, these components are required for the correct operation of the appliance. Appliances marked by this symbol are not allowed to be disposed of together with the household rubbish.

Notes on the content materials (REACH)

Current information on content materials can be found at: www.kaercher.com/REACH

Accessories and spare parts

Only use original accessories and original spare parts. They ensure that the appliance will run fault-free and safely.

Information on accessories and spare parts can be found at www.kaercher.com.

Scope of delivery

The scope of delivery for the appliance is shown on the packaging. Check the contents for completeness when unpacking. If any accessories are missing or in the event of any shipping damage, please notify your dealer.

Safety devices

Symbols on the device

Follow all warning notices and safety instructions. Read and comprehend all instructions before using the product.

Watch out for flung or flying objects.

Keep all spectators, especially children and pets, at least 15 m away from the work area.

Watch out for the sharp blade. The blades continue rotating after the motor has been switched off.

Remove the safety key before performing any maintenance.

Wear suitable eye protection and hearing protection when performing work.

Do not work on steep slopes.

Do not subject the device to rain or moist conditions.

Overload protection

The device is equipped with an overload protection system. The device switches off automatically when an overload is detected.

Device description

The maximum amount of equipment is described in these operating instructions. Depending on the model used, there are differences in the scope of delivery (see packaging).

For the illustrations, refer to the graphics page.

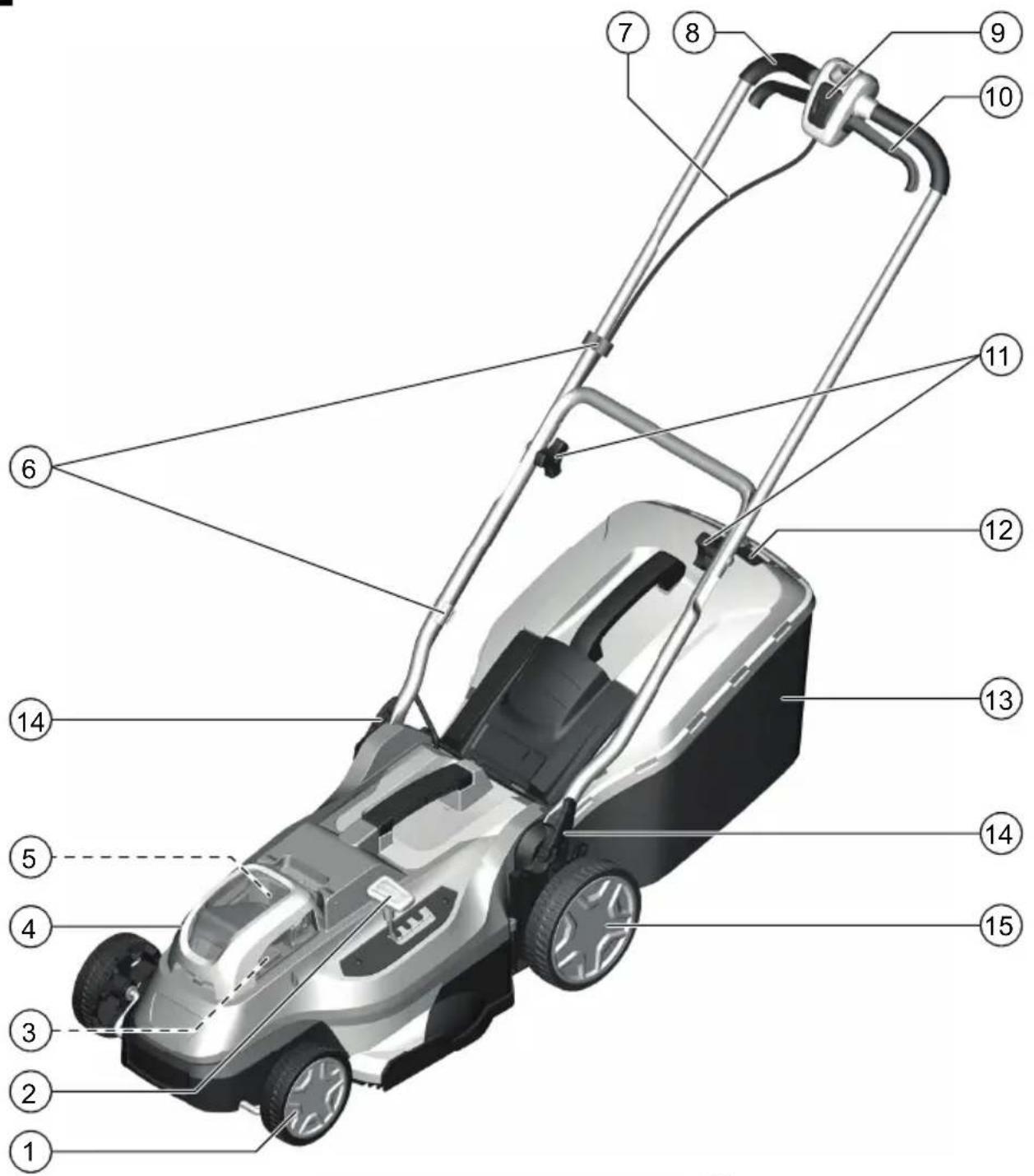

Illustration A

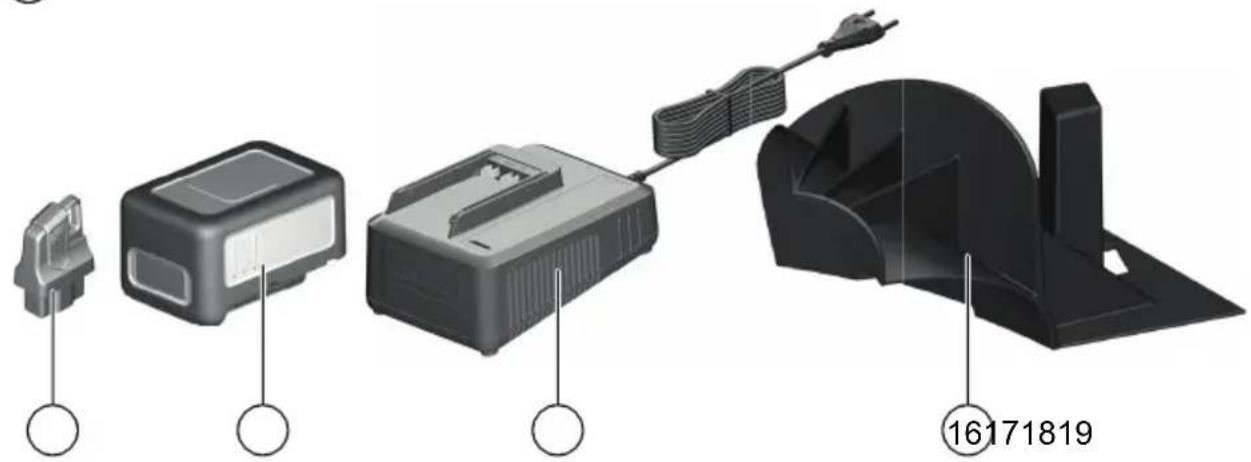

① Front wheel ② Cutting height adjustment lever ③ Battery pack release ④ Battery flap ⑤ Type plate ⑥ Cable holder ⑦ Motor control cable ⑧ Handle ⑨ Starter button ⑩ ON/OFF switch ⑪ Quick-release screw ⑫ Grass catcher filling level indicator ⑬ Grass catcher

⑭ Quick-release catch ⑮ Rear wheel ⑯ Mulch plug ⑰* Charger ⑱* Rechargeable battery pack ⑲ Safety key

* optional

Rechargeable battery pack

The device can be operated with a 18V Kärcher Battery Power battery pack.

Installation

Installing the handle

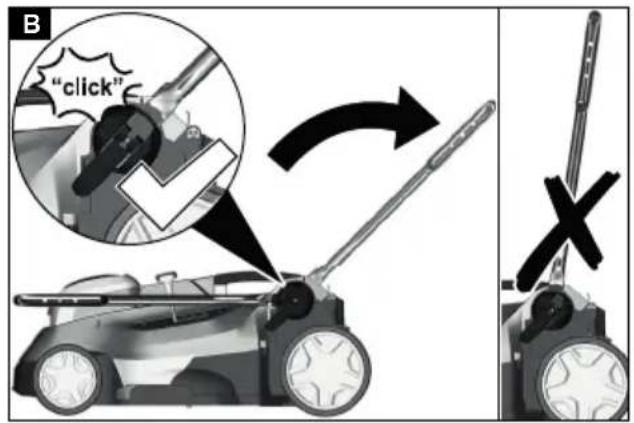

1. Fold over the lower section of the handle. Illustration B

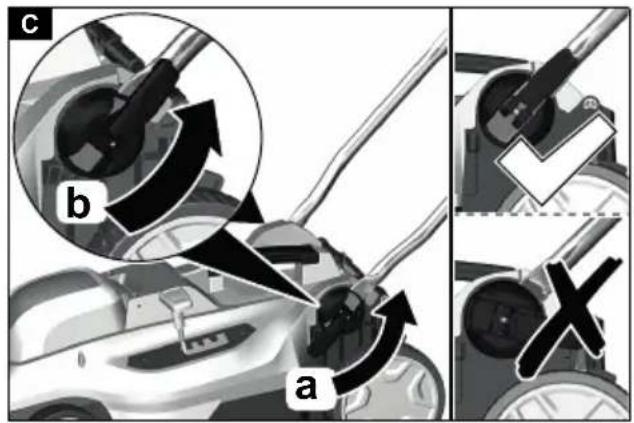

2. Lock the handle with the quick-release catch. Illustration C

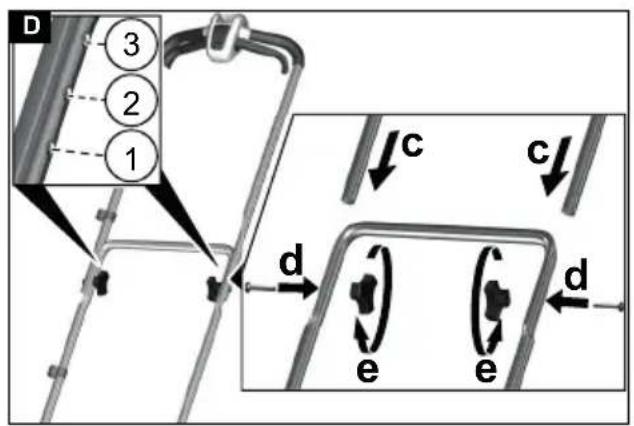

3. Screw the upper section of the handle at the desired height. Illustration D

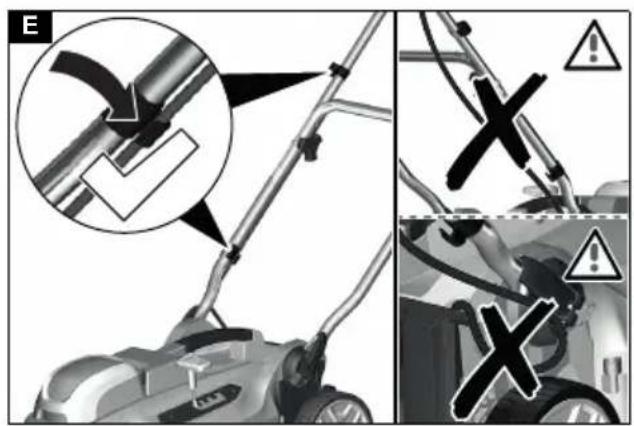

4. Fasten the motor control cable using the cable holder. Illustration E

Initial startup

Attaching the mulch plug

The mulch plug is used when the mown grass is to remain on the lawn.

1. Open the ejection chute flap. Illustration F
2. Insert the mulch plug into the ejection chute.
3. Close the ejection chute flap.

Installing the grass catcher

The grass catcher is used when the mown grass is to be collected for disposal.

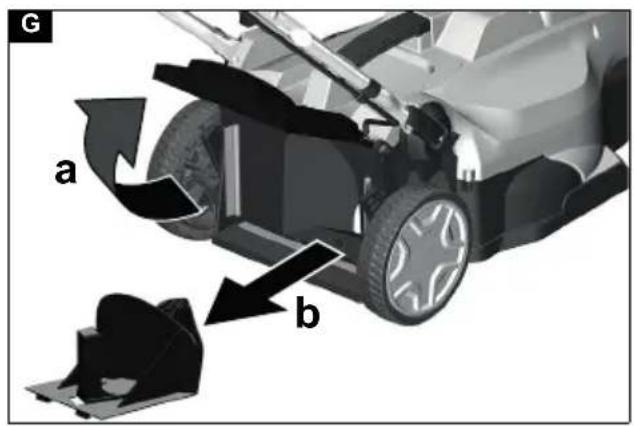

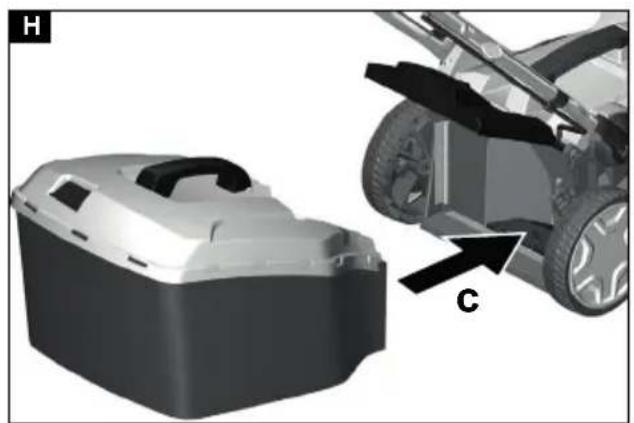

1. Open the ejection chute flap. Illustration G
2. Remove the mulch plug.
3. Install the grass catcher on the ejection chute. Take care to ensure that the ejection chute flap locks the grass catcher in place. Illustration H

Installing the battery pack

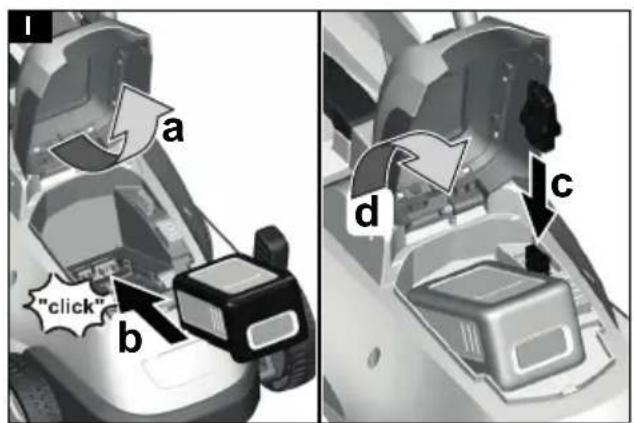

1. Open the battery flap. Illustration I
2. Push the battery pack into the mounting in the device until it audibly latches into place.
3. Insert the safety key.
4. Close the battery flap.

Operation

General information on handling the lawnmower

The run time of the battery depends on several factors:

• The condition, length and density of the grass • The cutting height setting

The maximum surface performance, depending on the state of the grass, with a 5 Ah battery pack: approx. 350 m².

The results of the mowing process can be optimised as follows:

- Cut at a maximum of one third of the grass height. - Reduce the speed at which you push the device when mowing tall grass.

Note

Do not mow wet grass. Wet grass sticks to the underside of the lawnmower and prevents correct collection of the grass in the grass catcher or ejection of the grass.

Mowing lawns

⚠ WARNING

Lifting or tipping the lawnmower during operation Incision injuries

The blade of the lawnmower rotates approximately parallel to the ground over which it moves. Take care to ensure that all four wheels touch the ground when mowing.

1. Install the grass catcher or mulch plug (see Chapter Initial startup).

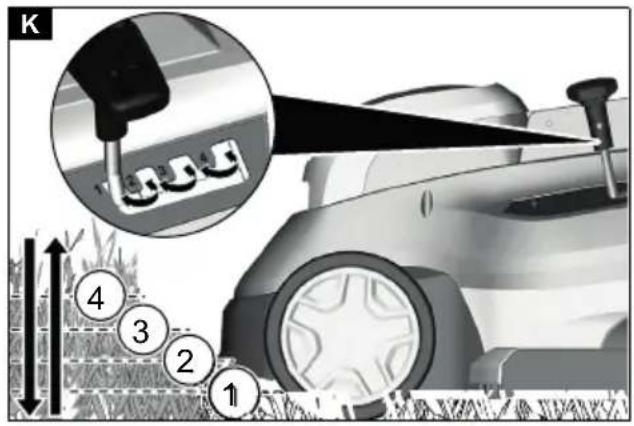

2. Set the cutting height using the cutting height adjustment lever.

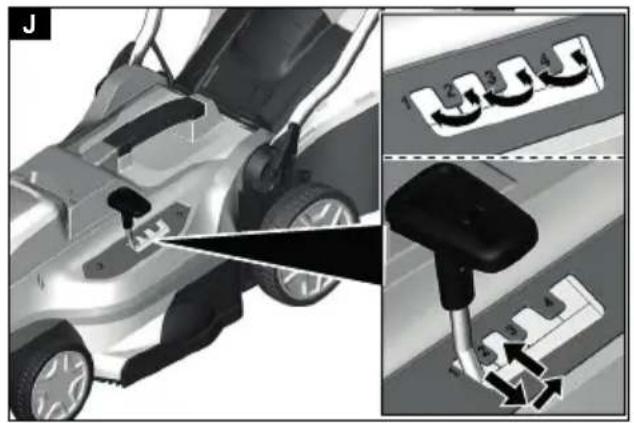

Illustration J

Choose the cutting height according to the condition, length and density of the grass (see Chapter General information on handling the lawnmower). Illustration K

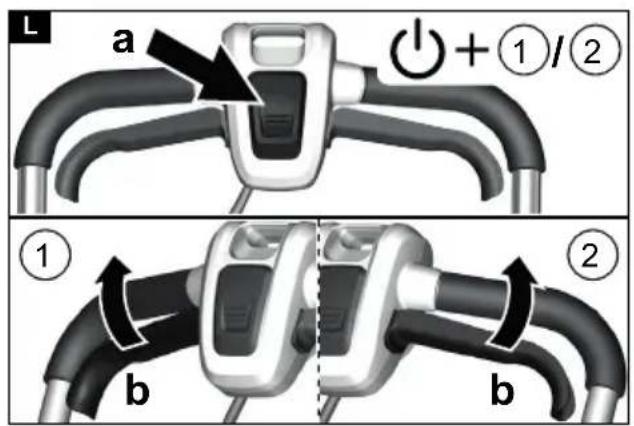

1. Press the start button and the ON/OFF switch.

Illustration L

The device starts.

1. Release the start button and hold the ON/OFF button pressed.

Empty the grass catcher regularly when using the grass catcher, otherwise the ejection chute can become clogged with cut grass (see Chapter Emptying the grass catcher).

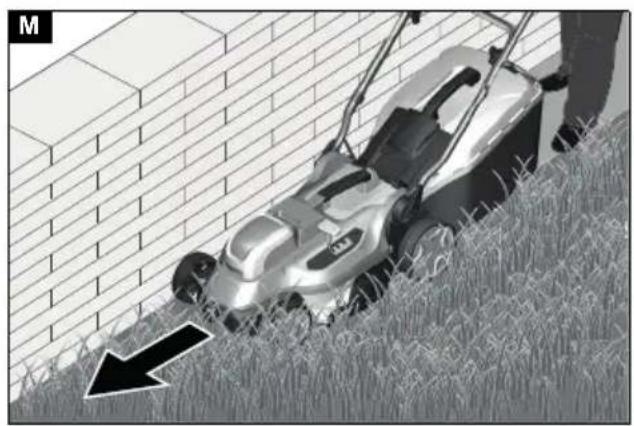

Mowing edges

Lawn edges, e.g. along a wall, can also be mown using the device.

1. Push the lawnmower along the wall, close to the wall.

Illustration M

The side inlet ensures that the grass is pulled into the cutting zone.

Illustration N

Finishing operation

1. Release the ON/OFF switch.

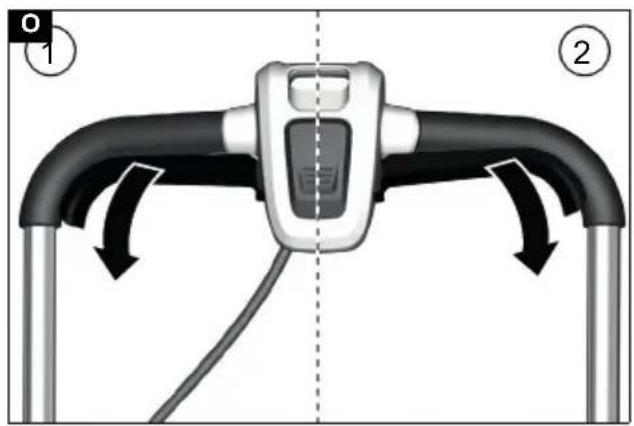

Illustration O

The motor stops.

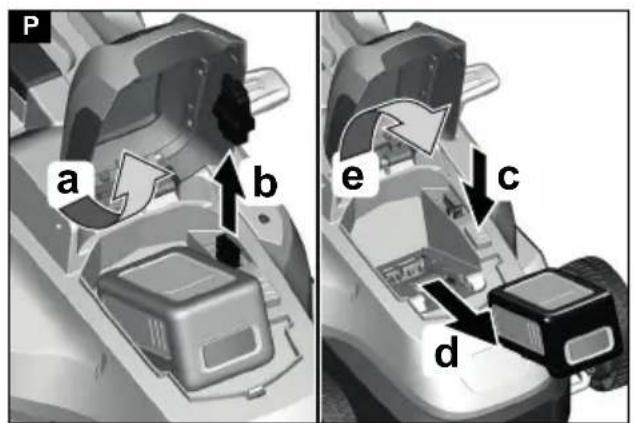

Removing the battery pack

1. Open the battery flap.

Illustration P

1. Remove the safety key.
2. Press the battery pack release.
3. Remove the battery pack.
4. Close the battery flap.

Emptying the grass catcher

The flap on the grass catcher filling lever indicator closes when the grass catcher is full. Empty the grass catcher in this case.

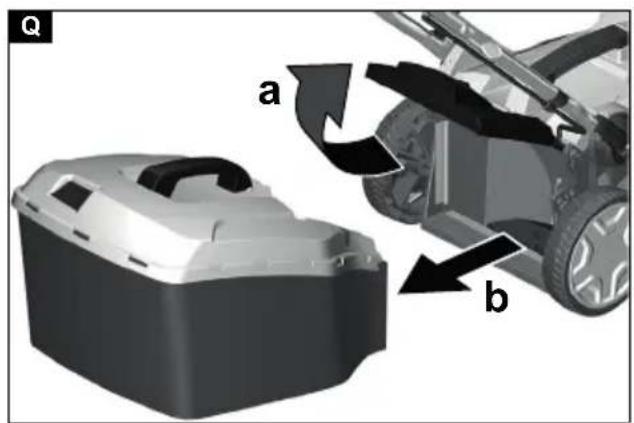

1. Lift the ejection chute flap.

Illustration Q

1. Remove the grass catcher.

Take care to ensure that the motor control cable remains in the cable holder when removing the grass catcher.

1. Empty the grass catcher.

Transport

⚠ WARNING

Sharp blade

Incision injuries

Be careful when tipping or lifting the device.

Keep all parts of your body away from the cutting blade.

1. Switch the device off (see Chapter Finishing operation).
2. Ensure that the blade is no longer rotating.
3. Allow the device to cool down.
4. Remove the safety key (see Chapter Removing the battery pack).
5. Remove the battery pack.
6. Secure the device against slipping and tipping over when transporting in vehicles.

Storage

Clean the device before storing (see Chapter).

1. Release the quick-release screws and fold down the handle.

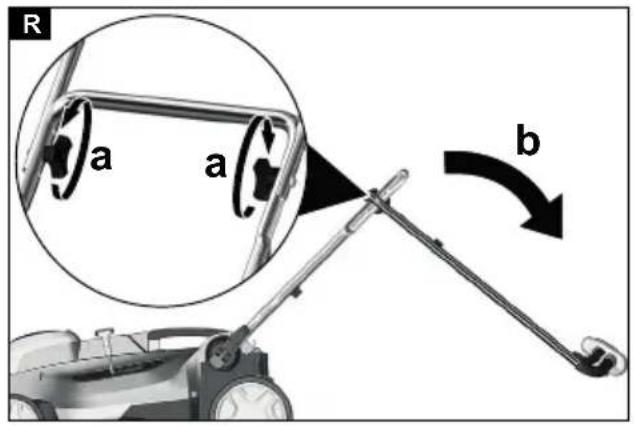

Illustration R

1. Fold over the quick-release catch and place the handle on the device.

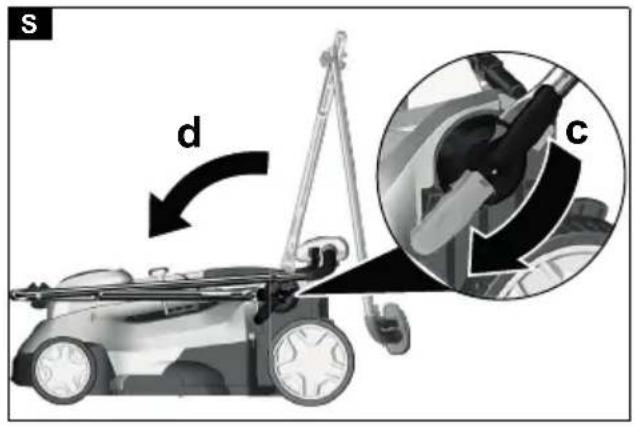

Illustration S

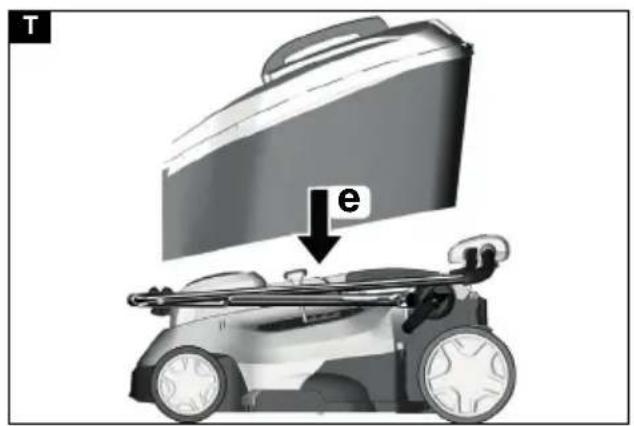

1. Place the grass catcher on the handle and the device.

Illustration T

1. Store the device in a dry, well ventilated location. Keep away from corrosive substances such as garden chemicals and defrosting salt. Do not store the device outdoors.

Care and service

⚠ WARNING

Sharp blade

Incision injuries

Be careful when tipping or lifting the device.

Keep all parts of your body away from the cutting blade.

Cleaning the device

1. Remove the battery pack (see Chapter Removing the battery pack).
2. Clean the exterior of the device with a soft, damp cloth or brush each time after use.

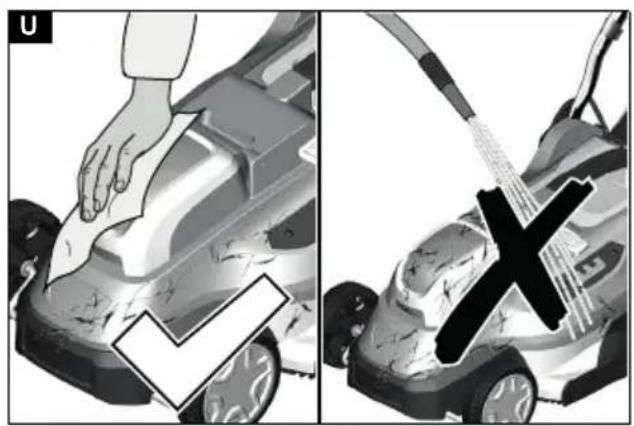

Illustration U

Clean the blade before longer storage periods.

1. Tip the device onto the side.

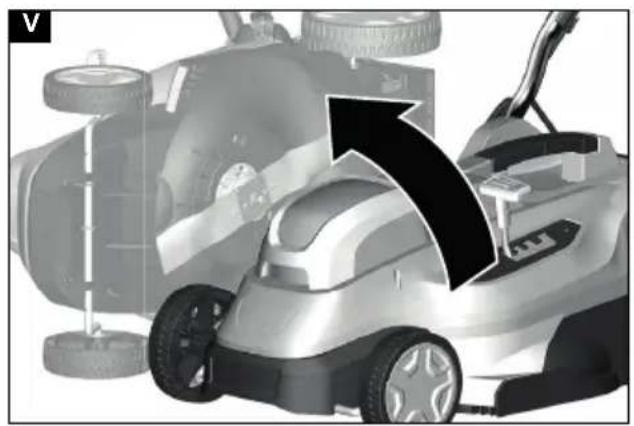

Illustration V

1. Clean the blade and the underside of the device using a brush.

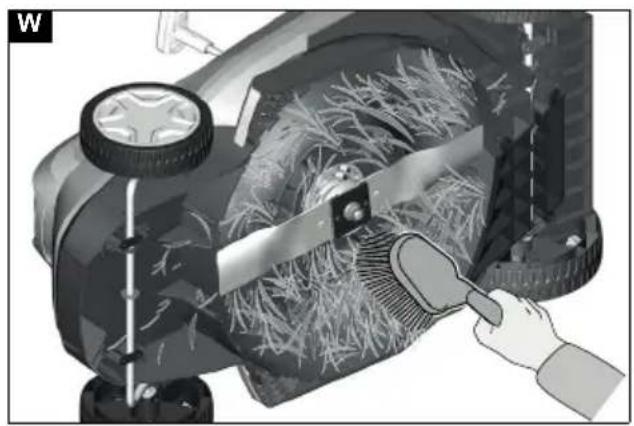

Illustration W

Removing blockages

⚠ WARNING

Removing blockages

Incision injuries from the sharp blade or sharp-edged objects

Wear protective gloves when checking for blockages or removing blockages.

1. Switch the device off and wait until the blade comes to a standstill.
2. Remove the battery pack (see Chapter Removing the battery pack).
3. Remove the grass catcher and check for blockages. Remove any blockages.
4. Check the ejection shaft for blockages. Remove any blockages.
5. Tip the device onto the side.
6. Check the underside of the device and the blade for blockages. Be careful when removing blockages because the blade can move while doing this.

Replacing the blade

1. Remove the battery pack (see Chapter Removing the battery pack).
2. Clean the underside of the device (see Chapter).

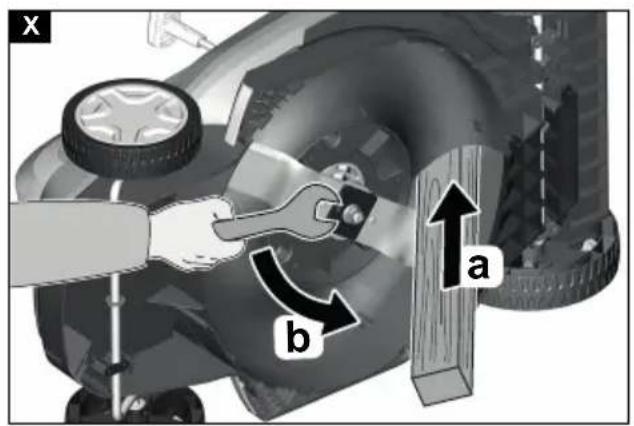

3. Lock the blade and then loosen the screw. Illustration X

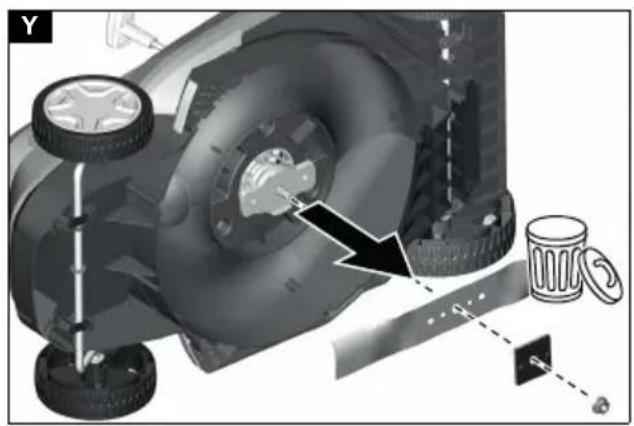

4. Remove and dispose of the blade. Illustration Y

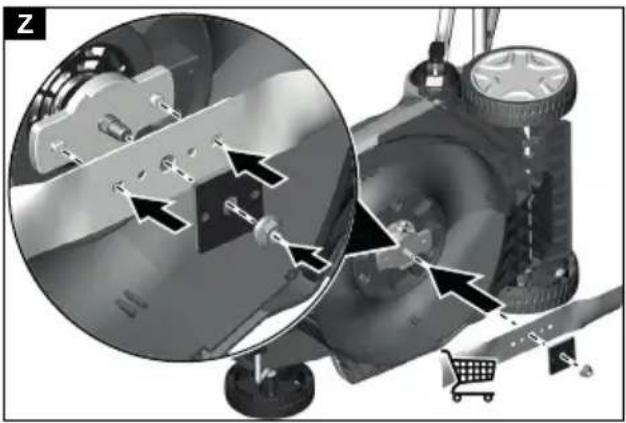

5. Fit the new blade into the holder. Illustration Z

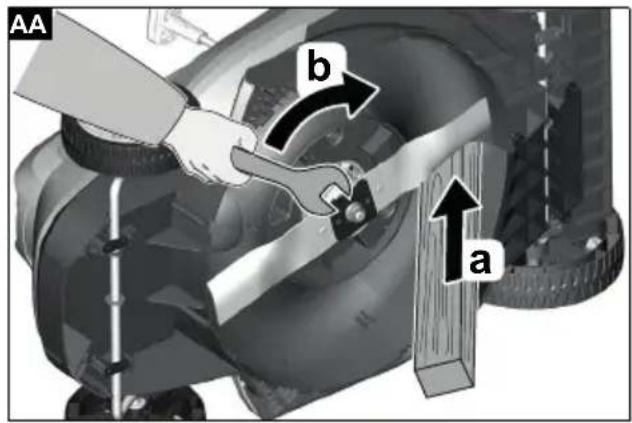

6. Lock the blade and then tighten the screw. Illustration AA

Troubleshooting guide

Malfunctions often have simple causes that you can remedy yourself using the following overview. When in doubt, or in the case of malfunctions not mentioned here, please contact your authorised Customer Service.

The device switches off

The device overload protection system has triggered.

1. Release the ON/OFF switch.
2. Press the start button and the ON/OFF switch. The battery pack overheating protection has triggered.
3. Wait until the battery pack temperature lies within the normal range.
4. Charge the battery pack if the device cannot be switched on.

Technical data

LMO 18-36

Device performance data

Nominal voltage V 18

Cutting width cm 36

Cutting height mm 30-70

Grass catcher volume l 45

Idle speed 1/min 4000 ± 10%

Determined values in acc. with EN 60335-2-77

Sound pressure level LpA	dB(A) 78
Uncertainty KpA	dB(A) 3
Sound power level LWA + K uncertainty WA	dB(A) 94
Right handle hand-arm vibration value	m/s 2	0,5
Left handle hand-arm vibration value	m/s 2	1,4
Uncertainty K	m/s 2	1,5

Dimensions and weights

	LMO 18-36
Length x width x height mm 1309 x	398 x1042

Weight (without battery pack) kg 13.4

Subject to technical modifications.

Warranty

The warranty conditions issued by our relevant sales company apply in all countries. We shall remedy possible malfunctions on your appliance within the warranty period free of cost, provided that a material or manufacturing defect is the cause. In a warranty case, please contact your dealer (with the purchase receipt) or the next authorised customer service site. (See overleaf for the address)

EU Declaration of Conformity

We hereby declare that the machine described below complies with the relevant basic safety and health requirements in the EU Directives, both in its basic design and construction as well as in the version placed in circulation by us. This declaration is invalidated by any changes made to the machine that are not approved by us.

Product: Battery-operated lawnmower

Type: LMO 18-36 Battery 1.444-4xx.0

Currently applicable EU Directives

2000/14/EC (+2005/88/EC)

2014/30/EU

2006/42/EC (+2009/127/EC)

2011/65/EU

Harmonised standards used

EN 50581: 2012

EN 55014-1: 2017

EN 55014-2: 2015

EN 60335-1:2012+A11:2014+A13:2017

EN 60335-2-77:2010

EN 62233: 2008

Conformity evaluation procedure used

2000/14/EC and amended by 2005/88/EC: Annex VI

Sound power level dB(A)

Measured: 91.0

Guaranteed: 94

Name and address of the notified body involved

The undersigned act on behalf and under the power of attorney of the company management.

H. Jenner

Chairman of the Board of Management

Documentation supervisor:

S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Germany)

Ph.: [phone]

Fax: [phone]

Winnenden, 2018-11-01

S. Reiser

Director Regulatory Affairs & Certification

Content

2006/42/EC (+2009/127/EC)

2011/65/EU

H. Jenner Chairman of the Board of Management

S. Reiser Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 01/11/2018

Contents

Reducing risks

⚠CAUTION

H. Jenner Chairman of the Board of Management

S. Reiser Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2018/11/01

⑩ ON/OFF switch

2006/42/EC (+2009/127/EC)

2011/65/EU

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 01/11/2018

Index

1. Release the ON/OFF switch.

Figure O

The motor stops.

Remove the battery pack

2006/42/EC (+2009/127/EC)

2011/65/EU

H. Jenner Chairman of the Board of Management

S. Reiser Director Regulatory Affairs & Certification

Winnenden, 01/11/2018

Contents

2006/42/EC (+2009/127/EC)

2011/65/EU

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2018/11/01

Contents

2006/42/EC (+2009/127/EC)

2011/65/EU

Harmonised standards applied

EN 50581: 2012

EN 55014-1: 2017

EN 55014-2: 2015

EN 60335-1:2012+A11:2014+A13:2017

EN 60335-2-77:2010

EN 62233: 2008

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Winnenden, 11/01/2018

Contents

Safety instructions.... 54

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

D-71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2018/11/01

Contents

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Phone: [phone]

H. Jenner Chairman of the Board of Management

S. Reiser Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2018/11/01

Contents

2006/42/EC (+2009/127/EC)

2011/65/EU

H. Jenner Chairman of the Board of Management

6

S. Reiser Director Regulatory Affairs & Certification

Winnenden, 01/11/2018

Table of Contents

H. Jenner Chairman of the Board of Management

S. Reiser Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

Winnenden, 2018/11/01

Table of Contents

2006/42/EC (+2009/127/EC)

2011/65/EU

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

Winnenden, 2018/11/01

Table of contents

Safety instructions.... 91

Intended use....93

Environmental protection....93

Accessories and spare parts.... 93

Scope of delivery.... 93

2006/42/EC (+2009/127/EC)

2011/65/EU

Chairman of the Board of Management

S. Reiser Director Regulatory Affairs & Certification

Winnenden, 1. 11. 2018

Table of contents

2006/42/EC (+2009/127/EC)

2011/65/EU

H. Jenner Chairman of the Board of Management

S. Reiser Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Relevant EU Directive

2000/14/EC (+2005/88/EC)

2014/30/EU

2006/42/EC (+2009/127/EC)

2011/65/EU

Harmonized standards applied

EN 50581: 2012

EN 55014-1: 2017

EN 55014-2: 2015

EN 60335-1:2012+A11:2014+A13:2017

EN 60335-2-77:2010

EN 62233: 2008

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 1/11/2018

Contents

2006/42/EC (+2009/127/EC)

2011/65/EU

H. Jenner Chairman of the Board of Management

S. Reiser Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 01.11.2018

Contents

Safety instructions.... 113

2006/42/EC (+2009/127/EC)

2011/65/EU

Applied harmonized standards

EN 50581: 2012

EN 55014-1: 2017

EN 55014-2: 2015

EN 60335-1:2012+A11:2014+A13:2017

EN 60335-2-77:2010

EN 62233: 2008

H. Jenner Chairman of the Board of Management

S. Reiser Director Regulatory Affairs & Certification

Authorized representative for documentation:

S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 1. 11. 2018.

Contents

Safety notes 118

Intended use 119

2006/42/EZ (+2009/127/EZ)

2011/65/EU

Applied harmonized standards

EN 50581: 2012

EN 55014-1: 2017

EN 55014-2: 2015

EN 60335-1:2012+A11:2014+A13:2017

EN 60335-2-77:2010

EN 62233: 2008

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

Authorized for documentation:

S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Germany)

Tel.: [phone]

Winnenden, 2018/11/01

Table of Contents

Safety instructions.... 123

Intended use.... 125

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2018/11/01

Table of Contents

Safety instructions 129

2006/42/EU (+2009/127/EU)

2011/65/EU

H. Jenner Chairman of the Board of Management

S. Reiser Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel: [phone]

Winnenden, 2018/11/01

Contents

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

Authorized representative for documentation:

S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Germany)

Phone: [phone]

THANK YOU!

MERCI! DANKE! iGRACIAS!

Register your product and benefit from many advantages.

www.kaercher.com/welcome

Rate your product and tell us your opinion.

www.kaercher.com/dealersearch

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28-40

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]
