Tafelspitz - Grill plate Klarstein - Free user manual and instructions

Product type	Electric grill plate with trolley
Brand	Klarstein
Model	Tafelspitz
Reference (article)	10033448
Power supply	220-240 V ~ 50/60 Hz
Plate material	Steel with non-stick coating
Lid	Yes, removable with handle
Thermostat	Removable temperature controller
Grease tray	Capacity 0.3 liters, removable
Wheels	2 wheels with axle and R-pins
Handles	Handle on lid and on housing
Safety distance from walls	Minimum 30 cm
Heating time	Approximately 3 minutes
Temperature levels	5 adjustable levels
Care and cleaning	Clean the plate and tray with warm water and a damp cloth. Do not use abrasive sponges.
Safety	Automatic shut-off? Not mentioned. Unplug after use, do not immerse, keep out of reach of children.
Spare parts	Temperature controller, grease tray, lid, wheels, screws and nuts provided
Repairability	Repairs by qualified personnel only
Country of manufacture	Germany (manufacturer Chal-Tec GmbH)
Dimensions (estimate)	Approximately 80 x 50 x 90 cm (with trolley)
Weight (estimate)	Approximately 15 kg

Frequently Asked Questions - Tafelspitz Klarstein

What is the power rating of the Klarstein Tafelspitz grill plate?

The appliance operates on a power supply of 220-240 V ~ 50/60 Hz. The exact power is not indicated in the manual, but it is typically between 1500 and 2000 W for this type of appliance.

How to assemble the trolley and wheels?

Place the frame supports on the bent tube and fix them with two screws (N1). Insert the wheel axle into the holes, then fix the wheels with the R-pins. Finally, align the three prongs and press the caps (d) onto the wheels.

Is the lid removable?

Yes, the lid is removable. To remove it, open it at an angle of 45° and remove the hinges (O) from the holes (Q). To put it back, push the hinges into the holes.

How to clean the plate after use?

Unplug the appliance and let it cool completely. Clean the plate and grease tray with warm water and a damp cloth. Never use steel wool or abrasive sponges to avoid damaging the non-stick coating.

What is the capacity of the grease tray?

The grease tray has a capacity of 0.3 liters. It is recommended to empty it regularly and wear heat-resistant gloves when handling it while hot.

How long does it take for the plate to heat up?

Typically, the appliance takes about 3 minutes to reach the desired temperature. The temperature indicator light goes off once the temperature is reached.

Can I use metal utensils on the plate?

It is not recommended to use sharp metal forks or utensils, as they can scratch the non-stick coating. Preferably use wooden or silicone tongs or spatulas.

What safety distance should I maintain around the appliance?

Maintain a minimum distance of 30 cm between the appliance and walls or any flammable objects. Do not place the appliance under a cabinet or kitchen shelf.

Can the grill plate be used without the lid?

Yes, you can grill with or without the lid. Cooking times vary accordingly: with the lid, cooking is faster and more even. The cooking time table in the manual provides indications for both modes.

What to do if the power cord is damaged?

If the power cord is damaged, it must be replaced by the manufacturer, an authorized service center, or a similarly qualified person. Never attempt to repair the appliance yourself.

USER MANUAL Tafelspitz Klarstein

Berlin Brands Group UK Ltd

PO Box 1145

Oxford,OX19UW

United Kingdom

SICHERHEITSHINWEISE

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the items and cautions mentioned in the instruction manual is not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and other information about the product.

CONTENT

Safety Instructions 18

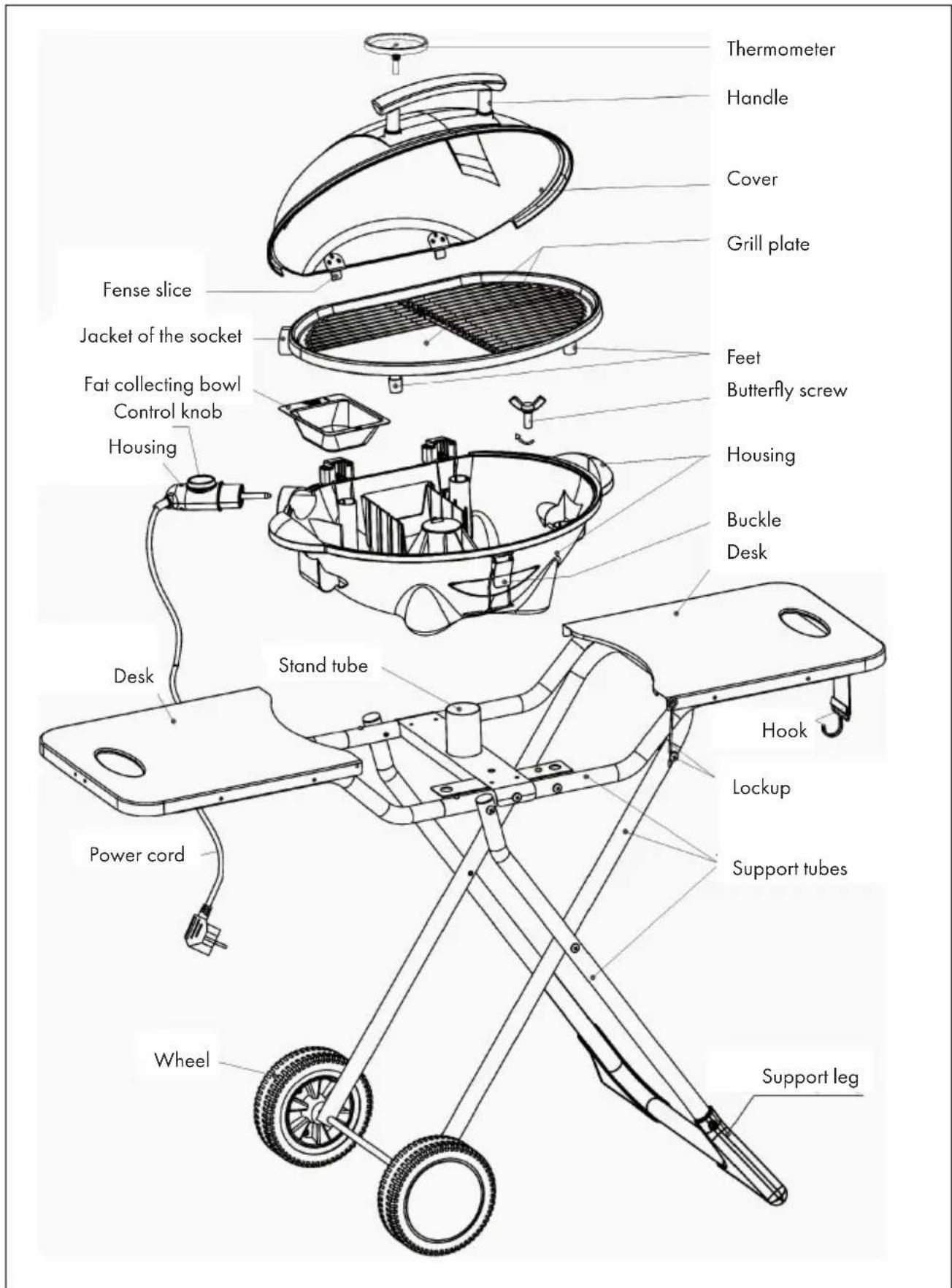

Product Overview 19

Assembly 20

Start-up and Operation 27

Cleaning and Care 28

Hints on Disposal 28

TECHNICAL DATA

Item number 10033448
Power supply	220-240 V ~ 50/60 Hz

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford,OX1 9UW

United Kingdom

SAFETY INSTRUCTIONS

• Connect the device so that the mains plug is easily accessible at all times.
• Inspect the power cord regularly for damage. If the power cord is damaged, it must be replaced by the manufacturer or an authorized service center or a similarly qualified person.
• Repairs may only be carried out by qualified personnel, do not attempt to repair the device yourself.
• Do not connect the unit to a timer or a remote control power outlet.
• Never immerse the appliance, power cord or plug in water or other liquids.
• Do not handle the plug with wet hands.
• Do not pull the plug out of the socket by the cable, but hold it firmly by hand when pulling it off.
• Do not use the cable as a handle.
• Lay the cable in such a way that no one will trip over it.
• Do not let the cable run over sharp edges.
• Do not use the unit in wet rooms or in the rain.
• Place the appliance in such a way that it cannot fall into water. If it does fall into water, immediately unplug the appliance from the wall outlet and only then touch the appliance.
• Unplug the appliance from the wall outlet when it is no longer in use.
• Keep the appliance away from open fire and heat sources.
• Children, physically and mentally handicapped persons should only use the appliance if they have been thoroughly familiarized with its functions and safety precautions by a supervisor.
• Keep children away from the grill and do not leave the appliance unattended during operation.
• Place the appliance on a stable, level surface.
• Make sure that there are no easily inflammable objects or materials around the grill.
• Keep at least 30~cm away from walls.
• Do not touch the grill grate or other hot surfaces during operation.
• Do not move the appliance until it has cooled down completely. Only touch the appliance by the handles provided for this purpose.
• Only place the appliance on surfaces that are insensitive to heat. Position the appliance so that it is not too close to the edge.
• To avoid heat build-up, do not place the appliance directly under kitchen cabinets or shelves.
• Do not place the appliance on or near a stove.
• Do not expose the appliance to excessive temperatures and weather variations.
• Never fill the grill with liquids.
• If parts are damaged, do not continue to use the grill.

ASSEMBLY

Hardware

(N1) Screw (x4) (N3)	Screw (x3) (N3) Washer and Nut (x3)
(N2) Washer, Nut and Screw (2 sets)	(C) R Pin (x2) (S1) Butterfly Screw (x1)

1	2
Remove the frame and accessories from their packaging. Place the frame holders (Z1) on the curved tube and fasten them to the tube with two screws (N1). Slide the wheel axle (a) through the two holes located at the ends of the tubes.	Attach the wheels (b) to both sides of the axle (a).

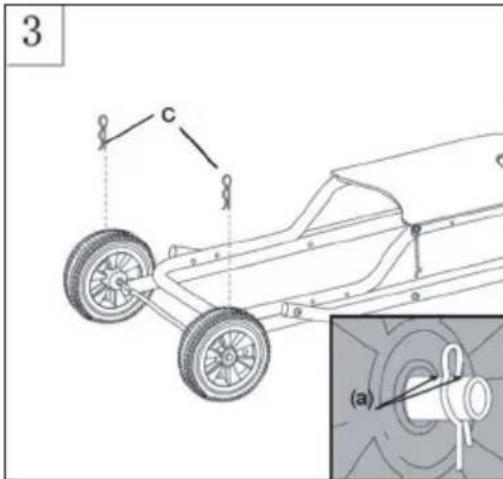

There are two holes at each end of the axis (a). Insert the R-shaped clamp (c) through the holes (a) to fix the wheels.

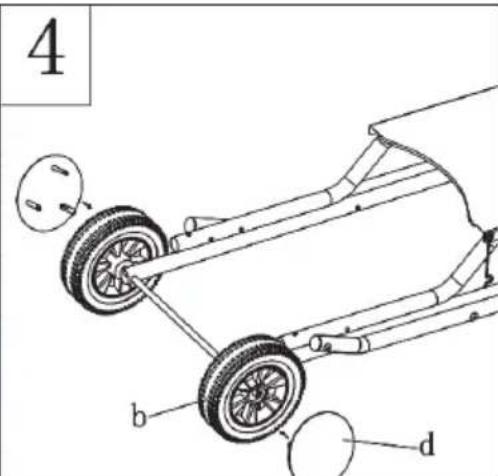

Align the three tips and press the covers (d) onto the wheels (b).

5	6
Open the trolley: Place the right foot on the middle of the support tube (Ⅰ). Raise the table (Ⅱ) with your right hand and pull the tube (Ⅲ) upwards with your left hand. Slide the tube (Ⅲ) under the table. Close trolley: Place the right foot on the middle of the support tube (Ⅰ). Hold the table (Ⅱ) with your right hand and slowly lower the tube (Ⅲ) downwards. Be careful not to pinch your fingers!	Immediately adjust the safety lock (f) after opening the wagon. The car is equipped with an automatic lock. Press the spring (e) and hook the bent hook (f) into the extension of the spring (e). Release the spring again. It extends and locks the safety lock. Note: Make sure that the safety lock is always closed when grilling or moving. Do not attempt to turn or pull the hook while using the appliance.

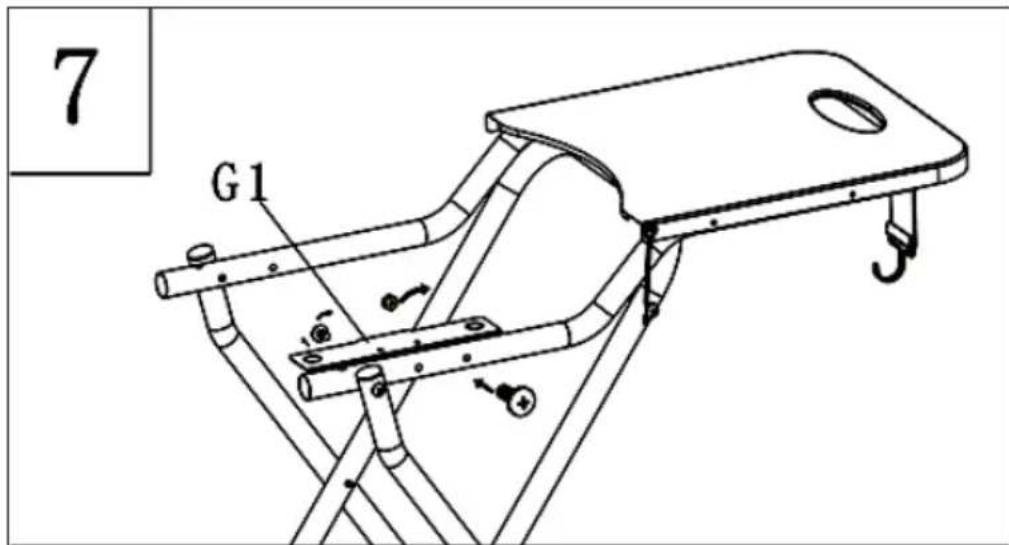

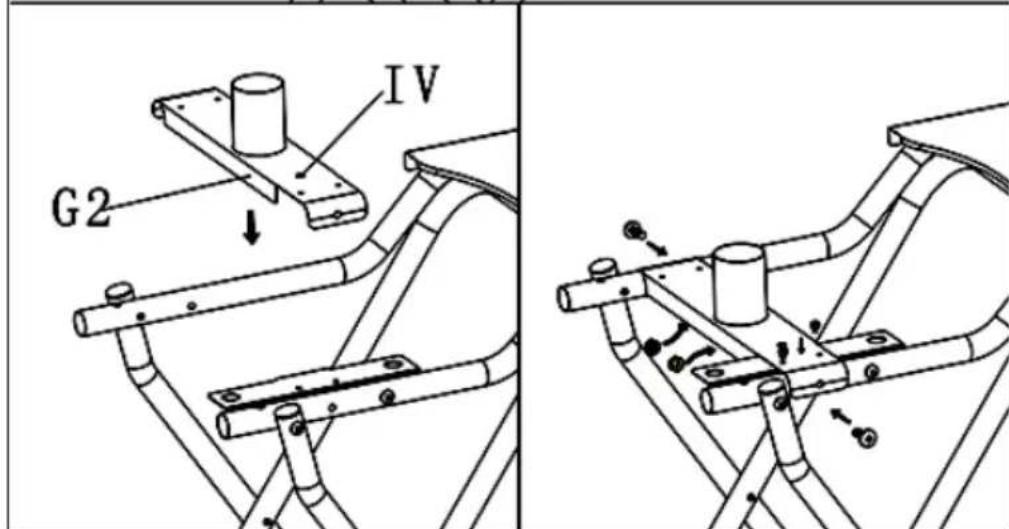

First remove the screw from the pipe. Mount the bracket (G1) on the pipe. Then mount the support tube (G2) on the tube. There is a positioning hole (IV) on the support tube (G2) where the housing is later fixed. Tighten the bracket (G1) and the support tube (G2) with screws and nuts.

8	9
Slide the housing (h) down onto the support tube (G2). Align the positioning protrusion on the housing with the positioning hole (IV). Fix the housing to the carriage with the thumbscrew (S1). Align the grill plate holder (L) with the recess (M) on the housing and then insert the grill plate (K) into the housing. If you want to remove the grill plate later, lift it slightly to the right and pull the holder (L) diagonally out of the recess (M). When you later remove the housing from the support tube (g), lightly step on the support tube (I), hold the handles of the housing and remove it.	Mount the cover. Hold the cover by the handle (p) and slide the hinges (O) into the holes (Q) of the base. When you later remove the cover, open the cover at a 45° angle and release the hinges (O) from the holes (Q). The cover must be open at a 45° angle for it to be removed.
10	Insert the pin (n) of the removable temperature controller into the socket. You can now plug the plug into the socket. If you remove the removable temperature controller later, hold it by the base, do not pull on the cable. Note: Lay the power cord so that no one will trip over it and remember to remove the plug after use.

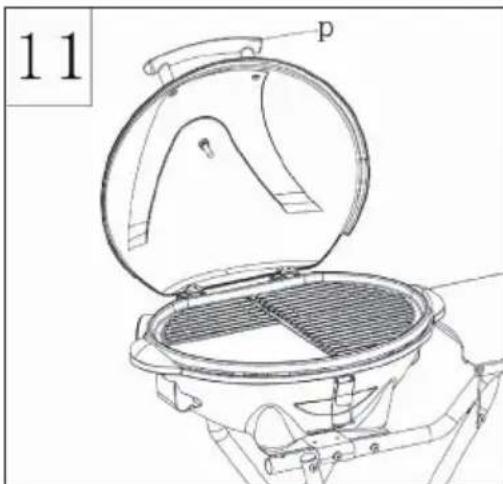

The removable lid makes the grill easier to use and clean.

Note: If you want to close or open the cover, hold the lid ONLY by the handle. Be careful not to burn yourself, as the lid gets hot when grilling!

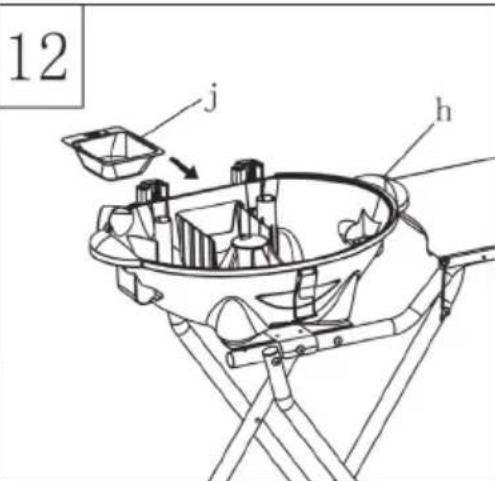

Insert the grease pan (j) into the supplied holder on the back of the housing (h). To securely secure the grease pan, align the hole in the grease pan with the positioning protrusion located in the center of the housing. To facilitate cleaning, the grease pan can be filled with a little water. When you remove the grease pan, remove the pan from the positioning protrusion and remove it.

Note: The capacity of the grease pan is 0.3 litres. Pour out the fat as soon as the tub is full. The surface of the fat pan becomes very hot. Use heat-resistant gloves if you have to remove them!

START-UP AND OPERATION

Before the first operation

Remove the packaging and clean the grill plate, the fat pan and the lid completely.

Operation

1 Connect the device to the power supply.
2 Set the temperature controller to the desired temperature. (The unit usually takes 3 minutes to heat up.)
3 The temperature indicator lamp will turn off when the desired temperature is reached.
4 Place the food on the grill plate.

Cooking times

The table shows the recommended cooking times. However, the actual cooking time varies depending on the size and weight of the food and also depends on whether you are grilling with or without a lid.

Food to be grilled Temperature setting Cooking time
Steak/beef 5 15-20 mins
Lamb 5 12-18 mins
Chicken drumsticks 5 25-30 mins
Chops 5 20-25 mins
Chicken wings 5 15-20 mins
Fillet of pork 4-5 9-10 mins
Whole fish	5 12-15 mins
Kebabs	3-4
Various sausages	3-4

Tips for grilling

• Your meat will be tendered if you marinade it overnight before cooking (the marinade is always made of oil (to and moistness), vinegar (to tenderize) and a mixture of seasonings).
• Always use tongs or some form of scoop to turn the grilled food (using a fork to turn the food will dry it out and damage the non-stick coating).
• Only turn meat and fish once during grilling. You do not need to turn it more than once and too much turning dries food out.
• Never cook meat for too long. Even pork is better if it is served when it is still somewhat pink and juicy.
• If cooked food sticks to the grill plate, rub the plate with a piece of kitchen paper soaked in oil from time to time.

CLEANING AND CARE

• Disconnect the appliance from the mains electricity supply.
• Allow the grill to cool completely.
• Take the detachable temperature regulator out of the appliance socket.
• Clean the grill plate and grease collecting bowl with warm washing-up water and damp cloth. Do not use steel wool pads, brush or abrasives to avoid any damages to the coating of grill.
• Wipe the base of the appliance with a damp cloth. Fat splashes can be removed with a mild cleaning agent.

Note: The grill plate has a non-stick coating. Do not scratch this coating during either the grilling or the cleaning stages.

HINTS ON DISPOSAL

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.
