Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the items and cautions mentioned in the instruction manual is not covered by our warranty and any liability. Scan the QR code to get access to the latest user mannaual and other information about the product:

CONTENTS

Safety Instructions 46
Product Overview 48
Packing Content 49
Hardware 50
Installation 51
Overview of Cardio Training 55
Warming Up before a Workout 58
Control Panel and Key Functions 61
Modes and Programs 64
Program and Speed Tables 68
Troubleshooting 70
Care and Maintenance 71

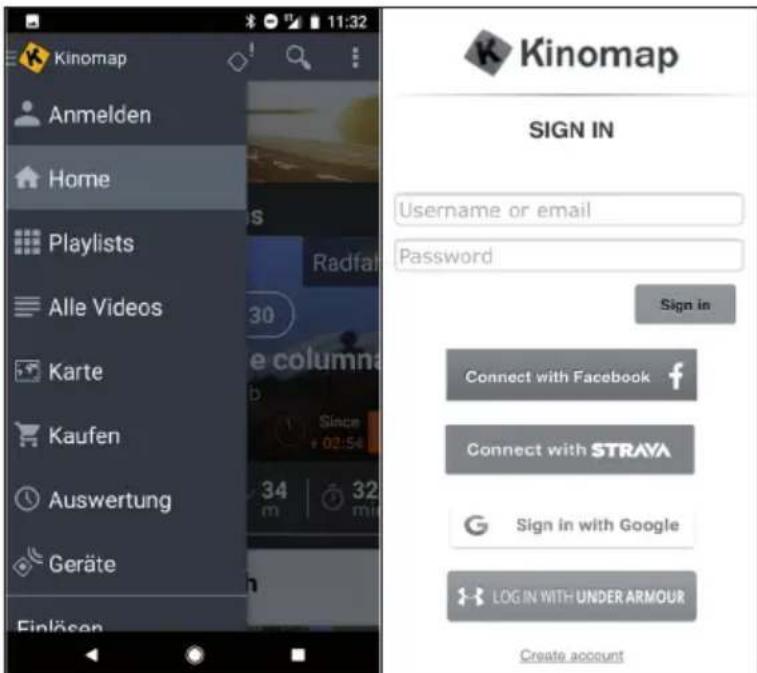

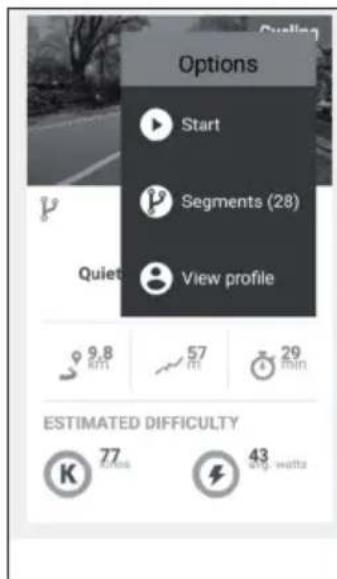

Training via KINOMAP App 74
Hints on Disposal 86
Declaration of Conformity 86

TECHNICALDATA

Item number	10032955
Power supply	220-240 V ~ 50/60 Hz
Dimensions (length x width x height)	approx. 182 x 87 x 151 cm
Weight	90 kg

WARNING

This stationary training device is not suitable for high accuracy purposes. The heart rate monitoring system may be faulty. Excessive exercise may result in dangerous injury or death. If your performance deteriorates abnormally, stop training immediately.

SAFETY INSTRUCTIONS

Before operating this unit, please read this manual carefully to ensure optimum performance and safety. This is manual should be kept available for future reference. For product improvement, the company reserves the right to change the design and specification at any time without prior notice. Pictures are for reference use only and may differ from the actual product.

• Please keep this manual in a safe place for your reference when necessary.
• Please do not assembly or use this equipment until you read this manual thoroughly & carefully. The safety and efficiency only can be achieved when the equipment is assembled, maintained and used properly. It is your responsibility to ensure that all the users are informed of all the warnings and precautions.
• For totally safe use, a stable, leveled surface is required. Protect your floor with a mat. Do not use the equipment in a damp areas such as swimming pool sauna, etc. For safety space, the equipment must have at least 0.6 meter of free space all around it.
• Before starting any exercise program you must consult your doctor to determine if you have any physical or health conditions that could create a risk to your health and safety, or prevent you from using the equipment properly. Your doctor's advice is essential if you are taking medication that affects your heart rate, blood pressure or cholesterol level.
• Be aware of your body's signals. Incorrect or excessive exercise can damage your health. Stop exercising if you experienced any of the following symptoms: pain, tightness in your chest, irregular heartbeat, extreme shortness of breath, feeling light headed, dizzy or nauseous. If you do experience any of these conditions you must consult your doctor before continuing with your exercise program.
• Do not workout immediately after meals.
• Keep children and pets away from the equipment, the equipment must be assembled and used by adults only.
• The equipment is designed for home use only.
• The equipment is not suitable for therapeutic use, may only be used for exercises indicated in the training instructions
• Wearing proper clothing and athletic shoes while using the equipment, Avoid wearing loose clothing that may get caught in the equipment or that may restrict or prevent movements.

• Keep your back straight while exercising.

• Before using the equipment, check the handle bar, seat, and the nuts & bolts are securely tightened.

• For adjustable parts, bear the maximum position in your mind, do not exceed the mark "stop", otherwise will cause risk.
• Always use the equipment as indicated. If you find any defective components while assembling or checking the equipment, or if you hear any unusual noises coming from the equipment during use, stop immediately. Do not use the equipment until the problem has been solved.
• Care must be taken when lifting or moving the equipment so as not to injure your back. always use proper lifting techniques and/or seek assistance if necessary.
• All moveable accessories (e.g. pedal, handlebar, saddle...etc.) require weekly maintenance. Check them before use every time. If anything broken or loose, please fix them immediately. You may continue using them only after they return to good conditions.
• Pay attention to the absence of a free wheel system which will cause serious risk.
• Keep power cord away from heat sources.
• Do not insert or drop any object into any opening.
• Unplug exercise bike before moving or cleaning it. To clean, wipe surfaces down with mild detergents and a slightly damp cloth only; never use solvents.
• Do not use the exercise bike in any location that is not temperature controlled, such as, but not limited to, garages, porches, pool rooms, bathrooms, car ports or outdoors.
• Use the bike only as described in this manual.
• Incorrect repair and structural modifications (e.g. removal or replacement of original parts) may endanger the safety of the user.
• The rotating disk flywheel will get hot during the operation.
• Lock the equipment when stop using.
• This product is not designed for use by persons (including children) who have reduced physical, sensory or mental capacities or persons with no experience or knowledge, unless they are instructed and supervised in the use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Before use, check the voltage on the device badge. Only connect the device to sockets that correspond to the voltage of the device.

Note: Maximum weight of the user is 110kg

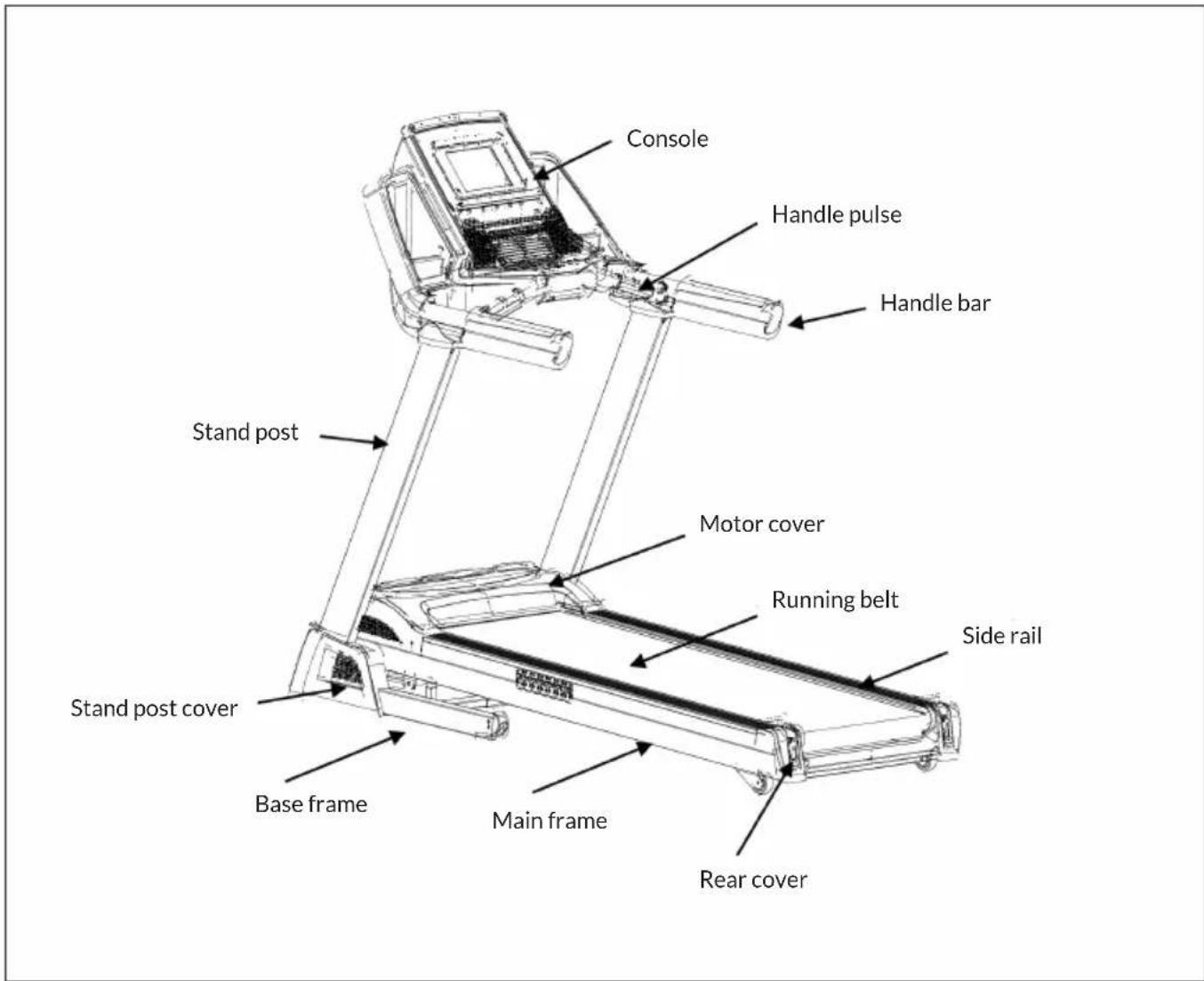

PRODUCT OVERVIEW

Main body

Hardware Console

Upright post

Stand post cover

Handle bar cover Manual

Clamp ring of console frame Safety key
Silicon oil

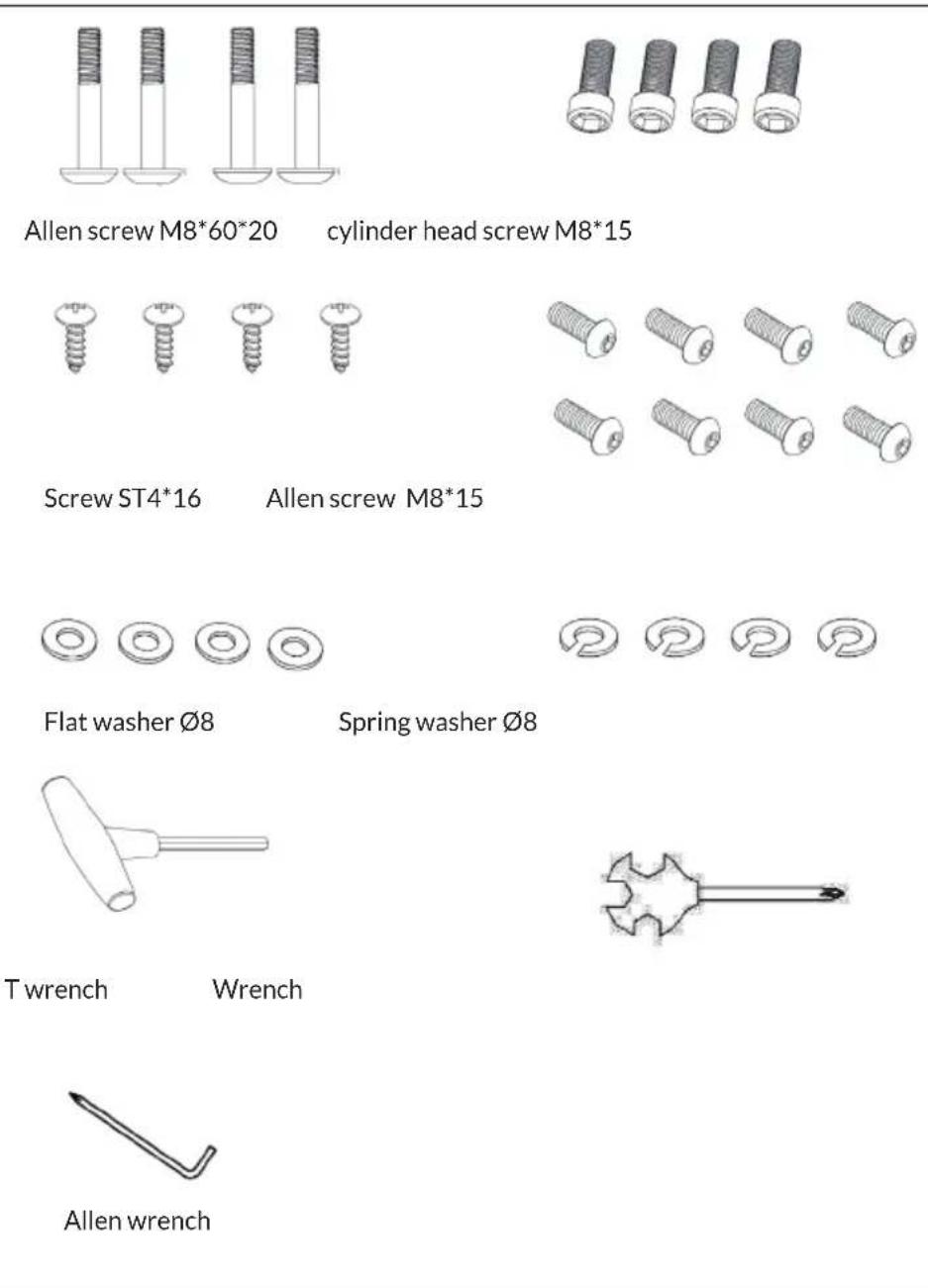

HARDWARE

INSTALLATION

1

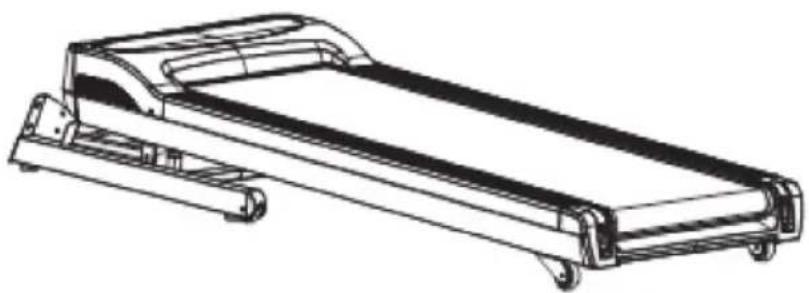

Take out the machine from box and put it on the flat floor.

2

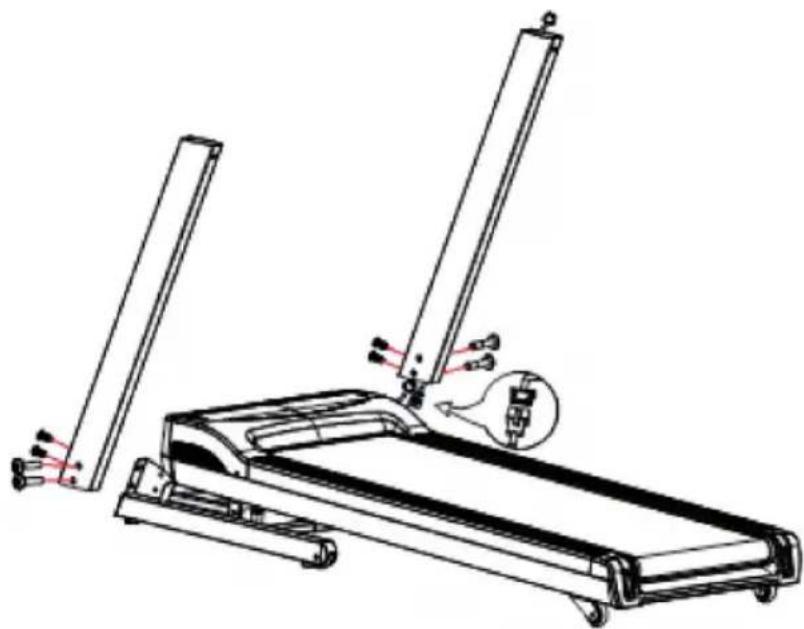

Connecting the communication wire inside of stand post with the communication wire inside base frame. Then Insert the upright post into clamping ring on the both side of the main frame and fix tight with Allen C.K.S. half thread screw M86020 and Allen C.K.S. full thread screw M8*15.

3

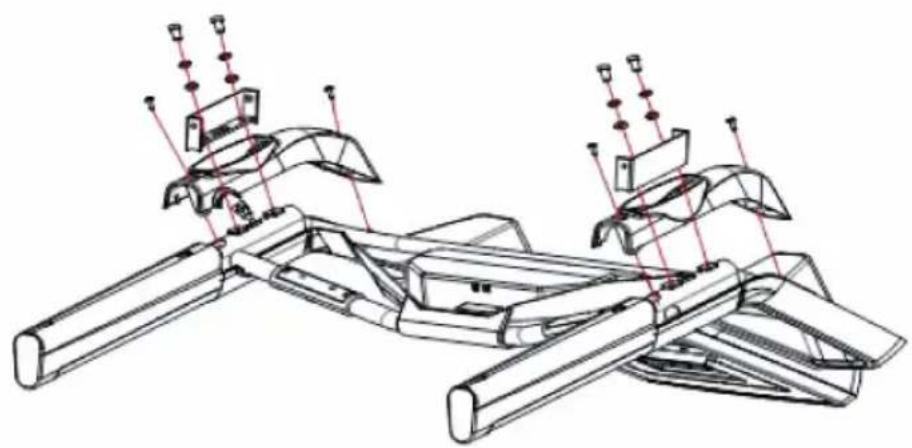

Take out the handle bar cover and then fix them to console with 4 pcs of Self-tapping screw ST4*16; Take out the clamp ring of console frame and then fix them to console with 4pcs of Inside hexagon cylinder head full - tooth bolts, 4 pcs of 8 flat washer and 4 pcs of 8 spring washer.

Note: Please pay more attention to avoid any scratch for the handle bar cover and console during assemble; Make sure the communication wire also through of the clamp ring.

4

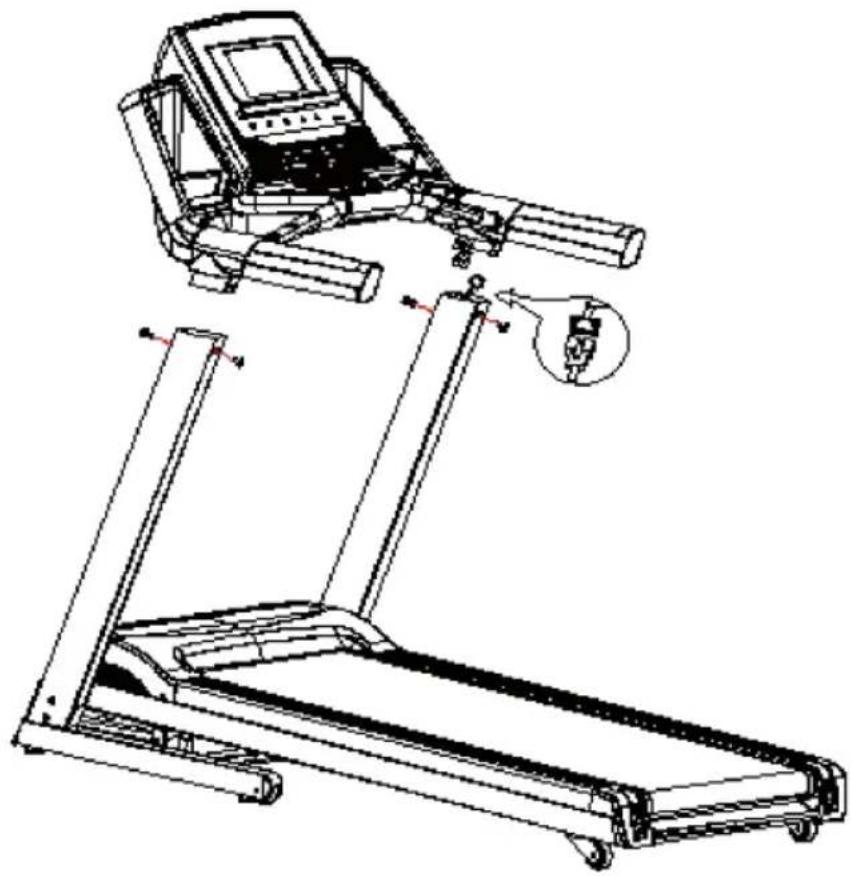

Connect communicate wire inside stand post with communicate wire inside console handle bar as following picture. Then fix the console with upright post with 8 pcs of the inner hexagonal large flat head full - tooth bolts. (Lock the bolts)

5

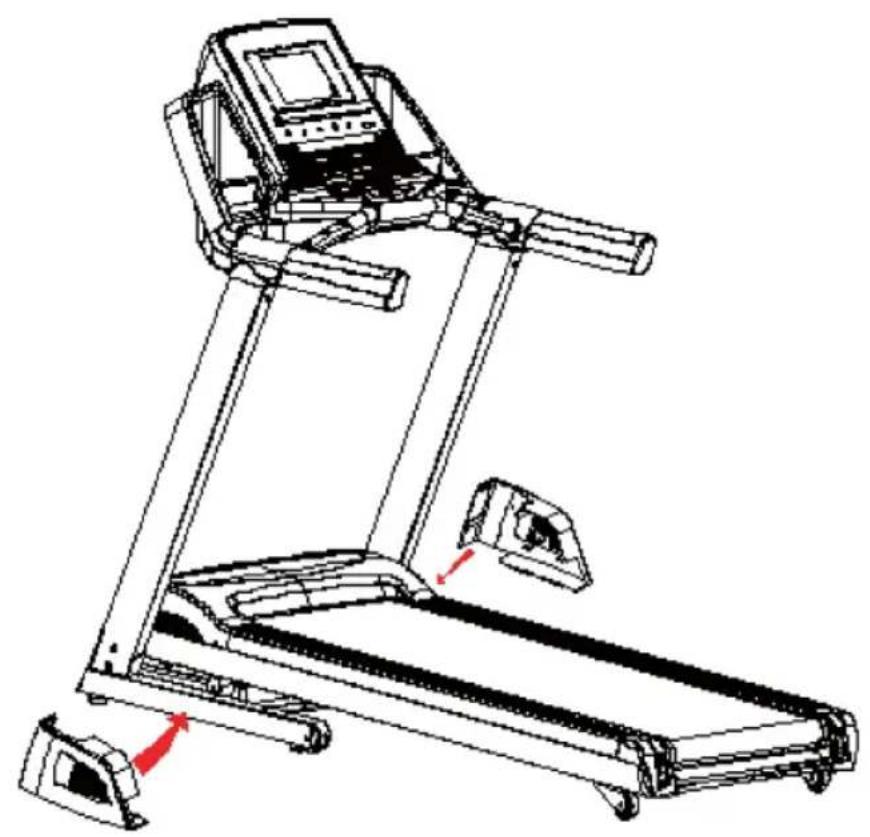

Take out the stand post cover and then fix them to the each side of running deck as following picture. Then tighten all screws. Assembly finished.

Regular cardio training stimulates the cardiovascular (heart and blood vessels) and respiratory system. It improves your general health and helps you to burn fat. It is the recommended workout if you want to lose weight. When exercising, glucose is burned off first, then the fat stored in the body.

Intensive cardio training (e.g. circuit training, training with high resistance and long duration training) requires a greater amount of effort and also trains the muscular system and your endurance. As a rule, the more regular you train, the more effective the training is (even with short training sessions of 20 minutes).

During the Training

The level of resistance used during the workout determines the training intensity and the associated results.

An optimal training session includes (1) a warm-up phase, (2) an intensive cardio training phase and finally (3) a cool down phase. If you want to progress or burn calories, you should go through these 3 phases as well as exercise for at least 20-30 minutes on the ergometer.

1. Warm-up Phase

Always start your training session with a low resistance level. A warm-up phase of 5-10 minutes is important because your muscles need to be warmed up. During the warm-up phase, you should give your circulatory system and muscles time to prepare for the subsequent workout. As a beginner, you can train for the first 3 minutes at the easiest level and then gradually increase the level to where you feel most comfortable.

2. Cardio Training Phase

After about 10 minutes, you can then begin the cardio training phase. When using the interval training program, the computer controls the resistance depending on the type of interval chosen and thus simulates changing intensities.

The cardio training phase is considered aerobic or anaerobic training depending on the energy expenditure. These two types of training are defined as follows:

Aerobic Training Zone

While you are in this zone, you are improving your cardiovascular system and burning fat.

Despite an increased heart rate, deeper breathing and light sweating, the body is not in a very stressed state, breathing is not significantly accelerated—you could still talk to someone without going out of breath—and you feel that you could sustain the physical exertion for a long time. It's similar to when you briskly walk uphill.

The muscles and heart work more intensely than when the body is at rest and can get most of their energy needs met via aerobic energy production, which utilizes oxygen to facilitate energy production. At the same time, the anaerobic production of energy is also active, but only to a small extent. The lactic acid produced in this process can be broken down to produce energy. Most of your training should be aerobic training.

If you continue to increase the intensity, you will eventually come to the threshold where aerobic energy production is no longer able to increase its output. At this point, there is a shift towards anaerobic energy production being used to a greater extent. You are now doing anaerobic training.

Anaerobic Training

When in this zone, you are improving your performance and speed. When you increase the intensity while in this zone, the training becomes much more strenuous because of the rising lactate level in the body; you start sweating more; your breathing gets faster; and after some time depending on your fitness level, your muscles tire and you feel totally exhausted and that you can no longer continue at this level of intensity.

3. Cool-down Phase

At the end of the cardio training phase, you begin the cool-down phase, which should last for at least 5 minutes. Here, you use low levels of resistance. The recovery or cool-down phase is also helpful with regard to preventing possible muscle soreness. It is also advisable to do active recuperation after an intensive training session, such as a hot bath, a sauna session or a massage.

Training Progress

Each month you can make the training more challenging by extending the duration of the cardio training phase, by using a higher level of resistance within that phase or by doing a more demanding interval training.

Eating and Drinking

• Drink before, during and after training.
• Drink at least 2 sips of water (10 to 20 cl) every 10-15 minutes during a training session.
• If your workout lasts for more than 1 hour, you should drink a sports drink to protect the body from dehydration while training.
• For optimal cardio training, suitable nutrition before and after any physical activity is very important.

Before training, it is best to eat carbohydrates, such as those found in rice and pasta, as they provide the body with an important source of energy.

After training, you need to refuel with proteins, such as those found in eggs, yoghurt and dried fruits. Even if you want to lose weight, it is absolutely necessary to eat after training in order for your body to recuperate.

WARMING UP BEFORE A WORKOUT

Perform the movements before each workout to mobilize your joints and activate your muscles.

Should a movement be uncomfortable or painful, skip this movement and consult your doctor or fitness instructor about suitable warm-up movements.

Each movement should be repeated (right and left) so that you can start the cardio training relaxed.

Take about 5 minutes to do the following Capital Sports training routine:

2	3
Turn the hips while the arms are stretched. The feet are not firmly fixed to the ground; the ankles follow the body's rotation.	Bend at the hip with one arm stretched upward. Stay in this position for a few seconds on each side.

4
Stand on one leg and hold the instep of the other leg with your hand. While in this position, mobilize your ankle so as to stretch the thigh slightly. If necessary, hold on to something to keep your balance. Then Stand on one leg and draw a circle in both directions (clockwise and counterclockwise) with the ankle.
5	6
When squatting, place your feet about shoulder-width apart and lower your hips while keeping your arms straight. Try to also keep your back straight.	Sit with your legs bent so that the soles of your feet touch. Slightly flap the knees by moving the knees up and down while keeping the feet on the floor. Hold your ankles and keep your back straight.

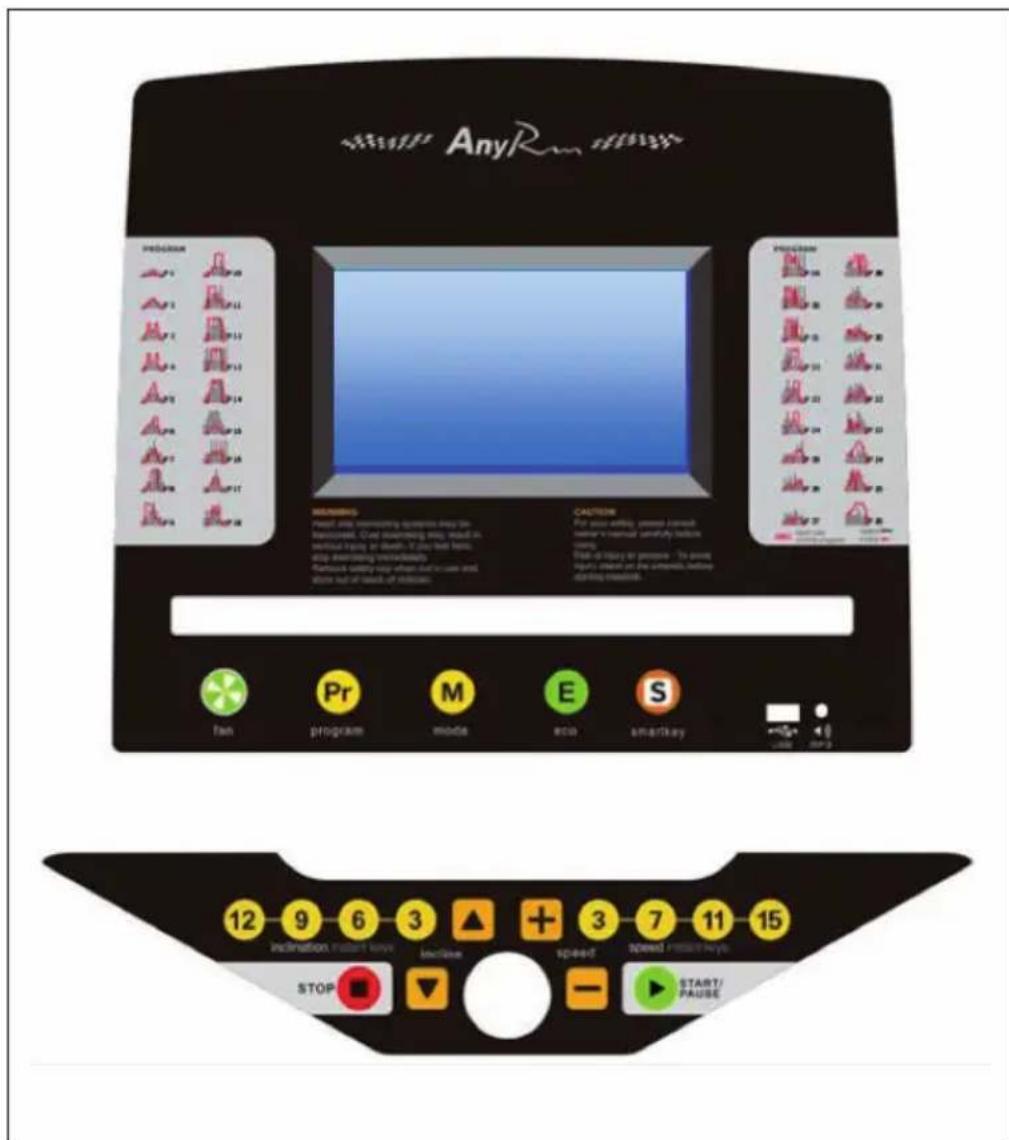

CONTROL PANEL AND KEY FUNCTIONS

EN

Program (P)

When the treadmill is under STOP mode, the user can choose different program mode from P0 to P36 and U1 to U3 and Fat program circulatory by pressing this button. P0 is USER training program; P1-P36 is the preset auto program; U01-U03 is user-defined program, FAT is body fat function.

Mode (M)

With the treadmill stopped, press the button to select the desired mode. You can select one of the following options:

• Time count down (The entered time is counted down)
• Calories count down (the calories entered are counted down)
• Distance count down (The entered distance is counted down)

Start/Pause

With the treadmill stopped, press the button to start the machine. Press the button while the belt is running to stop the treadmill.

Stop

• When treadmill is running, pressing it to stop treadmill.
• When treadmill is under standby or setting mode, pressing it to clear data and come back to standby mode.

[+] button

Use the button to increase the speed while running. Use the button to increase the parameters under the body fat determination.

[-] button

Use the button to increase the speed while running. Use the button to increase the parameters under the body fat determination.

Quick speed button

When the treadmill is running, accelerate directly by pressing the 3km / h , 7km / h , 11km / h or 15km / h button.

Changing the angle of inclination

Increase the incline

Decrease the incline

Quick incline button

Increase the incline directly by pressing the quick incline key 3% , 6% , 9% or 12% .

Fan button

Key Fan (optional) is to turn on/off fan function.

Changing speed from miles to kilometers

1. Pull out the safety key, press the MODE and PROGRAM keys at the same time. If the speed show 0.6, the speed is in MPH.
2. Pull out the safety key, press the MODE and PROGRAM keys at the same time. If the speed show 1.0, the speed is in KMH

Eco Function (E)

In the running state, press this key ECO, the incline will be increased by 3 levels; press it again, the incline will decrease by 3 levels. This function only can be used under incline range 0-13 levels.

Smart button (S)

Is to turn on/off auto-detective function for adjusting speed automatically according to user position on running deck.

Changing speed from miles to kilometers

1. Pull out the safety key, press the MODE and PROGRAM keys at the same time. If the speed show 0.6, the speed is in MPH.
2. Pull out the safety key, press the MODE and PROGRAM keys at the same time. If the speed show 1.0, the speed is in KMH

MODES AND PROGRAMS

Note: In any state, pull-out safety locks, window displays:"E7" and sound buzzer "DI-DI-DI". Then put well the safety lock, all show that the full light for 2 seconds, then go to manual start mode.

Quickstart

• Put the safety key on the correct position and peg safety key cord with your clothes then turn on the power, the LED window light is shining for 2 seconds. When it sounds "bee", the treadmill enters in to the manual program.
• Press "Start" key, time window countdown 3 - 2 - 1 and sound bee every decrease and start running at 1km/h and incline 0% .
• When the machine is running, you can stop the machine by pressing "STOP" key.

Manul Mode

In manual mode 3 values can be set: Time, distance or calories. However, only one of these values can be set at a time. If the entered value is counted down to 0, the treadmill stops automatically.

• Time Countdown: Press MODE, the time window (TIME) flashes and the initial value is 30:00. Press the Speed +/- button to adjust the value. The adjustable range is between 5:00-99:00 minutes.
• Distance countdown: Press MODE twice. The distance window (DISTANCE) flashes and the initial value is 1km . Press the Speed +/- button to adjust the value. The adjustable range is between 1.0km - 99.0km .
• Calorie Countdown: Press MODE 3 times. The calorie window (CALORIES) flashes and the initial value is 50kcal . Press the Speed +/- button to adjust the value. The adjustable range is between 20-9990 calories.

Finally, press START. After 5 seconds the device starts at 1km / h . Adjust the speed with the Speed +/- button. Use the arrow keys to adjust the slope. If the entered value is counted down to 0, the treadmill stops automatically.

Preset Programs

• P1-P36 are preset programs. Only the time can be set here. Press the [+] or [-] button to change the value. The time can be set between 5-99 minutes. The default setting is 30:00 minutes. Press the „MODE“ button to return to the default settings.
• When you have set everything, press START. The display starts a 5-second countdown and then emits 5 tones. The treadmill starts slowly and then continuously increases the speed until the preset or entered speed is reached.
• While running, press the [+] or [-] button or one of the speed buttons to set the desired speed.
  While running, press the arrow keys to set the desired incline.

Note: In the P1-P36 programs, speed and gradient are divided into 16 segments. Each segment lasts the same length. The adjusted speed is only available in the current segment. 3 seconds before the program moves to the next segment, a 3-fold signal tone sounds. When the 16 segments are finished, the motor stops and a signal sounds.

• When running, press the START button to stop the treadmill. Press START again to continue running. The recording data is retained.
• Press the STOP button while running, the treadmill stops slowly and returns to its initial state.

Measuring body fat percentage

When the treadmill is stopped, press the "PROG" button until FAT appears. Then press MODE to set the parameter.

• F1 (Gender): select 1 (male) or 2 (female). If window shows 1, male is selected. The default setting is male.
  F2 (Age): Can be set between 1-99 years. The default is 25 years.
  F3 (size): Adjustable between 100-220 cm (39-87 inch). The default is 170 cm (67 inch).
• F4 (Weight): Adjustable between 20-150 kg (44-330 pounds). Default is 154 pounds (70 kg).
• F5 (body fat analysis): Place both hands on the handlebars, wait 8 seconds and the window will show the BMI:

< 18 under	weight
18-24 normal weight
25-28 over	weight
>29 obesity

User Program

Press the PROGRAM key until U1 - U2 - U3 appears. Press MODE and Speed +/- to adjust the training time. The time can be set between 5:00-99:00 minutes. Then press START to start the workout.

Press the MODE button to adjust the speed and incline of each segment. Adjust the speed and incline with the Speed +/- button. Then press MODE to skip to the next segment. When you have edited the last segment, the entry is automatically saved. Press MODE again to enter the training time. Then press START to start the workout.

Hand pulse function

When the treadmill is on, hold on to the hand pulse handles. The heart rate window shows your heart rate value within a range of the 50-200 beats/minute (bpm).

HRC Function (Optional)

1. Press the PROG until HRC is displayed.
2. Then press MODE to confirm to advance to the next setting.
3. Use the speed + / - button to set the following parameters:

Age: 15-80 years, default is 25 years.

Standard heart rate: (220 years - current age) x 0.6

Target heart rate: 80-180 bpm

Default time: 30 minutes by default

In HRC mode, the pulse is measured and displayed every 30 seconds.

• When the user's heart rate is lower than the target heart rate 30 beats/min, the speed is increased 2.0km/h .
• When the user's heart rate is lower than the target heart rate 6-29 beats/min, the speed is increased 1.0km/h .
• When the user's heart rate is higher than the target heart rate 30 beats/min, the speed is decreased 2.0km / h .
• When the user's heart rate is higher than the target heart rate 6-29 beats/min, the speed is decreased 1.0km/h .
• When the user's heart rate is higher or lower than the target heart rate 0-5 beats/min, the speed won't change.

According to the following situation, the treadmill will be slow down to the lowest speed in 20 seconds, and then stop after running 15 seconds in the lowest speed and sound per second:

The heart rate cannot be checked.
- The heart rate reduces the speed but the device is already at the lowest speed level.
The heart rate is higher than (220 years - user age).

Note: If the lowest speed level is reached, the HRC function cannot reduce the speed further and the treadmill stops. The inclination is not controlled by heart rate, but can be adjusted manually.

PROGRAM AND SPEED TABLES

Program		Segment
		1 2	3 4 5	6 7 8	9 10 1	1 12	1 3 14	15 16
P1	Speed 1 2 2 3 3 4 4 4	4 4 4	3 3 2	2 1
	Incline 0 0 1 1 2 2 2 3	2 3 2	2 1 1	0 0
P2	Speed 1 2 2 3 4 4 7 4	7 7 4	4 3 2	2 1
	Incline 0 0 2 3 4 3 4 4	6 6 5	4 3 2	0 0
P3	Speed 1 2 2 3 4 4 7 7	7 4 4	4 3 2	2 1
	Incline 0 0 3 7 4 4 7 4	3 7 5	4 7 3	0 0
P4	Speed 1 2 2 3 3 6 6 6	6 6 6	3 3 2	2 1
	Incline 0 0 3 7 4 4 7 4	3 7 5	4 7 2	0 0
P5	Speed 1 2 2 3 4 6 6 6	6 6 6	4 3 2	2 1
	Incline 0 0 2 4 6 8 6 8	6 7 6	8 4 2	0 0
P6	Speed 1 2 2 4 4 6 6 9	6 6 6	6 4 2	2 1
	Incline 0 0 3 4 5 6 5 6	5 7 6	7 7 3	0 0
P7	Speed 2 3 4 6 6 9 9 9	9 9 9	9 6 4	4 2
	Incline 0 0 2 4 4 6 7 8	9 9 8	6 4 2	0 0
P8	Speed 1 2 2 4 4 7 7 7	9 9 9	9 9 9	8 4
	Incline 0 0 2 4 8 9 9 2	2 4 9	9 9 2	0 0
P9	Speed 2 3 3 6 6 9 9 9	9 9 9	9 6 3	3 2
	Incline 0 0 9 9 8 4 2 9	9 9 8	4 3 3	0 0
P10	Speed 1 2 2 4 4 6 2 4	4 6 2	4 4 6	4 3
	Incline 0 0 2 2 4 4 3 4	8 7 8	9 9 9	0 0
P11	Speed 2 4 4 6 6 9 4 6	6 9 4	6 6 9	4 1
	Incline 0 0 9 9 9 9 8 8	5 6 4	3 4												3 0	0
P12	Speed 1 3 3 6 9 9 3 6	9 9 3	6 9 9	6 4
	Incline 0 0 9 9 9 8 9 9	9 8 9	9 9 8	0 0
P13	Speed 4 9 4 9 4 9 4 9	4 9 4	9 4 9	4 9
	Incline 0 0 4 8 9 9 4 8	9 9 4	8 9 9	0 0
P14	Speed 2 3 3 6 9 9 3 6	9 9 3	6 9 9	6 3
	Incline 0 0 4 8 9 9 4 8	9 9 4	8 9 9	0 0
P15	Speed 4 6 9 9 9 6 9 9	9 6 9	9 9 6	4 2
	Incline 0 0 2 3 4 5 6 8	7 6 5	4 3 2	0 0
P16	Speed 2 4 4 9 4 9 4 9	4 9 4 9	4 9 4	9
	Incline 0 0 2 4 5 6 2 4	5 6 2	4 5 6	00
P17	Speed 2 2 2 4 6 6 9 9	6 9 9	6 2 2	2
	Incline 0 0 2 4 6 8 9 9	9 9 8	6 4 2	00
P18	Speed 3 6 3 6 6 3 6 6	6 6 3	6 2 2	2
	Incline 0 0 2 6 8 2 6 8	6 8 2	6 8 2	00
P19	Speed 4 9 4 9 4 9 4 9	4 9 4	4 9 4	9
	Incline 0 0 9 8 6 4 9 8	6 4 9	8 6 4	00
P20	Speed 4 9 4 9 4 9 4	4 9 4	4 9 4	9
	Incline 0 0 9 8 2 9 8 2	8 2 9	8 2 2	00
P21	Speed 2 6 2 6 9 2 6 9	6 9 2	6 9 2	6 2
	Incline 0 0 9 8 2 9 8 2	8 2 9	8 2 2	00
P22	Speed 4 6 9 6 2 9 6 2	6 2 9	6 2 2	4 2
	Incline 0 0 2 4 9 2 4 9	8 9 6	8 9 2	00
P23	Speed 4 6 9 6 6 2 9 6	6 2 9	6 6 2	2
	Incline 0 0 2 3 4 5 6 6	9 9 9	9 9 2	00
P24	Speed 4 6 9 6 4 9 6 4	6 4 9	6 4 2	4 2
	Incline 0 0 4 4 5 6 7 8	9 9 9	9 9 2	00
P25	Speed 2 4 3 4 3 5 4 2	7 2 8	3 7 3	9 3
	Incline 1 2 3 3 1 2 2 3	6 6 4	5 5 6	5 0
P26	Speed 2 5 4 6 4 6 4 2	5 7 5	7 5 3	5 2
	Incline 1 2 3 3 2 2 3 4	4 4 3	3 4												5 3 0
P27	Speed 2 5 4 5 4 5 4 2	5 6 5	6 5 3	4 2
	Incline 1 2 2 3 1 2 2 2	3 4 2	3 3 3	3 0
P28	Speed 2 6 7 4 4 7 4 2	8 5 5	8 5 3	5 2
	Incline 4 5 6 6 9 9 1 9	7 7 9	9 2 9	7 0
P29	Speed 2 4 6 8 7 8 6 2	7 9 8	9 7 3	4 2
	Incline 3 5 4 4 3 4 4 3	5 5 4	5 5 4	4 0
P30	Speed 2 4 5 5 6 5 6 3	6 6 7	6 7 4	4 2
	Incline 3 5 3 4 2 3 4 2	4 5 3	4 5 3	4 0
P31	Speed 3 6 7 5 8 5 9 6	8 6 9	6 9 7	4 3
	Incline 2 2 3 3 2 2 4 6	4 4 3	3 5 7	3 0
Program		Segment
		12	345	678	9101	112	1314	1516
P32	Speed 367586768	697	875	3
	Incline 12432245	543	563	0
P33	Speed 286459757	569	865	3
	Incline 22623422	7345	333	0
P34	Speed 235335366	446	474	3
	Incline 44367886	478	974	0
P35	Speed 258969539	979	643	2
	Incline 13581763	6928	743	0
P36	Speed 255446426	557	534	4
	Incline 35679999	789	997	0

TROUBLESHOOTING

Problem Possible Cause Suggested Solution
Treadmill doesn't work. Disc	onnect of power or the power is turn off	Connet the power, and turn on the switch.
	Safety key is not put well. Put the safety key on the correct position.
Treadmill stop suddenly. Safety key fall off. Put the safety key well.
Error code E1 Problems with	the cables, the console or the control panel.	Contact a specialist company.
Error code E2 Probleme mit dem Motor. Contact a specialist company.
Error code E3 Problems with	the speed sensor, or the cable.	Contact a specialist company.
Error code E5 Controller defective	motor defective	company.
Problem Mögliche Ursache	Lösungsansatz
Error code E7 Console does not detect the safety key signal.	Check the safety key.
No pule measurement. Hand	pulse wire is not connect well or wire defected.	Connect the wire well or change the wire.
	Console circuitry defected.	Change the console.

CARE AND MAINTENANCE

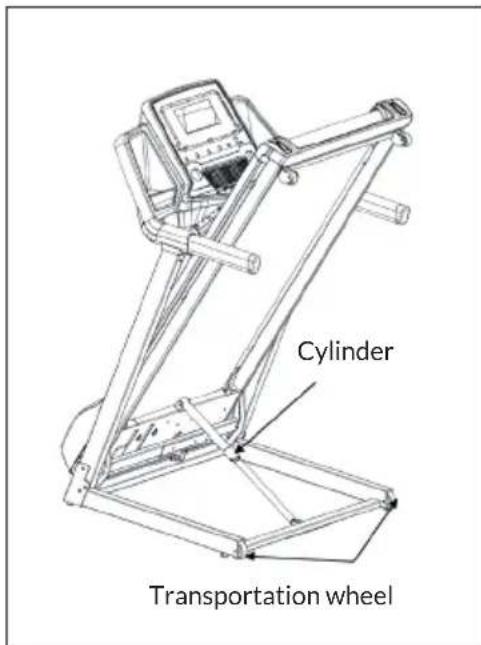

Folding the treadmill

1. Restore the incline to flat (0) position.
2. Unplug from power point before folding.
3. Lift deck until it's parallel to the upright post and cylinder locks into position.

Unfolding the treadmill

1. Place one hand on handle bar, use the other to push top of the running deck forward.
2. Press one foot on the middle section of the cylinder to disengage the locking mechanism.
3. Allow deck to begin slowly dropping before releasing hands.

Moving the treadmill

The treadmill can be moved around in house safely in its fold-up position by using the transport wheels. Firmly hold onto handle bars with both hands, pull the treadmill towards you, then portable on wheels, drag or push slowly.

Adjusting the belt tension

If the running belt feels as though it is slipping or hesitating when you plant you foot during a run, the tension on the running belt may have to be increased.

To increase the running belt tension:

1. Place 8mm wrench on the left belt tension bolt. Turn the wrench clockwise 1/4 turn to draw the rear roller and increase the belt tension.
2. Repeat STEP 1 for the right belt tension bolt. You must be sure to turn both bolts the same number of turns, so the rear roller will stay square relative to the frame.
3. Repeat STEP 1 and STEP 2 until the slipping is eliminated.
4. Be careful not to tighten the running belt tension too much as you can create Excessive pressure on the front and rear roller bearings. An excessively tightened running belt may damage the roller bearings that would result in bearing noise from the front and rear rollers.

To decrease the running belt tension:

To reduce the tension on the treadmill, turn both screws counterclockwise the same number of times.

Centring the running belt

When you run, you may push off harder with one foot than with another. The severity of the deflection depends on the amount of force4 that one foot exerts in the relation to the other. This deflection can cause the belt to move off-centre. This deflection is normal and the running belt will centre when no body is on the running belt. If the running belt remains consistently off-centre, you will need to centre the running belt manually.

Start the treadmill without anyone on the running belt, press FAST-key until speed reached 6km / h . Observe whether the running belt is toward the right or left side of the deck.

If the running belt is toward the left side:

Turn the left adjustment screw clockwise 1/4 turn with a spanner and the right adjustment screw counterclockwise 1/4 turn.

If the running belt is toward the right side:

Turn the right adjustment screw clockwise 1/4 turn with a spanner and the left adjustment screw counterclockwise 1/4 turn.

• If toward the left side of the deck, using wrench, turn the left adjustment bolt clockwise 1/4 turn and the left adjustment bolt counter clockwise 1/4.
• If toward the right side of the deck, turn the right adjustment bolt clockwise 1/4 turn and the left adjustment bolt counter clockwise 1/4.
• If the belt is still not centre, repeat the above step until the running belt is on centre.

Lubrication

The treadmill is factory-lubricated. However, it is recommended to check the lubrication of the treadmill regularly, to ensure an optimal operation of the treadmill. It is usually not necessary to lubricate the treadmill in the first year or the first 500 hours of operation.

After every 3 months of operation, lift the sides of the treadmill and feel the surface of the belt, as far as possible. If traces of silicon spray are found, lubrication is not necessary. In case of a dry surface refer to the following instructions:

Application of lubricant on the belt:

• Position the tape so that the seam is in the middle of the plate.
• Place the dispenser cap on the lubricant container.
• Start lubrication at the front end of the belt. Lubricate in the direction of the rear end. Repeat this process on the other side of the tape. Grease each side for approx. 4 seconds.
• Wait 1 minute for the silicone spray to spread before starting the unit.

TRAINING VIA KINOMAP APP

With the Kinomap app you can run, drive or row more than 100,000 km around the world with the help of real-life videos that are updated daily by the users themselves. Try to follow their pace under the same conditions as seen in the video. Use the KINOMAP portal and choose your own video to train to. Improve your fitness by using your own interval in the resistance or in the power mode.

You can connect your compatible devices directly. Alternatively, you can use the camera that provides you with an optical pedal, step or stroke sensor. Join our multiplayer training sessions and try to be the first to finish.

Create an Account

If you want to use Kinomap, you must first connect to your Kinomap account. If you have successfully registered, you can start training. If you do not sign out, you will still be logged in the next time you start the app. If you do not as yet have a Kinomap account, please sign in to get a free account.

Activation Code

• The standard version is free and provides you with access to a number of free videos and interval training (not currently available on all devices).
• A subscription is required later on to gain access to all eligible content, including thousands of videos, a multiplayer mode and more.
• After the first login, the app will ask you for an activation code. If you have one, enter it in to activate your subscription to the app.
• You can also go to „Add Activation Code“ at a later time.

Enter Activation Code

Note: You can subscribe to the service on a monthly basis or as an annual subscription, which will provide you with access to advanced features. Go to "Subscribe Settings".

After the activation, you will see your subscription at „My subscription“:

Connecting to the Training Machine

How to connect the device with the KINOMAP app:

1 Go to the „Equipment“ menu.
2 Add new devices with the + button
3 Select your device type from the list.
4 Select the brand Capital Sports.
5 Select the model Infinity Pro 4.0.
6 If the device has been detected, touch the window to confirm.
7 Now press SAVE. Your device has now been added.

Note: Even if your fitness device does not have a BT connection, you can still train with Kinomap.

Data Preview

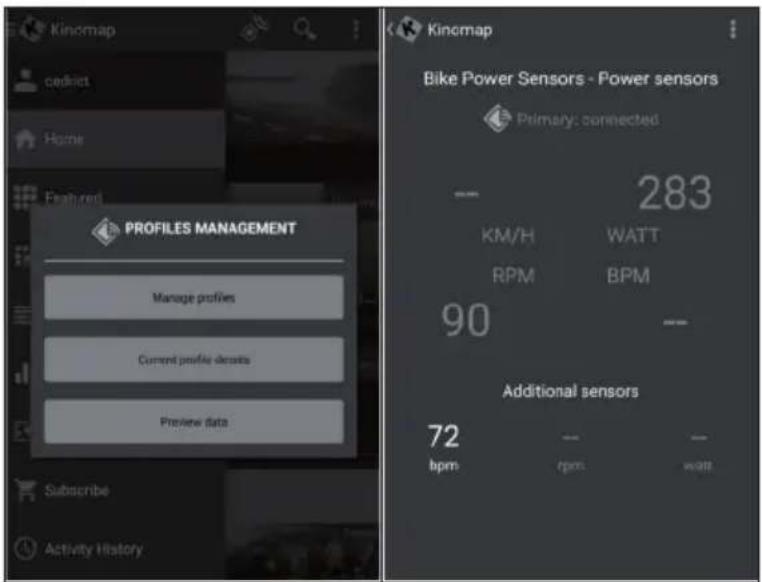

The "Data Preview" feature lets you instantly see the data sent by the device. This feature is especially useful if you have trouble committing when you start a new activity. In accordance with the configuration, the app will receive some values.

Training

Video Selection

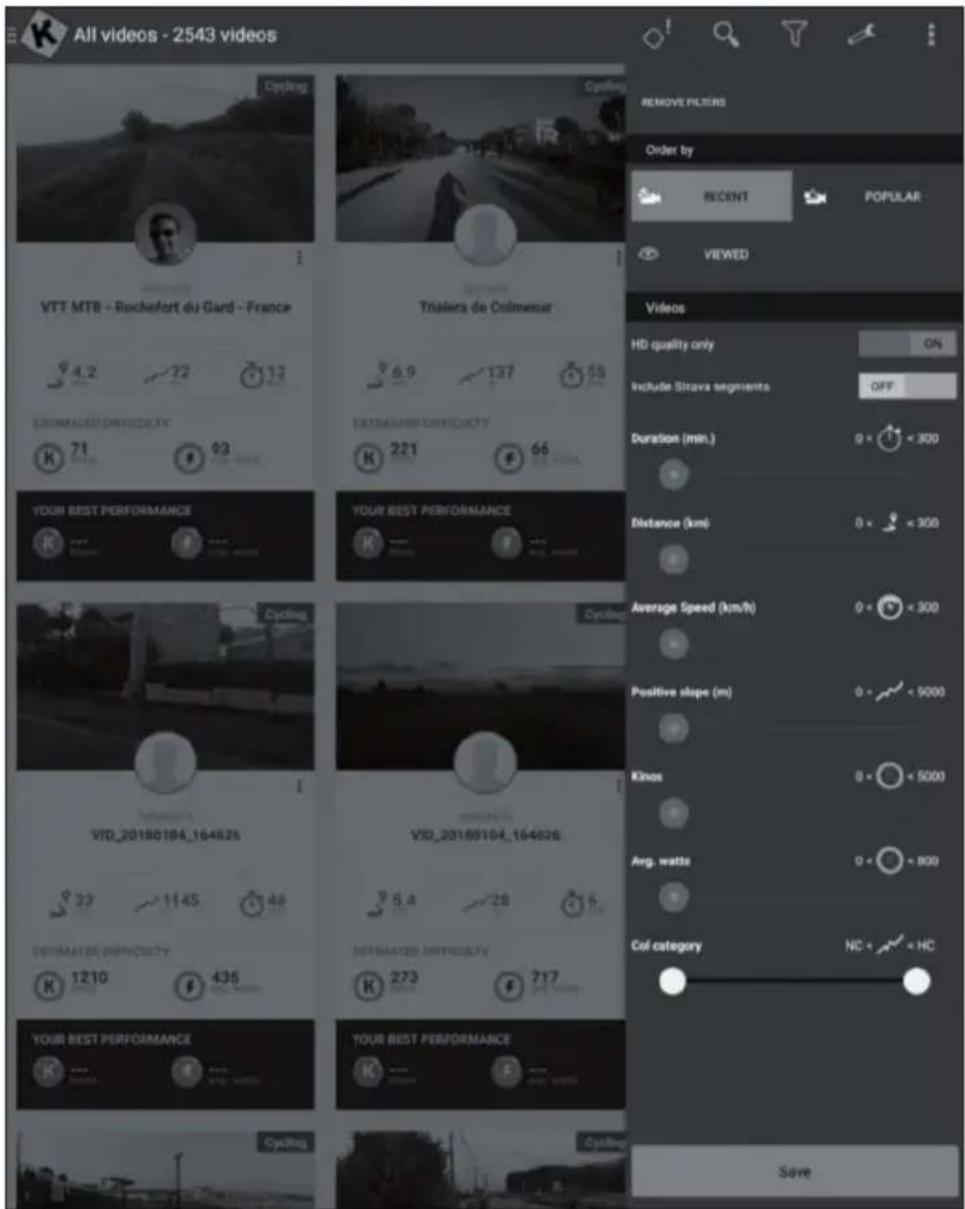

• There are several lists of videos from which you can select the desired video.
• There is a filter function to ensure that you find the videos you wish to train to (featured, popular, most viewed, most recent, duration, distance, incline, among others).
• For each video, the following relevant information is available: name, contributor (who posted the video), country, duration, distance, average of positive slope and average speed.

Playlists

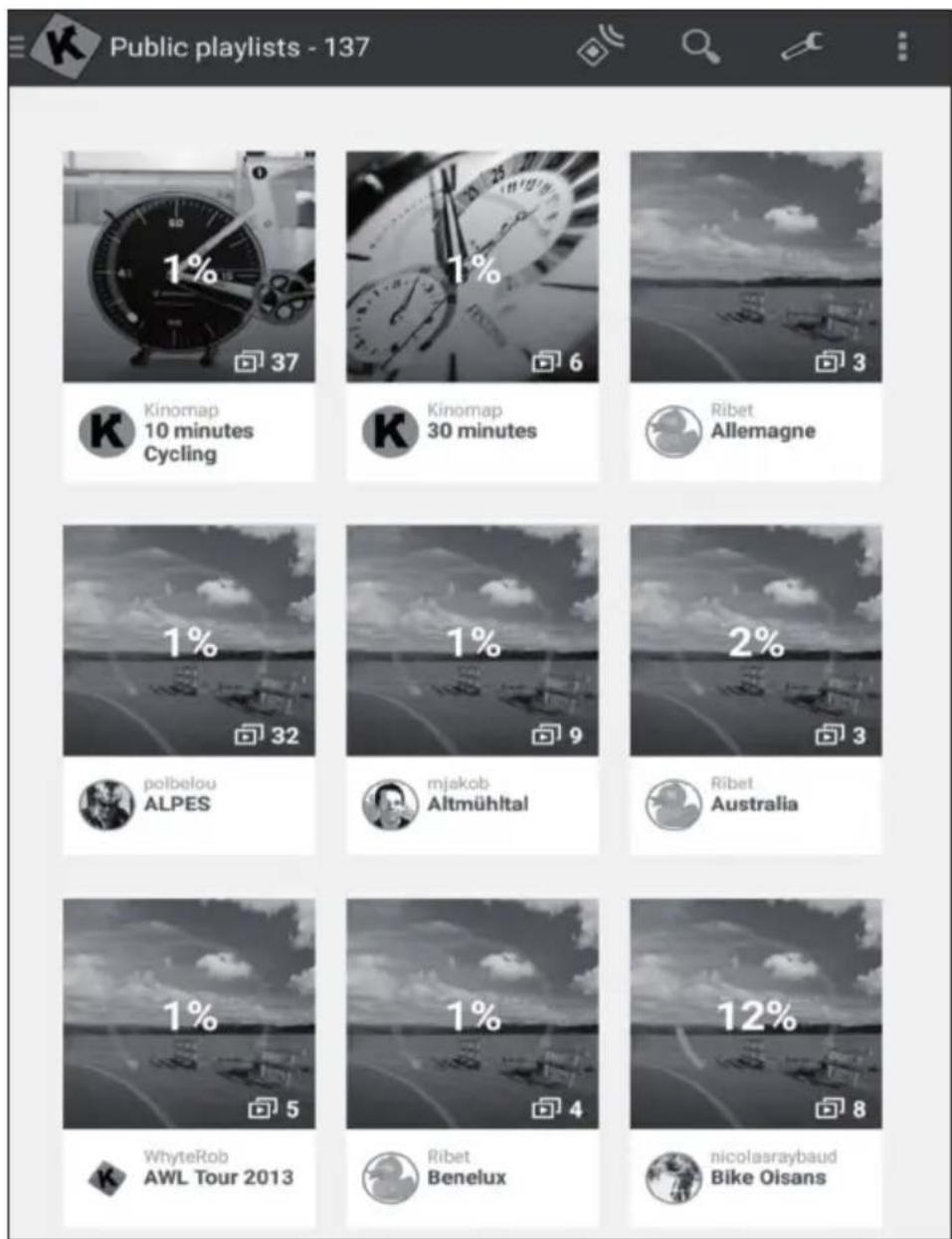

• There are also many playlists created by Kinomap or the users of Kinomap themselves.
  Each playlist has a specific theme, such as a 30-minute training session or visiting a country.
• You can track your progress on any playlist and any video.
• Currently, you cannot manage your playlists directly on the app.

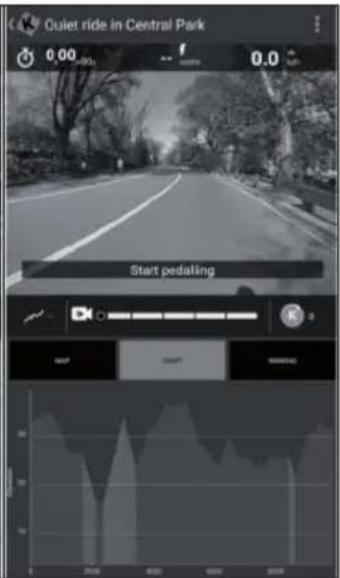

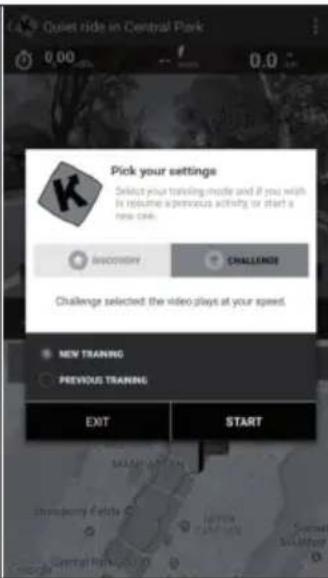

Beginning of Training

Select the video you would like to train to.

Choose the mode in which you would like to train.

Just start pedaling to start training.

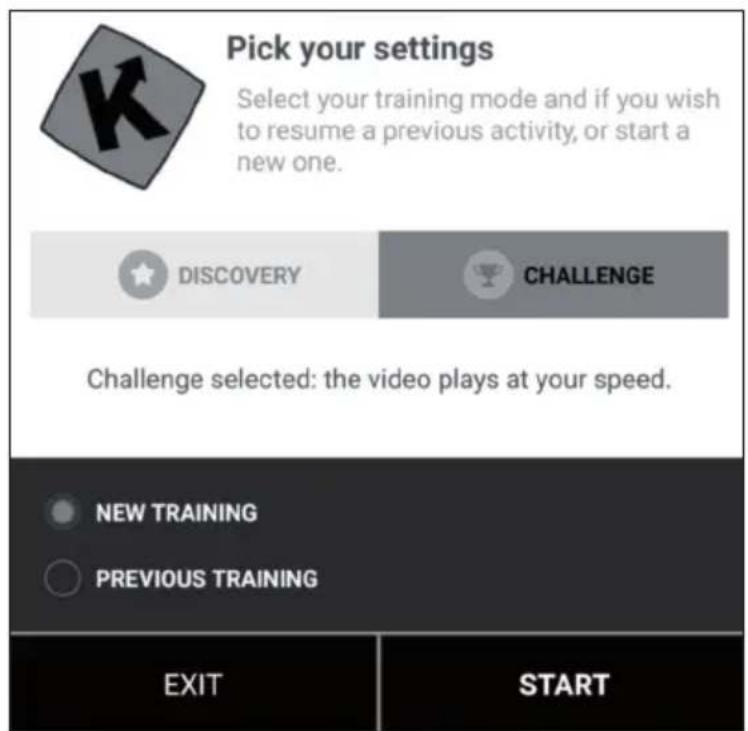

Discovery and Challenge Mode

Challenge Mode: The video will be played at your speed so that you can achieve the same overall performance as the producer of the video. If you're not as fast, the video slows down the frame rate. If you perform better, the frame rate can be increased to twice the original speed. Use this mode to participate in challenges, such as indoor challenges, and to export a map complete with coordinates of your virtual ride to third-party sites, such as Strava.

Discovery Mode: The video plays at its original speed and pauses when your speed reaches 0. Whatever your performance, the frame rate will not change. But you will still see if you perform well by looking at the energy performance data. Note that the data that can be exported to third-party sites, such as Strava, is limited to watts and additional data like cadence and heart rate; however, coordinates and a map are not included.

Training Display

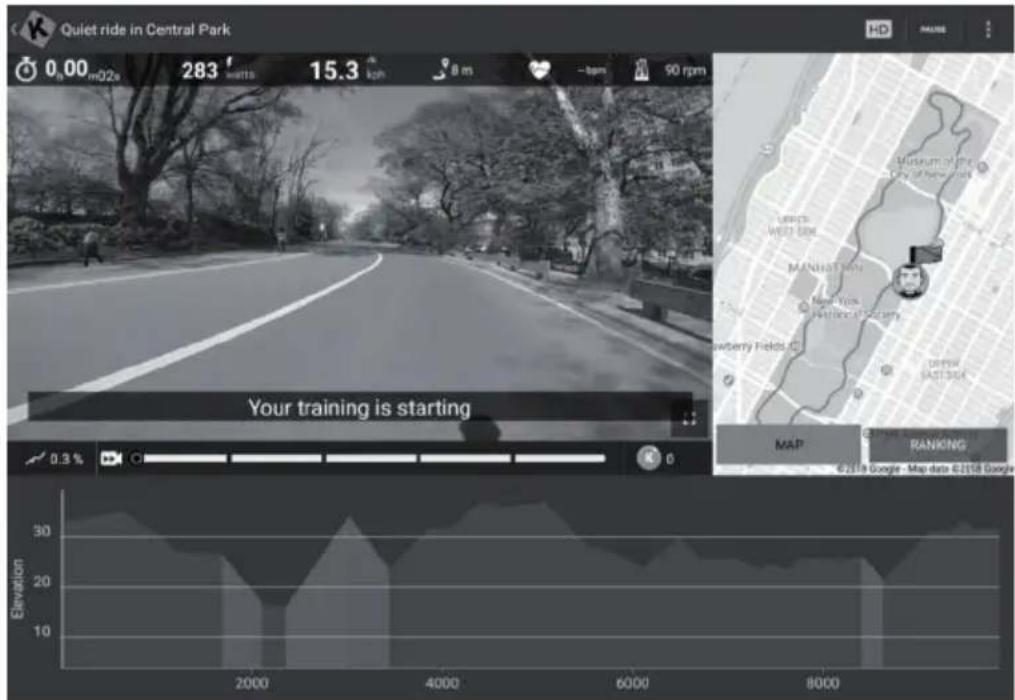

At the top of the screen, the following relevant information is displayed:

The duration
- The instantly produced power
The instant speed
- Your heart rate (only if you add an extra heart rate monitor belt or if your device has one already integrated)
- The instant pedal frequency
The distance
- Your position on the map is synchronized with the video.

The tab "Ranking List" is only available in the multiplayer mode.

• Abscissa: height in meters
• Ordinate: distance in the KM in the challenge mode.
• Duration: in seconds in the discovery mode.

Setting the Resistance/Gears

On the screen you will find instructions on how to set the resistance according to the altitude profile when using a speed/cadence sensor or an optical sensor.

End of Training

If you want to pause or stop exercising, just stop pedaling or use the pause button in the corner. Click the "Resume Session" button to continue the training session. If you want to stop completely, simply confirm by tapping on "Save and Exit".

Profile Training

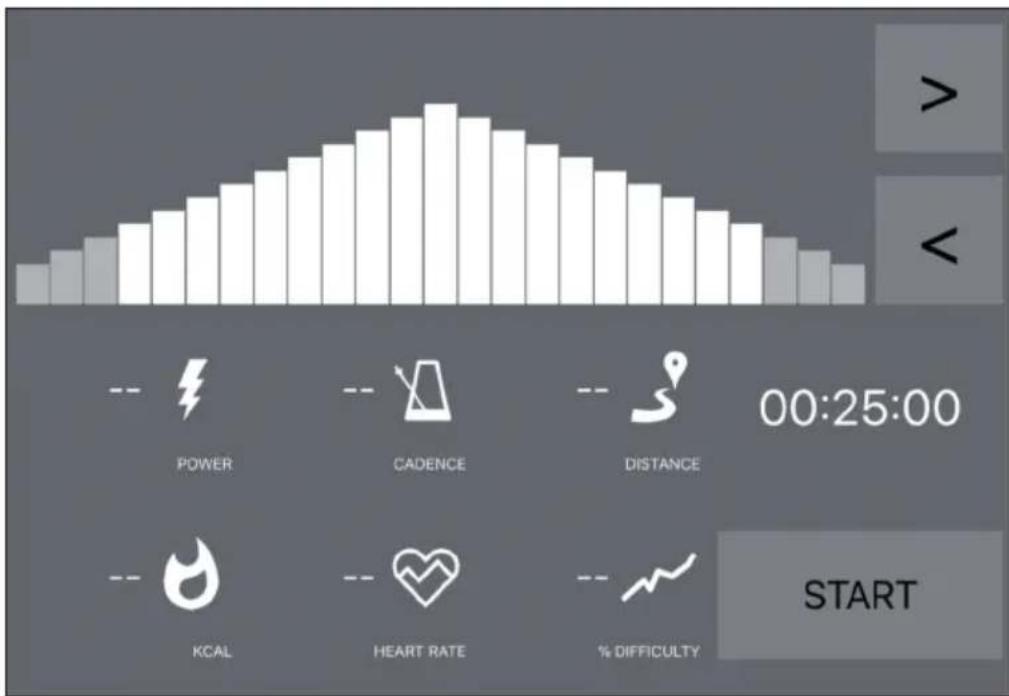

Profile training is a form of training that involves a series of low to high intensity training sessions with periods of rest or relief. Varying the intensity trains the heart muscle, provides cardiovascular training and improves a person's aerobic capacity and endurance.

Profile training is not yet available for all devices. You can easily check in the main menu: If you see the profile training menu, it means that the feature is available for your device. You can choose between two modes, depending on your device.

Resistance: You define the resistance level and we send this information to the exercise bike, regardless of the power produced.

Target Power: You define a target power, and the resistance automatically changes to generate it.

• If you see an orange line, it means that you are near your target.
• The other way around, the orange line means that you are moving away from your target. (increase or slow down the target power)
• You just have to choose the time (<>) for the countdown and then start training.
• Once the session is started, you can increase or decrease the target power or resistance according to the mode you have selected.

Evaluations

Activity History

• Open the main menu on the left side to find „Activity History".

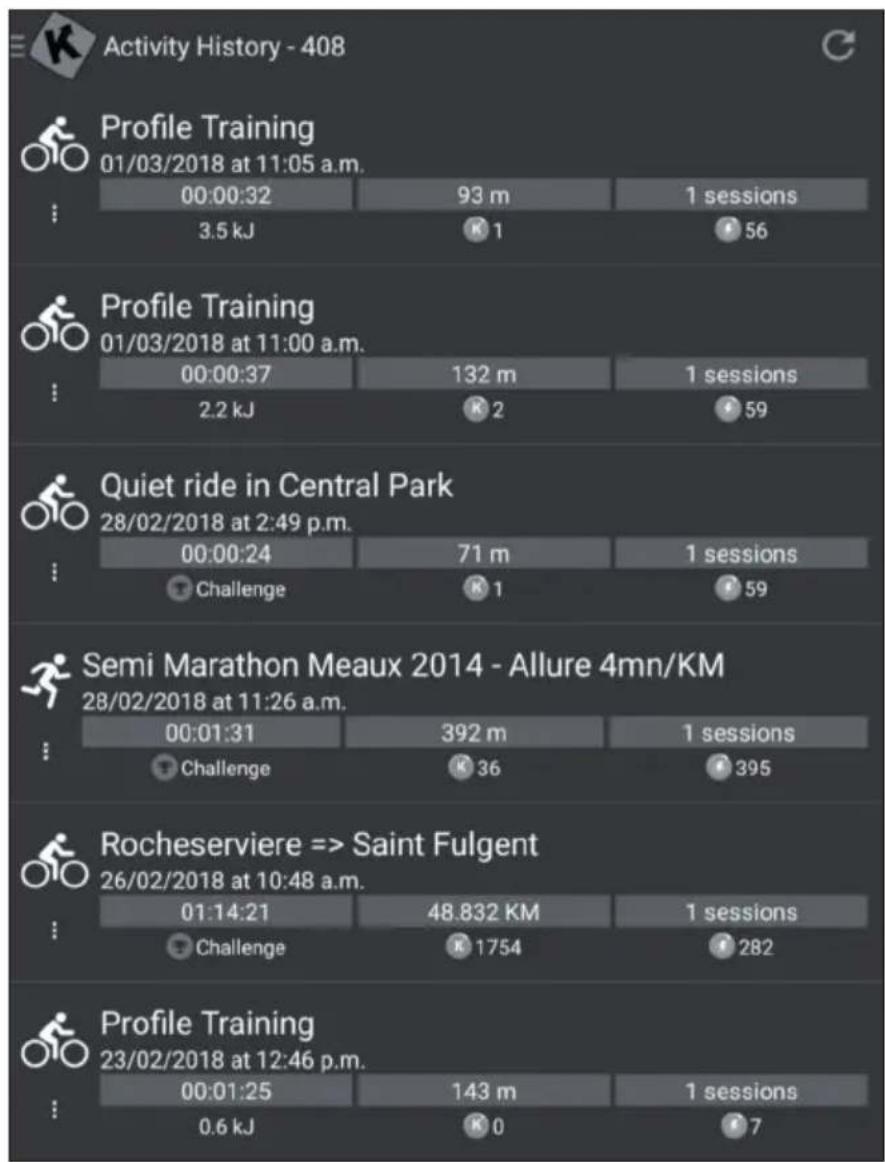

• You can see the history of your past workouts, including the name of the video you trained with, the date of the workout, the duration and the distance.
• Click on a specific training session to see all of the information.
• You can also visit http://www.kinomap.com/myactivities.
• Your activity history contains a map, a summary and a series of detailed graphs that show your current speed, power, cadence and heart rate. Note that the activity history can be automatically exported to various platforms, such as RunKeeper, Strava or Under Armor.

Search

This button is always available in the top right corner no matter which menu you are in for you to browse the available videos.

There are several ways to find the right video:

• You can search by clicking the Search button. Once you have entered at least 3 characters, an auto-complete search will be performed.
• You can also perform a geographic search. Choose „Map" in the main menu.
• You can explore all available videos by clicking "Public Playlists" or "All Videos".

Settings

User Settings

• Go to the Settings menu and input your user details, including your size, weight, birthday and sex.
• This information affects the speed calculation

External Display

Follow the instructions to view the display on your TV using Chromecast or Apple TV.

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

This product contains batteries. If there is a legal regulation for the disposal of batteries in your country, the batteries must not be disposed of with household waste. Find out about local regulations for disposing of batteries. By disposing of them in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences.

DECLARATION OF CONFORMITY

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Chal-Tec UK limited

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN436RE

United Kingdom

The complete declaration of conformity of the manufacturer can be found at the following link: use.berlin/10032955

Estimado cliente:

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN436RE

United Kingdom

Chere cliente, cher client,

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN436RE

United Kingdom

Come diminuire la tension:

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN436RE

United Kingdom
