USER MANUAL H950 Winix

• Please read and follow all safety rules and instructions in this manual before operating.
• The product warranty is printed on the back of this guide, so please keep it in a safe place for future use.

CONTENTS

5-Stage Air Purification 3

Controls

4

Set Up

Where to use 5

Installing the filters 6

Safety Instructions

Safety and Cautions 8

Operation

Initial Operation 9

Modes of Operation 10

Features and Settings 11

Care and Maintenance

Filter Care 13

Smart Sensor Care 17

Cleaning Care 18

Troubleshooting

Frequently Asked Questions 19

Unit Specifications 21

Product Warranty 23

French 25

Spanish 49

German 98

Italian 123

Dutch 146

This product is suitable for 220 240V only.

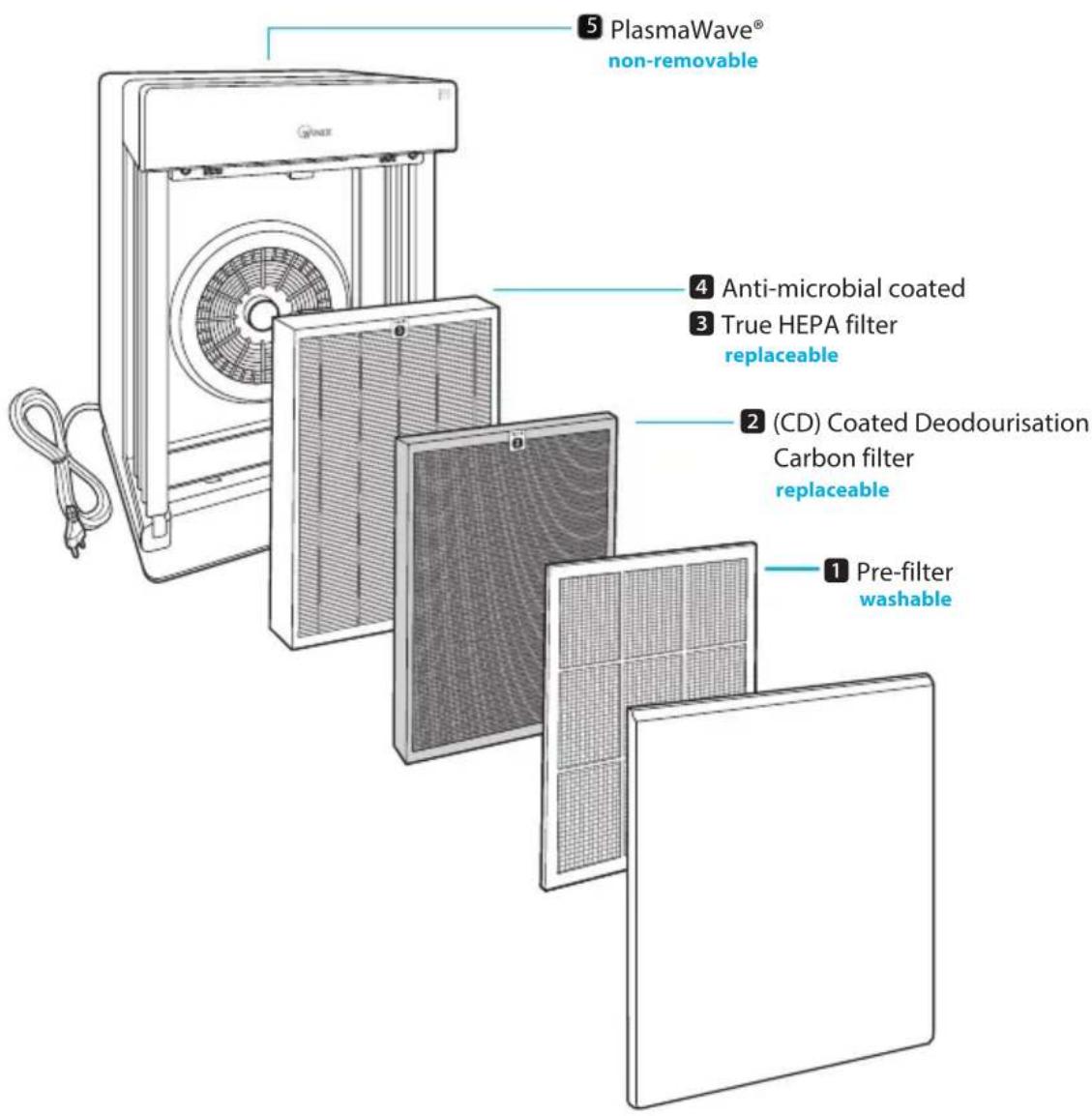

5-STAGE AIR PURIFICATION

PACKAGE CONTENTS

Product

Pre-filter/CD Carbon Filter/ Anti-microbial True HEPA filter (Included with the product.)

Power cord with plug

User Manual

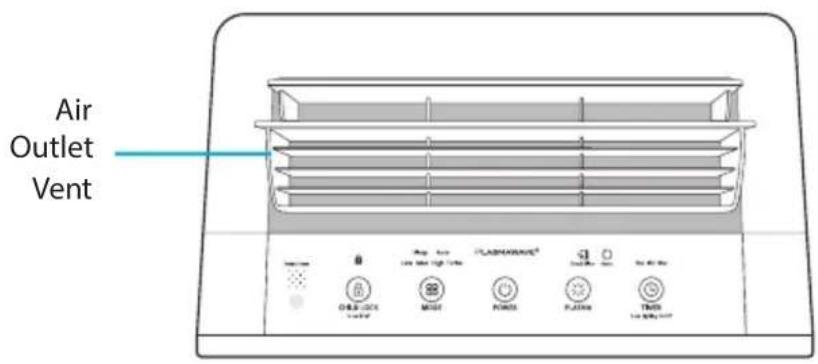

CONTROLS

Light Sensor

Detects the amount of ambient light within the environment, to adjust the brightness of the LED indicators.

Check Filter Indicator

LED light indicates when it is time to change the filter.

Reset Button

After replacing a filter, press the RESET button for at least 5 seconds.

Smart Sensor

Automatically detects indoor air quality.

PlasmaWave® Indicator

Indicates whether PlasmaWave® is enabled or disabled.

Timer Indicator

If timer has been set, the LED light indicates the set time of operation.

MODE

POWER

PLASMA

TIMER 2see lighting OnOff

Child Lock Indicator

LED light indicates whether Child Lock mode is enabled or disabled.

Power Button

Turns the unit on or off.

Timer / Air Quality Button

Press to cycle through and set desired length of operation (1hr, 4hr, 8hr, [NO TIMER]).

Mode / Fan Speed Button

Every time the Mode button is pressed, the Mode LED light will cycle through the settings. (Auto, Sleep, Low, Medium, High, Turbo)

Press and hold for 3 seconds to enable or disable the Air Quality light.

Child Lock Button

Press and hold for 3 seconds to enable or disable the Child Lock mode.

PlasmaWave® Button

Enables or disables PlasmaWave®.

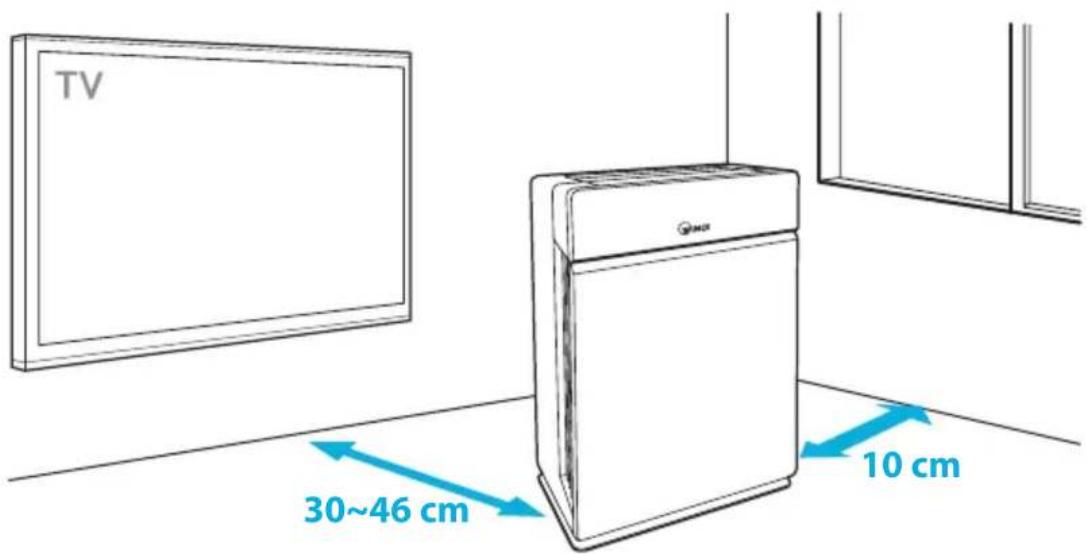

WHERE TO USE

Allow 30 46 cm. of space between TVs, radios, and other electronic products electromagnetic interference from certain electronics may cause product malfunction.

Place indoors away from direct sun light direct exposure may cause product malfunction or failure.

Only place on hard, flat surfaces flimsy or slanted surfaces may result in abnormal noise and vibrations.

WARNING

Follow these instructions to reduce the risk of serious injury or death and to reduce risk of damaging the unit.

Do not use around mist or fumes from industrial oil or around large quantities of metallic dust
Do not install in any sort of motor or transport vehicle (trucks, boats, ships, etc.)
Do not place near any flammable materials (aerosols, fuel, gases etc.)
Do not place below any electrical outlet

Do not place around heating elements
Do not place in an area with excessive amounts of noxious gases
Do not have unit facing into wind or draft
Do not place in excessively humid areas where unit may become wet

× This unit is not intended to be used to preserve documents or in art conservation.

INSTALLING THE FILTERS

This product comes with all of the required filters. The protective plastic wrap must be removed from the filters before use.

× Operating the unit without removing the plastic wrap may result in product failure.
× Unplug and make sure the unit is turned off before installing filters.
× The unit will automatically power off when front panel is opened.

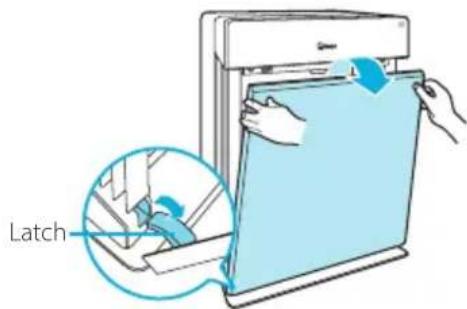

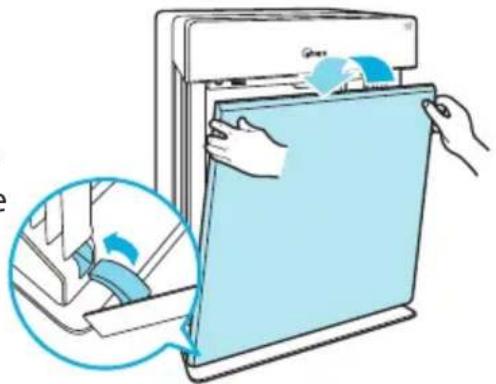

① Remove the front panel by grasping its upper edge and gently pulling towards yourself.

• To remove the front panel, the latch at the lower edge of the panel must be released from its position.

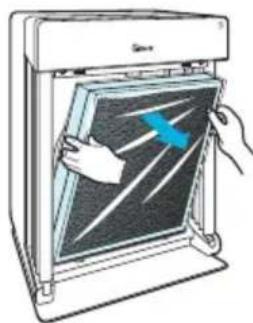

② Remove the filters from the unit, they are protected inside a plastic wrap.

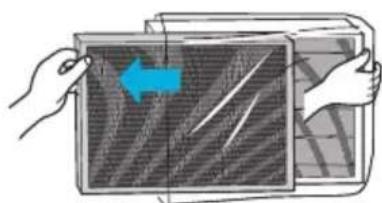

③ Remove filters from protective plastic wrap.

• Operating the unit without removing filters from plastic may cause abnormal noise, deformation, or fire as a result of overheating.

④ Install the filters until they fit securely in place.

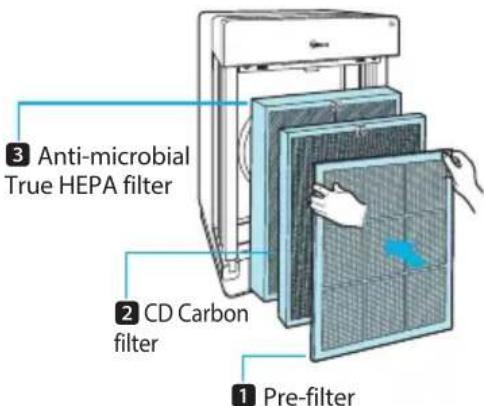

Filters must be installed in this order:

3 Anti-microbial True HEPA filter (rear)
CD Carbon filter (middle)
1 Pre-filter(front)

• To install the pre-filter, insert bottom tabs into the slots on either side of the lower part of the unit, then rotate upward to insert the upper tabs into the slots at the top part of the unit until both sides audibly click into place.

INSTALLING THE FILTERS

Replace the front panel by first inserting the latch at the bottom edge into the base of the unit, then rotate the panel upward toward the top of the unit until it magnetically snaps closed.

⑥ When to service and replace filters:

Filter Indicator	Light	When to service	When to replace
1 Pre-filter	none	Clean once every 14 days	Permanent
2 CD Carbon filter	Check Filter	Can NOT be WASHED	Lasts up to 12 months
3 Anti-microbial True HEPA filter

× Intervals between filter replacement may vary depending on environment.
× For optimal use, Pre-filter can be cleaned every 14 days which can extend the life of other filters.

NOTE

Refer to pages 13-17 for detailed information on filter care and how to replace them.

SAFETY AND CAUTIONS

Before operating this equipment, carefully read and follow these safety cautions and instructions to avoid damage and ensure safe use.

Ensure filters are inserted before running unit

running unit without filters can shorten the units life and cause electric shock or injury.

Be sure foreign objects are NOT inserted into the vents on the unit.

objects can include pins, rods, and coins.

Do not touch any part of the interior of the unit with wet hands.

the high voltage may cause electric shock.

Ensure unit intake and outlet vents do not become blocked

blockage may lead to increased internal temperatures causing product failure and deformation.

Do not use the unit as a step stool or place heavy objects on it.

personal injury may occur or product failure and deformation.

WARNING

Follow these instructions to reduce the risk of serious injury or death and to reduce risk of damaging the unit.

Do not pull on the power cord when unplugging the unit

Do not tie or knot power cord when unit is in operation

If the unit becomes submerged in water, unplug it and contact customer service

Do not unplug or move the unit while in operation

Do not plug additional appliances into the same outlet or power supply

Do not touch the plug with wet hands

Unplug unit when not in operation for extended periods of time

Cord can become damaged by forcefully bending, pulling, twisting, bundling, pinching or placing heavy objects on it

If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.

This appliance is not intended for use by a person (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

INITIAL OPERATION

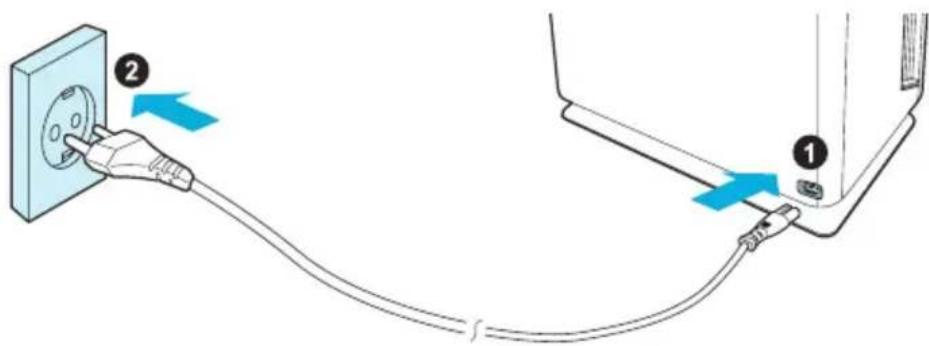

① Insert the power cord into the socket (1) at the rear of the unit, and plug into an electrical outlet (2).

The Control Panel lights will turn on and off.

② Press the [Power] button.

NOTE

During the first 4 minutes of power up, the Air Quality light will flash as the Smart Sensors measure the air quality in the environment, after which normal operation will begin.

POWER

③ By default, when the unit first powers on, the mode will be set to Auto with PlasmaWave® enabled.

When in Auto Mode the fan speed will be automatically adjusted according to the environments air quality.

PlasmaWave® works to remove harmful airborne contaminants.

Sleep

Auto

PLASMAWAVE

Low Med High Turbo

NOTE

In Auto mode, as the indoor air quality improves, the fan speed will automatically be reduced to Low.

When the unit is running, you may hear a chirping or buzzing sound. The sound is from large particles passing through PlasmaWave®, it is normal and does not signify product failure. To disable PlasmaWave®, see page 11.

AUTO AND SLEEP

Every time the Mode button is pressed, the Mode LED light will cycle through the settings. (Auto, Sleep, Low, Medium, High, Turbo)

1. Auto Mode

Enables Auto operation based on the unit's air quality Smart Sensors.

① Press the Mode button to select Auto mode.

• The mode LED light will indicate when 'Auto' mode has been selected, and operation will begin.
  Each time the Mode button is pressed, the modes will be cycled. (Auto, Sleep, Low, Medium, High, Turbo).

Sleep Auto Low Med High Turbo

MODE

NOTE

When in Auto Mode the fan speed is automatically adjusted according to the indoor air quality. As the indoor air quality improves, the fan speed will automatically be reduced. If the indoor air quality decreases the fan speed will automatically be increased.
When unit is first started, Auto Mode is enabled and set to Low fan speed.

2. Sleep Mode

① Press the Mode button to select Sleep mode.

• The mode LED light will indicate when 'Sleep' mode has been selected, and operation in that mode will begin.

Sleep Auto

Low Med High Turbo

NOTE

When Sleep mode is selected, the fan speed is automatically set to Low. Fan speed can be changed by pressing the Fan Speed (Mode) Button.
When Sleep Mode is enabled, the Air Quality light is disabled.

MANUAL MODE, TIMER AND PLASMAWAVE®

Every time the Mode button is pressed, the Mode LED light will cycle through the settings. (Auto, Sleep, Low, Medium, High, Turbo)

3. Manual Mode (setting fan speed)

Users can opt to manually set the fan speed to Low, Medium, High, or Turbo.

① Press the Mode button to select the desired fan speed.

• The mode LED light will indicate the selected fan speed, and operation will begin.

Sleep Auto

Low Med High Turbo

NOTE

When Manual Mode is in use, Auto and Sleep modes are automatically disabled.

4. Timer

The timer can be set for when you want the unit to run for a specified period of time.

① Select the desired period by pressing the Timer button.

• The Timer LED light will indicate the selected length of operation.
• Every time the Timer button is pressed the Timer LED light will cycle through the settings. (1hr, 4hr, 8hr, [NO TIMER]).

1hr 4hr 8hr

TIMER

3 sec Lighting On/Off

5. PlasmaWave®

By default, PlasmaWave® is enabled whenever the unit is powered on.

① Press the Plasma button when the power is on to enable or disable this feature.

PLASMA

PLASMAWAVE

CHILD LOCK, AIR QUALITY LED

6. Child Lock

This feature prevents children from tampering with the control panel.

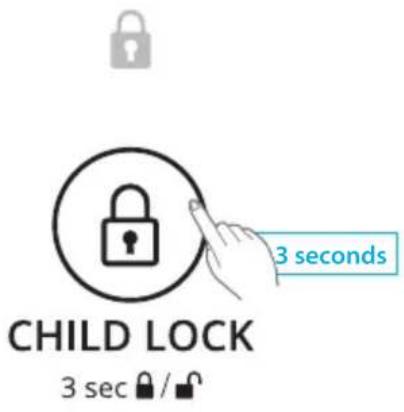

① Press and hold the Child Lock button for 3 seconds to enable or disable the feature.

• When the Child Lock indicator is lit, the feature is enabled.
• When Child Lock is enabled, the control panel is locked and the settings cannot be changed.
• To disable, press and hold the Child Lock button again for 3 seconds.

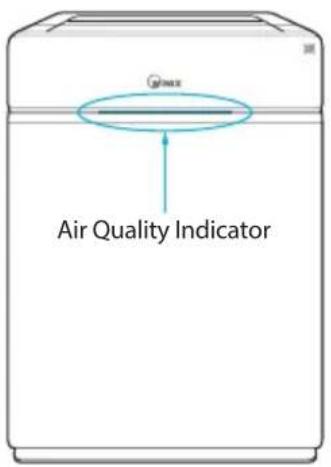

7. Air Quality LED Light

The Air Quality LED light may be turned on or off.

① To turn the Air Quality LED light on or off, press and hold the Timer button for 3 seconds.

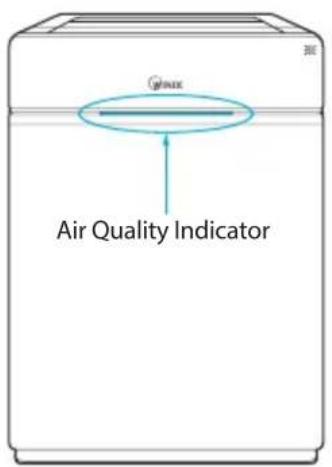

• When on, the LED light will indicate the current indoor air quality according to three levels
• BLUE (good), AMBER (fair), RED (poor)

3sec Lighting On/Off

NOTE

When Auto Mode is enabled the Air Quality LED light may or may not be on, depending on the amount of ambient light in the room.
- When Sleep Mode is activated, the Air Quality Indicator light is turned off.

FILTER CARE

1. Changing Filters

When the Check Filter indicator LED is on, it is time to replace both the Anti-microbial True HEPA and CD Carbon filters.

Filter Indicator Light	When to service	When to replace
Pre-filter	-	Clean once every 14 days
CD Carbon filter	Check Filter	Can NOT be WASHED
Anti-microbial True HEPA filter		Lasts up to 12 months

× Intervals between filter replacement may vary depending on environment.
× For optimal use Pre-filter can be cleaned every 14 days which can extend the life of other filters.

Removing Filters

Ensure the unit is turned off and unplugged before removing filters.

× The unit will automatically power off when front panel is opened.

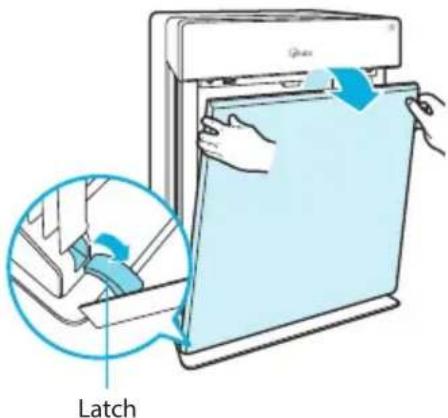

① Remove the front panel by grasping its upper edge and gently pulling towards yourself.

• To remove the front panel, the latch at the lower edge of the panel must be released from its position.

FILTER CARE

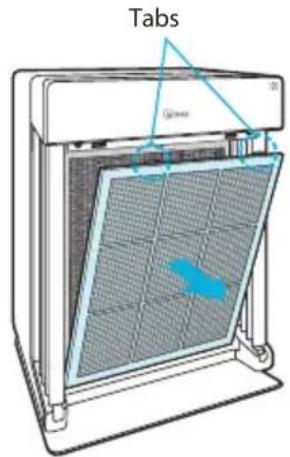

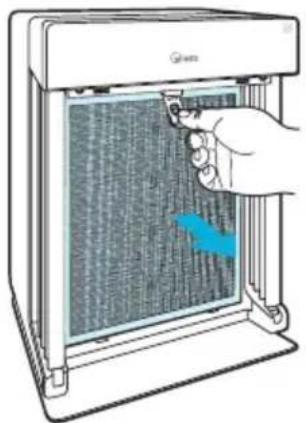

② Press the tabs on the top edge to remove the 1 Pre-filter.

③ First remove the CD Carbon filter and then the Anti-microbial True HEPA filter by pulling on the numbered tags at the top of each filter.

FILTER CARE

2. Cleaning the Pre-filter

Intervals between filter cleanings may vary depending on the air quality.

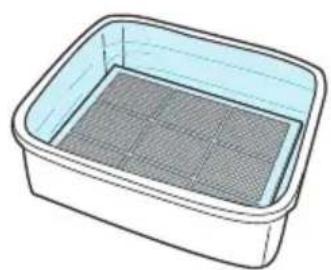

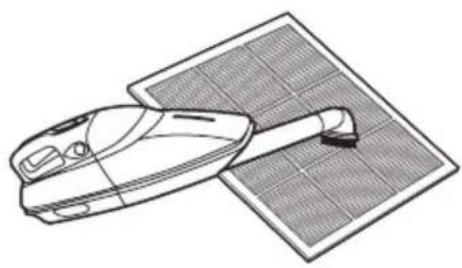

Use a vacuum cleaner or soft brush to clean the Pre-filter. If it is excessively dirty, wash with room temperature water.

• Use only water, do not use volatile substances such as alcohol or acetone.

× If the pre-filter becomes damaged or in any way needs replacement:

Please contact your local dealer

NOTICE

Do not use benzene, alcohol, or other volatile fluids, which may cause damage or discoloration.
The Pre-filter is reusable after cleaning, but must be completely dried.
Do not use hot water over 40^ or volatile fluids such as paint thinner.
After washing the pre-filter, allow it to dry completely in a well-ventilated area. Otherwise, it may develop a bad odor.

FILTER CARE

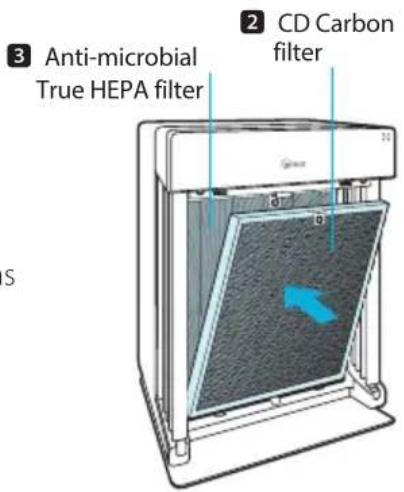

3. Filter Assembly and Replacement

Filters should be re-installed in the reverse order of their removal.

① Insert the replacement

3 Anti-microbial True HEPA filter (rear)
CD Carbon filter (middle)

• Remove the protective plastic wrap from new filters. Operating the unit without removing the protective plastic wrap may cause abnormal noise, deformation, or fire as a result of overheating.

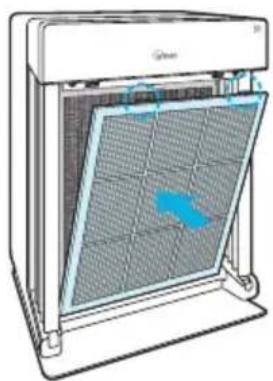

② Insert the 1 Pre-filter(front).

• To install the pre-filter, insert bottom tabs into the slots on either side of the lower part of the unit, then rotate upward to insert the upper tabs into the slots at the top part of the unit until both sides audibly click into place.

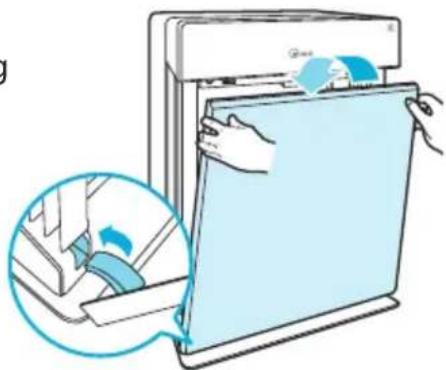

③ Replace the front panel by first inserting the latch at the bottom edge into the base of the unit, then rotate the panel upward toward the top of the unit until it magnetically snaps closed.

SMART SENSOR CARE

④ After replacing the filters, power on the unit. Once the unit running, press and hold the RESET button for 5 seconds.

4. Cleaning the Dust Sensor

For optimal performance of the Dust Sensor, which detects airborne dust and ultrafine particles, clean it every two months. Clean it more frequently when the unit is running in a place with high dust levels.

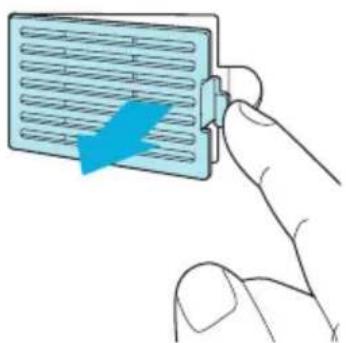

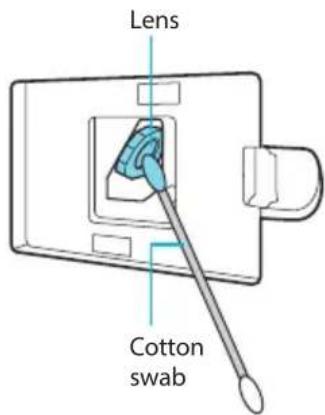

① Open the Dust Sensor cover.

Use a damp cotton swab to wipe the lens and intake area of the Dust Sensor.

• To clean the sensor area, use only water. Do not use volatile substances such as alcohol or acetone.

③ Wipe away any remaining moisture with a dry cotton swab.

CLEANING CARE

④ Close the Dust Sensor cover.

• The Dust Sensor cover may be cleaned using a vacuum cleaner.

5. Cleaning the exterior and interior

- Cleaning the exterior

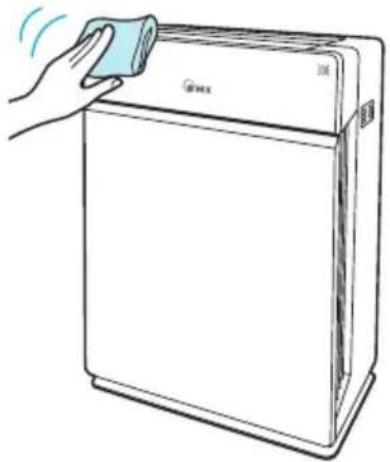

Wipe with a soft damp cloth using room temperature water. Afterwards, wipe it down with a clean dry cloth.

• For optimal performance, clean the front panel 1-2 times a month.

- Cleaning the interior

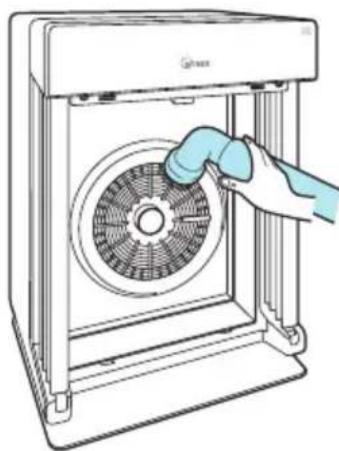

Open the front panel and clean the interior with a vacuum cleaner.

• For optimal performance, clean the interior 1-2 times a month.

NOTICE

When cleaning the unit, always unplug the power cord first and then wait until the unit has cooled off.
Never disassemble, repair or modify this unit yourself
Do not use flammable sprays or liquid detergents.
Do not allow children to clean or maintain the unit
Before cleaning or maintaining, ensure unit is off and unplugged

FREQUently ASKED QUESTIONS

Problem Check / Actions to take
It does not turn on at all.	■ there a power outage? Check to see if other lights and electrical equipment are working and try again.
It doesn't work in Auto mode.	■ Has Auto mode been selected? Press the Mode button until Auto mode is selected. ■ the sensor blocked or clogged? Clear the sensor using a vacuum cleaner. view page 17
It vibrates and makes a lot of noise.	■ it running on a slanted surface? Move the unit to a hard, flat area of the floor.

FREQUently ASKED QUESTIONS

Problem Check / Actions to take
The power plug and outlet feel hot.	▲ the plug securely plugged in? Make sure the plug is properly plugged into the outlet.
There is a strange smell.	▲ it being used in a place with a lot of smoke, dust, or odors? • Clean the air intakes on the front sides of the unit and clean the pre-filter. • Contact your local dealer to confirm the cause. • Replace the CD Carbon filter and Anti-microbial True HEPA filter.
The product is not purifying the air enough.	▲ the Check Filter indicator light on? Replace the filters as required.

UNIT SPECIFICATIONS

Model Name HR950
Power Voltage	AC220 ~ 240V, 50/60Hz
Power Rate	90W
Room, Capacity in Sq. M.	40 sq. m.
Weight	8.5 kg
Dimensions	415mm(W) x 245mm(D) x 600mm(H)
Replacement Filter	Filter J / ITEM: 117130
Pre-Filter	Part: 4521-0010-01

× The exterior, design, and product specifications may be changed to improve product performance without prior notice.

PRODUCT WARRANTY

The terms of the warranty are as follows.

1. This product is manufactured under stringent quality control and inspections.
2. Warranty void if product failure is a result of negligence or misuse by the consumer, shipping and service fees may be incurred even during the warranty period.
3. The warranty must be presented upon bringing the product for service.
4. Store the warranty in a safe place, as it cannot be reissued.
5. This warranty is valid only in the Europe.

Product Name		Air Purifier
Model Name		HR950, HR951
Purchase Date
Warranty period		Two (2) years
Customer	Address
	Name
	Tel.

× After purchase, be sure to complete all of the above information.

Independently Tested

Consumer Trusted.

160201 Rev.A

PURIFICATEUR D'AIR WINIX

OModèle HR950

3 sec Lighting On/Off

9. PlasmaWave

3 sec Lighting On/Off

NOTE

Independently Tested

Consumer Trusted.

160201 Rev.A

3 sec Lighting On/Off

9. PlasmaWave®

3 sec Lighting On/Off

NOTE

Independently Tested

Consumer Trusted.

160201 Rev.A

WINIX LUFTREINIGER

Modell

HR950

3sec Lighting On/Off

9. PlasmaWave®

3 sec Lighting On/Off

NOTE

Independently Tested

Consumer Trusted.

160201 Rev.A

PURIFICATORE ARIA WINIX

Modello

HR950

3sec Lighting On/Off

9. PlasmaWave®

3 sec Lighting On/Off

NOTE

Independently Tested.

Consumer Trusted.

160201 Rev.A

WINIX-LUCHTREINIGER

Model HR950

HET APPARAAT PLAATSEN

VEILIGHEIDSVOORSCHRIFTEN EN WAARSCHUWINGEN

3 sec Lighting On/Off

9. PlasmaWave®

3 sec Lighting On/Off

NOTE

Independently Tested

Consumer Trusted.

160201 Rev.A
