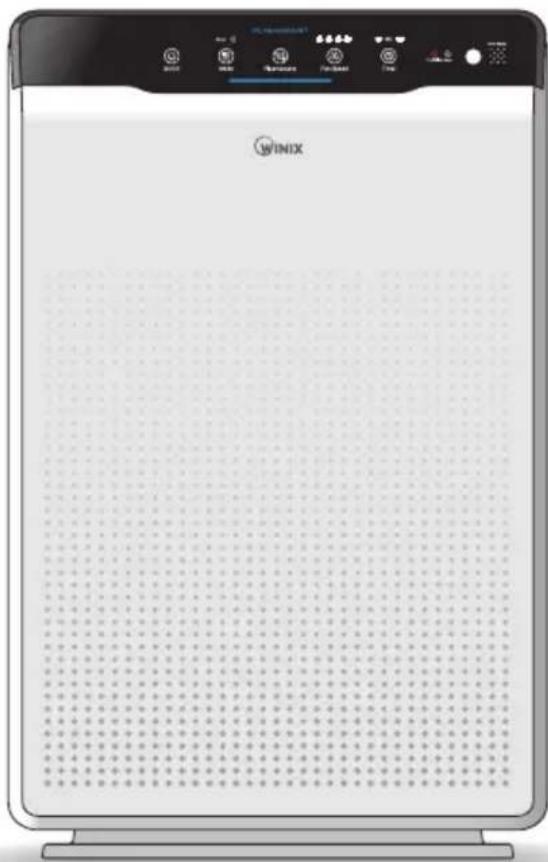

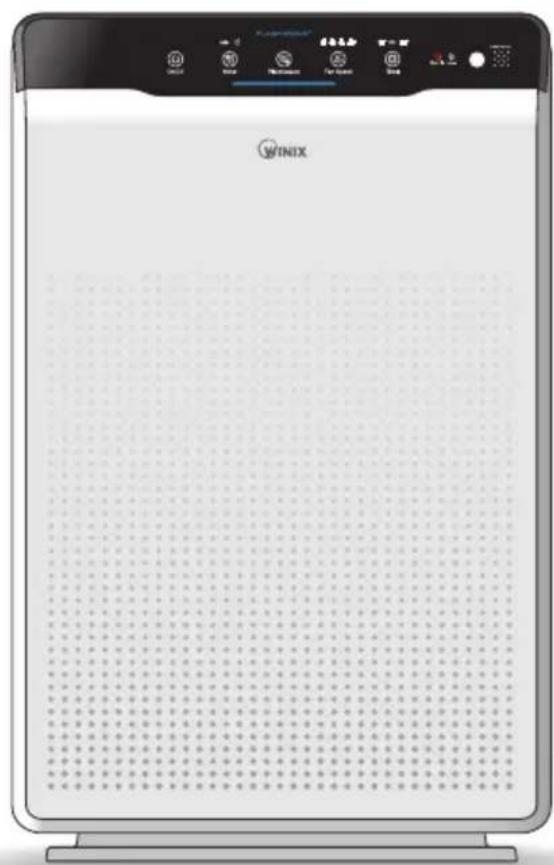

USER MANUAL 2020EU Winix

Please read and follow all safety rules and instructions in this manual before operating.

The product warranty is printed on the back of this guide, so please keep it in a safe place for future use. Model Use & Care GuideCONTENTS Set Up Where to use 5 Installing the filters 6 Safety Instructions Safety and Cautions 8 Operation Initial Operation 9 Modes of Operation 10 Features and Settings 11 Care and Maintenance Filter Care 13 Cleaning Care 17 Troubleshooting Frequently Asked Questions 18 Unit Specifications 20 Product Warranty 21 This product is suitable for 220V ~ 240V only. 4-Stage Air Purification 3 Controls 4 French 23 Spanish 45 German 67 italian 89 Dutch 111English

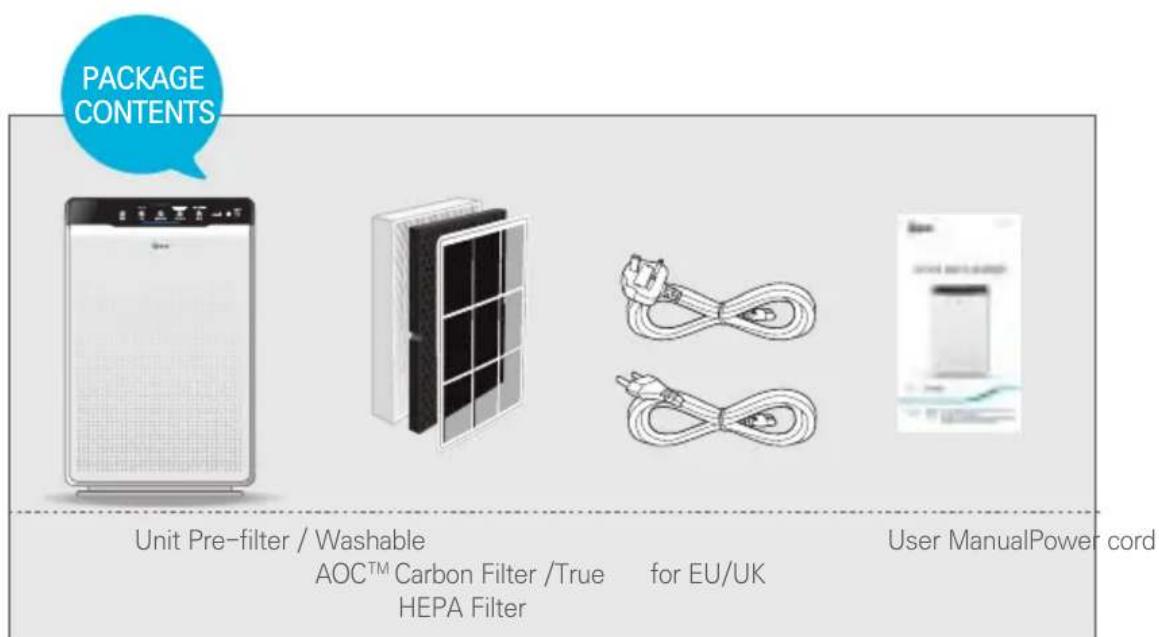

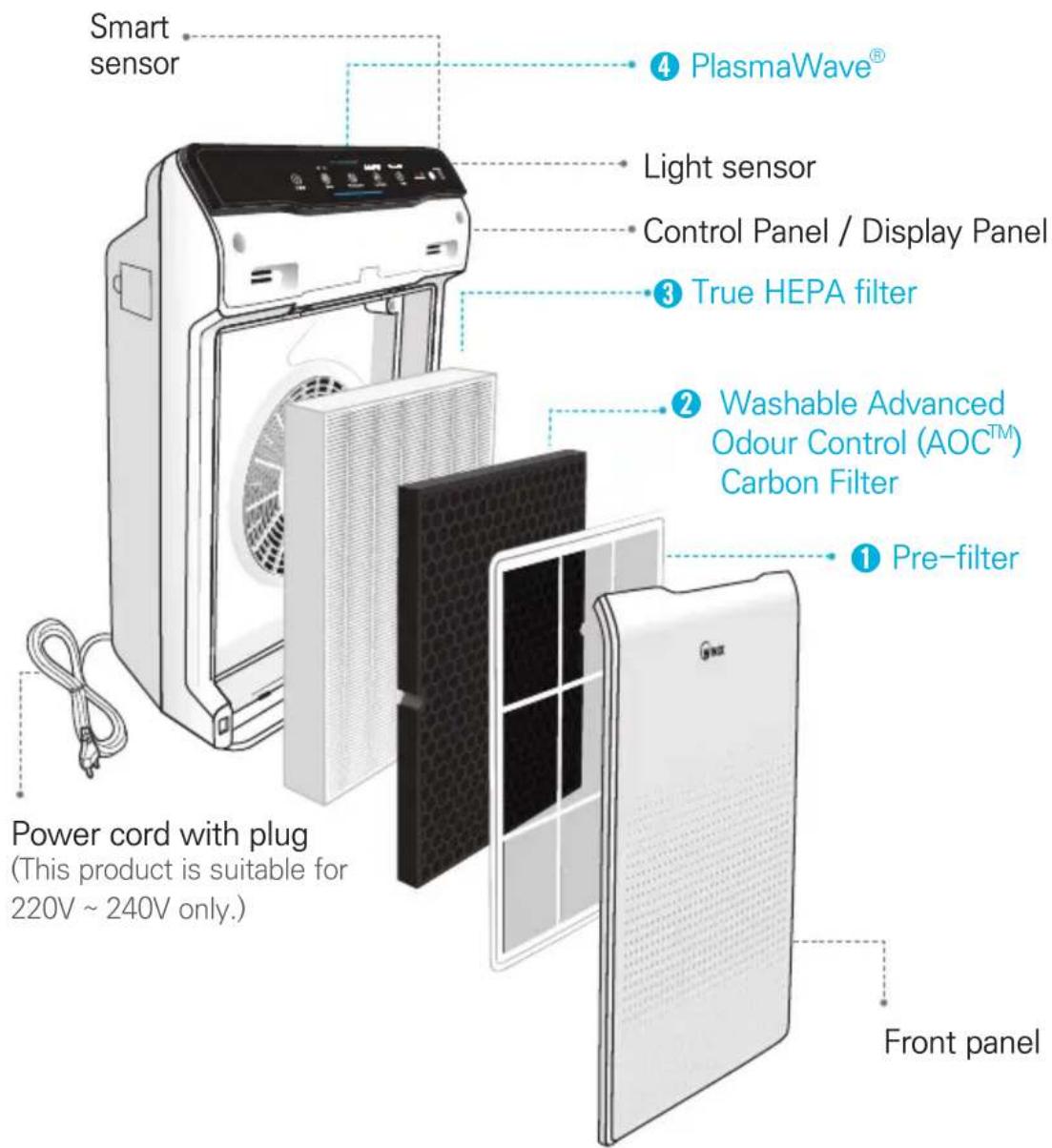

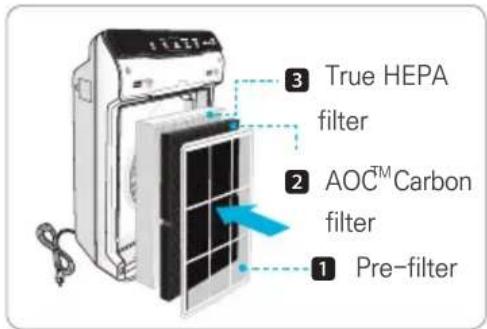

True HEPA filter Power cord with plug (This product is suitable for 220V ~ 240V only.) Smart sensor ➋ Washable Advanced Odour Control (AOC

Unit Pre-filter / Washable AOC

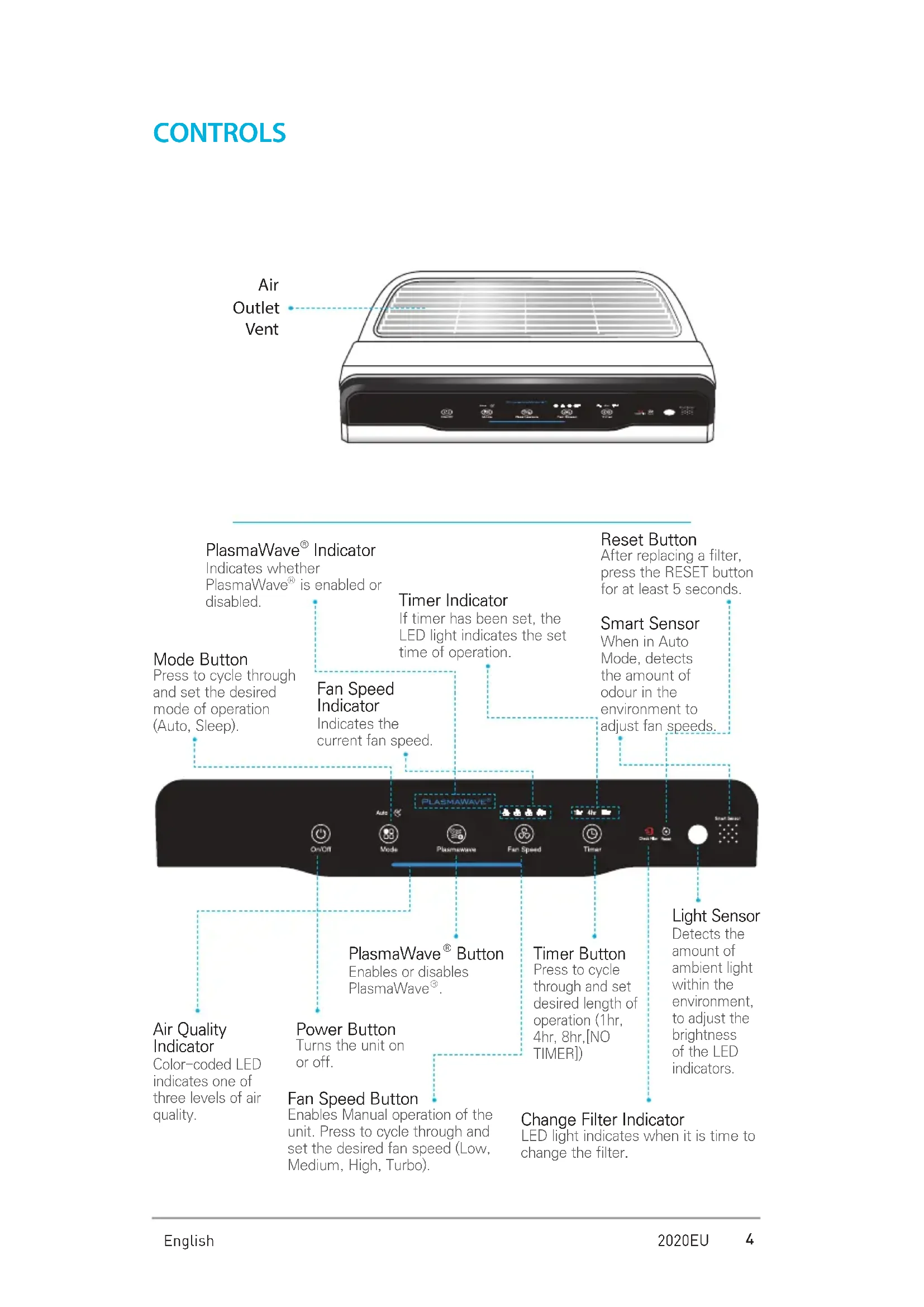

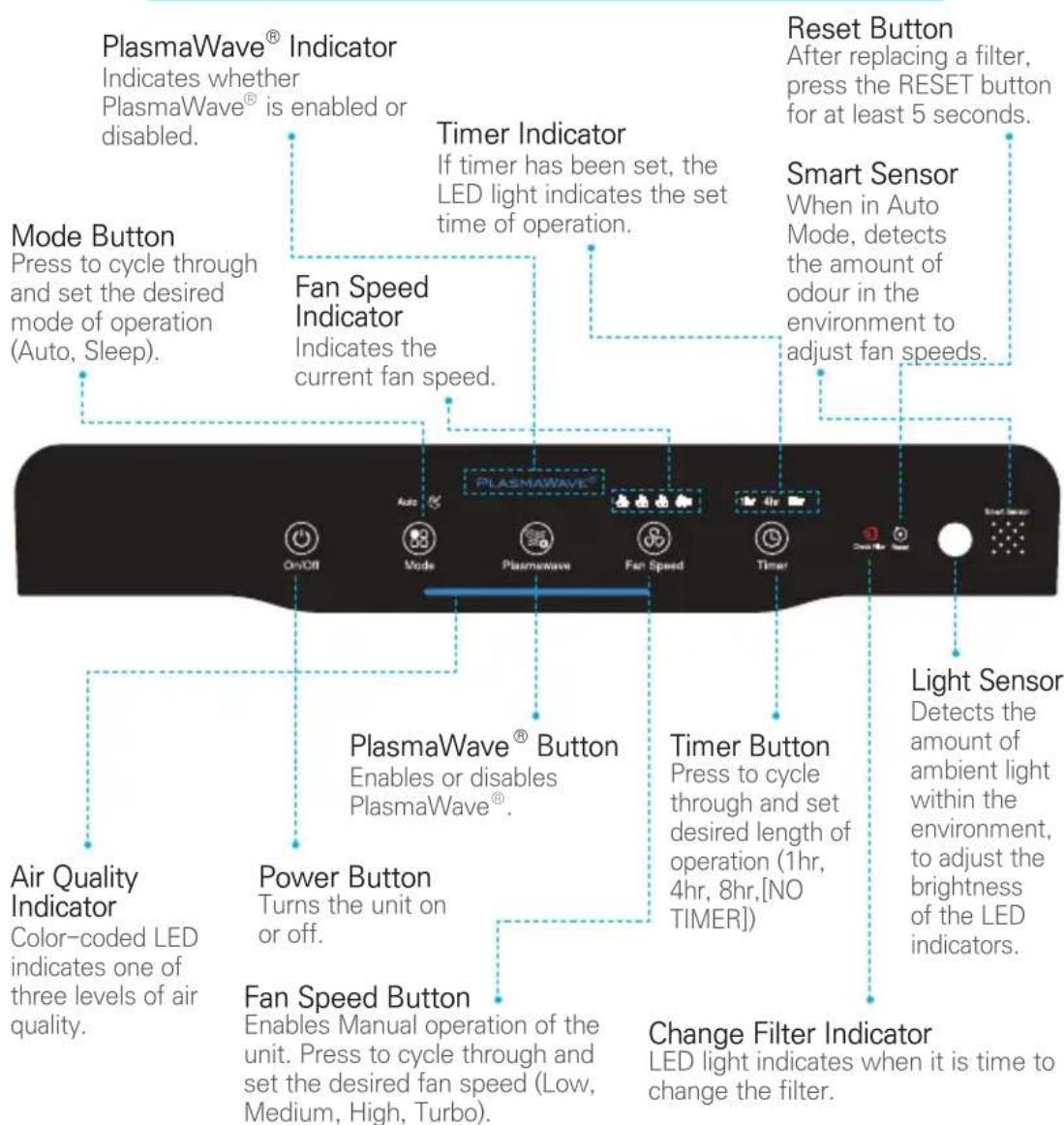

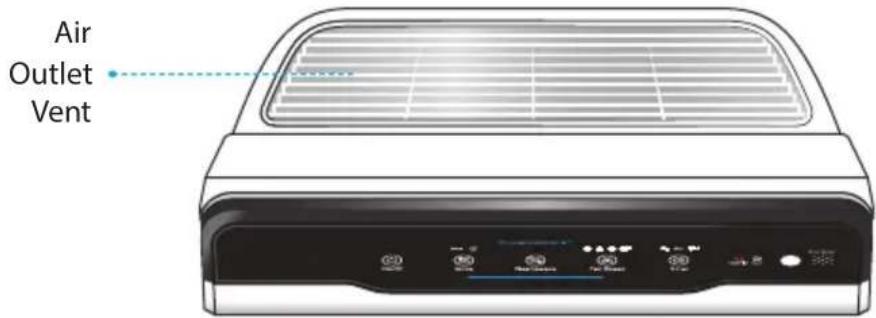

2020EU 소피아 2 영문소피아 1 소피아 2 영문소피아 1 Air Outlet Vent CONTROLS Reset Button After replacing a filter, press the RESET button for at least 5 seconds. Fan Speed Indicator Indicates the current fan speed. Timer Indicator If timer has been set, the LED light indicates the set time of operation. PlasmaWave

is enabled or disabled. Air Quality Indicator Color-coded LED indicates one of three levels of air quality. Mode Button Press to cycle through and set the desired mode of operation (Auto, Sleep). Power Button Turns the unit on or off. Fan Speed Button Enables Manual operation of the unit. Press to cycle through and set the desired fan speed (Low, Medium, High, Turbo). PlasmaWave

Light Sensor Detects the amount of ambient light within the environment, to adjust the brightness of the LED indicators. Timer Button Press to cycle through and set desired length of operation (1hr, 4hr, 8hr,[NO TIMER]) Change Filter Indicator LED light indicates when it is time to change the filter. Smart Sensor When in Auto Mode, detects the amount of odour in the environment to adjust fan speeds.English 2020EU WARNING Follow these instructions to reduce the risk of serious injury or death and to reduce risk of damaging the unit.

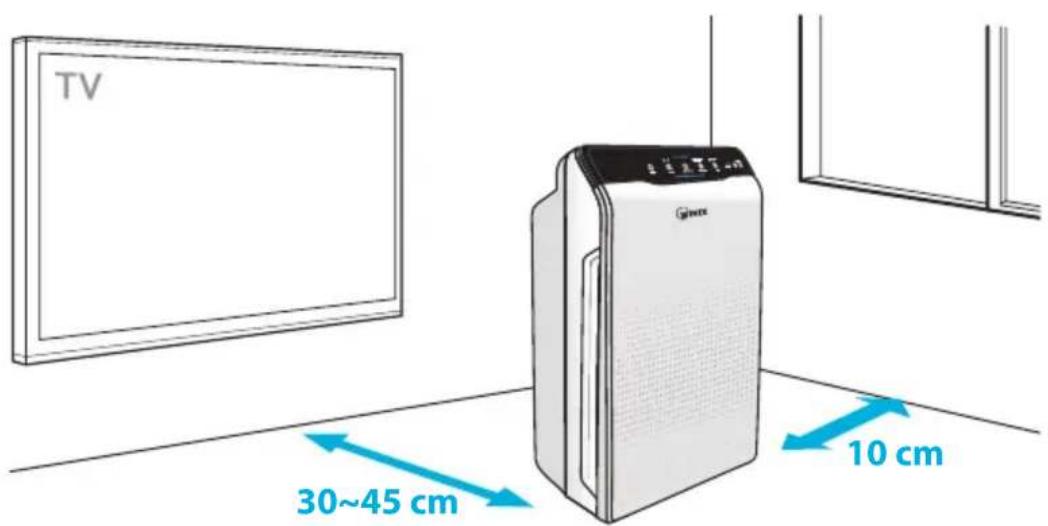

Do not use around mist or fumes from industrial oil or around large quantities of metallic dustDo not install in any sort of motor or transport vehicle (trucks, boats, ships, etc.)Do not place near any flammable materials (aerosols, fuel, gases etc.)Do not place below any electrical outletDo not place around heating elementsDo not place in an area with excessive amounts of noxious gasesDo not have unit facing into wind or draftDo not place in excessively humid areas where unit may become wetAllow 30 ~ 45 cm. of space between TVs, radios, and other electronic productselectromagnetic interference from certain electronics may cause product malfunction.Place indoors away from direct sun lightdirect exposure may cause product malfunction or failure.Only place on hard, flat surfacesflimsy or slanted surfaces may result in abnormal noise and vibrations. This unit is not intended to be used to preserve documents or in art conservation. 30~45 cm 10 cmEnglish

2020EU INSTALLING FILTERS This product comes with all the required filters. The protective plastic wrap must be removed from the filters before use ※ Operating the unit without removing the plastic wrap may result in product failure. ※ Unplug and make sure the unit is turned off before installing filters. ③ Remove filters from protective plastic wrap.

• Operating the unit without removing filters from plastic wrap may cause abnormal noise, deformation, or fire as a result of overheating. ② Remove the filters from the unit, they are protected inside a plastic wrap ① Remove the front panel by grasping its upper edge and gently pulling forward.

• Refer to pages 13 - 15 for details on how to replace filters. Note LatchEnglish 2020EU ※ Intervals between filter replacement may vary depending on environment. ※ For optimal use, Pre-filter can be cleaned once every 14 days which can extend the life of other filters. ④ Install the filters until they fit securely in place. Filters must be installed in this order: 3 True HEPA Filter (rear) 2 AOC

Carbon filter (middle) 1 Pre-filter (front)

To install the Pre-filter, insert bottom tabs into the slots on either side of the lower part of the unit, then rotate upward to insert the upper tabs into the slots at the top part of the unit until sides audibly click into place. ⑤ Replace the front panel by first inserting the latch at the bottom edge into the base of the unit, then rotate the panel upward toward the top of the unit until the magnets pull the lid closed. ⑥ When to service and replace filters:

True HEPA filter AOC Carbon filter Pre-filterLatch Filter Indicator Light When to service When to replace 1 Pre-filter none Clean once every 14 days Permanent 2 AOC

Carbon filter Clean once every 3 months Lasts up to 12 months 3 True HEPA filter Can NOT be WASHED To purchase replacement Winix filters: contact your local dealer INSTALLING FILTERS this unit is compatible with this filter FILTER

Before operating this equipment, carefully read and follow these safety cautions WARNING Follow these instructions to reduce the risk of serious injury or death and to reduce risk of damaging the unit. Ensure filters are inserted before running unit running unit without filters can shorten the units life and cause electric shock or injury. Be sure foreign objects are NOT inserted into the vents on the unit objects can include pins, rods, and coins. Do not touch any part of the interior of the unit with wet hands the high voltage may cause electric shock. Ensure unit intake and outlet vents do not become blocked blockage may lead to increased internal termperatures causing product failure and derformation. Do not use the unit as a step stool or place heavy objects on it personal injury may occur or product failure and deformation.Do not pull on the power cord when unplugging the unitDo not touch the plug with wet handsDo not plug additional appliances into the same outlet or power supplyUnplug unit when not in operation for extended periods of timeDo not tie or knot power cord when unitis in operationDo not unplug or move the unit while in operationIf the unit becomes submerged in water, unplug it and contact customer serviceCord can become damaged by forcefully bending, pulling, twisting, bundling, pinching or placing heavy objects on it If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent. This appliance is not intended for use by a person (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.English 2020EU

Insert the power cord into an electrical outlet.

By default, when the unit first powers on, the mode will be set to Auto with PlasmaWave

• When in Auto mode, the fan speed will be automatically adjusted according to the environments air quality.

• During the first 30 seconds of power up, the Air Quality Indicator will cycle through Blue, Yellow and Red colors. The Smart Sensors take approximately 4 minutes to gauge the air quality in the environment, after which normal operation will begin. Note

• In Auto mode, as the indoor air quality improves, the fan speed will automatically be reduced to Low.

• When the unit is running, you may hear a chirping or buzzing sound. The sound is from large particles passing through PlasmaWave

, it is normal and does not signify product failure. To disable PlasmaWave

• The LED ‘Auto’ light will indicate when Auto mode is activated, and operation will begin.

• When in Auto mode the fan speed is automatically adjusted according to the indoor air quality. As the indoor air quality improves, the fan speed will automatically be reduced. If the indoor air quality decreases, the fan speed will automatically increase. Note

• The LED "Sleep" light will indicate when Sleep mode is activated, and operation will begin.

• When Sleep mode is selected, the fan speed is automatically set to Low. The fan speed can be manually changed by pressing the Fan Speed button, changing the unit into manual mode.

• When Sleep Mode is activated, the Air Quality Indicator LED light is disabled. Note AUTO & SLEEP 소피아 2 영문 소피아 1English 2020EU

Users can opt to manually set the fan speed to Low, Medium, High, or Turbo.

The timer can be set to let the unit run for a specified period of time. MANUAL & TIMER ① Press the Timer button to select the desired length of time.

• When the Timer LED light will indicate the selected length of operation.

• Every time the Timer button is pressed, The Timer LED light will cycle through the settings, (1hr, 4hr, 8hr, [NO TIMER]).English 2020EU

6. Air Quality Indicator

When on, the LED light will indicate the current indoor air quality according to three levels: BLUE (good), AMBER (fair), RED (poor).

• Air quality level is displayed on the indicator, based on the Smart Sensors. Depending on the immediate environment, the indicator may change frequently in color or stay the same for lengthy periods of time. Note PLASMAWAVE

is enabled whenever the unit is powered on. ① Press the Plasmawave button, when the unit is on, to enable or disable this feature. 소피아 2 영문 소피아 1

• In Auto mode, as the indoor air quality improves, the fan speed will automatically be reduced to Low.

• When the unit is running, you may hear a chirping or buzzing sound. The sound is from large particles passing through PlasmaWave

Carbon filter / True HEPA filter ※ Intervals between filter replacement may vary depending on environment. ※ For optimal use, Pre-filter can be cleaned once every 14 days which can extend the life of other filters.Filter Indicator LightWhen to serviceWhen to replace1 Pre-filter none Clean once every 14 daysPermanent2 AOC Carbon filter Clean once every 3 months Lasts up to12 months3 True HEPA filterCan NOT be WASHED To purchase replacement Winix filters: contact your local dealer FILTER CARE

When the Check Filter indicator LED is on, it is time to replace both the True HEPA and AOC

• The filters’ life varies depending on the level of pollutants in the air. The more dust present in the environment, the more dust accumulates in the filters, shortening the life. • If the filters are heavily soiled or have a bad odour, or if the fan strength is significantly weakened, replace filters even if the Change Filter indicator has not yet turned on. Note this unitis compatiblewith this filter FILTER

• For optimal performance, only Winix filters should be used with this unit. NOTICE

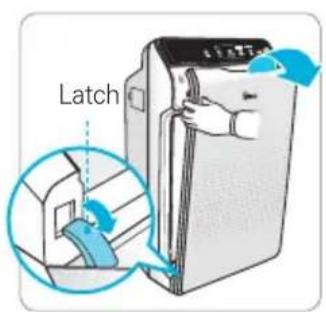

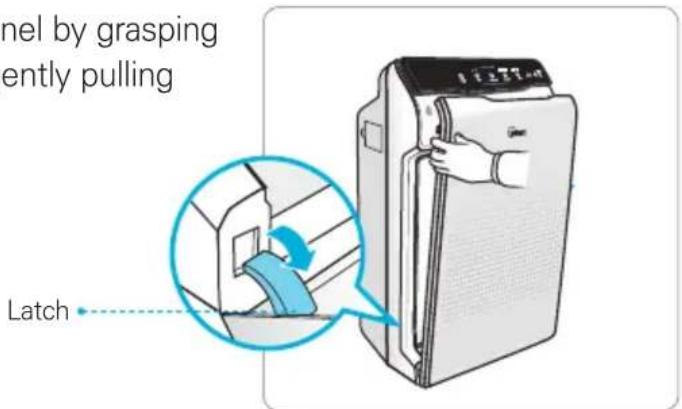

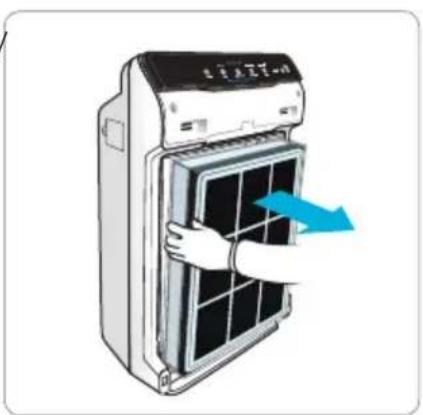

Remove the front panel by grasping its upper edge and gently pulling forward.

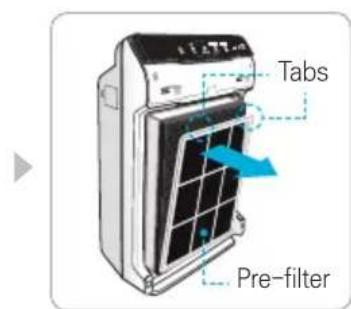

Press on the Pre-filter tabs near the top of the filter, release and remove.

Carbon filter and True HEPA Filter.

Turn the unit power off before removing filters.

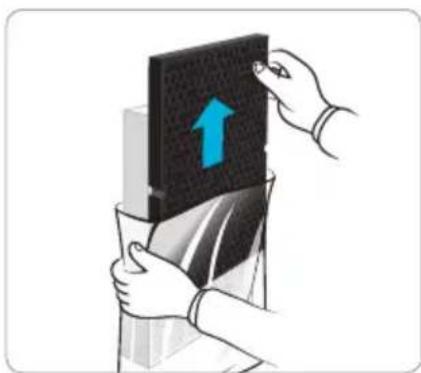

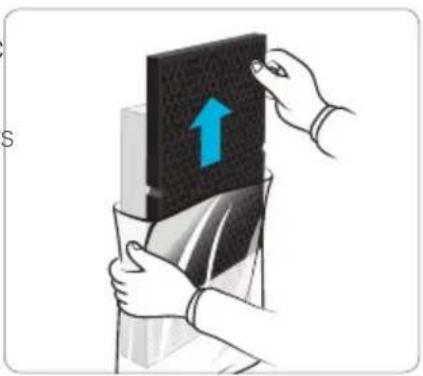

Remove replacement filters from protective plastic wrap.

• Operating the unit without removing filters from plastic wrap may cause abnormal noise, deformation, or fire as a result of overheating.

After replacing the filters, turn the power back on and then use a thin object, such as a paper clip, to press the RESET switch for 5 seconds. 소피아 2 영문 소피아 1 AOC

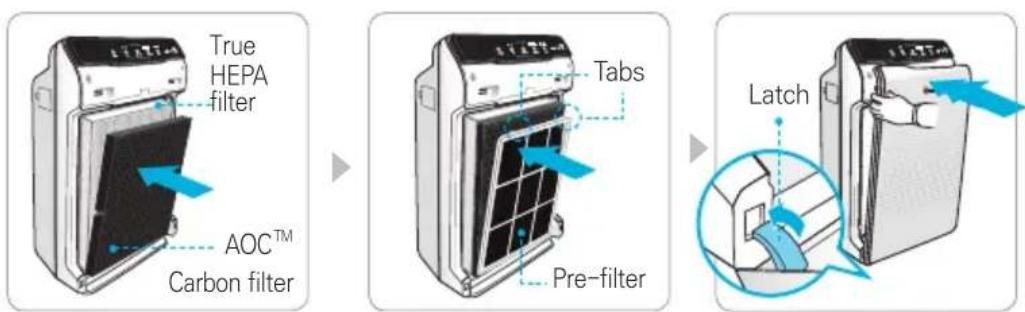

Carbon filter. ② Insert the Pre-filter.

Insert bottom tabs of the Pre-filter into the slots on either side of the lower part of the unit, then rotate upward to insert the upper tabs into the slots at the top part of the unit until sides audibly click into place.

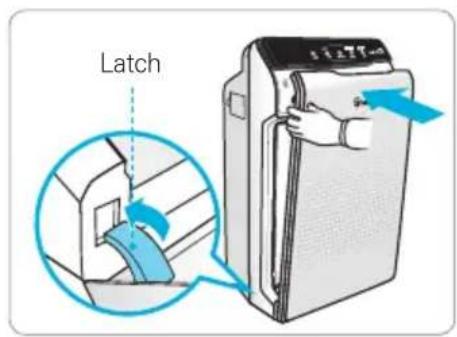

Replace the front panel by first inserting the latch at the bottom edge into the base of the unit, then rotate the panel upward toward the top of the unit until the magnets pull the lid closed.

True HEPA filterLatch Pre-filter Tabs

4. Replacing Filters

5. Resetting The Unit

FILTER CAREEnglish 2020EU

6. Cleaning the filters

Intervals between filter cleaning may vary depending on the air quality.

• Do not use benzene, alcohol, or other volatile fluids, which may cause damage or discoloration.

• The Pre-filter and AOC

Carbon are both reusable after cleaning, ensuring they are completely dry.

• Do not use hot water over 40

C or volatile fluids such as paint thinner.

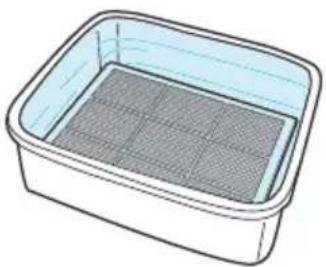

• After washing the filter, allow it to dry completely in a well ventilated area. Otherwise, it may develop a bad odour. NOTICE FILTER CARE ① When cleaning the AOC

Carbon Filter, remove it from the unit, and hold it under running room temperature water.

• Do not use detergent or soap.

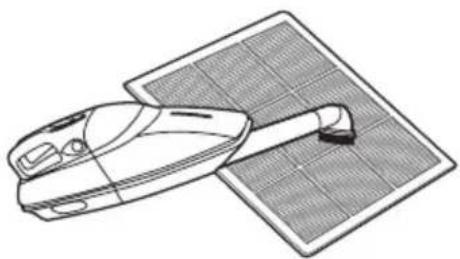

• Allow the filter to dry for 24 hours or more before using. ② Use a vacuum cleaner or soft brush to clean the Pre-filter. If it is excessively soiled, rinse in room temperature water.

• Do not use detergent or soap.

• Allow the filter to dry for 24 hours or more before using. If the pre-filter becomes damaged or in any way needs replacement: Please contact your local dealerEnglish

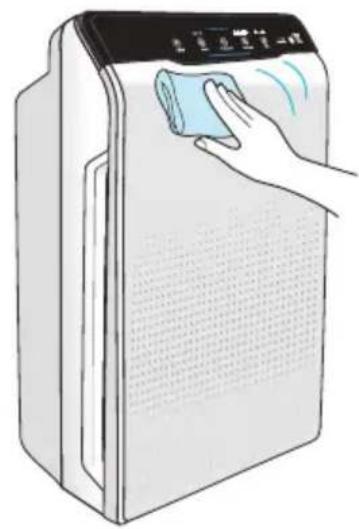

CLEANING CARE ① Wipe with a soft damp cloth using room temperature water. Afterwards, wipe it down with a clean dry cloth.

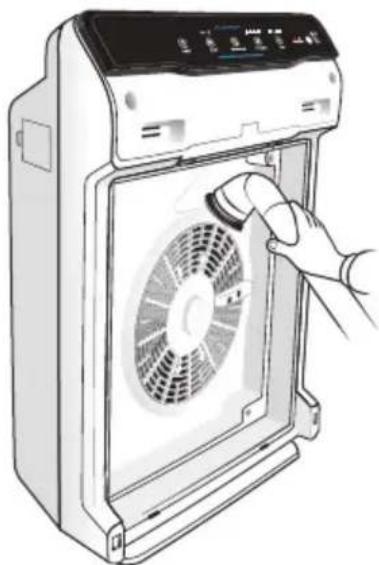

• To keep unit in peak condition, clean every 1-2 months. ② Open the front panel and clean the interior with a vacuum cleaner.

• For optimal performance, clean every 1-2 months.

• When cleaning the unit, always unplug the power cord first and then wait until the unit has cooled down.

• Never disassemble, repair, or modify this unit yourself.

• Do not use flammable sprays or liquid detergents.

• Do not allow children to clean or maintain the unit.

• Before cleaning or maintaining, ensure unit is unplugged. NOTICEEnglish

2020EU Problem Check / Actions to take It does not turn on at all.

• Is the plug securely attached to the outlet? -Make sure the outlet has power going to it, and ensure the plug is secured.

• Is there a power outage? -Check to see if other lights and electrical equipment are working and try again. It doesn’t work in Auto Mode.

• Has Auto Mode been selected? -Press the Mode button until Auto Mode is selected.

• Is the sensor blocked or clogged? -Wipe Odour Sensor with wet cloth, then dry. FREQUENTLY ASKED QUESTIONSEnglish

2020EU Problem Check / Actions to take It vibrates and makes a lot of noise.

Is it running on a slanted or uneven surface? -Move the unit to a hard, flat, even area of the floor. The power plug and outlet feel hot.

• Is the plug securely plugged in? -Make sure the plug is properly plugged into the outlet. There is a strange smell.

• Is it being used in a place with a lot of smoke, dust, or odours? -Clean the air intakes on either side and clean the pre-filter. -Clean or change the AOC

Carbon filter. The fan strength is weak. The unit is not purifying the air.

• Is the Check Filter indicator light on? -Change the filters as required. The display panel is dim.

s the Light Sensor blocked by debris? -When Auto Mode is on, Sleep Mode is automatically activated when the Light Sensor detects that the room is dark. FREQUENTLY ASKED QUESTIONSEnglish

2020EU Model Name 2020EU Power Voltage AC220V ~ 240V, 50/60Hz Power Rate 70W Room Area Served AHAM verified at 33 m

2020EU The terms of the warranty are as follows.

This product is manufactured under stringent quality control and inspections.

Warranty void if product failure is a result of negligence or misuse by the consumer, shipping and service fees may be incurred even during the warranty period.

The warranty must be presented upon bringing the product for service.

Store the warranty in a safe place, as it cannot be reissued.

This warranty is valid only in the Europe. Product Name Air Purifier Model Name 2020EU Purchase Date Warranty period Two (2) years Place of purchase Place of purchase Tel. Customer Address Name Tel. After purchase, be sure to complete all of the above information. PRODUCT WARRANTYwww.winixeurope.eu 160504 Rev.A Contact your local dealer for product related inquiries and customer service ¥Î«—ªÍ∫Œ¿Œ∞˙ Developed in partnership with Drexel University (Philadelphia, PA, USA)¥Î«—ªÍ∫Œ¿Œ∞˙ Developed in partnership with Drexel University (Philadelphia, PA, USA) 2020EU Manuel d'utilisation
