DO1096S - Steam cleaner DOMO - Free user manual and instructions

USER MANUAL DO1096S DOMO

Teal and black hair dryer with a white head cover, no visible text or symbols

DO1096S

Two black-and-white icons: a triangular warning triangle with an exclamation mark and an open book with stacked pages (no text or symbols)

Line drawing of a handheld device with an arrow pointing to the left side (no text or symbols present)

Line drawing of a portable steam gun with a circular head cover and handle (no text or symbols)

Line drawing of a handheld device with a circular top and arrow indicating rotation (no text or symbols)

Line drawings of three different types of hair blisters: a standard, a simple bag, and a compact device (no text or symbols present)

BORSTELKOP

Line drawing of a handheld device with two circular components, one showing internal structure and the other showing outer ring (no text or symbols)

REINIGING EN ONDERHOUD

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal restriction

Recycling symbol icon with three chasing arrows inside a rounded square (no text or labels)

Line drawings of three different types of hairless steamers, showing front, side, and side views with arrows indicating motion (no text or symbols)

BROSSE

Line drawing of a handheld device with two circular components and directional arrows indicating assembly or alignment (no text or symbols)

NETTOYAGE ET ENTRETIEN

Prohibition sign with crossed-out trash bin and no text, indicating no waste disposal or restriction

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Line drawings of three different types of hair blisters: a standard, a simple bag with a handle, and a compact bag (no text or symbols present)

BÜRSTENKOPF

Line drawing of a handheld device with two circular components and directional arrows indicating motion (no text or symbols)

Prohibition sign with crossed-out trash bin and no text, indicating no waste disposal or recycling.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

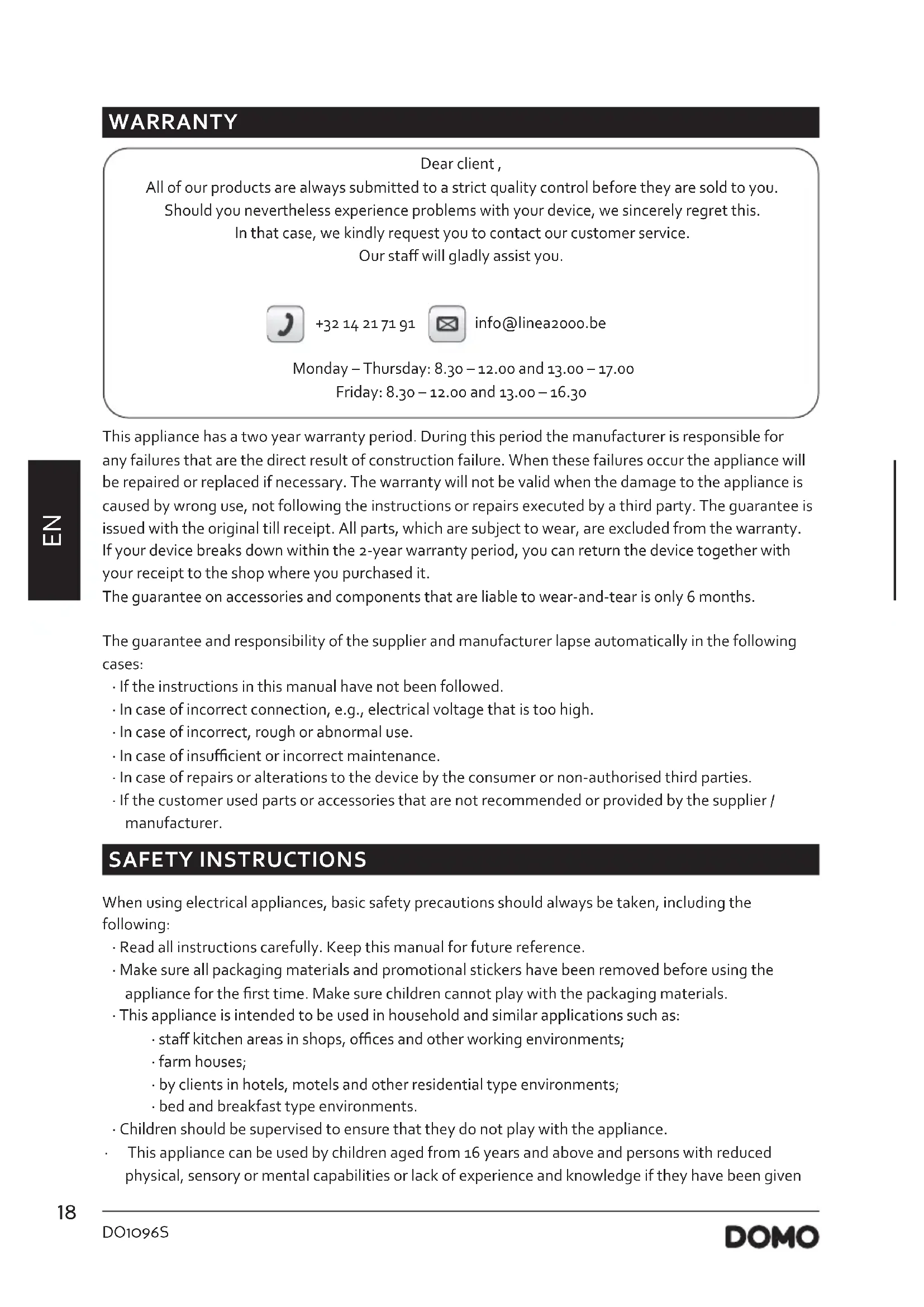

All of our products are always submitted to a strict quality control before they are sold to you.

Should you nevertheless experience problems with your device, we sincerely regret this.

In that case, we kindly request you to contact our customer service.

Our staff will gladly assist you.

[phone]

[e-mail]

Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.
  · In case of incorrect connection, e.g., electrical voltage that is too high.
  · In case of incorrect, rough or abnormal use.
  · In case of insufficient or incorrect maintenance.
  · In case of repairs or alterations to the device by the consumer or non-authorised third parties.
• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

· This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
• farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

· Children should be supervised to ensure that they do not play with the appliance.

- This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given

supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 16 and supervised.

• Keep the appliance and its cord out of reach of children younger than 16 years.
• The appliance must be disconnected from its power source when not in use, during service and when replacing parts. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• CAUTION: In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.
  · The appliance must not be left unattended while it is connected to the supply mains.
• The filling aperture must not be opened during use. Follow the instructions of this booklet for safe refilling.
  The appliance must be used and rested on a flat, stable surface and resistant to heat and hot steam.

The surface(s) marked with this symbol are liable to get hot during use. It is advised not to touch the surfaces of the appliance other than the handles to avoid burns.

• Do not use or store this appliance outdoors.
• Do not move the appliance while in use or when still hot. Allow to cool before moving the appliance or before maintenance.
  · Do not use this appliance for other than intended use.
• Do not fill the water reservoir with any other liquid than water.
• Do not use the steam function of the iron without water in the reservoir. This might cause damage to the appliance.

- Check carefully that the voltage and frequency of the power net match the indications on the rating label of the appliance.

• The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local standards and requirements.
• Only use the utensils delivered with the appliance.

• To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.

• Do not operate the appliance with wet hands.
  · Unwrap the cord completely to prevent overheating of the cord.
• Do not let the power supply cord touch hot surfaces.
• Only fill the water reservoir with no other liquid than water.
• Make sure the appliance is correctly assembled, then plug the cord in the wall outlet. To disconnect, turn controls to "OFF" or "o" position, then remove the plug from the wall. Never pull the cord or appliance to remove the plug from the socket.
• Make sure the appliance has cooled down before opening the boiler for cleaning. Make sure the bolt of the boiler is correctly and well fixed onto the appliance after maintenance.

- Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.

- Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

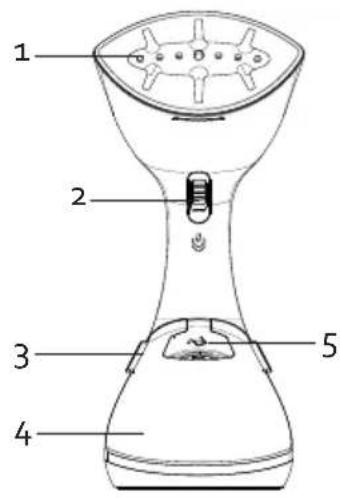

PARTS

1. Steam plate
2. Steam button with locking button
3. Water reservoir release
4. Water reservoir
5. Water reservoir filling opening
6. Steam level indicator lights
7. Steam selection button
8. Brush head

1 2 3 4 5

Domo 6 7 8

BEFORE THE FIRST USE

• Remove all packing materials and carefully clean the appliance and accessories before first use (see Cleaning).
• Appliances are tested following production. It is thus perfectly normal if droplets of condensation have formed in the water tank.

USE

• Fill the water reservoir in accordance with the instructions "fill the water reservoir".
• Plug the power cord into a socket. The indicator light on the steam selector button will start flashing to indicate that the appliance is warming up. The appliance is ready for use when the light stays on. The appliance is warmed up after about 25 seconds.
• The appliance has 3 steam levels: delicate, mid, max. Each press of the steam selection button changes the level. The indicator lights show the selected level.
  · Always check the label with instructions on the item of clothing first.

This symbol means that the item of clothing should not be ironed or steamed.

• To use the steam function, press and hold the steam button. When you release the button, the appliance will stop producing steam.
• If you want constant steam, press and hold the steam button and move the locking button down. To stop steaming, move the locking button up to release the steam button.

Line drawing of a handheld device with a control panel and arrow indicator (no text or symbols)

Line drawing of a handheld device with a circular top and handle, showing a black arrow pointing to the handle (no text or symbols present)

Line drawing of a handheld device with a circular top and handle, showing a downward arrow indicating motion (no text or symbols)

While steaming, it is normal to hear the water being pumped. This can also be felt in the handle.
- To remove wrinkles, press the steam plate against the material while steaming. Move the clothing steamer over the material. Do be careful not to continue to steam the same location for too long.
- CAUTION: always be careful when using the steamer. The appliance and the steam are hot. Never aim steam at people.
- Unplug the power cord after use.
- Allow the appliance to cool completely. Remove the water from the reservoir and store the appliance.

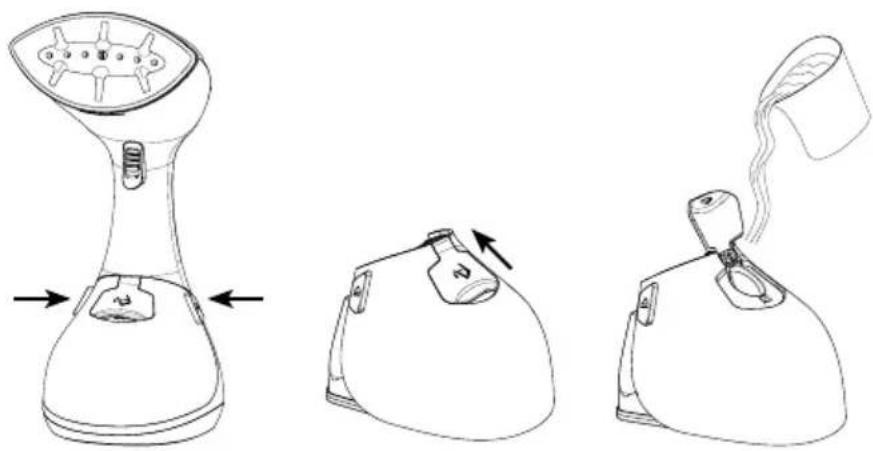

FILL THE WATER RESERVOIR

1. Press and hold the water reservoir release button and remove the reservoir from the appliance by pulling it towards you.
2. Click open the filling opening. Fill the reservoir with water, making sure not to exceed the maximum level. Use only mains water or 50% mains water and 50% de-mineralised water. Do not use perfumed water. Click the filling opening closed again.
3. Replace the water reservoir in the appliance; you will hear a click.

Line drawings of a steam machine with three stages: top, side, and back (no text or symbols)

BRUSH HEAD

The brush head can be used for thicker materials, furniture or removing hairs.

• Attach the brush head when the appliance is cool.
• Place the top of the brush head on the top of the appliance. Then fasten the bottom with a click.
  · Always allow the appliance to cool completely before removing the brush head.
• Remove the brush head by lifting the lid on the top.

Line drawing of a handheld device with a circular dial and a separate inset showing the same dial (no text or symbols present)

CLEANING AND MAINTENANCE

• Remove the plug from the outlet and allow the appliance to cool completely before cleaning.
  · Wipe the steam plate and the exterior of the appliance clean with a moist cloth.
  · Never use chemicals, abrasive or corrosive cleaning products.
• Remove the water from the reservoir before storing the appliance.

ENVIRONMENTAL GUIDELINES

Prohibition sign with a trash bin crossed out and a black rectangle below, indicating no waste or discharge.

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

The packaging is recyclable. Please treat the packaging ecologically.

GARANTIA

Line drawings of a steam machine with three stages: top, side, and back (no text or symbols)

CEPILLO

Line drawing of a handheld device with a circular dial and a separate ring component (no text or symbols)

LIMPIEZAY MANTENIMIENTO

Prohibition sign with crossed-out trash bin and no text, indicating no waste disposal or recycling.

Recycling symbol icon with three chasing arrows inside a rounded square (no text or labels)

Line drawings of a steam machine with three stages: top, side, and back (no text or symbols)

SPAZZOLA

Line drawing of a handheld device with two views of the lid (no text or symbols)

Prohibition sign depicting a trash bin crossed with a crossed-out line, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

USCHOVEJTE TENTO MANUÁL I NA POZDĚJŠÍ NAHLÉDNUTÍ

ČÁSTI

Line drawing of a handheld device with a digital display and arrow indicator (no text or symbols)

Line drawing of a handheld electric shaver with a circular head and handle (no text or symbols)

Line drawing of a handheld device with a circular top and handle, showing a downward arrow indicating motion (no text or symbols)

Line drawings of a steam machine with three stages: top, side, and bottom (no text or symbols)

KARTÁČOVÝ NÁSTAVEC

Line drawing of a handheld device with two circular components, one showing internal structure and the other with a separate ring (no text or symbols)

ČIŠTĚNÍ A ÚDRŽBA

OHLED NA ŽÍVOTNÍ PROSTŘEDÍ

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal restriction

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

USCHOVAJTE TENTO MANUÁL Aj NA NESKORŠIE NAHLIADNUTIU

ČASTI

Line drawings of three different types of hair steamers, showing front, side, and side views with no text or symbols.

KEFOVÝ NÁSTAVEC

Line drawing of a handheld device with two circular components, one showing internal structure and the other with a separate ring (no text or symbols)

ČISTENIE A ÚDRŽBA

Prohibition sign with a trash bin crossed out and a black rectangle below, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

QR code image containing encoded data, no visible human-readable text
