USER MANUAL DO1192S DOMO

Black and white photo of a Domo hair dryer with a green strap (no visible text or symbols)

EN Instruction booklet Clothes steamer

Read all instructions carefully.

Save this instruction manual for future reference.

⚠PRODUCTSPECIFIEKE WAARSCHUWINGEN

Close-up of a black plastic container with a metallic rod inserted, labeled '6' (no text or symbols on the object itself)

Close-up of a black plastic component with serrated edges, labeled with number 7 (no text or symbols on the object itself)

1 2 3 4 5

Close-up of a black Domo hair dryer with red motion arrow indicating rotation (no text or symbols on body)

GEBRUIK

Black plastic container with a small white object inserted, no visible text or symbols

Black hair dryer with red circular annotation and upward arrow, no visible text or symbols

Black hair dryer with a red arrow pointing to the handle (no visible text or symbols)

Black hair dryer with red circular annotation indicating a location or adjustment point (no text or symbols on device)

Close-up of a black DOME-branded hair dryer and its side profile (no text or symbols visible)

REINIGING EN ONDERHOUD

Black Dologi hair dryer with red arrow indicating rotation (no text or symbols on body)

Black and white photo of a black DOME hair dryer with a green accent (no text or symbols visible)

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

⚠AVERTISSEMENTS SPÉCIFIQUES AU PRODUIT

Close-up of a black ceramic pot with a metal rod inserted, labeled with the number 6 (no text or symbols on the pot itself)

Close-up of a black plastic object with serrated edges, labeled with number 7 (no text or symbols on the object itself)

AVANT LA PREMIÈRE UTILISATION

Close-up of a black DCMO hair dryer with red motion arrows indicating rotation (no text or symbols on device)

UTILISATION

Black plastic container with a small white object inserted, no visible text or symbols

Black hair dryer with red circular annotation and upward arrow, no visible text or symbols

Black hair dryer with a red arrow pointing to the handle (no text or symbols visible)

Close-up of a black hair dryer with a red circular indicator and arrow, no visible text or symbols

Close-up of a black hair dryer with a side view showing its comb and the brand name 'DOMO' (no additional text or symbols visible)

NETTOYAGE ET ENTRETIEN

Close-up of a black DOMG hair dryer with a red curved arrow indicating rotation (no text or symbols on the device itself)

Black and white photo of a black DOME hair dryer with a green accent (no text or symbols visible)

Symbol of a trash bin crossed with no text or numbers, representing environmental hazard (no text present)

Close-up of a black plastic container with a white rod inserted, labeled '6' (no other text or symbols visible)

Close-up of a black plastic component with serrated edges, labeled with number 7 (no text or symbols on the object itself)

1 2 3 4 5

Close-up of a black Domo hair dryer with a green accent and red motion arrow (no text or symbols on the device itself)

GEBRAUCH

Black ceramic pot with a white plastic tube inserted into it, no visible text or symbols

Close-up of a black hair dryer with a red circular indicator and upward arrow, no visible text or symbols.

Black hair dryer with a red arrow pointing to the handle (no visible text or symbols)

Black hair dryer with red circular annotation highlighting a button, no visible text or symbols

Close-up of a black DOME-branded hair dryer and its side profile (no text or symbols visible)

Close-up of a black Domic hair dryer with a red curved arrow indicating rotation (no text or symbols on the device itself)

Black and white photo of a DOMO hair dryer with a green accent (no text or symbols visible)

Prohibition sign with a trash bin and crossed lines, indicating no waste or discharge

Thank you very much for placing your trust in DOMO. We hope you enjoy your new purchase.

All our products undergo strict quality control before reaching you. If you still experience any problems with your device, we sincerely regret that. We have collected the most frequently asked questions about our devices on our webshop. Scan the QR code and have a look!

If you cannot find a solution to your problem there, do not hesitate to contact our customer service via [e-mail]. Our staff will do everything they can to assist you!

This device has a warranty period of 2 years from the date of purchase. During this warranty period, the distributor will assume responsibility for any defects that can be shown to be the result of material, construction or manufacturing errors. Such defects will be remedied by repair or replacement of the device. The 2-year warranty period will be suspended during the repair period and will continue after the repair has taken place for the remaining duration of the warranty period. The warranty will be honoured if proof of purchase clearly showing the date of purchase is provided. If your device becomes defective within the 2-year warranty period, please return it with your proof of purchase to the store you purchased it from or follow the procedure of the relevant webshop if you bought it online.

The warranty does not cover damage to the device, accessories or parts caused by:

• normal wear and tear from use;
• non-compliance with the instructions for use, maintenance and cleaning in the manual;
- incorrect connection, e.g. electrical voltage too high;
- incorrect, heavy-handed or abnormal use;
• repairs or alterations carried out by the consumer or unauthorised third parties;
- use of parts or accessories not recommended nor supplied by the distributor.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following. Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

• Read all instructions carefully.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

• This appliance is only suitable for use in domestic and similar environments, such as:

• staff kitchen areas in shops, offices and other working environments;

• farm houses;
• by clients in hotels, motels and other residential type environments;
  • bed and breakfast type environments.

• Children should be supervised to ensure that they do not play with the appliance.

- This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

- Cleaning and user maintenance shall not be made by children unless they are older than 16 or supervised.

- Keep the appliance and its cord out of reach of children younger than 16 years.

- All repairs should be carried out by the manufacturer or its aftersales service.

▲ELECTRICAL WARNINGS

- In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer or a

separate remote control, or connected to a circuit that is regularly switched on and off by the utility.

- The appliance must be disconnected from its power source when not in use, during service and when replacing parts. If present, first turn all the buttons to the 'off' position, then pull the plug out of the socket by grasping the plug itself. Never pull the cord or appliance to remove the plug from the socket.

- Before use, check carefully that the electric tension and frequency of the power net at your home match the indications on the rating label of the appliance.

- The appliance must be plugged into an appropriate outlet that is installed and grounded in accordance with local installation regulations.

- Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.

- Keep the power cord away from hot parts and don't cover the appliance.

- Unwrap the cord completely to prevent overheating of the cord. Do not allow the power cord supply to run underneath or around the unit.

- For safety reasons, never use the appliance if the cord, plug, or appliance itself is damaged, or after a malfunction of the appliance. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

⚠️INSTALLATION

- Do not place near flammable materials, gases or explosives.

- Do not use or store this appliance outdoors.

• Always use the appliance on a steady, dry and level surface.

- Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

⚠ USE

- Do not use this appliance for other than intended use.

- Never leave the appliance unattended while it is functioning.

• Do not operate the appliance with wet hands.
• The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries. Only use the utensils delivered with the appliance.

⚠ CLEANING AND MAINTENANCE

• To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.
• Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.

⚠️PRODUCTSPECIFIC WARNINGS

CAUTION: The surfaces marked with this symbol are liable to get hot during use. It is advised not to touch the surfaces of the appliance other than the handle to avoid burns.

• Allow to cool before maintenance.
• Do not fill the water reservoir with any other liquid than water.
• Make sure the appliance has cooled down before opening the water reservoir. Make sure the water reservoir is correctly and well fixed onto the appliance after maintenance.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

All images and descriptions in this manual are purely indicative and may differ slightly from the actual device.

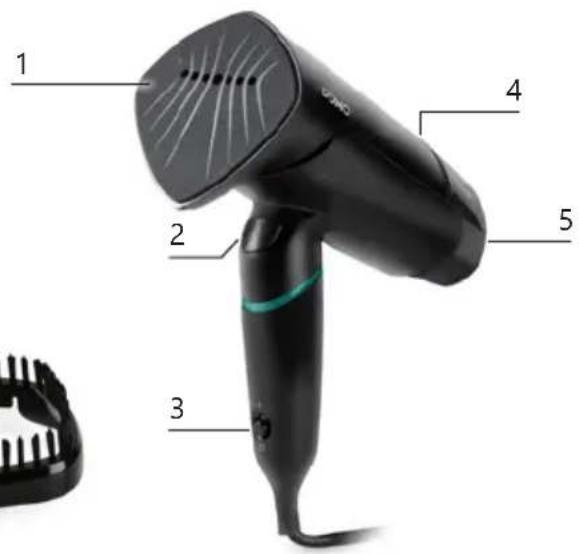

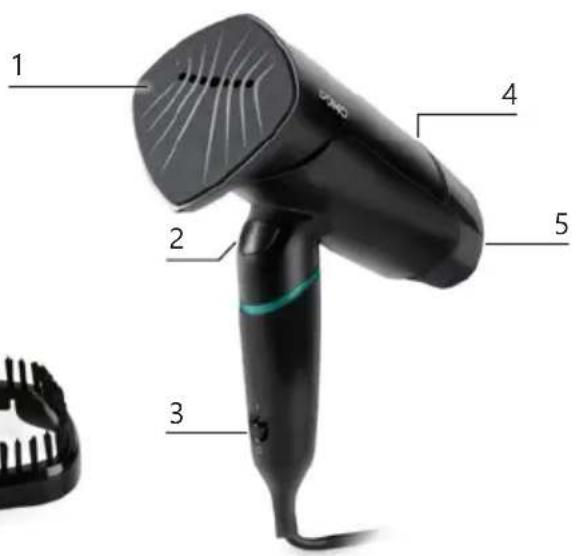

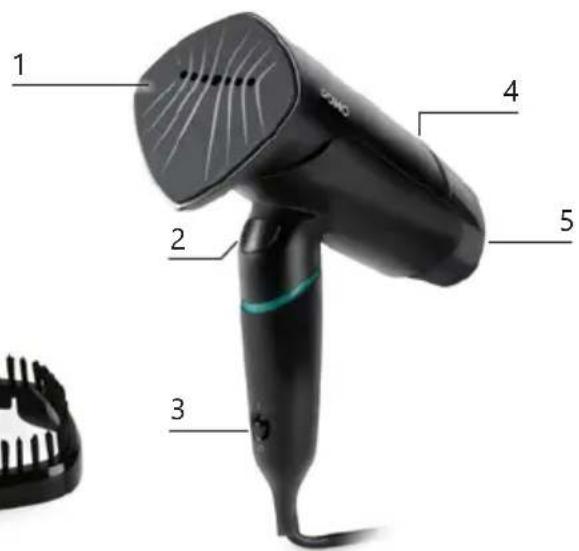

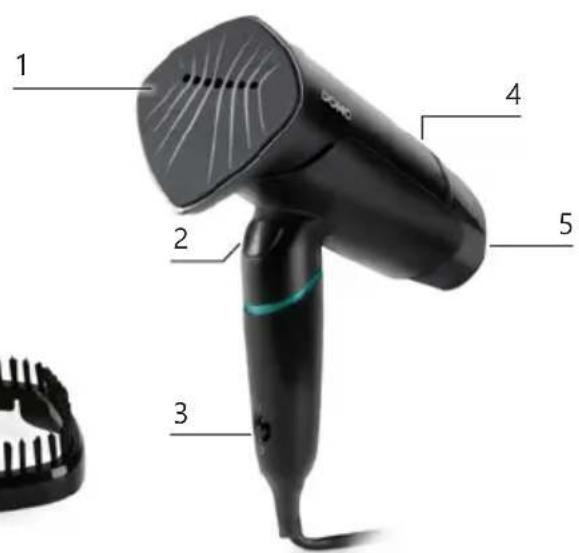

PARTS

1. Steam plate
2. Steam button
3. On-off button
4. Temperature indication light
5. Water reservoir
6. Water reservoir filling opening
7. Brush head

Close-up of a black plastic container with a metallic rod inserted, labeled with the number 6 (no text or symbols on the object itself)

Close-up of a black plastic object with serrated edges, labeled with number 7 (no text or symbols on the object itself)

1 2 3 4 5

BEFORE THE FIRST USE

• Remove all packaging materials and any promotional stickers.
• Appliances are tested following production. It is thus perfectly normal if droplets of condensation have formed in the water tank.

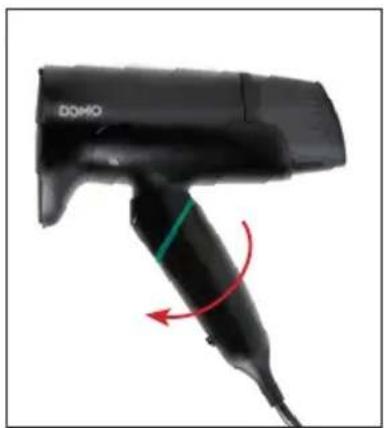

  • To unfold the garment steamer, turn the handle downward.

Close-up of a black Domo hair dryer with red motion arrow indicating rotation (no text or symbols on device)

USE

1. Fill the water reservoir in accordance with the instructions "Fill the water reservoir".

2. Plug the power cord into a socket. Switch on the device using the on/off button, the temperature indicator light will turn on, indicating that the device is heating up. The device is ready for use when the light goes out. The appliance is warmed up after about 25 seconds.

3. Always check the label with instructions on the item of clothing first.

This symbol means that the item of clothing should not be ironed or steamed.

1. To use the steam function, press and hold the steam button. When you release the button, the appliance will stop producing steam.

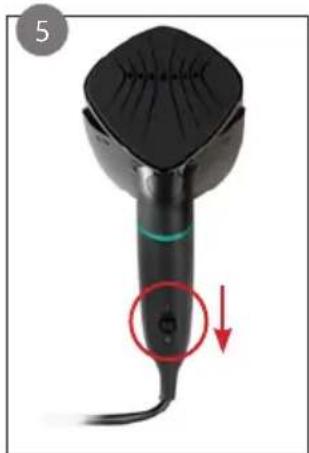

2. Turn the device off using the on/off button and remove the plug from the socket.

Black ceramic pot with a white spoon inserted into it, no visible text or symbols

Black hair dryer with red circular annotation and upward arrow, no visible text or symbols

Black hair dryer with a red arrow pointing to the handle (no text or symbols visible)

Black hair dryer with red circular annotation indicating a point of interest (no text or symbols on device)

1. Allow the appliance to cool completely. Remove the water from the reservoir and store the appliance.

Always be careful when using the steamer. The appliance and the steam are hot. Never aim steam at people or animals.

- While steaming, it is normal to hear the water being pumped. This can also be felt in the handle.

• To remove wrinkles, press the steam plate against the material while steaming. Move the clothing steamer over the material. Do be careful not to continue to steam the same location for too long.

FILL THE WATER RESERVOIR

1. Remove the reservoir from the device by pulling it towards you.
2. Open the filling opening. Fill the reservoir with water. Use only mains water or 50 % mains water and 50 % de-mineralised water. Do not use perfumed water. Close the filling opening again.
3. Place the water tank back into the appliance until it clicks into place.

BRUSH HEAD

The brush head can be used for thicker materials, furniture or removing hairs.

1. Attach the brush head when the appliance is cool.
2. Place the top of the brush head on the top of the appliance. Then fasten the bottom with a click.
3. Always allow the appliance to cool completely before removing the brush head.
4. Remove the brush head by lifting the lid on the top.

Close-up of a black DOME-branded hair dryer and its side profile (no text or symbols visible)

CLEANING AND MAINTENANCE

Make sure the device is switched off at all times. Remove the plug from the outlet and allow the appliance to cool completely before cleaning.

Wipe the steam plate and the exterior of the appliance clean with a moist cloth.

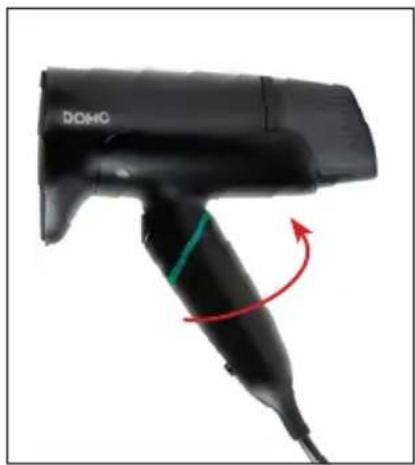

STORAGE

Let the device cool down completely and remove the water from the reservoir before storing. To store the garment steamer easily, turn the handle to fold the appliance.

Black DOME-branded hair dryer with red arrow indicating rotation (no text or symbols on body)

Black and white photo of a Domio hair dryer with a green accent (no text or symbols visible)

⚠️Do not immerse unit, cord, or plug in water or other liquid.
⚠️ Never use chemicals, aggressive or abrasive cleaning agents.

PROBLEMS AND SOLUTIONS

PROBLEMS SOLUTIONS
Droplets form on the steam cup. • The clothes steamer has cooled down a little.Wait a while for the device to heat up again.
The hum of the water pump becomes louder.	• The water tank is almost empty. Unplug the device, let it cool down, and fill the water tank.
The device does not heat up. • Check that	the temperature indicator light is on.• Check that the device is connected to a working wall socket.• The device is equipped with overheating protection. If the device has become too hot, let it cool down for 30 minutes then try again.
No steam comes out of the device. • It has	run out of water, fill the water tank.• The clothing steamer has cooled down a little, wait for the device to reach operating temperature.

GUIDELINES

Warning symbol for a trash bin with crossed and unshaded lanes, indicating no waste or discharge.

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat the packaging ecologically.

This appliance conforms to all European requirements in the areas of safety, health, and environmental protection.

The EU declaration concerning this appliance can be requested at any time from [e-mail]

GARANTIA

Estimado cliente,

Close-up of a black plastic cup with a metallic rod inserted, labeled with the number 6 (no text or symbols on the cup itself)

Close-up of a black plastic object with serrated edges, labeled '7' on the side (no other text or symbols)

1 2 3 4 5

Black Domo hair dryer with red curved arrow indicating motion (no text or symbols on device)

USO

Black ceramic pot with a white spoon inserted into it, no visible text or symbols

Black hair dryer with red circular annotation and upward arrow, no visible text or symbols

Black hair dryer with a red arrow pointing to the handle (no text or symbols visible)

Close-up of a black hair dryer with a red circular indicator and arrow, no visible text or symbols

Close-up of a black DQMO hair dryer and its side profile, showing comb and blade (no text or symbols visible)

LIMPIEZA Y MANTENIMIENTO

Close-up of a black Domo hair dryer with a red curved arrow indicating rotation (no text or symbols on the device itself)

Black and white photo of a DOMO hair dryer with a green accent (no text or symbols visible)

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

Two black plastic components with numbered labels (6 and 7) showing internal structure, no text or symbols present.

1 2 3 4 5

PRIMA DELL'USO

Close-up of a black DOKO hair dryer with a green accent and red motion arrow (no text or symbols on the device itself)

UTILIZZO

Black ceramic pot with a white spoon inserted into it, no visible text or symbols

Black hair dryer with red circular annotation and upward arrow, no visible text or symbols

Black hair dryer with a red arrow pointing to the handle (no text or symbols visible)

Close-up of a black hair dryer with a red circular indicator and arrow, no visible text or symbols

Close-up of a black Domo hair dryer and its side profile, showing its blade and handle (no text or symbols visible)

Black DCMO hair dryer with red arrow indicating rotation (no text or symbols on body)

Black and white photo of a Domio hair dryer with a green accent (no text or symbols visible)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Close-up of a black ceramic pot with a small white object inside, labeled '6' (no other text or symbols visible)

Close-up of a black plastic object with serrated edges, labeled with number 7 (no text or symbols on the object itself)

1 2 3 4 5

PŘED PRVNÍM POUŽITÍM

Black ODMO hair dryer with red arrow indicating rotation (no text or symbols on body)

POUŽITÍ

Black plastic container with a white spoon inserted into it, no visible text or symbols

Black hair dryer with red circular annotation and upward arrow, no visible text or symbols

Black hair dryer with a red arrow pointing to the handle (no text or symbols visible)

Black hair dryer with red circular annotation highlighting a button (no text or symbols on device)

Close-up of a black DQMO hair dryer and its side profile, showing comb and blade (no text or symbols on device)

ČIŠTĚNÍ A ÚDRŽBA

Black Domic hair dryer with red arrow indicating rotation (no text or symbols on body)

Black and white photo of a Domio hair dryer with a green accent (no text or symbols visible)

Symbol of a trash bin crossed out by two crossed lines, with a solid black rectangle below (no text or labels)

Close-up of a black plastic cup with a small metallic object inserted, labeled '6' (no text or symbols on the cup itself)

Close-up of a black plastic object with serrated edges, labeled with number 7 (no text or symbols on the object itself)

1 2 3 4 5

PRED PRVÝM POUŽITÍM

Black DOKO hair dryer with red motion arrow indicating rotation (no text or symbols on body)

POUŽITIE

Black ceramic pot with a white spoon inserted into it, no visible text or symbols

Black hair dryer with red circular annotation and upward arrow, no visible text or symbols

Black hair dryer with a red arrow pointing to the handle (no text or symbols visible)

Black hair dryer with red circular annotation indicating a change point (no text or symbols on device)

Close-up of a black Domo hair dryer and its side profile, showing blade and handle (no text or symbols visible)

ČISTENIE A ÚDRŽBA

Black Domo hair dryer with red arrow indicating rotation (no text or symbols on body)

Black and white photo of a Domio hair dryer with a green accent (no text or symbols visible)

Symbol of a trash bin crossed with two crossed lines and a black rectangle below (no text or labels)

Looking for extra accessories or you have a broken piece?

ORDER the original DOMO accessories and parts on our webshop.

QR code image containing encoded data, no visible human-readable text

Webshop

Stack of sheets of paper with a circular inset showing a small object, no visible text or symbols

Two white plastic electrical connectors with mounting holes (no text or symbols visible)

White cylindrical container with black interior, no visible text or symbols

Clear glass coffee maker with black handle and lid (no text or symbols visible)
