DO1101S - Steam cleaner DOMO - Free user manual and instructions

Product type	Steam cleaner / garment steamer
Brand	Domo
Model	DO1101S
Usage	Domestic
Power supply	220-240 V ~ 50/60 Hz
Rated power	1200 W
Water tank capacity	120 ml
Heating time	Approximately 25 seconds
Steam type	Continuous steam with lock
Steam plate	Metal plate for flat ironing
Included accessories	Brush for thick fabrics and pet hair
Dimensions (approx.)	30 x 10 x 15 cm
Weight (approx.)	1.2 kg
Cord length	2 meters
Warranty	2 years (accessories and consumables: 6 months)
Maintenance	Clean with a damp cloth, descaling recommended
Safety	Automatic shut-off in case of overheating (estimated)
Certifications	CE, European conformity
Color	White / Gray (typical)
Repairability	Parts available through DOMO after-sales service

Frequently Asked Questions - DO1101S DOMO

How to fill the water tank?

Slide the tank unlocking button upward, remove the tank, open the filling opening, pour water (max level), close and reposition until it clicks.

What type of water to use?

Use tap water or a mixture of 50% tap water + 50% demineralized water. Never use scented water or other liquids.

How to get continuous steam?

Press and hold the steam button and slide the lock button downward. To stop, slide the lock upward and release the steam button.

What to do if the light flashes rapidly?

This indicates a lack of water. Turn off the device, let it cool down, remove the tank and fill it with water as per instructions.

Can I use the device on all fabrics?

Always check the garment care label. The do not iron symbol means the fabric cannot withstand steam. Avoid lingering too long on one area.

How to clean the device?

Turn off and unplug the device, let it cool down. Clean the steam plate and exterior with a damp cloth. Do not use aggressive or abrasive detergents.

Can steam burn?

Yes, steam is very hot. Never direct steam at people or animals. Always use the handles and let it cool before handling.

How long does it take to heat up?

About 25 seconds. The indicator light flashes during heating and stays solid when ready.

How to use the provided brush?

Attach the brush onto the top of the device (device cold) until it clicks. Use it for thick fabrics, upholstery, or removing pet hair. Remove by lifting the latch after cooling.

What to do in case of malfunction or defect?

Contact DOMO after-sales service at [phone] or by email [e-mail]. Never attempt to repair yourself. The 2-year warranty applies upon presentation of the receipt.

USER MANUAL DO1101S DOMO

Blue and white hairdryer device with black handle and blue body (no visible text or symbols)

DO1101S

Two black-and-white icons: a triangular warning triangle with an exclamation mark and an open book with stacked pages (no text or symbols)

Read all instructions carefully - save this instruction manual for future reference.

NL Nederlands 3
FR Français 9
DE Deutsch 15
EN English 21

GARANTIE

Geachte klant,

⚠PRODUCTSPECIFIEKE WAARSCHUWINGEN

Line drawings of three different handheld devices with adjustment knobs and arrows indicating movement (no text or symbols)

Technical line drawing of a handheld hair dryer with no visible text or symbols

REINIGING EN ONDERHOUD

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

⚠AVERTISSEMENTS SPÉCIFIQUES AU PRODUIT

Three line drawings of a handheld device with adjustment knobs and a base, showing mechanical components (no text or symbols)

Three technical line drawings of a handheld device with directional arrows indicating motion (no text or symbols)

BROSSE

Technical line drawing of a handheld hair dryer with no visible text or symbols

NETTOYAGE ET ENTRETIEN

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Technical line drawing of a mechanical device with a labeled part (5), no text or symbols present

Technical line drawing of a mechanical component with textured surfaces and a numbered label (8) pointing to a feature, no readable text or symbols present.

Three line drawings of a handheld device with control knobs and adjustment knobs, shown from different angles (no text or symbols present)

Three technical line drawings of a handheld device with directional arrows indicating motion (no text or symbols)

BÜRSTENKOPF

Line drawing of a handheld hairdryer with internal mesh structure (no text or symbols)

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

All of our products are always submitted to a strict quality control before they are sold to you.

Should you nevertheless experience problems with your device, we sincerely regret this.

In that case, we kindly request you to contact our customer service.

Our staff will gladly assist you.

[phone]

[e-mail]

Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.
  · In case of incorrect connection, e.g., electrical voltage that is too high.
  · In case of incorrect, rough or abnormal use.
  · In case of insufficient or incorrect maintenance.
  · In case of repairs or alterations to the device by the consumer or non-authorised third parties.
• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

· This appliance is intended to be used in household and similar applications such as:

· staff kitchen areas in shops, offices and other working environments;
· farm houses;
- by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments.

· Children should be supervised to ensure that they do not play with the appliance.

· This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given

supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 16 and supervised.

• Keep the appliance and its cord out of reach of children younger than 16 years.
  · All repairs should be carried out by the manufacturer or its aftersales service.
• Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

▲ELECTRICAL WARNINGS

• In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer or a separate remote control, or connected to a circuit that is regularly switched on and off by the utility.
• The appliance must be disconnected from its power source when not in use, during service and when replacing parts. Allow to cool before putting on or taking off parts, and before cleaning the appliance. To disconnect, turn controls to "OFF" or "o" position, then remove the plug from the wall. Never pull the cord or appliance to remove the plug from the socket.
• Check carefully that the voltage and frequency of the power net match the indications on the rating label of the appliance.
• The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local standards and requirements.
• Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.
• Keep the power cord away from hot parts and don't cover the appliance.
• Unwrap the cord completely to prevent overheating of the cord. Do not allow the power cord supply to run underneath or around the unit.
• The appliance may not be used with an extension lead or a multiple socket.
• Do not operate this appliance with a damaged cord or plug or in the event the appliance malfunctions or has been damaged in any manner. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

⚠INSTALLATION

• Do not place near flammable materials, gases or explosives.
  · Do not use or store this appliance outdoors.
  · Always use the appliance on a steady, dry and level surface.
• Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

⚠ USE

• Do not use this appliance for other than intended use.
• Only use the appliance for domestic use. The manufacturer cannot be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.
  · Never leave the appliance unattended while it is functioning.
• Do not operate the appliance with wet hands.
• The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries. Only use the utensils delivered with the appliance.

⚠ CLEANING AND MAINTENANCE

- To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.

- Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.

⚠️PRODUCT-SPECIFIC WARNINGS

The surface(s) marked with this symbol are liable to get hot during use. It is advised not to touch the surfaces of the appliance other than the handles to avoid burns.

The appliance must be used and rested on a flat, stable surface and resistant to heat and hot steam.

- Do not move the appliance while in use or when still hot. Allow to cool before moving the appliance or before maintenance.

· Do not fill the water reservoir with any other liquid than water.

- Make sure the appliance has cooled down before opening the water reservoir for cleaning. Make sure the water reservoir is correctly and well fixed onto the appliance after maintenance.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

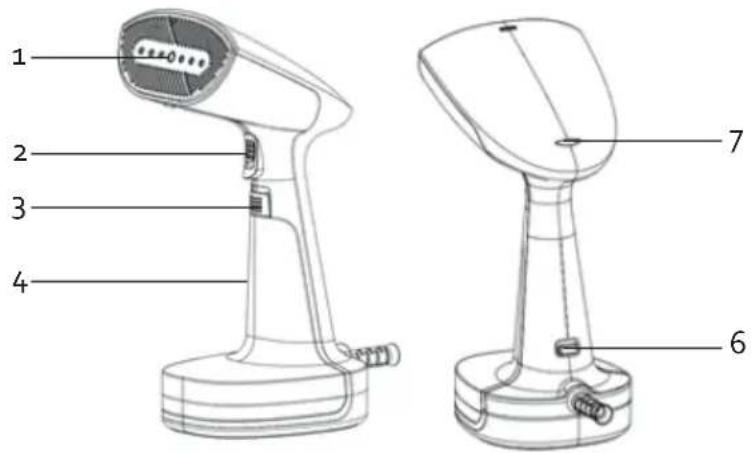

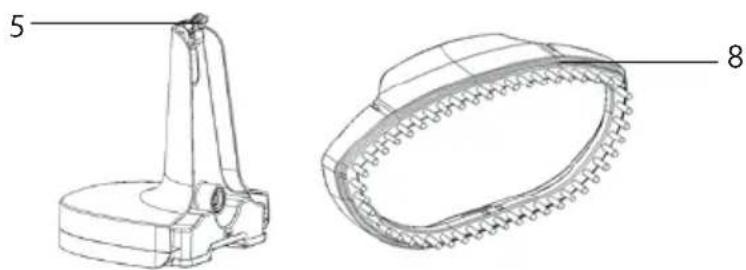

PARTS

1. Steam plate

2. Steam button with locking button

3. Water reservoir release

4. Water reservoir

5. Water reservoir filling opening

6. On-off button

7. Temperature indication light

8. Brush head

BEFORE THE FIRST USE

- Remove all packing materials and carefully clean the appliance and accessories before first use (see Cleaning and maintenance).

- Appliances are tested following production. It is thus perfectly normal if droplets of condensation have formed in the water tank.

USE

- Fill the water reservoir in accordance with the instructions "fill the water reservoir".

- Plug the power cord into a socket. Switch on the device using the on/off button, the temperature indicator light will start flashing to show that the device is heating up. The appliance is ready for use when the light stays on. The appliance is warmed up after about 25 seconds.

· Always check the label with instructions on the item of clothing first.

This symbol means that the item of clothing should not be ironed or steamed.

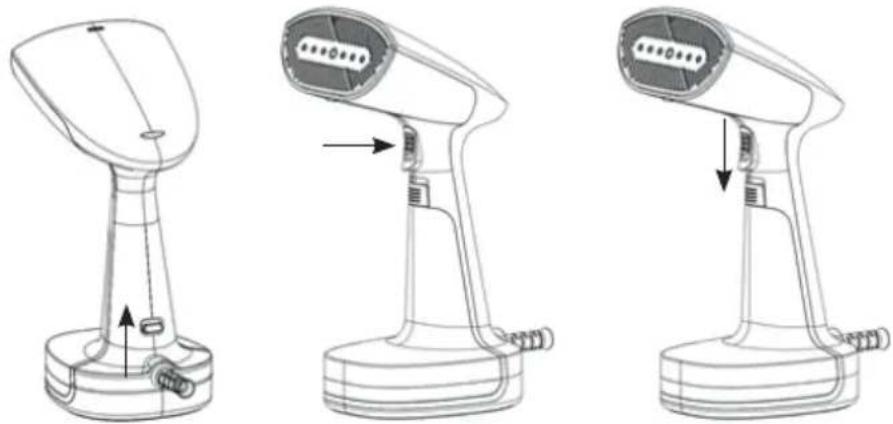

- To use the steam function, press and hold the steam button. When you release the button, the appliance will stop producing steam.

- If you want constant steam, press and hold the steam button and move the locking button down. To stop steaming, move the locking button up to release the steam button.

Line drawings of three different types of hairdryer devices with adjustment arrows indicating movement (no text or symbols present)

· While steaming, it is normal to hear the water being pumped. This can also be felt in the handle.

· To remove wrinkles, press the steam plate against the material while steaming. Move the clothing steamer over the material. Do be careful not to continue to steam the same location for too long.

- CAUTION: always be careful when using the steamer. The appliance and the steam are hot. Never aim steam at people.

If the temperature indication light flashes rapidly, this means that there is no more water in the reservoir. Fill the water reservoir according to the instructions in chapter "Fill the water reservoir".

- Turn the device off using the on/off button and remove the plug from the socket.

- Allow the appliance to cool completely. Remove the water from the reservoir and store the appliance.

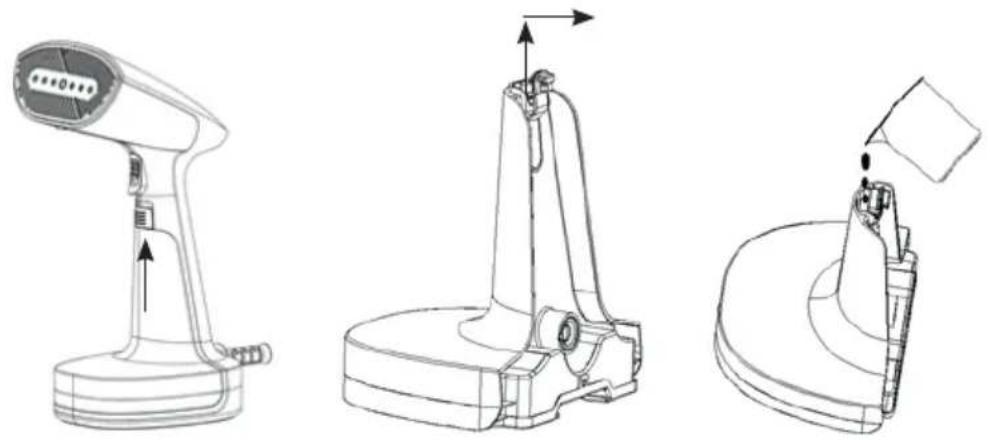

FILL THE WATER RESERVOIR

1. Slide the water reservoir release upwards and then remove the reservoir from the device by pulling it towards you.

2. Open the filling opening. Fill the reservoir with water, making sure not to exceed the maximum level. Use only mains water or 50% mains water and 50% de-mineralised water. Do not use perfumed water. Close the filling opening again.

3. Replace the water reservoir in the appliance; you will hear a click.

Three technical line drawings of a hair dryer device, showing front, side, and top views with no visible text or symbols.

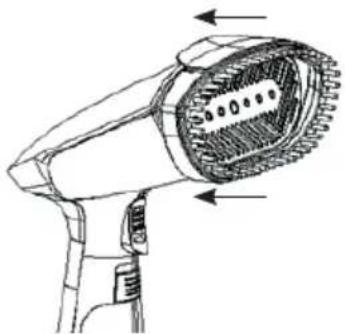

BRUSH HEAD

The brush head can be used for thicker materials, furniture or removing hairs.

• Attach the brush head when the appliance is cool.
• Place the top of the brush head on the top of the appliance. Then fasten the bottom with a click.
  · Always allow the appliance to cool completely before removing the brush head.
• Remove the brush head by lifting the lid on the top.

Line drawing of a hairdryer with no text or symbols

CLEANING AND MAINTENANCE

• Make sure the device is switched off at all times. Remove the plug from the outlet and allow the appliance to cool completely before cleaning.
  · Wipe the steam plate and the exterior of the appliance clean with a moist cloth.
• Never use chemicals, abrasive or corrosive cleaning products.
• Remove the water from the reservoir before storing the appliance.

ENVIRONMENTAL GUIDELINES

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

The packaging is recyclable. Please treat the packaging ecologically.
