Fly Away plugin glue - Pest control Eurom - Free user manual and instructions

Product type	Electric insect killer with glue and high-voltage grid
Brand	Eurom
Model	Fly Away plug-in Glue
Supply voltage	220-240 V ~ 50 Hz
UV lamp	G23 F10 W
Power consumption	10 W
Maximum treated area	60 m²
Dimensions (L x W x H)	5 (9) x 8.5 x 22 cm
Weight	0.2 kg
Adhesive paper	65 x 120 mm
Usage	Indoor use only, not suitable for barns or damp rooms
Operating principle	UV lamp attracts flying insects, metal grid under high voltage electrocutes them
Routine maintenance	Replace the adhesive paper every 2 weeks; clean exterior with a dry or damp cloth
Lamp replacement	Disconnect before intervention; use exclusively a G23 F10 W lamp
Safety	Disconnect before cleaning or replacement; do not touch the grid when energized; keep out of reach of children
Spare parts available	UV lamp G23 F10 W and replacement adhesive paper
Environmental compliance	No chemicals, no odor; do not dispose of with household waste, take to a recycling center
Warranty	Refer to supplier; any modification voids the manufacturer's liability

Frequently Asked Questions - Fly Away plugin glue Eurom

Where to install the Fly Away plug-in Glue?

Place the device in a central location in the room, at a height of 1.5 to 2 meters (1 meter for mosquitoes). Avoid direct sunlight and drafts.

What types of insects are attracted?

The device attracts flying insects such as flies, moths, mosquitoes, etc. thanks to its UV lamp.

How often to change the adhesive paper?

Replace the adhesive paper every 2 weeks, or more often in case of heavy infestation. Always unplug the device before handling.

How to clean the device?

Unplug the device. Clean the exterior with a dry or slightly damp cloth. Do not use abrasive or corrosive products.

Is the device safe for children and pets?

The UV lamp is harmless to humans and animals, but the energized grid poses an electrocution risk. Supervise children and keep pets away.

Can the device be used outdoors?

No, the device is designed for indoor use only. Do not expose it to rain or humidity.

What type of replacement lamp to use?

Use exclusively a lamp of type G23 F10 W. Check the specifications on the device label.

How to dispose of the device at the end of its life?

Do not dispose of the device with household waste. Take it to a collection point for electronic waste or return it to the supplier.

What to do if the device no longer works?

First check that the plug is properly connected and that the lamp is not burned out. If the problem persists, contact a qualified professional. Do not attempt to repair it yourself.

Does the device emit chemicals?

No, it does not use any spray or chemicals. It operates solely by UV light and electrified grid, without smoke or odor.

USER MANUAL Fly Away plugin glue Eurom

Instruction manual (15)

Thank you very much for choosing for a EUROM product. You have made a good choice! We hope you will be satisfied about its functioning.

To get maximum profit from your product, it is important to read this manual attentive and totally before use, and to understand what is written. Read especially the safety instructions: they are there to protect you and your environment.

Keep the manual in a safe place for future reference. Store also the package: that is the best protection for your insect-killer in times of no-use. And if you at any time pass the appliance on, pass on the manual and package too.

We wish you a lot of fun with the Fly Away plug-in Glue!

Eurom

Kokosstraat 20

8281 JC Genemuiden (NL)

[e-mail]

www.eurom.nl

This manual has been compiled with the utmost care. Nevertheless, we reserve the right to optimize and technically adjust this manual at any time.

Symbol statement

For indoor use only

Technische Daten

Connected power	220-240V~50Hz
Lamps	G23 F10W
Power consumption	10 W
Max. space m²	60 m²
Dimensions	5 (9) x 8,5 x 22 cm
Weight	0,2 kg
Glue paper	65x 120 mm

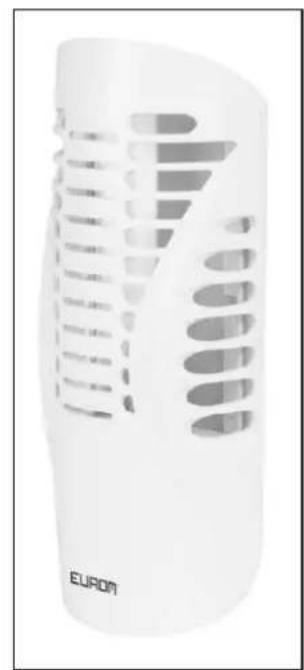

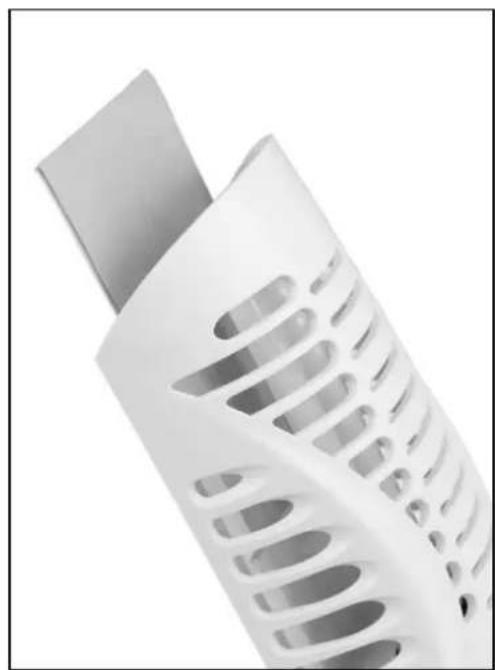

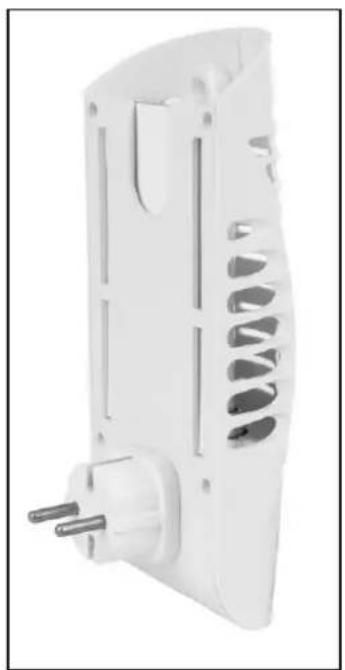

Product Images

Safety notices

The device is intended for indoor use.
- This device is not suitable for barns, stables, etc. where the air may be quite moist and corrosive. This may adversely affect the materials.
- Only connect the device to a socket with a 220/240V-50Hz power supply.
- Do not use the device in areas where there may be explosive or combustible gases, vapours or liquids or similar materials, so do not use in garages. Never use the device in places with a risk of dust explosion. The insect-killer can create a spark, which may ignite the gas or liquid!

• Do not use the device in 'wet' areas, such as swimming pools, landrries, bathrooms, above drains, etc. Never immerse the appliance in water or any other liquid!
• Never touch the apparatus with wet hands.
• Do not place the apparatus in the vicinity of open windows (because of rain) and wet surfaces, and prevent liquids from spilling on it.
• Do not try and modify the device in any way as this is dangerous and will void the manufacturer's liability.
• Never insert a finger, pen, piece of paper or any other objects through the protective grill or into the top of the apparatus. You will run the risk of an electric shock and fire.
• Close supervision is necessary when the product is used near children or incapacitated persons. The device is not suitable for use by persons (including children) with a physical, sensual or mental limitation or a lack of experience and knowledge, irrespective of whether they are being supervised or have been issued with instructions in relation to the use of the device by a person who is responsible for their safety.
• Always ensure that children cannot play with the device.
• Place the device out of reach of children.
• Take the entire apparatus out of the wall socket before you clean it or when you change the glue paper or the lamp.
• Do not touch the lamp before it has cooled down.
• If there is any damage to the device itself or plug take the plug from the socket. Contact the store where you purchased your insect-killer or ask a qualified electrician to have the part replaced or repaired. Never carry our repairs yourself!
• Take the entire apparatus out of the wall socket, if you hear strange noises, smell something or see smoke.
• If components other than the lamp are malfunctioning or damaged, a qualified person should replace these components. Never repair the apparatus yourself.

Operating principle

The insect-killer Fly Away plug-in Glue is designed to attract flying insects, such as flies, moths, mosquitoes, etc. using ultraviolet light. Insects flying towards the light of the lamp fly against the glue paper, making escape impossible. The Fly Away plug-in Glue insect-killer is highly efficient and safe. The special UV lamps are totally harmless to humans and pets. The insect-killer uses no chemicals or sprays, does not emit smoke or odours, produces no waste and is environmentally friendly.

Installation

When placing and installing the insect-killer, it is important to take the location of the device in the room/space into account.

1. Hang the insect-killer centrally in the room; that way, the ultraviolet light can be dispersed better and attract insects from the entire area.
2. The best height for the insect-killer is 1.5 to 2 metres off the ground, which is the most common flying height for insects.
3. Install your insect-killer in a relatively dark place: not in direct sunlight (windows, doors), because bright sunlight weakens the insect-killer's radiation power. Artificial light does not weaken the radiation, but makes it work less well.
4. Do not place the insect killer in draught. Insects avoid draught and/or air flows. Therefore, placing the insect killer in draught/air flows will render it ineffective.

Use and Maintenance

Using

Make sure that the power socket you intend using has the correct voltage (220/240V~50Hz Remove the protective piece of paper glued onto the glue layer of the glue paper. Insert the glue paper into the slot intended for that purpose at the inside of the device with the glue layer directed to the front side. You put the apparatus into operation by inserting the plug into the wall socket. The lamp will start burning and the device will start operating.

Replacing the glue paper

Always take the entire apparatus out of the wall socket before you replace the glue paper. Replace the glue paper once every two (2) weeks and more often in extreme situations.

• First, remove the used glue paper from the apparatus.
• Remove the protective piece of paper glued onto the glue layer of the new glue paper.
• Insert the new glue paper into the slot intended for that purpose at the inside of the apparatus with the glue layer directed to the front side.

Cleaning

Always take the entire apparatus out of the wall socket before you clean the apparatus. Clean the outside of the apparatus using a clean or well-wrung cloth. Do not use abrasive or caustic cleaning agents.

Replacing the lamp

Always take the entire apparatus out of the wall socket before you replace the lamp. The lamp can easily be pulled out of its holder via the topside of the apparatus. Subsequently, you can insert the new lamp into the holder via the topside of the apparatus. Check whether the lamp is completely inserted into the holder. Insert the plug of the apparatus into an appropriate socket and check whether the lamp burns. Only use the same type of lamp (see the sticker on the apparatus and/or the technical data in the manual).

Any faults

Check whether the plug is properly inserted into the wall socket and whether the power supply is okay. If the lamp is not burning, it might have to be replaced. Please contact a qualified professional in case of any other causes for malfunctioning.

Removal

In the EU this symbol indicates that this product may not be disposed of as ordinary household waste. Old equipment contains valuable materials, suitable for recycling. These materials should be made suitable for reuse in order to prevent any adverse effects to health and the environment caused by unregulated waste collection. Therefore, please make sure that you bring old equipment to a designated collection point. Alternatively, contact the original supplier, who can make sure that as many of the components as possible can be recycled.

CE - Declaration

It is hereby declared by: Eurom, Kokosstraat 20, 8281 JC Genemuiden - NL that the device below:

Make: EUROM Model: Fly Away plug in Glue Description: Insect-Killer

fulfil the requirements of the Low Voltage Directive and the EMC directive and correspond to the following norms:

LVD 2014/35/EU: EN 60335-2-59:2003/A2:2009 EN 60335-1:2012/A13:2014 EN 62233:2008

Genemuiden, 09-01-2019
W.J. Bakker, alg. dir.

EMC 2014/30/EU: EN 55015-1:2013/A1:2015 EN 61000-3-2:2014 EN 61000-3-3:2013 EN 61547:2017
