Download the instructions for your Pest control in PDF format for free! Find your manual Fly Away Plugin LED - Eurom and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Fly Away Plugin LED by Eurom.
USER MANUAL Fly Away Plugin LED Eurom
Art.nr. 211061
Simple line drawing of a house with chimney (no text or symbols)
WARNING:
Read the instruction before use
Do not touch the electric net
Indoor use only
High Voltage
Simple line drawing of a house with chimney (no text or symbols)
WARNING:
Read the instruction before use
Do not touch the electric net
Indoor use only
High Voltage

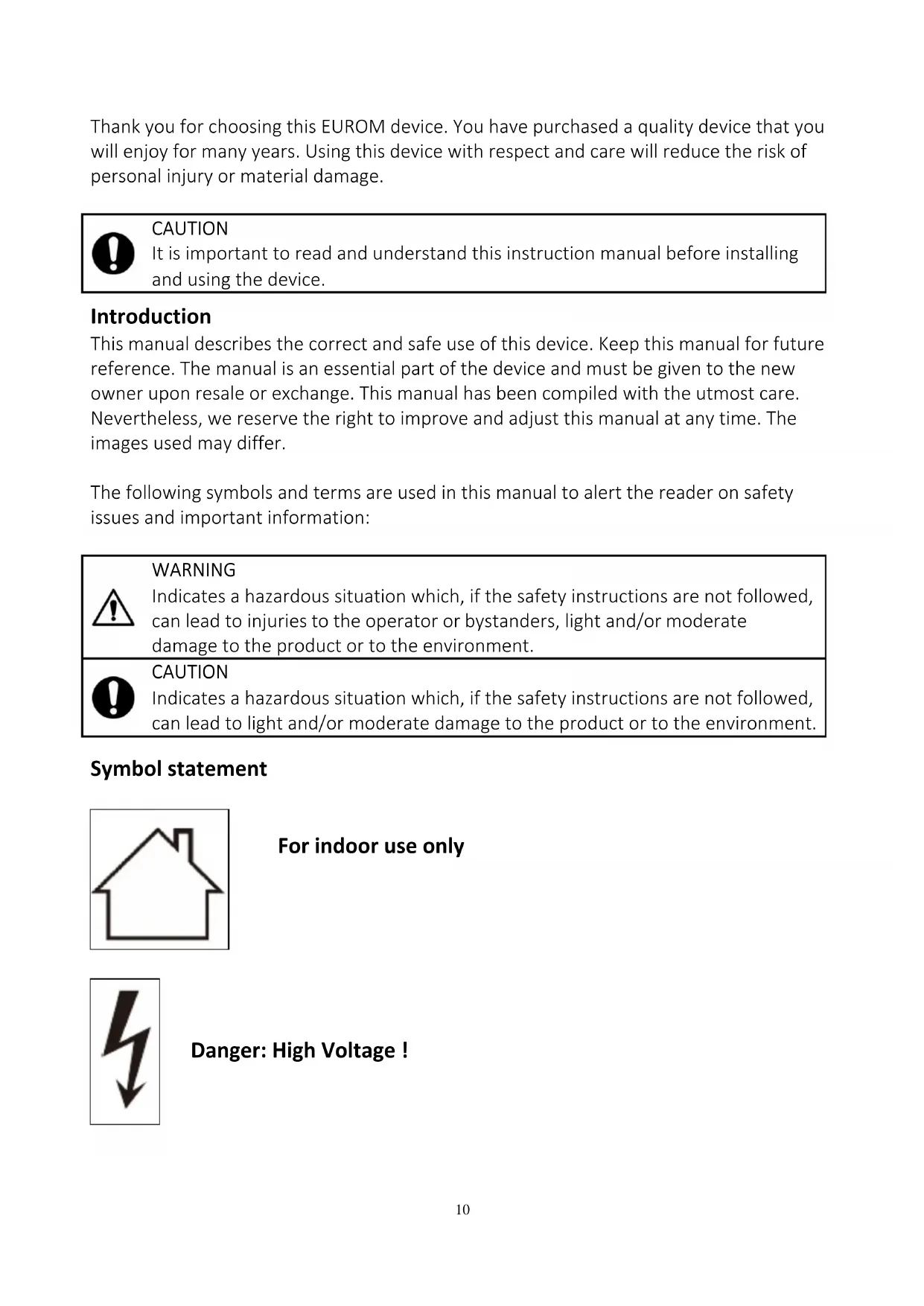

Thank you for choosing this EUROM device. You have purchased a quality device that you will enjoy for many years. Using this device with respect and care will reduce the risk of personal injury or material damage.
CAUTION
It is important to read and understand this instruction manual before installing and using the device.
Introduction
This manual describes the correct and safe use of this device. Keep this manual for future reference. The manual is an essential part of the device and must be given to the new owner upon resale or exchange. This manual has been compiled with the utmost care. Nevertheless, we reserve the right to improve and adjust this manual at any time. The images used may differ.
The following symbols and terms are used in this manual to alert the reader on safety issues and important information:
WARNING
Indicates a hazardous situation which, if the safety instructions are not followed, can lead to injuries to the operator or bystanders, light and/or moderate damage to the product or to the environment.
CAUTION
Indicates a hazardous situation which, if the safety instructions are not followed, can lead to light and/or moderate damage to the product or to the environment.
Symbol statement
Danger: High Voltage!
Specification
| Connected power | 220-240V~50Hz |
| Lamp | 3 x 1 Watt LED Lamp |
| Power consumption | 1,5 W |
| Protection class | Class II ☐ |
| Protection degree | IPX0 |
| Max. space in m^2 | 20 m^2 |
| Dimension | 100 x 72 x 130 mm |
| Weight | 128 g |
Identification and danger sticker on the device
EUROM
POWERFUL PRODUCTS
Fly Away Plug-in LED
Art. nr. 21.106.1
Batch. ******
220-240V \~ 50Hz - 3 x 1 Watt LED Lamp
WARNING:
Read the instruction before use
Do not touch the electric net
Indoor use only
High Voltage
Safety notices
- The device is intended for indoor use.
- This device is not suitable for barns, stables, etc. where the air may be quite moist and corrosive. This may adversely affect the materials.
- Only connect the device to a socket with a 220/240V-50Hz power supply.
- This device is not to be used in locations where flammable vapour or explosive dust is likely to exist.
- The insect-killer can create a spark, which may ignite the gas or liquid!
- Do not use the device in ‘wet’ areas, such as swimming pools, laundries, bathrooms, above drains, etc. Never immerse the appliance in water or any other liquid!
- Never touch the apparatus with wet hands.
- Do not place the apparatus in the vicinity of open windows (because of rain) and wet surfaces, and prevent liquids from spilling on it.
- Do not try and modify the device in any way as this is dangerous and will void the manufacturer's liability.
- Never insert a finger, pen, piece of paper or any other objects through the protective grill or into the top of the apparatus. You will run the risk of an electric shock and fire.
- This device can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the device in a safe way and understand the hazards involved.
• Children are not allowed to play with the device. - Cleaning and user maintenance shall not be made by children without supervision.
- Place the device out of reach from children.
• Take the entire apparatus out of the wall socket before you clean it. - Do not touch the lamp before it has cooled down.
- Take the entire apparatus out of the wall socket, if you hear strange noises, smell something or see smoke.
- If there is any damage to the device itself or plug take the plug from the socket. Contact the store where you purchased your insect-killer or ask a qualified electrician to have the part replaced or repaired. Never carry our repairs yourself!
- If components other than the lamp are malfunctioning or damaged, a qualified person should replace these components. Never repair the apparatus yourself.
Operating principle
The insect-killer Fly Away plug-in is designed to attract flying insects, such as flies, moths, mosquitoes, etc. using ultraviolet light. The Fly Away plug-in Glue insect-killer is highly efficient and safe. The special LED lamps are totally harmless to humans and pets. The device uses no chemicals or sprays, does not emit smoke or odours, produces no waste and is environmentally friendly.
Use and Maintenance
Using
Make sure that the power socket you intend using has the correct voltage 220/240V\~50Hz. The lamps will start burning and the device will start operating.
Cleaning
Clean the device once a week. Remove the device from the power supply, keep the device in a vertical position to prevent the spread of dead insects. Pull out the collection tray at the back of the device and remove the dead insects. After cleaning and drying thoroughly, replace the collection tray correctly. Clean the outside with a dry or well-wrung damp cloth. Do not use abrasive or corrosive cleaning agents.
Any faults
Check whether the plug is properly inserted into the wall socket and whether the power supply is okay. For all other causes, please contact a qualified professional.
Disposal
At its end of life, discard the device according to the local laws and regulations, or deliver the device to your supplier.
Attachments
The CE declaration can be found at the end of this manual.
Simple line drawing of a house with chimney (no text or symbols)
WARNING:
Read the instruction before use
Do not touch the electric net
Indoor use only
High Voltage
EU Declaration of Conformity
We, the manufacturer,
Company name: Euromac BV
Postal address: Kokosstraat 20
Postcode: 8281 JC
City: Genemuiden
Country: The Netherlands
Declare that the DoC is issued under the sole responsibility of the manufacturer and belongs to the following product:
Product: Insect killer
Brand name: Eurom
Model: Fly Away Plug-in
Item number: 211047
The object of declaration described above is in conformity with the following relevant Union harmonization legislation:
Low Voltage Directive: LVD 2014/35/EU
Electromagnetic compatibility Directive: EMC 2014/30/EU
Restriction of Hazardous Substances RoHS Directive: 2011/65/EU&(EU)2015/863
and that the product is in conformity with the following standards and/or other normative documents:
EN 60335-1:2012/A15:2021
EN 60335-2-59:2003/A11:2018
EN 62233:2008
AfPS GS 2019:01 PAK
EN 55014-1:2017+A11:2020
EN 55014-2:2015
EN IEC 61000-3-2:2019
EN 61000-3-3:2013+A1:2019
Signed for and on behalf of Euromac BV:
Genemuiden, 06-12-2022
W.J. Bakker, alg. Dir.
Eurom
Kokosstraat 20
8281 JC Genemuiden
The Netherlands
info@eurom.nl
www.eurom.nl
061222
