Fly Away Metal 302 - Pest control Eurom - Free user manual and instructions

Product type	Electric insect killer
Brand	Eurom
Model	Fly Away Metal 302
Supply voltage	220-240 V ~ 50 Hz
Power consumption	39 W
Lamp type	UV 2 x 15 W
Grid voltage	2200 V
Coverage area	Up to 100 m²
Dimensions (L x W x H)	49.7 x 9.4 x 30.2 cm
Weight	2.9 kg
Grid material	Stainless steel
Usage	Indoor only
Installation	Suspension by chain or placement on stable surface
Recommended height	1.5 to 2 meters
Cleaning	Empty the collection tray regularly; clean with a soft non-metallic brush
Maintenance	Do not open the grid; call a professional to replace lamps, fuses or starter
Safety	Outer protective grid; built-in fuse; automatic shutdown in case of short circuit
Operation	Attracts flying insects with UV light and electrocutes them on a high-voltage grid
Environment	Chemical-free, odorless, eco-friendly
Included accessories	Suspension chain, collection tray

Frequently Asked Questions - Fly Away Metal 302 Eurom

How to install the Fly Away Metal 302?

Place the device in a central location, away from direct sunlight and drafts. Hang it by the chain at a height of 1.5 to 2 meters or place it on a stable surface. Plug it into a grounded 220-240V~50Hz outlet and set the switch to position I.

What is the ideal height to hang the device?

The recommended height is 1.5 to 2 meters. For mosquitoes, you can hang it about 1 meter above the ground.

Is the device safe for humans and pets?

Yes, the UV lamps are harmless. The outer safety grid protects against accidental contact with the high-voltage grid. However, keep the device out of reach of children and never touch the internal grid.

How to clean the Fly Away Metal 302?

Unplug the device. Remove the collection tray, empty and clean it. Use a soft non-metallic brush or vacuum cleaner to remove dust from the grid. Never use water or harsh detergents.

What to do if the device does not work?

Check that the plug is properly inserted and the outlet is powered. If the problem persists, contact a qualified electrician. Never attempt to open the grid or repair it yourself.

Can I replace the lamps myself?

No, for safety reasons, replacement of lamps, fuse or starter must be done by a qualified professional. The user cannot open the grid.

What area does the Fly Away Metal 302 cover?

This device (model 30-2) covers up to 100 m². For larger areas, choose model 40-2 (150 m²) or 16-2 (50 m²).

Can the device be used outdoors?

No, the device is designed for indoor use only. Do not use it in damp places like garages, sheds or bathrooms.

How to dispose of the device at the end of its life?

Do not dispose of the device with household waste. Take it to a collection point for electrical and electronic equipment (WEEE) or return it to your supplier for recycling.

What types of insects does the Fly Away Metal 302 attract?

The device attracts flying insects such as flies, moths, mosquitoes, midges and other nocturnal insects thanks to UV light.

USER MANUAL Fly Away Metal 302 Eurom

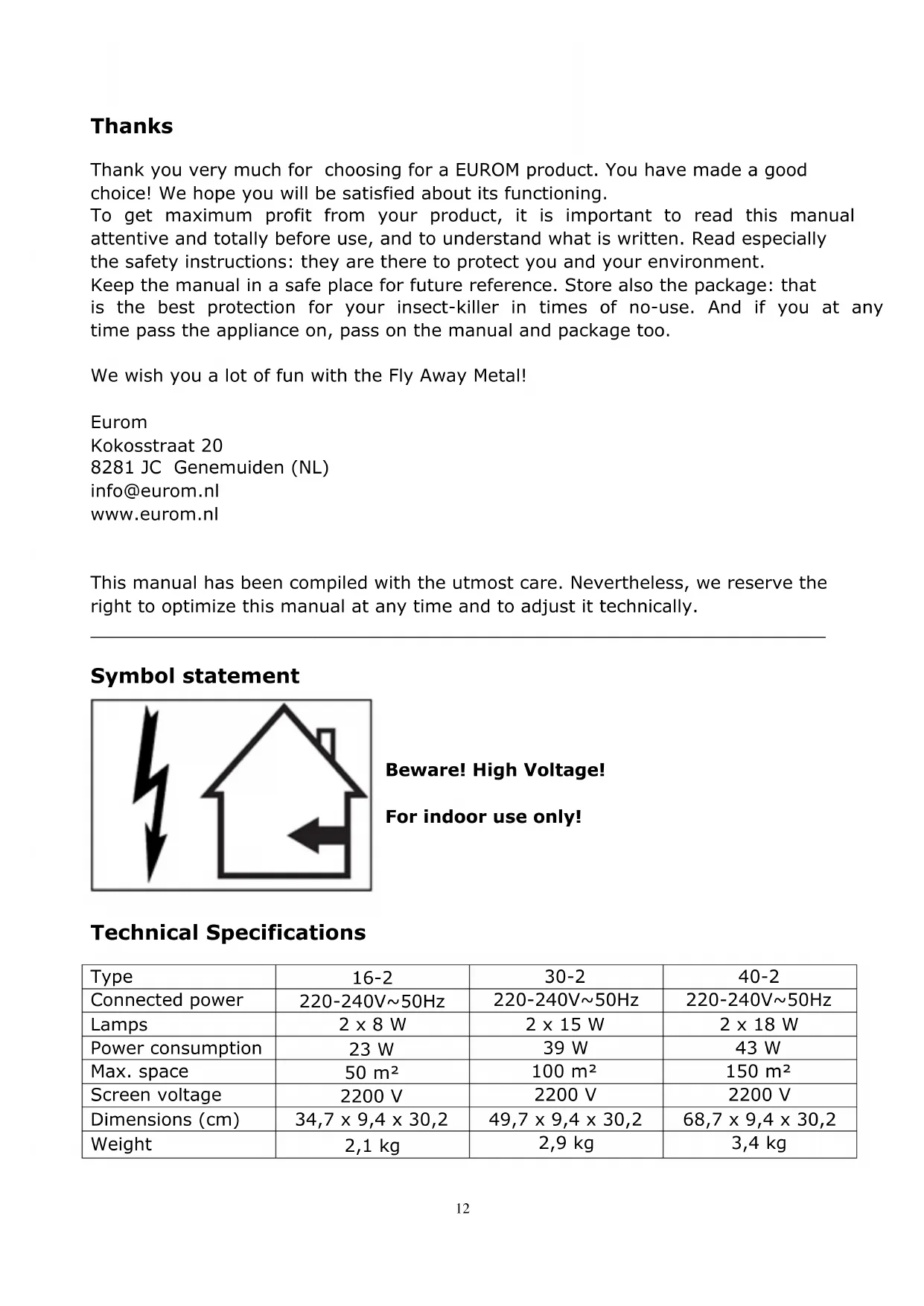

Thank you very much for choosing for a EUROM product. You have made a good choice! We hope you will be satisfied about its functioning.

To get maximum profit from your product, it is important to read this manual attentive and totally before use, and to understand what is written. Read especially the safety instructions: they are there to protect you and your environment.

Keep the manual in a safe place for future reference. Store also the package: that is the best protection for your insect-killer in times of no-use. And if you at any time pass the appliance on, pass on the manual and package too.

We wish you a lot of fun with the Fly Away Metal!

Eurom

Kokosstraat 20

8281 JC Genemuiden (NL)

[e-mail]

www.eurom.nl

This manual has been compiled with the utmost care. Nevertheless, we reserve the right to optimize this manual at any time and to adjust it technically.

Symbol statement

Beware! High Voltage!

For indoor use only!

Technical Specifications

Type	16-2	30-2	40-2
Connected power	220-240V~50Hz	220-240V~50Hz	220-240V~50Hz
Lamps	2 x 8 W	2 x 15 W	2 x 18 W
Power consumption	23 W	39 W	43 W
Max. space	50 m²	100 m²	150 m²
Screen voltage	2200 V	2200 V	2200 V
Dimensions (cm)	34,7 x 9,4 x 30,2	49,7 x 9,4 x 30,2	68,7 x 9,4 x 30,2
Weight	2,1 kg	2,9 kg	3,4 kg

Safety warnings

1. This appliance is intended for indoor use.
2. The appliance is not suitable for sheds, stables or similar locations where the air is humid and acidity. This can affect the materials.
3. Connect the appliance only to suitable earthed socket that provides 220-240V~50Hz.
4. Do not use the appliance in areas that contain explosive or flammable gases, vapours and liquids or similar materials e.g., not in garages. In addition, do not use the appliance in places that have a risk of substance explosion. The insect killer could emit a spark that can ignite such materials!
5. Do not use the appliance in 'wet' rooms, such as swimming pools, laundry rooms, bathrooms, etc. Never submerge the appliance in water or in any other liquid!
6. Do not place the appliance in an open window (due to rain), not on a wet surface and prevent that any type of moisture is spilled on it.
7. Do not make any changes to the appliance; that can be dangerous and it will invalidate the manufacturer's warranty.
8. Make sure you never touch the high-voltage grid while it operates: not with your fingers, a pen, a piece of paper or any other object. This can cause an electric shock and perhaps fire! Never stick any objects into the appliance through the safety grid.
9. Ensure careful supervision when the appliance is used in the presence of children, incapacitated persons or pets. The appliance is not suitable for use by people (including children) with physical, sensory or mental disabilities. It is also not suitable for use by people who lack knowledge and experience, regardless of whether there is supervision or instructions given (prior to use) by a person responsible for their safety.
10. You must supervise that children do not play with the appliance. The grid is under high voltage!
11. Place the appliance out of children's reach. Danger! High voltage!
12. Remove the plug from the socket before cleaning the appliance. Use a suitable brush (not a metal brush) to clean the high-voltage grid and throw away the dead insects in the collection tray at least once a week.
13. If the appliance, cord or plug shows damage, switch off the appliance immediately and remove the plug from the socket. Turn

to your supplier or a certified electrician for repairing/replacing the part. Never carry out repairs yourself!

1. Remove the plug from the socket and switch off the insect-killer immediately, if you hear strange noises, smell something or see smoke.
2. If the electric cable or the plug is damaged, it must be replaced by a qualified person. Never carry out repairs yourself!
3. If the lamp, starter, fuse or any other part is defective or damaged, it must be replaced by a qualified person. Never carry out repairs yourself.

Operating principle

The insect-killer is designed to attract flying insects, such as flies, moths, mosquitoes, etc. using ultraviolet light. As they fly towards with light, they fly into an electrified metal screen that electrocutes them.

The device

The insect-killer is highly efficient and safe. It is fitted with a safety switch so that should there be a short-circuit in the device, it will not blow your entire domestic electricity system, but just trip the insect-killer itself.

The electrified screen is made from stainless steel. This material has been chosen so that there is only minimal crackling on electrocution and the insects neither combust nor is the material damaged.

The special UV lamps are totally harmless to humans and pets.

An external safety screen protects users from coming into unintentional contact with the electrified screen.

The insect-killer uses no chemicals or sprays, does not emit smoke or odours, produces no waste and is environmentally friendly.

The insect-killer is designed to be used indoors, in the home, in work areas, retail outlets, etc.

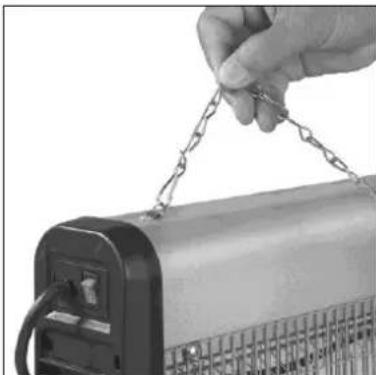

Installation

When placing and installing the insect-killer, it is important to take the location of the device in the room/space into account.

1. Place the insect-killer centrally in the room; that way, the ultraviolet light can be dispersed better and attract insects from the entire area.
2. Place the insect-killer on a wall or in a corner if the room/area is not very large.

3. The best height for the insect-killer is 1.5 to 2 metres off the ground, which is the most common flying height for insects.

4. The insect-killer can be suspended from the chain or placed on a surface such as a table or cabinet. Make sure it is on a good stable base.

5. Install your insect-killer in a relatively dark place: not in direct sunlight (windows, doors), because bright sunlight weakens the insect-killer's radiation power. Artificial light does not weaken the radiation, but makes it work less well.

6. Do not place the insect killer in the draft. Insects avoid drafts / air flows. Placing the insect killer in the draft flow will therefore not be effective.

Use and Maintenance

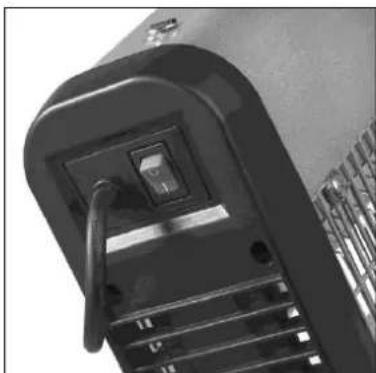

Using

Make sure that the power socket you intend using is earthed and the correct voltage (220 - 240V 50Hz) Start the insect-killer working by plugging the device in and then setting the ON/OFF switch (O/I) to ON (press in I'). The insect-killer is operating. If desired, attractants can be poured or laid in the appropriate collection tray.

Service

For safety reasons, the user may not open the grille. So you may not replace lamps, the fuse or the starter yourself: consult a certified electrician or other qualified professional for this. The fuse of the Fly Away Metal 16-2 is a part of the circuit board, which can also only be replaced by a qualified professional.

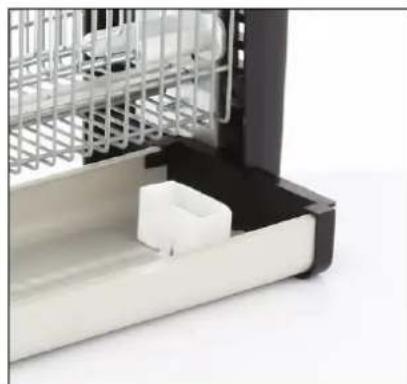

Cleaning

Regularly empty the collection tray by pulling it out of the appliance. Then empty and clean it.

Dust and dirt influence the appliance's effectiveness, so regularly clean the appliance. Switch the appliance off, remove the plug from the socket and remove the collection tray. If you lay the appliance down, you can remove dust and dirt from the appliance using e.g. a vacuum cleaner, a duster or a soft brush (not a metal brush!). Never remove the grille! Do not use moisture or aggressive cleaning agents in the appliance. You can dust off the outside of the appliance with a soft cloth.

Possible defects/problems

Check if the plug is placed properly in the socket and that the power supply is in order. In the case of any other causes, consult a qualified professional. It is strictly forbidden to open the grille and/or to carry out repairs yourself!

Removal

In the EU this symbol indicates that this product may not be disposed of as ordinary household waste. Old equipment contains valuable materials, suitable for recycling. These materials should be made suitable for reuse in order to prevent any adverse effects to health and the environment caused by unregulated waste collection. Therefore, please make sure that you bring old equipment to a designated collection point. Alternatively, contact the original supplier, who can make sure that as many of the components as possible can be recycled.

CE - Declaration

See page 67.

Merci

declares the following device in sole responsibility:

Product: Insekt-killer

Brand name: EUROM

Model: Fly Away Metal 16-2 & 30-2 & 40-2

Item number: 211306 & 211313 & 211320

Complies with the following harmonization rules:

Low Voltage Directive: LVD 2014/35/EU

Electromagnetic compatibility Directive: EMC 2014/30/EU

Restriction of Hazardous Substances RoHS Directive: 2011/65/EU&(EU)2015/863

Applied harmonized standards:

EN 60335-2-59:2003/A2:2009

EN 60335-1:2012/A11:2014

EN 62233:2008

AfPS GS 2014:01 PAK

EN 55014-1:2006+A1:2009+A2:2011

EN 55014-2:1997+A1:2011+A2:2008

EN 61000-3-2:2014

EN 61000-3-3:2013

Genemuiden, 02-12-2020

W.J. Bakker, alg. Dir.

Eurom

Kokosstraat 20

8281 JC Genemuiden

The Netherlands

[e-mail]

www.eurom.nl

021220
