Nemesis T90 - Pump Waldbeck - Free user manual and instructions

Product type	Submersible pump for aquarium, pond, waterfall or fountain
Brand	Waldbeck
Model	Nemesis T90
Power supply	220 V ~ 50 Hz
Power	90 W
Maximum head height	4 m
Maximum flow rate	6,200 l/h
Maximum water temperature	50 °C
Recommended use	Retention ponds, waterfalls, fountains, aquarium filters
Maintenance and cleaning	Clean the filter and housing once a month; clean the pump with a soft brush; store in a frost-free place in winter in a container of water
Safety instructions	Do not open the motor housing (risk of electric shock); never run dry; disconnect during storms or prolonged non-use
Spare parts and repairability	Accessible parts: front filter, rotor, O-rings, suction cups, outlet nozzles; repair only by a qualified professional
Standards compliance	2014/30/EU (EMC), 2014/35/EU (LVD), 2011/65/EU (RoHS)

Frequently Asked Questions - Nemesis T90 Waldbeck

What is the maximum flow rate of the Nemesis T90 pump?

The maximum flow rate is 6,200 l/h.

What is the maximum head height?

The maximum head height is 4 m.

Can I use the pump in salt water?

No, the pump is designed only for fresh water. Do not use in salt water.

How to clean the pump?

Disconnect the device, disassemble the fountain set and pump body, then clean with a soft brush. Remove dirt from the rotor.

What to do if the pump does not work?

Check the power supply, let it cool down in case of overheating, remove rotor blockages, and ensure there is enough water.

Can the pump be run dry?

No, never run the pump dry, this would damage the device.

How to winterize the pump?

Remove the pump from water, clean it, check it is not damaged, and store it in a frost-free place, ideally in a container filled with water.

What types of filters are supplied?

The pump comes with a front filter (filter basket) and a large filter. They protect the pump against dirt.

The pump makes a loud noise, what to do?

This may be due to a blockage of the filter body or a damaged shaft. Remove blockages and replace the shaft or ceramic container if worn.

What are the dimensions of the pump?

Exact dimensions are not provided in the manual, but the pump is compact and suitable for submersible installations.

USER MANUAL Nemesis T90 Waldbeck

10033382 10031918 10033389 10033390

WALDBECK

Nemesis T35 / T45 / T60 / T90

Teichpumpe

Pond Pump

INHALTSVERZEICHNIS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the items and cautions mentioned in the instruction manual is not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and other information about the product.

CONTENT

Safety Instructions 10

Product Overview 11

Operation 12

Care and Maintenance 13

Troubleshooting 14

Hints on Disposal 14

TECHNICAL DATA

Item T35 T45 T60 T90
Power supply 220 V ~ 50 Hz
Power consumption	35 W 45 W 60 W 90 W
Maximum head	2 m 2,5 m 3 m 4 m
Flow rate	2000 L / hour 2700 L/hour 4500 L / hour		6200 L / hour

DECLARATION OF CONFORMITY

Producer:

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)

SAFETY INSTRUCTIONS

• Read all instructions before using.
• Do not let the cord hang over edge of table counter or touch hot surface.
• If liquid penetrates inside the battery housing, unplug the appliance and have it checked by a qualified technician before it is used again.

- Do not place the appliance close to heating equipment or any heat source, or in a location subjected to excessive dust or mechanical shocks.

- Do not expose the appliance to extreme temperatures. The appliance shall be used in moderate climates.

- The use of attachments that are not recommended by the appliance manufacturer may result in fire, electric shock or personal injury.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.

- Children should be supervised to ensure that they do not play with the appliance.

- The appliance is not a toy. Do not let the children play it. Never let children insert foreign objects into the appliance.

- Do not use the appliance for other than intended use. This appliance has been designed solely for domestic use; the manufacturer's liability shall not be engaged in the event of any professional use, by any misuse or by any use not complying with the operating instructions.

- Any altering of the product itself or changing of the components is forbidden.

- Do not connect the pump to any AC voltage power, it is intended ONLY for DC Voltage power.

- Operate in freshwater only (never above 50^ ).

- Do not strike the solar panel.

- Do not let the pump run dry.

WARNING

Risk of injury! Never open the motor housing, otherwise there is a danger to life.

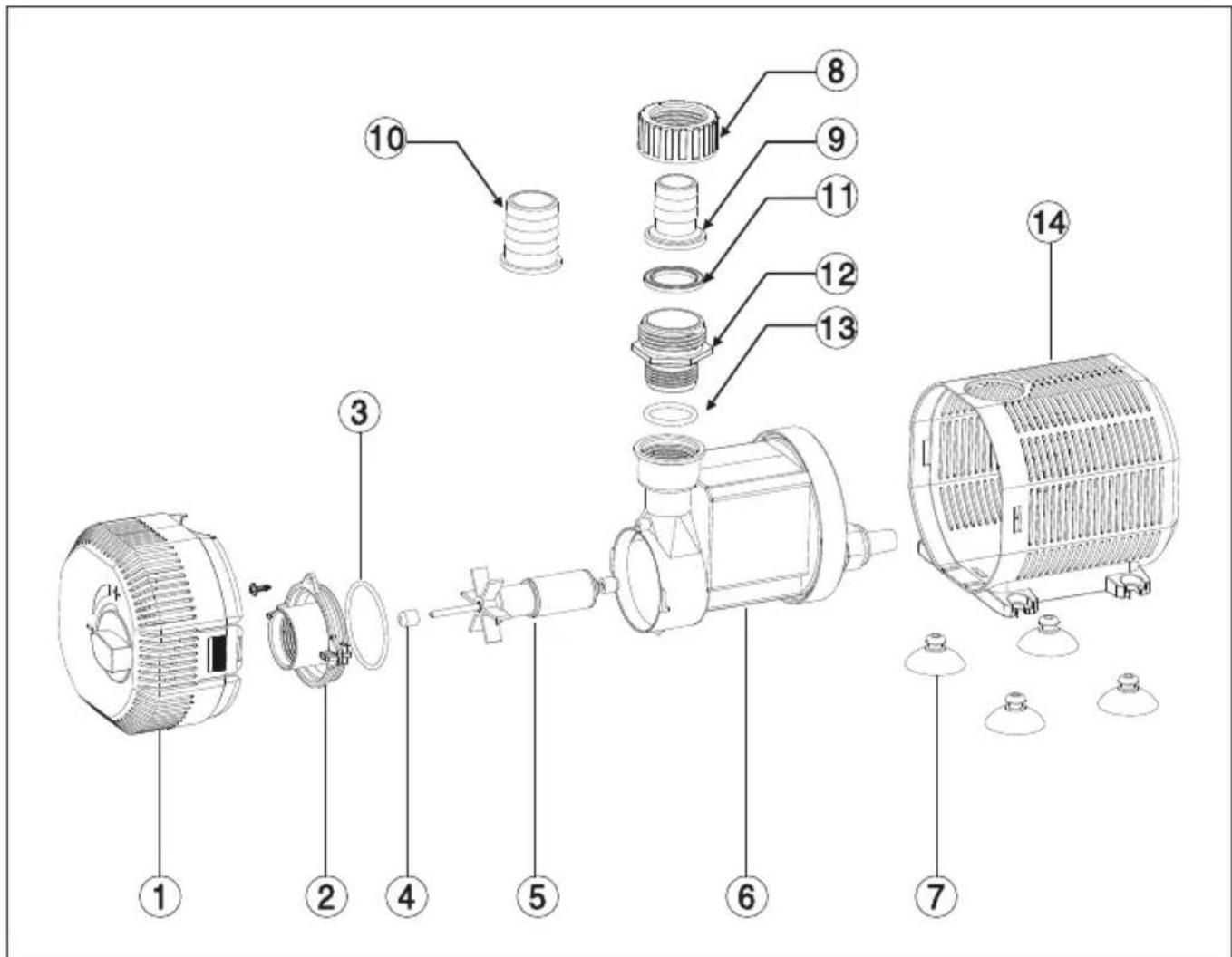

PRODUCT OVERVIEW

1	Front filter	8	Outlet nut
2	Impeller cover	9	Big outlet
3	O ring 1	10	Small outlet
4	Rubber bearing	11	Gasket
5	Rotor	12	Connecting thread
6	Motor	13 O ring 2
7	Suction cup	14 Big filter

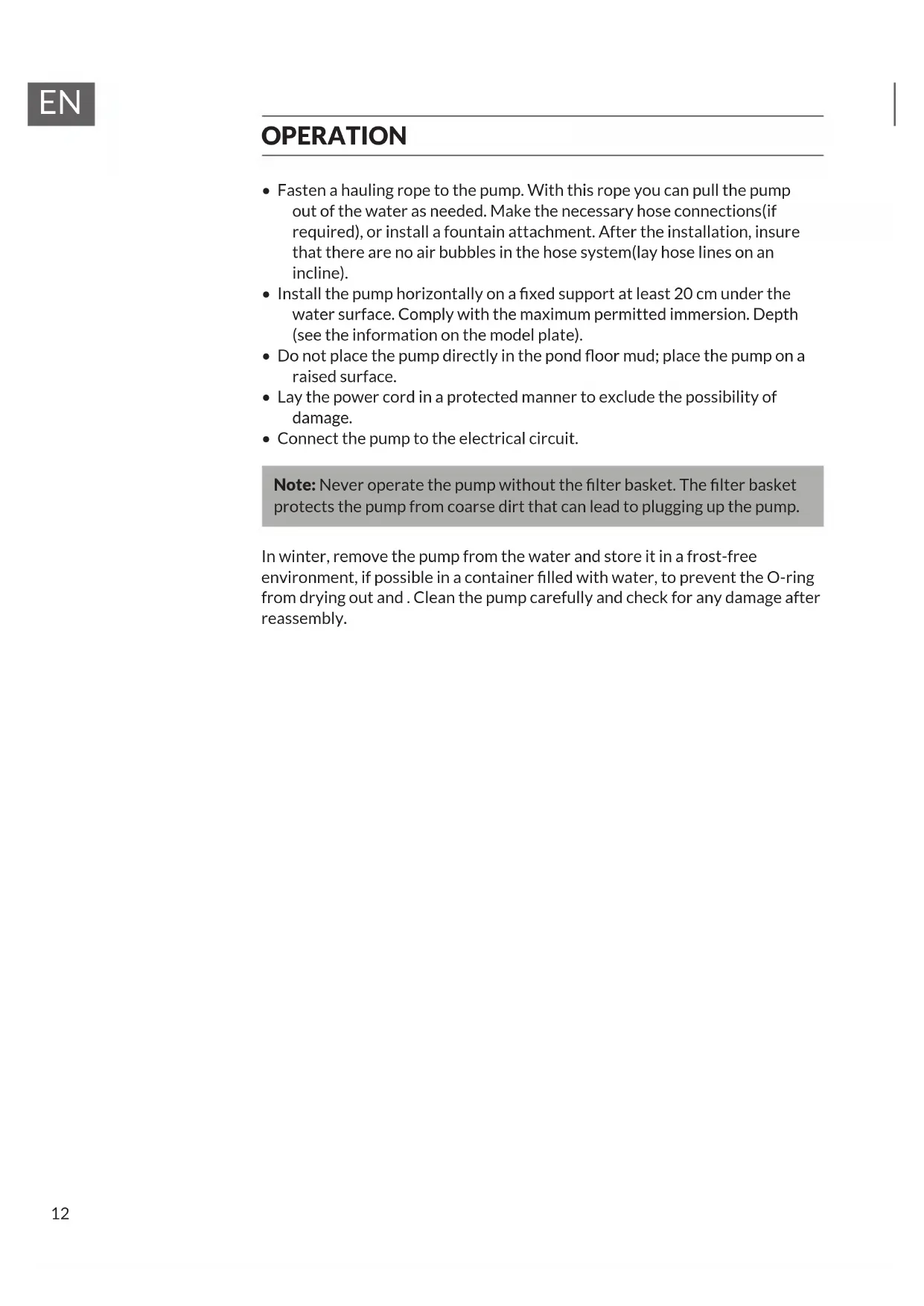

OPERATION

• Fasten a hauling rope to the pump. With this rope you can pull the pump out of the water as needed. Make the necessary hose connections(if required), or install a fountain attachment. After the installation, insure that there are no air bubbles in the hose system(lay hose lines on an incline).
• Install the pump horizontally on a fixed support at least 20 cm under the water surface. Comply with the maximum permitted immersion. Depth (see the information on the model plate).
• Do not place the pump directly in the pond floor mud; place the pump on a raised surface.
• Lay the power cord in a protected manner to exclude the possibility of damage.
• Connect the pump to the electrical circuit.

Note: Never operate the pump without the filter basket. The filter basket protects the pump from coarse dirt that can lead to plugging up the pump.

In winter, remove the pump from the water and store it in a frost-free environment, if possible in a container filled with water, to prevent the O-ring from drying out and . Clean the pump carefully and check for any damage after reassembly.

CARE AND MAINTENANCE

Important notes

• Clean the filter housing and the filter sponge once a month and also when the pump capacity is reduced.
• Clean the pump if it is used frequently.
• Never immerse the mains plug in water.

Cleaning the pump

• Disconnect the mains plug.
  • Disassemble the fountain group.
  • Disassemble the pump casing.
• Clean the pump and filter with a soft brush.
• Remove the dirt from the rotor.

Storage in winter

• Remove the pump from the water.
• Check the pump for damage.
• Store the pump in a frost-free environment, if possible in a container filled with water.

TROUBLESHOOTING

Problem Possible cause Suggested solution
Pump does not work. No power. Plug in.
		Burned. Allow device to cool down.
		Rotor is blocked. Clear blockages.
		Running without water. Plug in again and add water.
Noise. Filter housing is blocked or shaft is broken.		Clean blockages after opening.
		Ceramic shaft or bearing: Wearing occurs. Change the shaft or bearing.
Insufficient water displacement.		Impeller broken. Change impeller.
		Flow rate valve closed. Open the flow rate valve.
		Filter housing is clogged. Clean blockages and plug in.
		Low voltage. Change to right voltage.

HINTS ON DISPOSAL

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.
