USER MANUAL FN126821 Emerio

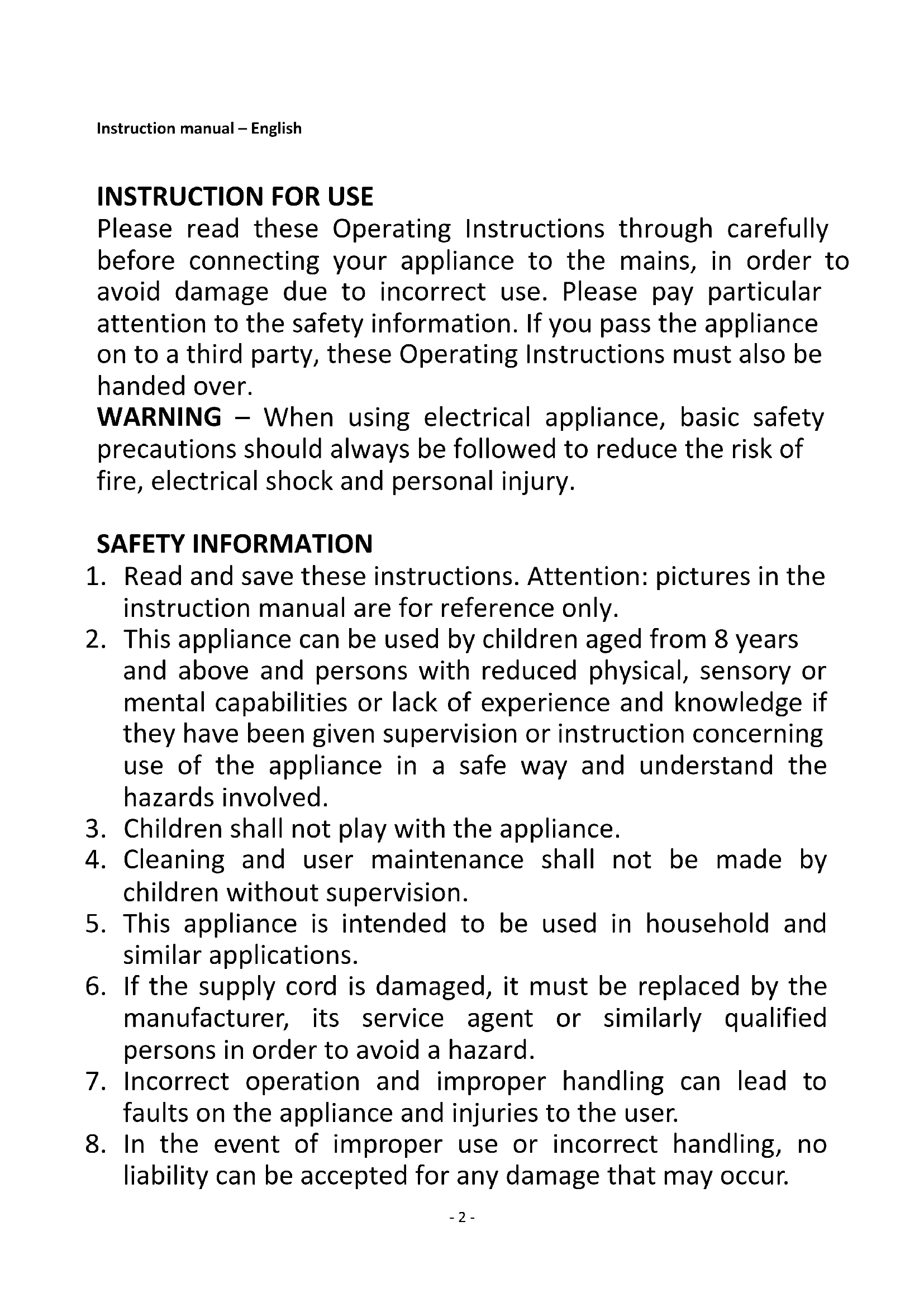

Please read these Operating Instructions through carefully before connecting your appliance to the mains, in order to avoid damage due to incorrect use. Please pay particular attention to the safety information. If you pass the appliance on to a third party, these Operating Instructions must also be handed over. WARNING – When using electrical appliance, basic safety precautions should always be followed to reduce the risk of fire, electrical shock and personal injury. SAFETY INFORMATION

1. Read and save these instructions. Attention: pictures in the

instruction manual are for reference only.

2. This appliance can be used by children aged from 8 years

and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

3. Children shall not play with the appliance.

4. Cleaning and user maintenance shall not be made by

children without supervision.

5. This appliance is intended to be used in household and

similar applications.

6. If the supply cord is damaged, it must be replaced by the

manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

7. Incorrect operation and improper handling can lead to

faults on the appliance and injuries to the user.

8. In the event of improper use or incorrect handling, no

liability can be accepted for any damage that may occur.- 3 -

9. Do not immerse the unit or mains plug in water or other

liquids. There is danger to life due to electric shock! However, if this occurs, remove the mains plug immediately and then have the unit checked by an expert before using it again.

10. Never remove the mains plug from the socket by pulling on

the mains cable, or with wet hands.

11. Ensure that the mains cable does not hang over sharp

edges or allow it to become trapped.

12. Keep the appliance away from damp, and protect from

13. Keep the appliance away from hot objects (e.g. hotplates)

14. Keep the appliance and its cord out of reach of children

15. Use the appliance on a flat, dry and heat resistance surface.

16. Never leave the appliance unattended during use.

17. Do not store or operate the appliance in the open air.

18. Keep the appliance in a dry place, inaccessible to children

19. Never put fingers or any other objects through the grilles

(fan guards) when the fan is running.

20. Never operate the appliance without the grilles (fan guards)

in place, as serious personal injury may result.

21. The appliance must be assembled completely before use.

22. Watch out for long hair! It can be caught in the fan owing

to the air turbulence.

23. Do not point the air flow to the people for a long time.

24. After assembly, do not remove the guards during use or

2. Blade fastening screw

4. Guard fastening screw

NOTE: Drawing (A) --- Used as a standing fan; Drawing (B) --- Used as a desk fan.

Control panel and remote control

The fan can be operated both from the control panel and by the remote control. The functions of the remote control buttons are the same as the functions of the buttons on the control panel.- 5 - To use the remote control, please note: 2 x AAA batteries are required. Ensure that the batteries are inserted into the battery compartment in the correct direction. Do not mix battery types. If replacement required, ensure that both batteries are changed simultaneously. If it is not in use for a long time, please take the batteries out of the remote control. When operation, point the remote control towards the LED display at the front of the fan and ensure that there is no obstruction on the path of the signal. Handle the remote control carefully, do not drop or throw it. ASSEMBLY INSTRUCTIONS ** Please assemble correctly by the following order when using.

1. Assembly of the stand

⚫ Rotate off the washer and the L screw. ⚫ To assemble a standing fan, put the lower column into the base and fix it by screwing tightly the washer and the L screw at the back of the base. Put the upper column and control box above and use column fastening bolts to tighten the connection. To assemble a desk fan, directly put the control box into the base and fix it by screwing tightly the washer and the L screw.

Remove the black protective sleeve from the motor shaft. Rotate off the Guard fastening screw. Align and place the rear guard onto the motor housing. Fix it by tightening the guard fastening screw. Place the fan blade onto the motor shaft by matching the groove with the shaft pin. Fix the blade by tightening the blade fastening screw. Check that the fan blade can rotate freely by turning it with your hand.

Put the front guard against the rear guard. Align the guard rims and push the two guards together. Close the circlip and fix it by the provided screw. Shaft pin Protective sleeve- 6 - OPERATION Plug the power cord into a suitable socket. The indication screen shows a white light.

1. Press ON/OFF button to start the fan.

2. Press the speed button to select a desired wind speed. There are three settings indicated by logos on the

indication screen ( “1” = low speed; “2” = medium speed; “3” = high speed).

3. Press the mode selection button to set the desired operation mode among normal, natural and sleep mode.

When it’s in normal mode, the indicator light turns on in red; when it’s in natural mode, the indicator light turns on in green; when it’s in sleep mode, the indicator light turns off.

4. TIMER: Press the timer button to set after how many hours the fan will be automatically shut off. You can set

it from 0 to 9 hours. The set value will be shown on the indication screen and when it displays “0”, the timer is cancelled. When the selected hours have passed, the fan will be shut off automatically.

5. Oscillation: Press the swing button to start oscillation for widespread air distribution. Press the button once

more to stop oscillation.

6. Tilting angles: By pushing the fan-guard, you can adjust the fan to the preferred elevation.

CLEANING ⚫ Before servicing the fan and after every use, switch off the appliance and unplug the mains cable from the socket. ⚫ Never immerse the appliance in water (danger of short-circuit). To clean the appliance, only wipe it with a damp cloth and then dry it carefully. Always take out the mains plug first. ⚫ Take care that excessive dust does not build up in the air-intake and air-outlet grille, and clean it occasionally using a dry brush or vacuum cleaner. TECHNICAL DATA Operating voltage: 220-240V ~ 50-60Hz Power consumption: 55W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee: For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase. Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can’t claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.- 7 - BATTERY MUST BE RECYCLED OR DISPOSED OF PROPERLY. DO NOT OPEN. DO NOT DISPOSE OR IN FIRE OR SHORT CIRCUIT. Emerio Deutschland GmbH (no service address) Lerchenweg 3 40789 Monheim am Rhein Deutschland Customer service: T: +49 (0) 3222 1097 600 E: info.de@emerio.eu- 8 - ERP information (EN) Supplier: Emerio Deutschland GmbH Lerchenweg 3 40789 Monheim am Rhein Deutschland Declare that the product detailed below: Information requirements Information to identify the FN-126821 to which the information relates to [Stand fan] Description Symbol Value Unit Maximum fan flow rate

Satisfies the requirement of the Council Directives: COMMISSION REGULATION (EU) No 206/2012 of 6 March 2012 and Amending COMMISSION REGULATION (EU) 2016/2282 implementing Directive 2009/125/EC of the European Parliament and of the Council with regard to ecodesign requirements for air conditioners and comfort fans
