USER MANUAL FN122397 Emerio
Stand fan (EN)
Instruction manual – English ...... - 10 -
| SEKUNDE(N) | H | M | L | | ---------- | --- | --- | --- | | 0 | | | | | 5 | | | | | 10 | | | | | 15 | | | | | 20 | | | | | 25 | | | | | 30 | | | | | 35 | | | | | 40 | | | | | 45 | | | | | 50 | | | | | 55 | | | | | 60 | | | | | 65 | | | | | 70 | | | | | 75 | | | | | 80 | | | |line
| SEKUNDE(N) | H | M | L | | ---------- | --- | --- | --- | | 0 | | | | | 5 | | | | | 10 | | | | | 15 | | | | | 20 | | | | | 25 | | | | | 30 | | | | | 35 | | | | | 40 | | | | | 45 | | | | | 50 | | | | | 55 | | | | | 60 | | | | | 65 | | | | | 70 | | | | | 75 | | | | | 80 | | | |bar
| X-Axis | H | M | L | |---|---|---|---| | 0-5 | 1 | 0 | 0 | | 5-10 | 1 | 0 | 0 | | 10-15 | 1 | 0 | 0 | | 15-20 | 1 | 0 | 0 | | 20-25 | 1 | 0 | 0 | | 25-30 | 1 | 0 | 0 | | 30-35 | 1 | 0 | 0 | | 35-40 | 1 | 0 | 0 | | 40-45 | 1 | 0 | 0 | | 45-50 | 1 | 0 | 0 | | 50-55 | 1 | 0 | 0 | | 55-60 | 1 | 0 | 0 | | 60-65 | 1 | 0 | 0 | | 65-70 | 1 | 0 | 0 | | 70-75 | 1 | 0 | 0 | | 75-80 | 1 | 0 | 0 | SEKUNDE(N)Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

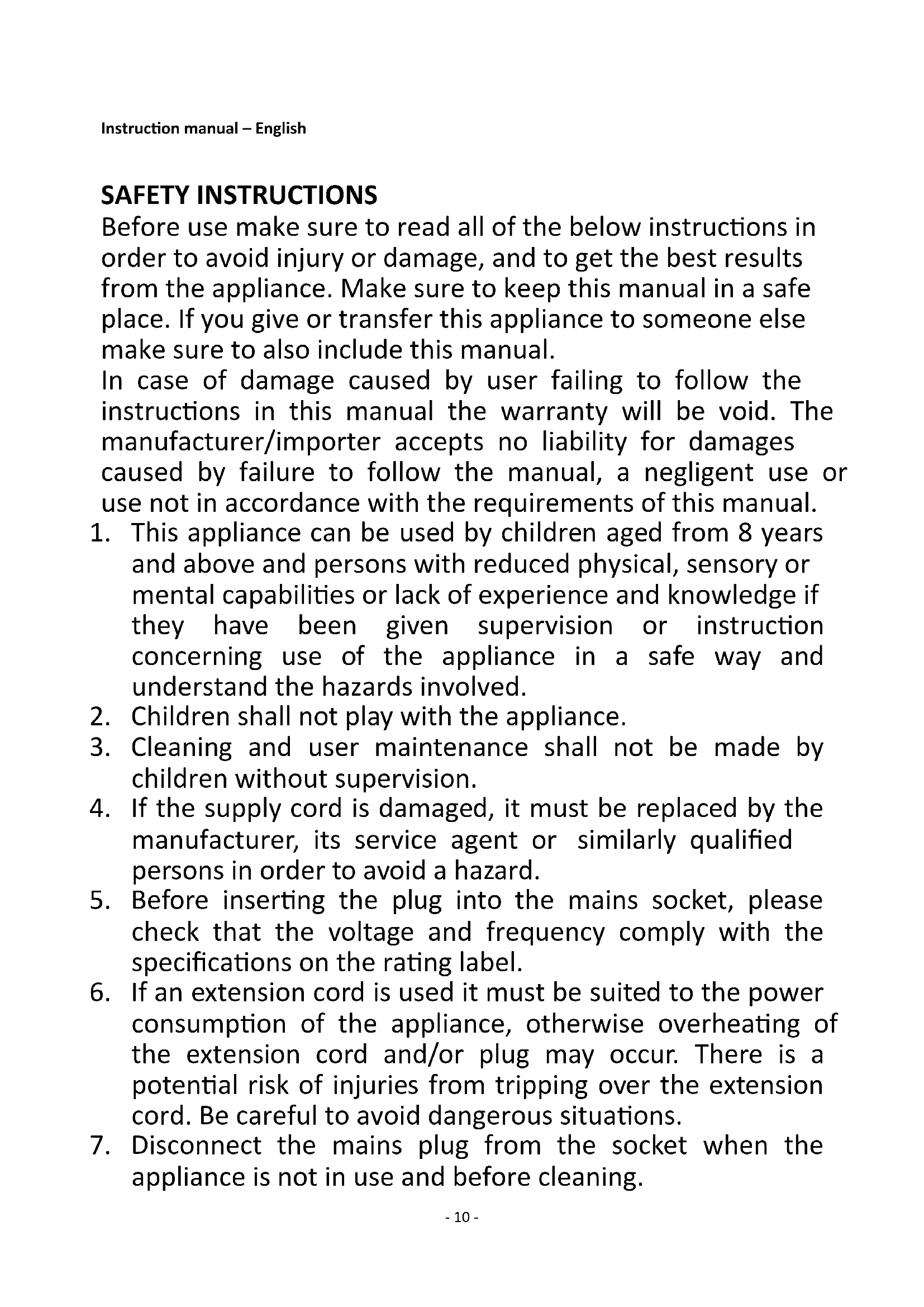

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Children shall not play with the appliance.
- Cleaning and user maintenance shall not be made by children without supervision.
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
- Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.
- If an extension cord is used it must be suited to the power consumption of the appliance, otherwise overheating of the extension cord and/or plug may occur. There is a potential risk of injuries from tripping over the extension cord. Be careful to avoid dangerous situations.
-
Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.
-
Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.
- Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!
- To remove the plug from the plug socket, pull the plug. Do not pull the power cord.
- Do not touch the appliance if it falls into water. Remove the plug from its socket, turn off the appliance and send it to an authorized service center for repair.
- Do not plug or unplug the appliance from the electrical outlet with a wet hand.
- Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.
- Never leave the appliance unattended during use.
- This appliance is not designed for commercial use.
- Do not use the appliance for other than intended use.
- Do not wind the cord around the appliance and do not bend it.
- Keep the appliance away from damp, and protect from splashes.
- Use the appliance on a flat, dry and heat resistance surface.
- Do not store or operate the appliance in the open air.
- Keep the appliance in a dry place for storage, inaccessible to children (in its packaging).
- Never put fingers or any other objects through the fan guards when the fan is running.
- Never operate the product without the fan guards in place, as serious personal injury may result.
- The appliance must be assembled completely before use.
- Watch out for long hair! It can be caught in the fan owing to the air turbulence.
- Do not point the air flow at people for a long time.
- Ensure that the fan is switched off from the supply mains before removing the guard.
PARTS DESCRIPTION
- Front guard
- Locking clips
- Blade fastening screw
- Fan blade
- Guard fastening screw
- Rear guard
- Motor shaft
- Oscillation button
- Motor
- Fastening screw
- Height adjustment pipe
- Fasten set
- Standing shaft
- Cover piece
- Standing base
- 4 Screws

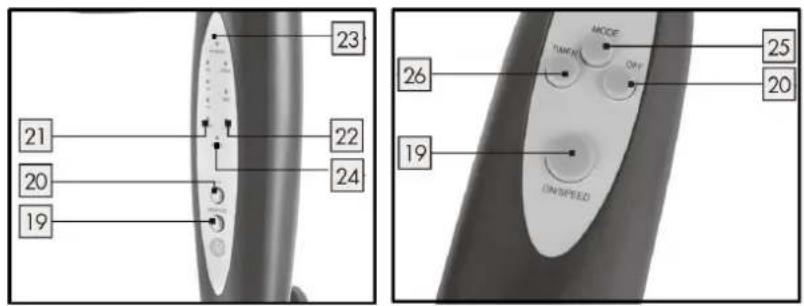

- Control panel
- Small nut and bolt
/remote control
- On and speed button
- Off button
- Timer indicators
- Speed indicators
- Power indicator
- Mode indicator
- Mode button
- Timer button
Open the battery cover on the back of the remote control. Place two AAA batteries in the compartment as indicated by the polarity symbols (+/-). Replace the cover.
ASSEMBLING INSTRUCTIONS
** Please assemble correctly by the following orders when using.
-
Assemble the stand
-
Connect the two parts of the base together into a cross.
• Unscrew the four screws from the base. -
Attach the standing shaft onto the base and fix firmly with the four screws.
-
Rotate the fasten set out of the standing shaft. Put the cover piece on the base through the standing shaft.
-
Rotate back the fasten set.
-
The whole assembly
-
Pull the height adjustment pipe out and tighten the fasten set.
-
Link the fan main body and the height adjustment pipe together by the fastening screw and then fix them.
-
Rear grille assembly
● Unscrew the blade fastening screw and the guard fastening screw from the motor shaft.
● Fix the rear guard onto the two pillars of the motor front shell.
- Screw the guard fastening screw tightly in clockwise direction.
-
The assembly of fan blade
-
Take the black shaft protective cover out of the shaft. Insert fan blade onto shaft ensuring blade fits properly.
● Tighten blade screw onto shaft. Note: Blade screw should be tightened in anti-clockwise. -
Front grille assembly
-
Open up all locking clips on the sides of the front guard.
- Place the front guard into position by lining up the location plate over the top of the rear guard and push down.
- Unscrew the small nut and bolt at the bottom of the front grille, then fasten the two guards together with them.
- Secure the two guards by closing the clips over the outer rim.
OPERATION
Please press the buttons on the control panel or the buttons on the remote control to choose your desired function. The corresponding LED lights will illuminate accordingly.
- On/Off function
Press the button "ON/SPEED" once to turn on the unit. The unit starts to work under normal mode at low speed.
Press the button "OFF" to turn off the unit.
- Speed function
When the appliance is on, continue to press the "ON/SPEED" button to set your desired wind speed from low, mid, high, indicated with the speed lights illuminating one by one.
- Oscillation
To make the fan head oscillate, push down the oscillation knob. To stop the fan head from oscillating, pull up the oscillation knob.
- Mode function
Press the mode button to set your desired working mode:
Normal mode (mode indicator: red)
Nature mode (mode indicator: green)
Sleep mode (mode indicator: off).
1) Normal: under this mode, the motor works with the preset speed. You can press button "ON/SPEED" to choose speed Low/Mid/High.
2) Natural: under this mode, you can press button "ON/SPEED" to choose speed Low /Mid /High. The fan will operate as follows:
High speed natural mode
line
| Time (s) | H | M | L | |----------|-----|-----|-----| | 0 | | | | | 5 | | | | | 10 | | | | | 15 | | | | | 20 | | | | | 25 | | | | | 30 | | | | | 35 | | | | | 40 | | | | | 45 | | | | | 50 | | | | | 55 | | | | | 60 | | | | | 65 | | | | | 70 | | | | | 75 | | | | | 80 | | | |Mid speed natural mode
line
| Time (s) | H | M | L | | :--- | :--- | :--- | :--- | | 0-5 | 0 | 0 | 0 | | 5-10 | 0 | 1 | 0 | | 10-15 | 0 | 1 | 0 | | 15-20 | 0 | 0 | 0 | | 20-25 | 0 | 1 | 0 | | 25-30 | 0 | 1 | 0 | | 30-35 | 0 | 1 | 0 | | 35-40 | 0 | 0 | 0 | | 40-45 | 0 | 1 | 0 | | 45-50 | 0 | 1 | 0 | | 50-55 | 0 | 1 | 0 | | 55-60 | 0 | 0 | 0 | | 60-65 | 0 | 1 | 0 | | 65-70 | 0 | 1 | 0 | | 70-75 | 0 | 1 | 0 | | 75-80 | 0 | 0 | 0 |Low speed natural mode
line
| Time (s) | H | M | L | | :--- | :--- | :--- | :--- | | 0 | 0 | 0 | 0 | | 5 | 0 | 0 | 0 | | 10 | 0 | 1 | 0 | | 15 | 0 | 0 | 0 | | 20 | 0 | 1 | 0 | | 25 | 0 | 0 | 0 | | 30 | 0 | 1 | 0 | | 35 | 0 | 0 | 0 | | 40 | 0 | 1 | 0 | | 45 | 0 | 0 | 0 | | 50 | 0 | 1 | 0 | | 55 | 0 | 0 | 0 | | 60 | 0 | 1 | 0 | | 65 | 0 | 0 | 0 | | 70 | 0 | 1 | 0 | | 75 | 0 | 0 | 0 | | 80 | 0 | 0 | 0 |3) Sleeping: under this mode, you can press button "ON/SPEED" to choose speed Low/Mid/High. The fan will operate as follows:
a. In high speed: 30 minutes high natural wind →30 minutes medium natural wind → continuous low natural wind

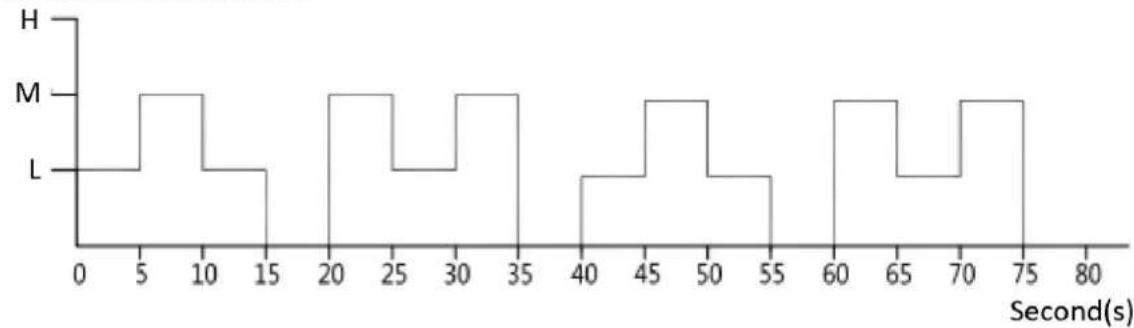

b. In mid speed: 30 minutes medium natural wind → continuous low natural wind

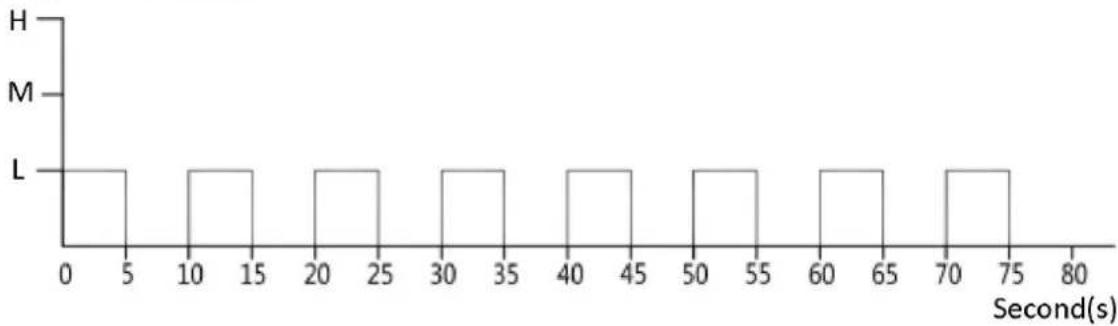

c. In low speed: continuous low natural wind
- Timer function
Press the timer button to set your desired working time from 0.5h to 7.5h (increment by 0.5h).
CLEANING
- Before servicing the fan and after each occasion of use, switch off the appliance and unplug the mains cable from the socket.
- Never immerse the appliance in water (danger of short-circuit). To clean the appliance, only wipe it down with a damp cloth and dry it carefully. Always take out the mains plug first.
- Take care that excessive dust does not build up in the air-intake and air-outlet grille, and clean it occasionally using a dry brush or vacuum cleaner.
TECHNICAL DATA
Operating voltage: 220-240V \~ 50/60Hz
Power consumption: 45W
GUARANTEE AND CUSTOMER SERVICE
Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:
For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.
Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable.
Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.
ENVIRONMENT FRIENDLY DISPOSAL
Recycling – European Directive 2012/19/EU
This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used
device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.
BATTERY MUST BE RECYCLED OR DISPOSED OF PROPERLY. DO NOT OPEN. DO NOT
DISPOSE OR IN FIRE OR SHORT CIRCUIT.
Electroactiva
Calle Huelva, 6
28343 - Valdemoro - Madrid - España
0034 918 762 026
ERP information (EN)
Supplier: Electroactiva
Calle Huelva, 6
28343 - Valdemoro - Madrid - España
0034 918 762 026
Declare that the product detailed below:
Information requirements
| Information to identify the FN-122397.2 to which the information relates to [Stand fan] | |||
| Description | Symbol | Value | Unit |
| Maximum fan flow rate | F | 54,30 | m^3/min |
| Fan power input | P | 39,00 | W |
| Service value | SV | 1,39 | (m^3/min)/W |
| Standby power consumption | P_SB | 0,42 | W |
| Fan sound power level | L_WA | 53,29 | dB(A) |
| Maximum air velocity | c | 3,24 | meters/sec |
| Measurement standard for service value | IEC 60879:1986 (corr. 1992) | ||
| Contact details for obtaining more information | Electroactiva Calle Huelva, 6 28343 - Valdemoro – Madrid – España 0034 918 762 026 | ||
Satisfies the requirement of the Council Directives:
COMMISSION REGULATION (EU) No 206/2012 of 6 March 2012 and Amending COMMISSION REGULATION (EU) 2016/2282 implementing Directive 2009/125/EC of the European Parliament and of the Council with regard to ecodesign requirements for air conditioners and comfort fans
Regarding information for consumers on how to install, use and maintain the product, WEEE information, please check the instruction manual provided with packaging.
