WD125905 - Water dispenser Emerio - Free user manual and instructions

Product type	Wet and dry vacuum cleaner (dry/wet)
Brand	Emerio
Model	WD125905
Power supply	Mains (230 V ~ 50 Hz)
Main functions	Suction and blowing
Filters	Cloth filter and foam filter (washable)
Use	Suction of liquids and solids
Included accessories	Hose, extension tubes, floor brush, combination brush, air regulator
Maintenance	Regular cleaning of filters, drainage after wet use
Safety	Disconnect before maintenance, do not vacuum flammable materials
Warranty	2 years
Repairability	Spare parts available through after-sales service
General information	Device recyclable according to WEEE directive

Frequently Asked Questions - WD125905 Emerio

How to vacuum liquids with the vacuum cleaner?

Remove the cloth filter, make sure the drain cover is tightly closed, then use the vacuum cleaner normally. Empty the tank after use.

Why does the suction power decrease?

The power decreases if the tank is full or if the filters are clogged. Empty the tank and clean the filters regularly.

How to clean the filters?

Remove the cloth filter and foam filter, wash them with clean water and dry them completely before putting them back. Do not expose them to sunlight.

Can I use the vacuum cleaner without a filter?

No, using without a filter can damage the motor. Filters must always be in place.

How to use the blowing function?

Connect the hose to the blowing port (position ②) by turning clockwise. You can then blow away dust.

What to do if the vacuum cleaner overheats?

Turn off the appliance and unplug it. Check that the openings are not blocked and that the filters are clean. Let it cool down before reusing.

How to empty the tank after vacuuming liquids?

Turn the drain cover counterclockwise to drain the liquid. Then remove the top cover and clean the tank.

Can I plug another tool into the vacuum cleaner's power outlet?

Yes, a power outlet (max load 1000 W) is available on the cover to plug in a tool. The tool will be powered when the vacuum cleaner is plugged in.

How to store the vacuum cleaner to save space?

You can wind the cable around the hook, remove the tubes, and store the appliance as indicated in the manual for compact storage.

What is the warranty period?

Emerio offers a 2-year warranty from the date of purchase, subject to compliance with the instructions for use.

USER MANUAL WD125905 Emerio

Wet & Dry vacuum cleaner

USER MANUAL

BEDIENUNGSANLEITUNG

MODE D'EMPLOI

GEBRUIKERSHANDLEIDING

INSTRUKCJA UŻYTKOWANIA

ISTRUZIONI PER L'USO

INSTRUCCIONES DE USO

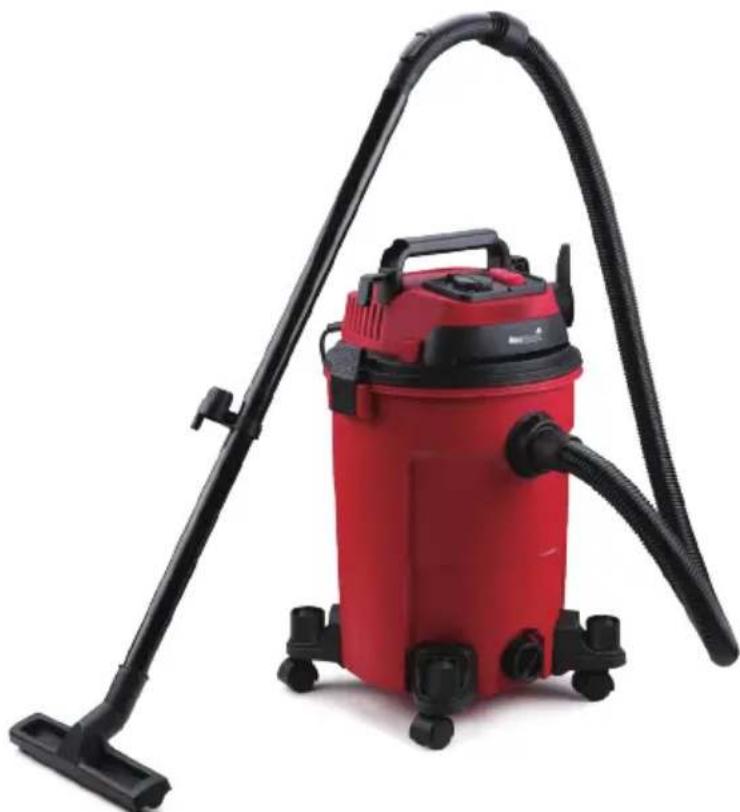

Red and black vacuum cleaner with black hose, isolated on white background (no text or symbols visible)

EN: Wet & Dry vacuum cleaner

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children without supervision.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
5. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.
6. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.
7. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.
8. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!

9. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.

10. Do not touch the appliance if it falls into water. Remove the plug from its socket, turn off the appliance and send it to an authorized service center for repair.

11. Do not plug or unplug the appliance from the electrical outlet with a wet hand.
12. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.
13. Never leave the appliance unattended during use.
14. This appliance is not designed for commercial use.
15. Do not use the appliance for other than intended use.
16. Do not wind the cord around the appliance and do not bend it.
17. The use of accessory attachment not recommended by the appliance manufacturer may cause injuries.
18. Do not put any object into openings. Do not use with any opening blocked. Keep free of dust, lint, hair and anything that may reduce airflow.
19. Do not pick up hard or sharp objects such as glass, nails, screws, coins, etc.
20. Do not pick up hot coals, cigarette, matches or any hot, smoking, or burning objects.
21. Do not use this appliance without filters in place.
22. Use extra care when vacuuming on stairs.
23. Do not pick up flammable or combustible materials (lighter fluid, gasoline, etc.).
24. Do not pick up toxic material (chlorine bleach, ammonia, drain cleaner, etc.).
25. Do not operate the appliance in an enclosed space filled with vapors given off by oil based paints, paint thinner, moth proofing, flammable dust, or other explosive or toxic vapors.
26. Do not use the cleaner to clean your pets or any animal.
27. When using and you hear a squeaking sound from the vacuum cleaner, or suction power appears to be reduced, stop the machine immediately and clean all filters.

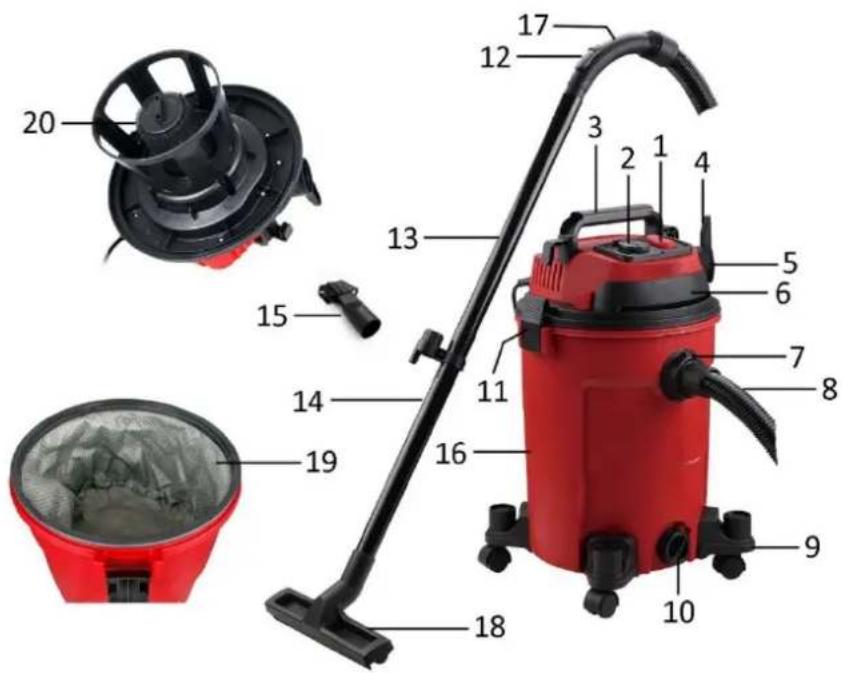

PARTS AND ACCESSORIES

1. On/off switch

2. Electrical outlet

3. Handle

4. Power cord hook

5. Blower port

6. Top cover

7. Suction port

8. Hose

9. Caster supports (x4)

10. Drain port

11. Top cover latch

12. Suction power switch

13. Upper extension tube

14. Lower extension tube

15. Combi nozzle

16. Tank

17. Curved hose

18. Floor brush

19. Cloth filter

20. Sponge filter

OPERATION

Caution:

Always remove the power plug from the wall outlet before assembling or removing accessories.

1. Before use, put the tank upside down. Align the caster supports at their positions, using the provided screws to tighten the caster supports.

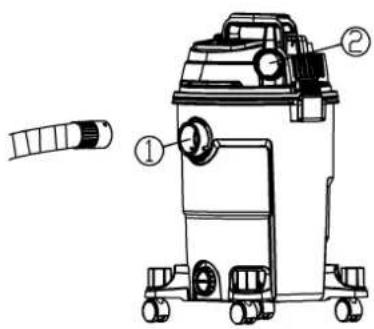

2. The appliance has both suction function and blower function. To use the suction function, fit the hose into the suction port (position ①) by aligning the bulge and groove and turning it clockwise; to use the blower function, fit the hose into the blower port (position ②) by aligning the bulge and groove and turning it clockwise.

1. Attach the extension tube(s) to the curved hose.

2. Fit the floor brush or combi nozzle to the other end of the extension tube.

3. For wet pick-up, please open the top cover and take out the cloth filter first.

4. Check and make sure the drain port has its cover in place properly.

5. Unwind the power cord and insert the power plug into an appropriate power outlet.

6. Press the on/off button to the position "—" turn on the appliance.

7. To reduce the suction power, move the suction power switch upwards: the larger the opening is; the weaker the suction power is.
8. After use, turn off the appliance by pressing the on/off button to the position "O".

Note: Other electrical tools can be plugged into the electrical outlet (Max. load: 1000W) on the top cover, and when the vacuum cleaner has been connected to the power outlet, this electrical tool can work with the electricity too.

CLEANING AND MAINTENANCE

Warning: Always switch off and unplug the appliance from electrical outlet before dissembling and cleaning.

1. Rotate anti-clockwise and take off the cover onto the drain port. Drain out the liquids in the tank.

2. Release the top cover latch and take off the top cover.

Line drawing of a mechanical device with a top component and wheels (no text or symbols)

1. Take out the cloth filter. Empty the tank.
2. Clean the cloth filter by water when necessary. Dry it completely but never expose it in a direct sunlight.
3. Take off the sponge filter and clean it by water. Dry it completely but never expose it in a direct sunlight too.
4. Assemble back the appliance.

Note:

• The suction hole must be open, free of any obstructions at all times. Otherwise, the motor will overheat and could become damaged.
• All filters should be checked regularly for signs of damage, preferably after each task. The filters must be replaced immediately if they become damaged. Always disconnect the vacuum cleaner from the electrical outlet when checking the filters.
• Clean the appliance after each use. When the tank is full, the appliance will lose the vacuum power and cannot blow either.

Parking:

This appliance can be parked as below style to save your room space.

Red vacuum cleaner with black hose and handle, no visible text or symbols

TECHNICAL DATA

Voltage: 220-240V \~ 50/60Hz

Power: 2200W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge.

Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was

purchased. They can take this product for environmental safe recycling.

SICHERHEITSHINWEISE

BETRIEB

Achtung:

Line drawing of a mechanical device with a top component and base unit (no text or symbols)

Red and black vacuum cleaner with coiled hose (no visible text or symbols)

TECHNISCHE DATEN

FONCTIONNEMENT

Attention :

Technical line drawing of a mechanical device with top and bottom views (no text or symbols)

Red vacuum cleaner with black hose and handle, no visible text or symbols

CARACTÉRISTIQUES TECHNIQUES

Tension de service: 220-240V \~ 50/60Hz

Puissance: 2200W

GARANTIE ET SERVICE APRÈS-VENTE

WERKING

Voorzichtig:

Technical line drawing of a mechanical device with top and bottom views (no text or symbols)

Red vacuum cleaner with black hose and handle, no visible text or symbols

TECHNISCHE GEGEVENS

UŻYTKOWANIE

Ostrożnie:

Technical line drawing of a mechanical device with top and side views (no text or symbols)

Red vacuum cleaner with black hose and black handle (no visible text or symbols)

DANE TECHNICZNE

UTILIZZO

Avvertenza!

Technical line drawing of a mechanical device with top and bottom views (no text or symbols)

Red and black vacuum cleaner with coiled hose (no visible text or symbols)

DATI TECNICI

MODO DE EMPLEO

Atención:

Line drawing of a mechanical device with a top component and wheels (no text or symbols)

Red vacuum cleaner with black hose and handle, no visible text or symbols

DATOS TÉCNICOS
