WD125850 - Water dispenser Emerio - Free user manual and instructions

Product Type	Wet & Dry Vacuum Cleaner
Brand	Emerio
Model	WD125850
Rated Power	1400 W (estimated)
Power Supply	220-240 V ~ 50 Hz
Tank Capacity	30 L (estimated)
Functions	Vacuuming and Blowing
Filter Types	Cloth filter and foam filter
Included Accessories	Flexible hose, upper and lower extension tubes, combination brush, floor brush, tubular handle
Auxiliary Power Outlet	Maximum load 1000 W
Weight	Approximately 8 kg (estimated)
Dimensions (L x W x H)	Approximately 40 x 40 x 50 cm (estimated)
Warranty	2 years
Maintenance and Cleaning	Clean filters after each use; empty the tank regularly
Safety	Do not immerse; unplug before maintenance; do not vacuum flammable materials
Spare Parts and Repairability	Filters and accessories available; repair by a certified professional
Environment	Recycling according to directive 2012/19/EU

Frequently Asked Questions - WD125850 Emerio

How to use the vacuum cleaner to vacuum liquids?

Open the top cover, remove the cloth filter, then use the vacuum cleaner normally. Make sure the drain cover is tightly closed. After use, empty the tank and clean the foam filter.

How to clean the filters?

Unplug the appliance. Remove the cloth filter and foam filter. Wash them with clean water and dry them completely before reinstalling. Never expose them to direct sunlight.

What to do if suction power decreases?

Check that the tank is not full and the filters are not clogged. Clean or replace the filters if necessary. Make sure the suction inlet is not blocked.

Can I vacuum hot ashes?

No, never vacuum hot ashes, cigarette butts, or burning objects. This could damage the appliance and cause a fire.

How to connect a power tool to the auxiliary outlet?

Plug the tool (max 1000 W) into the outlet on the top cover. The tool will turn on when the vacuum cleaner is running.

How to change the filter?

Unplug the appliance. Open the top cover, remove the old filter and replace it with a new one. Put the cover back on. Use only original filters.

Can the vacuum cleaner be used without a filter?

No, never use the vacuum cleaner without the filters assembled. This could damage the motor and reduce performance.

How to store the vacuum cleaner?

You can wrap the cable around the hooks provided and store the accessories in the tank or on the side. The appliance can be stored vertically to save space.

What to do if the motor overheats?

Turn off the appliance immediately and unplug it. Check that the filters are not clogged and the suction inlet is not blocked. Let it cool down before reusing.

What is the tank capacity?

The tank has a capacity of approximately 30 liters (estimated). Do not fill it beyond the maximum mark to avoid overflow.

USER MANUAL WD125850 Emerio

Wet & Dry vacuum cleaner

USER MANUAL

BEDIENUNGSANLEITUNG

MODE D'EMPLOI

GEBRUIKERSHANDLEIDING

INSTRUKCJA UŻYTKOWANIA

ISTRUZIONI PER L'USO

INSTRUCCIONES DE USO

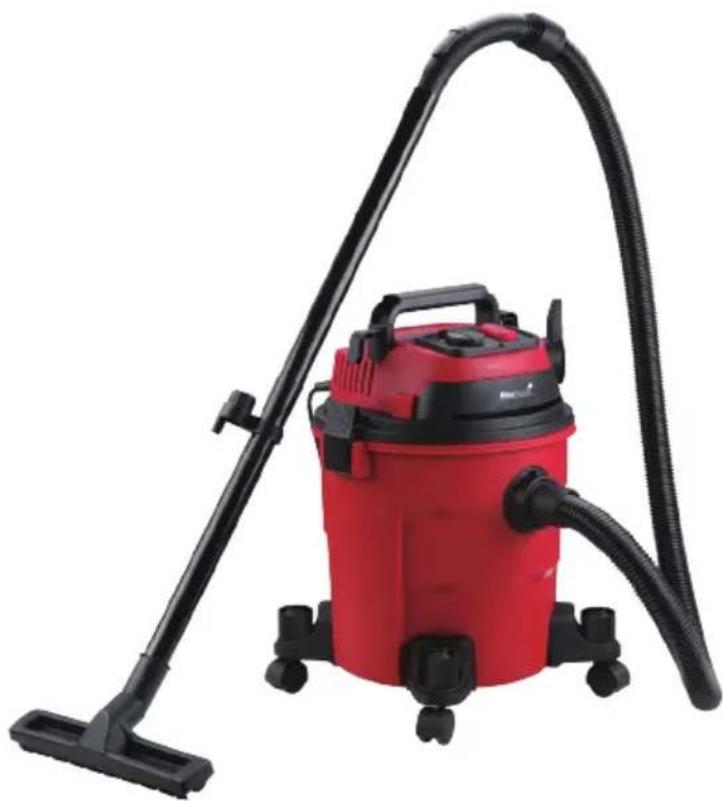

Red and black vacuum cleaner with black hose and handle, isolated on white background (no text or symbols visible)

EN: Wet & Dry vacuum cleaner

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children without supervision.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
5. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.
6. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.
7. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.
8. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!

9. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.

10. Do not touch the appliance if it falls into water. Remove the plug from its socket, turn off the appliance and send it to an authorized service center for repair.

11. Do not plug or unplug the appliance from the electrical outlet with a wet hand.
12. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.
13. Never leave the appliance unattended during use.
14. This appliance is not designed for commercial use.
15. Do not use the appliance for other than intended use.
16. Do not wind the cord around the appliance and do not bend it.
17. The use of accessory attachment not recommended by the appliance manufacturer may cause injuries.
18. Do not put any object into openings. Do not use with any opening blocked. Keep free of dust, lint, hair and anything that may reduce airflow.
19. Do not pick up hard or sharp objects such as glass, nails, screws, coins, etc.
20. Do not pick up hot coals, cigarette, matches or any hot, smoking, or burning objects.
21. Do not use this appliance without filters in place.
22. Use extra care when vacuuming on stairs.
23. Do not pick up flammable or combustible materials (lighter fluid, gasoline, etc.).
24. Do not pick up toxic material (chlorine bleach, ammonia, drain cleaner, etc.).
25. Do not operate the appliance in an enclosed space filled with vapors given off by oil based paints, paint thinner, moth proofing, flammable dust, or other explosive or toxic vapors.
26. Do not use the cleaner to clean your pets or any animal.
27. When using and you hear a squeaking sound from the vacuum cleaner, or suction power appears to be reduced, stop the machine immediately and clean all filters.

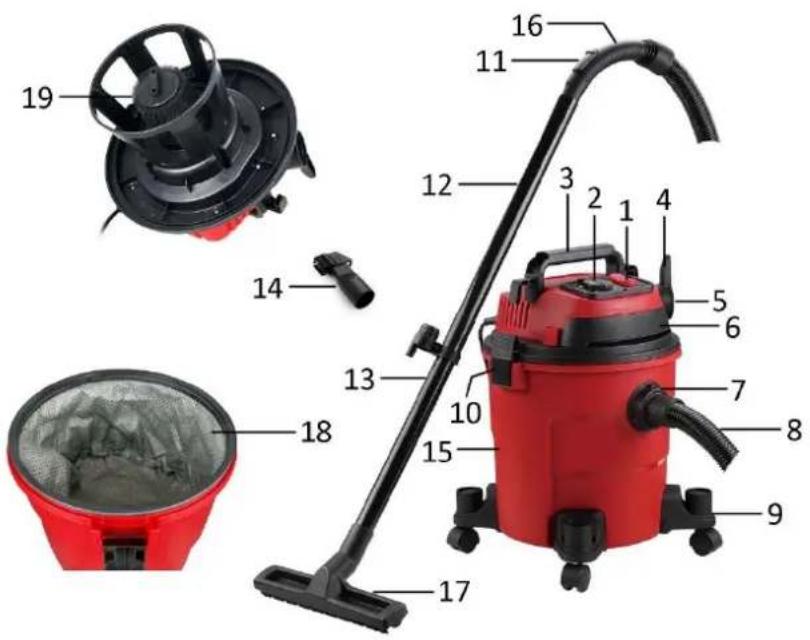

PARTS AND ACCESSORIES

1. On/off switch

2. Electrical outlet

3. Handle

4. Power cord hook

5. Blower port

6. Top cover

7. Suction port

8. Hose

9. Caster supports (x4)

10. Top cover latch

11. Suction power switch

12. Upper extension tube

13. Lower extension tube

14. Combi nozzle

15. Tank

16. Curved hose

17. Floor brush

18. Cloth filter

19. Sponge filter

OPERATION

Caution:

Always remove the power plug from the wall outlet before assembling or removing accessories.

1. Before use, put the tank upside down. Align the caster supports at their positions, using the provided screws to tighten the caster supports.

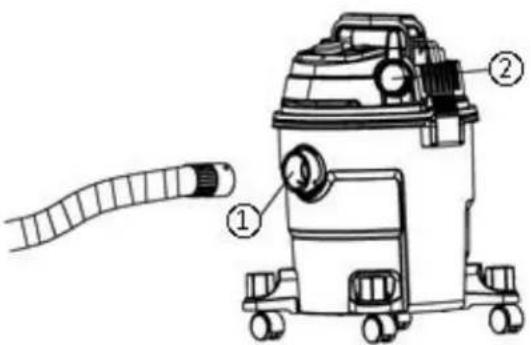

2. The appliance has both suction function and blower function. To use the suction function, fit the hose into the suction port (position ①) by aligning the bulge and groove and turning it clockwise; to use the blower function, fit the hose into the blower port (position ②) by aligning the bulge and groove and turning it clockwise.

1. Attach the extension tube(s) to the curved hose.

2. Fit the floor brush or combi nozzle to the other end of the extension tube.

3. For wet pick-up, please open the top cover and take out the cloth filter first.

4. Check and make sure the drain port has its cover in place properly.

5. Unwind the power cord and insert the power plug into an appropriate power outlet.

6. Press the on/off button to the position “—” turn on the appliance.

7. To reduce the suction power, move the suction power switch upwards: the larger the opening is; the weaker the suction power is.

8. After use, turn off the appliance by pressing the on/off button to the position "O".

Note: Other electrical tools can be plugged into the electrical outlet (Max. load: 1000W) on the top cover, and when the vacuum cleaner has been connected to the power outlet, this electrical tool can work with the electricity too.

CLEANING AND MAINTENANCE

Warning: Always switch off and unplug the appliance from electrical outlet before dissembling and cleaning.

1. Release the top cover latch and take off the top cover.

Line drawing of a mechanical device with a top component and wheels (no text or symbols)

1. Take out the cloth filter. Empty the tank.
2. Clean the cloth filter by water when necessary. Dry it completely but never expose it in a direct sunlight.
3. Take off the sponge filter and clean it by water. Dry it completely but never expose it in a direct sunlight too.
4. Assemble back the appliance.

Note:

• The suction hole must be open, free of any obstructions at all times. Otherwise, the motor will overheat and could become damaged.
• All filters should be checked regularly for signs of damage, preferably after each task. The filters must be replaced immediately if they become damaged. Always disconnect the vacuum cleaner from the electrical outlet when checking the filters.
• Clean the appliance after each use. When the tank is full, the appliance will lose the vacuum power and cannot blow either.

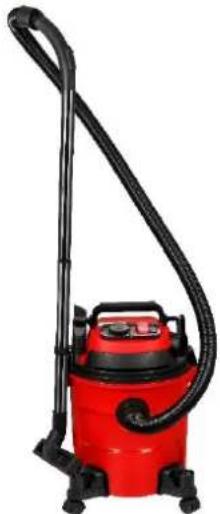

Parking:

This appliance can be parked as below style to save your room space.

Red and black vacuum cleaner with coiled hose (no visible text or symbols)

TECHNICAL DATA

Voltage: 220-240V \~ 50/60Hz

Power: 2200W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge.

Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was

purchased. They can take this product for environmental safe recycling.

SICHERHEITSHINWEISE

BETRIEB

Achtung:

Line drawing of a mechanical device with a top component and wheels (no text or symbols)

Red vacuum cleaner with black hose and handle, no visible text or symbols

TECHNISCHE DATEN

FONCTIONNEMENT

Attention :

Line drawing of a mechanical device with a top component and wheels (no text or symbols)

Red vacuum cleaner with black hose and black handle (no visible text or symbols)

CARACTÉRISTIQUES TECHNIQUES

Tension de service: 220-240V \~ 50/60Hz

Puissance: 2200W

GARANTIE ET SERVICE APRÈS-VENTE

WERKING

Voorzichtig:

Line drawing of a mechanical device with a top component and wheels (no text or symbols)

Red vacuum cleaner with black hose and handle (no visible text or symbols)

TECHNISCHE GEGEVENS

UŻYTKOWANIE

Ostrożnie:

Line drawing of a mechanical device with a top component and wheels (no text or symbols)

Red and black vacuum cleaner with coiled hose (no visible text or symbols)

DANE TECHNICZNE

UTILIZZO

Avvertenza!

Line drawing of a mechanical device with a top component and wheels (no text or symbols)

Red vacuum cleaner with black hose and handle, isolated on white background (no text or symbols visible)

DATI TECNICI

MODO DE EMPLEO

Atención:

Line drawing of a mechanical device with a top component and wheels (no text or symbols)

Red vacuum cleaner with black hose and handle (no visible text or symbols)

DATOS TÉCNICOS
