USER MANUAL RCE111409 Emerio

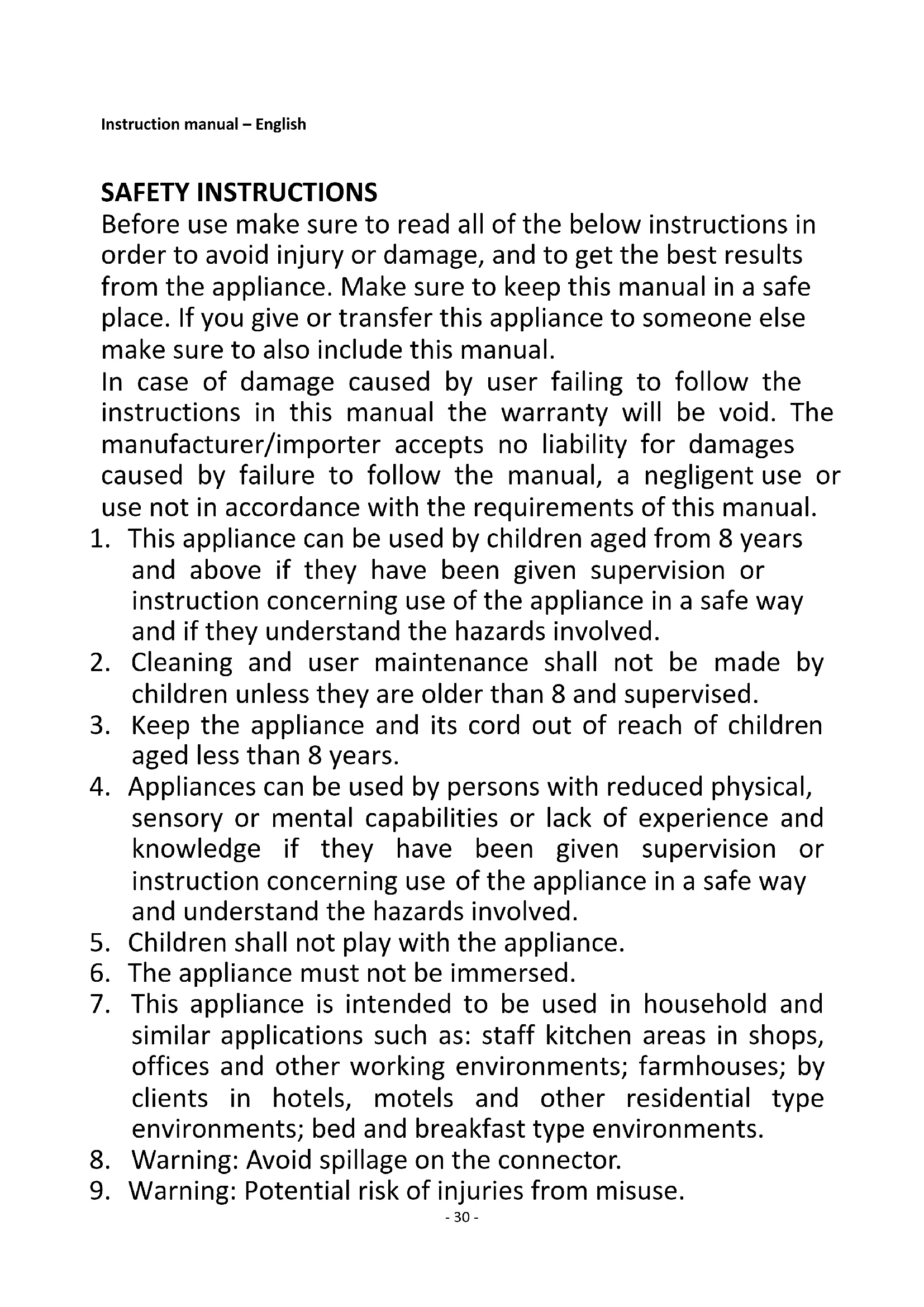

1. This appliance can be used by children aged from 8 years

and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

2. Cleaning and user maintenance shall not be made by

children unless they are older than 8 and supervised.

3. Keep the appliance and its cord out of reach of children

aged less than 8 years.

4. Appliances can be used by persons with reduced physical,

sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

5. Children shall not play with the appliance.

6. The appliance must not be immersed.

7. This appliance is intended to be used in household and

similar applications such as: staff kitchen areas in shops, offices and other working environments; farmhouses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.

8. Warning: Avoid spillage on the connector.

9. Warning: Potential risk of injuries from misuse.- 31 -

10. The heating element surface is subject to residual heat

or rice cooker heating plate in liquid or water.

13. Adult supervision is necessary when operating any

appliance near children.

14. Unplug appliance from the wall outlet when not in use

and before cleaning. Allow the appliance to cool completely before adding or removing the pot.

15. Do not operate the appliance if the cord has been

damaged, or if the appliance malfunctions or is damaged in any way. Return appliance to the nearest authorized service facility for examination, repair or adjustment.

16. Never put water or any liquid into the outer pot.

Never plug in the power cord without the inner pot inside the cooker.

18. Any use of accessory attachments not recommended by

the manufacturer may cause hazards.

19. Do not use outdoors.

20. Do not let cord dangle or hang over the edge of table or

counter tops or allow it to touch hot surfaces.

21. Do not place the appliance on or near gas or electric

burners, on a stovetop or in an oven.

22. Exercise extreme caution when moving or handling

appliances containing hot oil or other liquids.

23. Do not use this appliance for any other purpose but its

24. Always unplug after use. Your cooker’s power will remain

on unless you press the on/off switch to “O” position and unplug the power cord.

25. The machine should not be operated by means of an

external timer-switch or by means of a separate system with remote control.- 32 -

26. Use the appliance on a flat, dry and heat resistance

27. Regarding the instructions for cleaning the surfaces which

come in contact with food, please refer to the paragraph “cleaning” of the manual.

28. Caution, hot surface

WARNING!! Please do not touch surface while in use. The temperature of accessible surfaces may be high when the appliance is operating.- 33 - 30-RK20215 EN

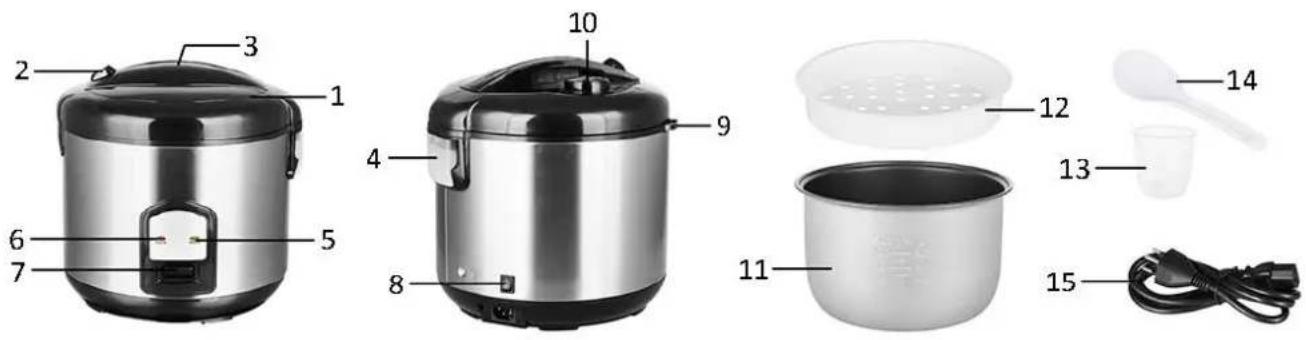

PARTS AND ACCESSORIES

5. Warm indicator light (keep warm)

1. Only use this product with the correct AC outlet.

2. Place the inner pot inside the cooker before operating. The cooker will not turn on unless the inner pot is

3. When ready to cook, plug the cord into the cooker first, then into the wall outlet. Then press the on/off

switch to “I” and press the cooking switch down.

4. When your rice is done or food is steamed, the cooker will automatically switch to the warm function.

Always unplug after use. Your cooker’s power will remain on unless you press the on/off switch to “O” position and unplug the power cord. Allow cooling before cleaning.

5. Make sure the lid is properly locked while cooking. Keep the lid closed after serving to prevent your rice

from drying out or discoloring.

6. To reheat cold rice, add about 1/4 cup (4Tb) of cold water per cup of cooked rice, stir to mix, then press

switch to cook. Note: Leftover rice is excellent for making fried rice.

7. Keep the bottom of your inner pot and the surface of the heating plate free from any foreign matter to

prevent operating malfunctions.

8. This appliance is intended for use with standard power outlets. Different levels of voltage in different

homes may change approximate cooking times.

9. Turn the pot gently sideways to make sure it sits flat inside.

MAINTAINING YOUR RICE COOKER

Cleaning Before cleaning your rice cooker, always press the on/off switch to “O” position, unplug the power cord and allow it to cool completely.

1. Open the lid and remove the inner pot from the rice cooker and wash them in hot soapy water. Rinse

completely, then dry with a soft clean cloth.

2. Pull the steam valve out from the lid. Rotate its top to disassemble the steam valve into two parts. Clean

them and the silicone pad under the bottom after each use. Dry completely and put them back to original place before next use.- 34 -

3. Clean the outside of your cooker when necessary with a clean damp cloth or with a mild dish detergent.

Never use abrasive cleaners. Do not use any metal tools or steel wool on the outside finish or on cooking pot as they may cause damage. Do not submerge any part of the rice cooker body in water.

4. To clean the heating plate and thermo-control plate, use steel wool to polish or remove any residue. Then

wipe with a damp cloth. Allow drying completely before re-using. You must keep the heating plate and thermo-control plate free from any foreign objects; otherwise the cooker will not operate properly.

5. Any residue of vinegar or salt may cause your inner pot to corrode. Always cleanse completely after each

6. There is a condensate collector on the side of the appliance. Empty the water and clean the collector after

Add 1/2 cup of water and a small amount of liquid dish or dishwasher detergent to inner pot. Press the switch to COOK and allow heating for 10 minutes. Cool. Rinse well and dry completely before re-using. ABOUT RICE Rice is a valuable source of complex carbohydrates and nutrition. It has no fat and is rich in thiamine, niacin and iron. An interesting note more than half of the world’s population eats rice every day. There are many different varieties of rice available at your market. You may want to try several to see which types best suit your taste. Here are some of the more common types and some of their characteristics: Long Grain Rice Typically used for recipes calling for loose, non-sticky, individual grains after cooking. “California” rice is soft while “Caroline” a bit firmer. “Jasmine” is the firmest and is very flavorful and fragrant. Short Grain Rice This variety, which is softer, and sticker is the rice most commonly used in oriental recipes. The “California” variety is soft; “Sweet Rice”, often called “Pearl” rice, is rounder in shape. The sweet rice is extra sticky and is often the variety of choice for making rice pudding. Brown Rice Brown rice is often considered as the healthiest variety. It offers itself in its natural unbleached, bran rich form. It contains more B-complex vitamins, irons, calcium and fibre than other varieties. Wild Rice Wild rice comes in many delicious varieties and mixes. Often it is mixed with long grain rice for its firmer texture and rich brown to black colour. Wild rice makes a wonderful stuffing for poultry when cooked with broth and mixed with your favourite dried fruits. COOKING RICE You’ll have excellent results using this guideline. For your convenience, the inner pot features water measurement lines inside. We have also provided a handy cup that is designed to measure rice and water.

1. Using the measuring cup provided in the package, measure and add rice to the inner pot. One full-level

measure equals one cup.

2. You may choose any one of the following ways to add water for cooking: By measuring cup, add proper

amount of water to the rice inside the inner pot. (See measurement chart); By waterline, add water to the rice inside the inner pot up to the proper waterline. Example: for 4 cups of uncooked rice, add water to line 4.

3. For softer rice, we suggest preparing rice and water in the inner pot and let it soak for 10-20 minutes

before cooking.- 35 -

4. Close the lid and plug in the power cord. Press the on/off switch to “I” position and press the cooking

switch down. When your rice is cooked the cooker will automatically switch to the warm function.

5. After cooking it is important to allow rice to stand, for 10 minutes without removing lid. This will ensure

that rice is cooked through.

6. Brown rice will take longer to cook. We suggest adding an additional 3/4-cup of water to accommodate

the proper cooking time.

RICE/WATER MEASUREMENT CHART

1. You may rinse rice to remove excess bran and starch. This will help to reduce rice browning and sticking to

the bottom of your pot after cooking, but it may also lose some nutrients in the rice.

2. Remember: Place rice to your inner pot first and then add water before cooking.

3. If you have experienced any sticking due to the type of rice you choose, try adding a light coating of

vegetable oil to the bottom of inner pot before placing rice.

4. When cooking brown or wild rice, add 3/4 additional cup of water.

5. As there are many kinds of rice available, rice/water measurement might be slightly different by using

different kind of rice. Remember to make the adjustment to get the better result.

6. Notes: Always use the Measuring Cup coming together with your Rice Cooker, otherwise fill the water to

A hearty bowl of soup or stew is always welcome at any table. Be creative and use various leftover meats and vegetables with your favourite stock and create your own unique recipes. When preparing soup or stew, try to allow extra time for it to “simmer”. This will allow flavours to blend and meat to be tender. Helpful hints

1. To thicken your stew, mix 1/4-cup flour with enough cold water to form a thin paste. Gradually add it to

the stew and stir till thickened.

2. If using fresh parsley or herbs in your recipe, add them in the last few moments of cooking to preserve

3. Save any leftovers for the next day. The flavours increase overnight in your refrigerator.

4. Canned stewed tomatoes or water with bouillon seasoning and spices added make great stock starters for

soups and stews.- 36 - TROUBLESHOOTING Failure Reason Solution The appliance switches off too early. The bottom of the pot heavily scaled. Descale. The appliance does not switch off. The lid is not closed properly. Close the lid properly.

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee: For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase. Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can’t claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. Fun Nordic ApS Egelund 8 6200 Aabenraa Denmark www.funnordic.dk- 37 - Mode d‘emploi – French
