USER MANUAL HM109587 Emerio

Instructions for use

Hand mixer 300W

Gebrauchsanleitung

Handmixer 300W

Power consumption: 300W

KB: 5 min

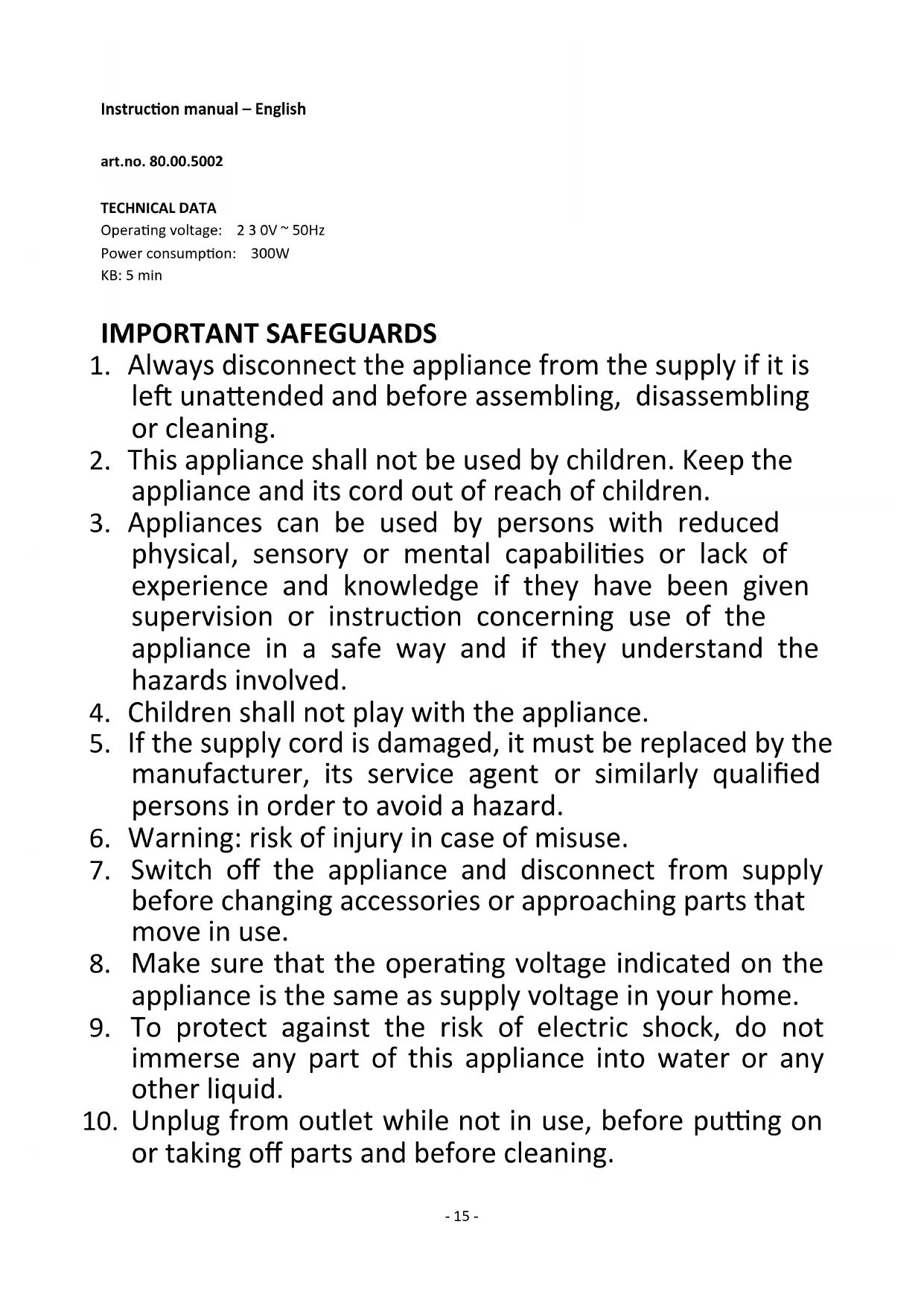

IMPORTANT SAFEGUARDS

1. Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
2. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
3. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
4. Children shall not play with the appliance.
5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
6. Warning: risk of injury in case of misuse.
7. Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.
8. Make sure that the operating voltage indicated on the appliance is the same as supply voltage in your home.
9. To protect against the risk of electric shock, do not immerse any part of this appliance into water or any other liquid.

10. Unplug from outlet while not in use, before putting on or taking off parts and before cleaning.

11. Avoid contact with moving parts. Keep hands, hair, clothing, as well as spatulas and other utensils away from beaters or dough hooks during operation to reduce the risk of injury to person and/or damage to the hand mixer.

12. Do not operate any appliance with a damaged cord or plug after the appliance malfunctions, or if it is dropped or damaged in any manner. You should contact an approved service center.
13. Do not let the cord hang over edge of table or counter or touch hot surfaces, including the stove.
14. Never fit accessories with different functions at the same time (dough hooks and beaters etc.)
15. Do not use this appliance outdoors or for commercial purposes. This unit is intended for household use only.
16. Remove beaters from hand mixer before washing.
17. Do not allow the power cable to hang down within reach of children.
18. The use of attachments or accessories not recommended or sold by the manufacturer may cause fire, electric shock or injury.
19. Do not attempt to repair or disassemble the appliance. There are no user serviceable parts.
20. The machine should not be operated by means of an external timer-switch or by means of a separate system with remote control.
21. Regarding the instructions for cleaning the surfaces which come in contact with food, speed settings and operating times, please refer to the below paragraph of the manual.

PARTS DESCRIPTION

1. Speed selector & Eject button
2. Turbo button
3. Handle
4. Beaters
5. Dough hooks
6. Washer
7. Sockets
8. Big socket

BEFORE FIRST USE

1. Carefully unpack the hand mixer and remove all packaging material.
2. Clean the various accessories of your appliance in warm soapy water, rinse and dry thoroughly before use.

INSTRUCTION FOR USE

1. Be sure speed selector is in the "0" position and the appliance is unplugged from an electrical outlet.
2. Insert beaters/dough hooks singly at a time, by placing stem end of beaters/dough hooks into the sockets on the bottom of the mixer. Turn beater slightly and push in until it clicks into position. Dough hooks are only used for mixing dough and beaters are only used for beating eggs or similar food.

Note: Beaters can be inserted in either socket, as the beaters are identical. For dough hooks, the one with washer can only be inserted into the big socket and the other one can only be inserted into small socket. The two dough hooks cannot be inserted in reverse.

1. Plug into appropriate outlet.
2. Place the ingredients into a bowl suitable for mixing purposes, grip the mixer handle, and position the beaters in the center of the food to be mixed.
3. Turn the speed selector to your desired setting (5 settings). The appliance will start working and the speed will increase 40% if the turbo button is pressed at any time.

Warning: Do not stick knife, metal spoons, fork and so on into bowl when operating.

1. When mixing is completed, turn the speed selector to "0" setting and unplug the cord from power outlet.
2. If necessary you can scrape the excess food particles from the beaters or dough hooks by a rubber or wooden spatula.
3. Hold the beaters/dough hooks with one hand and press down the ejector button firmly with the other hand, the beaters/dough hooks will be removed.

Note: Remove the beaters/dough hooks only at the "0" setting.

Caution:

1. Do not continuously operate the mixer too long. The motor may overheat. Do not allow the mixer to operate more than 5 minutes at one time.
2. Never wash the motor housing in water.
3. Be sure the control knob is turned to position "0" and cord is removed from electrical outlet before taking out the attachments from the housing.

If you want to blend directly in the saucepan, you should take the saucepan away from the stove first and let it cool down slightly. Do not blend any food at a temperature that is higher than 40^ , otherwise your hand blender could get overheated.

When kneading yeast dough, it is recommended that use a low speed first and then use high speed to achieve best results.

SPEEDGUIDE

Speed setting	Description
0	The appliance is switched off.
1	A good starting speed for bulk and dry goods, such as flour, butter and boiled potatoes.
2	An ideal mixing speed for liquid ingredients, for example mixing salad dressings, vinaigrettes and milkshakes.
3	Suitable for mixing cake batter and dough.
4	Best for creaming butter and sugar and whisking egg whites.
5	Used for beating eggs, mixing icing or whipping cream.
Turbo	Injects additional speed into the mixing process.

TIPS

1. Refrigerated ingredients, such as butter and eggs, they should be at room temperature before mixing begins. Set these ingredients out ahead of time.
2. To eliminate the possibility of shells or deteriorated-off eggs in your recipe, break eggs into separate container first, then adding to the mixture.
3. Always start mixing at lower speed. Gradually increase to the recommended speed as stated in the recipe.

PROCESSING GUIDE

	Quantities and processing times
Recipe	Quantity	Time
Yeast dough	Max 500 gr. flour	Max. 5 min.
Batter for waffles, pancakes	Ca. 750 gr.	Ca. 3 min.
Thin sauces, creams and soups	Ca. 750 gr.	Ca. 3 min.
Mayonnaise	Max. 3 egg yolks	Ca. 5 min.
Mashed potatoes	Max. 750 gr.	Max. 3 min.
Whipped cream	Max. 500 gr.	Max. 3 min.
Beating egg whites	Max. 5 egg whites	Ca. 3 min.
Cake dough	Ca. 750 gr.	Ca. 3 min.

Caution:

1. Never use more load then mentioned in the table above and never operate the mixer longer than mentioned.
2. Allow the mixer to cool down for 5 minutes after finishing a recipe.

CLEANING THE APPLIANCE

1. Before cleaning switch off the appliance and unplug the cord from the electrical outlet.
2. Wash the beaters and dough hooks in warm soapy water and wipe dry. The beaters and dough hooks are dishwasher safe.

Caution: The mixer cannot be immersed in water or any other liquid.

1. Wipe mixer body with a damp cloth.

Recycling

This product bears the selective sorting symbol for waste electrical and electronic equipment (WEEE).

This means that this product must be handled pursuant to European Directive 2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment.

For further information, please contact your local or regional authorities.

Electronic products not included in the selective sorting process are potentially dangerous for the environment and human heath due to the presence of hazardous substances.

Quality

Safety and quality is very important to HEMA. We have our own laboratory, which assesses all equipment in terms of electrical safety and ease of use, before it is included in our range. HEMA also monitors the product quality in collaboration with the manufacturer.

Security

This HEMA item may be fitted with a plastic anti-theft strip. You will find the strip on the bottom of the product. This strip does not influence the quality or the operation of the product and can be removed without a problem.

Faults and repairs

If this device needs to be repaired, you can hand it in at a HEMA branch after packing the product securely. Do not try to repair this product yourself. For repairs that fall within the warranty period, you will need to show a proof of purchase and the warranty document. Regularly check the power cord for damage. If there is any damage to the cord set, please return the item to a HEMA branch for repair. Do not try to replace it yourself. For safety reasons we recommend that you do not carry out any repairs to an electrical device yourself.

Warranty

The warranty period is 2 years from the date of purchase.

Warranty conditions

HEMA quality guarantee

HEMA guarantees that the product you have purchased meets the standards our customers are entitled to expect in terms of quality and product properties. These warranty conditions do not affect your statutory or consumer rights and apply in all countries where there are HEMA branches.

Warranty claims

If you wish to make a warranty claim, please return the product with proof of purchase to one of our stores. The store will determine whether to replace the product (with an identical or equivalent product), accept the product for repair within a reasonable period of time or refund the price of the product.

Invalidation of warranty

The warranty on this article is invalidated if the fault or defect is caused by:

a) normal wear and tear
b) external damage (for example, damage caused by exposure to sand or moisture or due to falling of the product, etc.)
c) improper or inappropriate use
d) overdue or incorrect maintenance, including repairs that were not authorised by HEMA

The above list does not exclude other possible reasons for defects not being covered by the warranty.

Added confidence when choosing a HEMA product

You may swap or return the product within 30 days after purchase (provided it is undamaged and you have proof of purchase).

1 November 2019

HEMA BV

PO Box 37110

1030 AC Amsterdam, Netherlands

The Netherlands

These warranty conditions apply without prejudice to the customer's statutory rights or any other claims by the customer.

Art.-Nr.80.00.5002

TECHNISCHE DATEN:
