MC122646.1 - Food Processor Emerio - Free user manual and instructions

Product Type	Food Processor / Multi Chopper
Brand	Emerio
Model	MC122646.1
Power Supply	220-240V ~ 50-60Hz
Power Consumption	260W
Jar Capacity	Up to 200g (vegetables/meat)
Blade Material	Stainless steel
Number of Speeds	1 (On/Off button)
Maximum Continuous Operation	1 minute
Rest Time Between Uses	At least 2 minutes; after 3 cycles, 30 minutes
Dishwasher Safe Parts	Jar and lid
Motor Unit Cleaning	Wipe with damp cloth; do not immerse
Safety Features	Motor unit must be properly locked to operate; sharp blade caution
Material	Plastic jar and lid, stainless steel blade
Dimensions (Approx.)	Height: 15 cm, Diameter: 20 cm
Weight (Approx.)	1 kg
Warranty	2 years
Non-slip Mat	Included; can also be used as jar cover
Suitable For	Chopping vegetables, meat (boneless), nuts, etc.
Not Suitable For	Hard items like bones, coffee beans, ice cubes, frozen food

Frequently Asked Questions - MC122646.1 Emerio

How do I assemble the Emerio MC122646.1 food processor?

First, attach the stainless steel blade onto the blade support inside the jar. Add the food to be chopped. Then place the lid on the jar, and place the motor unit on top. Rotate the motor unit clockwise until it locks with the jar via the two tabs (A & B) on the edge. Finally, plug in and press the on/off button.

What is the maximum capacity for chopping?

The recommended maximum filling quantity is 200g for vegetables or meat cut into small pieces (approx. 2 cm cubes). Exceeding this may cause the motor to block.

Can I chop ice cubes or frozen food?

No. This product cannot chop hard things such as meat with bones, soybeans, pepper, coffee beans, ice cubes, or frozen food. Use only for soft to medium-hard ingredients.

How long can I operate the food processor continuously?

Do not operate for more than 1 minute at a time. After each use, let the appliance cool for at least 2 minutes. After 3 cycles, allow it to rest for 30 minutes to cool the motor.

How do I clean the Emerio MC122646.1?

Unplug the appliance. Remove the motor unit. Wash the removable lid and jar in warm soapy water or in the dishwasher. The blade is very sharp; handle with care. Wipe the motor unit with a damp cloth only; never immerse it in water.

Are the jar and lid dishwasher safe?

Yes, the jar and the lid are dishwasher-proof. However, the motor unit and non-slip mat should not be placed in the dishwasher.

What should I do if the blades don't speed up after a few seconds?

If the blades cannot speed up within a few seconds, unplug the unit and remove some of the food from the jar. Then try again with a smaller amount. Overfilling can cause the motor to stall.

Why won't the food processor turn on?

Ensure the motor unit is properly locked onto the jar by rotating it clockwise until the tabs align. The unit will not function if the motor unit is not in place. Also check that the power cord is plugged in.

Can I use the non-slip mat as a lid?

Yes, the non-slip mat included can also be used as a cover for the jar when not in use. It provides a stable base during operation as well.

What is the warranty period for this product?

Emerio provides a 2-year guarantee from the day of purchase. Keep your receipt as proof of purchase. The warranty does not cover damage from improper use or modifications.

USER MANUAL MC122646.1 Emerio

White kitchen grater with a side panel and central handle (no visible text or symbols)

Multi Chopper (EN)

Instruction manual – English ...... - 2 -

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. Warning: Potential risk of injuries from misuse.
2. Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
3. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
4. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
5. Children shall not play with the appliance.
6. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
7. Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.
8. Care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.

9. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.

10. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.

11. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.

12. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!

13. Do not plug or unplug the appliance from the electrical outlet with a wet hand.

14. Children are unable to recognize the hazards associated with incorrect handling of electrical appliances. Therefore, children should never use electric household appliances unsupervised.

15. This appliance is not designed for commercial use.

16. Do not use the appliance for other than intended use.

17. Do not wind the cord around the appliance and do not bend it.

18. Always unplug the appliance immediately after use. To unplug the cord by grasping the plug, do not pull on the cord.

19. Ensure fingers are kept well away from moving parts.

20. Do not use the multi chopper when it is empty.

21. Never attempt to take food into the Jar when the blade is moving. Always wait until the blade stops completely.

22. Do not immerse the Motor Unit into water or under a tap or in a dishwasher.

23. Do not let cord hang over edge of table or hot surface.

24. Do not use outdoors.

25. Regarding the instructions for cleaning the surfaces which come in contact with food and operating times, please refer to the below paragraph of the manual.

26. Do not use the machine without the lid.

27. Do not use the machine in high temperature environment.

28. Do not put hot food / ingredients (above 65^ C) into the jar for processing.

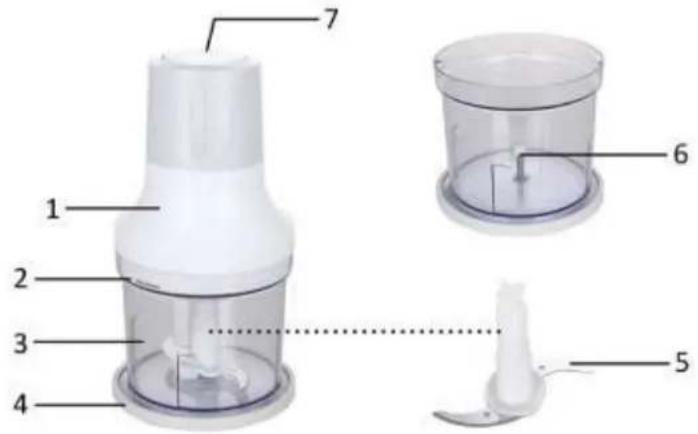

GENERAL DESCRIPTION

1. Motor unit
2. Lid
3. Jar
4. Non-slip mat
5. Stainless steel blade
6. Blade support
7. On/off button

BEFORE USE

1. Remove the appliance from the packaging.
2. Take care when handling sharp blades.
3. Clean the appliance as described in section "cleaning and maintenance".

USE

1. Attach the blades on to blade support in the jar and pour in the food to be chopped. Hard food must be cut into small pieces (about 2cm). Otherwise, the motor may block.

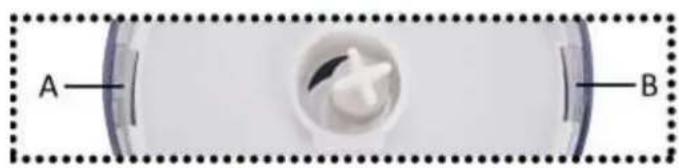

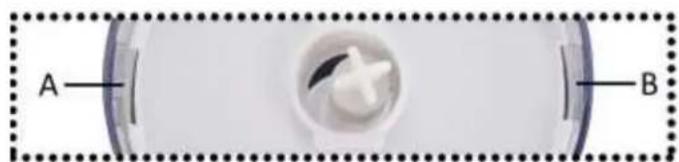

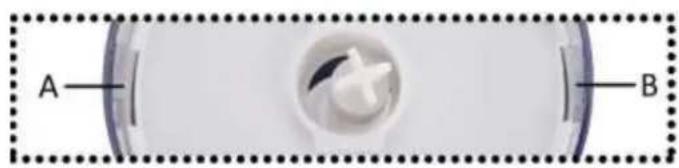

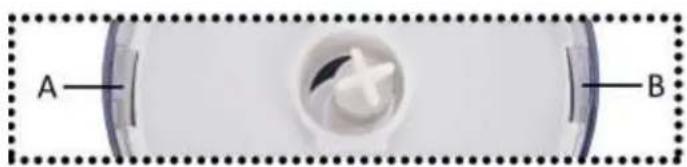

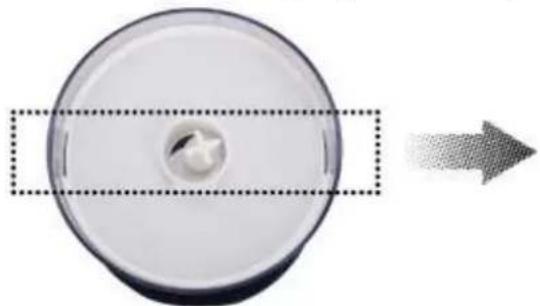

2. Place the lid on top of the jar. Place the motor unit on the lid. Rotate the motor unit in clockwise direction until it is locked with the jar by the two tabs (A & B) on the edge of the jar.

Circular object with a central hole and dotted rectangular border, next to a right-pointing arrow (no text or symbols)

1. Plug the appliance in. Press the on/off button for processing.
   Note: After put the food in the jar, if the blades cannot speed up in a few seconds, please unplug the unit and take out part of food, then continue.
2. After use, unplug the appliance and wait unit the blade stops completely. Remove the motor unit, the removable lid and the blades.

Always make sure the motor unit is in place; otherwise the unit will not function. After finish processing, the non-slip mat can also be used as the cover of the jar.

Take note of the following table:

Foodstuff	Filling quantity	Processing time
Vegetables (cut into small pieces of 20x20x50mm)	≤200g	15 seconds
Meat (cut into small pieces of 20x20x50mm)	≤200g	30 seconds

Do not operate for more than 1 minute at a time. Stop and cool for 2 minutes then resume.

Please make sure the appliance rest more than 2 minutes between any two operations. After working 3 cycles, the unit has to stop 30 minutes to wait the main engine to cool down.

This product cannot chop hard things, such as meat with bones, soya bean, pepper, coffee bean, ice cubes and freezing food.

CLEANING AND MAINTENANCE

1. Unplug the appliance and remove motor unit.
2. Wash the removable lid and the jar in warm soapy water.
3. The jar and the lid are dishwasher-proof.
4. Wipe the motor unit with a dampen cloth. Never immerse it in water for cleaning as electrical shock may occur.
5. Dry thoroughly.

Caution: Blade is every sharp, handle with care.

TECHNICAL DATA

Operating voltage: 220-240V \~ 50-60Hz

Power consumption: 260W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use or if the instruction manual are not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge.

Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased.

They can take this product for environmental safe recycling.

Emerio Deutschland GmbH (no service address)

Lerchenweg 3

40789 Monheim am Rhein

Deutschland

Customer service:

T: [phone]

E: [e-mail]
