USER MANUAL BL110549 Emerio

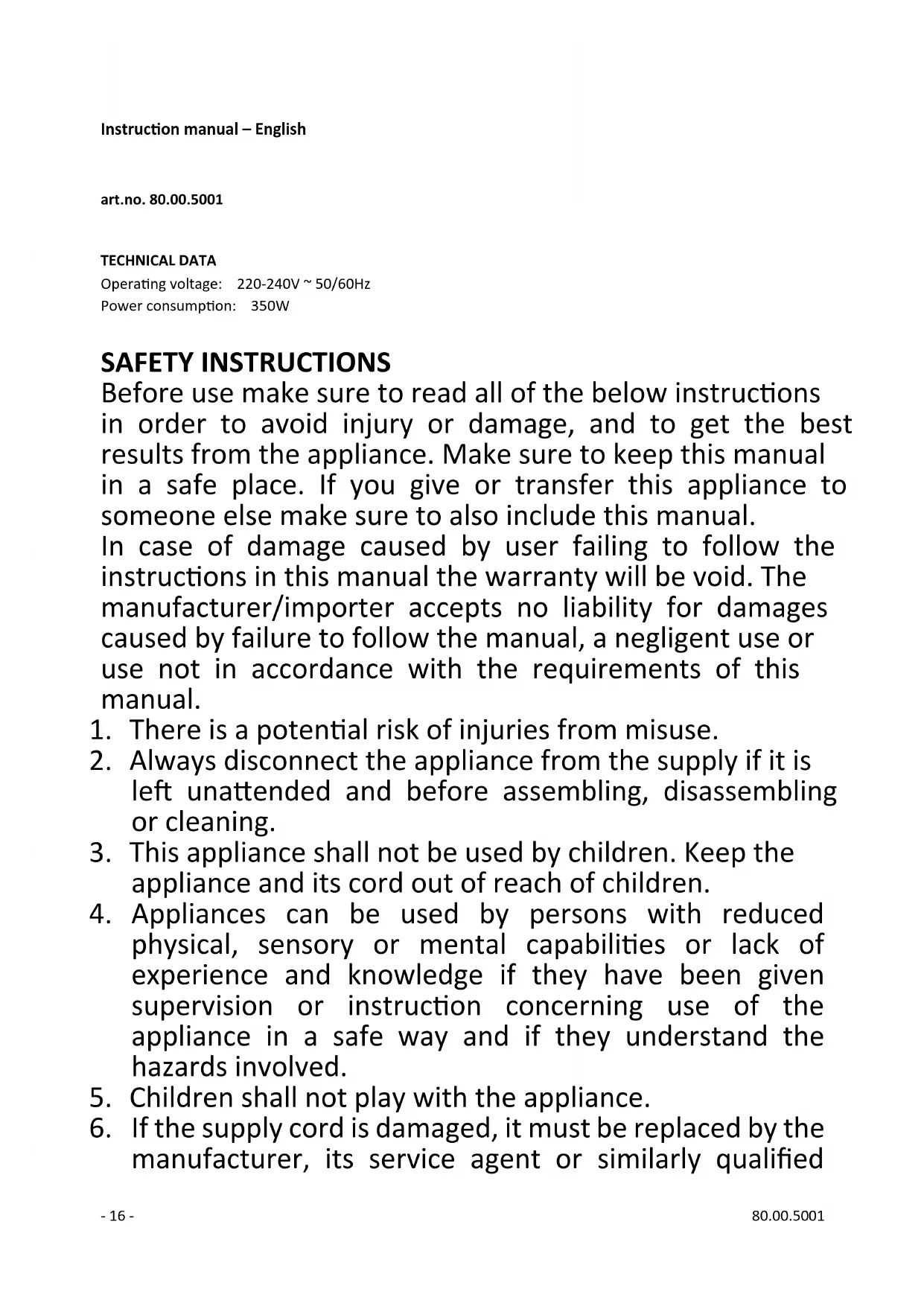

novembre 2019 Hema B.V. Boîte postale 37110 1030 AC Amsterdam Pays-Bas Ces conditions de garantie sont valables sans préjudice des droits légaux du client ou des actions intentées par lui.- 16 - 80.00.5001 Instruction manual – English art.no. 80.00.5001 TECHNICAL DATA Operating voltage: 220-240V ~ 50/60Hz Power consumption: 350W SAFETY INSTRUCTIONS Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual. In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. There is a potential risk of injuries from misuse.

2. Always disconnect the appliance from the supply if it is

left unattended and before assembling, disassembling or cleaning.

3. This appliance shall not be used by children. Keep the

appliance and its cord out of reach of children.

4. Appliances can be used by persons with reduced

physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

5. Children shall not play with the appliance.

6. If the supply cord is damaged, it must be replaced by the

manufacturer, its service agent or similarly qualified- 17 - 80.00.5001 persons in order to avoid a hazard.

7. Switch off the appliance and disconnect from supply

before changing accessories or approaching parts that move in use.

8. Care shall be taken when handling the sharp cutting

blades, emptying the bowl and during cleaning.

9. Before inserting the plug into the mains socket, please

check that the voltage and frequency comply with the specifications on the rating label.

10. If an extension cord is used it must be suited to the

power consumption of the appliance, otherwise overheating of the extension cord and/or plug may occur. There is a potential risk of injuries from tripping over the extension cord. Be careful to avoid dangerous situations.

11. Disconnect the mains plug from the socket when the

appliance is not in use and before cleaning.

12. Ensure that the mains cable is not hung over sharp edges

and keep it away from hot objects and open flames.

13. Do not immerse the appliance or the mains plug in water

or other liquids. There is danger to life due to electric shock!

14. To remove the plug from the plug socket, pull the plug.

Do not pull the power cord.

15. Do not touch the appliance if it falls into water. Remove

the plug from its socket, turn off the appliance and send it to an authorized service center for repair.

16. Do not plug or unplug the appliance from the electrical

outlet with a wet hand.

17. Never attempt to open the housing of the appliance, or

to repair the appliance yourself. This could cause electric shock.

18. Children are unable to recognize the hazards associated

with incorrect handling of electrical appliances. Therefore, children should never use electric household appliances unsupervised.- 18 - 80.00.5001

19. Never leave the appliance unattended during use.

20. This appliance is not designed for commercial use.

21. Do not use the appliance for other than intended use.

22. Do not wind the cord around the appliance and do not

23. The use of accessory attachment not recommended by

the appliance manufacturer may cause injuries.

24. Do not allow children to use the blender without

25. Regarding the instructions for cleaning the surfaces

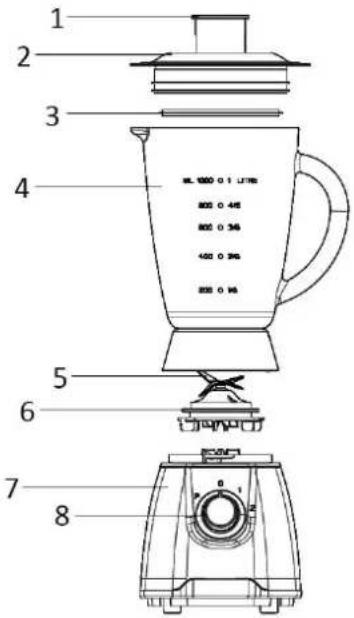

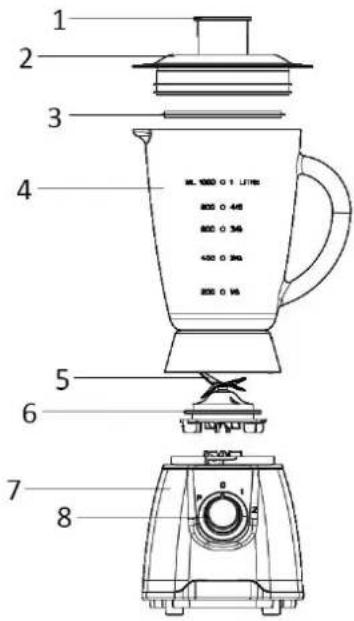

which come in contact with food, speed settings and operating times, please refer to the below paragraph of the manual.- 19 - 80.00.5001 FEATURES

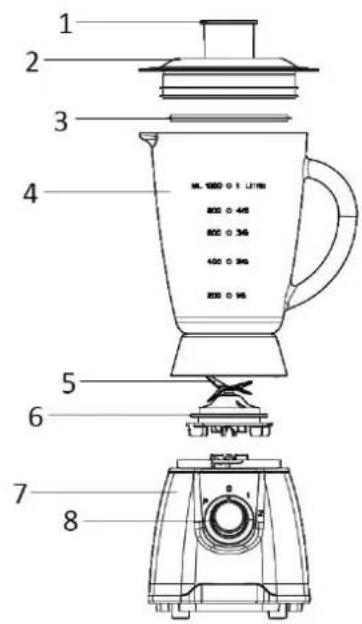

Switch speed setting

Caution: Make sure the motor base is unplugged from the power source and the control knob is set at the position 0.

1. Place the jug onto the motor base. Rotate the jug clockwise to have it locked on the motor base. The blender

will not work if the jug isn’t locked into the motor base properly.

2. Put the liquid and diced food into the jug (no more than 1 L). Never fill the jug with ingredients that exceed

3. Put the lid onto the jug. Make sure it is placed firmly onto the jug.

4. Insert the measuring cap into the middle of the lid.

5. Put the plug into the power outlet. Switch on the appliance by rotating the control knob to choose the speed

1, 2 or pulse function.

6. After use, rotate the control knob to the position 0 and remove the plug from the outlet.

Note: For quick or delicate blending tasks, turn the control knob to the P position and hold it for a few seconds. Operate several times until the consistence you want is obtained. When crushing a great quantity of ingredients, keep one hand upon the lid to make sure the lid is firmly in its place. For each use, the consecutive operation time should not exceed 3 minutes. At least 10 minutes of rest time are required between two continuous cycles. Let the appliance cool to room temperature before performing the next operation cycle. To crush ice, add up to 6 ice cubes each time. Never blend large pieces of solid food, frozen food and bones in the appliance as it may cause damage. Recipe (for reference) Banana shake: 2 bananas Approx. 2 tbsp. sugar (depending on the ripeness of the bananas and personal taste) ½ l milk 1 dash of lemon juice Peel the bananas and liquidize them at level 2. Gradually add the milk, then the sugar and the lemon juice. Keep mixing everything until you have a smooth and uniform liquid. Serve the shake chilled.- 20 - 80.00.5001 Vanilla shake ¼ l milk 250 g vanilla ice cream 125 g ice cubes 1½ tsp. sugar Crush the ice cubes using the level P. Place the remaining ingredients into the mixer. Mix everything at level 2 until the liquid has a smooth consistency. Cappucino shake 65 ml cold expresso (or a very strong coffee) 65 ml milk 15 g sugar 65 g vanilla ice cream 100 g ice cubes Crush the ice cubes using the level P. Add the expresso, milk and sugar. Mix everything together at level 2 until the sugar has dissolved. Finally, add the vanilla ice cream and then briefly mix everything together at level 1. Tropical mix 125 ml pineapple juice 60 ml papaya juice 50 ml orange juice ½ small tin of peaches with juice 125 g ice cubes Crush the ice cubes using the level P. Place all ingredients into the mixer and blend them together at level 2.

CLEANING AND MAINTENANCE

Caution: Handle the blade assembly with care as the blades are sharp! Only the jug and blade assembly can be cleaned in a dishwasher and the temperature setting of the dishwasher should never exceed 70°C. Never use any water or liquid more than 70°C to clean any detachable parts.

1. Fill the jug half-full with water (< 70°C ) and a little cleaning agent. Turn the control knob to P position for a

2. Remove the mains plug from the power outlet.

3. Take off the jug from the motor base. Rinse the jug and dry it thoroughly.

4. Do not immerse the motor base in water or any other liquid. Use a humid cloth to clean the motor base and

dry it thoroughly. Do not use abrasive cleaning materials.

5. The blade assembly can be took off from the jug. Turn the jug upside down. Move the blade base clockwise

to release it from the bottom of jug. Pull the blade base out.

6. Disassemble the other parts after each use and wash them in soapy water (< 70°C ). Then rinse with clean

water (< 70°C ) and dry thoroughly. CAUTION Never use boiling liquids. Never run the blender empty or with solids only. To reduce the risk of injury, never operate the appliance without the lid and measuring cap in place. Make sure the lid seal ring and bottom seal ring are in their places when reassembling.- 21 - 80.00.5001 Do not remove the jug from the motor base while the appliance is in operation. Do not use the appliance if blade assembly is bent or damaged. Recycling This product bears the selective sorting symbol for waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to European Directive 2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment. For further information, please contact your local or regional authorities. Electronic products not included in the selective sorting process are potentially dangerous for the environment and human heath due to the presence of hazardous substances. Quality Safety and quality is very important to HEMA. We have our own laboratory, which assesses all equipment in terms of electrical safety and ease of use, before it is included in our range. HEMA also monitors the product quality in collaboration with the manufacturer. Security This HEMA item may be fitted with a plastic anti-theft strip. You will find the strip on the bottom of the product. This strip does not influence the quality or the operation of the product and can be removed without a problem. Faults and repairs If this device needs to be repaired, you can hand it in at a HEMA branch after packing the product securely. Do not try to repair this product yourself. For repairs that fall within the warranty period, you will need to show a proof of purchase and the warranty document. Regularly check the power cord for damage. If there is any damage to the cord set, please return the item to a HEMA branch for repair. Do not try to replace it yourself. For safety reasons we recommend that you do not carry out any repairs to an electrical device yourself. Warranty The warranty period is 2 years from the date of purchase. Warranty conditions HEMA quality guarantee HEMA guarantees that the product you have purchased meets the standards our customers are entitled to expect in terms of quality and product properties. These warranty conditions do not affect your statutory or consumer rights and apply in all countries where there are HEMA branches. Warranty claims If you wish to make a warranty claim, please return the product with proof of purchase to one of our stores. The store will determine whether to replace the product (with an identical or equivalent product), accept the product for repair within a reasonable period of time or refund the price of the product. Invalidation of warranty The warranty on this article is invalidated if the fault or defect is caused by: a) normal wear and tear- 22 - 80.00.5001 b) external damage (for example, damage caused by exposure to sand or moisture or due to falling of the product, etc.) c) improper or inappropriate use d) overdue or incorrect maintenance, including repairs that were not authorised by HEMA The above list does not exclude other possible reasons for defects not being covered by the warranty. Added confidence when choosing a HEMA product You may swap or return the product within 30 days after purchase (provided it is undamaged and you have proof of purchase).
