Product type	Umbrella base
Brand	Florabest
Model	IAN 360428
Dimensions (L x W x H)	49 x 41 x 12 cm
Empty weight	Approx. 30 kg (filled with sand)
Compatible pole diameter	21 to 54 mm
Maximum umbrella weight	5 kg
Maximum canopy area	2.5 m²
Pole geometry	Round
Use	Private, domestic use
Material	Resistant plastic (polyethylene), galvanized steel (tube, nut)
Filling	Sand (approx. 30 kg) + water recommended
Casters	Yes, 2 swivel casters for rotation
Pole reducer	Reduction piece for poles up to 36 mm
Assembly	Easy, tools not included (shovel required)
Maintenance	Clean with hot water, store dry above 10°C
Warranty	3 years from date of purchase
Article number	730KH54
After-sales service	Helcosol BV, Netherlands ([e-mail])
Pictograms	Read instructions, follow warnings, recycle

Frequently Asked Questions - IAN 360428 FLORABEST

What type of umbrella can be used with this base?

This base is designed for umbrellas with a round pole with a diameter of 21 to 54 mm, a maximum weight of 5 kg, and a maximum canopy area of 2.5 m². It is not suitable for offset umbrellas.

How to fill the umbrella base?

Remove the top part, fill the bottom with approximately 30 kg of sand. Add water to reach the maximum weight. Then screw the top part back on.

How to assemble the casters?

Assemble the two bearing elements (6a, 6b) together, then mount the casters into the designated recesses on the bottom (see Fig. A of the manual).

What is the maximum load capacity for the umbrella?

The umbrella must not exceed a weight of 5 kg and a canopy area of 2.5 m². Always observe these limits to ensure stability.

Can the base be moved with the umbrella mounted?

The casters are only intended for rotating the base, not for moving it over long distances. To move the unit, lift the base by the base plate, not by the pole.

What to do in case of strong wind?

Close or store the umbrella if wind exceeds 25 km/h. Even with a filled base, strong wind can cause it to tip over, causing injuries.

How to maintain the umbrella base?

Empty the sand, clean with hot water to remove dirt. Store it in a dry and protected place at a temperature above 10°C.

What is the warranty period?

The warranty is 3 years from the date of purchase. Keep your receipt as proof. The warranty covers material and manufacturing defects, but not normal wear or damage due to improper use.

How to attach the umbrella to the base?

Screw the tube into the base. For poles up to 36 mm, use the reduction piece and the nut. For poles from 36 to 54 mm, only the nut. Insert the pole and tighten the nut clockwise.

Where to find after-sales service?

After-sales service is provided by Helcosol BV, Broeklaan 99, 5953 NA Reuver, Netherlands. Contact by email: [e-mail]. Have your receipt and the IAN number 360428_2007 ready.

USER MANUAL IAN 360428 FLORABEST

Assembly and safety instructions

NL BE

PARASOLSTANDAARD

Before reading, unfold both pages containing illustrations and familiarise yourself with all functions of the device.

FR BE

GB/IEAssembly and safety instructionsPage 11

Intended use Page 12

Description of parts and contents.. Page 12

Technical data.. Page 12

Safety notes.. Page 13

Before installation.. Page 14

Unpacking the umbrella stand . Page 14

Installation Page 14

Assembling the base . Page 14

Assembling the patio umbrella.. Page 14

Storage and care Page 15

Service

Disposal

Warranty

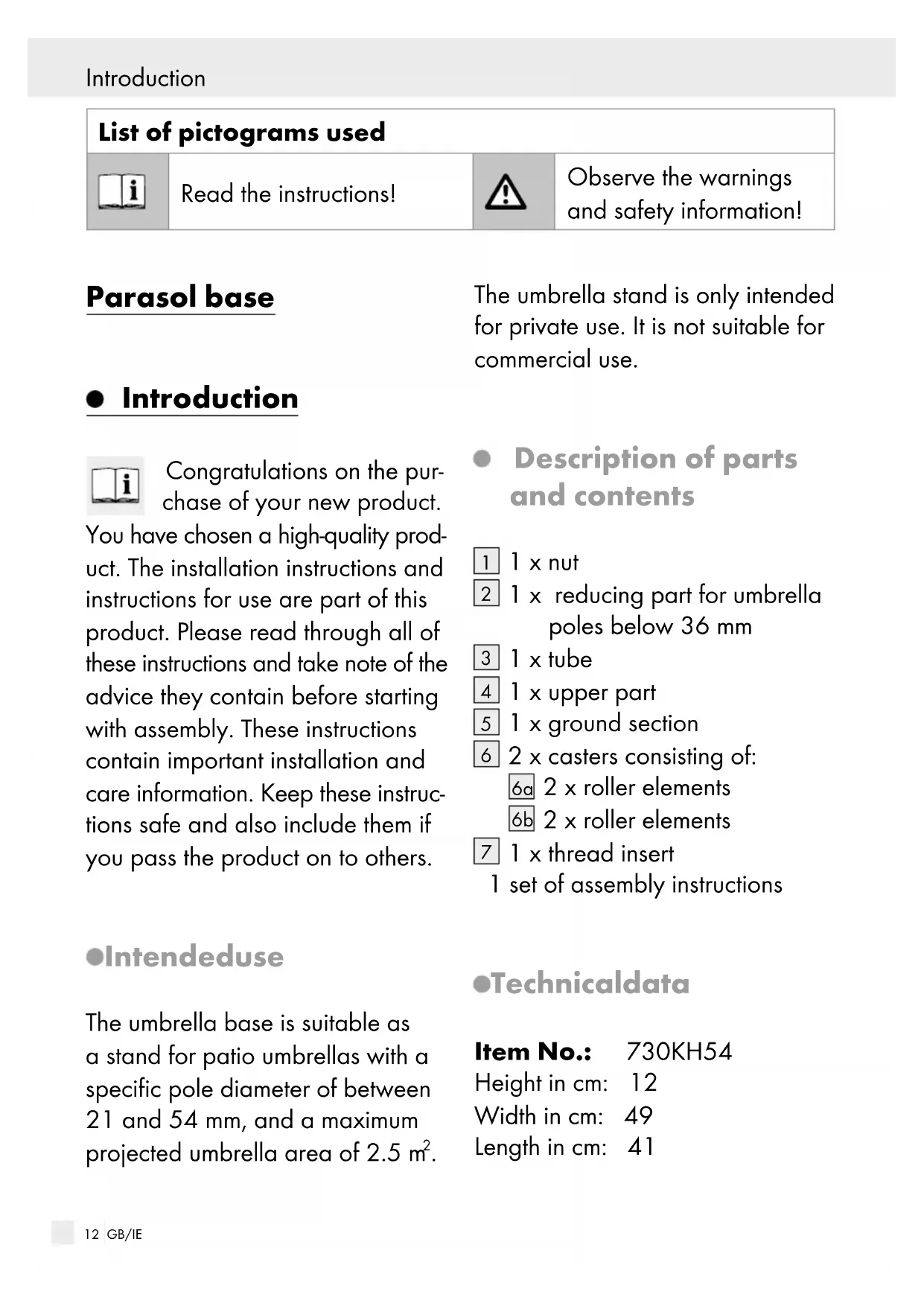

List of pictograms used

Read the instructions!

Observe the warnings and safety information!

Parasol base

Introduction

Congratulations on the purchase of your new product.

You have chosen a high-quality product. The installation instructions and instructions for use are part of this product. Please read through all of these instructions and take note of the advice they contain before starting with assembly. These instructions contain important installation and care information. Keep these instructions safe and also include them if you pass the product on to others.

Intendeduse

The umbrella base is suitable as a stand for patio umbrellas with a specific pole diameter of between 21 and 54mm , and a maximum projected umbrella area of 2.5m^2 .

The umbrella stand is only intended for private use. It is not suitable for commercial use.

Description of parts and contents

1 1xnut
2 1 x reducing part for umbrella poles below 36 mm
3 1xtube
4 1 x upper part
5 1 x ground section
6 2 × casters consisting of:

6a 2x roller elements
6b 2x roller elements

7 1 x thread insert 1 set of assembly instructions

-Technicaldata

Item No.: 730KH54

Height in cm: 12

Width in cm: 49

Length in cm: 41

Compatible

pole diameters in mm: 21-54

Weight in kg: approx. 30

when fully filled with sand

Pole geometry in

connection area: round

max. umbrella

weight in kg: 5

max. umbrella surface: 2.5m^2

All specifications are approximate values. Subject to technical changes without notice.

Safety notes

PLEASE NOTE THE FOLLOWING SAFETY INSTRUCTIONS. THE MANUFACTURER IS NOT LIABLE FOR DAMAGES DUE TO NON-COMPLIANCE. PLEASE KEEP THE ASSEMBLY INSTRUCTIONS IN A SAFE PLACE IN CASE YOU NEED TO REFER TO THEM!

• Keep all packaging materials out of the reach of children. There is a danger of suffocation if swallowed.
  The umbrella stand is not a toy. Children's fingers or feet could be squashed.

Do not push the umbrella stand with the casters over a long distance. The casters serve only to turn the umbrella stand round.
- Never leave the umbrella stand unattended with an opened umbrella in it. The patio umbrella tipping over could result in serious injuries. Please remember that depending on the wind force and diameter of the umbrella, this umbrella stand could also be too light.
Only use completely filled with sand!
- Close or remove the umbrella in strong winds of over 25 ~km / h .
- Be sure to follow your country's national regulations in addition to the rules specified in these instructions.
Only use patio umbrellas with a round umbrella pole.
Always put the umbrella pole in the patio umbrella stand as far as it will go.
- Do not use eccentric patio umbrellas in this patio umbrella stand.
Only place the umbrella stand on a firm and level surface.
When moving the umbrella stand with an open umbrella in it, only lift it by the umbrella stand.

- Before installation

Unpackingthe umbrella stand

Take the umbrella stand out of the package and remove all packaging materials.
Check that the scope of delivery is complete and whether the umbrella stand has been damaged.

- Installation

Materials required: 30kg sand and a shovel. To achieve the maximum filling capacity, add water after filling with sand.

Note: Only place the umbrella stand on a firm and level surface.

- Assembling the base

Put together the two roller elements 6a, 6b.
Assemble the two casters 6, which you have put together, in the recesses in the ground section 5 made for them (see Fig. A).
Insert the thread insert into the central hole. To do this, line

up the grooves on the thread insert 7 with the recesses on the upper part 4 (see Fig. B).

Place the tube 3 on top of the thread insert 7. Hit the tube 3 from above with your hand until the thread insert 7 is securely in place (see Fig. B).
Turn the base around and screw the tube 3 clockwise into the thread insert 7.
Fill the ground section 5 with sand (and then add water) (see Fig. C).
Unscrew the tube 3, turning it anticlockwise, and assemble the upper part 4 on the ground section 5 (see Fig. C).

- Assembling the patio umbrella (see Fig. D)

Screw the tube 3 into the base.

Process for umbrella poles below 36mm:

Assemble the reducing part 2 and the nut 1 on the tube 3.

Process for umbrella poles above 36mm:

Only assemble the nut 1 on the tube 3.
Insert the umbrella pole into the tube 3.
Fix the umbrella pole in place by tightening the nut 1 clockwise.
Open the umbrella.
Do not push the umbrella stand with the casters over a long distance. The casters serve only to turn the umbrella stand round.

Storage and care

Empty out the sand.
Remove any dirt with warm water.
Store the patio umbrella stand protected and dry in temperatures over 10^

Service

Helcosol BV

Broeklaan 99

5953 NA Reuver

THE NETHERLANDS

[e-mail]

IAN 360428_2007

Please have your receipt and the item number IAN 360428_2007) ready as your proof of purchase when enquiring about your product.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the

Warranty

date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase.

Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it - at our choice - free of charge to you. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.
