USER MANUAL IAN 354883 FLORABEST

Assembly and safety advice

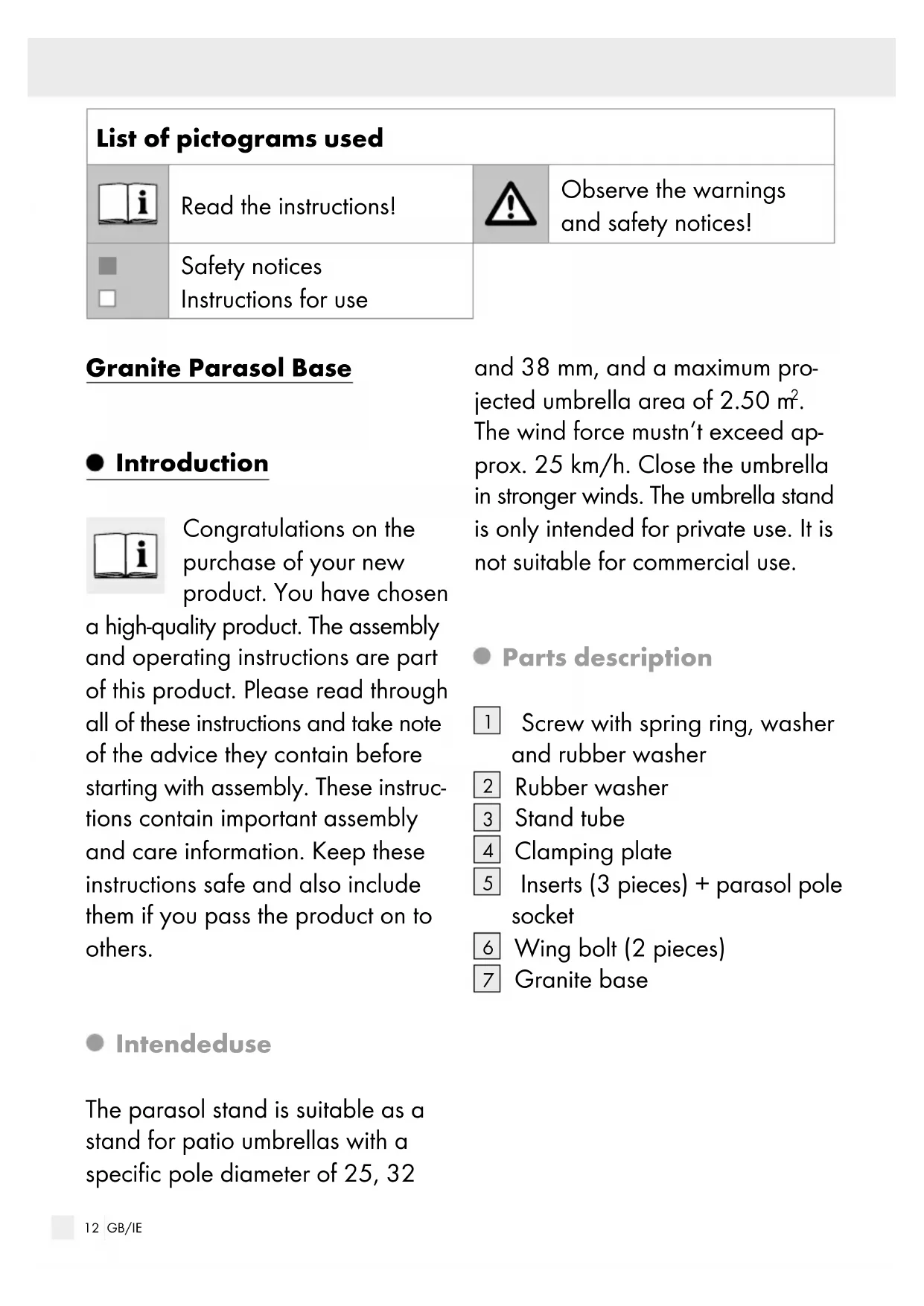

The wind force mustn‘t exceed ap- prox. 25 km/h. Close the umbrella in stronger winds. The umbrella stand is only intended for private use. It is not suitable for commercial use. Parts description

Screw with spring ring, washer and rubber washer

Granite base13 GB/IE Technical data Item no.: 354883_2004 (85897KASR/Q) Height of base in cm: 6.5 Height of retaining tube in cm: 0 Width in cm: 38 Length in cm: 38 Compatible pole diameters in mm: 25, 32 + 38 Weight in kg: approx. 25 Item no.: 354884_2004 (85897KASR/Q) Height of base in cm: 9 Height of retaining tube in cm: 30 Diameter in cm: 38 Compatible pole diameters in mm: 25, 32 + 38 Weight in kg: approx. 25 Pole geometry in connecting area: for round umbrella poles Insertion depth of pole in mm: 200 Max. umbrella weight in kg: 5 Note on max. eccentricity of umbrella: Only for umbrellas with poles posi- tioned in the cen- tre of the umbrella roof (not suitable for cantilever parasols) All specifications are approximate values. Subject to technical changes without notice. Safety information Please note the following safety in- structions. The manufacturer is not liable for damages due to non-com- pliance. Take the parasol stand out of the package and remove all packag- ing materials. Keep all packaging materials out of the reach of chil- dren. There is a danger of suffo- cation if swallowed. Dispose of packaging in an environmentally14 GB/IE friendly manner. Check that the scope of delivery is complete and whether the parasol stand has been damaged. The umbrella stand is not a toy. Children‘s fingers or feet could be pinched. Never leave the umbrella stand unattended – the umbrella tip- ping can result in serious injuries. Please remember, depending on the wind force and diameter of the umbrella, this umbrella stand could also be too light. Be sure to close your umbrella if wind emerges. Be sure to follow your country‘s national regulations in addition to the rules specified in these in- structions. Assembly You need: – Size 17 socket key – 1 Person to assist you Assembling the base Make sure that the umbrella stand is properly set up on a firm / sta- ble as well as horizontal / level

urface. Do not place the umbrella stand on a sloped surface. When setting up the umbrella stand, make sure that the surface is firm / stable and horizontal / level. Place the base

upright and have a second person support it firmly. Injuries may otherwise occur! Insert the screw with spring washer, ring washer and rubber washer

into the base from below. Please note the position of the washers (see Fig. A)! Place the large rubber washer

with a centre hole over the screw protruding at the top (see Fig. B). Secure the screw

from below using a socket key and place the stand tube

from the top, and slightly screw in. Align the rubber washer

with the socket key (see Fig. C). Note: The clamping plate

premounted to protect the um- brella pole (see Fig. D). Please do not remove. When moving the umbrella stand with an open umbrella in15 GB/IE it, only lift it by the umbrella stand. Using inserts Use the inserts

to match the size of your umbrella pole. Insert the necessary inserts

. The groove of the respective insert is intended to leave room for the clamping plate
