USER MANUAL UR007G MAKITA

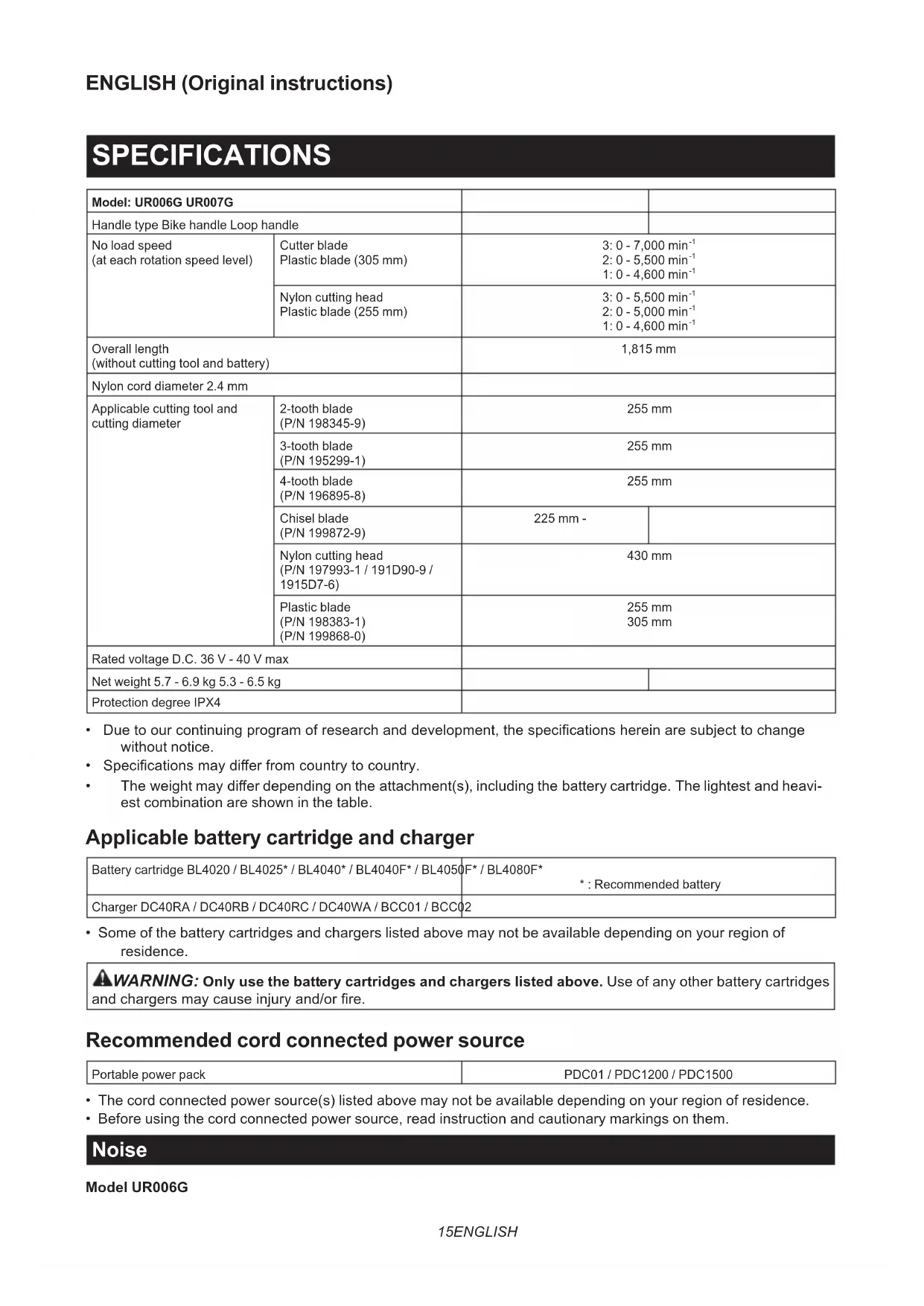

• Specicationsmaydi󰀨erfromcountrytocountry.

• Theweightmaydi󰀨erdependingontheattachment(s),includingthebatterycartridge.Thelightestandheavi- est combination are shown in the table. Applicable battery cartridge and charger Battery cartridge BL4020 / BL4025* / BL4040* / BL4040F* / BL4050F* / BL4080F*

• : Recommended battery Charger DC40RA / DC40RB / DC40RC / DC40WA / BCC01 / BCC02

• Some of the battery cartridges and chargers listed above may not be available depending on your region of residence.

WARNING: Only use the battery cartridges and chargers listed above. Use of any other battery cartridges

andchargersmaycauseinjuryand/orre. Recommended cord connected power source Portable power pack PDC01 / PDC1200 / PDC1500

• The cord connected power source(s) listed above may not be available depending on your region of residence.

• Before using the cord connected power source, read instruction and cautionary markings on them. Noise Model UR006G16 ENGLISH Cutting tool Sound pressure level (L

• Even if the sound pressure level listed above is 80 dB (A) or less, the level under working may exceed 80 dB (A). Wear ear protection. NOTE: The declared noise emission value(s) has been measured in accordance with a standard test method and may be used for comparing one tool with another. NOTE: The declared noise emission value(s) may also be used in a preliminary assessment of exposure.

WARNING: Wear ear protection.

WARNING: The noise emission during actual use of the power tool can di󰀨er from the declared val-

ue(s) depending on the ways in which the tool is used especially what kind of workpiece is processed.

WARNING: Be sure to identify safety measures to protect the operator that are based on an estimation

of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched o󰀨 and when it is running idle in addition to the trigger time). Vibration Applicable standard : ISO22867(ISO11806-1) Model UR006G Cutting tool Left hand Right hand

) Uncertainty K (m/s

) Uncertainty K (m/s

) Uncertainty K (m/s

) Uncertainty K (m/s

NOTE: The declared vibration total value(s) has been measured in accordance with a standard test method and may be used for comparing one tool with another. NOTE: The declared vibration total value(s) may also be used in a preliminary assessment of exposure.

WARNING: The vibration emission during actual use of the power tool can di󰀨er from the declared

value(s) depending on the ways in which the tool is used especially what kind of workpiece is processed.

WARNING: Be sure to identify safety measures to protect the operator that are based on an estimation

of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched o󰀨 and when it is running idle in addition to the trigger time). Symbols The followings show the symbols which may be used for the equipment. Be sure that you understand their meaning before use. Take particular care and attention. Read instruction manual.15m(50FT)Keep distance at least 15 m.Danger;beawareofthrownobjects.Caution; kickbackWear a helmet, goggles and ear protection.Wear safety glasses.Wear ear protection.Wear protective gloves.Wear sturdy boots with nonslip soles. Steeltoed safety boots are recommended. Ni-MH Li-ionOnly for EU countriesDue to the presence of hazardous com-ponents in the equipment, waste electrical and electronic equipment, accumulators and batteries may have a negative impact on the environment and human health.Do not dispose of electrical and electronic appliances or batteries with household waste!In accordance with the European Directive on waste electrical and electronic equip-ment and on accumulators and batteries and waste accumulators and batteries, as well as their adaptation to national law, waste electrical equipment, batteries and accumulators should be stored separately and delivered to a separate collection point for municipal waste, operating in accor-dance with the regulations on environmen-tal protection.This is indicated by the symbol of the crossed-out wheeled bin placed on the equipment.Guaranteed sound power level according to EU Outdoor Noise Directive.Sound power level according to Australia NSW Noise Control Regulation. Declarations of Conformity For European countries only The Declarations of conformity are included in Annex A to this instruction manual. SAFETY WARNINGS General power tool safety warnings WARNING Read all safety warnings, instruc- tions, illustrations and specications provided with this power tool. Failure to follow all instructions listed belowmayresultinelectricshock,reand/orserious injury. Save all warnings and instruc- tions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. Important safety instructions for the tool

WARNING: Read all safety warnings and

all instructions. Failure to follow the warnings and instructionsmayresultinelectricshock,reand/or seriousinjury. Save all warnings and instruc- tions for future reference. Intended use

1. This tool is only intended for cutting grass,

weeds, bushes and undergrowth. It should not be used for any other purpose such as edging or hedge cutting as this may cause injury. General instructions

1. Never allow people unfamiliar with these

instructions, people (including children) with18 ENGLISH reduced physical, sensory or mental capabil- ities, or lack of experience and knowledge to use the tool. Children should be supervised to ensure that they do not play with the tool.

2. Before starting the tool, read this instruction

manual to become familiar with the handling of the tool.

3. Do not lend the tool to a person with insu󰀩-

cient experience or knowledge regarding han- dling of brushcutters and string trimmers.

4. When lending the tool, always attach this

5. Handle the tool with the utmost care and

6. Never use the tool after consuming alcohol or

drugs, or if feeling tired or ill.

7. Never attempt to modify the tool.

8. Follow the regulations about handling of

brushcutters and string trimmers in your country. Personal protective equipment ►Fig.1

1. Wear safety helmet, protective goggles and

protective gloves to protect yourself from ying debris or falling objects.

2. Wear ear protection such as ear mu󰀨s to pre-

3. Wear proper clothing and shoes for safe

operation, such as a work overall and sturdy, non-slip shoes. Do not wear loose clothing or jewelry.Looseclothes,jewelryorlonghaircanbe caught in moving parts.

4. When touching the cutting blade, wear protec-

tive gloves. Cutting blades can cut bare hands severely. Work area safety

1. Operate the tool under good visibility and day-

light conditions only. Do not operate the tool in darkness or fog.

2. Do not operate the tool in explosive atmo-

spheres, such as in the presence of ammable liquids, gases or dust. The tool creates sparks which may ignite the dust or fumes.

3. During operation, never stand on an unstable

or slippery surface or a steep slope. During the cold season, beware of ice and snow and always ensure secure footing.

4. During operation, keep bystanders or animals

at least 15 m away from the tool. Stop the tool as soon as someone approaches.

5. Never operate the tool while people, especially

children, or pets are nearby.

6. Before operation, examine the work area for

stones or other solid objects. They can be thrown or cause dangerous kickback and result in seriousinjuryand/orpropertydamage.

WARNING: Use of this product can create

dust containing chemicals which may cause respiratory or other illnesses. Some examples of these chemicals are compounds found in pesticides, insecticides, fertilizers and herbicides. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to lter out microscopic particles. Electrical and battery safety

1. Do not expose the tool to rain or wet condi-

tions. Water entering the tool will increase the risk of electric shock.

2. Do not use the tool if the switch does not

turn it on and o󰀨. Any tool that cannot be con- trolled with the switch is dangerous and must be repaired.

3. Prevent unintentional starting. Ensure the

switch is in the o󰀨-position before installing a battery pack, picking up or carrying the tool. Carryingthetoolwithyourngerontheswitchor energising the tool that have the switch on invites accidents.

4. Do not dispose of the battery(ies) in a re.

The cell may explode. Check with local codes for possible special disposal instructions.

5. Do not open or mutilate the battery(ies).

Released electrolyte is corrosive and may cause damage to the eyes or skin. It may be toxic if swallowed.

6. Do not charge battery in rain, or in wet

7. Avoid dangerous environment. Don't use the

tool in damp or wet locations or expose it to rain. Water entering the tool will increase the risk of electric shock.

8. Do not charge the battery outdoors.

9. Do not handle charger, including charger plug,

and charger terminals with wet hands.

10. Do not replace the battery with wet hands.

11. Do not replace the battery in the rain.

12. Do not wet the terminal of battery with liquid

such as water, or submerge the battery. Do not leave the battery in the rain, nor charge, use, or store the battery in a damp or wet place. If the terminal gets wet or liquid enters inside of bat- tery, the battery may be short circuited and there is ariskofoverheat,re,orexplosion.

13. After removing the battery from the tool or

charger, be sure to attach the battery cover to the battery and store it in a dry place.

14. If the battery cartridge gets wet, drain the

water inside and then wipe it with a dry cloth. Dry the battery cartridge completely in a dry place before use.

15. When you use the tool on muddy ground, wet

slope, or slippery place, pay attention to your footing. Putting into operation

1. Before assembling or adjusting the tool,

remove the battery cartridge.

2. Before handling the cutter blade, wear protec-

3. Before installing the battery cartridge, inspect19 ENGLISH

the tool for damages, loose screws/nuts or improper assembly. Sharpen blunt cutter blade. If the cutter blade is bent or dam- aged, replace it. Check all control levers and switches for easy action. Clean and dry the handles.

4. Never attempt to switch on the tool if it is dam-

aged or not fully assembled. Otherwise serious injurymayresult.

5. Adjust the shoulder harness and hand grip to

suit the operator's body size.

6. When inserting a battery cartridge, keep the

cutting attachment clear of your body and other object, including the ground. It may rotate whenstartingandmaycauseinjuryordamageto the tool and/or property.

7. Remove any adjusting key, wrench or blade

cover before turning the tool on. An accessory left attached to a rotating part of the tool may resultinpersonalinjury.

8. The cutting tool has to be equipped with the

guard. Never run the tool with damaged guards or without guards in place!

9. Make sure there are no electrical cables, water

pipes, gas pipes etc. that could cause a hazard if damaged by use of the tool. Operation

1. In the event of an emergency, switch o󰀨 the

2. If you feel any unusual condition (e.g. noise,

vibration) during operation, switch o󰀨 the tool and remove the battery cartridge. Do not use the tool until the cause is recognized and solved.

3. The cutting attachment continues to rotate for

a short period after turning the tool o󰀨. Don't rush to contact the cutting attachment.

4. During operation, use the shoulder harness.

Keep the tool on your right side rmly.

5. Do not overreach. Keep proper footing and

balance at all times. Watch for hidden obsta- cles such as tree stumps, roots and ditches to avoid stumbling.

6. Always be sure of your footing on slopes.

8. Never work on a ladder or tree to avoid loss of

condition before continuing work. Check the controls and safety devices for malfunction. If there is any damage or doubt, ask our autho- rized service center for the inspection and repair.

10. Do not touch the gear case during and imme-

diately after the operation. The gear case becomes hot during operation and can cause burn injury.

11. Take a rest to prevent loss of control caused

by fatigue. We recommend taking a 10 to 20-min- ute rest every hour.

12. When you leave the tool, even if it is a short

time, always remove the battery cartridge. The unattended tool with the battery cartridge installed may be used by unauthorized person and cause serious accident.

13. If grass or branches get caught between the

cutting attachment and guard, always turn the tool o󰀨 and remove the battery cartridge before cleaning. Otherwise the cutting attach- ment may rotate unintentionally and cause serious injury.

14. Never touch moving hazardous parts before

the moving hazardous parts have come to a complete stop and the battery cartridge is removed.

15. If the cutting attachment hits stones or other

hard objects, immediately turn the tool o󰀨. Then remove the battery cartridge and inspect the cutting attachment.

16. Check the cutting attachment frequently

during operation for cracks or damages. Before the inspection, remove the battery cartridge and wait until the cutting attachment stops completely. Replace damaged cutting attachment immediately, even if it has only supercial cracks.

17. Never cut above waist height.

18. Before starting the cutting operation, wait until

the cutting attachment reaches a constant speed after turning the tool on.

19. When using a cutting blade, swing the tool

evenly in half-circle from right to left, like using a scythe.

20. Hold the tool by insulated gripping surfaces

only, because the cutter blade may contact hidden wiring. Cutter blades contacting a "live" wire may make exposed metal parts of the tool "live" and could give the operator an electric shock.

21. Do not start the tool when the cutting tool is

tangled with cut grass.

22. Before starting the tool, be sure that the cut-

ting tool is not touching the ground and other obstacles such as a tree.

23. During operation always hold the tool with

both hands. Never hold the tool with one hand during use.

24. Do not operate the tool in bad weather or if

there is a risk of lightning.

25. When you use the tool on muddy ground, wet

slope, or slippery place, pay attention to your footing.

26. Avoid working in poor environment where

increased user fatigue is expected.

27. Do not use the tool in bad weather where visi-

bility is limited. Failure to do so may cause fall or incorrect operation due to low visibility.

28. Do not submerge the tool into a puddle.

29. Do not leave the tool unattended outdoors in

tion mouth (ventilation window) due to rain, remove them.

31. Do not use the tool in the snow.20 ENGLISH

1. Do not use a cutting tool which is not recom-

2. Use an applicable cutting attachment for the

job in hand. — Nylon cutting heads (string trimmer heads) and plastic blades are suitable for trimming lawn grass. — Cutting blades are suitable for cutting weeds, high grasses, bushes, shrubs, underwood, thicket, and the like. — Never use other blades including metal multi-piecepivotingchainsandailblades.It mayresultinseriousinjury.

3. Only use the cutting tool that are marked with

a speed equal or higher than the speed marked on the tool.

4. Always keep your hands, face, and clothes

away from the cutting tool when it is rotating. Failuretodosomaycausepersonalinjury.

5. Always use the cutting attachment guard prop-

erly suited for the cutting attachment used.

6. When using cutting blades, avoid kickback

and always prepare for an accidental kickback. See the section for Kickback.

7. When not in use, attach the blade cover onto

the blade. Remove the cover before operation. Kickback (Blade thrust)

1. Kickback (blade thrust) is a sudden reaction

to a caught or bound cutting blade. Once it occurs, the tool is thrown sideway or toward the operator at great force and it may cause serious injury.

2. Kickback occurs particularly when applying

the blade segment between 12 and 2 o'clock to solids, bushes and trees with 3 cm or larger diameter. ►Fig.2

3. To avoid kickback:

1. Apply the segment between 8 and 11

2. Never apply the segment between 12 and

3. Never apply the segment between 11 and

12 o'clock and between 2 and 5 o'clock, unless the operator is well trained and experienced and does it at his/her own risk.

4. Never use cutting blades close to solids,

such as fences, walls, tree trunks and stones.

5. Never use cutting blades vertically, for

such operations as edging and trimming hedges. ►Fig.3 Vibration

1. People with poor circulation who are exposed

to excessive vibration may experience injury to blood vessels or the nervous system. Vibration may cause the following symptoms tooccurinthengers,handsorwrists:"Falling asleep" (numbness), tingling, pain, stabbing sen- sation, alteration of skin color or of the skin. If any of these symptoms occur, see a physician!

2. To reduce the risk of "white nger disease",

keep your hands warm during operation and well maintain the tool and accessories. Transport

1. Before transporting the tool, turn it o󰀨 and

remove the battery cartridge. Attach the cover to the cutting blade.

2. When transporting the tool, carry it in a hori-

zontal position by holding the shaft.

3. When transporting the tool in a vehicle, prop-

erly secure it to avoid turnover. Otherwise damage to the tool and other baggage may result. Maintenance

1. Have your tool serviced by our authorized

service center, always using only genuine replacement parts. Incorrect repair and poor maintenance can shorten the life of the tool and increase the risk of accidents.

2. Before doing any maintenance or repair work

or cleaning the tool, always turn it o󰀨 and remove the battery cartridge.

3. Always wear protective gloves when handling

use gasoline, benzine, thinner, alcohol or the like for the purpose. Discoloration, deformation or cracks of the plastic components may result.

5. After each use, tighten all screws and nuts.

6. Do not attempt any maintenance or repair not

described in the instruction manual. Ask our authorized service center for such work.

7. Always use our genuine spare parts and

accessories only. Using parts or accessories supplied by a third party may result in the tool breakdown, property damage and/or serious injury.

8. Request our authorized service center to

inspect and maintain the tool at regular interval.

9. Always keep the tool in good working condi-

tion. Poor maintenance can result in inferior per- formance and shorten the life of the tool.

10. Keep handles dry, clean and free from oil and

grease. Keep all cooling air inlets clear of debris.

11. Do not wash the tool with high pressure water.

12. When washing the tool, do not let water enter

the electrical mechanism such as battery, motor, and terminals.

13. When storing the tool, avoid direct sunlight

and rain, and store it in a place where it does not get hot or humid.

14. Perform inspection or maintenance in a place

where rain can be avoided.

15. After using the tool, remove the adhered dirt

and dry the tool completely before storing. Depending on the season or the area, there is a21 ENGLISH risk of malfunction due to freezing. Storage

1. Before storing the tool, perform full cleaning

and maintenance. Remove the battery car- tridge. Attach the cover to the cutting blade.

2. Store the tool in a dry and high or locked loca-

tion out of reach of children.

3. Do not prop the tool against something, such

as a wall. Otherwise it may fall suddenly and causeaninjury. First aid

1. Always have a rst-aid kit close by.

Immediately replace any item taken from the rst aid kit.

2. When asking for help, give the following

information: — Place of the accident — What happened — Numberofinjuredpersons — Natureoftheinjury — Your name SAVE THESE INSTRUCTIONS.

WARNING: DO NOT let comfort or familiarity

with product (gained from repeated use) replace strict adherence to safety rules for the subject product. MISUSE or failure to follow the safety rules stated in this instruction manual may cause serious personal injury. Important safety instructions for battery cartridge

1. Before using battery cartridge, read all instruc-

tions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.

2. Do not disassemble or tamper with the battery

cartridge.Itmayresultinare,excessiveheat, or explosion.

3. If operating time has become excessively

shorter, stop operating immediately. It may result in a risk of overheating, possible burns and even an explosion.

4. If electrolyte gets into your eyes, rinse them

out with clear water and seek medical atten- tion right away. It may result in loss of your eyesight.

5. Do not short the battery cartridge:

(1) Do not touch the terminals with any con- ductive material. (2) Avoid storing battery cartridge in a con- tainer with other metal objects such as nails, coins, etc. (3) Do not expose battery cartridge to water or rain. A battery short can cause a large current ow, overheating, possible burns and even a breakdown.

6. Do not store and use the tool and battery

cartridge in locations where the temperature may reach or exceed 50 °C (122 °F).

7. Do not incinerate the battery cartridge even if

it is severely damaged or is completely worn out. The battery cartridge can explode in a re.

8. Do not nail, cut, crush, throw, drop the battery

cartridge, or hit against a hard object to the battery cartridge. Such conduct may result in a re,excessiveheat,orexplosion.

9. Do not use a damaged battery.

10. The contained lithium-ion batteries are subject

to the Dangerous Goods Legislation require- ments. For commercial transports e.g. by third parties, forwarding agents, special requirement on pack- aging and labeling must be observed. For preparation of the item being shipped, consult- ing an expert for hazardous material is required. Please also observe possibly more detailed national regulations. Tapeormasko󰀨opencontactsandpackupthe battery in such a manner that it cannot move around in the packaging.

11. When disposing the battery cartridge, remove

it from the tool and dispose of it in a safe place. Follow your local regulations relating to disposal of battery.

12. Use the batteries only with the products

specied by Makita. Installing the batteries to non-compliantproductsmayresultinare,exces- sive heat, explosion, or leak of electrolyte.

13. If the tool is not used for a long period of time,

the battery must be removed from the tool.

14. During and after use, the battery cartridge may

take on heat which can cause burns or low temperature burns. Pay attention to the han- dling of hot battery cartridges.

15. Do not touch the terminal of the tool imme-

diately after use as it may get hot enough to cause burns.

16. Do not allow chips, dust, or soil stuck into the

terminals, holes, and grooves of the battery cartridge.Itmaycauseheating,catchingre, burst and malfunction of the tool or battery car- tridge,resultinginburnsorpersonalinjury.

17. Unless the tool supports the use near

high-voltage electrical power lines, do not use the battery cartridge near high-voltage electri- cal power lines. It may result in a malfunction or breakdown of the tool or battery cartridge.

18. Keep the battery away from children.

SAVE THESE INSTRUCTIONS. CAUTION: Only use genuine Makita batteries. Use of non-genuine Makita batteries, or batteries that have been altered, may result in the battery bursting causingres,personalinjuryanddamage.Itwill also void the Makita warranty for the Makita tool and charger. Tips for maintaining maximum battery life

1. Charge the battery cartridge before completely

discharged. Always stop tool operation and22 ENGLISH charge the battery cartridge when you notice less tool power.

2. Never recharge a fully charged battery car-

tridge. Overcharging shortens the battery service life.

3. Charge the battery cartridge with room tem-

perature at 10 °C - 40 °C (50 °F - 104 °F). Let a hot battery cartridge cool down before charging it.

4. When not using the battery cartridge, remove

it from the tool or the charger.

WARNING: Always be sure that the tool is

switched o󰀨 and the battery cartridge is removed before adjusting or checking function on the tool. Failuretoswitcho󰀨andremovethebatterycartridge mayresultinseriouspersonalinjuryfromaccidental start-up. Installing or removing battery cartridge CAUTION: Always switch o󰀨 the tool before installing or removing of the battery cartridge. CAUTION: Hold the tool and the battery car- tridge rmly when installing or removing battery cartridge. Failure to hold the tool and the battery cartridgermlymaycausethemtoslipo󰀨yourhands and result in damage to the tool and battery cartridge andapersonalinjury. To install the battery cartridge, align the tongue on the battery cartridge with the groove in the housing and slip it into place. Insert it all the way until it locks in place with a little click. If you can see the red indicator as showninthegure,itisnotlockedcompletely. To remove the battery cartridge, slide it from the tool while sliding the button on the front of the cartridge. ►Fig.5: 1. Red indicator 2. Button 3. Battery cartridge CAUTION: Always install the battery cartridge fully until the red indicator cannot be seen. If not, itmayaccidentallyfalloutofthetool,causinginjuryto you or someone around you. CAUTION: Do not install the battery cartridge forcibly. If the cartridge does not slide in easily, it is not being inserted correctly. Tool / battery protection system The tool is equipped with a tool/battery protection system.Thissystemautomaticallycutso󰀨powerto the motor to extend tool and battery life. The tool will automatically stop during operation if the tool is placed under one of the following conditions: Caution lamp Status Color On Blinking Green Overload Red (tool) / (battery) Overheat Red Over discharge Overload protection If the tool gets into one of the following situation, the tool automatically stops and the caution lamp starts blinking in green: — The tool is overloaded by entangled weeds or other debris. — The cutting tool is locked or kicked back. — The main power button is turned on while the switch trigger is being pulled. In this situation, release the switch trigger and remove entangled weeds or debris if necessary. After that, pull the switch trigger again to resume.23 ENGLISH CAUTION: If you need to remove the entan- gled weeds on the tool or release the locked cutting tool, be sure to turn the tool o󰀨 before you start. Overheat protection for tool or battery If the tool or battery cartridge is overheated, the tool stops automatically. When the tool is overheated, the caution lamp lights up in red. When the battery cartridge is overheated, the caution lamp blinks in red. Let the tool and/or battery cool down before turning the tool on again. Overdischarge protection When the battery capacity becomes low, the tool stops automatically and the caution lamp starts blinking in red. If the tool does not operate even when the switches are operated, remove the battery cartridge from the tool and charge it. Indicating the remaining battery capacity Press the check button on the battery cartridge to indi- cate the remaining battery capacity. The indicator lamps light up for a few seconds. ►Fig.6: 1. Indicator lamps 2. Check button Indicator lamps Remaining capacity Lighted O󰀨 Blinking 75% to 100% 50% to 75% 25% to 50% 0% to 25% Charge the battery. The battery may have malfunctioned. NOTE: Depending on the conditions of use and the ambienttemperature,theindicationmaydi󰀨erslightly from the actual capacity. NOTE:Therst(farleft)indicatorlampwillblinkwhen the battery protection system works. Main power switch Tap the main power button to turn on the tool. Toturno󰀨thetool,pressandholdthemainpower buttonuntilthespeedindicatorgoeso󰀨. ►Fig.7: 1. Speed indicator 2. Main power button NOTE:Thetoolwillautomaticallyturnedo󰀨ifitisleft without any operations for a certain period of time. Switch action

WARNING: For your safety, this tool is

equipped with lock-o󰀨 lever which prevents the tool from unintended starting. NEVER use the tool if it runs when you simply pull the switch trigger without pressing the lock-o󰀨 lever. Return the tool to our authorized service center for proper repairs BEFORE further usage.

WARNING: NEVER tape down or defeat pur-

pose and function of lock-o󰀨 lever. CAUTION: Before installing the battery car- tridge into the tool, always check to see that the switch trigger actuates properly and returns to the "OFF" position when released. Operating a tool with a switch that does not actuate properly can lead tolossofcontrolandseriouspersonalinjury. CAUTION: Never put your nger on the main power button and switch trigger when carrying the tool. The tool may start unintentionally and cause injury. NOTICE: Do not pull the switch trigger hard with- out pressing the lock-o󰀨 lever. This can cause switch breakage. To prevent the switch trigger from being accidentally pulled,alock-o󰀨leverisprovided.Tostartthetool, depressthelock-o󰀨leverandpulltheswitchtrigger. The tool speed increases by increasing pressure on the switch trigger. Release the switch trigger to stop. UR006G ►Fig.8: 1.Lock-o󰀨lever2. Switch trigger UR007G ►Fig.9: 1.Lock-o󰀨lever2. Switch trigger Speed adjusting You can select the tool speed by tapping the main power button. Each time you tap the main power button, the level of speed will change. The tool automatically adjuststherotationspeedaccordingtothecuttingtool attached to the tool. ►Fig.10: 1. Speed indicator 2. Main power button Speed indicator Mode Rotation speed Cutter blade Plastic blade (305 mm) Nylon cutting head Plastic blade (255 mm) High 0 - 7,000 min

Automatic Torque Drive Technology When you turn on the Automatic Torque Drive Technology (ADT), the tool runs at optimum rotation speed and torque for the condition of grass being cut. The tool automatically detects the cutting tool attached and chooses a suitable rotation speed. To start ADT, press and hold the reverse button until the ADT indicator turns on. To stop ADT, press and hold the reverse button until the ADTindicatorturnso󰀨. ►Fig.11: 1. ADT indicator 2. Reverse button Indicator Mode Cutting tool Rotation speed ADT Cutter blade Plastic blade (305 mm) 3,500 - 7,000 min

Reverse button for debris removal

WARNING: Switch o󰀨 the tool and remove

the battery cartridge before you remove entan- gled weeds or debris which the reverse rotation function can not remove.Failuretoswitcho󰀨and remove the battery cartridge may result in serious personalinjuryfromaccidentalstart-up. This tool has a reverse button to change the direction of rotation. It is only for removing weeds and debris entan- gled in the tool. To reverse the rotation, tap the reverse button and pull theswitchtriggerwhiledepressingthelock-o󰀨lever when the cutting tool is stopped. The speed indicators and ADT indicator start blinking, and the cutting tool rotates in reverse direction when you pull the switch trigger. To return to regular rotation, release the trigger and wait until the cutting tool stops. ►Fig.12: 1. Speed indicator 2. ADT indicator

NOTE: During the reverse rotation, the tool operates only for a short period of time and then automatically stops. NOTE: Once the tool is stopped, the rotation returns to regular direction when you start the tool again. NOTE: If you tap the reverse button while the cutting tool is still rotating, the tool comes to stop and to be ready for reverse rotation. Electric brake This tool is equipped with an electric brake. If the tool consistently fails to quickly stop after the switch trigger is released, have the tool serviced at our service center. CAUTION: This brake system is not a substi- tute for the protector. Never use the tool without the protector. An unguarded cutting tool may result inseriouspersonalinjury. Electronic function Constant speed control The speed control function provides the constant rota- tion speed regardless of load conditions. Soft start feature Soft start because of suppressed starting shock. ASSEMBLY

WARNING: Always be sure that the tool is

switched o󰀨 and battery cartridge is removed before carrying out any work on the tool. Failure to switcho󰀨andremovethebatterycartridgemayresult inseriouspersonalinjuryfromaccidentalstart-up.

WARNING: Never start the tool unless it is

completely assembled. Operation of the tool in a partially assembled state may result in serious per- sonalinjuryfromaccidentalstart-up. Installing the handle For UR006G

1. Insert the shaft of the handle into the grip. Align

the screw hole in the grip with the one in the shaft. Tighten the screw securely. ►Fig.13: 1. Grip 2. Screw 3. Shaft NOTICE: Note the direction of the grip. The screw holes will not be aligned if the grip is not inserted in the correct direction.

1. Attach the upper and lower clamps on the damper.

2. Putthehandleontheupperclampandxitwith25 ENGLISH

hex socket head bolts as illustrated. ►Fig.15: 1. Hex socket head bolt 2. Handle 3. Upper clamp 4. Damper 5. Lower clamp Attaching the barrier For the loop handle model only (country specic) If the barrier is included in your model, attach it to the handle using the screw on the barrier. ►Fig.16: 1. Barrier 2. Screw CAUTION: After assembling the barrier, do not remove it. The barrier works as a safety part to prevent you from contacting the cutting blade accidentally. Hex wrench storage CAUTION: Be careful not to leave the hex wrench inserted in the tool head. It may cause injuryand/ordamagetothetool. When not in use, store the hex wrench as illustrated to keep it from being lost. UR006G ►Fig.17: 1. Hex wrench UR007G ►Fig.18: 1. Hex wrench Correct combination of the cutting tool and the protector CAUTION: Always use the correct combi- nation of cutting tool and the protector. A wrong combination may not protect you from the cutting tool, yingdebris,andstones.Itcanalsoa󰀨ectthebal- anceofthetoolandresultinaninjury. Cutting tool Protector Cutter blade (2-tooth, 3-tooth, 4-tooth blades) Nylon cutting head Plastic blade Cutting tool Protector Chisel blade Installing the protector

WARNING: Never use the tool without the

guard or with the guard improperly installed. Failuretodosocancauseseriouspersonalinjury. NOTE: The type of the protector supplied as the stan- dard accessory varies depending on the countries. For cutter blade Attach the protector to the clamp using bolts. ►Fig.19: 1. Clamp 2. Protector For nylon cutting head / plastic blade CAUTION: Take care not to injure yourself on the cutter for cutting the nylon cord. Attach the protector to the clamp using bolts. After that, install the protector extension. Insert the protector extension to the protector and then snap the clips on. Makesurethatthetabsontheprotectorextensiont into the slots on the protector. ►Fig.20: 1. Protector 2. Clip 3. Protector extension

4. Cutter 5. Slot 6. Tab

To remove the protector extension from the protec- tor, unclasp the clips by inserting the hex wrench as illustrated. ►Fig.21: 1. Hex wrench 2. Clip For chisel blade For UR006G only Optional accessory NOTICE: When attaching the protector, be sure to use the clamp and bolts supplied with the protector. NOTICE: When installing the protector, tighten the two bolts evenly. It is recommended to tighten the two bolts temporarily, and then alternately retighten each bolt several times. Attach the protector to the clamp using bolts. ►Fig.22: 1. Clamp 2. Protector NOTE: If a protector other than this protector is attachedtothetool,removeitrst.26 ENGLISH Installing the cutting tool CAUTION: Always use the supplied wrenches to remove or to install the cutting tool. CAUTION: Be sure to remove the hex wrench inserted into the tool head after installing the cutting tool. NOTE: The type of the cutting tool(s) supplied as the standard accessory varies depending on the countries. The cutting tool is not included in some countries. NOTE: Turn the tool upside down so that you can replace the cutting tool easily. Cutter blade CAUTION: When handling a cutter blade, always wear gloves and put the blade cover on the blade. CAUTION: The cutter blade must be well pol- ished, and free of cracks or breakage. If the cutter blade hits a stone during operation, stop the tool and check the cutter blade immediately. CAUTION: Always use the cutter blade with the diameter described in the section for specications.

1. Put the blade cover on the cutter blade.

2-tooth blade ►Fig.23 3-tooth blade ►Fig.24 4-tooth blade ►Fig.25

2. Insert the hex wrench through the hole in the gear

case to lock the spindle. Rotate the spindle until the hex wrench is fully inserted. ►Fig.26: 1. Nut 2. Cup 3. Clamp washer 4. Cutter blade 5. Spindle 6. Receive washer 7. Hex wrench

3. Mount the cutter blade onto the receive washer

so that the arrows on the cutter blade and protector are pointing in the same direction. ►Fig.27: 1. Arrow

4. Put the clamp washer and cup onto the cutter

blade and then tighten the nut securely by the box wrench. ►Fig.28: 1. Box wrench 2. Hex wrench 3. Loosen

5. Remove the hex wrench from the gear case.

To remove the cutter blade, follow the installation proce- dures in reverse. Chisel blade For UR006G only Optional accessory

1. Insert the hex wrench through the hole in the gear

case to lock the spindle. Rotate the spindle until the hex wrench is fully inserted. ►Fig.29: 1. Nut 2. Cup 3. Clamp washer 4. Cutter blade 5. Spindle 6. Receive washer 7. Hex wrench

2. Mount the cutter blade onto the receive washer

so that the arrows on the cutter blade and protector are pointing in the same direction. ►Fig.30: 1. Arrow

3. Put the clamp washer and cup onto the cutter

blade and then tighten the nut securely by the box wrench. ►Fig.31: 1. Box wrench 2. Hex wrench 3. Loosen

4. Remove the hex wrench from the gear case.

NOTICE: After installing the cutter blade, make sure that the gap between the cutter blade and the protector at the position shown in the gure is within the range of 2.0 to 3.0 mm. If the gap is not within the range of 2.0 to 3.0 mm, install the protector again so that the gap is within the range of 2.0 to 3.0 mm. ►Fig.32: 1. 2.0 - 3.0 mm 2. Protector 3. Cutter blade To remove the cutter blade, follow the installation proce- dures in reverse. Nylon cutting head NOTICE: Be sure to use genuine Makita nylon cutting head. ►Fig.33: 1. Nylon cutting head 2. Spindle 3. Hex wrench 4. Loosen 5. Tighten

1. Insert the hex wrench through the hole in the gear

case to lock the spindle. Rotate the spindle until the hex wrench is fully inserted.

2. Place the nylon cutting head onto the spindle and

tighten it securely by hand.

3. Remove the hex wrench from the gear case.

To remove the nylon cutting head, follow the installation procedures in reverse. Plastic blade NOTICE: Be sure to use genuine Makita plastic blade. ►Fig.34: 1. Plastic blade 2. Spindle 3. Hex wrench

4. Loosen 5. Tighten

1. Insert the hex wrench through the hole in the gear

case to lock the spindle. Rotate the spindle until the hex wrench is fully inserted.

2. Place the plastic blade onto the spindle and

tighten it securely by hand.27 ENGLISH

3. Remove the hex wrench from the gear case.

To remove the plastic blade, follow the installation pro- cedures in reverse. OPERATION Attaching the shoulder harness

WARNING: Be extremely careful to maintain

control of the tool at all times. Do not allow the tool to be deected toward you or anyone in the work vicinity. Failure to keep control of the tool couldresultinseriousinjurytothebystanderandthe operator. CAUTION: Always use the shoulder harness attached to the tool. Before operation, adjust the shoulder harness according to the user size to prevent fatigue. CAUTION: Before operation, make sure that the shoulder harness is properly attached to the hanger on the tool. CAUTION: When you use the tool in combi- nation of the backpack-type power supply such as portable power pack, do not use the shoulder harness included in the tool package, but use the hanging band recommended by Makita. If you put on the shoulder harness included in the tool package and the shoulder harness of the back- pack-type power supply at the same time, removing thetoolorbackpack-typepowersupplyisdi󰀩cultin case of an emergency, and it may cause an accident orinjury.Fortherecommendedhangingband,ask Makita Authorized Service Centers. For UR006G

1. Put on the shoulder harness and fasten the

2. Clasp the hook on the shoulder harness to tool's

working position. ►Fig.37 The shoulder harness features a means of quick release. Simply squeeze the sides of the buckle while holding the tool to release the tool from the shoulder harness. ►Fig.38: 1. Buckle For UR007G

1. Clasp the hook on the shoulder harness to tool's

ring and hanger. ►Fig.39: 1. Ring 2. Hook 3. Hanger

2. Put on the shoulder harness on your left shoulder.

Adjusttheshoulderharnesstoacomfortableworking position. ►Fig.40 The shoulder harness features a means of quick release. Simply squeeze the sides of the buckle while holding the tool to release the tool from the shoulder harness. ►Fig.41: 1. Buckle Adjusting the hanger position For UR006G only For more comfortable handling of the tool, you can change the hanger position.

1. Loosen the hex socket head bolt on the hanger,

and slide the hanger to a comfortable working position. ►Fig.42: 1. Hanger 2. Hex socket head bolt

2. Adjustthehangerpositionasshowninthegure

and then tighten the hex socket head bolt. ►Fig.43 1 The hanger position from the ground 2 The cutting tool position from the ground 3 The horizontal distance between the hanger and the unguarded part of the cutting tool Correct handling of the tool

WARNING: Always position the tool on your

right-hand side. Correct positioning of the tool allows for maximum control and will reduce the risk of seri- ouspersonalinjurycausedbykickback.

WARNING: Be extremely careful to maintain

control of the tool at all times. Do not allow the tool to be deected toward you or anyone in the work vicinity. Failure to keep control of the tool couldresultinseriousinjurytothebystanderandthe operator.

WARNING: To avoid accident, leave more

than 15m (50 ft) distance between operators when two or more operators work in one area. Also, arrange a person to observe the distance between operators. If someone or an animal enters the working area, immediately stop the operation. CAUTION: If the cutting tool accidentally impacts a rock or hard object during operation, stop the tool and inspect for any damage. If the cutting tool is damaged, replace it immediately. Use of a damaged cutting tool may result in serious personalinjury. CAUTION: Remove the blade cover from the cutter blade when cutting the grass. 2-tooth/3-tooth/4-tooth blades, nylon cutting head, and plastic blade Correct positioning and handling allow optimum control andreducetheriskofinjurycausedbykickback. UR006G ►Fig.44 UR007G ►Fig.4528 ENGLISH When using a nylon cutting head (bump & feed type) The nylon cutting head is a dual string trimmer head provided with a bump & feed mechanism. To feed out the nylon cord, tap the cutting head against the ground while rotating. ►Fig.46: 1.Moste󰀨ectivecuttingarea NOTICE: The bump feed will not operate prop- erly if the nylon cutting head is not rotating. NOTE: If the nylon cord does not feed out while tapping the head, rewind/replace the nylon cord by following the procedures in the section for the maintenance. Chisel blade For UR006G only Optional accessory CAUTION: Never cut trees larger than 50 mm diameter. The chisel blade is useful for cutting shrubs and trees. To avoid kickback, always apply the segment of the chisel blade between 8 and 11 o’clock to a tree. ►Fig.47: 1. 8 to 11 o’clock segment of the blade For ease of cutting a tree, support the protector against the tree stem as illustrated. ►Fig.48 MAINTENANCE

WARNING: Always be sure that the tool is

switched o󰀨 and battery cartridge is removed before attempting to perform inspection or main- tenance on the tool.Failuretoswitcho󰀨andremove the battery cartridge may result in serious personal injuryfromaccidentalstart-up. NOTICE: Never use gasoline, benzine, thinner, alcohol or the like. Discoloration, deformation or cracks may result. To maintain product SAFETY and RELIABILITY, repairs,anyothermaintenanceoradjustmentshould be performed by Makita Authorized or Factory Service Centers, always using Makita replacement parts. Cleaning the tool Cleanthetoolbywipingo󰀨dust,dirt,orcuto󰀨grass with a dry cloth or one dipped in soapy water and wrung out. To avoid overheating of the tool, be sure to remove thecuto󰀨grassordebrisadheredtotheventofthe tool. Replacing the nylon cord

WARNING: Use only the nylon cord with

diameter specied in this instruction manual. Never use heavier line, metal wire, rope or the like. Failure to do so may cause damage to the tool andresultinseriouspersonalinjury.

WARNING: Always remove the nylon cutting

head from the tool when replacing the nylon cord.

WARNING: Make sure that the cover of the

nylon cutting head is secured to the housing properly as described in this instruction manual. Failure to properly secure the cover may cause the nyloncuttingheadtoyapartresultinginserious personalinjury. Replace the nylon cord if it is not fed any more. The method of replacing the nylon cord varies depending on the type of the nylon cutting head. 95-M10L ►Fig.49 96-M10L ►Fig.50 98-M10L ►Fig.51 Replacing the plastic blade Replace the plastic blade if it is worn out or broken. ►Fig.52 When installing the plastic blade, align the direction of the arrow on the blade with that of the protector. ►Fig.53: 1. Arrow on the protector 2. Arrow on the blade TROUBLESHOOTING Beforeaskingforrepairs,conductyourowninspectionrst.Ifyoundaproblemthatisnotexplainedinthemanual, do not attempt to dismantle the tool. Instead, ask Makita Authorized Service Centers, always using Makita replace- ment parts for repairs. State of abnormality Probable cause (malfunction) Remedy Motor does not run. Battery cartridge is not installed. Install the battery cartridge. Battery problem (under voltage) Recharge the battery cartridge. If recharging is not e󰀨ective,replacebatterycartridge. The drive system does not work correctly. Ask your local authorized service center for repair.29 ENGLISH State of abnormality Probable cause (malfunction) Remedy Motor stops running after a little use. Battery's charge level is low. Recharge the battery cartridge. If recharging is not e󰀨ective,replacebatterycartridge. Overheating. Stop using of tool to allow it to cool down. The tool does not reach maximum RPM. Battery cartridge is installed improperly. Install the battery cartridge as described in this manual. Battery power is dropping. Recharge the battery cartridge. If recharging is not e󰀨ective,replacebatterycartridge. The drive system does not work correctly. Ask your local authorized service center for repair. Cutting tool does not rotate: stop the machine immediately! Foreignobjectsuchasabranchis jammedbetweentheguardandthe cutting tool. Removetheforeignobject. Cutting tool is loosely attached. Tighten the cutting tool securely. The drive system does not work correctly. Ask your local authorized service center for repair. Abnormal vibration: stop the machine immediately! Broken, bent or worn cutting tool Replace the cutting tool. Cutting tool is loosely attached. Tighten the cutting tool securely. The drive system does not work correctly. Ask your local authorized service center for repair. Cutting tool and motor cannot stop: Remove the battery immediately! Electric or electronic malfunction. Remove the battery cartridge and ask your local authorized service center for repair. OPTIONAL ACCESSORIES

WARNING: Only use the recommended

accessories or attachments indicated in this man- ual. The use of any other accessory or attachment mayresultinseriouspersonalinjury. CAUTION: These accessories or attachments are recommended for use with your Makita tool specied in this manual. The use of any other accessories or attachments might present a risk of injurytopersons.Onlyuseaccessoryorattachment for its stated purpose. If you need any assistance for more details regard- ing these accessories, ask your local Makita Service Center.

• Nylon cord (cutting line)

• Makita genuine battery and charger For UR006G only

1. Aplique o segmento entre as 8 e as 11
