USER MANUAL YUM135 Wëasy

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE IMPORTANT NOTICES This symbol indicates the refrigerant R600a and the non-metallic materials of the appliance are flammable. It’s a warning symbol. Warning: Risk of fire / flammable materials. Warning; Risk of fire / flammable materials.

WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of

the appliance. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. To avoid contamination of food, please respect the following instructions: – Clean regularly surfaces that can come in contact with food and accessible drainage systems. – If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry. Regarding the information pertaining to the use of the appliance, thanks to refer to the below paragraph of the manual. SPECIFICATIONS Capacity：1L Voltage：AC 220-240V/50Hz Anti-shock protection class：I Climate type：N/SN Power consumption：100W Max overall dimensions：355（L）X 260（W）X 225.8（H）mm Max Packing Dimensions： 404（L）X 305（W）X 265（H）mm N.W：7.4KG G.W：8.1KG PRODUCT FEATURE

1. Touch control, simple and reliable operation and won’t cost you much trouble.

2. Plastic housing, elegant, fashionable and lighter;

3. Upper mixing and Low noise;

4. With a variety of quick-freezing ice cream production methods;

5 .The parts are detachable, easy to clean, sanitary and safe.CAUTION

1. Please read the instruction manual carefully before use.

2. Check if the voltage range used is the same as that

marked on the nameplate, whether the power cord plug and the socket match, and ensure that the socket is well grounded.

3. When the power cord or socket is damaged, or any

other electrical components are faulty, do not continue to use this product. It should be immediately sent to the dealer or local special maintenance network for replacement or repair.

4. Do not place the product upside down, or tilt it above 45

5. The power cord plug and air outlet should not be

drenched. Do not immerse the machine in water or other liquid to prevent electric shock.

6. When not in use or clean, the power plug must be

7. When using, the inlet and outlet should be kept at a

certain distance (about 8cm) from other items, so as not to affect the heat dissipation effect of the machine.8. Any accessories not recommended by the manufacturer may not be used.

9. Do not allow children or the disabled to operate without

any guidance or supervision.

10. This product should not be placed next to a high-

temperature gas or electric stove to avoid accidents.

11. Do not start the compressor power switch frequently

(at least 5 minutes each time) to avoid damage to the compressor.

12. Metal foil or other conductive materials are not allowed

to be inserted into the machine to prevent fire or short circuit.

13. When taking out the ice cream, do not knock the

surface or edge of the container to avoid damage to the container.

14. Do not start the power switch when the ice cream

container barrel is not installed in place or the mixing fan blade is not placed properly.

15. The initial temperature of making ice cream mixture is

25±5℃. The prepared ice cream material cannot be put into the refrigerator for freezing and then put into themachine for making. In this way, the ice cream will solidify ahead of time and the motor will be locked. The motor will be cut off because it enters the protection circuit ahead of time.

16. After starting the machine freezing, do not remove the

motor and transparent cover during the working process.

17. This product cannot be used outdoors.

18. Do not use chemical washing liquids and hard tools to

clean the product. Do not use dishwasher to clean the loading bowl, and do not use water to directly wash the evaporator.

19. After the operation, please unplug the power plug in

20. When the indicator light is on, the red light is in standby

state. When the green light is on, it is in the working state. When the green light is flashing, it is in the heat preservation state.

21. When the ice cream machine is started without adding

ice cream ingredients, there will be a slight sound of mixing blade scraping to the loading bowl, which is a normal phenomenon.22. There are two round copper sheets at the motor assembly of the transparent cover installed on the upper cover. When using, please wipe the water stains on the transparent cover and the water stains on the copper plates. If the machine is in use, the two copper plates will be connected by water, which will lead to power failure of the motor. Pull out the power line, wipe the water stains, and restart it.

23. Save the instruction manual.

24. This appliance may be used by children of at least 8

years of age, as long as they are supervised and have been given instructions about using the appliance safely and are fully aware of the dangers involved.

25. Cleaning and maintenance should not be carried out

by children unless they are at least 8 years of age and are supervised by an adult.

26. Keep the appliance and its power cord out of reach of

children under 8 years of age.

27. When using electrical equipment, safety precautions

must always be taken to prevent the risk of fire, electric shock and/or injury in the event of misuse.28. Make sure that the voltage rating on the typeplate corresponds to your main voltage of your installation. If this is not the case, contact the dealer and do not connect the unit.

29. Never leave the unit unattended while in operation.

30. Please keep this document at hand and give it to the

future owner in case of transfer of your device.

31. The device must not be used if it has been dropped, it

obvious signs of damage are visible or if it has leaks.

32. The device is not intended to be operated by external

timer means or a remote control system.

33. This appliance is only intended for domestic and indoor

34. Never open the appliance from the front, always

position yourself slightly to the side so as not to burn yourself with the steam.

35. Do not use the device if its power cable or plug is

damaged, if it is not working correctly, if it has been damaged or dropped. If the power cable is damaged, it must be replaced by the manufacturer or his agent or by a qualified person to avoid any risk.36. This device is not intended for use by people with reduced physical, mental or sensory abilities or lacking experience or knowledge, (including children), unless they have been instructed to do so. to supervise or if they have had instructions concerning the use of the device by a person responsible for their safety. Children should be supervised to ensure that they do not play with the device.Refrigerant The refrigerant gas contained in the circuit of this device is isobutane (R 600a), a low gas polluting but flammable. - When transporting and installing the appliance, take care not to damage any part of the refrigeration circuit - Do not use any sharp or pointed tools to defrost the appliance. - Do not use any electrical appliance inside the appliance. If the refrigeration system is damaged:

• Do not use a flame near the appliance.

• Avoid sparks - do not light any electrical appliance or flashlight. Ventilate the room immediatelyPRODUCT INSTRUCTION

1. Connect the power supply and plug the power cord into a suitable socket. The shape and

voltage of the socket shall be the same as those indicated.

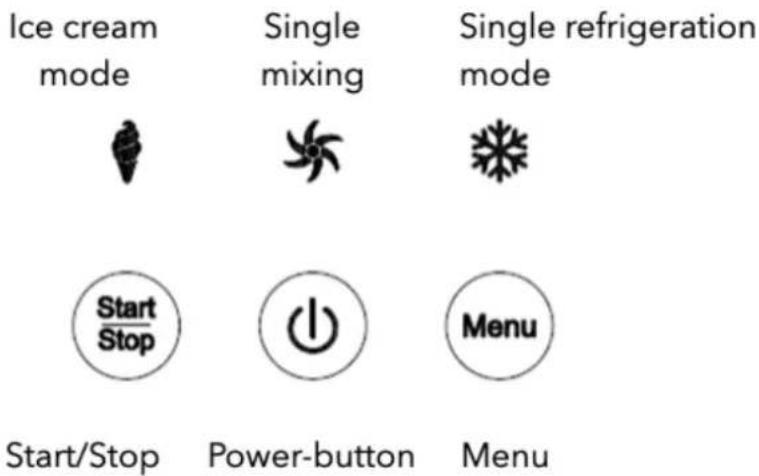

Plug in the power supply, touch the power button for 1 second to turn on the machine, the indicator light of ice cream mode is on red light, and touch the power button for 1 second again to shut down the machine.

② START/STOP TOUCH BUTTON

When the machine is in the start-up state, the indicator light is red. If you touch the START/STOP button, the indicator light will be on green. If you touch the button again, the machine will stop working and the indicator light will be red. When the machine is in normal working state under ice cream mode, it has not entered the insulation state. At this time, if you touch this button, the indicator light will be on red, the mixing motor of the machine will stop working, and the refrigeration function will stop working after one minute. If you touch this button within one minute, the machine will return to the working state.

When the indicator light of the machine is in the red light state, you can freely select three modes by touching this button. However, in the green light state, touching this button can not select other modes.

2) DESCRIPTIONS OF MODE

① Single mixing mode: When the single mixing mode is selected, the mixing motor starts to realize the mixing function. The default time is 30min. When the time or hardness reaches the set value, there will be 10 beeps to remind that the mixing is completed. After completion, the machine will enter the standby mode, and the indicator light will be on red. Please select other modes or shut down. ② Single refrigeration mode The compressor and cooling fan are started to realize the refrigeration function. The default time is 30min. After completion, there will be 10 beeps to remind that the refrigeration is completed. After completion, the machine will enter the standby state, and the indicator light will be red. Please select other modes or shut down. ③ Ice cream mode The compressor, mixing motor and cooling fan are started, when the ice cream is finished, there will be 10 short beeps. At this time, you can enjoy the ice cream; If there is no operation, it will enter the insulation function automatically, the indicator light of ice cream mode will be on green and flashing and 10 short beeps will appear after the insulation is completed. The machine will enter the standby mode and the indicator light will be on red. Please select other modes or shut down.

3) DESCRIPTION OF INDICATOR LIGHT

When the machine is in standby state, the red light is displayed; when the machine is in the working state, it is green; when the machine is in the insulation state, the indicator light is on and flashing.3. KEEP COOL FUNCTION Ice cream cool warm function: In order to prevent you from leaving during the ice-cream making process, and the ice-cream can not be eaten or stored in time after the completion of the production, which causes the ice-cream to melt, we have added the following humanized design: when the ice-cream making is completed but no one operates, the compressor will automatically turn off for 10 minutes and turn on for 6 minutes, so as to maintain the fresh taste and taste of the ice-cream texture. The holding time is 1 hour. During this period, the green light of ice cream mode is flashing. When the ice cream mode is finished, there are 10 short beeps, and the indicator light is on red light, and the machine is in standby mode.

4. MOTOR SELF-PROTECTION FUNCTION

When the ice cream becomes harder, the mixing motor might be blocked. Then the motor protection device makes the mixing motor stop working by detecting its temperature to ensure the life of the motor.

5. COMPRESSOR SELF-PROTECTION FUNCTION

After the compressor stops from ice cream mode or single refrigeration mode, if the ice cream mode or single refrigeration mode is selected again, the compressor will have a protection time of about 3 minutes. However, after the power cord is plugged in, the machine is restarted by default. At this time, there is no delay in selecting ice cream mode or single refrigeration mode.`

6. CONTROLLING THE VOLUME OF THE INGREDIENTS

To avoid overflow and waste, please make sure that the ingredients do not exceed 60% of capacity of the removable bowl (Ice cream expands when being formed).

HOW TO MAKE ICE CREAM

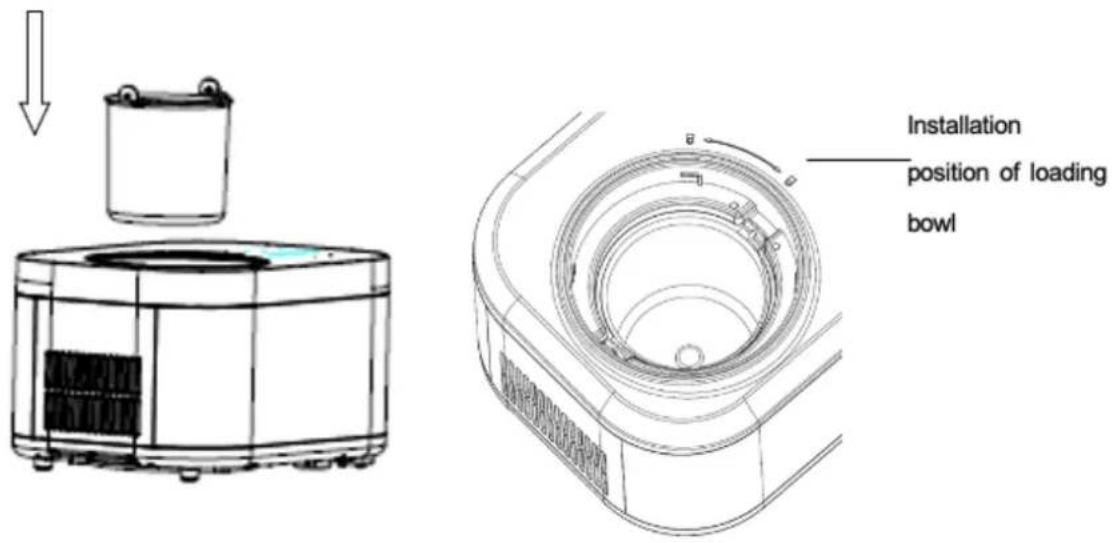

NOTE: Please thoroughly clean all parts that will contact with ice cream before use, including: cooling bowl, loading bowl, mixing fan blade, transparent lid, etc. Before cleaning, you must ensure that the power cord plug is disconnected from the outlet. When making ice cream, keep the machine flat on a level surface to ensure that the compressor of the machine is working properly. Here are the steps to make an ice cream: Step 1. Pour the well prepared recipe ingredients and warm water into the removable bowl, then have a uniform mixing.Step 2. Then put the loading bowl into the ice cream machine, both ends of the loading bowl handle shall be aligned with the groove of the upper cover.

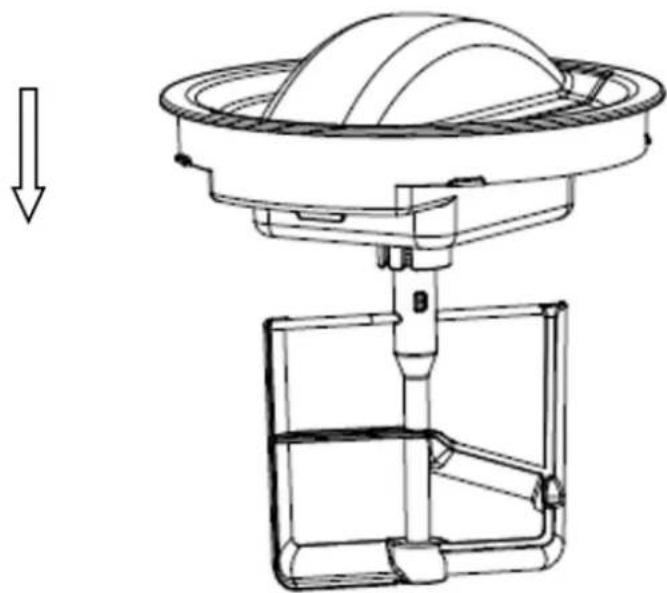

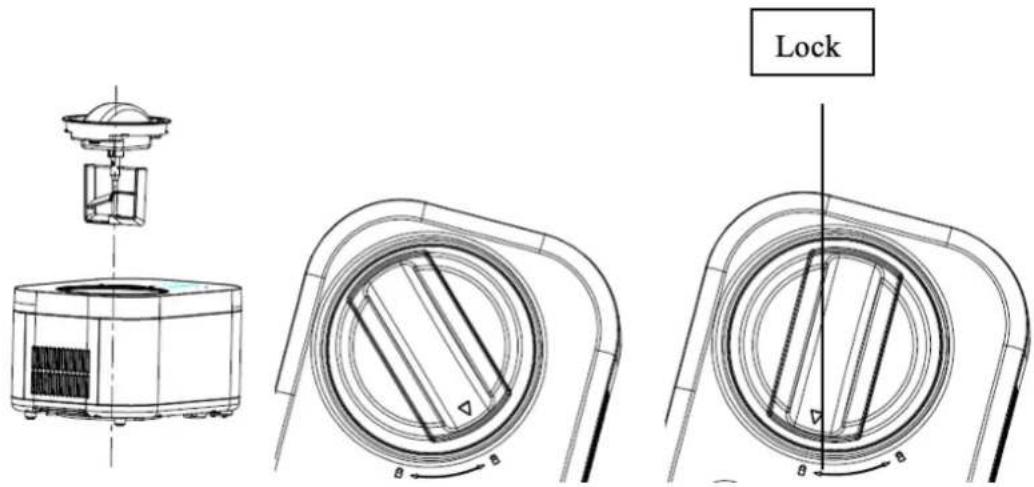

Step 5. Put the components installed in step 4 into the ice cream machine, make sure that the center of the convex hull of the loading bowl and the motor components of the mixing fan blade are in the same straight line, lock the components clockwise, and make sure that the triangle mark on the components rotates to the "LOCK" mark.

Step 6. Plug in the power supply, touch the power button for 1 second, the machine starts up, the ice cream mode indicator light is red, touch the START/STOP button, the indicator light is green, and start to make ice cream.Step 7. When the ice cream is finished, touch the power button for 1 second, and the machine will shut down.

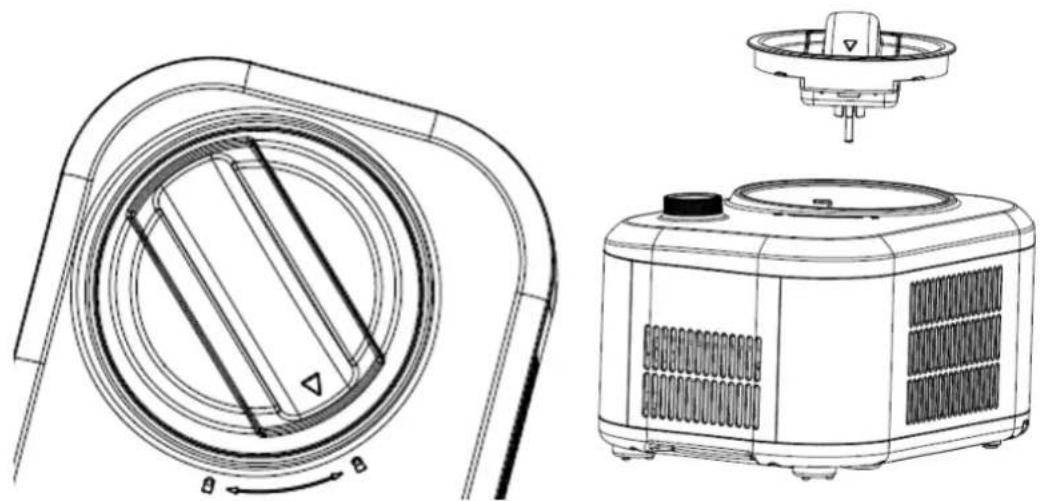

Step 8. Turn the transparent lid and motor components anticlockwise. In the process of spinning out, there will be a slight friction sound, which is normal. When the triangle mark is aligned with the unlocking mark, take out the components and then take out the loading bowl.

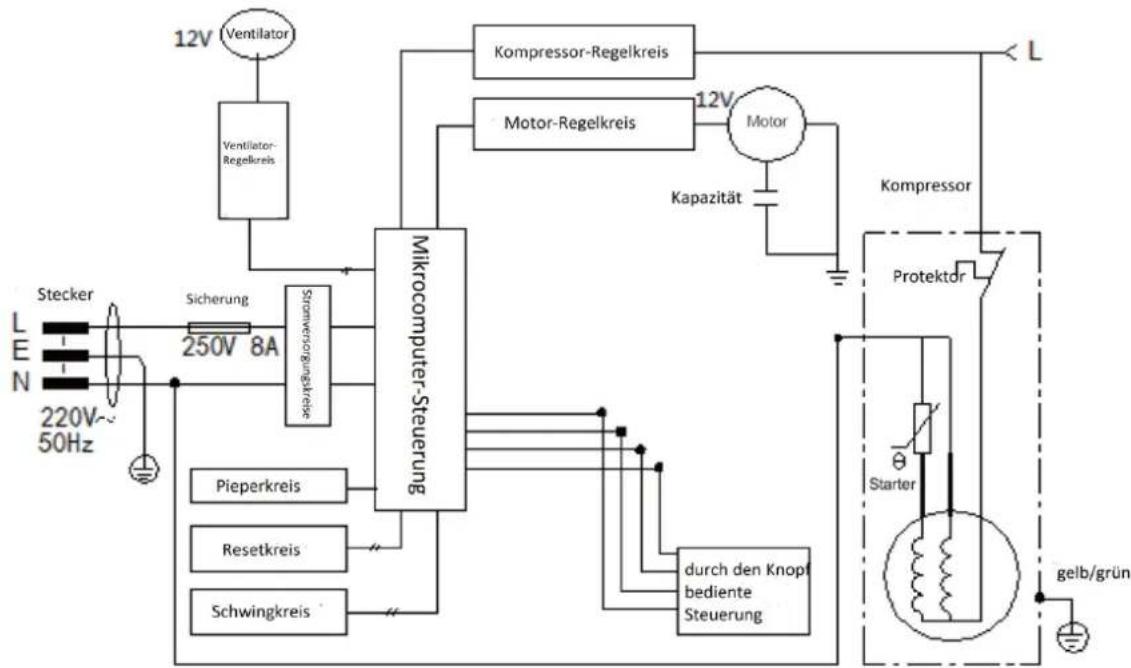

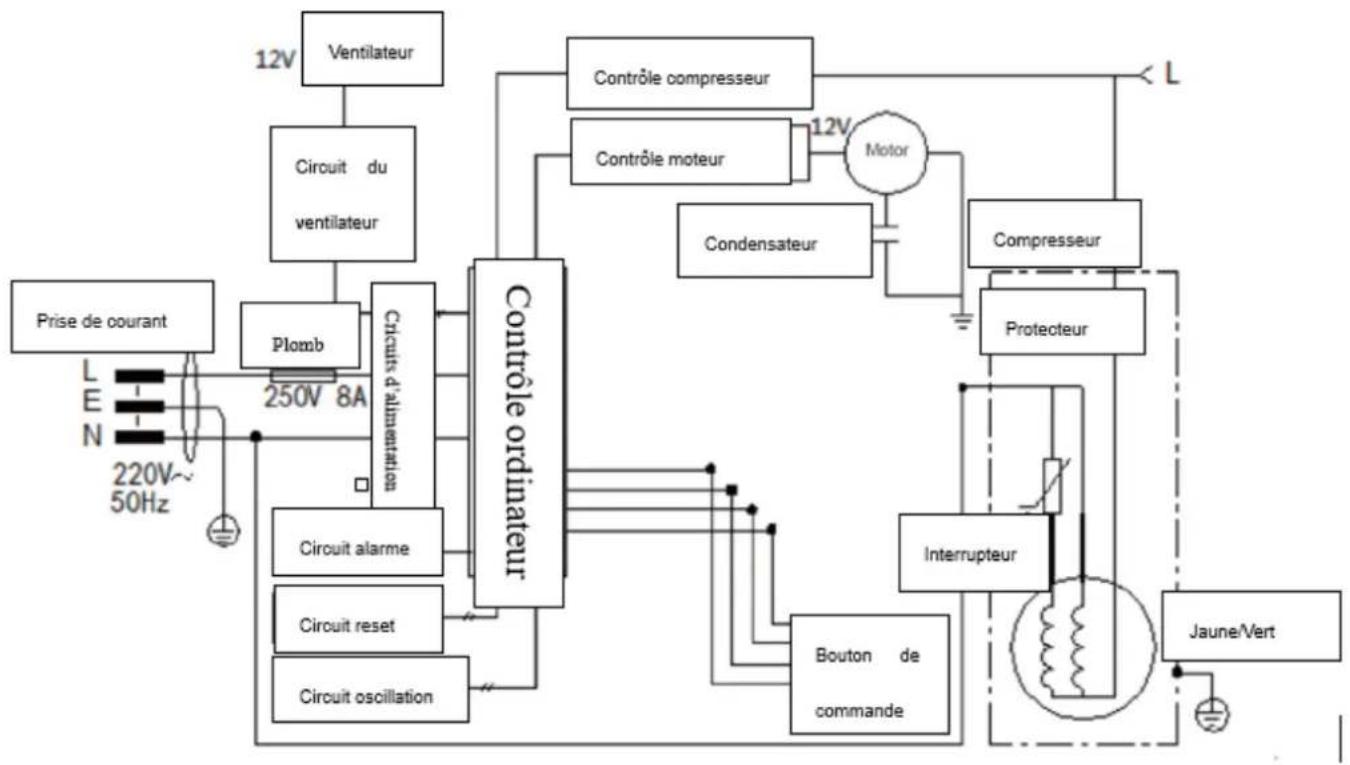

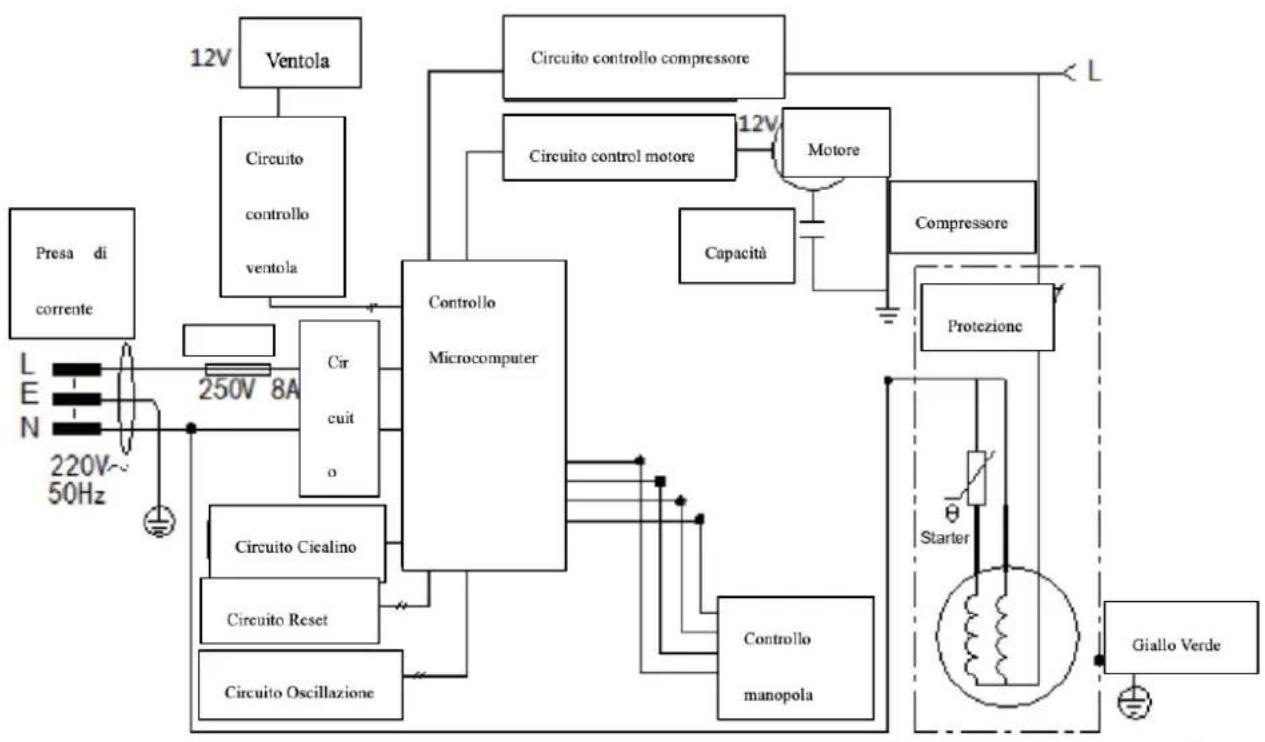

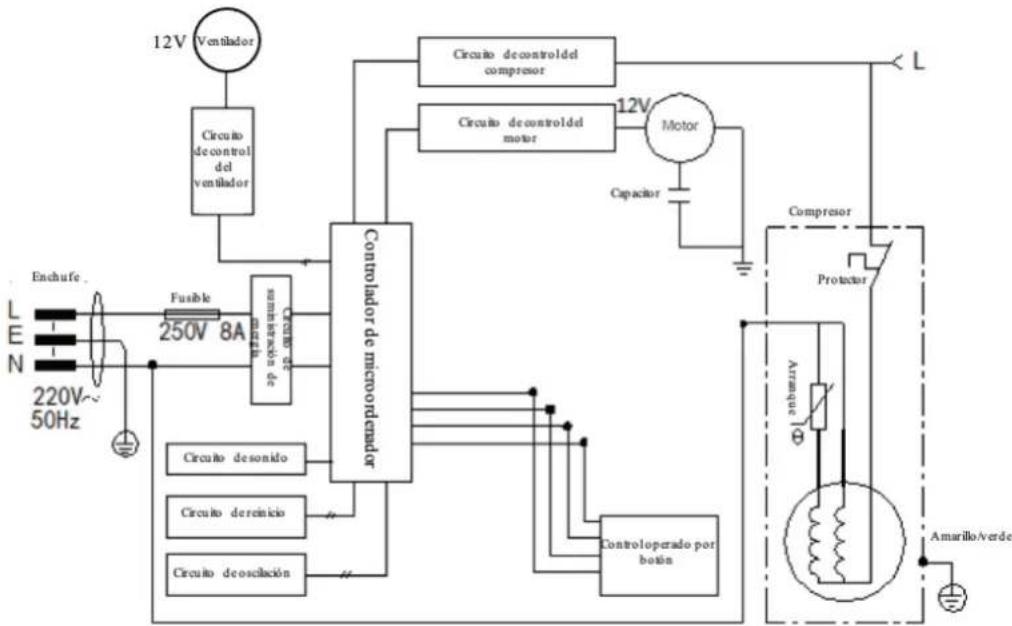

ELECTRICAL DIAGRAMMAINTENANCE Caution: The plug must be removed before cleaning to avoid electric shock. （1）Take out the mixing blade, wipe it with a dampened cloth （2）Take out the removable bowl, clean it with a dampened soft cloth （3）Wipe the transparent lid and refill lid with a dampened cloth （4）Remove the dirty on the body or other places with a dampened cloth, and do not pour water on cord, plug and ventilation, immerse the appliance in water or any other liquid （5）Allow drying thoroughly with a dry cloth, then return the component to the home position.COMMON PROBLEM No. Exist problem Reason analysis Resolutions

Not easy to take out loading bowl after the ice cream is finished There are water drops between the refrigeration barrel and the loading bowl that are not wiped clean, resulting in freezing Wait 3-8 minutes before taking out the ice cream bucket.

The transparent lid is lifted to the mixing fan blade, and it cannot be stuck in place The mixing fan blades not in place, and pay attention to the alignment of the convex hull at the bottom Put the mixing fan in place and rotate the transparent cover in place

The loading bowl cannot be placed in the cold bucket Deformation caused by improper use of loading bowl Buy a new loading bowl

At the beginning of making ice cream, the mixing fan seriously scratched or jammed. Deformation caused by improper use of loading bowl Buy a new loading bowl

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.
