Product type	Vacuum packaging machine
Brand	Wëasy
Model	SIL85
Power supply	220-240 V ~ 50 Hz (EU) / 120 V ~ 60 Hz (US)
Rated power	85 W
Vacuum level	-60 kPa
Vacuum time	10 seconds
Maximum sealing width	300 mm
Noise level	Less than 75 dB
Functions	Automatic vacuuming, sealing, vacuum for large bags and containers, emergency stop
Compatible packaging types	Sealing bags with lines or folded edges, large bags, airtight containers (accessory included)
Usage	Domestic, indoor only
Maintenance	Clean with a damp cloth, do not immerse, clean the channel after use, replace the paper support
Safety	Do not use for liquids, do not touch hot sealing strip, unplug when not in use, do not repair yourself
Wear parts	Sealing foam, heating strip, gasket
Warranty	2 years (excluding wear parts and accessories)
After-sales service	H.Koenig after-sales service: https://sav.hkoenig.com
Environmental information	Do not dispose of with household waste, recycle via selective collection

Frequently Asked Questions - SIL85 Wëasy

How to use the appliance for the first time?

Remove the packaging, protective bag, and support pieces. Plug in the appliance. Open the lid, insert one side of the bag into the vacuum channel, close the lid until it clicks. Press the air suction button twice to start the process.

What is the maximum width of the bag that can be used?

The maximum bag width is 300 mm (30 cm). Use bags with lines or folded edges for better vacuuming.

Can the appliance vacuum liquids?

No, the appliance is not designed for liquids. Avoid vacuuming foods containing a large amount of liquid, as the tube may become blocked.

How to clean the appliance after use?

Unplug the appliance and let it cool. Wipe the surface and vacuum channel with a damp cloth or sponge. Never immerse the appliance in water. Use a cloth or paper to remove residues from the channel.

What to do if the bag is not completely emptied of air?

Check that the end of the bag is properly inserted into the vacuum channel and that the lid is securely locked. Ensure the sealing foam is not damaged. Remove any food debris around the heating strip.

How to use the appliance with large bags or airtight containers?

Use the provided suction hose: insert the pointed end into the suction hole of the appliance, then connect the other end to the bag or container. Close the lid and press the air suction button twice.

What is the cooling time between two uses?

Let the appliance cool for 40 seconds between each vacuum cycle to avoid overheating the heating strip.

Is the appliance safe for children?

The appliance can be used by children over 8 years old under supervision. Keep it out of reach of children under 8 years. Never leave the appliance unattended during operation.

What to do if the heating strip does not seal properly?

Let the heating strip cool for a few minutes. Clean food residues. Make sure the bag is flat and the lid is closed correctly. If the problem persists, contact after-sales service.

Where to find spare parts and accessories?

Accessories (hose, supports) and wear parts (sealing foam) are available on the after-sales service website: https://sav.hkoenig.com. Check your appliance page for compatible parts.

USER MANUAL SIL85 Wëasy

weasy Releasing Valve Air Suction

Vacuum sealer Appareil de mise sous vide Vakuumierer Vacuümsealer Selladora de alimentos al vacío Sigillatrice sottovuoto

ENGLISH

Dear Users:

Thanks for using the “Vacuum Sealer Machine”.

Please read the user manual carefully before using the Vacuum Sealer in help you in understanding its performance and features so you can properly seal and store your food.

Important Safeguards & Tips:

• Read the User manual before using the machine.
• The vacuum sealer is for home use only.
• The vacuum sealer is not applicable for liquid related foods.
• The vacuum sealer is not applicable for children or someone who cannot understand the product's performance. (make sure one skilled operator oversees the use of the equipment to ensure safety)
• Keep out of reach of children. The vacuum sealer is not a toy and should be stored in an area out of reach for children
• Keep out of reach of children. The vacuum sealer is not a toy and should be stored in an area out of reach for children
• Do not leave the vacuum sealer alone during operation process.
• Do not touch the sealer strip immediately after complete sealing, the sealer strip is hot.
• Unplug the vacuum sealer when the machine is not in use.

• If there is any part of the vacuum sealer (power cord, plug or vacuum sealer) is defective, please do not disassemble or repair the appliance by yourself. For your safety, do not use it anymore and please contact your dealer for repair/replacement.

• The vacuum sealer is for indoor use only. Do not use outdoors or in a moist or a hot environment.

• Do not use chemical solvent to clean the vacuum sealer. Do not use machine oil to smooth the vacuum sealer.
• Unlock the lid after each use, it prevents pressure from being applied to the sealing gasket and sealing foam.
• Do not vacuum the food with large amounts of liquids because the accessory hose cannot be cleaned properly. Soak up water in the hose by a piece of dry cloth or paper.
• After connecting power, do not press the Vacuum & Seal when you open the lid
• Do not immerse any part of the appliance, power cord or plug in water or other liquid
• Use only accessories or attachments recommended by the manufacture.

- This device is not intended for use by persons with reduced capacity on the physical, mental or sensory or lack of experience and knowledge (including children), unless he has them was asked to monitor or if they have had instructions on the use of the appliance by a person responsible for their safety. Children should be supervised to ensure they do not play with the device.

• This appliance may be used by children of at least 8 years of age, as long as they are supervised and have been given instructions about using the appliance safely and are fully aware of the dangers involved.
• Cleaning and maintenance should not be carried out by children unless they are at least 8 years of age and are supervised by an adult.
• Keep the appliance and its power cord out of reach of children under 8 years of age.

• When using electrical equipment, safety precautions must always be taken to prevent the risk of fire, electric shock and/or injury in the event of misuse.

• Make sure that the voltage rating on the typeplate corresponds to your main voltage of your installation. If this is not the case, contact the dealer and do not connect the unit

• Please keep this document at hand and give it to the future owner in case of transfer of your device
• Never leave the unit unattended while in operation.
• The device must not be used if it has been dropped, it obvious signs of damage are visible or if it has leaks.

Diagram of a device's internal structure with numbered labels pointing to different components.

Interior view of a refrigerated air conditioner unit with open lid and internal tray (no text or symbols visible)

Front view of a white remote control panel with buttons and indicator lights (no visible text or symbols)

1. Lid Lock Release button
2. Vacuum releasing valve
3. Air suction
4. Press 5 or 6 for cancel
5. Vacuum Button
6. Seal Button
7. Indicator
8. Sealing Foam
9. Heat sealing strip
10. Thermal fuse
11. Vacuum channel
12. Lid lock Release button

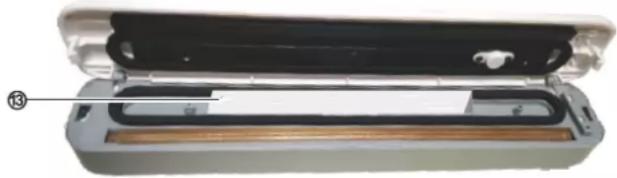

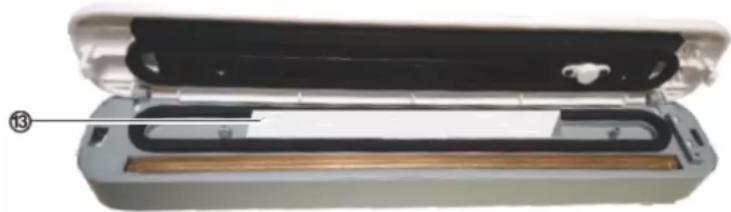

13. Paper stand
14. Advice sticker for close lid
15. Accessories vacuum hose

Remark: Please unlock the lid after each use, and re-insert the paper stand after vacuuming, it prevents pressure from being applied to the sealing foam.

TechnicalSpecifications

Rated voltage: AC 220-240V 50Hz (EU) / AC120V 60Hz (US)

Rated power:85w. Sealing time:10 seconds

Vacuum Degree: -60kpa. Noise value: less than 75Db

Operation Notes:

First time Use.

Remove the package, protective bag and supporting parts when using the machine for the first time.

Operation guide:

The Sealing function:

1. Cut bag material to appropriate size you desired, Be sure to cut straight and flat.
2. Open the lid, Insert one end of bag material into vacuum channel (across sealing strip). Be sure to stretch the end of bag flat.

Close both sides of the lid until you hear a click (follow the advice sticker to close lid), which indicates the vacuum sealer is completely locked.
3. Connect the power supply and press the "Seal" button twice to initiate the sealing function while the blue indicator led is on, 10 seconds later, It stops automatically when finished sealing, the blue indicator led is off.
4. You can also transfer to the sealing function from vacuum sealing by pressing the button "Seal" twice during vacuum process, it stops automatically when finished sealing, the blue indicator led is off.
5. Turn the Releasing valve to release the air and press both lid lock release button to open the lid, take out the bag.

Notes: please let the machine cool down for 40 seconds after each use

The vacuum sealing functions

1. Place your food or item in bag. leave enough space between bag contents and top of bag.
2. Open the lid and place open end of bag into vacuum channel. (Make sure the bag all inside the vacuum channel)
3. Close both sides of the lid until you hear a click (follow the advice sticker to close lid), which indicates the vacuum sealer is completely locked.
4. Connect the power supply and press vacuum seal button continuously two times to begin vacuuming and sealing process. The blue indicator led is on, the vacuum setting can be -60kpa, and the sealing function is on automatically, It will stop automatically when complete vacuum and sealing. the blue indicator led is off.
5. Turn the Releasing valve to release the air and press both lid lock release button to open the lid, take out the bag.
6. If you desired half-vacuumed food or item, press the button “Vacuum seal” or ‘Seal’ to stop vacuum sealing, then press “Seal” to transfer into seal function, It stops automatically when

finished sealing, the blue indicator led is off.

*Notes: The vacuum sealing time is about 2 minutes.

Always turn the Releasing valve to release the air and press both lid lock release button to open the lid

Stop function:

Stop the machine when vacuum sealing or sealing by pressing the button “Vacuum seal” or ‘Seal’ for any emergency.

Note:

1. The vacuum sealer is not suitable for vacuuming liquid food.
2. The maximum width of the vacuum bag/pouch is 30cm(300mm)
3. Please use the vacuum sealing bags or bags with folded sides or bags with lines for vacuuming, the normal bags or bags with no lines no folded side can be sealed, but it can't be vacuumed properly.
4. Vacuum sealing your food extends shelf life of your food significantly. However, food will eventually spoil and rot.

Extra vacuuming function for big size vacuuming bag or vacuuming canisters.

1. Vacuuming function for big size vacuuming bag.

a. Prepare appropriate big size vacuuming bag and put item into the bag, close the open end of bag, make sure the bag is fully closed and air can't enter the bag.
b. Take out accessories vacuum hose, insert the sharp end into the air suction hole, the end with round screw thread (screw thread diameter 21.8mm) be connected with air outlet on the bag, make sure it is well connected.
c. Close both sides of the lid until you hear a click (follow the advice sticker to close lid).
d. Connect the power supply and press vacuum seal button twice to begin vacuuming process. The blue indicator led is on, vacuuming will stop automatically when it is finished, . the blue indicator led is off.

1. Vacuuming function for vacuuming canisters.

a. Prepare appropriate size vacuuming canister and put items into it, close the lip of canister and turn the knob on the canister into seal, make sure the canister is fully closed and air can't enter into it.
b. Take out accessories vacuum hose, insert the sharp end into the air suction hole, remove the end with round screw thread, another sharp end will be available (sharp end diameter 5.2mm) and can be inserted into the air suction hole on the canister, make sure it is well inserted.
c, Close both sides of the lid until you hear a click (follow the advice sticker to close lid).
d, Connect the power supply and press vacuum seal button twice to begin vacuuming process. The blue indicator led is on, vacuuming will stop automatically when it is finished, . the blue

indicator led is off.

Notes: The vacuum sealing time is about 2 minutes. For the big size vacuuming bag or vacuuming canisters, vacuuming may not finish but machine stop working and blue indicator is off, please press “vacuum seal” button again to continue the vacuuming process until it is finished, blue indicator is off.

MAINTENANCE AND CLEANING.

1. Before cleaning the vacuum sealer, please turn off the vacuum sealer and unplug the power cord.
2. Do not immerse the vacuum sealer in water or other liquid.
3. Wipe the surface and vacuum channel with a piece of damp cloth or sponge after the vacuum sealer is cooling down.
4. Do not use a brush to clean the vacuum sealer, it may scratch the surface.
5. During the vacuum sealing process, small amounts of liquids, crumbs or food particles can be inadvertently pulled into the vacuum channel. Empty the vacuum channel after each use with a piece of cloth or paper.
6. After each use, place the paper stand between the upper lid and lower lid to prevent sealing foam compression.

Troubleshooting

To quickly solve your problems and to prevent improper using and settings, please follow operations below. If your problems or enquiry cannot be eliminated after reading the table, please do not hesitate to contact us.

Problems	Solution
Vacuum sealer does not work	1. Make sure vacuum sealer is plugged in, make sure wall outlet is functional.2. Make sure the power cord and the vacuum sealer are not defective. For your safety, do not operate defective vacuum sealer.
Vacuum pump is running, but bag	1. Adjust the bag and try again. Make sure the open
cannot be completely vacuumed or cannot be sealed.	end of the bag is down inside the vacuum channel.2. Check the sealing foam are loose or tearing. You may take out the sealing foam and change it, clean it and re-insert it.3. Check for food debris around seal area and heat strip. Remove the food debris. Make sure the heat strip is inserted it.4. Make sure the vacuum sealer is locked properly during operating process.5. Make sure on end of bag is fully sealed.
After vacuumed, the air re-entered the bag.	1. Examine the seal, a wrinkle along the seal may cause air to-re-enter the bag. To prevent wrinkles in the seal, gently stretch bag flat while inserting bag into vacuum channel and re-seal the bag.2. Sometimes moisture or food materials (such as juices, crumbs, powders, etc...) along seal prevents bag from sealing properly. Cut bag open, wipe to inside of bag and re-seal.3. Examine the food materials, if moisture or liquid arise from these food materials, cut bag open and re-seal, or change into a new bag.4. For juicy, freeze it before vacuum sealing is recommended.
Bag cannot be sealed properly.	1. The overheating heat strip will melt the bag. Please lift the lid and let the heat strip cool down for few minutes.2. Wrinkle and moisture or food materials along sea prevents bag from sealing well.3. In general, always wait 20 seconds between seals.

WARRANTY

The warranty period for our products is 2 years, unless otherwise stated, starting from the date of initial purchase or the date of delivery.

If you have any problems or questions, you can easily access our help pages, troubleshooting tips, FAQ, and user manuals on our service site: https://sav.hkoenig.com.

By typing the reference name of your device in the search bar, you can access all available online support, designed to best meet your needs.

If you still cannot find an answer to your question or problem, then click on “Did the answer solve your problem?”. This will direct you to the Customer Support Request Form, which you can fill out to validate your request and get help.

WARRANTY CONDITIONS

The warranty covers all failures occurring under normal use, in accordance with the usage and specifications in the user's manual.

This warranty does not apply to packaging or transportation problems during shipment of the product by the owner. It also does not include normal wear and tear of the product, nor maintenance or replacement of consumable parts.

EXCLUSION OF WARRANTY

• Accessories and wearing parts (*).
• Normal maintenance of the device.
• All breakdowns resulting from improper use (shocks, failure to comply with power supply recommendations, poor conditions of use, etc.), insufficient maintenance or misuse of the device, as well as the use of unsuitable accessories.
• Damage of external origin: fire, water damage, electrical surge, etc.
• Any equipment that has been disassembled, even partially, by persons other than those authorized to do so (notably the user).
• The products whose serial number would be missing, deteriorated or illegible that would not allow its identification.
• The products subjected to leasing, demonstration, or exhibition.

(*) Some parts of your device, called wear parts or consumables, deteriorate with time and frequency of use of your device. This wear and tear are normal but can be accentuated by poor conditions of use or maintenance of your device. These parts are therefore not covered by the warranty.

The accessories supplied with the device are also excluded from the warranty. They cannot be exchanged or refunded. However, some accessories can be purchased directly through our website: https://sav.hkoenig.com/.

ENVIRONMENT

CAUTION:

Do not dispose of this product as it has with other household products. There is a separation of this waste product into communities, you will need to inform your local authorities about the places where you can return this product. In fact, electrical and electronic products contain hazardous substances that have harmful effects on the environment or human health and should be recycled. The symbol here indicates that electrical and electronic equipment should be chosen carefully, a wheeled waste container is marked with a cross.

Adeva SAS / H.Koenig Europe - 8 rue Marc Seguin - 77290 Mitry Mory - France

www.hkoenig.com - [e-mail] - [e-mail] - Tél: [phone]
