IAN 275087 - LED Spotlight Livarno Lux - Free user manual and instructions

Product type	LED floodlight
Brand	Livarno Lux
Model	LSL 10 A3 (IAN 275087)
Supply voltage	220-240 V ~ 50/60 Hz
Power consumption	12.5 W (+/- 8%)
LED power	9.6 W (+/- 8%)
Protection class	I (with earth connection)
IP rating	IP65 (waterproof against water jets)
Bulb	Citizen LED
Luminous flux	800 lm ±5%
Color temperature	5000 K (neutral white)
Color rendering index (CRI)	80
LED lifetime	Approx. 20,000 hours
Dimensions (with bracket)	11.5 x 16 x 9.6 cm
Weight	Approx. 495 g
Use	Indoor and outdoor
Box contents	LED floodlight, mounting accessories (2 screws, 2 wall plugs), user manual
Maintenance	Clean with a soft, dry cloth; do not use solvents
Repairability	LED not replaceable; replace entire floodlight at end of life
Warranty	3 years
Manufacturer	TARGA GmbH, Coesterweg 45, 59494 SOEST, Germany

Frequently Asked Questions - IAN 275087 Livarno Lux

What is the power of this LED floodlight?

The Livarno Lux LED floodlight consumes 12.5 W (+/- 8%) total, with an LED power of 9.6 W (+/- 8%).

Can I use this floodlight outdoors?

Yes, this floodlight has an IP rating of IP65, making it suitable for outdoor use.

How do I install this floodlight?

Installation must be carried out by a qualified electrician. Use the mounting bracket as a template, drill holes, fix the bracket, then connect the electrical cable (not supplied) to the terminal block respecting the color codes (L for phase, N for neutral, yellow/green ground).

Is the LED replaceable?

No, the light source is integrated and cannot be replaced. When the LED reaches its lifetime (about 20,000 hours), the entire floodlight must be replaced.

What is the lifetime of the LED?

The lifetime of the Citizen LED is about 20,000 hours, corresponding to several years of normal use.

Is this floodlight dimmable?

The manual does not mention a dimming function. This floodlight is probably not dimmable and should be used with a simple switch.

What type of electrical cable should I use?

Use an electrical cable of type H05RN-F (rubber cable) for connection to the domestic network.

What to do if the protective glass is cracked?

If the protective glass is cracked, it must be replaced. Do not use the floodlight until the glass is intact, as this could compromise the seal and safety.

How to clean this floodlight?

Clean the floodlight with a soft, dry cloth. For heavy soiling, use a damp cloth, but ensure no liquid enters the housing. Never use solvents or harsh detergents.

What is the color temperature of this floodlight?

The color temperature is about 5000 K, corresponding to a neutral white, ideal for functional lighting.

USER MANUAL IAN 275087 Livarno Lux

User manual and service information

（FR）（BE）

Safety instructions 13

Copyright 16

Prior to use 16

Assembly. 16

First use 17

Cleaning / maintenance. 17

Maintenance. 17

Cleaning 17

Environmental and disposal information 18

Conformity information 18

Warranty and servicing advice. 19

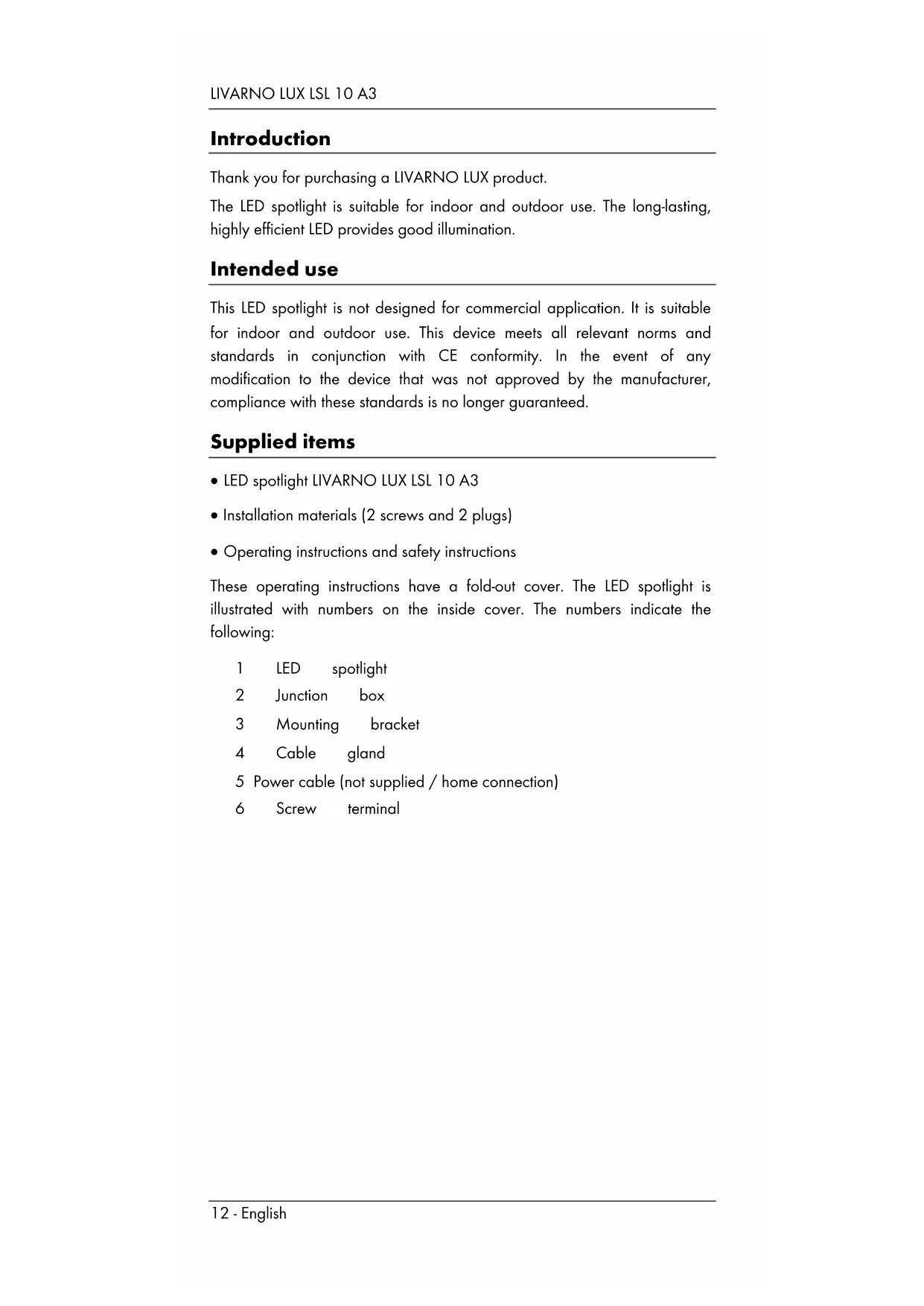

Introduction

Thank you for purchasing a LIVARNO LUX product.

The LED spotlight is suitable for indoor and outdoor use. The long-lasting, highly efficient LED provides good illumination.

Intended use

This LED spotlight is not designed for commercial application. It is suitable for indoor and outdoor use. This device meets all relevant norms and standards in conjunction with CE conformity. In the event of any modification to the device that was not approved by the manufacturer, compliance with these standards is no longer guaranteed.

Supplied items

LED spotlight LIVARNO LUX LSL 10 A3
- Installation materials (2 screws and 2 plugs)
- Operating instructions and safety instructions

These operating instructions have a fold-out cover. The LED spotlight is illustrated with numbers on the inside cover. The numbers indicate the following:

1 LED spotlight
2 Junction box
3 Mounting bracket
4 Cable gland
5 Power cable (not supplied / home connection)
6 Screw terminal

Technical data

Brand:

LIVARNO

LUX

Model designation: LSL 10 A3

Operating voltage: 220 - 240V

,50 / 60Hz

Power consumption of complete

battery LED spotlight: 12.5W (+/- 8%)

Power consumption of LED: 9.6W (+/- 8%)

Protection class: I (with earth conductor)

Protection rating: IP65

Light bulb: Citizen LED

Total luminous flux: 800lm + / - 5% (with cover)

Colour temperature: approx. 5000K (neutral white)

LED beam angle: approx. 120^

Ra (colour rendering index): 80

LED service life: approx. 20000 hours

Dimensions (W× H× D) :approx. 11.5× 16× 9.6cm

(with bracket)

Weight:

approx.

495g

Safety tested by:

Safety instructions

Before using this LED spotlight for the first time, please read the following instructions carefully and take note of the safety warnings, even if you are familiar with the use of electronic devices. Store these operating instructions in a safe place for future reference. If you sell the device or pass it on, always include these operating instructions.

Any cracked protective cover must be replaced.

The LED spotlight has an earth conductor. The earth conductor (yellow/green) must be connected to the indicated terminal.

WARNING! This symbol

indicates important information for safe operation of the LED spotlight and the safety of the user.

DANGER! This symbol warns against dangerous electrical voltage!

Electrical devices do not belong in the hands of children. Never allow children to use electrical devices unsupervised. Children may not recognise potential risks. Always keep plastic packaging away from children. It poses a suffocation risk.

If smoke is produced, or there are any unusual sounds or smells, turn the LED spotlight off immediately. In such cases, the device should not be used until it has been inspected by authorised service personnel. Never inhale smoke from a potential

device fire. If you have inhaled smoke, however, consult a doctor. The inhalation of smoke can be harmful.

The housing of the LED spotlight must not be damaged. There is a risk of an electric shock if the housing is damaged.
Never open the housing of the LED spotlight because it does not contain any parts that require maintenance. There is a risk of an electric shock if the housing is open.
You must not hang any objects on the LED spotlight. The housing is not designed to carry loads. Otherwise, the LED spotlight could be damaged.
Never use such optical instruments as a magnifying glass to look directly into the light beam. This can lead to eye injuries. In the event of a suspected eye injury, consult a doctor.
Caution: The light and the light source can carry dangerous electrical voltages and therefore cause serious personal injury.

Copyright

All information contained in these instructions is subject to copyright and is provided for information purposes only. It is only permitted to copy or duplicate data and information with the express and written consent of the author. This also includes commercial use of the content and data. The text and illustrations are based on the state of the art at the time of printing. Subject to change.

Prior to use

Remove the LED spotlight and the installation materials from the packaging. Check the LED spotlight for signs of damage. If damaged, the LED spotlight must not be used.

Assembly

The installation must be performed only by an authorised electrician!
The circuit must be switched off during the installation!
Use suitable tools for the installation.
When drilling the holes, make sure that no cables or pipes in the wall are damaged.
Use a H05RN-F power cable [5], for example.

• Remove the mounting bracket [3] from the LED spotlight [1].
• Use the mounting bracket [3] as a template to mark the two outer holes.
• Then drill two holes and attach the mounting bracket [3] using the supplied plugs and screws.
• Open the junction box [2] by loosening the four screws and removing the cover.
• Loosen the cable gland [4] and remove the rubber seal.
• Put the nut of the cable gland [4] and then the rubber seal with the flat side first on the power cable [5].
• Run the power cable [5] through the cable gland [4].
• Connect the power cable [5] using the screw terminal [6]. Make sure that the individual wires of the power cable [5] are connected correctly.

Wire	Symbol	Designation
Black or brown L Phase
Blue	N	Neutral
Yellow/green		Earth conductor

• Then screw the power cable [5] with the rubber seal tightly in the cable gland [4].
• Close the junction box [2] by screwing the cover again tightly with the four screws that you previously removed. When closing the junction box [2], ensure that the sealing ring lies correctly in the groove. Otherwise, IP protection is not guaranteed.
• Then attach the LED spotlight to the mounting bracket [3]. To do so, use the previously removed screws and washers. Make sure that the spring washers are located between the LED spotlight [1] and the mounting bracket [3]. The other washers must be between the screw head and the mounting bracket [3].

First use

After you have installed the LED spotlight as previously described, you can connect the circuit again. You can now switch the LED spotlight on and off via the corresponding light switch of your home lighting system.

Cleaning / maintenance

Maintenance

The light bulb of the LED spotlight is a long-lasting LED. It cannot be replaced and does not require maintenance.

The light source of this light cannot be replaced; when the light source has reached the end of its service life, the entire light must be replaced.

Cleaning

Ensure that no liquid can penetrate the housing. There is a risk of an electric shock.

To clean the LED spotlight, use a soft, dry cloth and never use any solvent or cleaner that would corrode the plastic materials. Use a slightly damp cloth for more stubborn dirt.

Environmental and disposal information

When the crossed out wheelie bin symbol appears on a product, this indicates that the product is subject to the European Directive 2012/19/EU. All old electrical and electronic devices must be separated from normal household waste and disposed of at designated state facilities. The light bulb must also be disposed of properly.

The device must not be disposed of with the household or bulky waste. You can obtain information regarding collection points or collection times via your local administration or local disposal services.

Dispose of the packaging in an environmentally compatible manner. Cardboard can be put out for municipal paper collections or brought to public collection points for recycling. Films and plastic used for packaging the device are collected by your local disposal services and disposed of in an environmentally compatible manner.

Conformity information

This device meets the basic requirements and other relevant regulations of the EMC Directive 2014/30/EU, the Low Voltage Directive 2014/35/EU, the ErP Directive 2009/125/EC and the RoHS Directive 2011/65/EU. The

To obtain a complete EU Declaration of Conformity, send an e-mail to the following e-mail address: [e-mail]

Warranty and servicing advice

Warranty of TARGA GmbH

This device is sold with three years warranty from the date of purchase. Please keep the original receipt in a safe place as proof of purchase. Before using your product for the first time, please read the enclosed documentation. Should any problems arise which cannot be solved in this way, please call our hotline. Please have the article number and, if available, the serial number to hand for all enquiries. If it is not possible to solve the problem on the phone, our hotline support staff will initiate further servicing procedures depending on the fault. Within the warranty period the product will be repaired or replaced free of charge as we deem appropriate. No new warranty period commences if the product is repaired or replaced. Consumables such as batteries, rechargeable batteries and lamps are not covered by the warranty.

Your statutory rights towards the seller are not affected or restricted by this warranty.

Service

Phone: [phone]

E-Mail: [e-mail]

Phone: [phone]

E-Mail: [e-mail]

Phone: [phone]

E-Mail: [e-mail]

Phone: [phone]

E-Mail: [e-mail]

IAN:275087

Manufacturer

TARGA GmbH

Coesterweg 45

59494 SOEST

GERMANY
