USER MANUAL AirVital Air Klarstein

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN43 6RE

United Kingdom

SICHERHEITSHINWEISE

Technical diagram of a kitchen appliance with numbered parts for identification

Line drawing of a fire fryer with an arrow indicating the blade and handle (no text or symbols on the device itself)

Line drawing of a cylindrical container with a lid and internal compartments filled with wood, labeled 'Abbildung 5' (no other text or symbols)

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the instruction manual are not covered by our warranty and any liability.

CONTENT

Safety Instructions 18

Product Description 20

Before first Use 20

Operation 22

Settings 26

Cooking Table 27

Care and Cleaning 28

Troubleshooting 28

Hints on Disposal 30

TECHNICAL DATA

Item number 10032331, 10032332
Power supply 220-240 V ~ 50-60 Hz
Power consumption 1300 W
Capacity of basket 2.5 Liter
Adjustable temperature 80-200 °C
Timer 0-60 Minuten

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Chal-Tec UK limited

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN43 6RE

United Kingdom

SAFETY INSTRUCTIONS

• Read all instructions.
• Do not touch hot surfaces.
• To protect against electric shock do not immerse cord, plugs, or base in water or other liquid.

- WARNING: This electrical appliance contains a heating function. Surfaces, also different than the functional surfaces, can develop high temperatures. Since temperatures are differently perceived by different persons, this equipment shall be used with CAUTION. The equipment shall be touch only at intended handles and gripping surfaces, and use heat protection like gloves or similar. Surfaces other than intended gripping surfaces shall get sufficiently time to the cool down before getting touched.

- Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or

- taking off parts.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.

- Do not use outdoors

- Do not let cord hang over edge of table or counter, or touch hot surfaces.

- Do not place on or near a hot gas or electric burner, or in a heated oven.

- Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.

- Always attach plug to appliance first, then plug cord in the wall outlet. To disconnect, turn any control to „off,” then remove plug from wall outlet.

- Never immerse the housing, which contains electrical components and the heating elements, in water or rinsing under the tap

- Avoid any liquid enter the appliance to prevent electric shock or short-circuit.

- Keep all ingredients in the basket or prevent any contact from heating elements.

- Do not cover the air inlet and the air outlet when the appliance is working.

• Fill the pan with oil may cause a fire hazard.

- Don't touch the inside of the appliance while it is operating.

- Ensure the appliance in placed on a horizontal, even and stable surface.

- This appliance is designed for household use only. It may not suitable to be safely used in environments such as staff kitchens, farms, motels, and other non-residential environments. Nor is it intended to be used by clients in hotels, motels, bed and breakfasts and other residential environments.

- If the appliance is used improperly or for professional or semi-professional purposes or if it is not used improperly or for professional or semi-professional purposes or it is not used according to the instructions in the user manual, the guarantee becomes invalid and we could refuse any liability for damage caused.

• Always unplug the appliance while not using.

• Do not use appliance for other than intended use.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are old than 8 and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.
• The appliances are not intended to be operated by means of an external timer or separate remote-control system.
• Check if the voltage indicated on the appliance fi ts the local mains voltage.
• Do not use the appliance if there is any damage on plug, mains cord or other parts.
• Do not go to any unauthorized person to replace or fi x damaged main cord.
• Keep the mains cord away from hot surfaces.
• Do not plug in the appliance or operate the control panel with wet hands.
• Do not place the appliance against a wall or against other appliances. Leave at least 10 cm free space on the back and sides and 10 cm free space above the appliance.
• Do not place anything on top of the appliance.
• Do not use the appliance for any other purpose than described in this manual.
• Do not let the appliance operate unattended.

CAUTION

Risk of burns! Any accessible surfaces may become hot during use.

During operation only use the handles.

• During hot air frying, hot steam is released through the air outlet openings, Keep your hands and face at a safe distance from the steam and from the air outlet openings.
• Also be careful of hot steam and air when you remove the pan from the appliance.
• Immediately unplug the appliance if you see dark smoke coming out of the appliance. Wait for the smoke emission to stop before you remove the pay from the appliance.
• The appliance needs approximately 30 minutes to cool down for handle or cleaning safely.

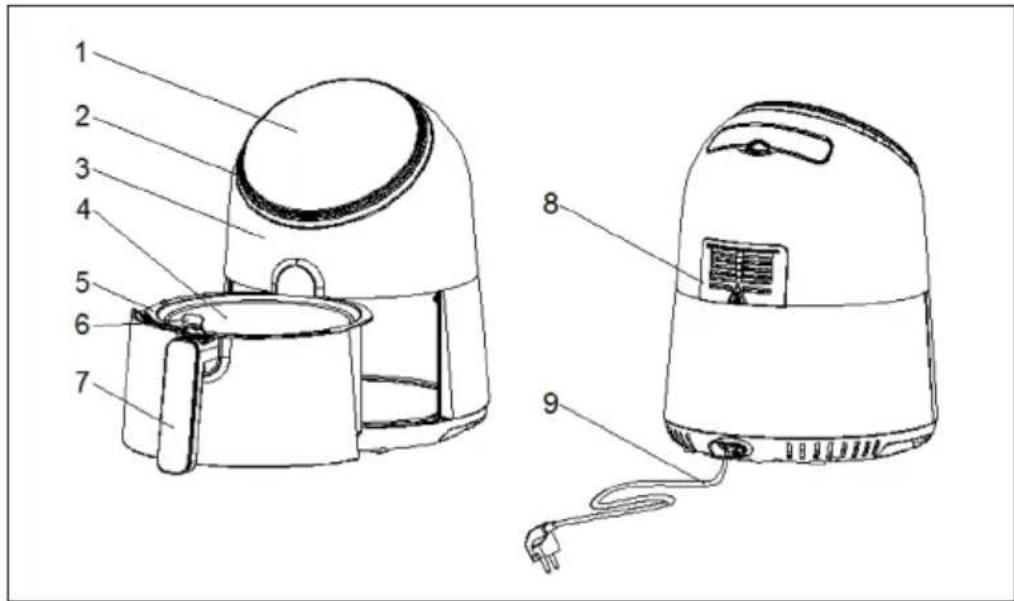

PRODUCT DESCRIPTION

Technical diagram of a kitchen appliance with numbered parts for identification

1 Control panel 6 Basket release button
2 Lid 7 Basket handle
3 Housing 8 Air outlet openings
4 Basket 9 Power cord
5 Pan

BEFORE FIRST USE

• Remove all packaging materials
• Remove any stickers or labels from the appliance
  • thoroughly clean the basket and pan with hot water, some washing-up liquid and a non-abrasive sponge.

Note: You can also clean these parts in the dishwasher.

- Wipe inside and outside of the appliance with a moist cloth. This is an oil-free fryer that works on hot air, Do not fill the pan with oil or frying fat.

Preparing for use

1 Place the appliance on a stable, horizontal and even surface.

NOTE: Do not place the appliance on non-heart-resistant surface.

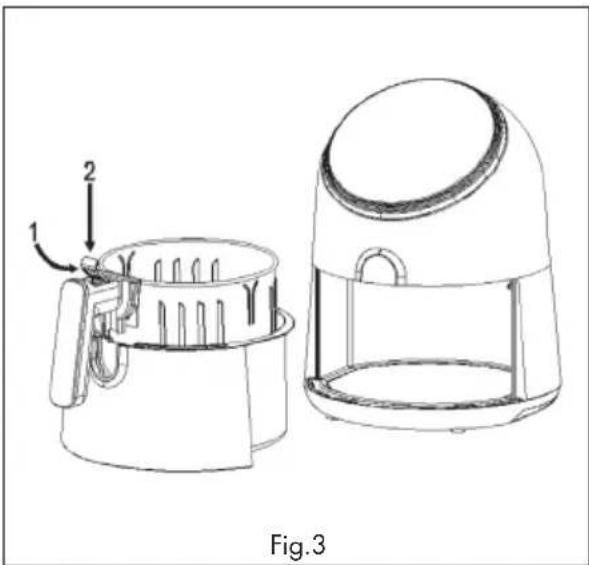

2 Place the basket in the pan (Fig.3).

Technical line drawing of a two-part air fryer device, showing internal components and housing (no text or labels)

3 Pull the cord from the storage compartment which locates on the bottom of the appliance.

Important Notes

• Do not fill the pan with oil or any other liquid.
• Do not put anything on top of the appliance, the airflow will be disrupted and affects the hot air frying result.

OPERATION

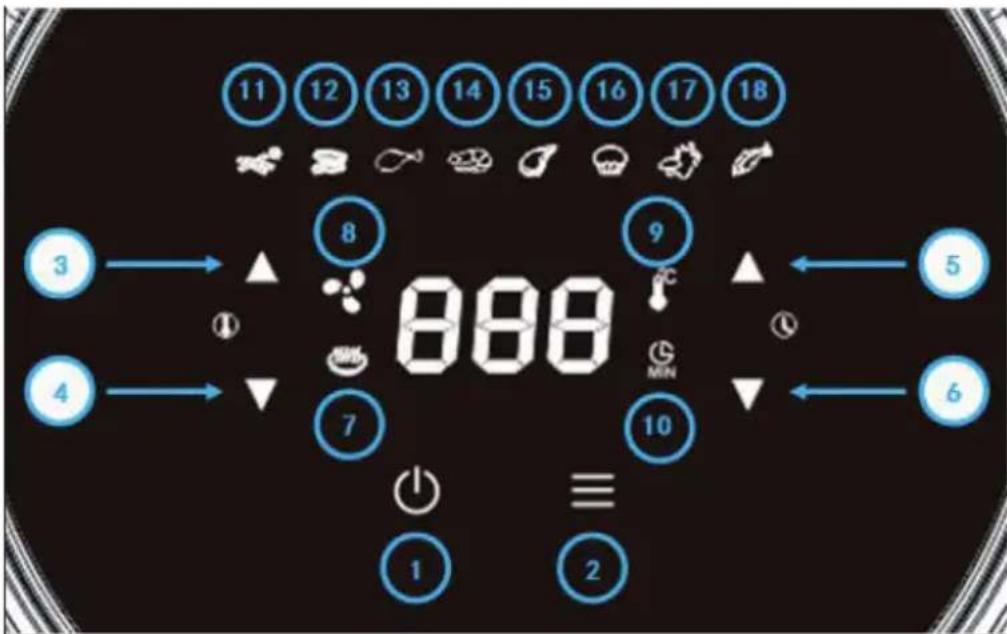

Display and Buttons

11 12 13 14 15 16 17 18 3 → ↑ 8 9 ← 5 4 → ↓ 7 10 ← 6 1 2

Fig.8

Button 1 -Power Button

Once the Outer Basket and Fry Basket are properly placed in the main Unit housing, the Power Button will be illuminated. Selecting the power button for 3 seconds will make the unit's default temperature 200^ , while the cooking time will be set to 15 minutes. Selecting the Power Button a second time will start the cooking process. Pressing the power button for 3 seconds to close the entire device during cooking. All the lights go out, the fan stops working.

Note: During cooking, you can touch the button to control the pause and start of cooking.

Button 2 – Preset Button

Selecting the ☐ Preset Button enables you to scroll through the 8 popular food choices. Once the program is selected, the predetermined time and cooking temperature function begins.

Button 3&4 -Temperature Control Buttons

The + and - symbols enable you to add or decrease cooking temperature 5 at a time. Keeping the button held down will rapidly change the temperature. Temperature Control range: 80-200°C.

Button 5&6 -Timer Control Buttons

The + and - symbols enable you to add or decrease cooking time, one minute at a time. Keeping the button held down will rapidly change the time.

Indicator lights

(7) Heating indicator

(8) Fan indicator

(9) Temperature indicator

(10) Timer indicator

(11-18) Program indicator

Hot air frying

1. Connect the mains plug into an earthed wall socket.

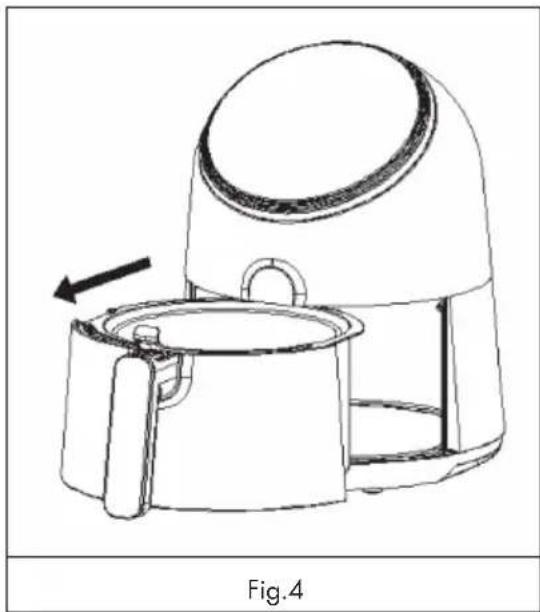

2. Carefully pull the pan out of the Hot-air fryer (Fig.4)

Line drawing of a kitchen air fryer with a side panel and an arrow indicating motion (no text or symbols)

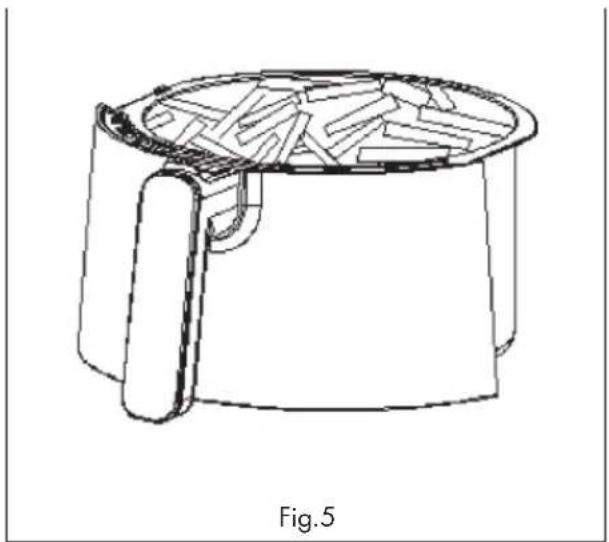

1. Put the ingredients in the basket. (Fig.5)

Line drawing of a cylindrical container filled with plastic sheets, labeled Fig.5 (no text or symbols on the diagram itself)

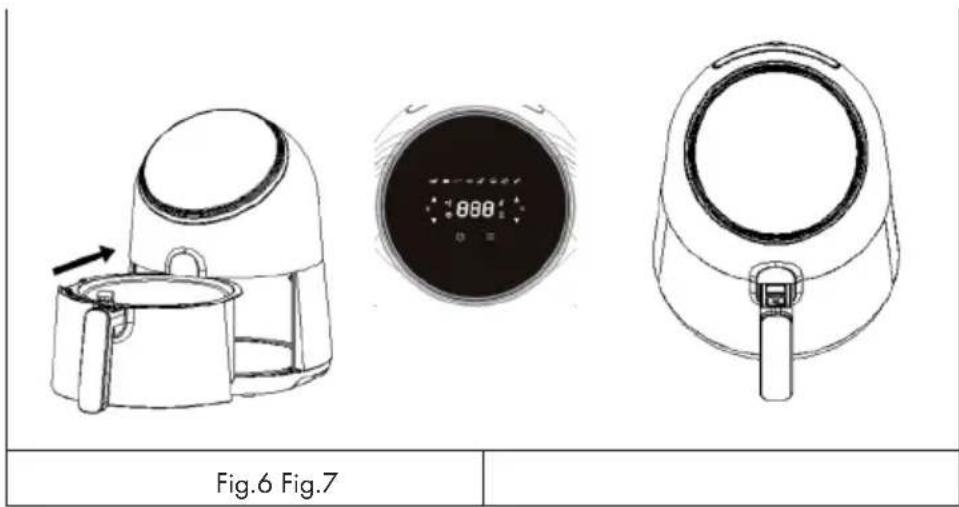

1. Slide the pan back into the Hot-air fryer (Fig.6) Noting to carefully align with the guides in the body of the fryer.

Fig.6 Fig.7

NOTE: Never use the pan without the basket in it. Caution: Do not touch the pan during and sometime after use, as it gets very hot. Only hold the pan by the handle.

1. Determine the required preparation time for the ingredient (see section 'Settings' in this chapter).
2. Operate the control panel as follows (Fig.8). Plug in the power, the whole power indicator light.
3. Some ingredients require shaking halfway through the preparation time (see section "Settings" in this chapter). To shake the ingredients, pull the pan out of the appliance by the handle and shake it. Then slide the pan back into the I fryer.

NOTE: Do not press the button the handle during shaking (Fig.3).

Tip: To reduce the weight, you can remove the basket from the pan and shake the basket only. To do so, pull the pan out of the appliance, place it on a heat-resistant surface and press the button of handle. and lift the basket out of the pan

1. When you hear the buzzer alarm „beep \~ Di“, the set preparation time has elapsed. Pull the pan out of the appliance and place it on a the trial framework.
2. Check if the ingredients are ready. If the ingredients are not ready yet, simply slide the pan back into the appliance and set the timer to a few extra minutes.
3. To remove ingredients (e.g. fries), pull the pan out of the Hot-air fryer and place it on trial framework, and press the basket release button and lift the basket out of the pan.

NOTE: Do not turn the basket upside down with the pan still attached to it, as any excess oil that has collected on the bottom of the pan will leak onto the ingredients. the pan and the ingredients are hot and hot fryer. Depending on the type of the ingredients in the I fryer, steam may escape from the pan.

1. Empty the basket into a bowl or onto a plate. Tip: To remove large or fragile ingredients, lift the ingredients out of the basket by a pair of tongs
2. When a batch of ingredients is ready, the Hot-air fryer is instantly ready for preparing another batch.

SETTINGS

This table below will help you to select the basic settings for the ingredients.

NOTE: Keep in mind that these settings are indications. As ingredients differ in origin, size, shape as well as brand, we cannot guarantee the best setting for your ingredients.

Because the Rapid Air technology instantly reheats the air inside the appliance instantly. Pull the pan briefly out of the appliance during hot air frying barely disturbs the process.

Tips

• Smaller ingredients usually require a slightly shorter preparation time than larger ingredients.
• A larger amount of ingredients only requires a slightly longer preparation time, a smaller amount of ingredients only requires a slightly shorter preparation time.
• Shaking smaller ingredients halfway through the preparation time optimizes the end result and can help prevent unevenly fried ingredients.
• Add some oil to fresh potatoes for a crispy result. Fry your ingredients in the Hotair fryer within a few minutes after you added the oil.
• Do not prepare extremely greasy ingredients such as sausages in the Hotair fryer.
  • Snacks that can be prepared in a oven can also be prepared in the Hotair fryer
  • The optimal amount for preparing crispy fries is 500 grams.
• Use premade dough to prepare filled snacks quickly and easily. Premade dough also requires a shorter preparation time than homemade dough.
• Place a baking tin or oven dish in the Hotair fryer basket if you want to bake a cake or quiche or if you want to fry fragile ingredients or filled ingredients
• You can also use the Hotair fryer to reheat ingredients. To reheat ingredients, set the temperature to 150 for up to 10 minutes.

COOKING TABLE

	Min-max Amount (g)	Time (min.)	Temperature (°C)	Shake Extra information
Potato & fries
Thin frozen fries 300-400 18-20 200 shake
Thick frozen fries	300-400	20-25	200	shake
Potato gratin 500 20-25 200 shake
Meat & Poultry
Steak 100-500 10-15 180
Pork chops 100-500 10-15 180
Hamburger	100-500 10-15 180
Sausage roll	100-500	13-15	200
Drumsticks	100-500 25-30 180
Chicken breast	100-500 15-20		180
Snacks
Spring rolls	100-400	8-10	200	shake	Use oven-ready
Frozen chicken nuggets	100-500	6-10	200	shake	Use oven-ready
Frozen fish fingers	100-400	6-10	200		Use oven-ready
Frozen bread crumbed cheese snacks	100-400	8-10	180		Use oven-ready
Stuffed vegetables	100-400	10	160
Baking
Cake	300 20-25 160			Use baking tin
Quiche	400	20-22	180		Use baking tin/oven dish
Muffins	300	15-18	200		Use baking tin
Sweet snacks	400	20	160		Use baking tin/oven dish

NOTE: Add 3 minutes to the preparation time when you start frying while the Hot-air fryer is still cold.

CARE AND CLEANING

NOTE: Clean the appliance after every use. The pan and the non-stick coating basket. Do not use metal kitchen utensils or abrasive cleaning materials to clean them, as this may damage the non-stick coating.

1 Remove the mains plug from the wall socket and let the appliance cool down.

Note: Remove the pan to let the Hot-air fryer cool down more quickly.

2 Wipe the outside of the appliance with a moist cloth.

3 Clean the pan, separator and basket with hot water, some washing-up liquid and a non-abrasive sponge. You can use degreasing liquid to remove any remaining dirt.

NOTE: The pan and basket are dishwasher-proof. If dirt is stuck to the basket or the bottom of the pan, fill the pan with hot water with some washing-up liquid. Put the basket in the pan and let the pan and the basket soak for approximately 10 minutes.

4 Clean the inside of the appliance with hot water and non-abrasive sponge.
5 Clean the heating element with a cleaning brush to remove any food residues.

TROUBLESHOOTING

Problem Possible cause	Solution
The Hot-air fryer does not work	The appliance is not plugged in.	Put the mains plug in an earthed wall socket.
	You have not set the timer. Turn	the timer knob to the required preparation time to switch on the appliance.
Fried snacks are not crispy when they come out of the air fryer.	You used a type of snacks meant to be prepared in a traditional deep fryer.	Use oven snacks or lightly brush some oil onto the snacks for a crispier result.
The ingredients fried with the air fryer are not done.	The amount of ingredients in the basket is too big.	Put smaller batches of ingredients in the basket. Smaller batches are fried more evenly.
	The set temperature is too low.	Turn the temperature control knob to the required temperature setting (see section 'settings' in chapter 'Using the appliance').
	The preparation time is too short.	Turn the timer knob to the required preparation time (see section 'Settings' in chapter' Using the appliance').
The ingredients are fried unevenly in the air fryer.	Certain types of ingredients need to be shaken halfway through the preparation time.	Ingredients that lie on top of or across each other (e.g. fries) need to be shaken halfway through the preparation time. See section 'Settings' in chapter 'Using the appliance'.
I cannot slide the pan into the appliance properly.	There are too much ingredients in the basket.	Do not fill the basket beyond the MAX indication.
	The basket is not placed in the pan correctly.	Push the basket down into the pan until you hear a click.
Fresh fries are not crispy when they come out of the air fryer.	The crispiness of the fries depends on the amount of oil and water in the fries.	Make sure you dry the potato sticks properly before you add the oil.
		Cut the potato sticks smaller for a crispier result.
		Add slightly more oil for a crispier result.
Problem Possible cause	Use Solution
White smoke comes out of the appliance.	You are preparing greasy ingredients.	When you fry greasy ingredients in the air fryer, a large amount of oil will leak into the pan. The oil produces white smoke and the pan may heat up more than usual. This does not affect the appliance or the end result.
	The pan still contains grease residues from previous use.	White smoke is caused by grease heating up in the pan . make sure you clean the pan properly after each use.
Fresh fries are fried unevenly in the air fryer.	You did not use the right potato type.	Use fresh potatoes and make sure they stay firm during frying.
	You did not rinse the potato sticks properly before you fried them.	Rinse the potato sticks properly to remove starch from the outside of the sticks.

HINTS ON DISPOSAL

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

Estimado cliente:

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN43 6RE

United Kingdom

Technical diagram of a kitchen appliance with numbered parts for identification

Line drawing of a French air fryer with an arrow indicating the process, labeled 'Ilustración 4' (no other text or symbols)

Line drawing of a cylindrical container with a lid and internal compartments filled with wood, labeled 'Ilustración 5' at the bottom (no other text or symbols)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN43 6RE

United Kingdom

CONSIGNES DE SÉCURITÉ

Technical diagram of a kitchen appliance with numbered parts for identification

Technical line drawing of a two-part air fryer device, showing internal components and housing (no text or labels)

Line drawing of a modern air fryer with a lid and side arm, showing no text or symbols

Figure 4

Line drawing of a cylindrical container with a lid and internal compartments filled with wood shavings (no text or symbols)

Figure 6 Figure 7

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

PRODUTTORE E IMPORTATORE (UK)

Produttore:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlino, Germania.

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN43 6RE

United Kingdom

AVVERTENZE DI SICUREZZA

Technical diagram of a kitchen appliance with numbered parts for identification

Line drawing of an air fryer with a lid and side arm, labeled 'Immagine 4' below (no other text or symbols)

Line drawing of a cylindrical container with a lid and internal compartments filled with plastic sheets, labeled 'Immagine 5' below (no other text or symbols)

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

KLARSTEIN
