USER MANUAL Spencer Auna

Spencer Mobile PA Lautsprecher Mobile PA speaker Altoparlante PA portatile Sistema de alteavoces PA movil 10033743

30

www.auna.multimedia.com

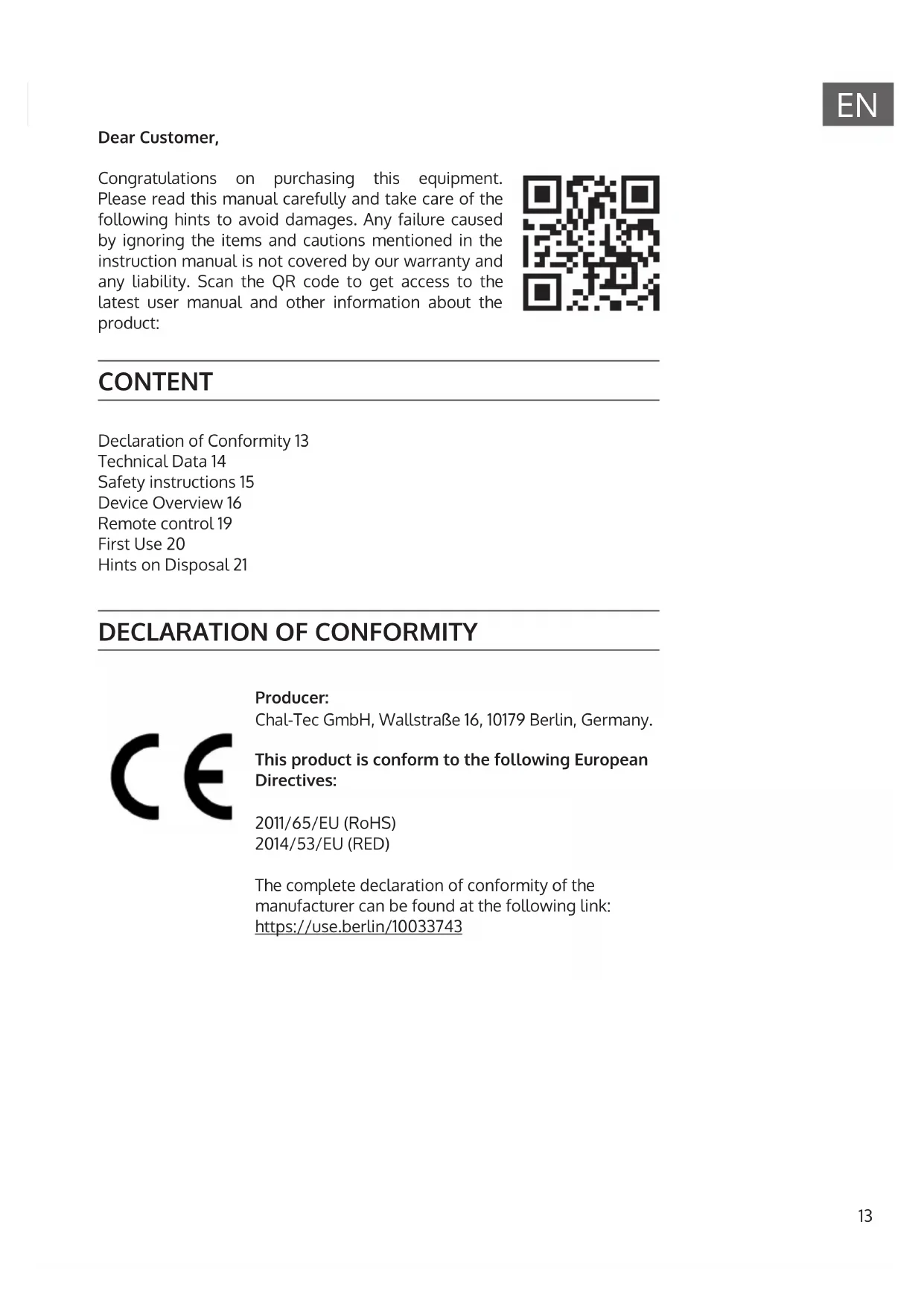

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the items and cautions mentioned in the instruction manual is not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and other information about the product:

CONTENT

Declaration of Conformity 13

Technical Data 14

Safety instructions 15

Device Overview 16

Remote control 19

First Use 20

Hints on Disposal 21

DECLARATION OF CONFORMITY

Producer:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European Directives:

2011/65/EU (RoHS)

2014/53/EU (RED)

The complete declaration of conformity of the manufacturer can be found at the following link: https://use.berlin/10033743

TECHNICAL DATA

Item number 10033743
Power supply 220-240 V ~ 50/60 Hz

Battery Lead-acid battery
Battery capacity: 12 V, 4.5 Amh
Battery charging time: 5-6 hours
Battery working time: 3-4 hours

RMS output power 35 W
Output power 60 W
Output power (peak) 120 W
Speaker 10" (25.4 cm), 4 Ohm
Tweeter 2.5" (6.35 cm)

Special features Waterproof design

protection against splashing water on all sides (waterproof to IPX4 standard)

Accessories 1 remote control,

1 charger

SAFETY INSTRUCTIONS

General information

• Lightning - If you are not going to use the device for a long time or if there is a storm, disconnect the plug from the electrical outlet and disconnect the device from the antenna connector. This will avoid damage to the product that may be caused by lightning or overvoltage.
• Overload - Do not overload power outlets, extension cords, or built-in power outlets, as this may result in a fire or electric shock.
• Foreign objects and liquid - Never push objects of any kind through openings in the device as they may touch dangerous voltage points or short out parts, which could result in a fire or electric shock. Never spill liquids of any kind on the device.
• Repairs and maintenance - Do not attempt to service this product yourself, as opening or removing covers will expose you to dangerous voltages or other hazards. Leave all maintenance to qualified service personnel.
• Damage requiring service - Disconnect the power plug from the outlet and consult a qualified specialist if any of the following conditions occur:

a) If the power cord or plug is damaged.
b) If liquid has been spilled or objects have fallen onto the product.
c) If the product has been exposed to rain or water.
d) If the product has been dropped or damaged.
e) If the product has a markedly reduced performance.

• Replacement parts - When replacement parts are required, make sure that the service professional who replaces the parts only uses replacement parts that have been approved by the manufacturer or that have the same characteristics as the original part. Unauthorized replacement may result in fire, electric shock or other hazards.
• Heat - Do not place the unit near heat sources such as radiators, heaters, stoves or other products (including amplifiers).

Special Instructions

• This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.
• Children should be supervised to ensure that they do not play with the appliance.
• Ensure children and babies do not play with plastic bags or any packaging materials.
• Mains plug/Power adaptor is used as disconnect device and it should remain readily operable during intended use.
• In order to disconnect the apparatus from the mains completely, the main plug/power adaptor should be disconnected from the mains socket outlet completely.

DEVICE OVERVIEW

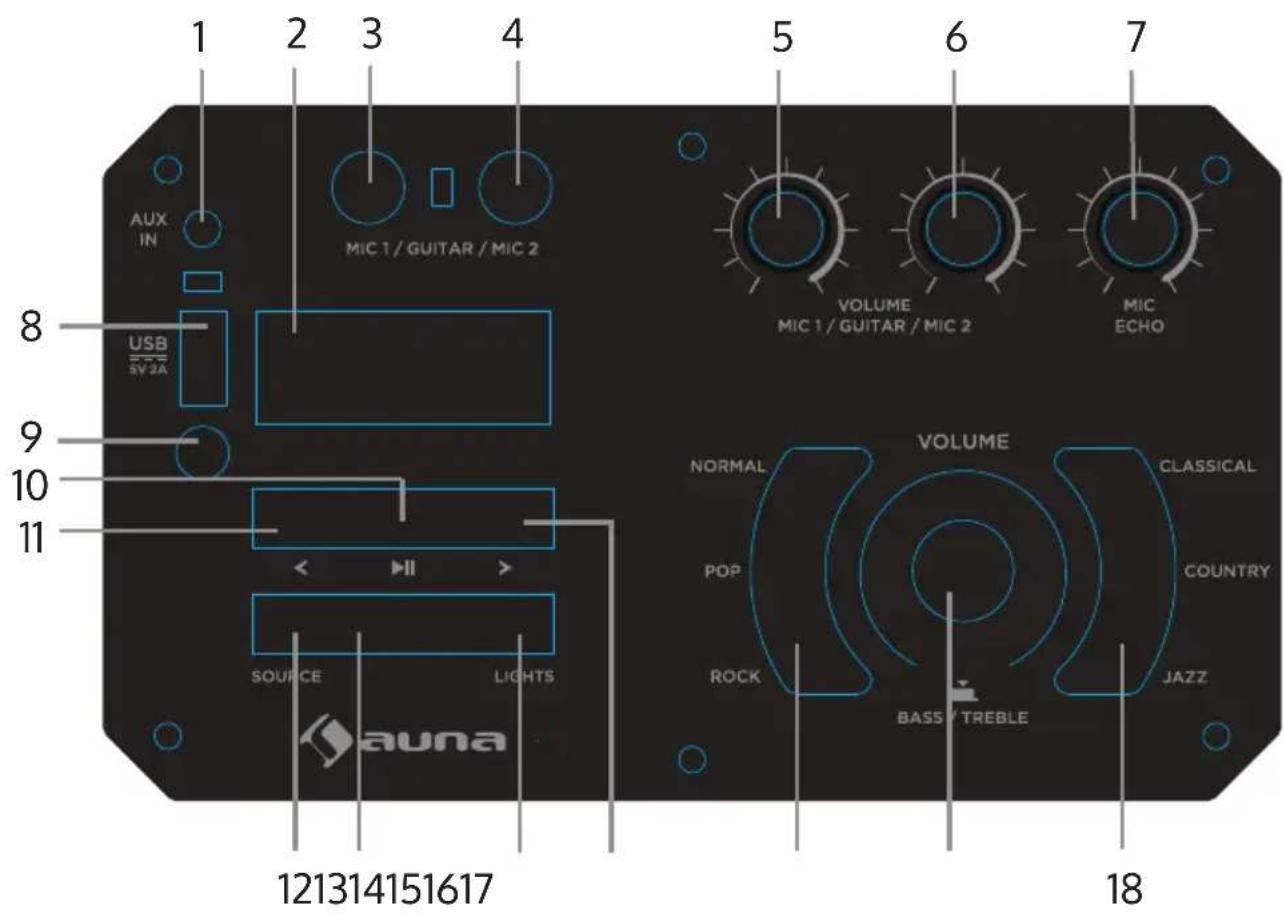

Control panel and connections

1 AUX input (1/8" connector)
2 LED display
3 MIC 1 or GUITAR (1/4" connector)
4 MIC 2 or GUITAR (1/4" Connector)
5 Volume knob for MIC 1 or GUITAR input
6 Volume Knob for MIC 2 or GUITAR input
7 Echo effect for MIC 1 and MIC 2 inputs
8 USB port
9 IR receiver for remote control
10 PLAY/PAUSE button:
- Short press: Play/pause track
- Long press: Enter FOLDER vie
11 BACK button:
- Short press: Play previous song
- Long press: Volume down
12 SOURCE button
13 BT button
14LIGHTS button
15 FORWARD button:
- Short press: Play next track
- Long press: Volume up
16 NORMAL / POP / ROCK (DSP/EQ) buttons
17 VOLUME knob:
- Turn: Increase or decrease volume
Press: Access DSP/EQ bass and treble control
18 CLASSICAL / COUNTRY / JAZZ (DSP/EQ) buttons

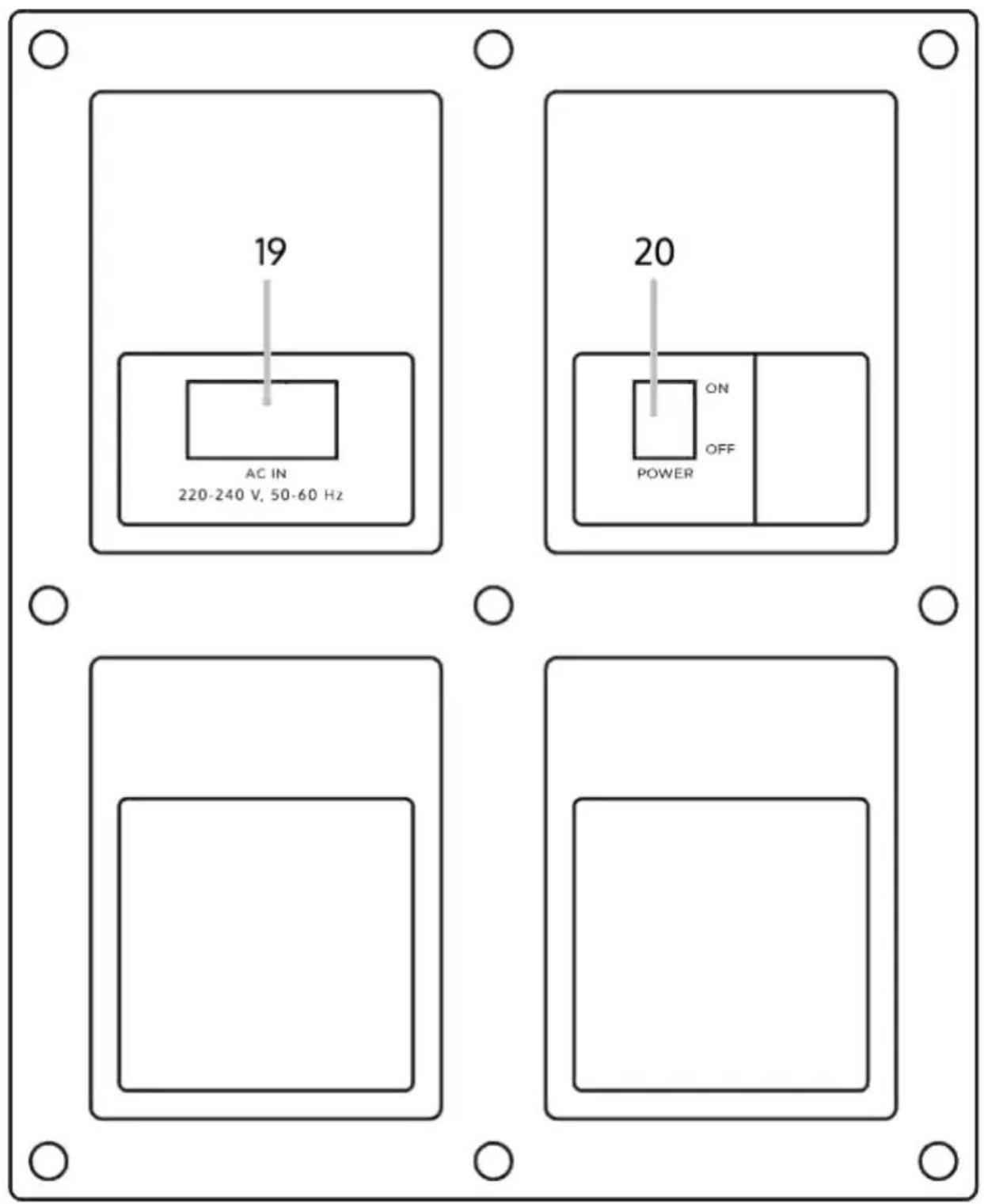

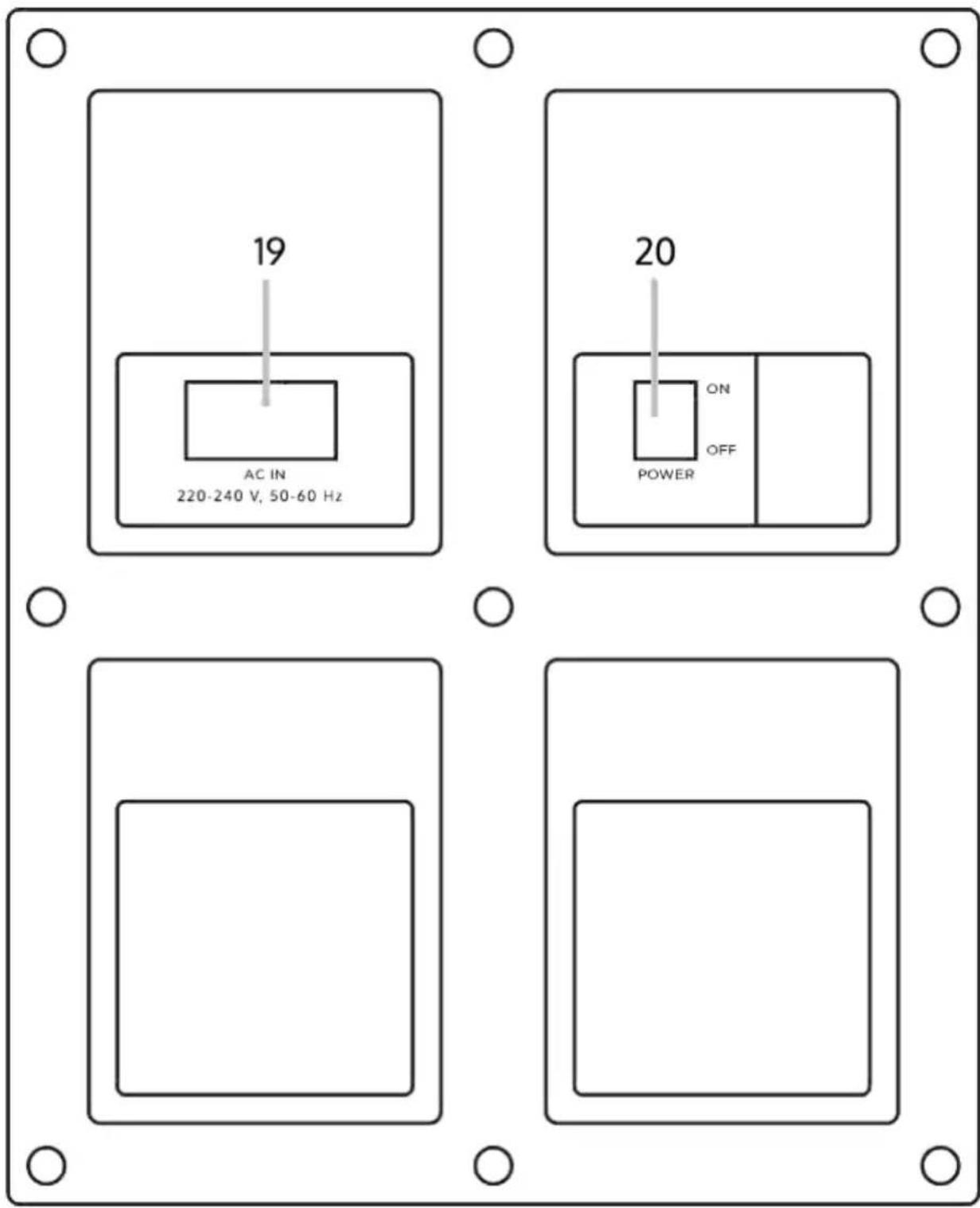

Loudspeaker rear panel

19 AC power input

20 POWER button

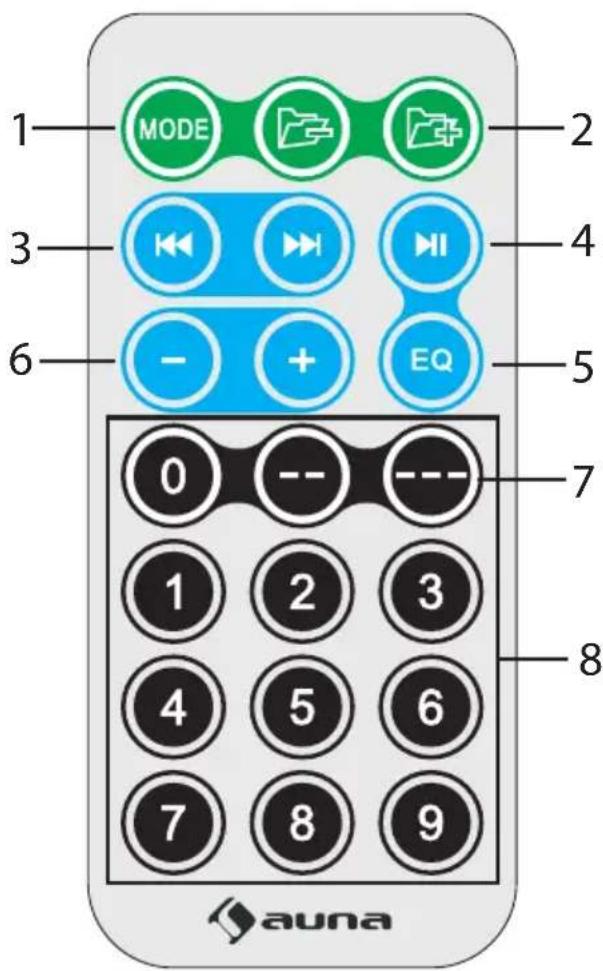

1 MODE button: To select audio source (USB / BT / LINE)
2 BACK / FORWARD track file
3 BACK / FORWARD track song
4 STOP / PLAY button
5 EQ Selection
6 Volume (+/-) control
7 Directly selector
8 Digital numeric buttons selection

FIRSTUSE

Charging of the battery

The sound system is equipped with a rechargeable battery for mains-independent operation. The battery is automatically charged as soon as the mains plug is plugged into an electrical outlet. After charging, the device automatically switches to trickle charging.

Note: Do not leave the unit permanently plugged into an electrical outlet. If the system is not used for a long time, the battery should be charged at least every 30 days.

Fully charge the battery before first use (min. 6 hours). Only after the exhausted battery has been charged three times does the battery reach full power. Charge the battery before and after each use to maintain battery performance.

Be sure to fully charge the internal battery before the first mobile use (without mains power). To do this, plug the unit into an ordinary power outlet using the AC adapter.

The charging time is about 5 - 6 hours. The charge state is indicated by the charge LED (CHARGE) on the rear panel. The LED goes out as soon as the battery is fully charged.

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Your product contains batteries covered by the European Directive. 2006/66/EC, which cannot be disposed of with normal household waste. Please check local rules on separate collection of batteries. The correct disposal of batteries helps prevent potentially negative consequences on the environment and human health.
