USER MANUAL Clubmaster Tube Auna

The lighting flash and arrow head within the triangle is warning sign alerting you of dangerous voltage inside the product

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK).NO USER SERVICIABLE PARTS INSIDE.REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The exclamation point within the triangle is a warning sign alerting you of important instructions accompanying the product

TWS (DRAHTLOSER STEREOMODUS)

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the items and cautions mentioned in the instruction manual are not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and other information about the product.

CONTENTS

Technical Data 13

Safety Instructions 14

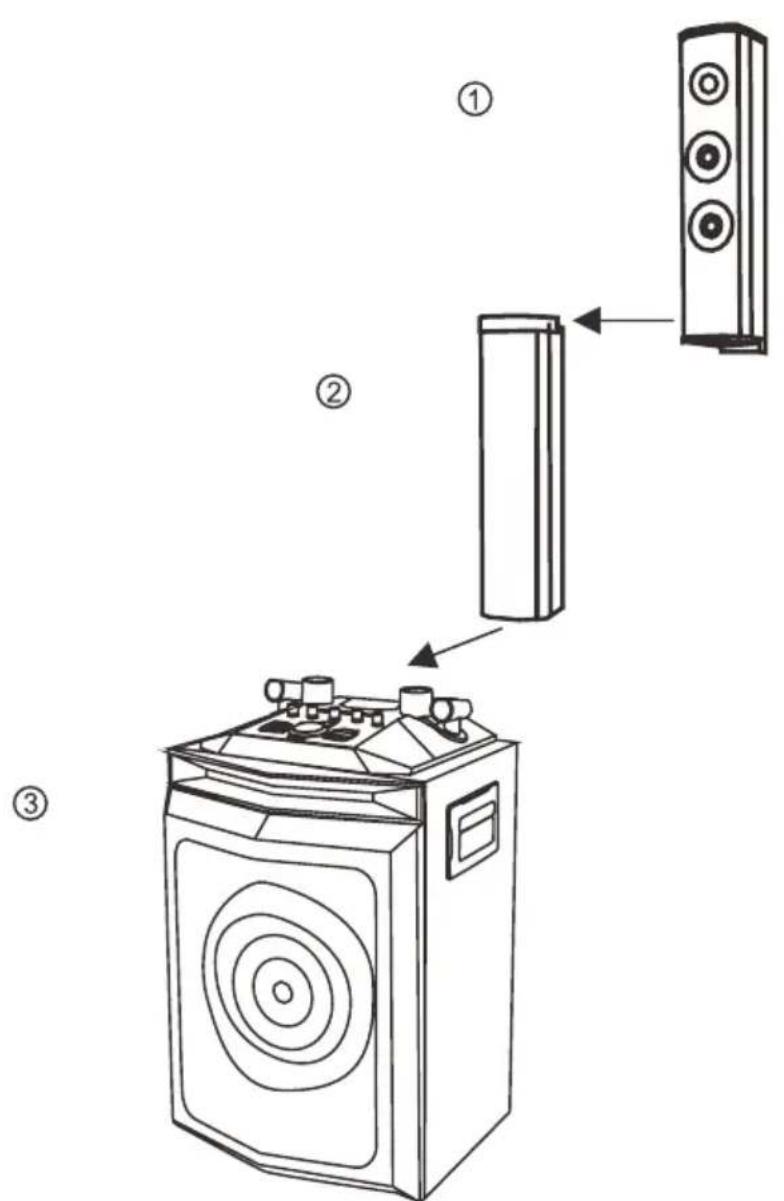

Installation 16

Overview 17

Remote Control 19

BT pairing and connection 20

Disposal Considerations 21

Declaration of Conformity 21

TECHNICAL DATA

Item number 1034995
Power supply 100-240 V~ 50/60 Hz
Power consumption 150 W
Speakers 1 x 1" Tweeter	2x3" Mid Speakers 1 x 10" Subwoofer
Frequency response 20	Hz - 20 kHz
Microphones 1 x VHF w/	wireless microphone (202.2 MHz)
Source modes BT (Stereo pairing possible) USB LINE IN

WARNING

The lighting flash and arrow head within the triangle is warning sign alerting you of dangerous voltage inside the product

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK).NO USER SERVICIABLE PARTS INSIDE.REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The exclamation point within the triangle is a warning sign alerting you of important instructions accompanying the product

Triangle with lightning plus explanation as follows: DANGEROUS VOLTAGE: The lightning flash with arrowhead symbol within the equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

Triangle with exclamation point plus explanation as follows:
ATTENTION: The exclamation point within the equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying this product.

SAFETY INSTRUCTIONS

Read the instructions. All application notes must be read before using the machine. Keep the instruction manual for future reference.

• Children must not use the appliance! Persons with reduced physical, sensory or mental capabilities or those with a lack of experience and knowledge may only use the device if they are instructed on how to do so by a person responsible for their safety, or if they are supervised and understand the hazards associated with the use of the device.
• Attention, use and security guidelines must be respected.
• The device must not be used near water or be put in contact with moisture.
• Make sure has no liquid is spilled on device and device openings.
• Move device carefully, avoid shocks.

• Do not block the breakdown of the device outputs.

• Do not place the device near from a heat source (e.g. radiator). Do not expose it to the sun.

• Plug the device as indicate on this information form.
• This device has a connection with overload protection. Replacement should only be done by an experienced technician or the device manufacturer.
• For cleaning the device, please follow the recommendations of the notice.
• The power cord should be unplugged when not using for a long period of time.
  Device shall be repaired by a qualified person when:

a. the power cord is damaged,
b. objects have fallen into the apparatus or a liquid has been spilled into device,
c. device was exposes to the rain,
d. device does not work correctly without notable exterior change,
e. device is broken.

• The user shall not try to maintain device beyond that which is described in this information form.
• The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on apparatus.
• The mains plug of apparatus should not be obstructed OR should be easily accessed during intended use.
• Excessive sound pressure form earphones and headphones can cause hearing loss.
• Install this sound system in a well ventilated, cool, dry, clean place away from direct sunlight, heat sources, vibration, dust, moisture, and/or cold. For proper ventilation, allow the following minimum clearances around this unit: Top: 10 cm (4 inch), Rear: 10 cm (4 inch), Sides: 10 cm (4 inch).
• The ventilation should not be impeded by covering the ventilation opening with items such as newspaper, table-cloths, curtain etc;
• No naked flame sources such as lighted candles should be placed on the apparatus;
• The use of apparatus in moderate climates.
• Danger of explosion if battery is incorrectly replaced.
• Replace only with the same or equivalent type.
• The main plug shall remain readily operable.

OVERVIEW

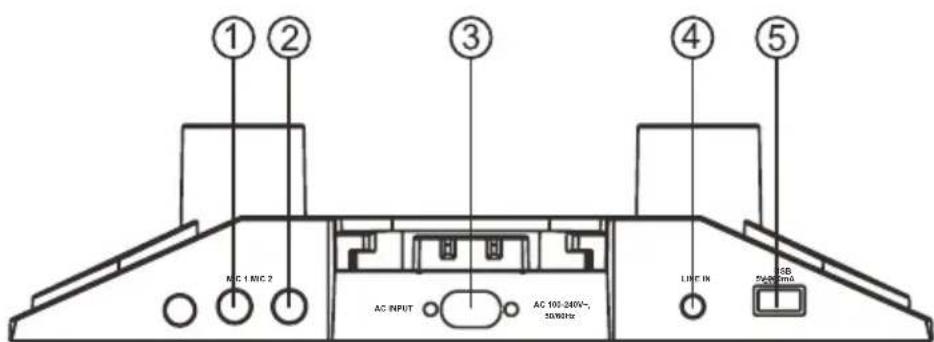

Back

1 MIC1: Wired Mic1 input socket
2 MIC2: Wired Mic2 input socket
3 AC INPUT: AC 100-240V~, 50/60Hz
4 LINE IN: Line in input socket
5 USB:USB input socket

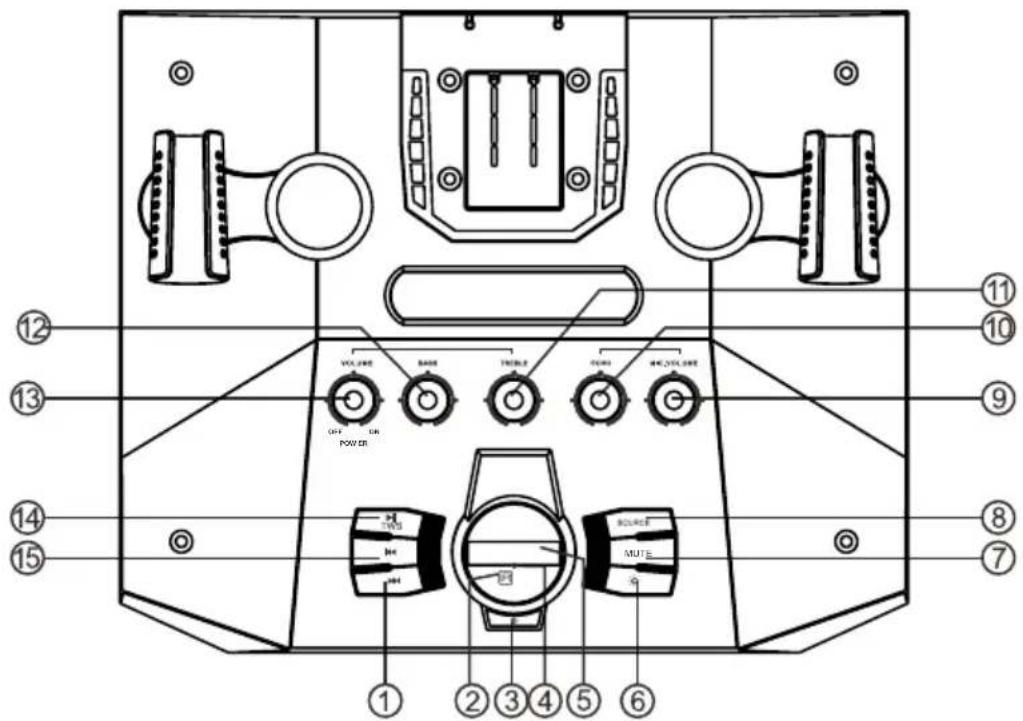

Draufsicht

1 NEXT:Press this key to goto next track in USB/BT modes.
2 IR (remote sensor)
3 STANDBY
4 Indicator light
5 LED DISPLAY: To display speaker status.
6 LIGHT MODE: Press this key to change the Linght mode between LED1, LED2, LED3, OFF
7 MUTE : Silences the music playback on Media Panel sources.
8 SOURCE : Press this key to change the sources between USB, BT, LINE.
9 MIC VOLUME:Volume control knob for microphone.
10 ECHO : To adjust the echo level of the connected mi.
11 TREBLE : To adjust the treble of the sound.
12 BASS: To adjust the music of BASS
13 POWER/VOLUME:Power on or off. Increase or decrease speaker main volume.
14 PLAY/PAUSE/TWS: Press to PLAY/PAUSE a track. Press and hold to to TWS (true wireless stereo) mode on or off.
15 PREV:Press this key to goto previous track in USB/BT modes.

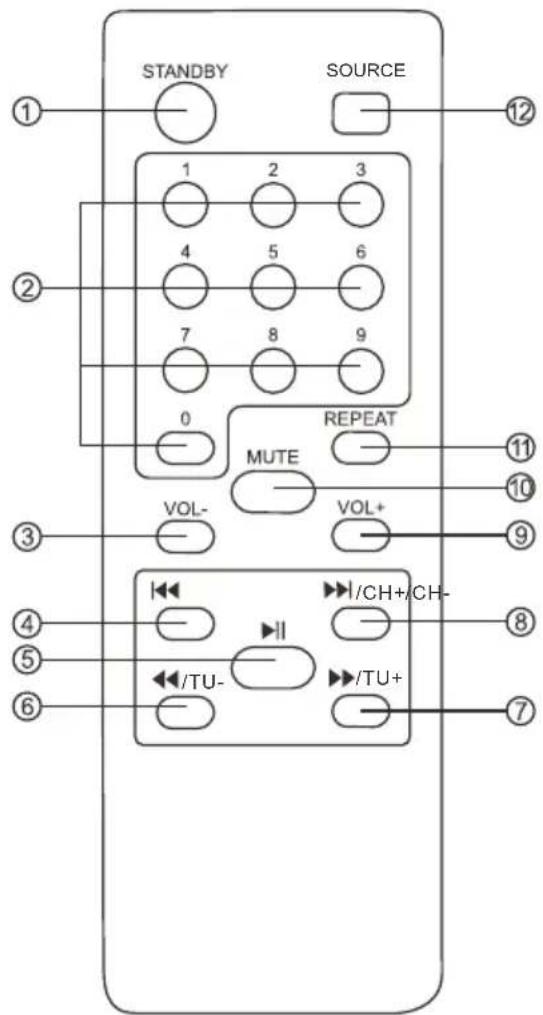

1 STANDBY: Stand by ON/OFF key.
2 0~9 NUMERIC KEYS: These keys are used to play a track directly in USB source mode.

Eg:To play 12th track in the USB playlist press the numberic key"1" followed by"2".

3 VOL- : To decrease the volume.
4 Play the previous song by pressing

Previous track at USB/BT input mode.

Choose previous channel by pressing

5 Play/pause in USB/BT mode.
6 Fast rewind a song

Fast rewind at USB input mode. Choose tuning channel

7 Fast forward song. Fast forward in USB input mode. Choose tunning channel.
8 Play the next song by pressing at USB/BT input mode.
9 To increase the volume.
10 Press to toggle the volume Mute ON/OFF.
11 Choose repeat mode by pressing "REPEAT" at USB input mode.
12 Press this key to change the source between USB, BT, LINE.

BT PAIRING AND CONNECTION

• Turn off any BT devices previously paired (linked) with this unit.
• Turn on the BT features on your phone or music player.
• Turn on and set this unit to BT mode. The flashing: " " on LED display indicates it is in pairing mode.
• Set your phone or music player to search for BT devices.
• Select "PA-120J" from search results on your phone or music player.
• Select OK or YES to pair this unit with your phone or music player.
• If protected, enter 0000 for passkey steady blue light indicates successful connection.

TWS (True Wireless Stereo) mode

1. Turn on 2 speaker equipments and select both unit INPUT mode as BT
2. Press "TWS" key on speaker set for 2 seconds, it will show 't oN' on display, TWS is connecting to another speaker equipment and will connect successfully after a sound indication or display shows "bL"
3. Turn on your BT feature on your mobile phone to search BT devices and select "PA-120J" from the search result, select ok OK or YES to pair this unit with your mobile phones and a steady blue light will indicate the connection is successful and can play any music from your mobile phones
4. Press "TWS" key on speaker unit for 2 seconds and it will turn off TWS features after shows 't of' on display.

DISPOSAL CONSIDERATIONS

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

DECLARATION OF CONFORMITY

Producer:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany

This product is conform to the following European Directives:

2011/65/EU (RoHS)

2014/53/EU (RED)

The complete declaration of conformity of the manufacturer can be found at the following link:

https://use.berlin/10034995
