TBA928 - Media player Auna - Free user manual and instructions

Brand	Auna
Model	TBA928
Product type	Vinyl turntable with built-in speakers
Speeds	33 and 45 RPM
45 RPM adapter	Included (centering piece for 45 RPM records)
Speakers	2 built-in speakers (left and right)
Headphone jack	3.5 mm jack
Audio output	Line-Out (RCA) for connection to a hi-fi system
Automatic stop	Yes (on/off switch at the back)
Power supply	Mains (via power adapter)
Safety instructions	Read the manual before use; avoid water, excessive heat; do not block ventilation
Maintenance and cleaning	Clean with a dry cloth; do not use liquid products
Operating conditions	Temperate climate; do not expose to humidity or naked flames
Recycling	Do not dispose of with household waste; follow the WEEE directive

Frequently Asked Questions - TBA928 Auna

How to turn on the Auna TBA928 turntable?

Press the on/off button (mark 5) on the front of the device. The red LED lights up when the device is ready.

What types of records can be played?

The turntable plays vinyl records at 33 RPM and 45 RPM. Use the centering piece (mark 7) for 45 RPM records.

How to adjust the playback speed?

Use the speed selector (mark 8) located next to the tonearm to choose between 33 and 45 RPM.

How to connect the turntable to a hi-fi system?

Use the Line-Out jacks (mark 10) on the back of the device with an RCA cable (not included) to connect it to a hi-fi system.

How to use headphones with the turntable?

Plug your headphones into the headphone jack (mark 3) on the front. Adjust the volume with the on/off/volume button (mark 5). Be careful not to listen too loud to protect your hearing.

Why doesn't the record stop automatically?

If your records are larger than the turntable, the automatic stop may be hindered. Set the On/Off switch (mark 11) on the back to OFF to disable the automatic stop. You will then need to manually lift the tonearm to stop.

How to clean the turntable?

Use a dry, soft cloth. Do not spill any liquid on the device and do not clean it with chemicals. Follow the recommendations in the user manual.

What to do if the stylus is protected?

Remove the stylus guard before first use. Make sure the tonearm is unlocked and can move freely.

Where to find the full manual?

The manual is available as a PDF on notice-facile.com. You can also scan the QR code on the device to get the latest version.

How to dispose of the device at end of life?

Do not throw the device away with household waste. Comply with European Directive 2012/19/UE (WEEE) and take it to an appropriate collection point for recycling of electrical and electronic waste.

USER MANUAL TBA928 Auna

INHALT

The lighting flash and arrow head within the triangle is warning sign alerting you of dangerous voltage inside the product

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICIABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The exclamation point within the triangle is a warning sign alerting you of important instructions accompanying the product

Member of Berlin Brands Group

Handwerkerstr. 11

15366 Dahlwitz-Hoppegarten

Deutschland

Symbol of a trash bin with crossed lines and a horizontal bar below (no text or labels)

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

Dear Customer,

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the items and cautions mentioned in the instruction manual are not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and other information about the product.

CONTENTS

Safety Instructions 15

Overview 17

Stereo Phonograph Operation 18

LINE-OUT connection 19

Disposal Considerations 20

Manufacturer & Importer (UK) 20

WARNING

	CAUTION
	RISK OF ELECTRIC SHOCKDO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK AND SERIOUS PERSONAL INJURY, DO NOT REMOVE ANY COVER. NO USER-SERVICABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL ONLY.WARNING. TO REDUCE THE RISK OF FIRE OR ELECTRICAL SHOCK, DO NOT EXPOSE THIS PRODUCT TO WATER, RAIN OR MOISTURE.

	Triangle with lightning plus explanation as follows:DANGEROUS VOLTAGE: The lightning flash with arrowhead symbol within the equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
	Triangle with exclamation point plus explanation as follows:ATTENTION: The exclamation point within the equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying this product.

SAFETY INSTRUCTIONS

Read these instructions. All uses guidelines must be read before using the device. Keep the instructions for future use.

• Attention, use and security guidelines must be respected.
• The device must not be used near water or be put in contact with moisture.
• Make sure has no liquid is spilled on device and device openings.
• Move device carefully, avoid shocks.
• Do not block the breakdown of the device outputs.
• Do not place the device near from a heat source (e.g. radiator). Do not expose it to the Sun.
• Plug the device as indicate on this information form.
• This device has a connection with overload protection. Replacement should only be done by an experienced technician or the device manufacturer.
• For cleaning the device, please follow the recommendations of the notice.
• The power cord should be unplugged when not using for a long period of time.
  • Device shall be repaired by a qualified person when:

a. the power cord is damaged,
b. objects have fallen into the apparatus or a liquid has been spilled into device,
c. device was exposes to the rain,
d. device does not work correctly without notable exterior change,
e. device is broken.

- The user shall not try to maintain device beyond that which is described in this information form.

- The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on apparatus.

- To be completely disconnect the power input, the mains plug of apparatus shall be disconnected from the mains." as the disconnect devices is the mains plug of apparatus.

- The mains plug of apparatus should not be obstructed and must be easily accessed during intended use.

- Battery shall not be exposed to excessive heat such as sunshine, fire or the like.

- Excessive sound pressure form earphones and headphones can cause hearing loss.

• Minimum distance (8 cm) around the apparatus for sufficient ventilations;
• The ventilation should not be impeded by covering the ventilation opening with items such as newspaper, table-cloths, curtain etc;
• No naked flame sources such as lighted candles should be placed on the apparatus;
• Attention should be drawn to the environmental aspects of battery disposal;
• The use of apparatus in moderate climates.
• Danger of explosion if battery is incorrectly replaced.
• Replace only with the same or equivalent type.
• The main plug shall remain readily operable.

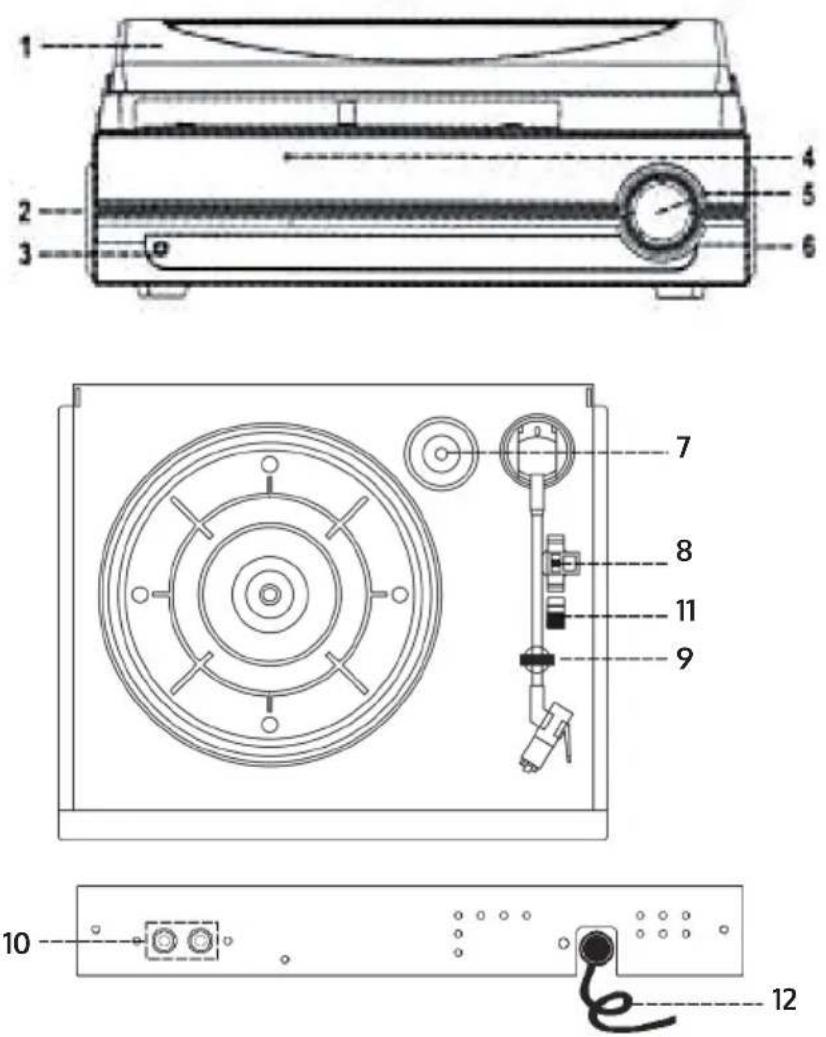

OVERVIEW

1 Dust cover
2 Left speaker
3 3.5 mm headphone jack
4 Power led indicator
5 Power on/off / volume knobs
6 Right speaker
7 Spindle adaptor
8 33/45 Rpm speed selector
9 Pick-up holder
10 Line out socket
11 Auto stop switch
12 AC cord

Installation

1. Unpack all parts and remove protective material.
2. Do not connect the unit to the mains before checking the mains voltage and before all other connections have been made.
3. Do not cover any vents and make sure that there is a space of several centimetres around the unit for ventilation.

STEREO PHONOGRAPH OPERATION

Please Note - Before use

• Remove the stylus protector.

• Make sure that the tone arm is unlocked and free to move from the tone arm rest prior to operating. Lock the tone arm again when not in use.

• Turn on the system until the "power led" light up.

• Set the speed selector to the proper position depending on the record to be played.
• Place the record on the platter (use the spindle adaptor if required).
• Lift the tone arm from the rest and slowly move it to the record side. The platter will start to rotate.
• Place the tone arm to the desired position of the record.
• Adjust the volume to the desired level.
• At the end of record, the platter will automatically stop rotating. Lift the tone arm from the record and return it to the rest.
• To stop manually, lift the tone arm from the record ano return it to the rest.

NOTE: Some types of records may have an auto-stop area outside the preset limit, so the turntable may stop before the last track finishes. In this case, set the AUTO-STOP switch to the "OFF" position. This allows the record to play to the end, but please note that it will not stop automatically. You must manually raise the tone arm and place it back in the rest and then turn off the power to stop the turntable from spinning.

LINE-OUT CONNECTION

You can connect this unit to your external Hi-Fi / AMPLIFIER system by connecting the LINE OUT socket to the auxiliary input socket of your Hi-Fi / AMPLIFIER system with a RCA cable (not included).

Using headphones (not included)

Inserting the plug of your headphones into the Headphone jack (8) will enable you to listen in private.

READ THIS IMPORTANT INFORMATION BEFORE USING YOUR HEADPHONES.

1. Avoid extended play at very high volume as it may impair your hearing.
2. If you experience ringing in your ears, reduce the volume or shut off your unit.
3. Keep the volume at a reasonable level even if your headset is an open-air type designed to allow you to hear outside sounds. Please note that excessively high volume may still block outside sounds.

DISPOSAL CONSIDERATIONS

Symbol of a trash bin with crossed lines and a horizontal bar below (no text or labels)

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

CE

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

UK CA

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

Chère cliente, cher client,

SOMMAIRE

The lighting flash and arrow head within the triangle is warning sign alerting you of dangerous voltage inside the product

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICIABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The exclamation point within the triangle is a warning sign alerting you of important instructions accompanying the product

ATTENTION : POUR RÉDUIRE LES RISQUES DE CHOCS ÉLECTRIQUES, NE DÉMONTEZ AUCUN CACHE. L'APPAREIL NE CONTIENT AUCUNE PIÈCE À ENTRETENIR. ADRESSEZ-VOUS UNIQUEMENT À DES PERSONNELS QUALIFIÉS POUR LA MAINTENANCE.

MISE EN GARDE : POUR RÉDUIRE LE RISQUE D'INCENDIE ET DE CHOC ÉLECTRIQUE, NE PLONGEZ PAS L'APPAREIL DANS L'EAU ET NE L'EXPOSEZ PAS À LA PLUIE OU À L'HUMIDITÉ.

Symbol of a trash bin with crossed lines and a horizontal bar below (no text or labels)

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

Estimado cliente:

ÍNDICE

The lighting flash and arrow head within the triangle is warning sign alerting you of dangerous voltage inside the product

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICIABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The exclamation point within the triangle is a warning sign alerting you of important instructions accompanying the product

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

Gentile cliente,

INDICE

The lighting flash and arrow head within the triangle is warning sign alerting you of dangerous voltage inside the product

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICIABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The exclamation point within the triangle is a warning sign alerting you of important instructions accompanying the product

ATTENZIONE: NON APRIRE L'ALLOGGIAMENTO ONDE EVITARE SCOSSE ELETTRICHE E GRAVI LESIONI PERSONALI. IL PRODOTTO NON CONTIENE COMPONENTI CHE NECESSITANO DI ASSISTENZA DA PARTE DEL CLIENTE. RIVOLGERSI ESCLUSIVAMENTE A TECNICI QUALIFICATI.

AVVERTENZA: PER DIMINUIRE IL PERICOLO DI INCENDIO O SCOSSE ELETTRICHE, NON ESPORRE IL DISPOSITIVO ALL'ACQUA, PIOGGIA O UMIDITA'

Symbol of a trash bin with crossed lines and a horizontal bar below (no text or labels)

PRODUTTORE E IMPORTATORE (UK)

CE

Produttore:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlino, Germania.

UK CA

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom
