CONTENTS

Technical Data 13

Safety Instructions 14

Overview 16

Setting up the speaker system 18

BT operation 18

Disposal Considerations 19

Declaration of Conformity 19

TECHNICAL DATA

Item number 10034856
Power supply 100-240 V~ 50/60 Hz
RMS power 350 W
Subwoofer 10"
Frequency range 40 Hz - 18 kHz
Connectors and connectivity RCA, BT, 6.35 mm, XLR
Mic input level <20 mV
Line input / output level 500 mV

WARNING

Auna TB 700BT - WARNING - 1The lighting flash and arrow head within the triangle is warning sign alerting you of dangerous voltage inside the productCAUTIONRISK OF ELECTRIC SHOCK DO NOT OPENCAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICIABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.Auna TB 700BT - WARNING - 2The exclamation point within the triangle is a warning sign alerting you of important instructions accompanying the product
Auna TB 700BT - WARNING - 3Triangle with lightning plus explanation as follows:DANGEROUS VOLTAGE: The lightning flash with arrowhead symbol within the equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
Auna TB 700BT - WARNING - 4Triangle with exclamation point plus explanation as follows:ATTENTION: The exclamation point within the equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying this product.

SAFETY INSTRUCTIONS

Read the instructions. All application notes must be read before using the machine. Keep the instruction manual for future reference.

  • Children must not use the appliance! Persons with reduced physical, sensory or mental capabilities or those with a lack of experience and knowledge may only use the device if they are instructed on how to do so by a person responsible for their safety, or if they are supervised and understand the hazards associated with the use of the device.
  • Attention, use and security guidelines must be respected.
  • The device must not be used near water or be put in contact with moisture.
  • Make sure has no liquid is spilled on device and device openings.
  • Move device carefully, avoid shocks.

  • Do not block the breakdown of the device outputs.

  • Do not place the device near from a heat source (e.g. radiator). Do not expose it to the sun.

  • Plug the device as indicate on this information form.
  • This device has a connection with overload protection. Replacement should only be done by an experienced technician or the device manufacturer.
  • For cleaning the device, please follow the recommendations of the notice.
  • The power cord should be unplugged when not using for a long period of time.
    • Device shall be repaired by a qualified person when:

a. the power cord is damaged,
b. objects have fallen into the apparatus or a liquid has been spilled into device,
c. device was exposes to the rain,
d. device does not work correctly without notable exterior change,
e. device is broken.

  • The user shall not try to maintain device beyond that which is described in this information form.
  • The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on apparatus.
  • The mains plug of apparatus should not be obstructed OR should be easily accessed during intended use.
  • Excessive sound pressure form earphones and headphones can cause hearing loss.
  • The ventilation should not be impeded by covering the ventilation opening with items such as newspaper, table-cloths, curtain etc;
  • No naked flame sources such as lighted candles should be placed on the apparatus;
  • The use of apparatus in moderate climates.
  • Danger of explosion if battery is incorrectly replaced.
  • Replace only with the same or equivalent type.
  • The main plug shall remain readily operable.

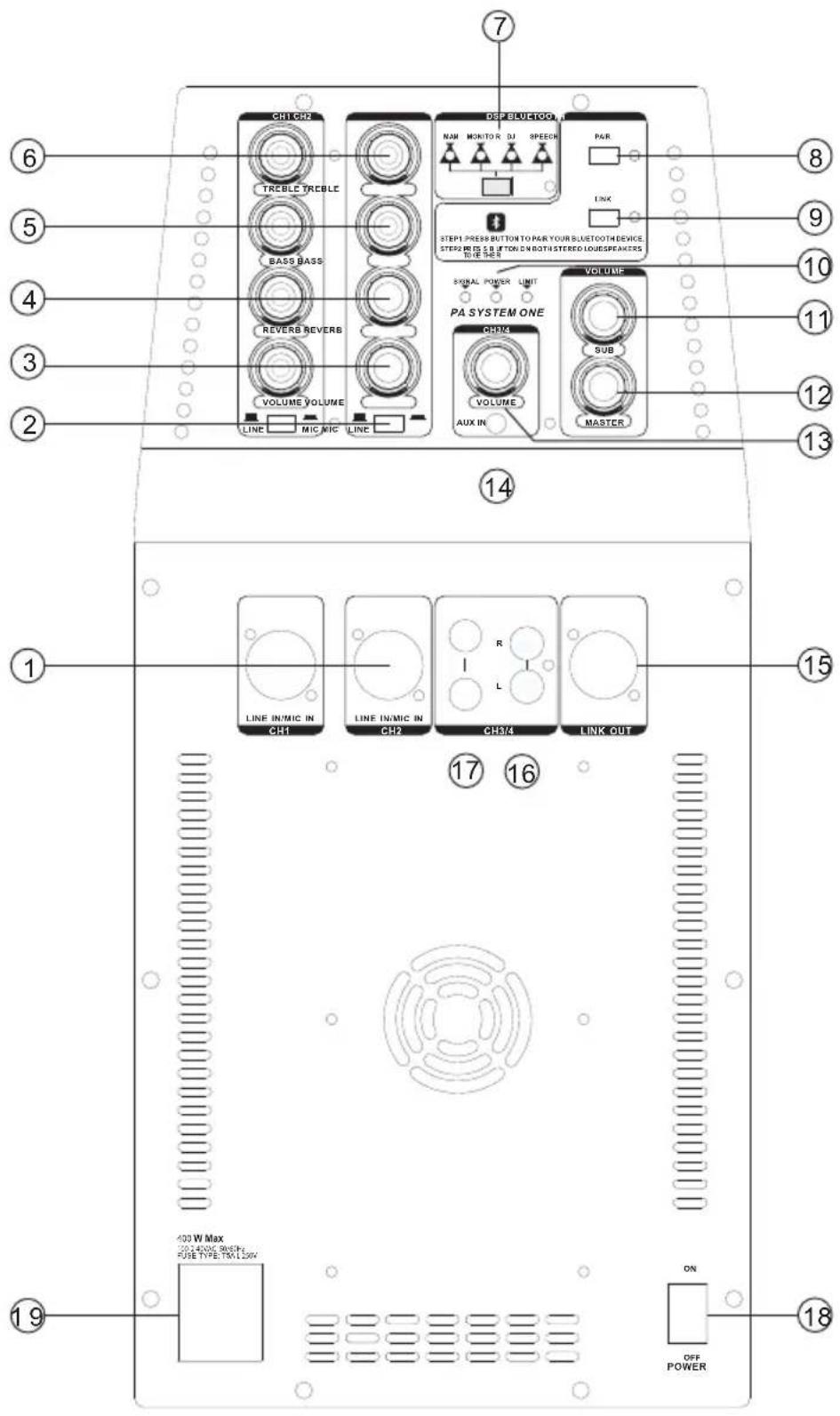

OVERVIEW

Auna TB 700BT - OVERVIEW - 1

text_image ⑦ ⑥ ⑤ ④ ③ ② ① ⑩ ⑧ ⑨ ⑪ ⑫ ⑬ ⑰ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ㉑ ㉒ ㉓ ㉔ ㉕ ㉖ ㉗ ㉘ ㉙ ㉚ ㉛ ㉜ ㉝ ㉞ ㉟ ㉟A ㉟B ㉟C ㉟D ㉟E ㉟F ㉟G ㉟H ㉟I ㉟J ㉟K ㉟L ㉟M ㉟N ㉟O ㉟P ㉟Q ㉟R ㉟S ㉟T ㉟U ㉟V ㉟W ㉟X ㉟Y ㉟Z ㉟A ㉟B ㉟C ㉟D ㉟E ㉟F ㉟G ㉟H ㉟I ㉟J ㉟K ㉟L ㉟M ㉟N ㉟O ㉟P ㉟Q ㉟R ㉟S ㉟T ㉟U ㉟V ㉟W ㉟X ㉟T ㉟U ㉟P ㉟Q ㉟R ㉟S ㉟T ㉟U ㉟V ㉟W ㉟X ㉟T ㉟U
  1. CH1/CH2 LINE IN/MIC IN Mix jack
  2. LINE IN/MICIN Switch of CH1/CH2 Corresponding Channel
  3. Volume control of CH1/CH2 Corresponding Channel
  4. Effect volume control of CH1/CH2 Corresponding Channel
  5. Bass control of CH1/CH2 Corresponding Channel
  6. Treble control of CH1/CH2 Corresponding Channel
  7. DSP modes elector switch and mode indicator
  8. BT pairing button: After long press of the button, the indicator light flashes slowly, then press the indicator light quickly to flash, and the pairing connection can be made through BT connection device such as a mobile phone.
  9. Link button: When two machines are used together, presses this button to pair as a stereo.
  10. Indicator lamps: signal indicator, power supply indicator and limit indicator
  11. Subwoofer volume control
  12. The whole device volume control
  13. CH3/CH4 Volume control
  14. CH3/CH4 3.5mm input jack
  15. CH1/CH2CH3/CH4 /Bluetooth Mixed Signal LINE OUT
  16. CH3/CH4 RCA input jack
  17. CH3/CH4 6.35mm input jack
  18. Main power switch
  19. Fused IEC mains inlet

SETTING UP THE SPEAKER SYSTEM

Place the speaker on a flat surface in front of the listening area. If you are using a second speaker in stereo setup, place the speakers so that the listener is at the same distance from the two speakers.

BT OPERATION

  1. Choose an audio source.
  2. Search for the BT device with the name "TB-700BT
  3. Connect to the BT device.
  4. If your BT device is older than version 2.0, enter the password "0000" when connecting.

DISPOSAL CONSIDERATIONS

Auna TB 700BT - DISPOSAL CONSIDERATIONS - 1

natural_image Symbol of a trash bin with crossed lines and a blank rectangular base (no text or labels)

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.
