USER MANUAL AFR 3 D1 AQUAPUR
LINT REMOVER AFR 3 D1
GB IE NI
LINT REMOVER
Operation and safety notes Translation of the original instructions
DK
FNUGFJERNER
Scope of delivery. Page 7
Description of parts . 7
Technical data . Page 7
Safety instructions. Page 8
Safety instructions for batteries / rechargeable batteries. Page 10
Before first use. 13
Inserting the battery (Fig. A, B) 13
Initial use (Fig. B, C). Page 13
Removing / replacing the adjustable spacer (Fig. D) Page 14
Cleaning and care . 15
Disposal. 16
Translation of the original conformity declaration. Page 18
Warranty 19

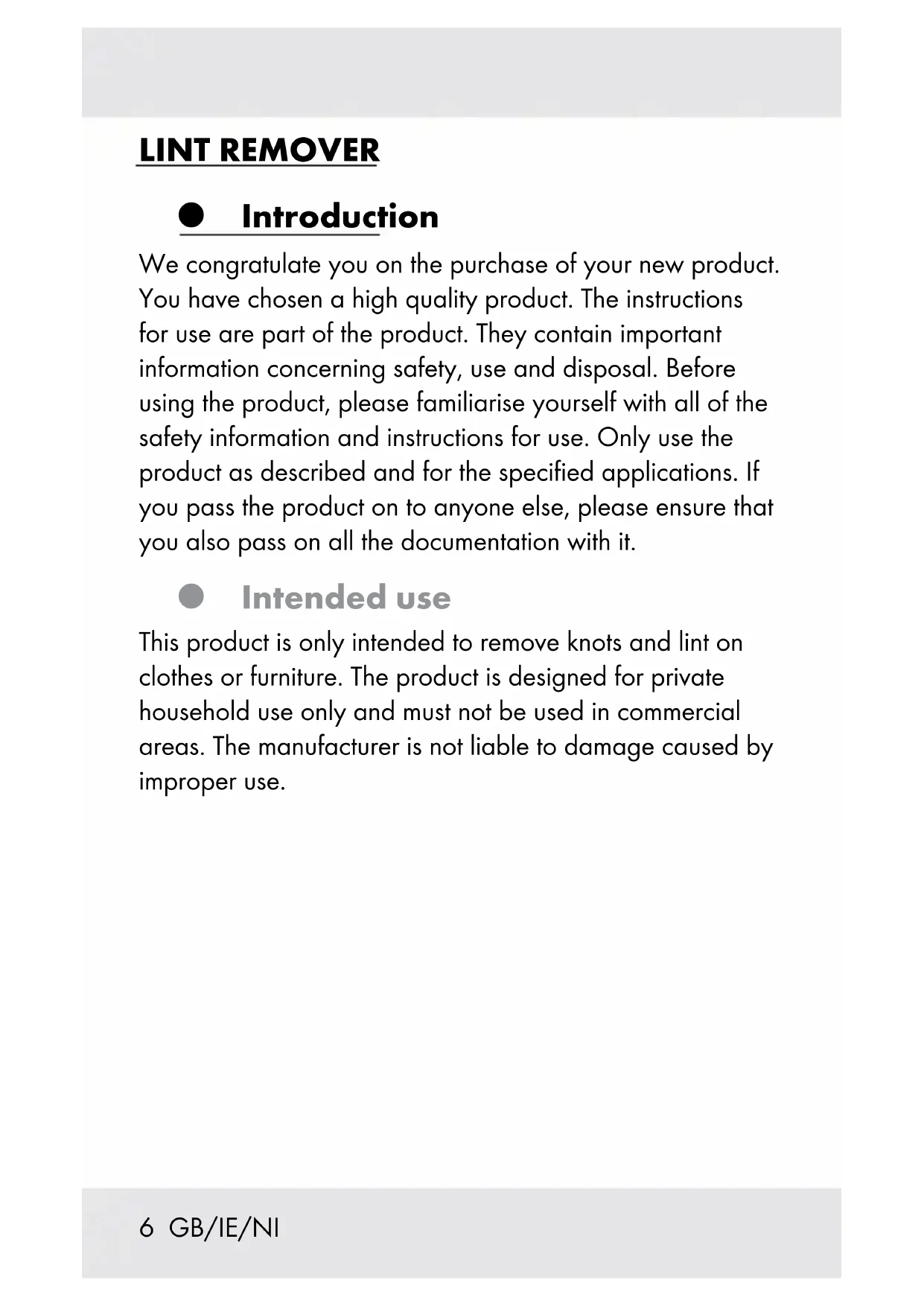

LINT REMOVER
Introduction
We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.
Intended use
This product is only intended to remove knots and lint on clothes or furniture. The product is designed for private household use only and must not be used in commercial areas. The manufacturer is not liable to damage caused by improper use.
Scope of delivery
1 Lint remover
1 Operating instructions
1 Cleaning brush
2 Batteries, type AA (LR6)
1 Protection cap
Description of parts
ON/OFF switch
Battery
Battery compartment cover
Cleaning brush
Fluff container
Protection cap
Adjustable spacer
Gliding part
Crop blades
Battery compartment
Technical data
Voltage: 3 V (direct current)
Rated current: 0.8 A
Battery: 2 × 1.5V
(direct current),
AA (LR6)
Emissions sound pressure level: < 70 dB (A) K = 3 dB
Safety instructions
PLEASE READ INSTRUCTIONS BEFORE USE! KEEP INSTRUCTIONS IN A SAFE PLACE!
ATTENTION! DANGER OF INJURY! THIS PRODUCT IS NOT A TOY!
This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved. Children shall not play with the product. Cleaning and user maintenance shall not be made by children without supervision.
Never use the product without the lint fluff container 5 or the gliding part 8 in place.
Do not touch the crop blade while the product is switched on!
Never use the product with damaged crop blades 9.
Never put any strong pressure onto the crop blades while in use.
The crop blockade are sharp - take proper care, otherwise there is a risk of injury.
Do not oil or grease the crop blades! Your clothes could get dirty!
Safety instructions for batteries / rechargeable batteries
DANGER TO LIFE! Keep batteries / rechargeable batteries out of reach of children. If accidentally swallowed seek immediate medical attention.
DANGER OF EXPLOSION!
Never recharge non-rechargeable batteries. Do not short-circuit batteries / rechargeable batteries and / or open them. Overheating, fire or bursting can be the result.
Never throw batteries / rechargeable batteries into fire or water.
- Do not exert mechanical loads to batteries / rechargeable batteries.
Risk of leakage of batteries / rechargeable batteries
Avoid extreme environmental conditions and temperatures, which could affect batteries / rechargeable batteries, e.g. radiators / direct sunlight.
If batteries / rechargeable batteries have leaked, avoid contact with skin, eyes and mucous membranes with the chemicals! Flush immediately the affected areas with fresh water and seek medical attention!
WEAR PROTECTIVE GLOVES!
Leaked or damaged batteries / rechargeable batteries can cause burns on contact with the skin. Wear suitable protective gloves at all times if such an event occurs.
In the event of a leakage of batteries rechargeable batteries, immediately remove them from the product to prevent damage.
Remove batteries / rechargeable batteries if the product will not be used for a longer period.
Risk of damage of the product
Only use the specified type of battery / rechargeable battery!
Insert batteries / rechargeable batteries according to polarity marks (+) and (-) on the battery / rechargeable battery and the product.
Clean the contacts on the battery / rechargeable battery and in the battery compartment before inserting!
Remove exhausted batteries / rechargeable batteries from the product immediately.
Before first use
Note: Remove all packaging materials from the product.
- Inserting the battery (Fig. A, B)
Pull off the battery compartment cover.
Insert 2 × 1.5 - , AA (LR6) batteries.
Note: Insert the batteries into the battery compartment [10] and ensure that the polarity is correct. To do so, refer to the marking inside the battery compartment [10].
Slide the battery compartment cover back on so that it clicks into place.
- Initial use (Fig. B, C)
Put the garment onto an even and clean surface.
Turn the adjustable spacer to the desired position or remove it completely (see chapter "Removing / replacing the adjustable spacer").
| Highest "11" | For large bobbles and coarse textiles (large distance to the crop blades 9). |
| Medium "1." For | medium level or bobbles and textiles (medium distance to the crop blades 9). |
| Lowest "1" For small lint / bobbles and fine textiles (small distance to the crop blades 9). | |
Switch the product on by sliding the ON/OFF switch 1 into required speed level. Guide the gliding part using repeated, light, circular movements over the surface of the item of clothing. We recommend that you start working at speed level "1". If the results are satisfactory and you feel comfortable handling the product then you can switch up to speed level "2".
Always make sure not to apply pressure. In that way, lint and knots are shaven off and are kept in the fluff container 5.
Switch the product off by sliding the ON/OFF switch 1 into position "0".
Note: The product will shut off automatically when screwing off the gliding part 8.
- Removing / replacing the adjustable spacer (Fig. D)
To attach the adjustable spacer, place it on the gliding part 8 and press it firmly.
Note: Ensure that the small tab on the product grip into the recess on the adjustable spacer 7.
To remove the adjustable spoce, pull it forwards and off.
To protect the gliding part, you should remove the adjustable spacer when not using the product and place the protective cap on the gliding part.
Cleaning and care
Before cleaning the product always switch it off. Pull off the protective cap 6 or adjustable spacer 7. Then screw off the gliding part 8 by turning counterclockwise.
The fluff container should be emptied regularly!
Fluff container: Pull off by sliding down the fluff container 5 in the direction of the arrow (marked on the fluff container 5 (see Fig. E) and empty it. The fluff container 5 should never be more than 3/4 full.
Crop blades Pull off the crop blades carefully. Brush fluff and lint remnants from the crop blades with the cleaning brush 4.
ATTENTION: When removing fur remains be careful not to damage the crop blades 9 .
WARNING! Never put the product in water for cleaning. Only clean the product with a damp cloth. Keep the product dry. To store the product, always remove the adjustable spacer and put on the protective cap (see Fig. D).
Disposal
The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.
Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics / 20-22: paper and fibreboard / 80-98: composite materials.
The product and packaging materials are recyclable, dispose of it separately for better waste treatment.
The Triman logo is valid in France only.
Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.
To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.
Faulty or used batteries / rechargeable batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Please return the batteries / rechargeable batteries and / or the product to the available collection points.
Environmental damage through incorrect disposal of the batteries / rechargeable batteries!
Batteries / rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries / rechargeable batteries at a local collection point.
Translation of the original conformity declaration
We, OWIM GmbH & Co. KG Stiftsbergstraße 1, DE-74167 Neckarsulm, GERMANY, hereby declare under our sole responsibility that the product LINT REMOVER, Model No.: HG04104, Version: 06/2018, to which this declaration refers, complies with the standards / normative documents of 2006/42/EC, 2014/30/EU, 2011/65/EU.
Applied harmonised standards: EN 60335-1:2012/A11:2014 EN 62233:2008 EN ISO 12100:2010 EN 55014-1:2006/A2:2011 EN 55014-2:2015 EN 50581:2012
Serial number: IAN 304515
Tobias Koenig
Division Manager
Neckarsulm, 22.06.2018
The declaration of conformity can also be viewed at: www.owim.com.
Warranty
The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.
The warranty for this product is 3 years from the date of purchase. Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it - at our choice - free of charge to you.
The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the product has been damaged, or used or maintained improperly.
The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e. g. batteries) or for damage to fragile parts, e. g. switches, rechargeable batteries or glass parts.
