Soulmate - Coffee machine Klarstein - Free user manual and instructions

Product type	Filter coffee maker
Brand	Klarstein
Model	Soulmate
Power supply	220-240 V ~ 50 Hz
Power	1800 W
Water tank capacity	1.25 L
Number of cups	Approximately 12 cups (graduated)
Automatic shut-off	Yes, after 40 minutes
Operating indicator light	Yes
Filter type	Paper (not included)
Glass carafe	Yes, with graduated scale
Anti-drip function	Not specified
Cleaning	Damp cloth; carafe hand washable
Descaling	Recommended according to water hardness (every 2 to 6 months)
Safety instructions	Do not immerse, hot surface, keep out of reach of children
Usage	Domestic use only
Article number	10031632

Frequently Asked Questions - Soulmate Klarstein

How to use the machine for the first time?

Before first use, run the appliance with only water (no filter or coffee) to rinse it. Fill the water tank with cold water, place the empty carafe, then turn on the appliance. Once the water has passed, turn off and let cool.

How much ground coffee should I use per cup?

Use about 6 to 7 grams of ground coffee per cup. Adjust to taste.

Does the machine turn off automatically?

Yes, the machine automatically turns off after 40 minutes of inactivity. You can also turn it off manually with the on/off switch.

How to clean the coffee machine?

Always unplug the appliance before cleaning. Clean the exterior with a damp cloth. The glass carafe can be hand washed with hot water and mild dish soap, but not in the dishwasher. Never immerse the appliance in water.

How often should I descale the machine?

Frequency depends on water hardness. For soft water, every 6 months; medium water, every 2-3 months; hard water, every 6-8 weeks. If brewing time increases, descale immediately.

How to descale the appliance?

Fill the water tank to the MAX level with a descaling solution. Turn on the machine. Midway, turn off and let it sit for 10 minutes. Turn back on to finish. Let it cool for 5 minutes, then rinse by repeating the process with cold water.

What type of filter should I use?

The machine uses paper coffee filters. No permanent filter is included. Place a filter in the filter holder before adding ground coffee.

Can I use the machine without water in the tank?

No, never use the appliance if the water tank is empty. This could damage the heating element.

How much water can I put in the tank?

Fill the water tank with cold water up to the MAX level (1.25 L). Do not exceed this mark. The graduated scale indicates the corresponding number of cups.

What if the carafe cracks?

Do not use the machine with a cracked or broken carafe. Replace it with a compatible carafe. Use only the provided carafe or an identical model.

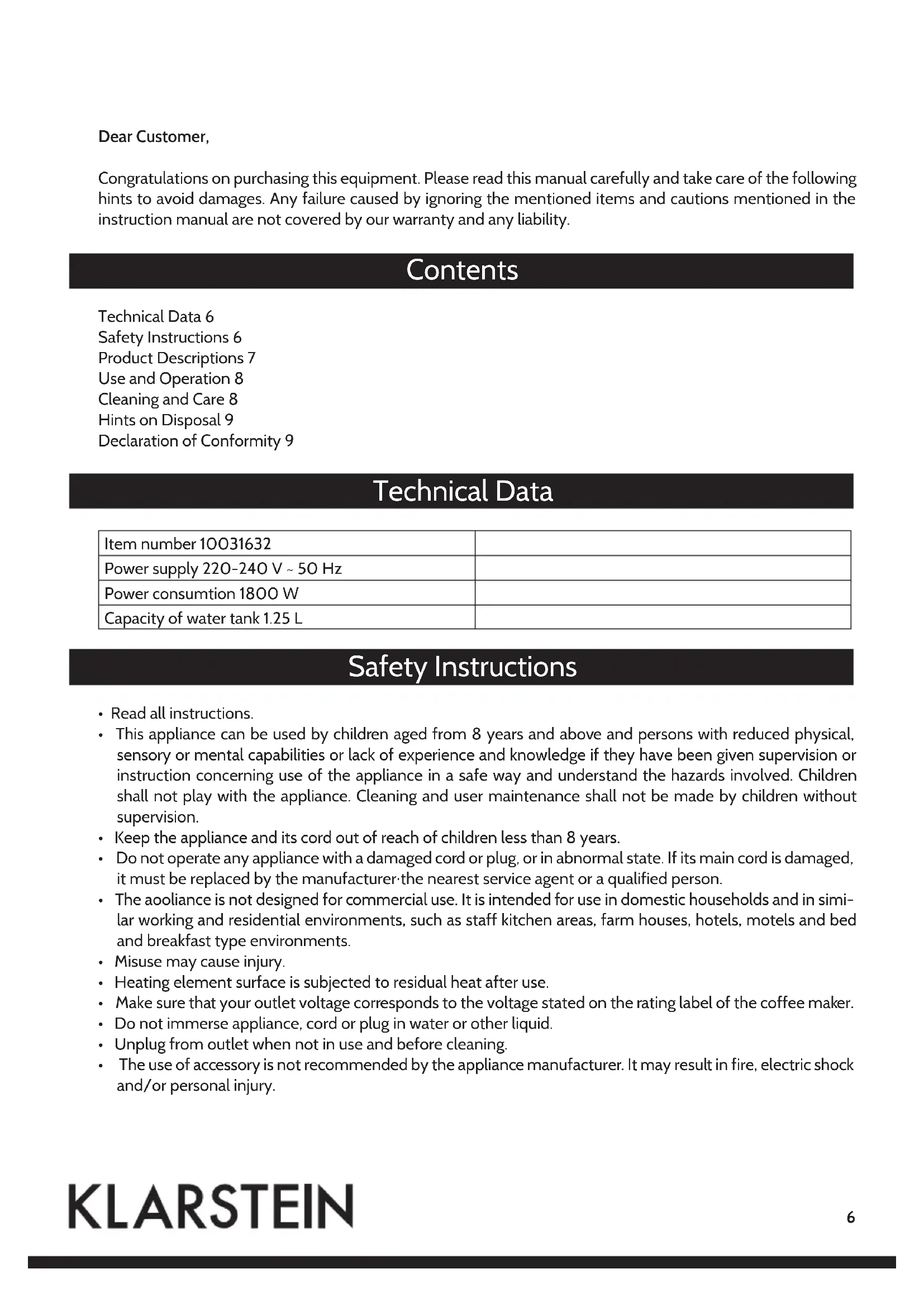

USER MANUAL Soulmate Klarstein

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the instruction manual are not covered by our warranty and any liability.

Contents

Technical Data 6

Safety Instructions 6

Product Descriptions 7

Use and Operation 8

Cleaning and Care 8

Hints on Disposal 9

Declaration of Conformity 9

Technical Data

Item number 10031632
Power supply 220-240 V ~ 50 Hz
Power consumption 1800 W
Capacity of water tank 1.25 L

Safety Instructions

• Read all instructions.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Keep the appliance and its cord out of reach of children less than 8 years.
• Do not operate any appliance with a damaged cord or plug, or in abnormal state. If its main cord is damaged, it must be replaced by the manufacturer—the nearest service agent or a qualified person.
• The aooliance is not designed for commercial use. It is intended for use in domestic households and in similar working and residential environments, such as staff kitchen areas, farm houses, hotels, motels and bed and breakfast type environments.
• Misuse may cause injury.
• Heating element surface is subjected to residual heat after use.
• Make sure that your outlet voltage corresponds to the voltage stated on the rating label of the coffee maker.
• Do not immerse appliance, cord or plug in water or other liquid.
• Unplug from outlet when not in use and before cleaning.

• The use of accessory is not recommended by the appliance manufacturer. It may result in fire, electric shock and/or personal injury.

• Do not let cord hang over edge of table or counter, or touch hot surface.

• To disconnect, remove plug from wall outlet. Always hold the plug. But never pull the cord.
• Do not use appliance for other than intended use and place it in a dry environment.
• Do not leave the coffee maker unattended while it is operating, the appliance can not be operated by children.
• Be careful not to get burned by the steam.
• Do not touch hot surface. Use handles or knobs only.
• Never use the appliance if the carafe shows any signs of cracks. Only use the carafe with this appliance. Use carefully as the carafe is very fragile.
• Never use your coffee maker without water in it.
• Stand the appliance on a table or flat surface.
• Do not use outdoors.
• Use only cold water!
• Ensure the carafe is placed properly in its position when brewing coffee.
• Between brewing processes switch off the appliance and let it cool down for about 5 minutes. Then refill with cold water.
  After the brewing process, always switch off the appliance.
• Disconnect the appliance before cleaning.
• To switch off the appliance use the On/Off switch.
• The control lamp going out indicates when the maschine is off
• Save these instructions.

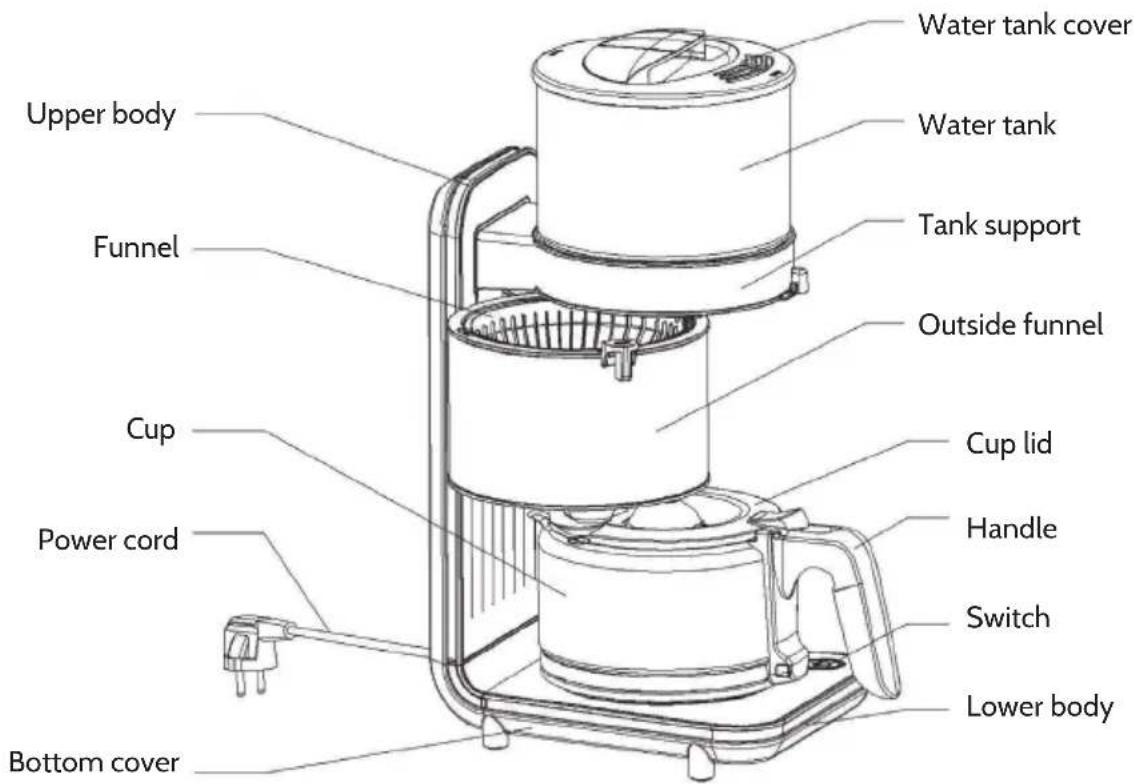

Product Description

Use and Operation

Before first Use

Before making coffee you should use the coffee maker once with water only (without coffee or filter paper).

1 Insert the plug into the socket.
2 Fill the carafe with cold water, Turn to open the Water tank cover, pour water from the cup into the water tank, and turn back the Water tank cover in original position.
3 Place the carafe in original position.
4 Start the brewing process by pressing the On/Off switch.

To make Coffee

Ensure the water level must not exceed the max level mark inside the water tank. The water level display on the tank and in the carafe indicates the number of cups.
2 Turn to open the funnel cover, put ground coffee as you need into the permanent filter or proper paper filter before making coffee. (Take 6-7 g medium fine ground coffee per cup).
3 Turn back the funnel cover.
4 Ensure that the carafe is placed properly in its position.
5 Switch on the appliance and the pilot lamp illuminates, to indicate the unit is on.
After the brewing process, turn the coffee maker off and take away the carafe. When the machine is not turned off manually, the safety Auto-off function turns it off after 40 minutes.

Cleaning and Care

• Disconnect the appliance.
• Never immerse the appliance in water.
• Clean the appliance with a damp cloth only.
• The carafe can be cleaned with warm water, some washing-up liquid and a soft brush. Do not clean the carafe in a dishwasher.

Dscaling

To make sure that your coffee maker goes on producing perfect coffee you will need, from time to time, to descale it. Frequency will depend on how hard the water is in your area, and how often you use the coffee maker. If you use your coffee maker once or twice a day, the following guidelines for decaling should be used:

• Soft water: every 6 months.
  Medium water: every 2-3 months.
• Hard water: every 6-8 weeks.

If the time it takes to brew a can of coffee suddenly is increased it is recommended that the coffee maker is descaled. The hardness of the water can be advised at your local waterworks.

To decalcify the appliance, follow these instructions:

1 Fill the water tank to MAX mark with a descending solution.
2 Press the On/Off switch to start the run.
3	Switch off the device after half of the descending solution has passed. Allow the solution to react for about 10 minutes.
4	Continue the run by pressing the power button again. Allow the remaining descaler solution to flow through.
5	Allow the device to cool down for 5 minutes.
6	Repeat steps 1-5 with fresh water to free the unit from decalcifier residues.

Hints on Disposal

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Declaration of Conformity

Producer: Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)
