USER MANUAL VitAir Smart Klarstein

QR code image containing encoded data, no visible human-readable text

INHALTSVERZEICHNIS

Member of Berlin Brands Group

Handwerkerstr. 11

15366 Dahlwitz-Hoppegarten

Deutschland

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

CONTENT

Safety Instructions 22

Device Overview 23

Accessories 24

Control Panel and Buttons 25

Getting Started 26

Recommended Settings For

Different Modes 28

Using the Accessories 29

Device Control by Smartphone 33

Cleaning and Care 35

Disposal Considerations 36

Declaration of Conformity 36

TECHNICAL DATA

Item number 10035590, 10035591, 10035592
Power supply 220-240 V ~ 50/60 Hz
Power 1200-1400 W
Capacity (cooking space) 10 L
Adjustable temperature 30-250 °C
WiFi standard	802.11 b/g/n
WiFi frequency	2,4 GHz
WiFi radio-frequency power (max.)	20 dBm

SAFETY INSTRUCTIONS

Read the operating instructions carefully before using the device. The following safety instructions should always be followed when using electrical equipment:

• Before using for the first time, check that the voltage of your power outlet matches the specified voltage.
• To avoid electric shock, do not immerse the power cord or the device itself in water or other liquids.
• Keep children and pets away from the device during operation.
  • After use, switch off the appliance and disconnect the mains plug from the socket.
• The unit should be operated separately from other units on a separate circuit. If the circuit is overloaded by other devices, this device may not work properly.
  • Take extreme care when moving a container containing hot food.
• Do not let the power cord hang over the edge of tables or work surfaces, and be careful not to allow the power cord to come into contact with the hot surfaces of the equipment.
  • Always place the unit securely in the center of the table or worktop.
• Do not touch hot device surfaces. Use the handles to move or lift.
  • The device must not be used by children.
• Use of accessories not expressly recommended by the manufacturer may result in injury.
• Do not place or use the unit on heat-sensitive glass surfaces, wooden surfaces or tablecloths. Be sure to place a heat-resistant plate with thermal protection under the unit on these surfaces.
• Never use the device if the power cord is damaged, if the device malfunctions or has been damaged in any other way.
• Before cleaning or when not in use, switch off the device and disconnect the power plug from the socket. Allow the device to cool down before removing or adding any parts.
• Do not place the device in the immediate vicinity of hot gas or electric ovens or in a heated oven.

• If the power plug does not fit properly, always contact a qualified electrician to minimize the potential for electrical shock. Never try to manipulate the power plug in any way.

• Do not clean the device with metallic scouring pads. Small metal parts could break off and short out the electrical components of the device, which could result in electric shock or damage the device.

• To minimize the risk of electric shock, only prepare food in the supplied, coated, non-stick container.
  • This device is designed for indoor use only.
  • Use the device only for its intended purpose.
• Keep this manual for future reference.

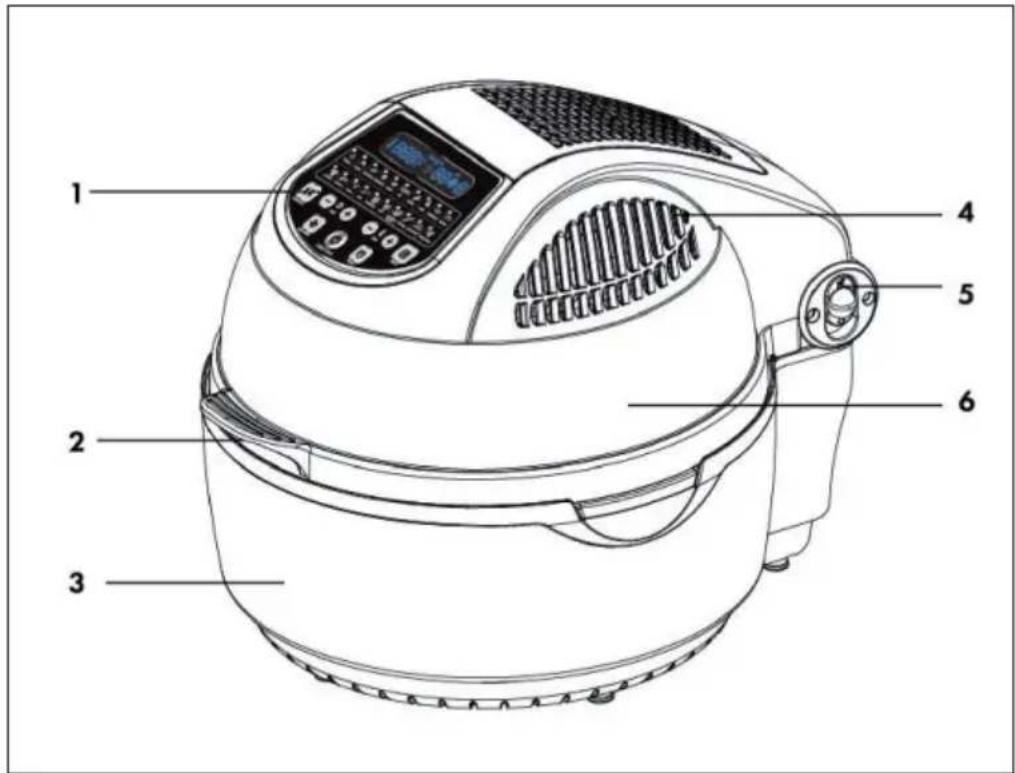

DEVICE OVERVIEW

1 2 3 4 5 6

1	Control panel	4	Hot air vent
2	Lid handle	5	Lid release
3	Housing	6	Transparent lid

ACCESSORIES

Included with delivery

Tongs High / low grate Baking basket
Poultry fork Frying pan

Poultry fork Frying pan

Optionally available accessories (not included with delivery)

Steak basket Skewer	insert Steamer

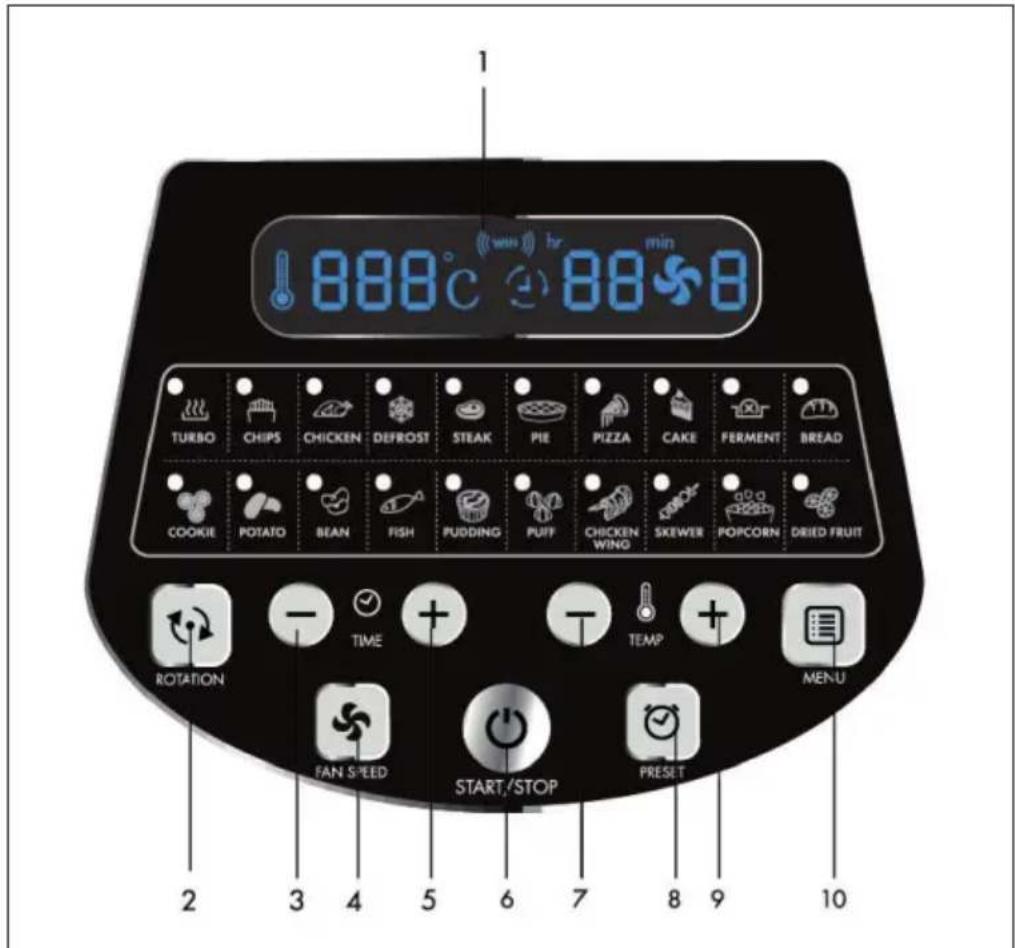

CONTROL PANEL AND BUTTONS

888°C 88 min TURBO CHIPS CHICKEN DEFROST STEAK PIE PIZZA CAKE FERMENT BREAD COOKIE POTATO BEAN FISH PUDDING PUFF CHICKEN WIND SKEWER POPCORN DRIED FRUIT 2 TIME TEMP MENU FAN SPEED START/STOP PRESET 10

1	LED screen 6 ON / OFF	button
2	Rotation button 7 Temperature	(+)
3	Time adjustment button (+) 8 Memory	button
4	Fan button 9 Temperature (-)
5	Time adjustment button (-) 10 Menu key

GETTING STARTED

1 Pull the lid upwards using the lid handle.

2 Add the container, the accessories (if necessary) and the food you want to prepare.

• When using the grate or steamer, pour some water into the container.
• If rotation is available for the selected mode, make sure the fork is properly seated.
• Do not amass food close to the heating element, otherwise charring may occur

3 Unlock the lid release and pull the lid down to close.

4 Plug the appliance into the mains socket, which will put the appliance in standby mode. Press the Start / Stop button once to turn the unit on.

5 Press the MENU button repeatedly to select the desired mode. The corresponding time and temperature will be displayed on the LED screen.

6 Time and temperature can be customized. When the time and temperature are set, the unit may be used without selecting a mode.

7 Press the Start / Stop button to start the device.

8 The heating element may stop when a certain temperature has been reached. When the temperature drops, the heating element will automatically switch on again. This process will repeat until the time you set has elapsed.

9 If you want to add more food during cooking, unlock the lid release and pull the lid upwards using the lid handle. The unit will then stop heating immediately (but rotation will continue). Close the lid after adding the extra food and the cooking will continue automatically.

10 The appliance will make a noise when the cooking time you have set has elapsed. Turn off the device, disconnect the power plug from the power outlet and remove the food. To avoid burns, use caution when handling hot accessories. Place the lid and hot container on a pot stand to prevent damage to the table or work surface.

RECOMMENDED SETTINGS FOR DIFFERENT MODES

Make sure that the total weight of the food used does not exceed 5 kg. All modes are factory set to be used with rotation. Press the rotate button once to disable rotation.

Mode °C Minutes Fan Level Accessories
Turbo 250 5 3 All pieces possible
Chips 250 25 3 Baking basket /				skewer insert
Chicken	240	30	2	Poultry fork
Defrost	60	20	3	All
Steak	230	12	3	Steak basket
Pie	180	25	3	Frying pan
Pizza	210	12	3	Frying pan
Cake	180	45	1	Frying pan
Ferment	30	50	1	Frying pan
Bread	190	23	2	Frying pan
Cookie	190	10	3	Frying pan
Potato	160	45	3	Frying pan
Bean	230	10	3	Baking basket
Fish	230	15	3	Steak basket
Pudding	180	25	1	grate
Puff pastry	210	25	2	grate
Chicken wings	240	15	3	Baking basket / skewer insert
Skewer	230	15	2	Skewer insert
Popcorn	250	8	3	Baking basket
Dried fruit	100	60	3	Frying pan

USING THE ACCESSORIES

Grate | Frying pan | Steamer (not included with delivery)

1	Place the grate in the container. Place the food directly on the grate or place the steamer or frying pan on the grate, place the food in it, select a function and start the device.
2	Select the function you want. Press the Start / Stop button.
	Note: Use the food tongs to remove the accessories and food. To ensure that it is completely heated, do not place the food directly in the container.

Steak basket (not included with delivery)

(1) (2)
1	Remove the lid.
2	Place the food in the steak basket and close the lid.
3	Insert the pole into the steak basket.
4	Select the function you want and press the Start / Stop button.

Poultry fork

(1)

(2)

(3)

(4)

(5)

(6)

1	Put a tip on the fork. Fix with a screw.
2	Stick a chicken on the other side. Then place another tip on the fork to secure the chicken.
3	Insert the rod into the hole in the container.
4	Select the "Roast" function and press the Start / Stop button.
	Note: Use the food tongs to remove the accessories and food.

Baking basket

1	Insert the rod into the baking basket. Fix it firmly with a screw.
2	Open the cover of the baking basket.
3	Put the food in the baking basket and close the cover.
4	Insert the rod into the hole in the container.
5	Select the "Deep fry" function and press the Start / Stop button.
	Note: Use the food tongs to remove the accessories and food.

Skewer insert (not included with delivery)

(1)

(2)

(3)

(4)

(5)

(6)

(7)

(8)

1	Insert the attachments on both sides of the bar and secure each one with a screw.
2	Put food on the skewer and insert the ends of each skewer into the holes in the attachments.
3	Fix the skewer insert to the container.
4	Select the function you want and press the Start / Stop button.
	Note: Use the food tongs to remove the accessories and food.

DEVICE CONTROL BY SMARTPHONE

If you integrate the device into your home WiFi, you can conveniently operate it via the associated Klarstein app. The app not only allows you to remotely control the device via your smartphone, but also gives you access to recipes and additional information.

Follow these steps to connect your smartphone to your Klarstein device:

1 Download the Klarstein app first by scanning the QR code with your smartphone (see below), or download it directly from App Store or Google Play.
2 Make sure your smartphone is connected to the same WiFi network that your Klarstein device is to be connected to.
3 Open the Klarstein app.
4 Sign in to your account. If you do not have an account, sign up in the Klarstein app.
5 Follow the instructions from the app.

App Download

Use the scan function of your smartphone to scan the QR code and save the app on your smartphone.

Note: The app provides further information on how to use the app and help on how to connect to your device as soon as you open it for the first time.

iOS Android

Troubleshooting connection problems

If your Klarstein device cannot be found in the WLAN, check the following:

• Is the device plugged in?
• Is the WiFi feature of my phone enabled?
- Is the WiFi function of the Klarstein device activated? (Follow the instructions in the app)
- Has the WiFi password been entered correctly?
- Are the router, Klarstein device and smartphone in the immediate vicinity during the connection attempt? (Ideally no more than 5 m apart)
- If you have deactivated the 2.4 GHz band in the settings of your wireless router, activate it in your router settings.

Note: For further help, follow the instructions in the app when setting up the connection.

CLEANING AND CARE

• Unplug the appliance from the wall outlet and allow it to cool for at least 30 minutes.
• Remove the accessories.
• Clean the unit after each use. Do not use pointed or sharp kitchen utensils or abrasive cleaners to clean the accessories and the inside of the appliance, as these will damage the coating.
• Wipe the outside of the appliance with a damp cloth.
• Clean the accessories with hot water, a little dishwashing detergent and a non-abrasive sponge.
• Remove stubborn grease residues with a degreasing liquid.
• Clean the inside of the unit with a non-abrasive sponge.
• Clean the heating element with a cleaning brush to remove food residue.
• If you will not be using the unit for a long time, clean it before storing it.

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

DECLARATION OF CONFORMITY

CE UK CA

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

Hereby, Chal-Tec GmbH declares that the radio equipment type VitAir Smart is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: use.berlin/10035590

For Great Britain: Hereby, Chal-Tec GmbH declares that the radio equipment type VitAir Smart is in compliance with the relevant statutory requirements. The full text of the declaration of conformity is available at the following internet address: use.berlin/10035590
