USER MANUAL Smoothy 2G OneConcept

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints on installation and use to avoid technical damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the operation and installation instructions are not covered by our warranty and any liability.

Contents

Technical Data 15
Scope of Supply 15
Security instructions 16
Appliance and accessories 18
Before first use 19
Use 22
Cleaning and Storage 26
Disposal Considerations 27
Declaration of Conformity. 27

Technical Data

Item number 10028891, 10031506

Voltage and frequency 220-240 V, 50 Hz

Power consumption 400 W

Scope of Supply

1 high-torque power base
1 Food Processor Blender and Lid
- Attachment
1 tall cup
- 1 small cup
4 party mugs
1 plunger
- 1 extractor

1 cross blade
1 flat blade
1 shaker top
1 steamer top
- 2 stay fresh re-sealable lids
- 2 comfort lip rings

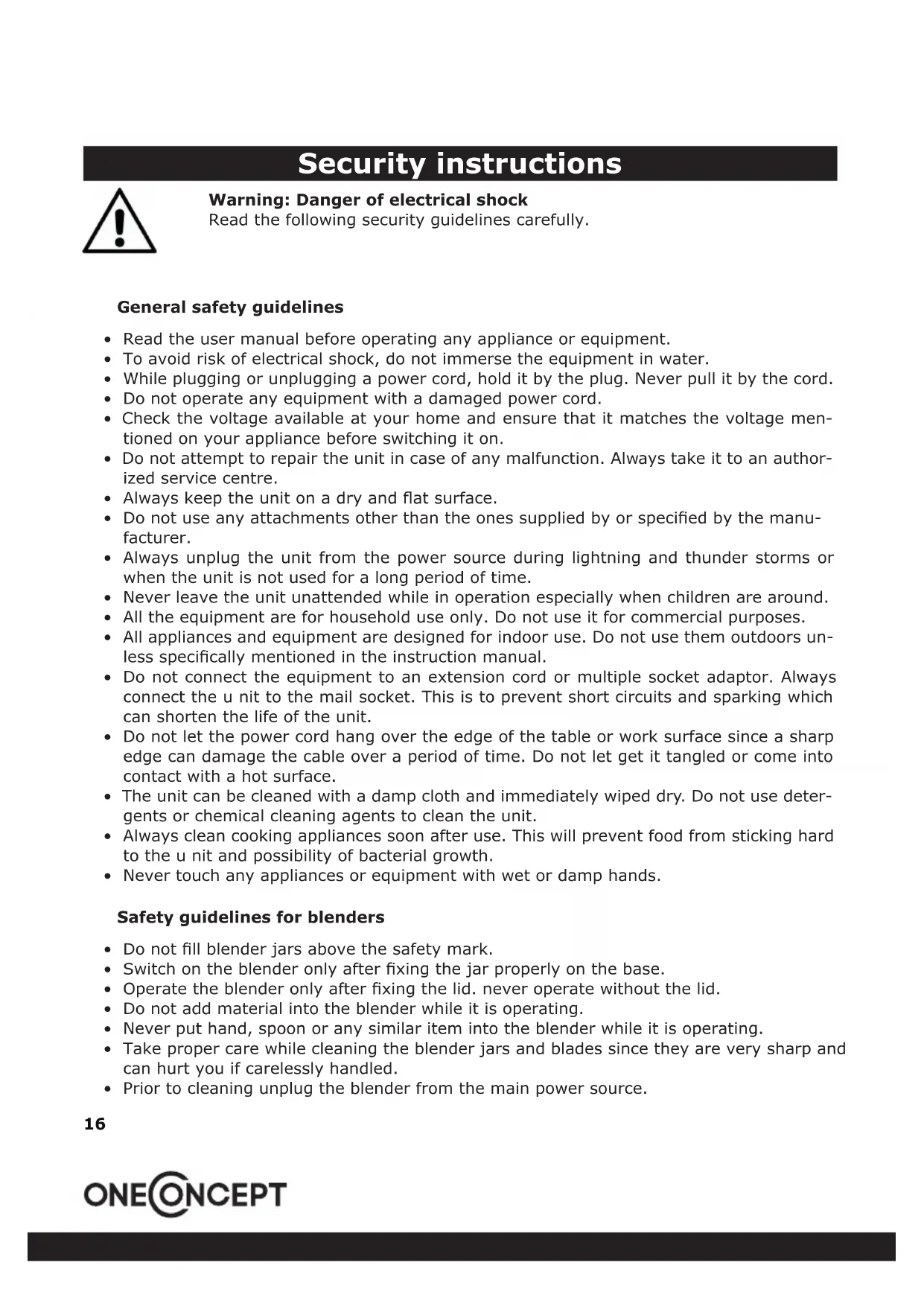

Security instructions

Warning: Danger of electrical shock

Read the following security guidelines carefully.

General safety guidelines

• Read the user manual before operating any appliance or equipment.
• To avoid risk of electrical shock, do not immerse the equipment in water.
  While plugging or unplugging a power cord, hold it by the plug. Never pull it by the cord.
• Do not operate any equipment with a damaged power cord.
• Check the voltage available at your home and ensure that it matches the voltage mentioned on your appliance before switching it on.
• Do not attempt to repair the unit in case of any malfunction. Always take it to an authorized service centre.
• Always keep the unit on a dry and flat surface.
• Do not use any attachments other than the ones supplied by or specified by the manufacturer.
• Always unplug the unit from the power source during lightning and thunder storms or when the unit is not used for a long period of time.
• Never leave the unit unattended while in operation especially when children are around.
• All the equipment are for household use only. Do not use it for commercial purposes.
• All appliances and equipment are designed for indoor use. Do not use them outdoors unless specifically mentioned in the instruction manual.
• Do not connect the equipment to an extension cord or multiple socket adaptor. Always connect the u nit to the mail socket. This is to prevent short circuits and sparking which can shorten the life of the unit.
• Do not let the power cord hang over the edge of the table or work surface since a sharp edge can damage the cable over a period of time. Do not let get it tangled or come into contact with a hot surface.
• The unit can be cleaned with a damp cloth and immediately wiped dry. Do not use detergents or chemical cleaning agents to clean the unit.
• Always clean cooking appliances soon after use. This will prevent food from sticking hard to the u nit and possibility of bacterial growth.
• Never touch any appliances or equipment with wet or damp hands.

Safety guidelines for blenders

• Do not fill blender jars above the safety mark.
• Switch on the blender only after fixing the jar properly on the base.
• Operate the blender only after fixing the lid. never operate without the lid.
• Do not add material into the blender while it is operating.
• Never put hand, spoon or any similar item into the blender while it is operating.
• Take proper care while cleaning the blender jars and blades since they are very sharp and can hurt you if carelessly handled.

• Prior to cleaning unplug the blender from the main power source.

• The blender body can be cleaned by a damp cloth and then with a dry cloth.

• Do not pour boiling liquids into the blender.
• Do not operate the blender for long period of time. If used for more than 5 minutes at a time, switch it off for a few minutes before reusing. This will help in cooling down the motor and extending the motor life.
• Do not pull, twist or mistreat the power cord.
• Avoid contact with moving parts.
• To avoid serious injury and product damage, keep hands and utensils away from the moving blades.
• Never microwave with the blade still attached. Remove the blade and twist on a shaker/steamer top.
• When microwaving, beware of steam and use an oven mitt to remove the hot cups from the microwave.
• Young children should not operate the food processor. Older children should use it only under direct supervision.
• The use of cups or any parts that were not designed to work with your food processor is not recommended and can result in injury.
• Never keep the blade running for more than one minute.
• Do not use the party mugs in the microwave.

Appliance and accessories

power base

food processor blender and lid attachment

tall cup, short cup, party mugs

plunger

extractor
crossblade

flatblade

shaker / steamer tops

stay fresh re-sealable lids

comfort lip rings

Before first use

Description of the parts

Before using your food processor for the first time, rinse all of the pieces.

Tall cup and short cup

There cups are used to mix, cook and store your ingredients. They are dish washer-safe (top rack only) and microwave safe.

Four party mugs with comfort lip rings

These party mugs turn your food processor into the ultimate party machine. You can make and serve frozen party drinks right in the same mug.

Power base

The power base is the heart of the food processor. Simply place one of the bullet cups or party mugs onto the high torque power base and press. Nothing could be easier.

Caution: Do not submerge the power base in water and always unplug the power base before cleaning it.

Cross blade and flat blade

See "Choosing the right blade" on page 23.

Food processor blender and lid

The full-size blender attachment has all the power and capacity of an expensive, conventional blender, but takes up much less space. Use your food processor blender anytime you need to whip up family-size batches of milkshakes, pancakes batters, or to make big batches of your favourite frozen cocktails at your next party.

The blender lid comes with a pop-top for slipping in ingredients while the motor is running, mess free.

Food processor and juice extractor kit

These two pieces, the extractor and plunger transform your food processor into the food processor juicer that does the same job as conventional juicers. However, the food processor juicer cleans up in seconds and is dishwasher-safe.

Shaker, steamer tops

Your food processor comes with two handy shaker/ steamer tops that are used for steaming foods in the microwave, or as shaker tops.

Stay-fresh resealable lids

You can prepare, cook and store your food in the very same vessel. No plastic wrap or storage containers are needed to keep your leftovers fresh. Your food processor comes with two stay-fresh resealable lids that fit right on the short and tall cups, and party mugs to keep your leftovers fresh for days. Only use the shaker/steamer tops to heat food in the microwave.

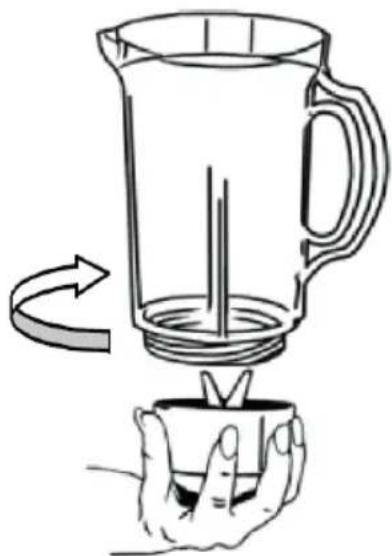

Assembling the food processor

1. Twist the cross blade onto the bottom of the blender pitcher.
2. Place the blender on the food processor base.

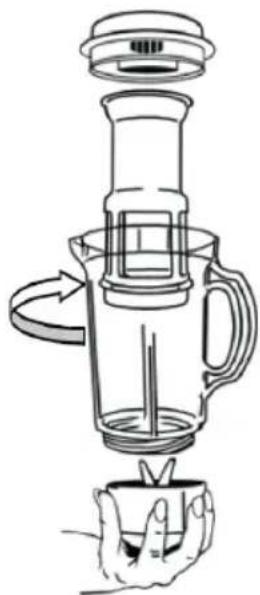

Assembling the food processor juicer

1. Twist the cross blade onto the bottom of the blender.
2. Insert the extractor down the centre of the blender making sure to line the three notches up with the three ribs on the inside of the blender.
3. Place the lid onto the blender and align either the straining pourer or regular pourer up to the spout. Make sure the lid is locked on, it holds the extractor insert in place.
4. Place the blender on the food processor base.

Use

Using the food processor is as easy as 1,2,3...

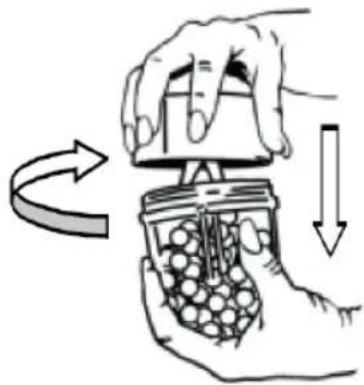

1. Load the ingredients into the short cup, tall cup, or party mug.

2. Twist on the cross, or flat blade until the blade and cup have a tight seal.

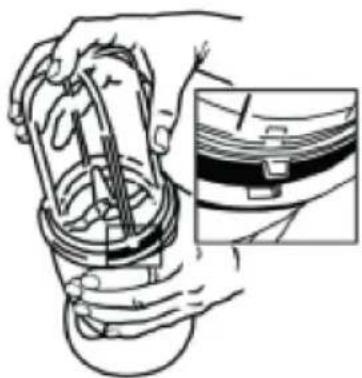

3. Line up the tabs, place the bullet on the power base and press down on the cup to turn it on.

Here's how it works:

As long as you're holding it down, the food processor is on. When you want the blades to stop, simply let go.

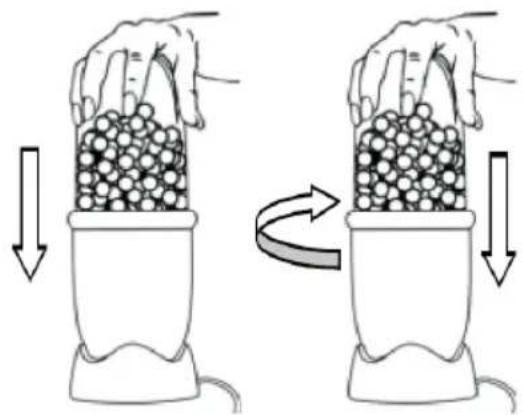

Lock-on mode:

For hands-free operation, press down and gently turn the cup clock-wise until the tabs lock under the lip of the power base. Once you are in lock-on mode, the motor runs continually. To turn it off, simply twist the cup back counter-clockwise and release the cup.

Caution:

Never run the food processor for more than one minute at a time, as it can cause permanent damage to the motor. If the motor stops working, unplug the power base and let it cool for a few hours before attempting to use it again. Your food processor has an internal thermal breaker that suits the unit off when it overheats. Letting the thermal breaker cool down should allow it to reset..

Choosing the right blade

Cross blade	Chopping Onions, garlic, carrots, salsa dips, bean dips, gazpacho.
	Blending Ice for smoothies, frozen coktails,milkshakes
	Mixing Batters for pancakes,muffins,quick breads
	Grating Hard of soft cheeses,chocolate
	Pureeing Dishes such as hummus,all-natural soups,and baba food are creamy smooth in seconds,shave ice and frozen fruits for snow cones or fruit sorbets
Flat blade Grinding	Coffee beans,nuts,cinnamon sticks,dried fruit
	Whipping Whiped cream,cream cheese schmears,butter

Using the food processor juicer

1. Select your juice ingredients. Make sure they are sized to fit into the extractor and place them within arms reach of your food processor juicer.
2. Remove the pop-top from the lid of the blender, place the assembled foot processor juicer onto the power base. Press down and and turn the blender clockwise until it is running in hands-free lock on mode, to avoid jamming the blades, which can cause serous motor damage, make sure the motor is running before you add any ingredients into the juicer.

Food processing techniques

The pulse technique

Because the food processor's motor is so powerful, if you are not careful you can quickly overprocess food and turn it into mush. That is why when you want to make foods such as chunky salsa, or coarse chopped onions, the pulse technique is the key. Pulsing takes a tiny bit of getting used to, you'll be a pro in no time!

To pulse you simply press down on the cup very quickly and immediately release. For foods that you want coarsely chopped, quick tap on the top tap again until you get the consistency you desire.

The trick to successful pulsing is to make sure that the machine does not accidentally slip into lock-on mode. To avoid this, simply use your other hand to apply counter-clockwise pressure on the cup as you pulse.

The shake technique

Sometimes, when you are working with thicker ingredients, like those in chicken salad or mannara sauce, the density or the mixture can make it hard for the ingredients toward the top of the cup to make it down to the blade. If some of your ingredients are having a hard time making it down to the blade, simply use this shake technique.

The cocktail shake

When making smoothies, dips or other recipes where you are using the mixer in lock-on mode, pick up the whole cup and power base and shake it like a cocktail shaker.

The "shakin'pulse"

When you need to shake ingredients that you want coarsely chopped, like salsa or meat salads, you are going to want to use the shak'n'pulse technique.:

1. Make sure the hand holding the cup is applying counter-clockwise pressure to keep ti from locking on.
2. Give the cup a strong downward shake to throw the ingredients into the blade, and pulse at the bottom of the shake.
3. Give the cup a strong downward shake to throw the ingredients into the blade, and pulse at the bottom of the shake.

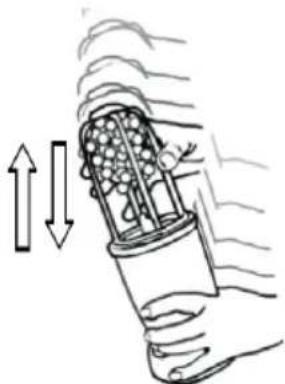

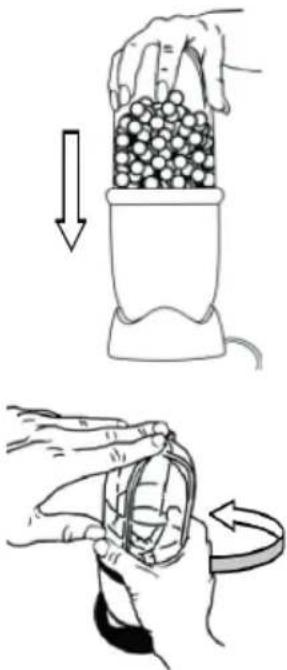

The tap technique

If you have a problem with sticky ingredients clinging to the side

of the cup instead.

If you have a problem with sticky ingredients clinging to the side of the cup instead of being recirculated into the cutting zone.

1. Take the cup off the power base and tag the cup and blade assembly on the counter to force the ingredients down into the blades.
2. Replace the cup and blade assembly to the power base and finish processing.

Cooking in the food processor cups

Unlike with conventional blenders or food processors, the food preparation does not have to end here. Once you have prepared your food, your food processor is then ready to cook it as well. Just remove the blade, twist on a shaker/steamer top and place the cup in the microwave. Seconds later.

1. Blend or pulse your ingredients together.
2. Remove the blade, twist on a shaker/steamer top and place the cup in the microwave.

Caution: Do not put the blades in the microwave!

1. Cook until ready, then remove with an oven mitt and serve.

Cleaning and Storage

Always pull the power cord before cleaning.

Washing food processor attachments

Juste place any of the pieces (except for the power base) on top shelf of the dishwasher, or hand wash with warm soapy water and rinse.

Stubborn cleanup: When you let ingredients dry in the food processor or wehn you have melted cheese in the cups, make you cleanup a snap by filling the cup with soapy water and microwaving it for one minute.

Note:

Always make sure the gaskets are still inside after cleaning. The heat from the dish washers can cause them to become loose and pop out.

Cleaning the food processor power base

For the most part the power base does not really get dirty, but if you neglect to twist the blade onto the cup tightly, liquids can leak out and get into the base and activator buttons.

Here is how to clean it up:

1. Unplug the power base first.
2. Use a damp rag to wipe down the inside and outside of the power base.

Sometimes the base gets so dirty that the title white sliders that activate the food processor get sticky. This can cause the motor to continue to spin even after you have released the cup.

When this happens:

1. Unplug the power base.
2. Use a damp rag to soften up the gunk around the activators as you work the activator buttons up and down until they move freely again.

Storing leftovers in the food processor cups

You can prepare, cook and store your food all in the same vessel! No unnecessary dishes to clean, no plastic wrap, foil or plastic containers to deal with. Just twist on a stay-fresh lid and pop your leftovers in the refrigerator. You can even bring your leftovers to wirk of school, by just tossing the sealed cup into your bag and go! Then at work, you can reheat your leftovers in the microwave - all in the same cup.

Warning: Danger of cutting injury

Never put your hands or utensils near the moving blade and never use your hands or utensils to press the activator buttons down while the power base is plugged in.

Warning: Danger of electrical shock

Never submerge the power base in water or place it in dishwasher.

Disposal Considerations

According to the European waste regulation 2002/96/EC this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Declaration of Conformity
