USER MANUAL PB 2.600 B1 SILVERCREST

Operating instructions

IAN 114040

DE AT CH

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Table des matieres

Introduction 23

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Contents

Introduction 63

Information concerning these operating instructions 63

Copyright 63

Notes on trademarks 64

Intended use 64

Warnings used 65

Safety 66

Basic safety guidelines 66

Descriptions of components 69

Start-up 70

Check scope of delivery. 70

Disposal of packaging materials 70

Charging the Powerbank 71

Checking the charge level 72

Handling and operation 73

Charging mobile devices with the Powerbank . . 73

Troubleshooting 74

Cleaning. 75

Storage when not in use 75

Disposal . 76

Disposal of the appliance. 76

Appendix 77

Technical data 77

Notes on the Declaration of Conformity 77

Warranty 78

Service 79

Imporer. 79

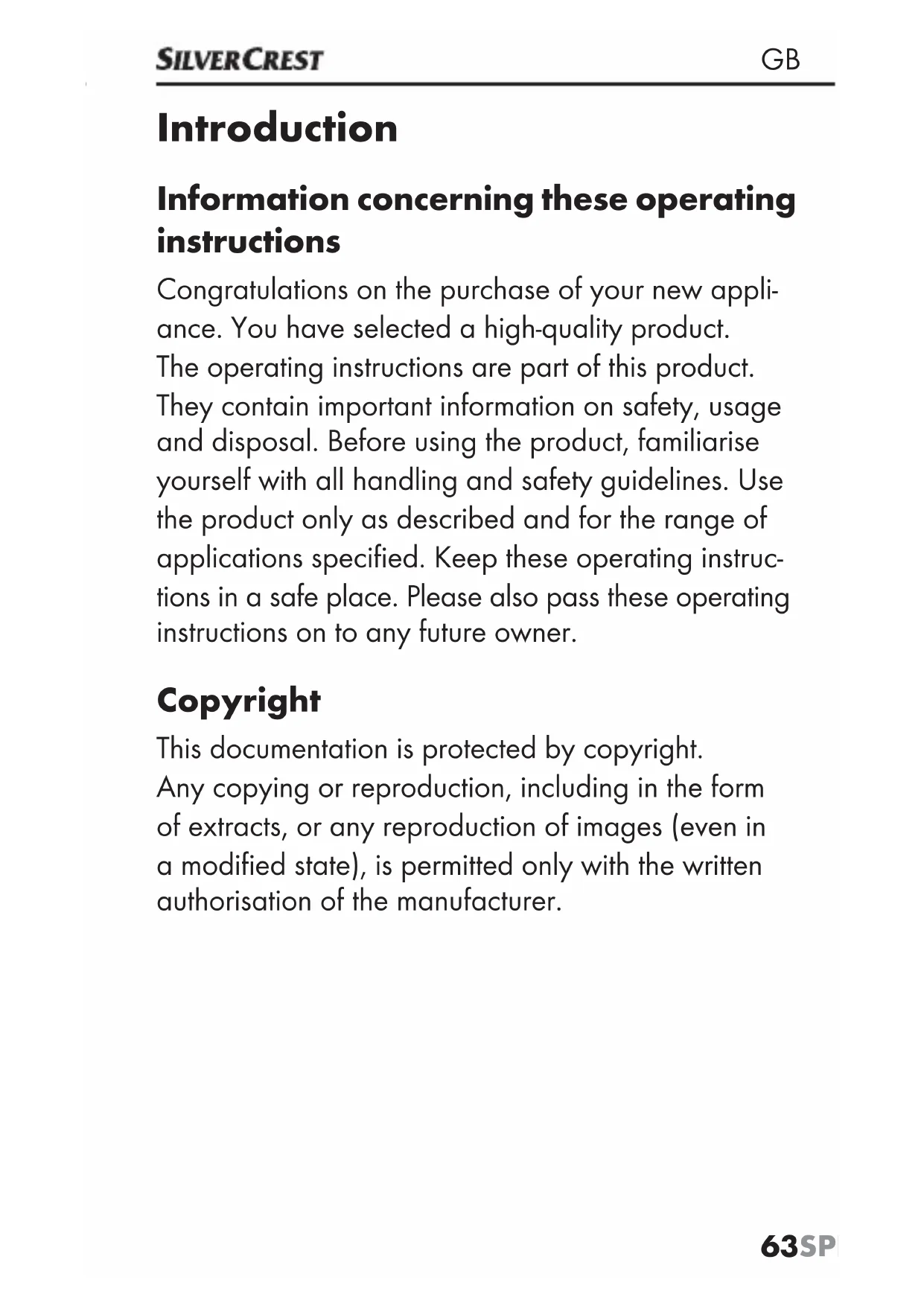

Introduction

Information concerning these operating instructions

Congratulations on the purchase of your new appliance. You have selected a high-quality product.

The operating instructions are part of this product.

They contain important information on safety, usage and disposal. Before using the product, familiarise yourself with all handling and safety guidelines. Use the product only as described and for the range of applications specified. Keep these operating instructions in a safe place. Please also pass these operating instructions on to any future owner.

Copyright

This documentation is protected by copyright.

Any copying or reproduction, including in the form of extracts, or any reproduction of images (even in a modified state), is permitted only with the written authorisation of the manufacturer.

Notes on trademarks

USB® is a registered trademark of USB Implementers Forum, Inc.

All other names and products may be trademarks or registered trademarks of their respective owners.

Intended use

This device is an information technology device and is intended exclusively for charging mobile devices that are charged via a USB port as standard.

The appliance is not intended for any other purpose, nor for use beyond the scope described. This device is not intended for use in commercial or industrial environments. The manufacturer accepts no responsibility for damage caused by failure to observe these instructions, improper use or repairs, unauthorised modifications or the use of unapproved replacement parts. The risk shall be borne solely by the user.

Warnings used

The following warning notice types are used in these operating instructions:

DANGER

A warning notice at this hazard level indicates an imminently hazardous situation.

If the hazardous situation is not avoided, it could result in death or serious physical injury.

Follow the instructions in this warning notice to avoid the risk of death or serious injury.

CAUTION

A warning notice at this hazard level indicates a potential for property damage.

Failure to avoid this situation could result in property damage.

Follow the instructions in this warning notice to prevent property damage.

NOTE

A note provides additional information that will assist you in using the appliance.

Safety

In this section, you will find important safety instructions for using the appliance. This appliance complies with statutory safety regulations. Improper use may result in personal injury and property damage.

Basic safety guidelines

This device may be used by children aged 8 years and above and by persons with limited physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use the device safely and are aware of the potential risks. Children must not play with the appliance. Cleaning and user maintenance tasks may not be carried out by children unless they are supervised.

Check the appliance for visible external damage before use. Do not operate an appliance that has been damaged or dropped.

Always place the device on a stable and level surface. It can be damaged if dropped.

• Do not expose the device to direct sunlight or high temperatures. Otherwise it may overheat and be irreparably damaged.

• Do not place the product near heat sources such as radiators or other heat-generating devices.

• Do not operate the device close to naked flames (e.g. candles).
  The device is not designed for use in rooms with high temperatures or humidity (e.g. bathrooms) or where there is excessive dust.

• Never expose the device to extreme heat. This particularly applies to storage in a car. Extreme temperatures can occur in car interiors and glove compartments during long periods of immobilisation. Remove electrical and electronic devices from the vehicle.
• Do not use the device immediately after moving it from a cold room to a warm room. Always allow the device to acclimatise before switching it on.
• Never open the housing of the appliance. There are no user-serviceable or replaceable components inside the device.

• Do not make any unauthorised modifications or alterations to the device.
  All repairs must be carried out by authorised specialist companies or by the Customer Service department. Failure to make proper repairs may put the user at risk. It will also invalidate any warranty claims.

• Do not expose the device to water spray or dripping water, and do not place liquid-filled objects such as vases or open drink containers on or near the device.
  Switch the device off immediately and disconnect any connected charging cables from the device if you smell fumes or notice any smoke. Have the device checked by a qualified specialist before using it again.
  If you are using a USB power supply, the mains socket used must always be easily accessible so that the USB power supply can be quickly disconnected from the socket in a hazardous situation. You should also observe the operating instructions for the USB power supply.
  DANGER! Mishandling the batteries can cause fires, explosions, leakages or other hazards! Do not throw the device into a fire, since the integrated battery may explode.
  Pay attention to any usage restrictions or prohibitions for battery-powered appliances in locations with specific hazard risks, such as petrol stations, aircraft, hospitals etc.
  DANGER! Do not allow children to play with the packaging material! Keep all packaging materials out of the reach of children.

Risk of suffocation!

Descriptions of components

(See fold-out page for illustrations)

Powerbank SPB 2.600 B1
microUSB port (input)
3 USB port (output)
4 ON/OFF button
Charge level LEDs
6 Charging cable (USB to microUSB)
7 Operating instructions

Start-up

Check scope of delivery

(See fold-out page for illustrations)

The scope of delivery includes the following components:

• Powerbank SPB 2.600 B1
• Charging cable
  These operating instructions
  Remove all parts of the device from the packaging and remove all packaging materials.

NOTE

• Check the package for completeness and for signs of visible damage.
  If the delivery is incomplete or damage has occurred as a result of defective packaging or during transport, contact the Service hotline (see chapter entitled Service).

Disposal of packaging materials

aging protects the device from damage during transport. The packaging materials have been selected for their environmental friendliness and ease of disposal, and are therefore recyclable.

Returning the packaging into the material cycle conserves raw materials and reduces the amount of waste generated. Dispose of packaging materials that are no longer needed in accordance with applicable local regulations.

Charging the Powerbank

Before using the Powerbank, the integrated battery must be fully charged.

CAUTION

The Powerbank must never be charged and used for charging an external device at the same time.
Connect the USB plug of the charger cable to a switched-on PC or a USB power supply (not supplied).
Connect the microUSB plug of the charging cable 6 to the microUSB port 2 n the Powerbank. The current charge level is shown during charging by means of the charge level LEDs 5

LED display Charge level

One LED is flashing < 20%

One LED is on, the second LED is flashing

20-49%

LED display Charge level
Two LEDs are on, the third LED is flashing	50-74%
Three LEDs are on, the fourth LED is flashing	75-99%
All LEDs are on 100%

Checking the charge level

You can also check the charge level of the Powerbank when it is not charged or is being used for charging.

Press the ON/OFF button4 briefly. The LEDs 5 show the current charge level of the Powerbank for about 15 seconds.

LED display Charge level
All LEDs are on 100%
Three LEDs are on 75–99%
Two LEDs are on 50–74%
One LED is on 20–49%
One LED is flashing < 20%
All LEDs are off 0%

Handling and operation

Charging mobile devices with the Powerbank

Connect the microUSB plug of the charging cable to the microUSB port of the mobile device and the USB plug to the USB port 3 of the Powerbank. The charging process starts automatically.

If charging does not start automatically, press the ON/OFF button 4 briefly to start the charging process.

NOTE

Alternative, you can also use the original charging cable (USB cable) provided by the respective device manufacturer.

During the charging process, the current charge level of the Power Bank is shown via the charge level LEDs (see table in chapter entitled "Checking the charge level").

To end the charging procedure, disconnect the charging cable 6 from the mobile device and the Power Bank. The charging status LEDs 5 go off after about 15 seconds.

Troubleshooting

The Powerbank does not charge

Connection may be faulty. Check the connection.
Some computers deactivate the power supply to the USB ports when they are switched off. Check that the computer is switched on.

A connected device will not charge

The integrated battery is empty. Charge the battery.
No connection to the device. Check the connection.
Press the ON/OFF button to start the charging process.
The charging current of the connected device is too low (< 60mA) or too high (>1A)

NOTE

If you cannot solve the problem with the above-mentioned solutions, please contact the Service Hotline (see chapter entitled Service).

Cleaning

CAUTION

Possible damage to the appliance.

There are no serviceable parts or parts requiring cleaning inside the Powerbank. Moisture can cause damage to the appliance.

To avoid irreparable damage to the appliance, ensure that no moisture can penetrate the device during cleaning.
- Do not use caustic, abrasive or solvent-based cleaning materials. These can damage the surfaces of the device.

Clean the housing of the device with a lightly moistened cloth and a mild detergent only.

Storage when not in use

Store the device in a location which is clean, dry, dust-free and not in direct sunlight.
For long-term storage, the integrated battery should be fully charged to extend its operating life.

Disposal

Disposal of the appliance

The adjacent symbol of a crossed-out wheelie bin means that this device is subject to Directive 2012/19/EU. This directive states that this device may not

be disposed of in normal household waste at the end of its useful life, but must be brought to a specially set-up collection point, recycling depot or disposal company.

This disposal is free of charge for the user. Protect the environment and dispose of this device properly.

You can obtain further information from your local disposal company or the city or local authority.

Appendix

Technical data

Integrated battery	3.6 V/2600 mAh (lithium ion)
Input 5 V	—, 0.5 A
Output 5 V	—, 1 A
Minimum discharge current	60 mA
Operating temperature 5°C to 45°C
Storage temperature 0°C to 50°C
Relative humidity (no condensation)	10%-70%
Dimensions	approx. 10.2×2.2×2.2 cm
Weight approx. 75 g

Notes on the Declaration of Conformity

This device complies with the basic requirements and other relevant provisions of the European Electromagnetic Compatibility Directive 2004/108/EC and the RoHS Directive 2011/65/EU.

The complete original Declaration of Conformity is available from the importer.

Warranty

This appliance is provided with a 3-year warranty valid from the date of purchase. This appliance has been manufactured with care and inspected meticulously prior to delivery.

Please retain your receipt as proof of purchase. In the event of a warranty claim, please contact your Customer Service unit by telephone. This is the only way to guarantee free return of your goods.

NOTE

The warranty only covers claims for material and manufacturing defects, not for transport damage, worn parts or damage to fragile components such as buttons or rechargeable batteries.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications/repairs which have not been carried out by one of our authorised Service centres.

Your statutory rights are not restricted by this warranty. The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components.

Any damage and defects present at the time of purchase must be reported immediately after unpacking, but no later than two days after the date of purchase.

Repairs carried out after expiry of the warranty period shall be subject to charge.

Service

GB Service Great Britain Tel.: [phone] (£ 0.10/Min.) E-Mail: [e-mail] IAN 114040

Hotline availability:

Monday to Friday 08:00 - 20:00 (CET)

Importer

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com
