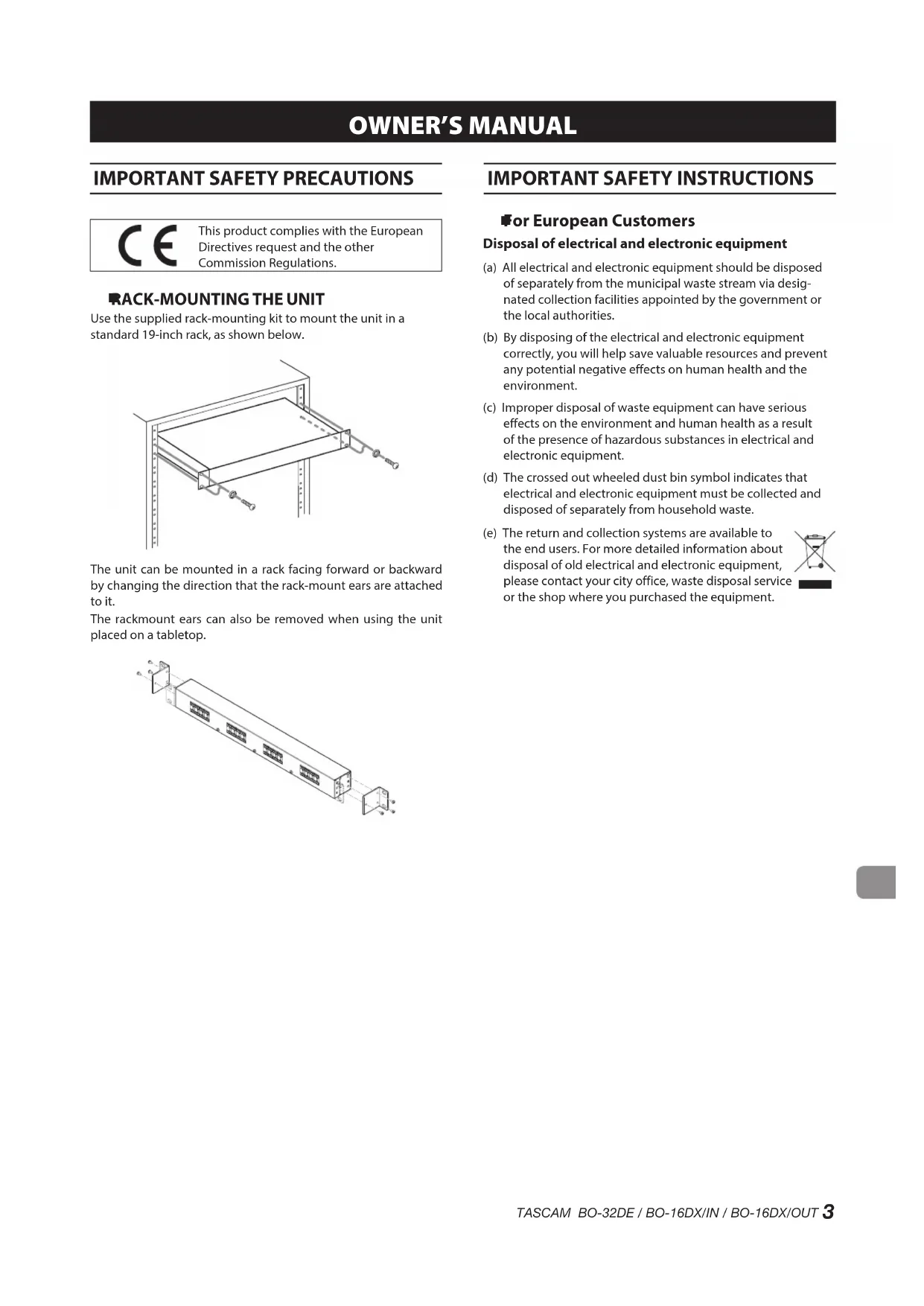

OWNER'S MANUAL

IMPORTANT SAFETY PRECAUTIONS

This product complies with the European Directives request and the other Commission Regulations.

RACK-MOUNTING THE UNIT

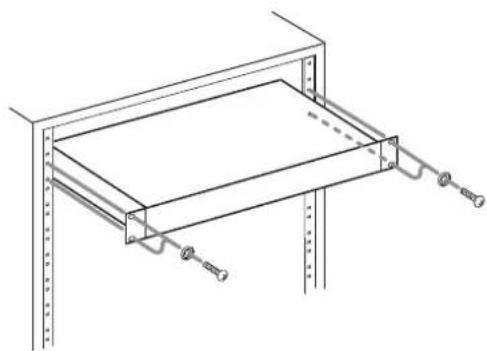

Use the supplied rack-mounting kit to mount the unit in a standard 19-inch rack, as shown below.

Technical line drawing of a mechanical assembly with no visible text or symbols

The unit can be mounted in a rack facing forward or backward by changing the direction that the rack-mount ears are attached to it.

The rackmount ears can also be removed when using the unit placed on a tabletop.

Isometric line drawing of a rectangular electronic device with multiple ports and connectors (no text or symbols)

IMPORTANT SAFETY INSTRUCTIONS

For European Customers

Disposal of electrical and electronic equipment

(a) All electrical and electronic equipment should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
(b) By disposing of the electrical and electronic equipment correctly, you will help save valuable resources and prevent any potential negative effects on human health and the environment.
(c) Improper disposal of waste equipment can have serious effects on the environment and human health as a result of the presence of hazardous substances in electrical and electronic equipment.
(d) The crossed out wheeled dust bin symbol indicates that electrical and electronic equipment must be collected and disposed of separately from household waste.
(e) The return and collection systems are available to the end users. For more detailed information about disposal of old electrical and electronic equipment, please contact your city office, waste disposal service or the shop where you purchased the equipment.

Contents

IMPORTANT SAFETY PRECAUTIONS....3

IMPORTANT SAFETY INSTRUCTIONS ....3

Features......4

Items included with this product....4

Precautions for placement and use....5

Beware of condensation 5

Cleaning the unit ....5

Using the TEAC Global Site....5

Product registration....5

About TASCAM customer support service ....5

Names of Parts....6

Front panel 6

Rear panel 7

Connecting Euroblock plugs....8

Specifications....8

Input and output connectors....8

Other 8

Thank you very much for purchasing a TASCAM BO-32DE / BO-16DX/IN / BO-16DX/OUT Breakout Box.

Before using this unit, read this Owner's Manual carefully so that you will be able to use it correctly and enjoy working with it for many years. After you have finished reading this manual, please keep it in a safe place for future reference.

You can also download this Owner's Manual from the TEAC Global Site (http://teac-global.com/).

Features

BO-32DE:

- 32 channels from 25-pin D-sub connectors can be transmitted to Euroblock connectors (Euroblock terminals are the same for both input and output, so input/output can be assigned freely in 8-channel groups)

- Euroblock plugs with tabs included

BO-16DX/IN:

16 channels from 25-pin D-sub connectors can be transmitted to XLR (female) connectors

BO-16DX/OUT:

16 channels from 25-pin D-sub connectors can be transmitted to XLR (male) connectors

● Space is provided above the connectors for placing labels, including signal routing

● The 25-pin D-sub connectors are compliant with AES59-2012 and use TASCAM pin assignments

● Panel indications support upside-down installation

● Compact 1U size with a depth of 45 mm

Items included with this product

This product includes the following items.

Take care when opening the package to avoid damaging the items. Keep the packing materials for transportation in the future. Please contact the store where you purchased this unit if any of these items are missing or have been damaged during transportation.

● Main unit....x 1

● Euroblock plug (BO-32DE only)....x 32

● Cable band kit (BO-32DE only)....x 1

- Rackmount screw kit....x 1

- Owner's Manual (this document) including warranty....x 1

Precautions for placement and use

• Do not install this unit in the following types of locations. Doing so could cause malfunction.
  Locations with frequent vibrations
  Near windows or other places exposed to direct sunlight
  Near heaters or other extremely hot places
  Extremely cold places
  Very humid or poorly ventilated places
  Very dusty places
  ● Make sure that the unit is mounted in a level position for correct operation.
• Do not place the unit on top of a power amplifier or other device that generates heat.

Beware of condensation

Condensation could occur if the unit is moved from a cold place to a warm place, it is used immediately after a cold room has been heated or it is otherwise exposed to a sudden temperature change.

To prevent this, or if this occurs, let the unit sit for one or two hours at the new room temperature before using it.

Cleaning the unit

Use a dry soft cloth to wipe the unit clean. Do not wipe with chemical cleaning cloths, thinner, alcohol or other chemical agents. Doing so could damage the surface or cause discoloration.

Using the TEAC Global Site

You can download this Owner's Manual necessary for this unit from the TEAC Global Site (http://teac-global.com/).

In the TASCAM Downloads section, select the desired language to open the Downloads website page for that language.

Product registration

Customers in the USA, please visit the following TASCAM website to register your TASCAM product online.

http://tascam.com/

About TASCAM customer support service

TASCAM products are supported and warranted only in their country/region of purchase.

To receive support after purchase, on the TASCAM Distributors list page of the TEAC Global Site (http://teac-global.com/), search for the local company or representative for the region where you purchased the product and contact that organization.

When making inquiries, the address (URL) of the shop or web shop where it was purchased and the purchase date are required. Moreover, the warranty card and proof of purchase might also be necessary.

Names of Parts

Front panel

BO-32DE

TASCAM 80-1238 ① 31 29 27 25 32 30 28 26 23 21 19 17 24 22 20 18 15 13 11 9 16 14 12 10 7 5 3 1 8 6 4 2 + - A

BO-16DX/IN

TASCAM DIP-HLHON ②

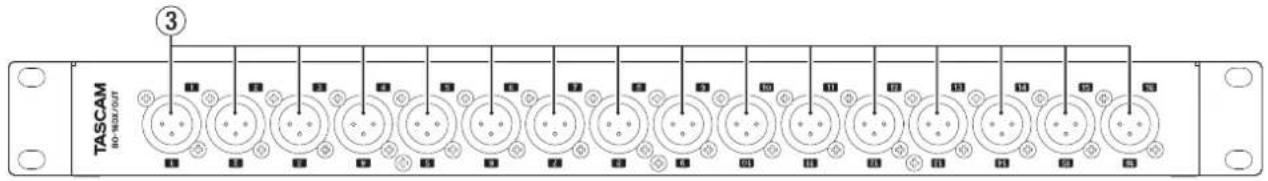

BO-16DX/OUT

TASCAM 80-100/001 ③

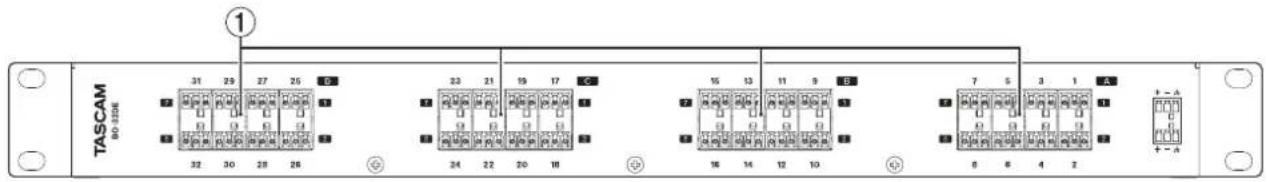

① Euroblock connectors

These are balanced Euroblock analog input and output terminals. (HOT, COLD, GND from left)

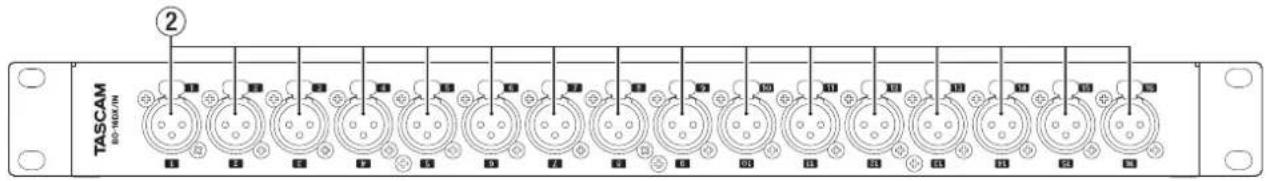

② BALANCED INPUT 1-16 connectors

These are balanced XLR analog input connectors. (1: GND, 2: HOT, 3: COLD)

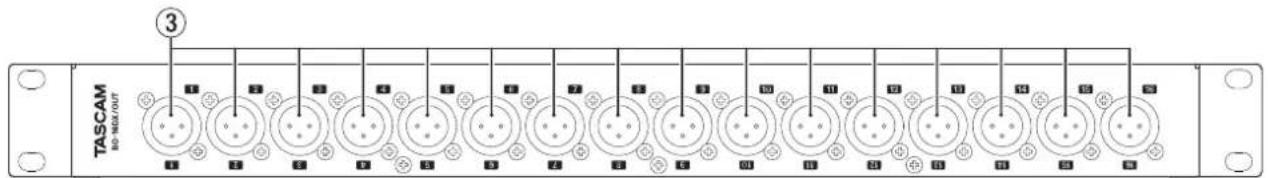

③ BALANCED OUTPUT 1-16 connectors

These are balanced XLR analog output connectors. (1: GND, 2: HOT, 3: COLD)

Rear panel

BO-32DE

④ TASCAM WAL-01 80-330E TEXT CONSTRUCTION DETAIL NC SOME: M.1456

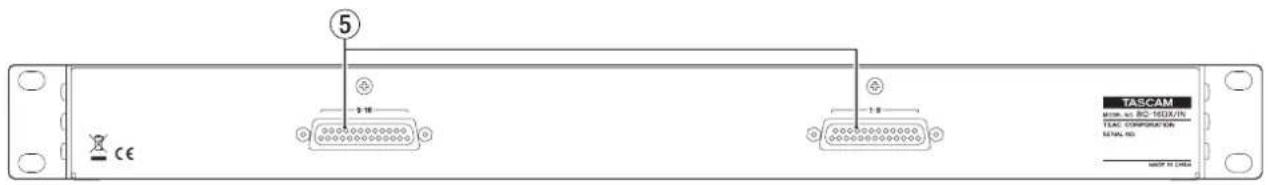

BO-16DX/IN

⑤ TASCAM MOS. no BO-HDX/IN VEAT CORPORATION RETAIL NO. © CE

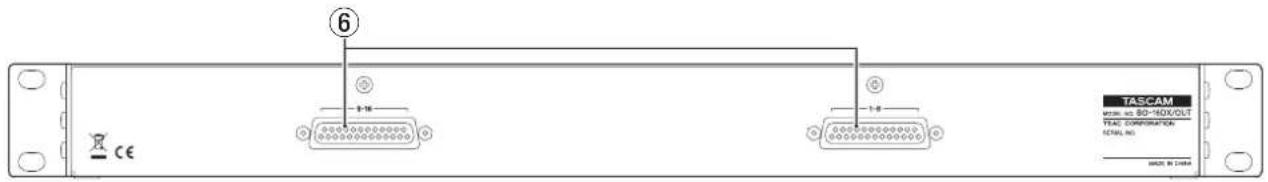

BO-16DX/OUT

⑤ TASCAM MODEL No. 80-160X/OUT TRAC CORPORATION DETAIL NET SINJA BY 14569A

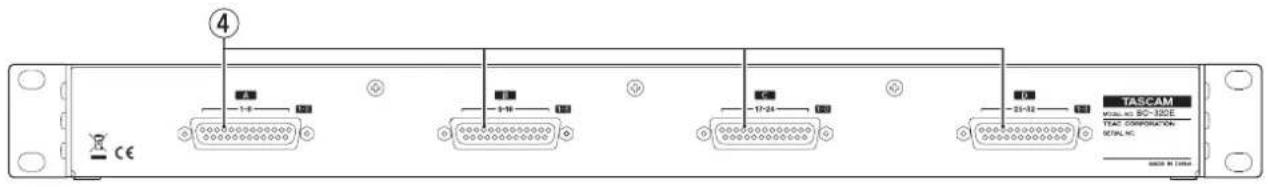

④ 1-8/9-16/17-24/25-32 connectors

These are balanced 25-pin D-sub analog input and output connectors.

Using D-Sub multi-cables for analog input and output, connect other balanced analog devices and transmit signals for channels 1-8, 9-16, 17-24 and 25-32.

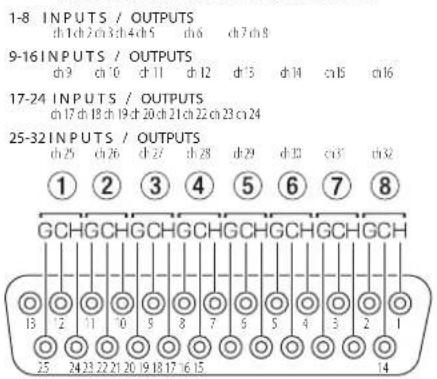

See the illustration below for the D-Sub connector pin assignments.*

(1-8, 9-16, 17-24 and 25-32 connectors follow the same pattern.)

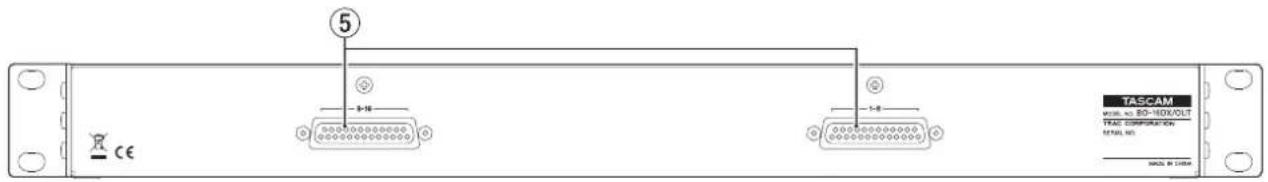

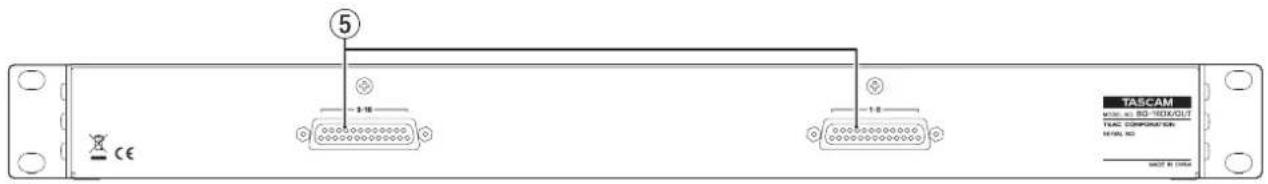

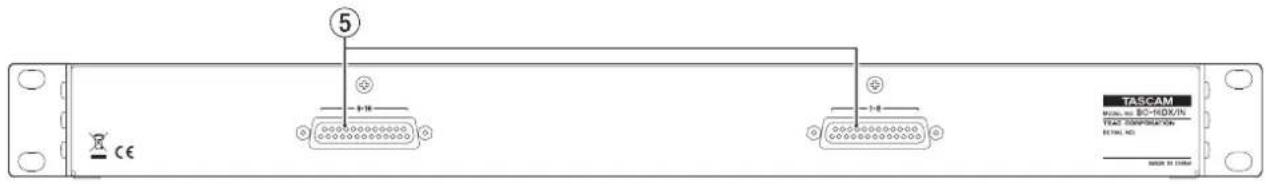

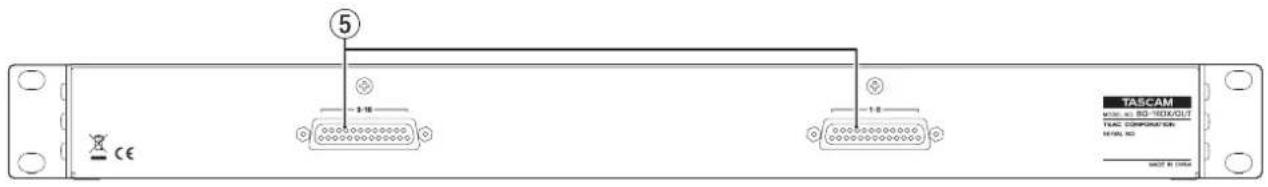

⑤ 1-8/9-16 connectors

These are balanced 25-pin D-sub analog input/output connectors.

Using D-Sub multi-cables for analog input/output, connect other balanced analog devices and transmit signals for channels 1-8 and 9-16.

See the illustration below for the D-Sub connector pin assignments.*

(1-8 and 9-16 connectors follow the same pattern.)

* Pin assignments adhere to the TASCAM DB-25 Pinout Standard (AES59-2012)

ANALOG INPUTS / OUTPUTS

1-8 INPUTS / OUTPUTS ch 1 ch 2 ch 3 ch 4 ch 5 ch 6 ch 7 ch 8 9-16 INPUTS / OUTPUTS ch 9 ch 10 ch 11 ch 12 ch 13 ch 14 cn 15 cn 16 17-24 INPUTS / OUTPUTS ch 17 ch 18 ch 19 ch 20 ch 21 ch 22 ch 23 cn 24 25-32 INPUTS / OUTPUTS ch 25 ch 26 ch 27 ch 28 ch 29 ch 30 cn 31 cn 32 ①②③④⑤⑥⑦⑧ GCHGCHGCHGCHGCHGCHGCHGCH 13 2 11 0 5 8 7 6 5 4 3 2 1 25 24 23 22 21 20 19 18 17 16 15 14

Connecting Euroblock plugs

1. Loosen the Euroblock plug terminal screws.
2. Insert wires.
3. Tighten the Euroblock plug terminal screws.
4. Use an included wire band to attach the wires to the tab.

Technical diagram of a mechanical or electrical component with labeled terminals and polarity indicators

Euroblock plug wiring example

Specifications

Input and output connectors

BO-32DE

Front panel

connectors:

Euroblock (balanced) 3.81mm pitch × 16 (32 channels)

Rear panel

connectors: D-sub 25pin female x4

Attachment screws: No.4-40 UNC (inch-type) × 8

BO-16DX/IN

Front panel

connectors: XLR-3-31 (1: GND, 2: HOT, 3: COLD) x16

Rear panel

connectors: D-sub 25pin female x2

Attachment screws: No.4-40 UNC (inch-type) × 4

BO-16DX/OUT

Front panel

connectors: XLR-3-32 (1: GND, 2: HOT, 3: COLD) x16

Rear panel

connectors: D-sub 25pin female x2

Attachment screws: No.4-40 UNC (inch-type) × 4

Other

Dimensions (width × height × depth)

482.6×44.1×50.8 mm (BO-32DE)

482.6 × 44.1 × 54.5 mm (BO-16DX/IN)

482.6×44.1×51.5mm(BO-16DX/OUT)

Weight

0.9 kg (BO-32DE)

0.9 kg (BO-16DX/IN)

0.9 kg (BO-16DX/OUT)

● See the back of this manual for dimensional drawings.

● Illustrations in this manual might differ in part from the actual product.

● Specifications and external appearance might be changed without notification to improve the product.

PRÉCAUTIONS DE SÉCURITÉ IMPORTANTES

Technical line drawing of a mechanical assembly with mounting brackets and hanging fasteners (no text or symbols)

Isometric line drawing of a rectangular electronic device with multiple ports and connectors (no text or symbols)

INSTRUCTIONS DE SÉCURITÉ IMPORTANTES

TASCAM 80-NDN/OUT ③

④ CE TASCAM MODEL No. 80-320E TEAC CORPORATION DETAIL NO. BEVER IN CHINA

BO-16DX/IN

⑤ TASCAM MINI: 30-100 MDD/IN TEAC CORPORATION METAL NO. © CE

BO-16DX/OUT

⑤ TASCAM MIME: 60-100XOUT TASC CORPORATION RINJ. NO. SHEET BY: CENSAR

ENTRÉES/SORTIES 1-8 can 1 can 2 can 3 can 4 can 5 can 6 can 7 can 8 ENTRÉES/SORTIES 9-16 can 3 can 4 can 5 can 6 can 7 ENTRÉES/SORTIES 17-24 can 17 can 18 can 19 can 20 can 21 can 22 can 23 can 24 ENTRÉES/SORTIES 25-32 can 25 can 26 can 27 can 28 can 29 can 30 can 31 can 32 ①②③④⑤⑥⑦⑧ GCHGCHGCHGCHGCHGCHGCHGCH 13 2 11 10 9 8 7 6 5 4 3 2 1 25 24.23.22.21.20.19.18.17.16.15 14

G = masse C = point froid H = point chaud

Raccordement des barrettes Euroblock

Technical diagram of a mechanical or electrical component with labeled terminals and polarity indicators

Technical line drawing of a mechanical assembly with hanging fasteners and a rectangular frame (no text or symbols)

Isometric line drawing of a rectangular electronic device with multiple ports and connectors (no text or symbols)

TASCAM BIP/BOX/IN ②

BO-16DX/OUT

TASCAM 80-NDN/OUT ③

① Conectores Euroblock

④ CE TASCAM MODEL No. 80-320E TEAC CORPORATION DETAIL NO. BEVER IN CHINA

BO-16DX/IN

⑤ TASCAM MINI: 30-100 MIO-1/1 TEAC CORPORATION METAL NO. © CE

BO-16DX/OUT

⑤ TASCAM MIME: 60-80-100/OUT FRAME CORPORATION FOR 19:00: NO. ©CE

④ Conectores 1-8/9-16/17-24/25-32

Technical diagram of a mechanical or electrical component with labeled terminals and polarity indicators

Technical line drawing of a mechanical assembly with no visible text or symbols

Isometric line drawing of a rectangular electronic device with multiple ports and connectors (no text or symbols)

TASCAM 80 HIGH OUT ③

① Euroblock-Gruppen A-D

⑤ TASCAM MODEL: BC-100X/IN TEAC CORPORATION DETAIL NO. BEET: 82.13666

BO-16DX/OUT

⑥ TASCAM MATERIAL: 80-HOX/OUT TYPE: CORPORATION R25041, NO. MODEL BY CHINA

④ Sub-D-Anschlüsse A-D (1–8 / 9–16 / 17–24 / 25–32)

Technical diagram of a mechanical or electrical component with labeled terminals and polarity indicators

BO-16DX/OUT: 483 mm × 44 mm × 52 mm

Gewicht

BO-32DE: 0,9 kg

BO-16DX/IN: 0,9 kg

BO-16DX/OUT: 0,9 kg

Technical line drawing of a mechanical assembly with no visible text or symbols

Isometric line drawing of a rectangular electronic device with multiple ports and connectors (no text or symbols)

IMPORTANTI ISTRUZIONI DI SICUREZZA

● Spina Euroblock (solo BO-32DE)....x 32

TASCAM 80-100/001 ③

④ TASCAM WAL-01 80-330E TEXT CONSTRUCTION DETAIL NC SOME: M.1456

BO-16DX/IN

⑤ TASCAM MOS. no BO-HDX/IN VEAT CORPORATION RETAIL NO. © CE

BO-16DX/OUT

⑤ TASCAM MODEL No. 80-160X/OUT TRAC CORPORATION DETAIL NET SINJA BY 14569A

④ Connettori 1-8/9-16/17-24/25-32

INGRESSI / USCITE ANALOGICI

1-8 INPUTS / OUTPUTS dh 1 ch 2 cn 3 ch 4 ch 5 dn 6 ch 7 ch 8 9-16 INPUTS / OUTPUTS dh 9 ch 10 ch 11 d 12 d 13 d 14 cn 15 cn 16 17-24 INPUTS / OUTPUTS ch 17 ch 18 ch 19 d 20 ch 21 ch 22 cn 23 cn 24 25-32 INPUTS / OUTPUTS ch 25 ch 26 ch 27 d 28 d 29 d 30 cn 31 cn 32 ①②③④⑤⑥⑦⑧ GCHGCHGCHGCHGCHGCHGCHGCH 13 2 11 0 5 8 7 6 5 4 3 2 1 25 24 23 22 21 20 19 18 17 16 15 14

Technical diagram of a mechanical or electrical component with labeled terminals and polarity indicators

482.6×44.1×51.5mm(BO-16DX/OUT)

Peso

0,9 kg (BO-32DE)

0,9 kg (BO-16DX/IN)

0,9 kg (BO-16DX/OUT)

Technical line drawing of a mechanical assembly with hanging fasteners and a rectangular frame (no text or symbols)

Isometric line drawing of a multi-chamber industrial or electronic device with internal compartments and connectors (no text or symbols)

結露について

TASCAM I/O MAX mounting ③

⑤ TASCAM MODE: BC-HDX/IV TRANS COMPARATION IN: 100 MHz MODE BY: 150MHz

BO-16DX/OUT

⑤ TASCAM MODE: 450-800/OUT TRAN. COMPLICATION MDC: 100000

Technical diagram of a mechanical or electrical component with labeled terminals and polarity indicators

ユーロブロックプラグ結線例

仕様

入出力コネクター

BO-32DE

フロント

482.6 x 44.1 x 54.5mm (BO-16DX/IN)

482.6 x 44.1 x 51.5mm (BO-16DX/OUT)

質量

0.9kg (BO-32DE)

0.9kg (BO-16DX/IN)

0.9kg (BO-16DX/OUT)

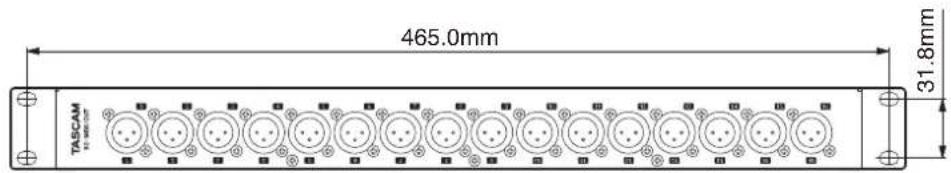

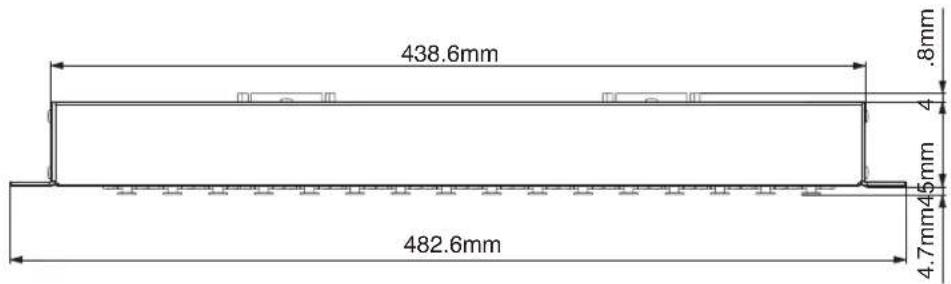

438.6mm 482.6mm 1mm45mm 0.8mm

43.6mm 0.5mm

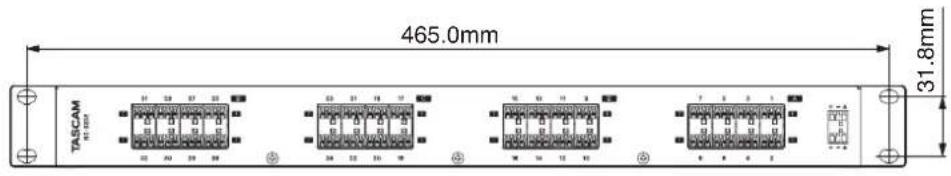

465.0mm 31.8mm TASCAM H1 20 27 33 33 31 19 17 34 32 30 28 10 13 11 9 14 12 10 7 6 5 4 8 6 5 4

BO-16DX/IN

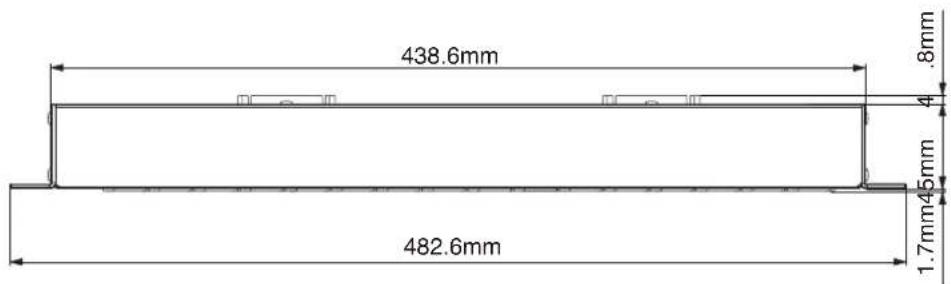

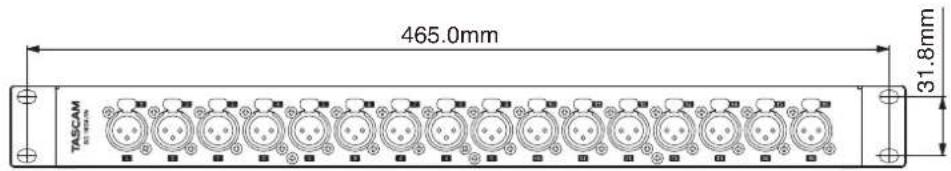

438.6mm 482.6mm 4.7mm 45mm 4 mm .8mm

43.6mm 0.5mm

465.0mm TASCAM 31.8mm

BO-16DX/OUT

438.6mm .8mm 4 482.6mm 1.7mm 45mm

43.6mm 0.5mm

465.0mm TASCAM 31.8mm

This warranty gives you specific legal rights and you may also have other rights which vary from state to state. This warranty is only valid within the country the unit was originally purchased.

WHAT IS AND IS NOT COVERED

Except as specified below, this warranty covers all defects in materials and workmanship in this product. The following are not covered by the warranty:

1. Damage to or deterioration of the external cabinet.
2. Damages resulting from accident, misuse, abuse or neglect.
3. Damage resulting from failure to perform basic daily maintenance and/or calibration or otherwise resulting from failure to follow instructions contained in your owner's manual.
4. Damage occurring during shipment of the product. (Claims must be presented to the carrier)
5. Damage resulting from repair or attempted repair by anyone other than TEAC or an authorized TASCAM service station.
6. Damage resulting from causes other than product defects, including lack of technical skill, competence, or experience of the user.
7. Damage to any unit which has been altered or on which the serial number has been defaced, modified or is missing.

WHO IS COVERED UNDER THE WARRANTY

This warranty may be enforced only by the original purchaser. This warranty is not valid if the product was purchased through an unauthorized dealer.

LENGTH OF WARRANTY

All parts except heads and disk drives are warranted for one (1) year from the date of original purchase. Heads and disk drives are warranted to ninety (90) days from date of original purchase. Labor is warranted for ninety (90) days from date of original purchase.

WHAT WE WILL PAY FOR

We will pay all labor and material expenses for items covered by the warranty. Payment of shipping charges is discussed in the next section of this warranty.

HOW YOU CAN GET WARRANTY SERVICE

Your unit must be serviced by an authorized TASCAM service station in the United States. (This warranty is not enforceable outside the U.S.) If you are unable to locate an authorized TASCAM service station in your area, please contact us. We either will refer you to an authorized service station or instruct you to return the unit to the factory. Whenever warranty service is required, you must present a copy of the original dated sales receipt from an Authorized TASCAM Dealer.

You must pay any shipping charges if it is necessary to ship the product to service. However, if the necessary repairs are covered by the warranty, we will pay return surface shipping charges to any destination within the United States.

LIMITATION OF IMPLIED WARRANTIES

Any implied warranties, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, are limited in duration to the length of this warranty.

EXCLUSION OF DAMAGES

TEAC's liability for any defective product is limited to repair or replacement of the product, at TEAC's option. TEAC shall not be liable for:

1. Damages based upon inconvenience, loss of use of the product, loss of time interrupted operation or commercial loss; or

2. Any other damages, whether incidental, consequential or otherwise.

Some states do not allow limitations on how long an implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations and exclusions may not apply to you.

To locate an Authorized Service Center in Your Area

CALL 1-800-447-8322

This product is subject to the legal warranty regulations of the country of purchase. In case of a defect or a problem, please contact the dealer where you bought the product.

These warranty provisions in Japanese are valid only in Japan.

< In other countries/areas >

This warranty gives you specific legal rights, and you may also have other rights that vary by country, state or province. If you have a warranty claim or request, please contact the dealer where you bought the product.

If you require repair services for your TASCAM equipment, please contact the dealer where the product was purchased from or the TASCAMDistributor in your country. A list of TASCAMD distributors can be found on our website at http://teac-global.com/

BO-32DE / BO-16DX/IN / BO-16DX/OUT

Serial No. / No de Série / Seriennummer

Address/Adresse/Adresse
