USER MANUAL EY201 KRUPS

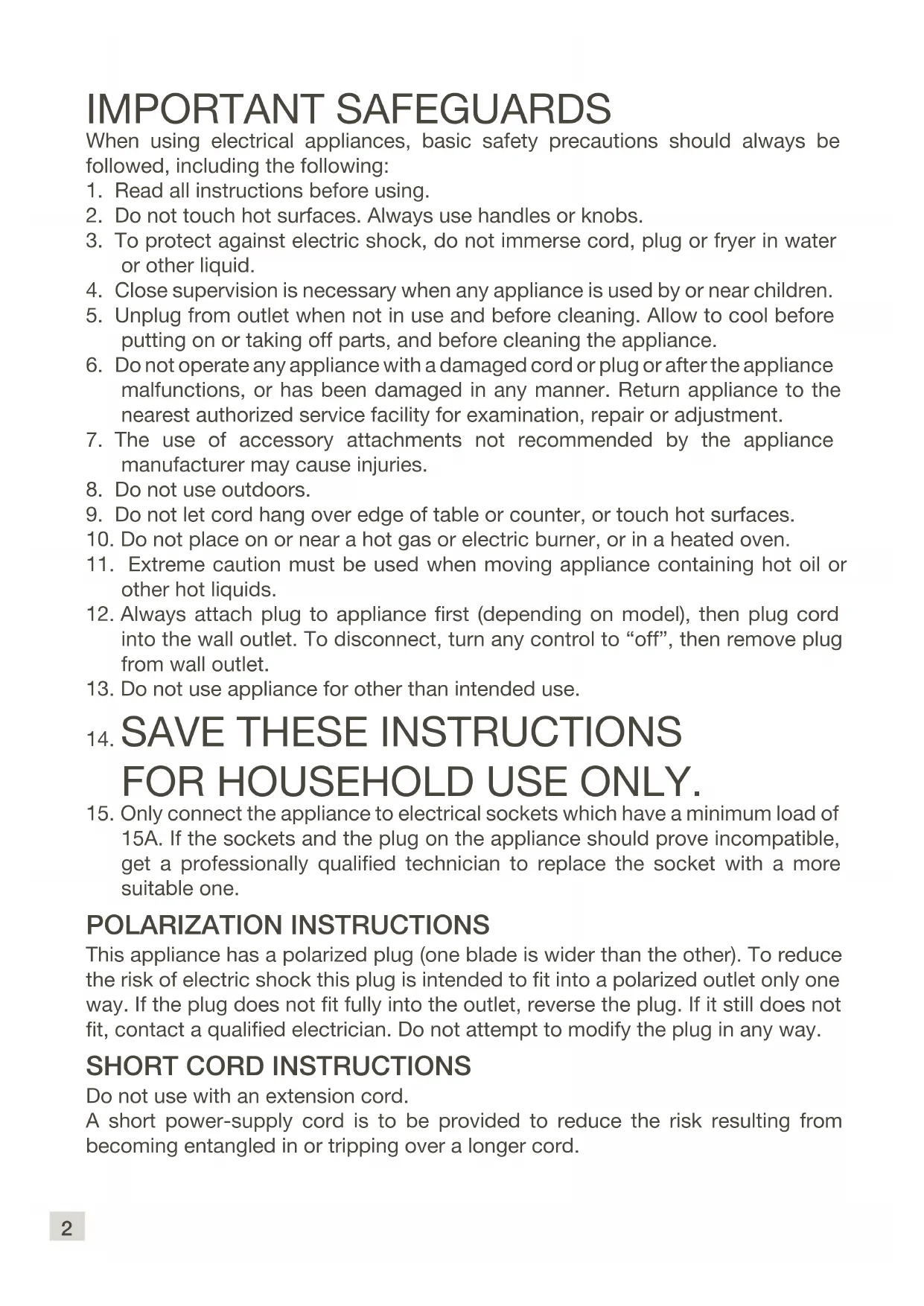

ENGLISH KRUPS XL Air Fryer www.krupsusa.com ENFRES2 IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions before using.

2. Do not touch hot surfaces. Always use handles or knobs.

3. To protect against electric shock, do not immerse cord, plug or fryer in water

4. Close supervision is necessary when any appliance is used by or near children.

5. Unplug from outlet when not in use and before cleaning. Allow to cool before

putting on or taking off parts, and before cleaning the appliance.

6. Do not operate any appliance with a damaged cord or plug or after the appliance

malfunctions, or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or adjustment.

7. The use of accessory attachments not recommended by the appliance

manufacturer may cause injuries.

8. Do not use outdoors.

9. Do not let cord hang over edge of table or counter, or touch hot surfaces.

10. Do not place on or near a hot gas or electric burner, or in a heated oven.

11. Extreme caution must be used when moving appliance containing hot oil or

12. Always attach plug to appliance rst (depending on model), then plug cord

into the wall outlet. To disconnect, turn any control to “off”, then remove plug from wall outlet.

13. Do not use appliance for other than intended use.

15. Only connect the appliance to electrical sockets which have a minimum load of

15A. If the sockets and the plug on the appliance should prove incompatible, get a professionally qualied technician to replace the socket with a more suitable one. POLARIZATION INSTRUCTIONS This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock this plug is intended to t into a polarized outlet only one way. If the plug does not t fully into the outlet, reverse the plug. If it still does not t, contact a qualied electrician. Do not attempt to modify the plug in any way.

SHORT CORD INSTRUCTIONS

Do not use with an extension cord. A short power-supply cord is to be provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.3 ENGLISH SAFETY INSTRUCTION This appliance is intented for domestic use only. It is not intended to be used in the following applications, and the guarantee will not apply for: – staff kitchen areas in shops, ofces and other working environments; – farm houses; – by clients in hotels, motels and other residential type environments; – bed and breakfast type environments. This appliance is not intended to be operated by means of an external timer or a separate remote control system. If the power supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualied persons in order to avoid a hazard. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. The temperature of accessible surfaces may be high when the appliance is operating. Do not touch the hot surfaces of the appliance. Clean removable parts with a non abrasive sponge and dishwashing liquid or in a dishwasher (depending on model). Clean the inside and the outside of the appliance with a damp sponge or cloth. Please refer to the «Cleaning» section of the instructions for use. The appliance can be used up to an altitude of 2000 m.

Check periodically for looseness and retighten screws or nuts of the bodys and lids handles with adapted tool. CAUTION: Overtightening can result in stripping of screws or nuts cracking of handles. Read and follow the instructions for use. Keep them safe. Remove all packaging materials and any promotional labels or stickers from your appliance before use. Be sure to also remove any materials from underneath the removable bowl (depending on model). Check that the voltage of your outlet corresponds to the voltage given on the rating plate on the appliance (alternative current). Given the diverse standards in effect, if the appliance is used in a country other than that in which it is purchased, have it checked by an approved Service Center. Use the appliance on a at, stable, heat-resistant work surface away from water splashes. Place the appliance at minimum 20 cm from a wall. Always unplug your appliance: after use, to move it, or to clean it. In the event of re, unplug the appliance and smother the ames using a damp dish towel.4 To avoid damaging your appliance, please ensure that you follow recipes in the instructions and at www.krupsusa.com; make sure that you use the right amount of ingredients. Do not Do not use the appliance if it or the power cord is damaged or if it has fallen and has visible damage or appears to be working abnormally. If this occurs, the appliance must be sent to an Approved Service Center. Do not use an extension cord. If you decide to do so, under your own responsibility, use an extension cord that is in good condition and compliant with the power of the appliance. Do not let the power cord dangle. Do not unplug the appliance by pulling on the power cord. Never move the appliance when it still contains hot food. Do not switch on the appliance near to ammable materials (blinds, curtains…). or close to an external heat source (gas stove, hot plate etc.). Do not store any inamamable products close to or underneath the furniture unit where the appliance is located. Never take the appliance apart yourself Do not immerse the product in water. Do not use any powerful cleaning products (notably soda based strippers), nor brillo pads, nor scourers. Do not store your appliance outside. Store it in a dry and well ventilated area. Advice/information When using the product for the rst time, it may release a non-toxic odor. This will not affect use and will disappear rapidly. For your safety, this appliance conforms with applicable standards and regulations (Directives on Low Voltage, Electromagnetic Compatibility, Materials in contact with food, Environment, etc.). This appliance is designed for indoor use only and not outdoor. In case of professional use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee does not apply. For your safety, only use the accessories and spare parts designed for your appliance. Environnement Environment protection rst! i Your appliance contains valuable materials which can be recovered or recycled. Leave it at a local civic waste collection point.5 ENGLISH

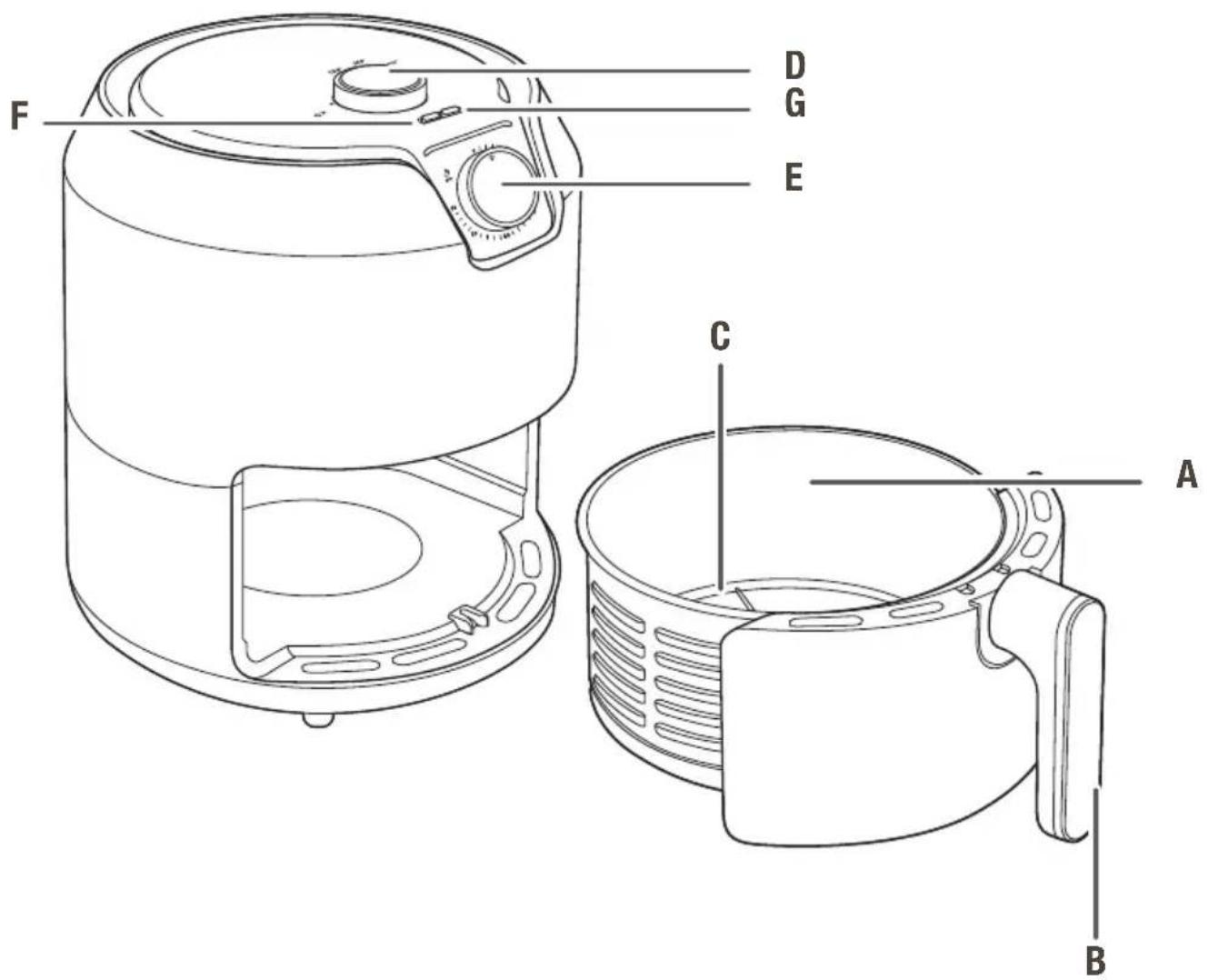

A Bowl B Bowl handle C Removable grid D Temperature control knob (180 - 400°F) E Power on/off and timer (0-60 min) knob with auto shut-off F Power indicator light G Pre-heating light

1. Remove all packaging material.

2. Remove any stickers or labels from the appliance.

3. Thoroughly clean the bowl and the removable grid with hot water, some dish washing

liquid and a non-abrasive sponge. Note: You can also clean these parts in the dishwasher.

4. Wipe the inside and outside of the appliance with a damp cloth. The KRUPS XL Air Fryer

works by producing hot air. Do not ll the bowl (A) with oil or frying fat.

1. Place the appliance on a at, stable, heat-resistant work surface away from water

2. Do not ll the bowl with oil or any other liquid.

Do not put anything on top of the appliance. This disrupts the airow and affects the hot air frying result. The KRUPS XL Air Fryer can cook a large range of recipes. Cooking times for the most commonly cooked foods are given in the section ‘Cooking Guide’. Online recipes at www. krupsusa.com help you get to know the appliance.

1. Connect the power supply cord to an electrical socket.

2. Carefully pull the bowl out of the machine.

3. Place the food in the bowl.

Note: Never ll the bowl beyond the MAX level mark or exceed the maximum amount indicated in the table (see into section ‘Cooking Guide’), as this could affect the quality of the end result.

4. Slide the bowl back into the machine.

Caution: Do not touch the bowl during use and for some time after use, as it gets very hot. Only hold the bowl by the handle.

5. Move the temperature control knob to the required temperature. See section ‘Cooking

Guide’ to select the right temperature

6. Select the required cooking time (see section ‘Cooking Guide’).

7. To switch on the appliance, turn the timer knob to the required cooking time.

Add 3 minutes to the cooking time stated in the tables on page 8 if the appliance is not preheated.7 ENGLISH To set a short time, turn the timer knob until 10 minutes and then go back to the desired time. Note: If you want, you can also let the appliance preheat without any food inside. In this case, turn the timer knob to more than 3 minutes and wait until the pre-heating light goes out (after approx. 3 minutes). Then ll the bowl and turn the timer knob to the required cooking time (see Cooking Guide for timings). The timer starts counting down. The heating-up light goes on. During the hot air frying process, the heating-up light goes on and off from time to time. This indicates that the heating element is switched on and off to thermostatically maintain the set temperature. Excess oil from the food is collected in the bottom of the bowl.

8. Some foods require shaking halfway through the cooking time (see section ‘Cooking

Guide’). To shake the food, pull the bowl out of the appliance by the handle and shake it. Then slide the bowl back into the appliance. Tip: You can set the timer to half of the cooking time, and when the timer sounds shake the ingredients. Then set the timer again for the remaining cooking time.

9. When you hear the timer sound, the cooking time set has nished. Pull the bowl

out of the appliance and place it on a heat-resistant surface. Note: You can also switch off the appliance manually. To do this, turn the timer control knob to 0.

10. Check if the food is ready.

If the food is not ready yet, simply slide the bowl back into the appliance and set the timer for a few extra minutes.

11. When the food is cooked, take out the bowl. To remove food, use a pair of tongs to lift

the food out of the bowl. Caution: When you turn the bowl, be careful of any excess oil collected at the bottom of the bowl that may leak onto the food and of the grid that may fall out. If you turn the bowl, the grid falls off and can burn your hands. After hot air frying, the bowl, the grid and the food are very hot. Depending on the type of food cooked be careful as steam may escape from the bowl.

12. When a batch of food is ready, the KRUPS XL Air Fryer is instantly ready for preparing

another batch of food.8 COOKING GUIDE The table below helps you to select the basic settings for the food you want to prepare. Note: The cooking times below are only a guide and may vary according to the variety and batch of potatoes used. For other foods the size, shape and brand may affect results. Therefore, you may need to slightly adjust the cooking time. Min-max Amount (lbs) Approx Time (min) Temperature (°F) Shake* Extra information Potatoes & fries Frozen French Fries (10 mm x 10mm standard thickness)

0.66 - 1.54 lbs 15-20 min 400°F Yes

Homemade French Fries (8 x 8 mm)

0.66 - 1.76 lbs** 22-32 min 350°F Yes

Add 1 tbsp of oil Frozen potato wedges

Frozen cheese sticks

• Shake halfway through cooking. ** Weight of unpeeled potatoes *** Place the cake tin/oven dish in the bowl. IMPORTANT: To avoid damaging your appliance, never exceed the maximum quantities of ingredients and liquids indicated in the instruction manual and in the recipes. When you use mixtures that rise (such as with cake, quiche or mufns) the oven dish should not be lled more than halfway. Visit www.krupsusa.com for online recipes. Smaller foods usually require a slightly shorter cooking time than larger size foods. A larger amount of food only requires a slightly longer cooking time, a smaller amount of food only requires a slightly shorter cooking time. Shaking smaller size foods halfway through the cooking time improves the end result and can help prevent uneven cooking. Add some oil to fresh potatoes for a crispier result. After adding a spoon of oil, fry the potatoes within a few minutes. Do not cook extremely greasy foods. Snacks that can be cooked in an oven can also be cooked in the KRUPS XL Air Fryer. The optimal recommended quantity for cooking fries is 1.54 lbs. Use ready made puff and shortcrust pastry to make lled snacks quickly and easily. Place an oven dish in the fryer bowl if you want to bake a cake or quiche or if you want to fry fragile ingredients or lled ingredients. You can use an oven dish in silicon, stainless steel, aluminium, terracotta. You can also use the KRUPS XL Air Fryer to reheat food. To reheat food, set the temperature to 320°F for up to 10 minutes. For the best results, we advise to use frozen French Fries. If you want to make home-made French Fries, follow the steps below.

1. Choose a variety of potato recommended for making French Fries. Peel the potatoes

and cut them into equal thickness fries.

2. Soak the fries in a bowl of cold water for at least 30 minutes, drain them and dry them

with a clean, highly absorbent paper towel. Then pat with paper kitchen towel. The fries must be thoroughly dry before cooking.

3. Pour 1 tablespoon of oil (vegetable, sunower or olive) in a dry bowl, put the fries on top

and mix until they are coated with oil.

4. Remove the fries from the bowl with your ngers or a kitchen utensil so that any excess

oil stays behind in the bowl. Place the fries in the bowl. Note: Do not tip the container of oil coated fries directly into the bowl in one go, otherwise excess oil will end up at the bottom of the bowl.

5. Cook the fries according to the instructions in the section Cooking guide.10

TROUBLESHOOTING Clean the appliance after every use. The bowl and the grid have a non-stick coating. Do not use metal kitchen utensils or abrasive cleaning materials to clean them, as this may damage the nonstick coating.

1. Remove the plug from the wall socket and let the appliance cool down. Note: Remove

the bowl to let the machine cool down more quickly.

2. Wipe the outside of the appliance with a damp cloth.

3. Clean the bowl and grid with hot water, some dish-washing liquid and a non-abrasive

sponge. You can use a degreasing liquid to remove any remaining dirt. Note: The bowl and grid are dishwasher-safe. Tip: If dirt is stuck at the bottom of the bowl and the grid, ll them with hot water and some dish-washing liquid. Let the bowl and the grid soak for approximately 10 minutes. Then rinse clean and dry.

4. Wipe inside of the appliance with hot water and a damp cloth.

5. Clean the heating element with a dry, cleaning brush to remove any food residues.

6. Do not immerse the appliance in water or any other liquid.

1. Unplug the appliance and let it cool down.

2. Make sure all parts are clean and dry.

If you need service or information or if you have a problem, please visit the KRUPS website at www.krupsusa.com or contact the Krups Consumer Care Center in your country. You can nd the phone number in the worldwide guarantee leaet. If there is no Consumer Care Center in your country, go to your local KRUPS dealer. If you encounter problems with the appliance, visit www.krupsusa.com for a list of frequently asked questions or contact the Consumer Care Center in your country.11 ENGLISH

KRUPS INTERNATIONAL LIMITED GUARANTEE

: www.krups.com This product is repairable by KRUPS during and after the guarantee period. Accessories, consumables and end-user replaceable parts can be purchased, if locally available, as described on the KRUPS internet site www.krups.com The Guarantee: This product is guaranteed by KRUPS (company address and details included in the country list of the KRUPS International Guarantee) against any manufacturing defect in materials or workmanship for a period of 2 years starting from the initial date of purchase or delivery date. The international manufacturer’s guarantee by KRUPS is an extra benet which does not affect consumer’s Statutory Rights. The international manufacturer’s guarantee covers all costs related to restoring the proven defective product so that it conforms to its original specications, through the repair or replacement of any defective part and the necessary labour. At KRUPS’s choice, an equivalent or superior replacement product may be provided instead of repairing a defective product. KRUPS’s sole obligation and your exclusive resolution under this guarantee are limited to such repair or replacement. Conditions & Exclusions: The international KRUPS guarantee only applies within the guarantee period and for those countries listed in the country list attached and is valid only on presentation of a proof of purchase. The product can be taken directly in person to an authorised service centre or must be adequately packaged and returned, by recorded delivery (or equivalent method of postage), to a KRUPS authorised service centre. Full address details for each country’s authorised service centres are listed on KRUPS website (www.krups.com) or by calling the appropriate telephone number as set out in the country list to request the appropriate postal address. KRUPS shall not be obliged to repair or replace any product which is not accompanied by a valid proof of purchase. This guarantee will not cover any damage which occurs as a result of misuse, negligence, failure to follow KRUPS instructions, use on current or voltage other than as stamped on the product, or a modication or unauthorised repair of the product. It also does not cover normal wear and tear, maintenance or replacement of consumable parts, or the following: – using the wrong type of water or consumable – damage as a result of lightning or power surges – scaling (any de-scaling must be carried out according to the instructions for use) – damages or poor results due to wrong voltage or frequency – professional or commercial use – ingress of water, dust or insects into the product (excluding appliances with features specically designed for insects) – mechanical damages, overloading – accidents including re, ood, thunderbolt, etc – damage to any glass or porcelain ware in the product This guarantee does not apply to any product that has been tampered with, or to damages incurred through improper use and care, faulty packaging by the owner or mishandling by any carrier. In order to offer the best possible after-sales service and constantly improve customer satisfaction, KRUPS may send a satisfaction survey to all customers who have had their product repaired or exchanged in a KRUPS authorised service centre. The international KRUPS guarantee applies only for products purchased in one of the countries listed, and used for domestic purposes only in one of the countries listed on the Country List. Where a product purchased in one listed country and then used in another listed country: a. The international KRUPS guarantee does not apply in case of non conformity of the purchased product with the local standards, such as voltage, frequency, power plugs, or non conformity with other local legal requirements or other local technical specications. b. The repair process for products purchased outside the country of use may require a longer time if the product is not locally sold by KRUPS c. In cases where the product is not repairable in the new country, the international KRUPS guarantee is limited to a replacement by a similar product or an alternative product at similar cost, where possible. Consumer Statutory Rights: This international KRUPS guarantee does not affect the statutory rights a consumer may have or those rights that cannot be excluded or limited, nor rights against the retailer from which the consumer purchased the product. This guarantee gives a consumer specic legal rights, and the consumer may also have other legal rights which vary from State to State or Country to Country. The consumer may assert any such rights at his sole discretion. For Australia only: Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. *** Please keep this document for your reference should you wish to make a claim under the guarantee12
