USER MANUAL ActiFry FZ7108 KRUPS

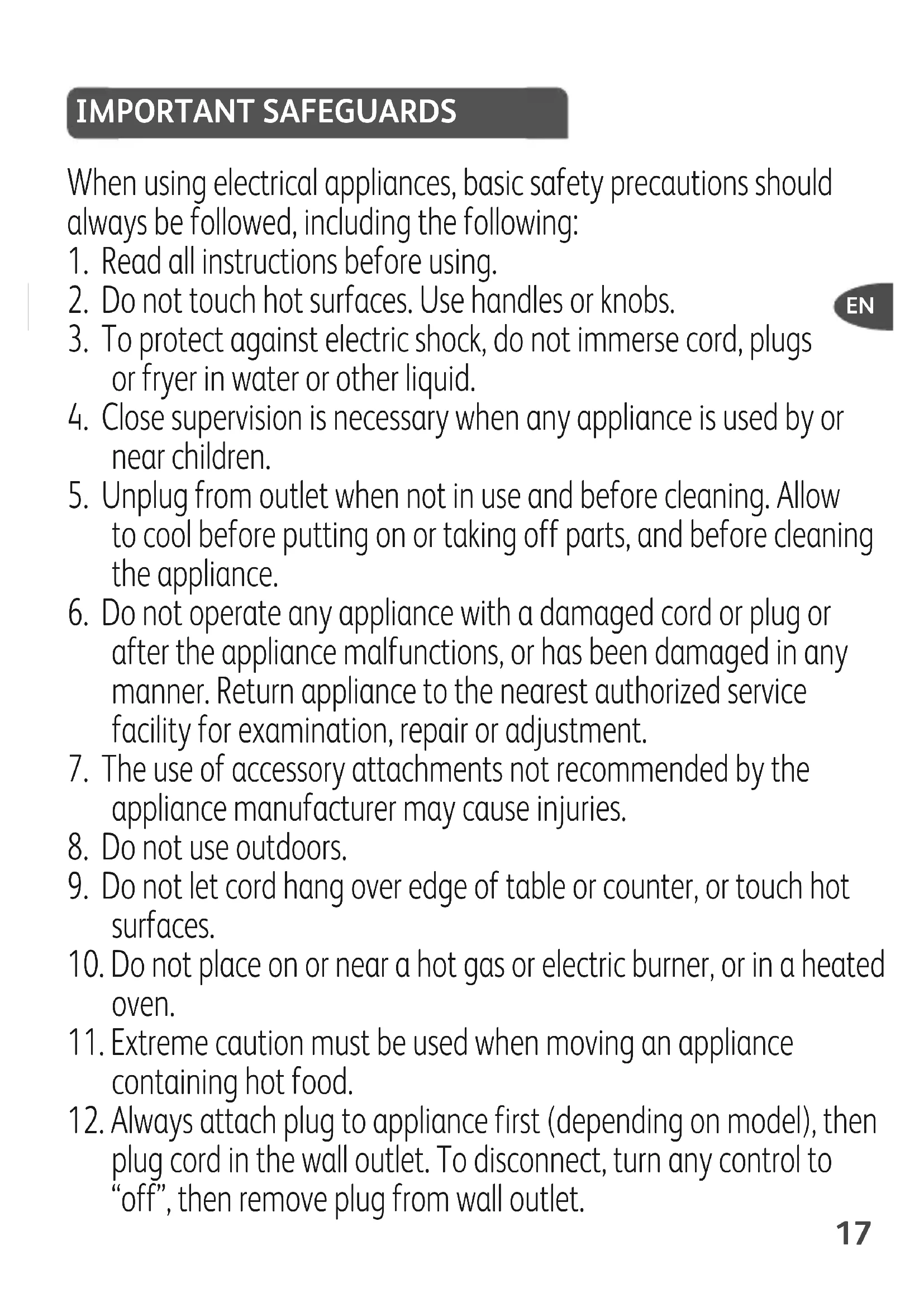

ACTIFRY FRESEN 1520005066_1520005066 20/02/17 16:26 Page14When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions before using.

2. Do not touch hot surfaces. Use handles or knobs.

3. To protect against electric shock, do not immerse cord, plugs

or fryer in water or other liquid.

4. Close supervision is necessary when any appliance is used by or

5. Unplug from outlet when not in use and before cleaning. Allow

to cool before putting on or taking off parts, and before cleaning the appliance.

6. Do not operate any appliance with a damaged cord or plug or

after the appliance malfunctions, or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or adjustment.

7. The use of accessory attachments not recommended by the

appliance manufacturer may cause injuries.

8. Do not use outdoors.

10. Do not place on or near a hot gas or electric burner, or in a heated

11. Extreme caution must be used when moving an appliance

containing hot food.

12. Always attach plug to appliance first (depending on model), then

plug cord in the wall outlet. To disconnect, turn any control to “off”, then remove plug from wall outlet. IMPORTANT SAFEGUARDS

13. Do not use appliance for other than intended use.

15. Before use, check that your local voltage corresponds with the

specifications shown on the appliance nameplate located under the appliance.

16. Only connect the appliance to electrical sockets which have a

minimum load of 15A. If the sockets and the plug on the appliance should prove incompatible, get a professionally qualified technician to replace the socket with a more suitable one.

17. This electrical equipment operates at high temperatures which

may cause burns. Do not touch the hot surfaces of the appliance (lid, plastic parts...).

18. To ensure safe operation, oversized foods must not be inserted

19. Do not overload the pan. For safety reasons never exceed the

20. The cooking times are given as guidelines only.

21. Do not leave the cord hanging.

22. Do not unplug the appliance by pulling on the cord.

23. Always unplug the appliance immediately after use, when

moving it and prior to any cleaning or maintenance.

24. In the event of fire, never try to extinguish the flames with water.

Unplug the appliance. Close the lid, if it is not dangerous to do so. Smother the flames with a damp cloth.

25. Do not move the appliance when it is full of hot food.

26. Never immerse the appliance in water!

27. This appliance is not suitable for recipes with a high-liquid content

(eg. soups, cook-in sauces...). ACTIFRY FRESEN 1520005066_1520005066 20/02/17 16:26 Page1819

28. Never turn on the appliance if the cooking pan is empty.

29. Do not overfill the cooking pan, never exceed the indicated

quantities or maximum food level mark (for French fries only).

30. This appliance is not intended for deep frying.

31. This appliance is not intended to be operated using an external

timer or separate remote control system.

32. This appliance is not designed to be used by people (including

children) with a physical, sensory or mental impairment, or people without knowledge or experience, unless they are supervised or given prior instructions concerning the use of the appliance by someone responsible for their safety. Children must be supervised to ensure that they do not play with the appliance.

33. If you have any problems, contact the authorized after-sales

service or the internet address www.t-fal.com.

34. Do not use for deep frying.

POLARIZATION INSTRUCTIONS (USA/Canada) This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

SHORT CORD INSTRUCTIONS

Do not use with an extension cord. A short power-supply cord is to be provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.

4. Measuring spoon (14ml)

5. Locking/unlocking paddle lever

6. Maximum food level markers (for chips only)

7. Removable mixing paddle

8. Non-stick removable cooking pan

12. Removable filter

17. Removable control panel (for access to the

battery compartment only)

18. Removable turn-over ring

(Depending on model) Description Important recommendations Cooking

• This appliance is not suitable for recipes with a high-liquid content (eg. soups,

• Never turn on the appliance if the cooking pan is empty.

• Do not overfill the cooking pan, never exceed the indicated quantities or

aximum food level mark (for chips only). Quick introduction for use Before first use

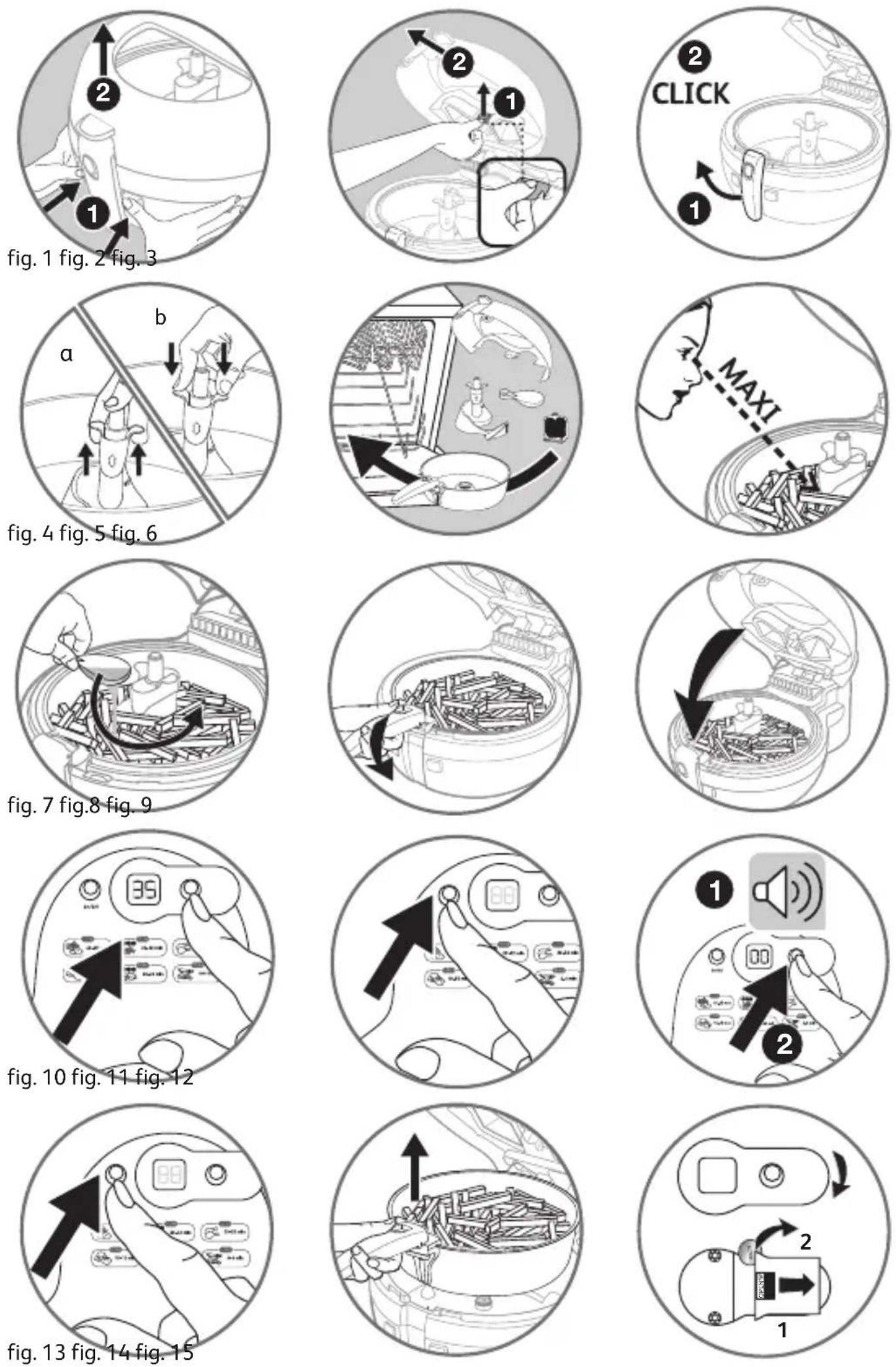

• To remove the lid – fig.1, press the lid opening buttons (13) at the same time and lift the latch (3) to take off the lid – fig. 2 .

• Remove the measuring spoon.

• Lift the handle to a horizontal position until you hear a “click” as it locks.

• Take out the cooking pan – fig. 3. To remove the turn-over ring, pull the clips outwards, then lift it off (Depending on model).

• To remove the paddle, lift up the light grey colour locking lever positioned on part of the paddle. Position your thumb on the top of the paddle and your index and middle finger under the locking lever, lift up the locking lever using your fingers to unlock the paddle – fig. 4a.

• All the removable parts are dishwasher safe – fig. 5 or can be washed with a soft sponge and washing up liquid.

• Wipe the base of the appliance using a damp cloth and washing up liquid.

• Rinse and dry the parts carefully before putting them back together.

• To fit the paddle, pull the light grey colour locking lever up, then place the paddle in the middle of the cooking pan and push the locking lever down – fig. 4b. To replace the turn-over ring, place it at the edge of the pan, centre it on the pan and press down until you hear a “CLICK”. (Depending on model)

• During its first use, the appliance may give off a slight odour: this is not harmful and it will disappear quickly. It has no effect on the functioning of your + ActiFry. Preparing food

• Place the food in the cooking pan, distributing it evenly, making sure that you respect the maximum quantity (see cooking tables p. 5 to 7).

• Add the oil to the food with the spoon – fig. 7, spreading it evenly (see cooking tables p. 5 to 7). (1 spoonful of oil = 14 ml of oil)

• Unlock the handle and fold it completely into its housing – fig. 8.

• Close the lid – fig. 9.

• Never exceed the maximum quantities of ingredients and liquids indicated in the instruction manual and in the recipe book. Remove all the stickers and any packaging. Never immerse the base in water. On first use, to obtain the best results from your new product, we advise you to prepare a recipe that cooks for 30 minutes or more. For chips, never exceed the maximum level indicated on the paddle – fig. 6. Do not leave the measuring spoon inside the pan when cooking food. ACTIFRY FRESEN 1520005066_1520005066 20/02/17 16:26 Page20Starting the cooking
• Press the On/Off switch, the cooking begins thanks to the hot air circulation insidethe cooking enclosure – fig.11. The paddle rotates slowly in a clockwise direction. Taking food out
• Once cooking is completed, the timer beeps. To stop the beeping signal, press thetimer setting button – fig.12.
• Press on On/Off to stop the appliance – fig. 13 and open the lid.
• Lift the handle until you hear a “click” that it locks and take out the cooking pan– fig. 14.• Serve at once. Table of cooking times The cooking times below are only a guide and may vary according to the variety and batch of potatoes used.We recommend using varieties such as King Edward and Maris Piper for chips and potato recipes. Potatoes To avoid any risk of burnsdo not touch the lid orany part other than thecool touch area.

TYPE QUANTITY OIL COOKING TIME

Chipsstandard thickness10mm x 10mmlength up to 9cmFresh 1200 g** 1 spoonful oil 43 - 46 minFresh 1000 g* 1 spoonful oil 40 - 45 minFresh 750 g* 3/4 spoonful oil 35 - 37 minFresh 500 g* 1/2 spoonful oil 28 - 30 minFresh 250 g* 1/4 spoonful oil 24 - 26 minPotatoes (quartered)Fresh 1000 g* 1 spoonful oil 40 - 42 minFrozen 750 g None 14 - 16 minDiced potato Fresh 1000 g* 1 spoonful oil 40 - 42 minFrozen 750 g None 30 - 32 minChipsFrozen - suitablefor deep frying only 750 g Thick13mm x 13mm None 35-40 minFrozen - 2 way or3 way cooksuitable for ovenand grill (anddeep frying).750 g Standard10mm x 10mm None 30-32 min500 g American Style8mm x 8mm None 25-27 minWhen you open the lid,the appliance stopsworking.*Weight of unpeeled potatoes ** Only using the turnover ring - Depending on modelIMPORTANT: To avoid damaging your appliance, never exceed the maximum quantities of ingredients and liquidsindicated in the instruction manual and in the recipe book Cooking Set the cooking time

Press the timer setting button to set the time. (Depending on model) Hold down he button until desired time is featured on the display – fig. 10 ( see cooking ables p. 5 to 7).

Now release. The selected time (in minutes) is displayed and the countdown

tarts. If you make a mistake or to delete the selected time, hold down the button for 2seconds then set the time again.BE CAREFUL: the timersignals the end of thecooking but does notswitch off the fryer.

ACTIFRY FRESEN 1520005066_1520005066 20/02/17 16:26 Page2122 Meat - Poultry To add flavour to meat and poultry, mix some spices (such as paprika, curry, mixed herbs, thyme…..) with the oil.

Chicken drumsticks Fresh 4 to 6 None 30 - 32 min Chicken legs Fresh 2 None 30 - 35 min Chicken breasts (boneless) Fresh 6 (about 750 g) None 10 - 15 min Chinese Spring Rolls Fresh 4 to 8 small 1 spoonful oil 10 - 12 min Lamb chops Fresh (2.5 cm to 3 cm thick) 2 to 6 None 20 - 25 min* Pork chops Fresh (2.5 cm thick) 2 to 3 None 18 - 23 min* Pork fillet Fresh 2 to 6 thin slices or strips 1 spoonful oil 12 - 15 min Sausages Fresh 4 to 8 (pricked) None 10 - 12 min Chilli Con Carne Fresh (made from minced beef) 500 g 1 spoonful oil 30 - 40 min Beef steak Fresh (rump or sirloin cut into 1 cm thick strips) 600 g None 8 - 10 min Meatballs Fresh 12 pieces None 18 - 20 min Fish - Shellfish

TYPE QUANTITY OIL COOKING TIME

Breaded scampi Frozen 18 pieces (280 g) None 10 min Monkfish Fresh cut in pieces 500 g 1 spoonful oil 20 - 22 min Prawns Cooked 400 g None 10 - 12 min Jumbo King prawns Frozen and thawed 300 g (16 pieces) None 12 - 14 min *Turn halfway through cooking

TYPE QUANTITY OIL COOKING TIME

Courgettes Fresh, in slices 750 g 1 spoonful oil + 150 ml cold water

Sweet peppers Fresh, in slices 650 g 1 spoonful oil + 150 ml cold water

Tomatoes Fresh, in quarters 650 g 1 spoonful oil + 150 ml cold water

0 - 25 minCherries Whole Up to 1000 g1 spoonful oil+ 1 to 2 spoonful sugar12 - 15 minStrawberriesCut in quarters iflarge or halves ifsmallUp to 1000 g 1 to 2 spoonful sugar 5 - 7 minApples Cut in wedges 3 1 spoonful oil + 2 spoonful sugar 15 - 18 minPears Cut in pieces Up to 1000 g 1 to 2 spoonful sugar 8 - 12 minPineapple Cut in pieces 1 1 to 2 spoonful sugar 8 - 12 min Desserts

FOOD TYPE QUANTITY OIL COOKING TIME

• Leave it to cool down completely before cleaning.• Open the lid – fig. 1 and lift the latch to take off the lid – fig. 2.

• Lift the handle to the horizontal position until you hear a “click” as it locks – fig. 3.
• Take out the cooking pan.To remove the turn-over ring, pull the clips outwards, then lift it off.
• To remove the mixing paddle, lift up the locking lever – fig. 4a.

• Remove the filter by pulling the top – fig. 3 and wash it.

• All the removable parts are dishwasher safe – fig. 5 or can be washed with a soft sponge and washing up liquid. • Clean the base of the appliance using a damp cloth and washing up liquid.• Rinse and dry parts carefully before putting them back together.• If food gets stuck or burnt on to the pan or paddle, leave them to soak in warmwater before cleaning.
• The appliance has a non-stick cooking pan: the browning and scratches which may appear after long term use do not present any problems and are normal.
• We guarantee that the non-stick coating complies with regulations concerning materials in contact with foodstuffs.Never immerse the basein water. Do not use harsh orabrasive cleaningproducts or scourers.The removable filter mustbe cleaned regularly.To retain the non-stickqualities of the cookingpan for as long aspossible, do not usemetal utensils whenserving food.

ACTIFRY FRESEN 1520005066_1520005066 20/02/17 16:26 Page2324 The appliance is not working.The appliance is not plugged in.Check that the appliance is plugged incorrectly. he On-Off switch is not fully presseddown. Press on the On/Off switch.You have pressed down the On-Off switchbut the appliance is not working.Close the lid.The motor is running but the appliancedoes not heat.Contact your point of purchase. The paddle does not turn.Check that the paddle is correctlypositioned. If the problem continues,contact your point of purchase. The removable paddle doesn't stay inplace.The mixing paddle is not locked.Check that the locking lever has beenpushed down fully.Food is not cooking evenly. The paddle has not been installed. Fit the paddle.The food has not been cut in regular sizepieces.Cut food to the same size.The chips have not been cut in regularsize pieces.Cut the chips to the same size.The paddle has been installed correctlybut it does not turn.Check that it has been pushed down andclicked in position. If the problemcontinues, contact your point of purchase. The chips are not crispy enough.The wrong variety of potatoes has beenused.Choose a variety of potato recommendedfor chips.The potatoes are insufficiently washedand/or not completely dried.Wash the potatoes for a long time toremove excess starch, then drain and drythem before cooking. They must becompletely dry.The chips are too thick.Cut the chips thinner. The maximumchips dimensions are 13mm x 13 mm.There is not enough oil for the quantity ofchips.Increase the oil quantity (see cookingtables p. 7 to 9).The filter is obstructed. Clean the removable filter.The chips break up during the cooking.The potatoes used are recently harvestedand hence have a high water content. Reduce the quantity of potatoes down to800 g and adjust the cooking time.The food stays on the edge of thecooking pan.The cooking pan is too full.Respect the maximum quantitiesindicated in the cooking tables.Cooking liquids have flowed into the baseof the appliance.The paddle is not positioned correctly orthe seal of the paddle is defective.Make sure that the paddle is correctlypositioned. If the problem continues,contact your point of purchase. Do notuse ActiFry for making soups or recipeswith a high liquid content. The timer does not work. (Depending on model)The battery is dead. Change the battery (see fig. 15).The appliance is unusually noisy.You suspect the motor is not workingcorrectly. Contact your point of purchase. The paddle stops turning duringcooking.The paddle is not positioned correctly.Using an oven glove, push the paddledownward until it clicks into place. Ifthis does not work, contact your pointof purchase.

PROBLEMS CAUSES SOLUTIONS

If your fryer is not working correctly If you have any product problems or queries please contact our Customer Relations Team at: www.t-fal.ca.com ACTIFRY FRESEN 1520005066_1520005066 20/02/17 16:26 Page2425
