USER MANUAL EASY PRO KJ332 KRUPS

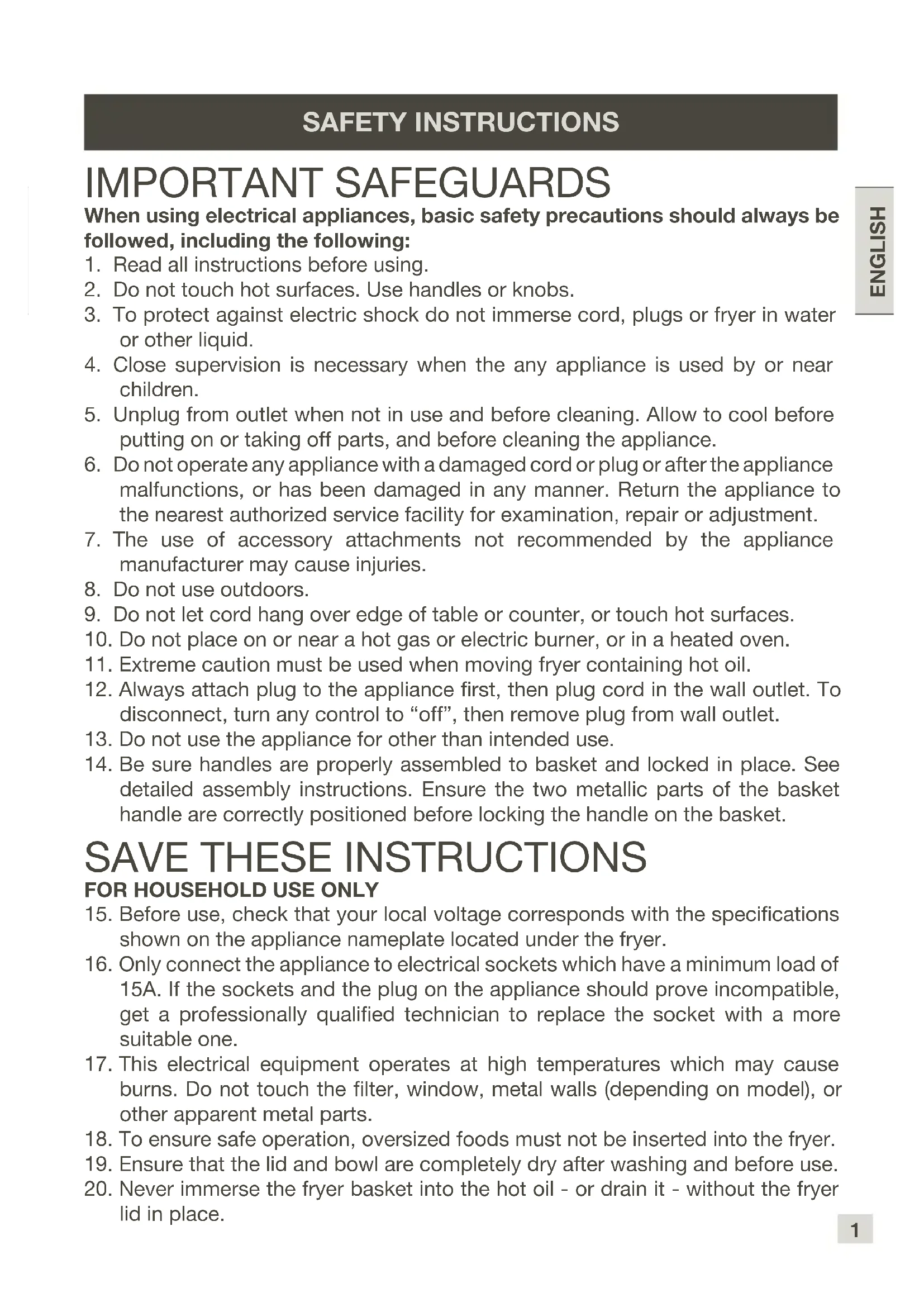

ENGLISH IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions before using.

2. Do not touch hot surfaces. Use handles or knobs.

3. To protect against electric shock do not immerse cord, plugs or fryer in water

4. Close supervision is necessary when the any appliance is used by or near

5. Unplug from outlet when not in use and before cleaning. Allow to cool before

putting on or taking off parts, and before cleaning the appliance.

6. Do not operate any appliance with a damaged cord or plug or after the appliance

malfunctions, or has been damaged in any manner. Return the appliance to the nearest authorized service facility for examination, repair or adjustment.

7. The use of accessory attachments not recommended by the appliance

manufacturer may cause injuries.

8. Do not use outdoors.

9. Do not let cord hang over edge of table or counter, or touch hot surfaces.

10. Do not place on or near a hot gas or electric burner, or in a heated oven.

11. Extreme caution must be used when moving fryer containing hot oil.

12. Always attach plug to the appliance rst, then plug cord in the wall outlet. To

disconnect, turn any control to “off”, then remove plug from wall outlet.

13. Do not use the appliance for other than intended use.

14. Be sure handles are properly assembled to basket and locked in place. See

detailed assembly instructions. Ensure the two metallic parts of the basket handle are correctly positioned before locking the handle on the basket.

SAVE THESE INSTRUCTIONS

FOR HOUSEHOLD USE ONLY

15. Before use, check that your local voltage corresponds with the specications

shown on the appliance nameplate located under the fryer.

16. Only connect the appliance to electrical sockets which have a minimum load of

15A. If the sockets and the plug on the appliance should prove incompatible, get a professionally qualied technician to replace the socket with a more suitable one.

17. This electrical equipment operates at high temperatures which may cause

burns. Do not touch the lter, window, metal walls (depending on model), or other apparent metal parts.

18. To ensure safe operation, oversized foods must not be inserted into the fryer.

19. Ensure that the lid and bowl are completely dry after washing and before use.

20. Never immerse the fryer basket into the hot oil - or drain it - without the fryer

lid in place. SAFETY INSTRUCTIONS2

21. Never operate your fryer without any oil.

22. The cooking times are given as guidelines only.

23. If the fryer has a removable pot, never remove it while the deep fryer is on.

24. This model is equipped with a permanent metallic lter, which does not need

25. This appliance is not intended to be operated by means of an external timer or

separate remote control system.

26. This appliance is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

27. Children should be supervised to ensure that they do not play with the

28. This appliance is intended to be used in households only.

29. It is not intended to be used in the following applications, and the guarantee

will not apply for : – staff kitchen areas in shops, ofces and other working environments; – farms houses; – by clients in hotels, motels and other temporary residential type environments; – bed and breakfast type environments.

30. This appliance can be used up to an altitude of 4000 meters.

31. Warning: Possible eruption. Waters reaction to hot oil is extremely volatile.

Please ensure, no matter what the recipe states, food must be dried thoroughly before immersing in Hot oil.

32. If you have any problems, contact the authorized after-sales service center or

the internet address www.krups.com. Polarization instructions This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock this plug is intended to t into a polarized outlet only one way. If the plug does not t fully into the outlet, reverse the plug. If it still does not t, contact a qualied electrician. Do not attempt to modify the plug in any way. Short Cord instructions Do not use with an extension cord. A short power supply cord is to be provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord. Magnetic connector The cord is equipped with a detachable magnetic connector. The magnetic connector should be attached directly to the fryer. THIS SHOULD BE DONE PRIOR TO PLUGGING THE CORD INTO THE WALL OUTLET.3 ENGLISH Environment protection first Let’s contribute to protecting the environment! Your appliance contains many materials which can be recovered or recycled Leave it a local civic waste collection point. DESCRIPTION

4. Removable control panel

a. MAX and MIN markings

Before using for the first time The fryer can be completely dismantled. Remove the lid, the basket and handle. Fig.1-2 Make sure the basket handle is well inserted in the basket notches. Fig.3. Put the basket handle in place. Fig.4 Remove the control unit and heating element. Fig.5 Remove the bowl. Fig.6 Clean the bowl and the basket with a sponge and soapy water or put them in the dishwasher . Fig.7 Clean the lid and the heating element with a sponge and soapy water. Fig.8 Dry all components thoroughly. Place the bowl and the heating element in position. Fig.9. Make sure it is well inserted into the corresponding slots. Fig.10 Important : –Do not immerse the control unit in water. –Never wash the lid and the heating element in the dishwasher. –Make sure that the control unit is correctly positioned otherwise the fryer cannot function (you hear a « click » sound). Filling the bowl Fill the bowl with oil until the MAX level. Fig.11 Never exceed the maximum level indicated in the bowl and never go below the MIN level. Oil Vegetable fat Min. 8

cups / 2.5 L 5.95 lbs / 2700 g4 For best results, use oil recommended for deep frying: vegetable oil, corn oil, canola oil, etc. If using sunower oil ensure the oil is changed every 5 uses. Oils which should NOT be used under any circumstances and may cause overowing/smoking/risk of re are: ground nut oil, soya oil, olive oil, lard or drippings. If you use solid vegetable oil, cut it into small pieces and melt it in a separate pan. Pour the melted oil into the fryer bowl. Never melt solid fat on the heating element or in the frying basket. Never put solid shortening directly into the deep fryer pot or basket, as this will lead to deterioration of the fryer. Important : –Do not mix different types of oil or fat as this may cause the oil to overow. Fig.12 –The oil/fat level must always be between the min. and max. markers, stamped inside the bowl. –Check this each time prior to cooking and add some of the same type of oil if necessary. Loading the basket Remove excess water, ice or frost from food. Fill the basket before placing it in the deep fryer (see the cooking tables page 5). Do not overll the basket. Fig.13. Reduce the quantities for frozen foods. Cooking tips: cut food into similar-sized pieces so that they cook evenly. Avoid using pieces that are too thick. For crispier frozen fries, wash them in cold water and dry them carefully. Not all frozen foods are ready to use, check the manufacturer’s instructions. Important : –Never exceed the maximum capacity. Shake frozen food to remove excess pieces of ice away from the deep fryer. No matter what the recipe, food must be dried thoroughly before frying. This will prevent the oil from overowing and extend the life of the oil. Preheating Place the fryer : –on a at, horizontal, stable and heat resistant surface. Do not place it close to an external heat source (gas stove, hot plate etc.). –out of the reach of children –away from water or heat sources. After the bowl has been lled with oil, plug in the fryer. Fig.14 Put the lid on. Fig.15 Turn the thermostat knob to the desired temperature without the frying basket. The power indicator light will come on and the fryer will begin to heat up. Fig.16 Important : –Never operate your fryer without any oil or fat in the bowl.5 ENGLISH COOKING Lowering the basket When the power indicator light is off, remove the lid. Put the ingredients in the basket, and put down the basket onto the bowl slowly (approx. 30 seconds). Fig.17 (plunging the basket too rapidly in the oil may cause it to overow). Before putting the lid on, wait for 1 minute. Fig.18 During cooking, it is normal for the ready light to go on and off. Important: –Never touch the appliance during cooking, it is hot ! –When the fryer is in use, some parts will be extremely hot and can cause severe burns. –Only touch the knobs and handles of the fryer for your safety. Using the snack accessory This accessory is used for frying delicate food such as sh sticks, or breaded food. You can cook food on 2 levels : place a rst layer of ingredients in the basket, then add the snack accessory onto the basket with other ingredients. Then put the basket into oil. Fig.19 This process will prevent ingredients to stick. The accessory will be hot after cooking, please use gloves for removing it. At the end of cooking time Frying is complete when the cooking time has elapsed and food is of the desired color and texture. Allow excess oil to drain by hooking the basket on the support on the inner bowl and leave for 30 seconds. Fig. 20-21 Serve. To use a second time, correct the oil level if necessary, then wait for the ready light to turn on again for preheating. Then follow the steps mentionned previously. Switching off the deep fryer When you have nished frying, turn the thermostat down to the lowest setting. Fig.22. Then unplug the deep fryer. Fig.23 Allow the oil to cool completely in the fryer (approx. 2 hours). Move the fryer using the carrying handles. Fig 24 Never keep nor use the appliance outside Do not keep the appliance in a place with a condensation risk.6 Frozen Food Quantity Temperature Cooking Time Cheese Sticks 13 pieces on basket 11 pieces on snack accessory

30 g per piece Fish Sticks 9 pieces on basket 9 pieces on snack accessory

32 g per piece Onion Rings 7 pieces on basket 8 pieces on snack accessory

30 g per piece Fish Fillets 1 piece on basket 1 piece on snack accessory

Fresh Food Quantity Temperature Cooking Time French fries (maximum quantity)

French fries (quantity recommended for best results)

Fried whole mushrooms (you can use the snack accessory) 8-9 374°F / 190°C 9-11 min7 ENGLISH CLEANING Filtering the oil Let the fryer with the oil in the removable bowl cool completely (2 hours), before ltering the oil. We recommend changing the oil/fat after a maximum of 8 to 10 uses. If using sunower oil, ensure the oil is changed after every 5 uses. If you hear clapping sounds during the heating of the oil, it means that water is in the oil. Remove it and pour new oil. You may store the oil in the fryer, or in a separate airtight container. Do not pour used oil/fat into the sink. Leave it to cool, and throw it away with household waste-according to the local community regulations. If you use solid shortening, we advise you to store it separately from the fryer. Crumbs that break away from foods tend to burn and alter the quality of the oil more rapidly. Over time, this increases the risk of catching re. For this reason, lter the oil regularly. Cleaning the fryer Always unplug your fryer and leave it to cool completely before cleaning it (approx. 2 hours). The bowl and the frying basket are dishwasher safe or can be immersed in soapy water. Clean the lid, the housing, the control unit and the heating element with a damp cloth. Ensure all components are dry before placing them back inside the fryer. Put the lid on the fryer for clean storage. Never immerse the control unit in water and never wash it under running water. Never wash the lid, the housing and the control unit in the dishwasher. Do not store your deep fryer outside. Do not use aggressive or abrasive cleaning products. Reset function Your appliance is equipped with an overheating security feature located in the back of the control unit. If you use your fryer without oil the safety cut-off is activated and the appliance will shut off automatically. In this case, unplug the appliance and let it cool. After the bowl has been lled with oil, plug the appliance in. Then press the safety cut-off RESET button with a toothpick or similar non-metallic object. If the problem with the safety cut-off persists, please contact our Helpline (see details on page 10).8

PROBLEM POSSIBLE CAUSE SOLUTION

The fryer is not heating The appliance is not plugged in. Plug-in the appliance and check the connection The cooking temperature is not being reached. Set the thermostat control to the required temperature. The control unit is not correctly positioned. To prevent this, use the guide slots to correctly position the control unit. The safety cut-off is activated. Check the oil level, let it cool and press the RESET button, which is located on the back of the control unit of the fryer. Oil overows The basket was lowered too quickly. Lower the basket slowly and keep a close eye on the oil level. Cooking freshly made fries at 356°F/374°F -180°C/190°C for the rst fry. It is important to double-fry freshly made fries and to respect the recommended cooking temperature (see page 6). The « MAX » marker for lling the bowl has been exceeded. Check the level « MAX » and remove the excess. The frying basket has been overlled with food. Check that the basket is not too full. Fig.13 Food is wet or contains too much water (frozen food). Remove any ice and dry the food thoroughly. Lower the basket slowly. Wrong oil or different types of oil/fat have been mixed. Empty and clean the bowl. Rell the bowl with one type of oil (see recommedations of what oil to use page 4) Emits unpleasant smells Snapping sounds during oil heating The fat/oil has deteriorated Replace the frying oil (after 10 uses max. and 5 for sunower oil) more frequently depending on the oil. The fat/oil is unsuitable Use a good quality blended vegetable oil. Food does not become golden, and remains soft Food is moist and contains too much water (frozen food). Remove as much ice from the frozen food as possible before frying. Pieces are too thick and contain water. Experiment by lengthening the cooking time or by slicing food smaller and thinner. Too much food is being cooked at the same time and the cooking oil is not at the right temperature. Fry food in small quantities (especially when frozen). The temperature of the frying oil may not be high enough: the temperature is set incorrectly. Set the thermostat control to the recommended temperature. French Fries stick together Unwashed food immersed in hot oil. Wash potatoes well and dry them thoroughly. TROUBLESHOOTING9 ENGLISH

KRUPS INTERNATIONAL LIMITED GUARANTEE

: www.krups.com This product is repairable by KRUPS during and after the guarantee period. Accessories, consumables and end-user replaceable parts can be purchased, if locally available, as described on the KRUPS internet site www.krups.com The Guarantee: This product is guaranteed by KRUPS (company address and details included in the country list of the KRUPS International Guarantee) against any manufacturing defect in materials or workmanship for a period of 2 years starting from the initial date of purchase or delivery date. The international manufacturer’s guarantee by KRUPS is an extra benet which does not affect consumer’s Statutory Rights. The international manufacturer’s guarantee covers all costs related to restoring the proven defective product so that it conforms to its original specications, through the repair or replacement of any defective part and the necessary labour. At KRUPS’s choice, a replacement product may be provided instead of repairing a defective product. KRUPS’s sole obligation and your exclusive resolution under this guarantee are limited to such repair or replacement. Conditions & Exclusions: The international KRUPS guarantee only applies within the guarantee period and for those countries listed in the country list attached and is valid only on presentation of a proof of purchase. The product can be taken directly in person to an authorised service centre or must be adequately packaged and returned, by recorded delivery (or equivalent method of postage), to a KRUPS authorised service centre. Full address details for each country’s authorised service centres are listed on KRUPS website (www. krups.com) or by calling the appropriate telephone number as set out in the country list to request the appropriate postal address. KRUPS shall not be obliged to repair or replace any product which is not accompanied by a valid proof of purchase. This guarantee will not cover any damage which occurs as a result of misuse, negligence, failure to follow KRUPS instructions, use on current or voltage other than as stamped on the product, or a modication or unauthorised repair of the product. It also does not cover normal wear and tear, maintenance or replacement of consumable parts, or the following: – using the wrong type of water or consumable – ingress of water, dust or insects into the product (excluding appliances with features specically designed for insects) – damage as a result of lightning or power surges – mechanical damages, overloading – scaling (any de-scaling must be carried out according to the instructions for use) – accidents including re, ood, thunderbolt, etc – damages or poor results due to wrong voltage or frequency – damage to any glass or porcelain ware in the product – professional or commercial use This guarantee does not apply to any product that has been tampered with, or to damages incurred through improper use and care, faulty packaging by the owner or mishandling by any carrier. In order to offer the best possible after-sales service and constantly improve customer satisfaction, KRUPS may send a satisfaction survey to all customers who have had their product repaired or exchanged in a KRUPS authorised service centre. The international KRUPS guarantee applies only for products purchased in one of the countries listed, and used for domestic purposes only in one of the countries listed on the Country List. Where a product purchased in one listed country and then used in another listed country: a. The international KRUPS guarantee does not apply in case of non conformity of the purchased product with the local standards, such as voltage, frequency, power plugs, or other local technical specications b. The repair process for products purchased outside the country of use may require a longer time if the product is not locally sold by KRUPS c. In cases where the product is not repairable in the new country, the international KRUPS guarantee is limited to a replacement by a similar product or an alternative product at similar cost, where possible. Consumer Statutory Rights : This international KRUPS guarantee does not affect the statutory rights a consumer may have or those rights that cannot be excluded or limited, nor rights against the retailer from which the consumer purchased the product. This guarantee gives a consumer specic legal rights, and the consumer may also have other legal rights which vary from State to State or Country to Country. The consumer may assert any such rights at his sole discretion. For Australia only: Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. *** Please keep this document for your reference should you wish to make a claim under the guarantee10
