Product Type	Air Fryer
Brand	Krups
Model	Fry Delight AJ1000
Dimensions (L x W x H)	Approximately 30 x 30 x 35 cm
Weight	Approximately 4.5 kg
Power Supply	120 V, 60 Hz, 1500 W
Basket Capacity	Up to 0.8 kg of food
Temperature Range	150 to 200 °C (300 to 400 °F)
Timer	0 to 30 minutes with auto shut-off
Main Functions	Air frying, preheat, auto shut-off, preheat indicator
Bowl and Basket	Non-stick coating, removable, dishwasher safe
Safety	Cool-touch handle, auto shut-off, overheat protection, non-slip feet
Maintenance	Clean with a non-abrasive sponge and dish soap; bowl and basket in the dishwasher
Spare Parts Available	Basket, bowl, handle (from Krups)
Repairability	Repair by Krups authorized service center; do not disassemble yourself
Usage	Home use only, indoor
Included Accessories	Basket, bowl, cord storage compartment
Warranty	Worldwide warranty (see booklet)

Frequently Asked Questions - Fry Delight AJ1000 KRUPS

How to use the Fry Delight AJ1000 air fryer?

Place the food in the basket without exceeding the MAX line. Insert the basket into the bowl, then plug in the appliance. Set the desired temperature using the control knob (150-200 °C). Turn the timer to the recommended cooking time. The appliance automatically stops at the end of the cycle. For preheating, set the timer to more than 3 minutes without food and wait for the indicator light to go out.

Can I use oil in the appliance?

No, the Fry Delight operates with hot air and does not require any oil. Never fill the bowl with oil or fat. For crispy homemade fries, you can add half a tablespoon of oil to the potatoes before cooking, but not into the bowl.

How to clean the bowl and basket?

Unplug the appliance and let it cool. The bowl and basket are dishwasher safe. You can also wash them with hot water and dish soap using a non-abrasive sponge. Never use abrasive products or metal sponges which could damage the non-stick coating. Wipe the exterior with a damp cloth.

What to do if the appliance does not turn on?

First check that the plug is properly inserted into a wall outlet. Make sure the timer is set to a cooking time (not 0). If the problem persists, contact Krups customer service or check the FAQ at www.krupsusa.com.

How to prepare crispy homemade fries?

Peel and cut potatoes into sticks. Soak them in cold water for 30 minutes, then dry. Mix with half a tablespoon of olive oil. Place the sticks in the basket without overfilling. Set temperature to 180 °C and timer for 18-22 minutes. Shake halfway through for even cooking.

Can I cook frozen food directly?

Yes, you can cook frozen foods like fries, nuggets, or breaded fish. Follow the cooking chart in the manual: generally at 200 °C for 6-20 minutes depending on the food. Shake halfway for small items. No prior thawing is needed.

How to set the temperature and timer?

Use the temperature control knob to choose between 150 and 200 °C (or 300-400 °F). The timer can be set from 0 to 30 minutes by turning the knob. To turn on the appliance, turn the timer to the desired time; to turn off, turn to 0. A preheat indicator lights up when the appliance is heating.

Is the appliance safe for children?

This appliance is not intended for use by children without supervision. Accessible surfaces may become hot. Keep the appliance out of reach of children during and after use. Ensure children do not play with the appliance. Unplug after use and let it cool before storing.

What to do in case of fire?

In case of fire, immediately unplug the appliance and smother the flames with a damp cloth. Never use water to extinguish an electrical or oil fire. Call emergency services if necessary.

Where to find spare parts?

Spare parts (basket, bowl, handle) are available from Krups customer service or at www.krups.com. Use only accessories designed for your model AJ1000 to ensure safety and performance.

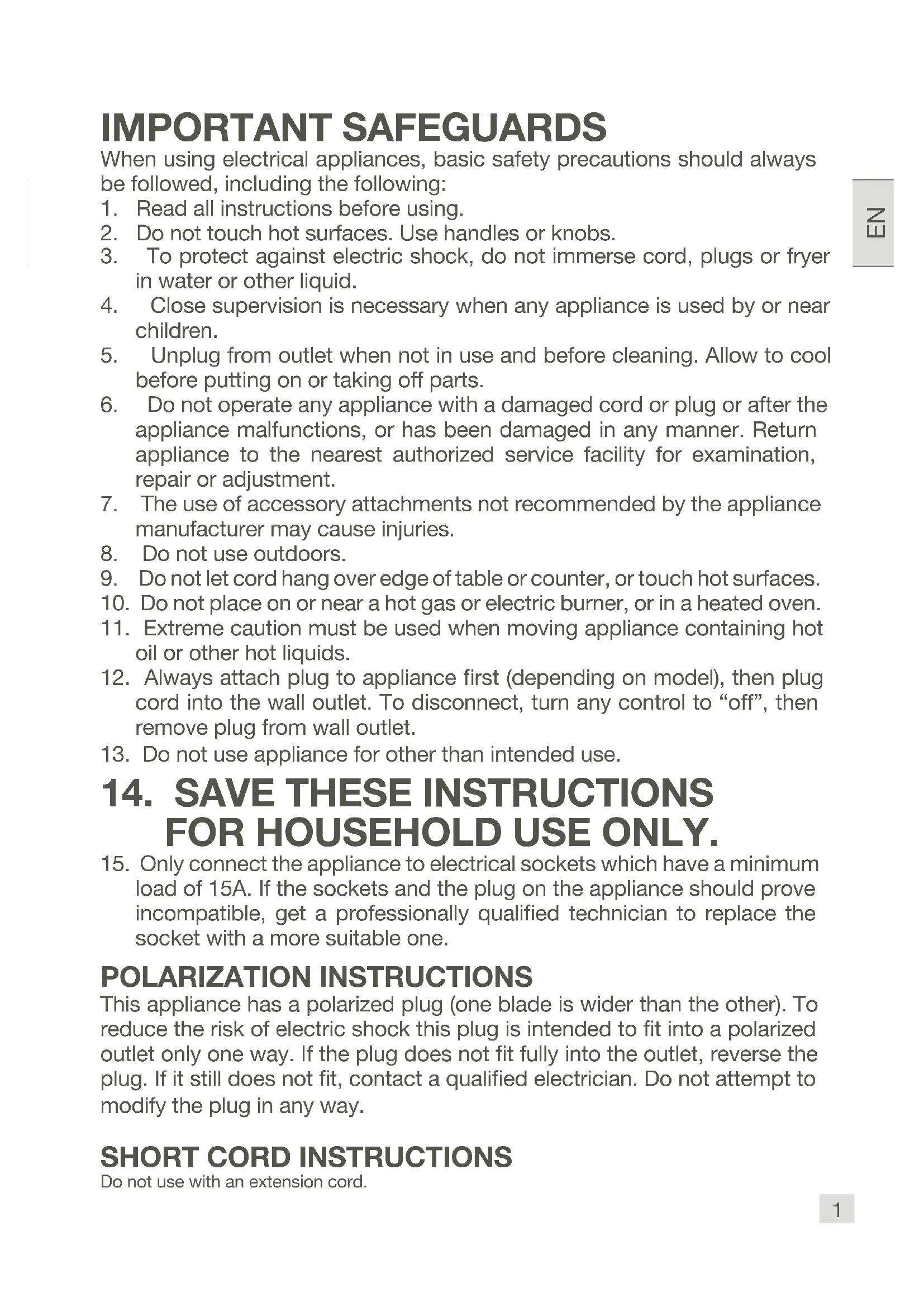

USER MANUAL Fry Delight AJ1000 KRUPS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions before using.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against electric shock, do not immerse cord, plugs or fryer in water or other liquid.
4. Close supervision is necessary when any appliance is used by or near children.
5. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or adjustment.
7. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
8. Do not use outdoors.
9. Do not let cord hang over edge of table or counter, or touch hot surfaces.
10. Do not place on or near a hot gas or electric burner, or in a heated oven.
11. Extreme caution must be used when moving appliance containing hot oil or other hot liquids.
12. Always attach plug to appliance first (depending on model), then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
13. Do not use appliance for other than intended use.

14. SAVE THESE INSTRUCTIONS FOR HOUSEHOLD USE ONLY.

1. Only connect the appliance to electrical sockets which have a minimum load of 15A. If the sockets and the plug on the appliance should prove incompatible, get a professionally qualified technician to replace the socket with a more suitable one.

POLARIZATION INSTRUCTIONS

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

SHORT CORD INSTRUCTIONS

Do not use with an extension cord.

A short power-supply cord is to be provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.

SAFETYINSTRUCTION

This appliance is intended to be used in households only. It is not intended to be used in the following applications, and the guarantee will not apply for:
- staff kitchen areas in shops, offices and other working environments;
-farm houses;
- by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments.
This appliance is not intended to be operated by means of an external timer or a separate remote control system.
If the power supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
The temperature of accessible surfaces may be high when the appliance is operating. Do not touch the hot surfaces of the appliance.
Clean removable parts with a non abrasive sponge and dishwashing liquid or in a dishwasher (depending on model).
Clean the inside and the outside of the appliance with a damp sponge or cloth. Please refer to the «Cleaning» section of the instructions for use.
The appliance can be used up to an altitude of 4000m

Do

Read and follow the instructions for use. Keep them safe.
- Remove all packaging materials and any promotional labels or stickers from your appliance before use. Be sure to also remove any materials from underneath the removable bowl (depending on model).
- Check that the voltage of your outlet network corresponds to the voltage given on the rating plate on the appliance (alternative current).
Given the diverse standards in effect, if the appliance is used in a country other than that in which it is purchased, have it checked by an approved Service Center.
Use the appliance on a flat, stable, heat-resistant work surface away from water splashes.
Always unplug your appliance: after use, to move it, or to clean it.
In the event of fire, unplug the appliance and smother the flames using a

damp dish towel.

• To avoid damaging your appliance, please ensure that you follow recipes in the instructions and at www.krupsusa.com; make sure that you use the right amount of ingredients.

Do not

• Do not use the appliance if it or the power cord is damaged or if it has fallen and has visible damage or appears to be working abnormally. If this occurs, the appliance must be sent to an Approved Service Center.
• Do not use an extension cord. If you do decide to do so, under your own responsibility, use an extension lead that is in good condition and compliant with the power of the appliance.
  Do not let the power cord dangle.
• Do not unplug the appliance by pulling on the power cord.
  Never move the appliance when it still contains hot food.
  Never operate your appliance when empty.
• Do not switch on the appliance near flammable materials (blinds, curtains...), or close to an external heat source (gas stove, hot plate etc.).
• Do not store any inflammable products close to or underneath the furniture where the appliance is located.
  Never take the appliance apart yourself
  Do not immerse the product in water.
• Do not use any powerful cleaning products (notably soda based strippers), brillo pads, or scourers.
  Do not store your appliance outside. Store it in a dry and well ventilated area.

Advice/information

• When using the product for the first time, it may release a non-toxic odor. This will not affect use and will disappear rapidly.
  For your safety, this appliance conforms with applicable standards and regulations (Directives on Low Voltage, Electromagnetic Compatibility, Materials in contact with food, Environment, etc.).
  This appliance is designed for domestic use only and not outdoor. In case of professional use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee does not apply.
  For your safety, only use the accessories and spare parts designed for your appliance.

Environment

Environment protection first!

① Your appliance contains valuable materials which can be recovered or recycled.
Leave it at a local civic waste collection point.

DESCRIPTION

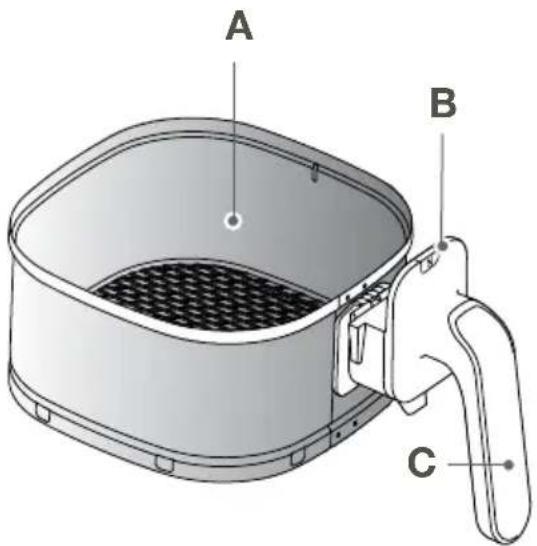

A. Basket
B. Basket release button
C. Basket handle

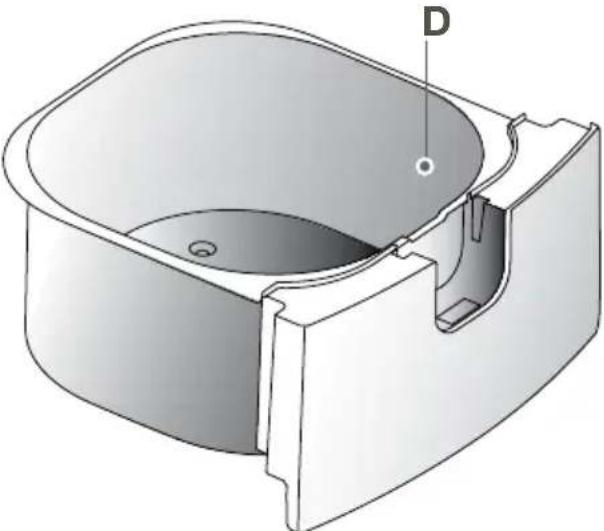

D. Pan

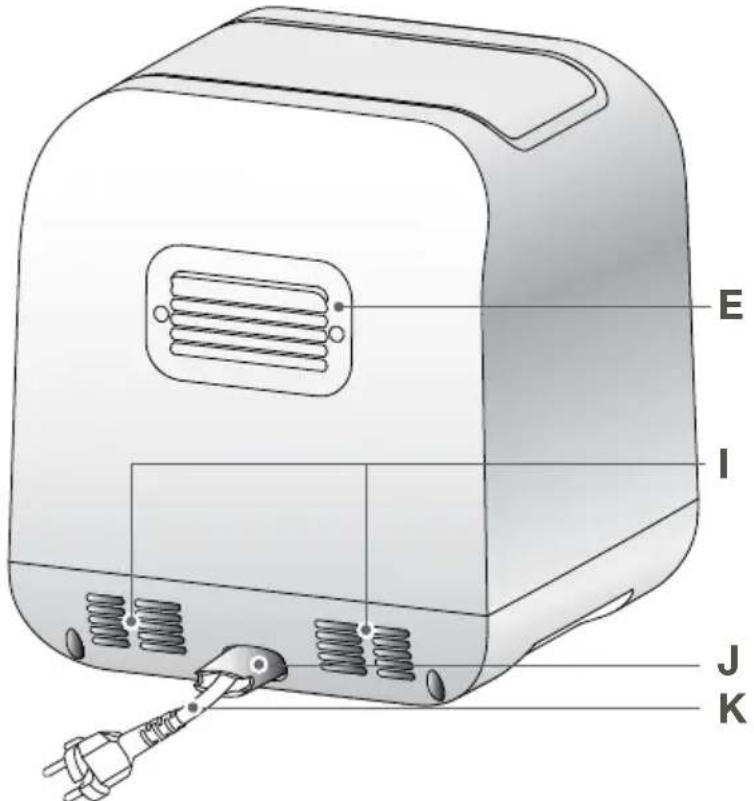

E. Air exhaust

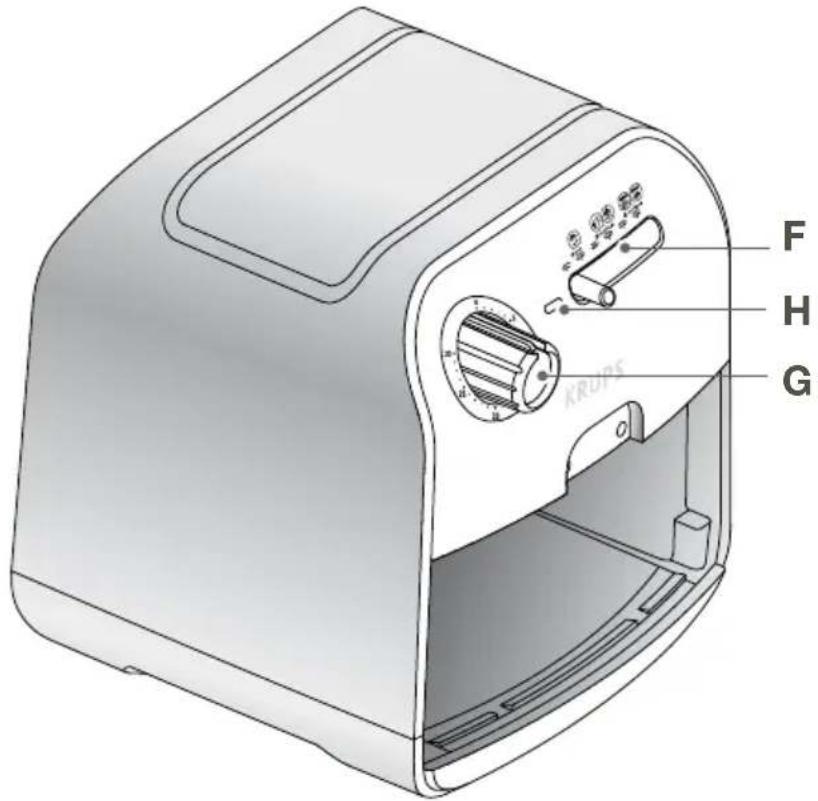

F. Temperature control knob (150-200°C / 300°F - 275°F)

G. Timer (0-30 min)/power-on knob
H. Indicator Light
I. Air outlet openings
J. Cord storage compartment
K. Cord

BEFORE FIRST USE

1. Remove all packaging material.
2. Remove any stickers or labels from the appliance.
3. Thoroughly clean the basket and the pan with hot water, some dishwashing liquid and a non-abrasive sponge.

Note: You can also clean these parts in the dishwasher.

1. Wipe the inside and outside of the appliance with a moist cloth. Fry Delight works on hot air. Do not fill the pan with oil or any solid fats.

PREPARING FOR USE

1. Place the appliance on a stable, horizontal and level surface. Do not place the appliance on non-heat-resistant surfaces.
2. Place the basket in the pan properly.
3. Pull the cord out of the cord storage compartment in the bottom of the appliance. Do not fill the pan with oil or any other liquid.

Do not put anything on top of the appliance. This disrupts the airflow and affects the hot air frying result.

USING THE APPLIANCE

Fry Delight can prepare a large range of ingredients. Cooking times for the main ingredients are given in the 'Settings' section. You can find more recipes at www.krupsusa.com

Hot air frying

1. Put the mains plug in a wall socket.
2. Carefully pull the pan out of the Fry Delight.
3. Put the ingredients in the basket.

Note: Never fill the basket beyond the MAX indication line or exceed the amount indicated in the table (see 'Settings' section), as this could affect the quality of the end result.

1. Slide the pan back into the Fry Delight. Never use the pan without the basket in it. Caution: Do not touch the pan during or directly after use, as it gets very hot. Only hold the pan by the handle.

2. Move the temperature control knob to the required temperature. See 'Settings' section to determine the right temperature

3. Determine the required preparation time for the ingredients (see 'Settings' section).
4. To switch on the appliance, turn the timer knob to the required preparation time.

Add 3 minutes to the preparation time when the appliance is cold.

Note: If you want, you can also let the appliance preheat without any ingredients inside. In that case, turn the timer knob to more than 3 minutes and wait until the indicator light goes out (after approx. 3 minutes). Then fill the basket and turn the timer knob to the required preparation time.

The indicator light will illuminate.
The timer starts counting down the set preparation time.
During the hot air frying process, the indicator light will illuminate and turn off when the appliance reaches the desired temperature. This indicates that the heating element is switched on and off to maintain the set temperature.
Excess oil from the ingredients is collected in the bottom of the pan.

1. Some ingredients require shaking halfway through the preparation time (see 'Settings' section). To shake the ingredients, pull the pan out of the appliance by the handle and shake it. Then slide the pan back into the air fryer.

Caution: Do not press the basket release button during shaking.

Tip: To reduce the weight, you can remove the basket from the pan and shake the basket only. To do so, pull the pan out of the appliance, place it on a heat-resistant surface and press the basket release button.

Tip: If you set the timer to half the preparation time, you will hear the timer beep when you have to shake the ingredients. However, this means that you have to set the timer again to the remaining preparation time after shaking.

1. When you hear the timer beep, the set preparation time has elapsed. Pull the pan out of the appliance and place it on a heat-resistant surface.

Note: You can also switch off the appliance manually. To do this, turn the timer control knob to 0.

1. Check if the ingredients are ready.

If the ingredients are not ready yet, simply slide the pan back into the appliance and set the timer for a few extra minutes.

1. Empty the basket into a bowl or onto a plate.

Tip: To remove large or fragile ingredients, use a pair of tongs to lift the ingredients out of the basket.

1. To remove small ingredients (e.g. fries), press the basket release button and lift the basket out of the pan.

Do not turn the basket upside down with the pan still attached to it, as any excess oil that has collected on the bottom of the pan will leak onto the ingredients.

After hot air frying, the pan and the ingredients are hot. Depending on the type of ingredients in the Fry Delight steam may escape from the pan.

1. When a batch of ingredients is ready, the Fry Delight is instantly ready for preparing another batch.

SETTINGS

The table below helps you to select the basic settings for the ingredients you want to prepare. Note: Keep in mind that these settings are recommendations. As ingredients differ in origin, size, shape as well as brand, we cannot guarantee the best setting for your ingredients.

Because the Air Pulse technology instantly reheats the air inside the appliance, pulling the pan briefly out of the appliance during hot air frying barely disturbs the process.

	Min-max Amount (Ibs)	Time (min)	Temperature (°F / °C)	Shake at half-cooking	Extra information
Potatoes & fries
Thin frozen fries	0.66 - 1.54 Ibs	12-16 370°F / 200°C Shake
Thick frozen fries	0.66 - 1.54 Ibs	12-20 370°F / 200°C Shake
Homemade fries (8x8mm)	0.66 - 1.76 Ibs	18-25 355°F / 180°C Shake			add 1/2 tbsp of oil
Homemade potato wedges	0.66 - 1.76 Ibs	18-22 355°F / 180°C Shake			add 1/2 tbsp of oil
Homemade potato cubes	0.66 - 1.65 Ibs	15-21 355°F / 180°C Shake			add 1/2 tbsp of oil

Meat & Poultry
Steak 0.22	1.10 lbs 7-14 3	55°F / 180°C
Pork chops 0.22	22 - 1.10 lbs 12-	16 355°F /	180°C
Hamburger 0.22	22 - 1.10 lbs 7-14	355°F /	80°C
Meatballs 0.88	8 lbs 12 355°F /	180°C
Sausage 0.22	- 1.10 lbs 10-11	370°F /	200°C
Drumsticks 0.22	22 - 1.10 lbs 18-	22 355°F /	180°C
Chicken breast	0.22 - 1.10 lbs	10-15 355°C F / 180°C
	Min-max Amount (Ibs)	Time (min)	Temperature (°F / °C)	Shake	Extra information
Snacks
Spring rolls	0.22 - 1.10 Ibs	8-9 370	0°F / 200°C Ready to cook
Frozen chicken nuggets	0.22 - 1.10 Ibs	6-9 370	0°F / 200°C Shake Ready to cook
Frozen fish sticks	0.22 - 0.66 Ibs	6-9 370°F / 200°C Shake Ready to cook
Frozen fried calamari	0.66 Ibs 6 370°F / 200°C Shake Ready to cook

Baking
Cake 0.66	bs 30 320°F / 160°C		Use oven	dish
Quiche	0.22 – 0.66 lbs	9-10	355°F / 180°C		Use oven dish
Muffins	0.66 lbs	15-18	355°F / 180°C		Use oven dish

Visit www.krupsusa.com for online recipes

TIPS

Smaller ingredients usually require a slightly shorter preparation time than larger ingredients.
A larger amount of ingredients only requires a slightly longer preparation time, a smaller amount of ingredients only requires a slightly shorter preparation time.
- Shaking smaller ingredients halfway through the preparation time optimizes the end result and can help prevent unevenly fried ingredients.
- Add some oil to fresh potatoes for a crispy result. Fry your ingredients in the Fry Delight within a few minutes after you added the oil.
Snacks that can be prepared in an oven can also be prepared in the Fry Delight.
The optimal amount for preparing crispy fries is 1.10 lbs.
Use pre-made dough to prepare filled snacks quickly and easily. Pre-made dough also requires a shorter preparation time than home-made dough.
Place an oven dish in the Fry Delight basket if you want to bake a cake or quiche or if you want to fry fragile ingredients or filled ingredients.
■ You can also use the Fry Delight to reheat ingredients. To reheat ingredients, set the temperature to 160^ / 320^ for up to 10 minutes.

Note: When you use ingredients that rise (such as with cake, quiche or muffins) the oven dish should not be filled more than halfway.

Note: Add 3 minutes to the preparation time when you start frying while the Fry Delight is still cold.

MAKING HOME-MADE FRIES

For the best results, we advise to use pre-baked (e.g. frozen) fries. If you want to make home-made fries, follow the steps below.

1. Peel the potatoes and cut them into same sized sticks.
2. Soak the fries in a bowl of cold water for at least 30 minutes, take them out and dry them with paper towel.
3. Pour 12 tablespoon of olive oil in a bowl, put the fries on top and mix until the fries are coated with oil.
4. Remove the fries from the bowl with your fingers or a kitchen utensil so that excess oil stays behind in the bowl. Put the fries in the basket.

Note: Do not tilt the bowl to put all the fries in the basket all at once, to prevent excess oil from ending up on the bottom of the pan.

1. Cook the fries according to the instructions in the 'Settings' section.

CLEANING

Clean the appliance after every use.

The pan and the basket have a non-stick coating. Do not use metal kitchen utensils or abrasive cleaning materials to clean them, as this may damage the nonstick coating.

1. Remove the plug from the wall socket and let the appliance cool down. Note: Remove the pan to let the air fryer cool down more quickly.
2. Wipe the outside of the appliance with a moist cloth.
3. Clean the pan and basket with hot water, some dishwashing liquid and a non-abrasive sponge.

Note: The pan and basket are dishwasher-proof.

Tip: If food is stuck to the basket or the bottom of the pan, fill the pan with hot water with some dishwashing liquid. Put the basket in the pan and let the pan and the basket soak for approximately 10 minutes.

1. Clean the inside of the appliance with hot water and a non-abrasive sponge.
2. Clean the heating element with a cleaning brush to remove any food residue.

STORAGE

1. Unplug the appliance and let it cool down.
2. Make sure all parts are clean and dry.
3. Push the cord into the cord storage compartment. Fix the cord by inserting it into the cord fixing slot.

ENVIRONMENT

Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

GUARANTEE AND SERVICE

If you need service or information or if you have a problem, please visit the KRUPS website at www.krupsusa.com or contact the KRUPS Consumer Care Center in your country. You can find the phone number in the worldwide guarantee leaflet. If there is no Consumer Care Center in your country, go to your local KRUPS dealer.

TROUBLESHOOTING

If you encounter problems with the appliance, visit www.krupsusa.com for a list of frequently asked questions or contact the Consumer Care Center in your country.

PRECAUTIONS IMPORTANTES

CONSIGNES RELATIVES AU CORDON COURT
