Product type	Built-in cooker
Brand	Teka
Model	HRB 6100 VNS
Net weight	27 kg
Supply voltage	230 V - 50 Hz
Number of cooking functions	10
Cooking functions	Traditional cooking, Grill, Maxi Grill, Maxi Grill with fan, Pizza, Eco mode, Defrost, Hydroclean, Fast preheat, Oven stop
Clock type	Electronic with LED display
Timer	Programmable up to 3 hours
Delayed programming	Programmable start and stop
Cleaning	Hydroclean (low temperature steam cleaning)
Interior lighting	LED
Provided accessories	Grid, tray, tray supports
Door	With removable inner glass
Door gasket	Oven gasket
Grill element	Yes
Convection fan	Yes
Control panel	Front with rotary selectors
Energy efficiency index	EEI 90.5

Frequently Asked Questions - HRB 6100 VNS TEKA

How do I set the time on the clock of my Teka HRB 6100 VNS oven?

Press the control button (5) several times until the time LED flashes, then turn the button to set the time. Confirm by pressing the button. The time can only be set if no alarm or cooking function is programmed.

How do I program a timer (alarm)?

Press the control button several times until the timer LED flashes, turn to set the time (max 3h, min 2min), then press to activate. The alarm is independent of the oven.

How do I use the Hydroclean function?

Place a cloth at the bottom of the cold oven, pour 200 ml of water (with a spoonful of mild detergent), select the Ⓓ function, set the temperature to 90°C and the timer to 4 minutes. After the signal, let it cool for 20 minutes with the door closed, then wipe.

What should I do if the display flashes after a power cut?

Press and hold the control button for 3 seconds until the LED turns off and the oven switches to standby mode. Then set the time.

How do I cancel a cooking program?

Press the control button for 3 seconds to cancel the program or timer. The oven returns to manual mode.

Can I use the timer during cooking?

Yes, the timer (alarm) is independent and can be used even when the oven is in use. It does not cut off the oven.

How do I program a delayed start?

First set the start time (LED 1) then the end time (LED 2) by turning the control button. Confirm each step. Cooking will start at the programmed time.

What should I do if the oven does not heat up?

Check that the function selector is not on OFF, that the clock is in manual mode (if programmed, cancel the program), and that the time is set. If the problem persists, consult the manual.

How do I clean the oven walls after greasy cooking?

Use the Hydroclean function regularly. For deep cleaning, use mild detergents and soft non-abrasive sponges after the Hydroclean cycle.

What accessories are provided with the oven?

The manual mentions a grid, a tray and tray supports. Other accessories may vary depending on the model.

USER MANUAL HRB 6100 VNS TEKA

Modern kitchen interior with black cabinets and stainless steel appliances, featuring a red 'TEKA' logo on the top right (no other text or symbols visible)

User Manual

HRB

ES PT EN

FR DE NL

EL

Español

Before using your oven for the first time, please carefully read the installation and maintenance instructions that come with it.

Depending on the model, the accessories included in your oven may vary from those shown in the pictures.

FRaNÇals

Modelo HRB 6316

Funciones del horno

ORMACIÓN

Close-up of a metallic cup pouring liquid onto a flat surface, with no visible text or symbols.

Modelo HRB 6316

Funções do forno

ORMAÇÃO

PROGRAMAR O ALARME (TEMPORIZADOR)

PROGRAMAR A FUNÇÃO TEKA HYDROCLEAN®

ATENÇÃO

3D rendering of a metallic cup pouring liquid into a rectangular basin (no text or symbols visible)

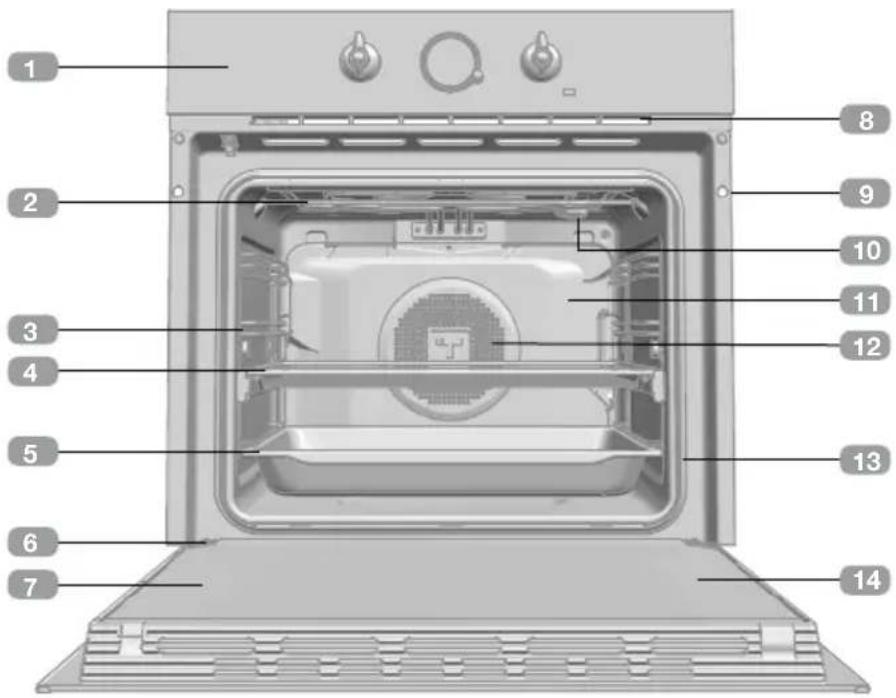

Description of the oven

1 Control panel
2 Grill element
3 Tray support
4 Grid shelf
5 Tray
6 Hinge
7 Inner Glass
8 Air cooling outlet
9 Unit mounting
10 Lamp
11 Back Wall Panel
12 Fan
13 Oven Seal
14 Door

Control panel

HRB 6300 Models

1 Function control dial
2 Electric clock/timer
3 Temperature control dial

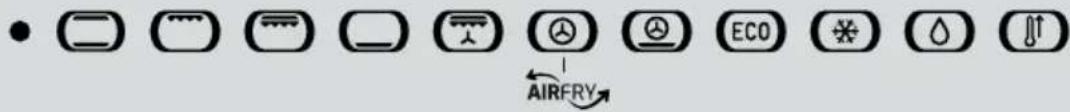

Function selector symbols

HRB 6300 Models

HRB 6316 Models

Oven functions

ORMATION

For a description of how to use each of the features, see the cooking guide that comes with your oven.

MAXIGRILL WITH FAN

AURBO

PIZZA

ECO ECO

DEFROSTING

HYDROCLEAN

FAST PREHEATING

• OVEN SWITCH-OFF

CONVENTIONAL

GRILL

MAXIGRILL

LOWER ELEMENT

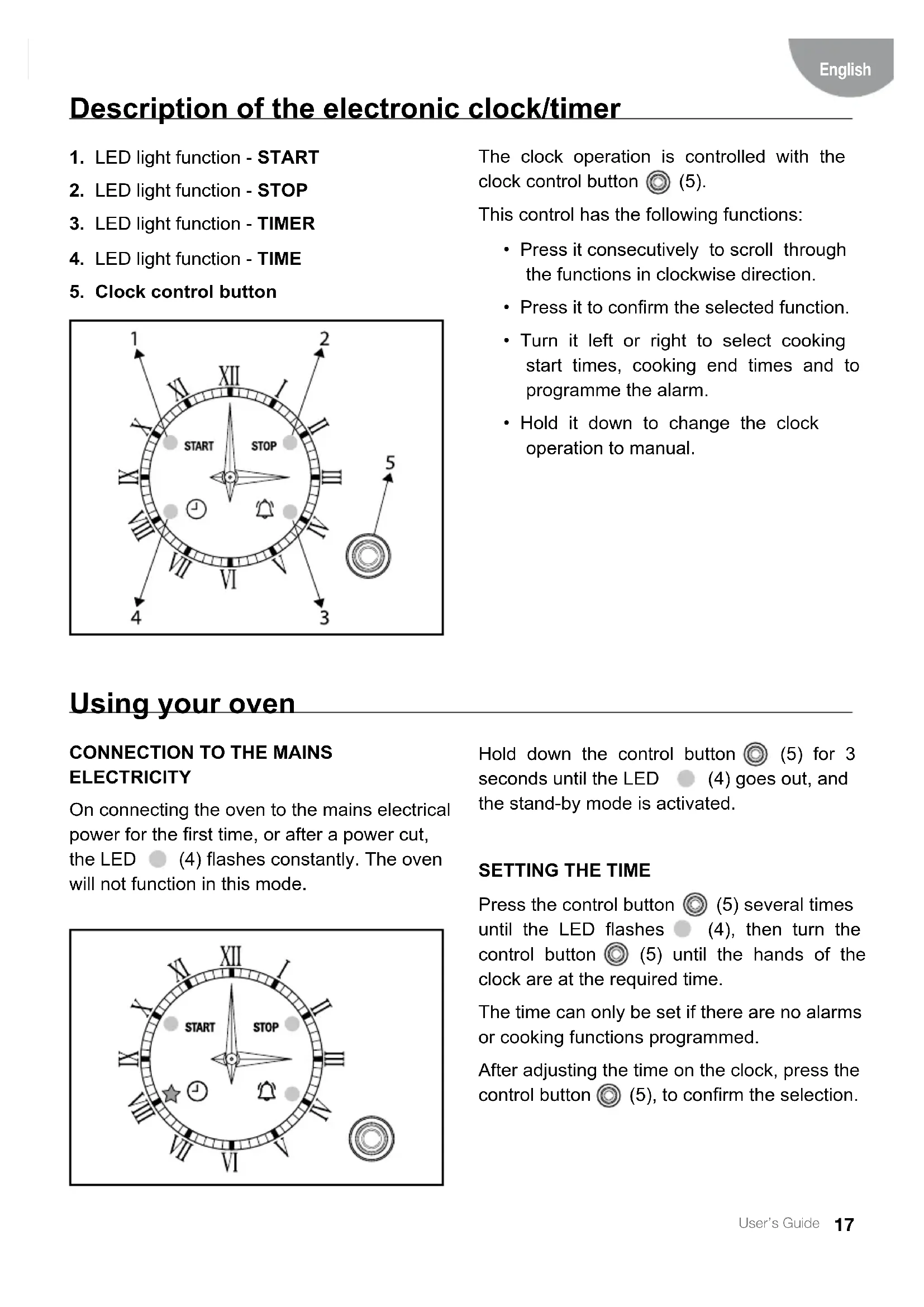

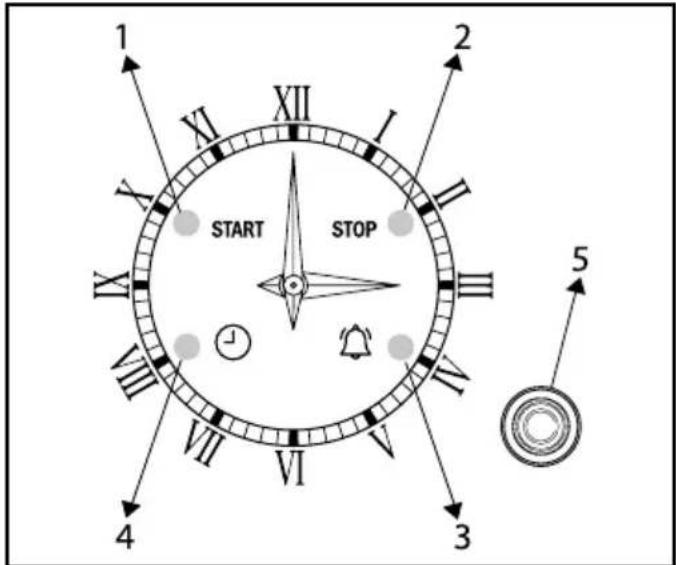

Description of the electronic clock/timer

1. LED light function - START
2. LED light function - STOP
3. LED light function - TIMER
4. LED light function - TIME
5. Clock control button

The clock operation is controlled with the clock control button Ⓞ (5).

This control has the following functions:

• Press it consecutively to scroll through the functions in clockwise direction.
• Press it to confirm the selected function.
• Turn it left or right to select cooking start times, cooking end times and to programme the alarm.
• Hold it down to change the clock operation to manual.

Using your oven

CONNECTION TO THE MAINS ELECTRICITY

On connecting the oven to the mains electrical power for the first time, or after a power cut, the LED (4) flashes constantly. The oven will not function in this mode.

Hold down the control button (5) for 3 seconds until the LED (4) goes out, and the stand-by mode is activated.

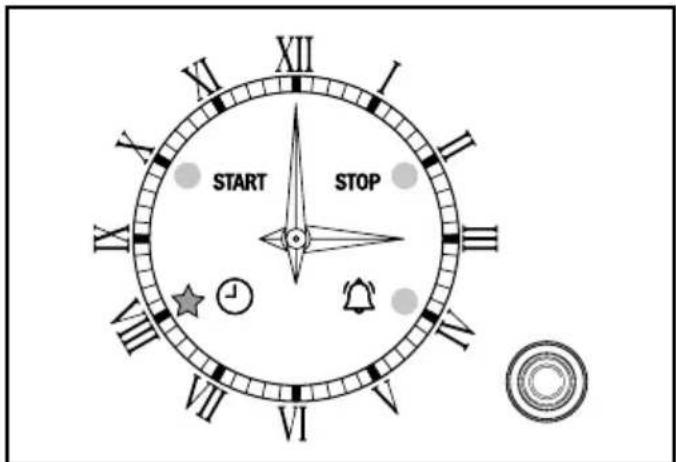

SETTING THE TIME

Press the control button Ⓞ (5) several times until the LED flashes ⚙ (4), then turn the control button Ⓞ (5) until the hands of the clock are at the required time.

The time can only be set if there are no alarms or cooking functions programmed.

After adjusting the time on the clock, press the control button Ⓞ (5), to confirm the selection.

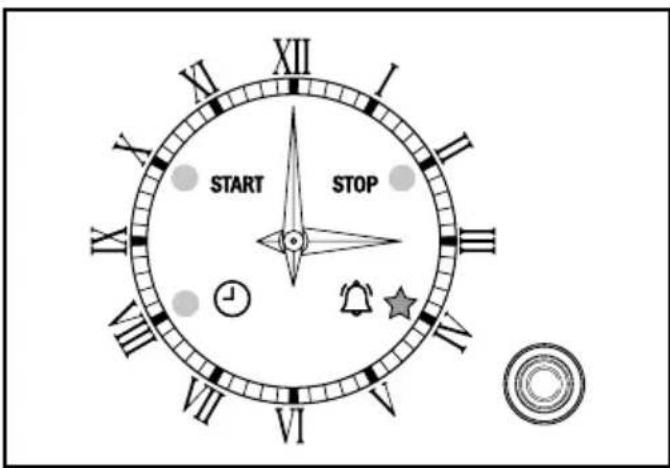

PROGRAMMING THE ALARM (TIMER)

Press the control button (5) several times until the LED flashes (3), then turn the control button (5) until the hands of the clock are at the required time.

After adjusting the alarm time on the clock, press the control button Ⓞ (5) to activate it.

If the alarm is not activated within 10 seconds of selecting the menu, it will be cancelled.

If the alarm is active, the alarm symbol on the clock remains lit.

Press and release the control button (5) to display the programmed time of the alarm. The hands will indicate the time selected for the alarm for 2 seconds and then return to the current time.

Press the control button Ⓞ (5) for 2 seconds to cancel the programmed alarm.

At most, the alarm can be set for up to 3 hours after the current time and at minimum, up to 2 minutes after the current time.

The alarm activation is independent to the oven operation. It is only an acoustic signal.

The oven does not turn off at the end of the timer period. This function can also be used while the oven is in use.

OVEN TIMER FUNCTION

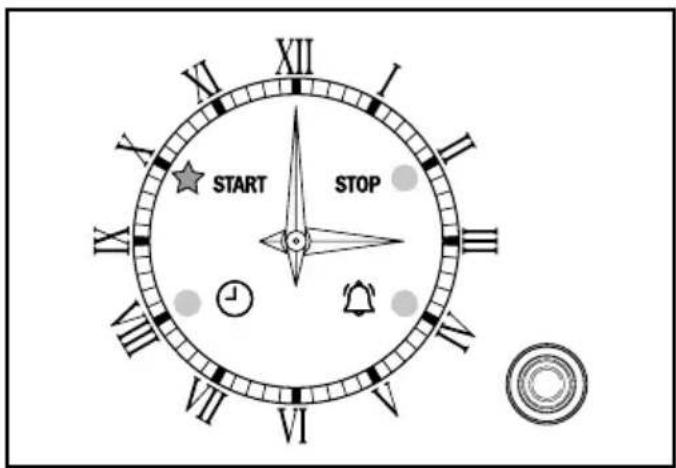

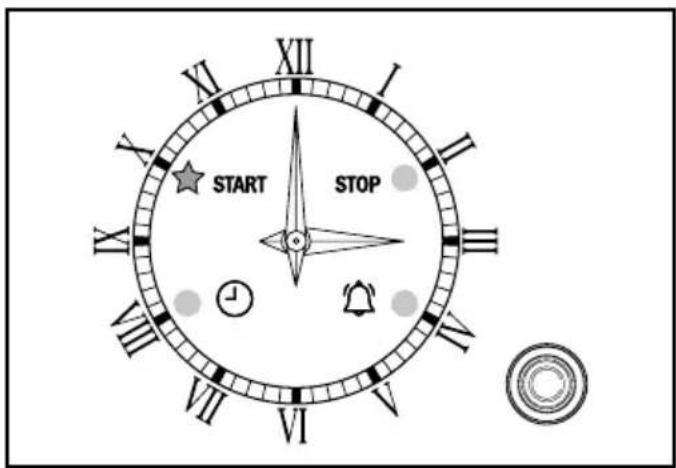

Programming the Cooking Start Time

Press the control button Ⓞ (5) several times until the LED ● (1) flashes.

Programme the cooking start time by turning the control button Ⓞ (5), to the right or left.

After adjusting the start time, press the control button Ⓞ (5) to confirm the selection.

If the selection is not confirmed within 10 seconds of selecting the menu, it will be cancelled.

The cooking end time must be programmed after setting the start time, otherwise the cooking start time will be deleted.

The cooking start time can be programmed for up to 12 hours after the current time.

The cooking start time can only be programmed from 2 minutes after the current time.

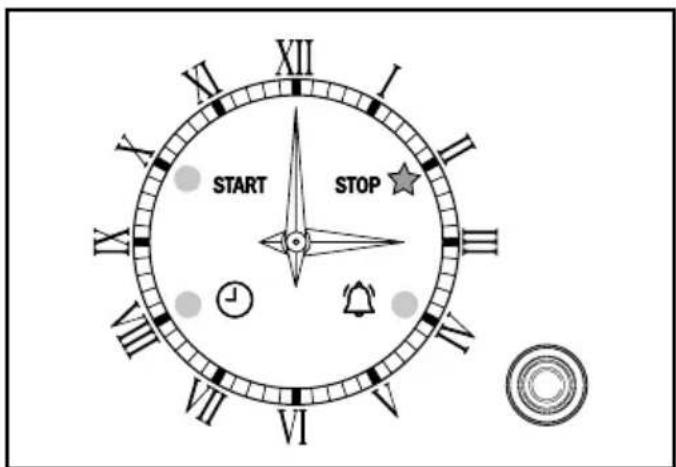

Programming the Cooking Stop Time

Press the control button Ⓞ (5) several times until the LED ● (2) flashes.

Programme the cooking stop time by turning the control button (5), to the right or left.

After setting the cooking stop time, press the control button Ⓞ (5), to activate the cooking programme.

If the selection is not activated within 10 seconds of selecting the menu, it will be cancelled.

The cooking stop time can be programmed for up to 15 hours after the current time.

The cooking stop time can only be programmed from 2 minutes after the current time.

Programming Cooking Time and Cooking Stop Time

For delayed start cooking, programme the cooking start and stop times in accordance with the instructions above.

MANUAL OPERATION

If no cooking times are programmed, the clock runs in manual mode.

If a cooking programme is defined, to activate the manual mode, press the control button (5) until the clock emits a buzzing sound.

If the manual mode is active, any previous cooking programme is cancelled.

When the clock is in manual mode, the oven is operative.

If the oven is not going to be used, the oven function selection switch should be in the OFF position.

In manual mode, the LED lights are off.

At the end of the programmed cooking time, or when the pre-established alarm time is reached, a buzzer is heard.

Press the control button Ⓞ (5) to stop the buzzer. Otherwise, after a minute from the start of the buzzing sound, the buzzer will stop automatically.

CANCELLATION OF THE PROGRAMMING OR TIMER

Press the control button (5) for three seconds to cancel the cooking programme or TIMER.

Teka Hydroclean® function

This function makes it easy to remove grease and other food debris that may have stuck to the sides of the oven.

For easier cleaning, do not allow dirt to accumulate. Clean the oven frequently.

PROGRAMMING THE TEKA HYDROCLEAN® FUNCTION

WARNING

Do not pour water into a hot oven as this can damage the enamel of the oven.

Always run the cycle on a cold oven. The result could be affected and the varnish damaged if it is run when the oven is too hot.

First remove the trays and all accessories from the oven interior, including the tray supports and telescopic guide rails.

To do this, follow the instructions in the installation and maintenance guide accompanying the oven.

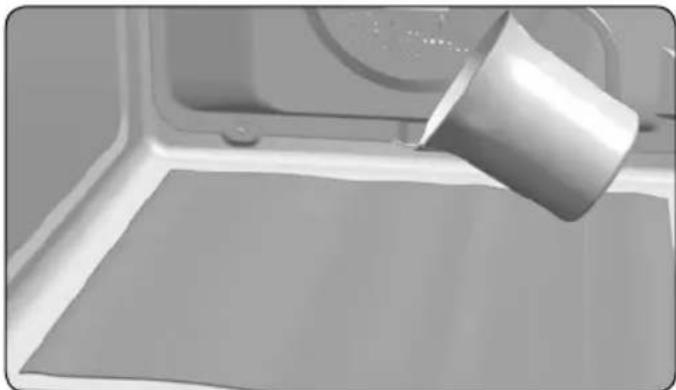

1. With the oven cold, spread a cloth out on the bottom of the oven.

3D rendering of a metal cup pouring liquid into a rectangular basin (no text or symbols visible)

1. Gently pour 200 ml of water into the bottom of the oven cavity.

INFORMATION

For best results, add a teaspoon of mild washing up detergent to the glass of water before pouring onto the cloth

1. Turn the control dial to position ☐.
2. Set the temperature to 90^ C.
3. Programme a duration of 4 minutes on the timer.
4. After 4 minutes, an alarm will sound and the oven will stop heating.
5. Turn the control dial to position o.
6. Wait for about 20 minutes for the interior of the oven to cool.

IMPORTANT

Do not open the oven until the cooling phase is complete.

This is necessary for the Hydroclean® function to work properly.

1. Any traces of dirt and excess water can now be removed from the oven with the damp cloth.

The Hydroclean® function takes place at a low temperature. However, cooling times can vary depending on the room temperature.

WARNING

Before touching the inside surface of the oven, make sure that it has cooled properly.

If a deeper clean is required after using the Hydroclean® function, use neutral detergents and non-abrasive sponges.
