GCGR 57 - Lawn roller EINHELL - Free user manual and instructions

Brand	Einhell
Model	GCGR 57
Product type	Lawn roller
Roller width	57 cm
Roller diameter	32 cm
Filling volume	46 liters
Weight empty	11 kg
Max weight filled with water	57 kg
Total height with handle	106 cm
Roller material	Steel
Handle	Foldable, with grip
Dirt scraper	Integrated, adjustable
Intended use	Rolling seeded surfaces (lawn, flower beds), after scarification or fertilization
Assembly	Requires wrenches (SN 8, 13, 14) and Phillips screwdriver
Filling	Water, sand or concrete (via plug)
Cleaning	After each use, with water jet
Warranty	24 months (non-professional use)
Replacement parts	Available at www.isc-gmbh.info, specify type, article number, identification number and part number
Disposal	Do not dispose of with household waste, take to recycling center

Frequently Asked Questions - GCGR 57 EINHELL

How to assemble the GCGR 57 lawn roller?

Follow figures 3 to 10 in the manual. You will need wrenches SN 8, SN 13, SN 14 and a #2 Phillips screwdriver. First mount the lower handle (3) onto the roller, then the handle (4) and the dirt scraper (2).

Can the roller be filled with something other than water?

Yes, you can use sand or even pour concrete inside. The maximum filling volume is 46 liters. The maximum allowed weight when filled is 57 kg.

How to adjust the dirt scraper?

The dirt scraper (2) is adjustable. It should be set so that the least amount of soil sticks to the roller during use. This improves rolling efficiency.

What type of ground can be rolled?

Only roll dry ground. The roller is designed for freshly seeded surfaces (lawn, flower beds) and after scarification or fertilization. Avoid wet or waterlogged soil.

How to clean the roller after use?

Clean the device immediately after each use with a water jet. Do not use aggressive cleaning agents. Dry it if necessary to prevent rust.

What safety precautions should be observed?

The device is not a toy, keep children away. Use the device only for its intended purpose. Wear closed shoes. Never fill the roller beyond the maximum weight.

How to order spare parts?

Go to www.isc-gmbh.info. You must provide the device type, article number, identification number and the desired spare part number.

What is the warranty period?

The warranty is 24 months from the date of purchase. It applies only for non-commercial use. Keep the proof of purchase.

Can the roller be used on sloping ground?

It is not recommended to use the roller on steep slopes. Always use it on flat or gently sloping surfaces to avoid any risk of tipping.

How to dispose of the roller at the end of its life?

Do not throw the device in household waste. Take it to an appropriate collection center (recycling center) to allow recycling of materials.

USER MANUAL GCGR 57 EINHELL

When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

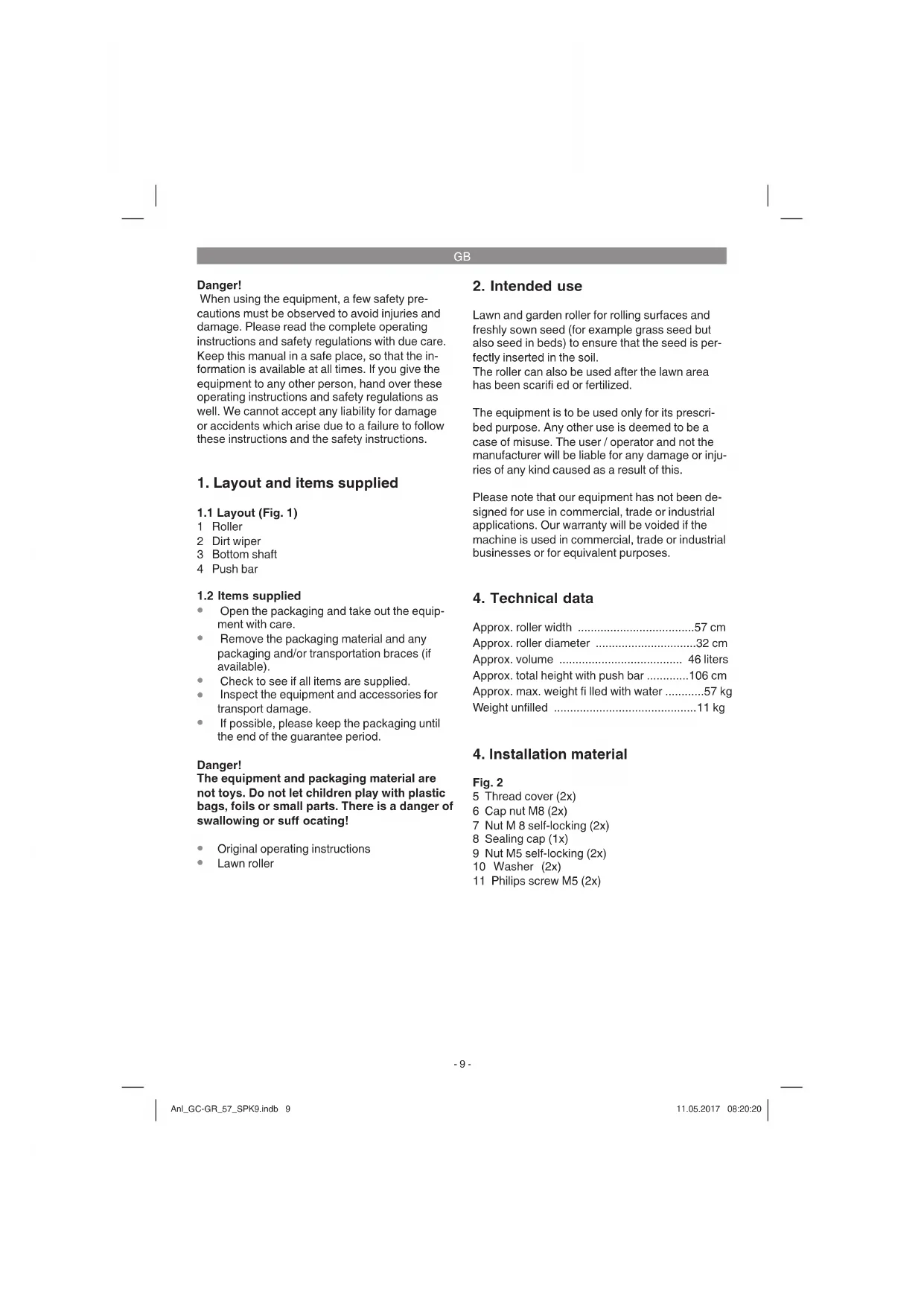

1. Layout and items supplied

1.1 Layout (Fig. 1)

1 Roller
2 Dirt wiper
3 Bottom shaft
4 Push bar

1.2 Items supplied

• Open the packaging and take out the equipment with care.
• Remove the packaging material and any packaging and/or transportation braces (if available).
  Check to see if all items are supplied.
• Inspect the equipment and accessories for transport damage.
  If possible, please keep the packaging until the end of the guarantee period.

Danger!

The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suffocating!

Original operating instructions
Lawn roller

2. Intended use

Lawn and garden roller for rolling surfaces and freshly sown seed (for example grass seed but also seed in beds) to ensure that the seed is perfectly inserted in the soil.

The roller can also be used after the lawn area has been scarified or fertilized.

The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

4. Technical data

Approx. roller width .57 cm

Approx. roller diameter 32 cm

Approx. volume 46 liters

Approx. total height with push bar 106 cm

Approx. max. weight filled with water 57 kg

Weight unfilled 11 kg

4. Installation material

Fig. 2

5 Thread cover (2x)
6 Cap nut M8 (2x)
7 Nut M 8 self-locking (2x)
8 Sealing cap (1x)
9 Nut M5 self-locking (2x)
10 Washer (2x)
11 Philips screw M5 (2x)

GB

5. Assembly

Fig. 3-10

You will need 8 mm. 13 mm and 14 mm open-ended wrenches and a size 2 Philips screwdriver for the assembly work.

Follow Figures 3-10 for the assembly.

Once assembled, fill the roller with water, sand or concrete.

6. Operation

Pull the roller over the ground you wish to roll in even strips. Adjust the dirt wiper (2) so that as little soil as possible remains on the roller. Only roll dry ground.

7. Cleaning, maintenance and ordering of spare parts

Danger!

Always pull out the mains power plug before starting any cleaning work.

7.1 Cleaning

We recommend that you clean the device immediately each time you have finished using it.

7.2 Ordering replacement parts:

Please quote the following data when ordering replacement parts:

Type of machine
Article number of the machine
Identification number of the machine
- Replacement part number of the part required For our latest prices and information please go to www.isc-gmbh.info

GB

Warranty certificate

Dear Customer:

All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card. You can also contact us by telephone using the service number shown. Please note the following terms under which guarantee claims can be made:

1. These guarantee terms apply to consumers only, i.e. natural persons intending to use this product neither for their commercial activities nor for any other self-employed activities. These warranty terms regulate additional warranty services, which the manufacturer mentioned below promises to buyers of its new products in addition to their statutory rights of guarantee. Your statutory guarantee claims are not affected by this guarantee. Our guarantee is free of charge to you.
2. The warranty services cover only defects due to material or manufacturing faults on a product which you have bought from the manufacturer mentioned below and are limited to either the rectification of said defects on the product or the replacement of the product, whichever we prefer. Please note that our devices are not designed for use in commercial, trade or professional applications. A guarantee contract will not be created if the device has been used by commercial, trade or industrial business or has been exposed to similar stresses during the guarantee period.

3. The following are not covered by our guarantee:

4. Damage to the device caused by a failure to follow the assembly instructions or due to incorrect installation, a failure to follow the operating instructions (for example connecting it to an incorrect mains voltage or current type) or a failure to follow the maintenance and safety instructions or by exposing the device to abnormal environmental conditions or by lack of care and maintenance.

5. Damage to the device caused by abuse or incorrect use (for example overloading the device or the use or unapproved tools or accessories), ingress of foreign bodies into the device (such as sand, stones or dust, transport damage), the use of force or damage caused by external forces (for example by dropping it).

6. Damage to the device or parts of the device caused by normal or natural wear or tear or by normal use of the device.

7. The guarantee is valid for a period of 24 months starting from the purchase date of the device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies if an on-site service is used.

8. To make a claim under the guarantee, please register the defective device at: www.isc-gmbh.info. Please keep your bill of purchase or other proof of purchase for the new device. Devices that are returned without proof of purchase or without a rating plate shall not be covered by the guarantee, because appropriate identification will not be possible. If the defect is covered by our guarantee, then the item in question will either be repaired immediately and returned to you or we will send you a new replacement.

Of course, we are also happy offer a chargeable repair service for any defects which are not covered by the scope of this guarantee or for units which are no longer covered. To take advantage of this service, please send the device to our service address.

Also refer to the restrictions of this warranty concerning wear parts, consumables and missing parts as set out in the service information in these operating instructions.

F

Danger!

Chere cliente, cher client,
