RESTORE SC6060A - Vacuum Cleaner Sanitaire - Free user manual and instructions

Product type	Commercial carpet shampooer (carpet cleaner)
Brand	Sanitaire
Model	RESTORE SC6060A
Power supply	120 V, 60 Hz
Power	Approximately 600-1000 W
Solution tank capacity	Approximately 3.8 L
Dirty water tank capacity	Approximately 3.8 L
Power cord length	Approximately 7.6 m
Flexible hose length	Approximately 3 m
Included accessories	Tools for tough stains (8 cm, 10 cm, 15 cm), brush
Main functions	Solution spraying, brushing, suction
Usage type	Commercial
Maintenance	Emptying dirty water tank, cleaning debris filter, rinsing tools
Safety	Grounding required, do not use outdoors, do not vacuum flammable liquids
Warranty	1 year limited
Customer service	1-800-800-8975
Website	www.sanitairecommercial.com

Frequently Asked Questions - RESTORE SC6060A Sanitaire

How do I fill the cleaning solution tank?

Remove the tank from the unit, unscrew the black cap, remove the inner container, fill with hot water (max 60°C) to the fill line, add 60 ml of Sanitaire 2X solution, then reinstall the container and cap.

What cleaning solution should I use?

Use only the original Sanitaire cleaning solution designed for this unit. Do not use other products to avoid damaging internal components.

How do I clean the unit after use?

Empty the dirty water tank, rinse it. Rinse the tools under running water. Run clean water through the hose to rinse it. Dry all parts before storing.

What if the spray is reduced or none?

Check that the solution tank is not empty and is properly seated. If the pump is unprimed, hold the hose end below the water level in the tank to reprime.

Why is suction weak?

Make sure both tanks are properly seated. Empty the dirty water tank if full. Check the solution level in the clean tank.

What are important safety precautions?

Plug into a grounded outlet only. Do not leave the unit unattended. Do not use outdoors. Do not vacuum flammable or toxic materials. Keep hair and clothing away from openings.

How to store the unit?

Store the unit in a dry and safe place, protected from frost. Rinse and dry the tanks and tools before storing.

Can I use the vacuum to pick up liquids?

Yes, this unit is designed for wet cleaning (shampoo). Always use the installed float for wet pickup. Do not use for flammable liquids.

What does the warranty cover?

The one-year limited warranty covers defective parts. It does not cover fans, filters, belts, brushes, or damage from misuse. Keep your original sales receipt.

How to clean the debris filter?

Remove the dirty water tank, then remove hair and debris from the red filter. Reinstall the tank after cleaning.

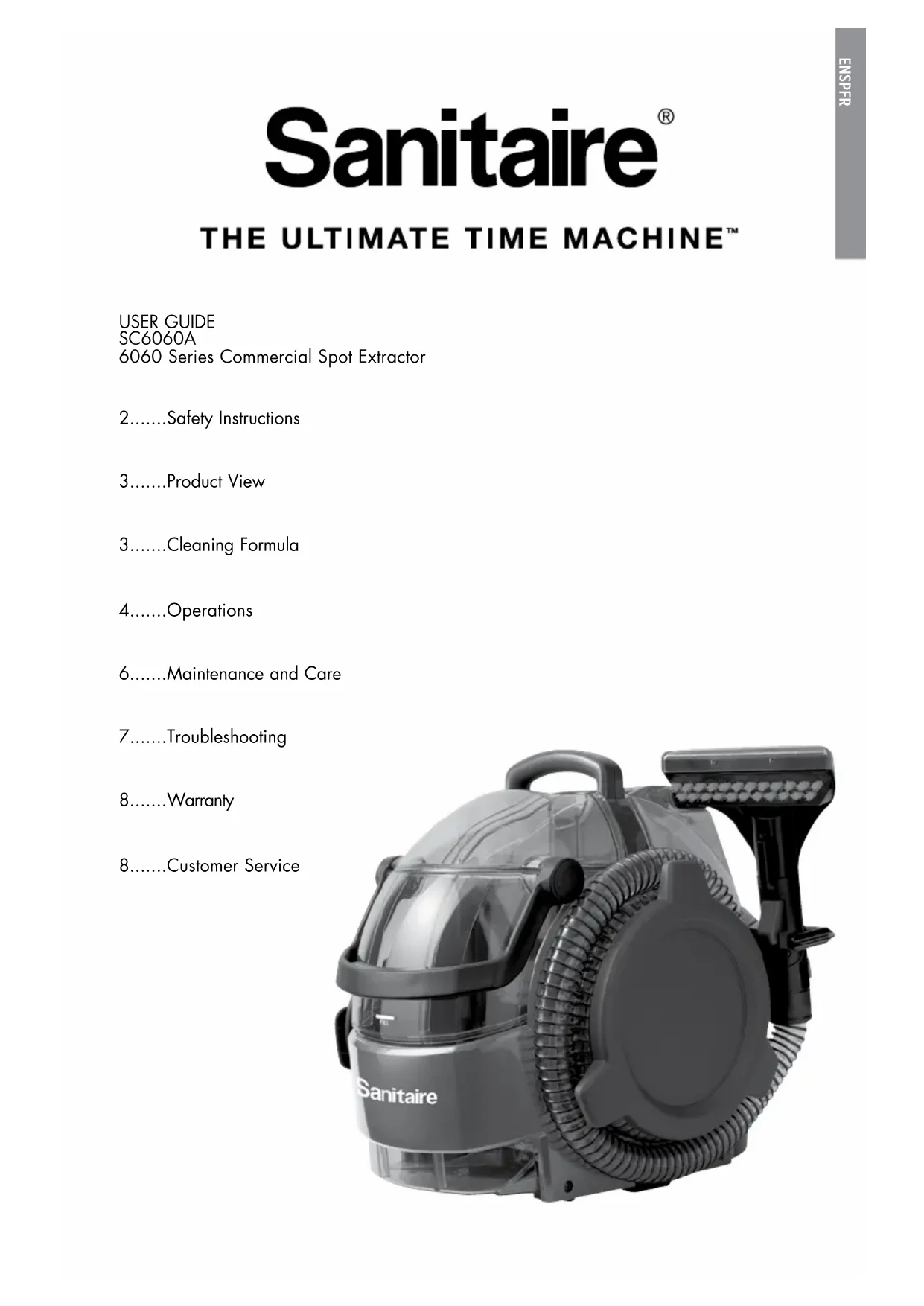

USER MANUAL RESTORE SC6060A Sanitaire

6060 Series Commercial Spot Extractor

2.....Safety Instructions
3.......Product View
3.....Cleaning Formula
4....Operations
6......Maintenance and Care
7.....Troubleshooting
8......Warranty
8.....Customer Service

READ ALL INSTRUCTIONS BEFORE USING YOUR COMMERCIAL DEEP CLEANER.

When using an electrical appliance, basic precautions should be observed, including the following:

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY:

»Connect to a properly grounded outlet only. See grounding instructions. Do not modify the 3-prong grounded plug.

» Do not leave appliance when it is plugged in. Unplug from outlet when not in use and before servicing.

»Do not expose to rain. Store indoors.

»Do not allow to be used as a toy. Close attention is necessary when used by or near children.

»Do not use for any purpose other than described in this user guide. Use only manufacturer's recommended attachments.

»Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, have it repaired at an authorized service center.

Always install float before any wet pick-up operation.

» Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.

»Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

»Do not handle plug or appliance with wet hands.

»Do not put any object into openings. Do not use with any opening blocked; keep openings free of dust, lint, hair, and anything that may reduce air flow.

Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.

Turn OFF all controls before plugging or unplugging appliance.

»Use extra care when cleaning on stairs.

Do not use to pick up flammable or combustible materials (lighter fluid, gasoline, kerosine, etc.) or use in areas where they may be present.

» Do not use appliance in an enclosed space filled with vapors given off by oil-based paint, paint thinner, some moth-proofing substances, flammable dust, or other explosive or toxic vapors.

» Do not use to pick up toxic material (chlorine bleach, ammonia, drain cleaner, etc.).

»Do not pick up anything that is burning or smoking, such as cigarettes, matches or hot ashes.

»Use only Sanitairecleaning products intended for use with this appliance to prevent internal component damage. See the Cleaning Formula section of this guide.

Keep appliance on a level surface.

Do not carry the appliance while in use.

SAVE THESE INSTRUCTIONS

THIS MODEL IS FOR COMMERCIAL USE.

WARNING

Improper connection of the equipment-grounding conductor can result in a risk of electrical shock. Check with a qualified electrician or service person if you aren't sure if the outlet is properly grounded. DO NOT MODIFY THE PLUG. If it will not fit the outlet, have a proper outlet installed by a qualified electrician. This appliance is designed for use on a nominal 120-volt circuit, and has a grounding attachment plug that looks like the plug in the drawing to the right. Make certain that the appliance is connected to an outlet having the same configuration as the plug. No plug adapter should be used with this appliance.

GROUNDING INSTRUCTIONS

This appliance must be connected to a grounded wiring system. If it should malfunction or break down, grounding provides a safe path of least resistance for electrical current, reducing the

risk of electrical shock. The cord for this appliance has an equipment-grounding conductor and a grounding plug. It must only be plugged into an outlet that is properly installed and grounded in accordance with all local codes and ordinances.

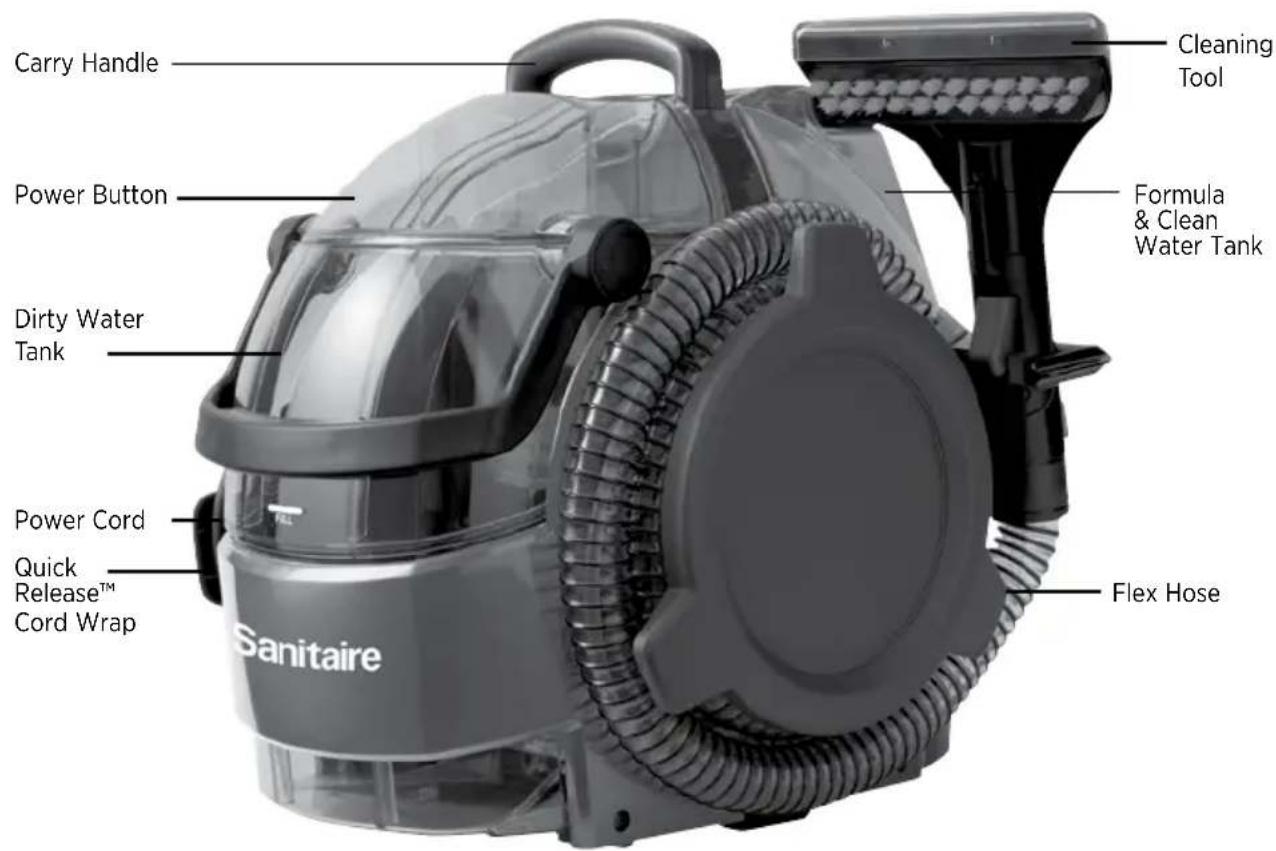

Product View

WARNING

Do not plug in your cleaner until you have completely assembled it per the instructions and are familiar with all instructions and operating procedures.

Cleaning Formula

Keep plenty of genuine Sanitaire for portable spot cleaning machines on hand so you can clean whenever it fits your schedule. Always use genuine Sanitaire cleaning formulas.

WARNING

To reduce the risk of fire and electric shock due to internal component damage, use only Sanitaire cleaning formula intended for use with this machine.

Operations

Before you Clean

1. Remove loose dirt and impediments before deep cleaning.
2. Pretreating (optional):
   a. Pretreating is recommended to improve cleaning effectiveness for heavily soiled carpet in high traffic areas such as entryway and hallways.
   b. Sanitaire® Stain Pretreat
   Spray any Sanitaire Stain Pretreat formula onto heavy traffic areas, soiled areas or stains. Allow to penetrate for at least 3 minutes Clean as normal, following the instructions below.

Preparing the Machine

1. Release Flex Hose by twisting the hose secure latch clockwise. Unwrap Flex Hose completely.
2. Attach the Large Stain Tool to the hose grip until it snaps together. Make certain the tool is securely attached.
3. Twist the Quick Release™ Cord Wrap clockwise to unwrap the Power Cord completely and plug into grounded outlet.

Filling the Formula & Clean Water Tank

1. Remove tank from the back of the machine by lifting up tank carry handle.
   Note: This tank was designed with a flat bottom so it can be easily filled.
2. Unscrew the black cap and remove bottle insert.
3. Fill tank with hot tap water (140^ / 60^) MAX) to the water fill line. Add 60~mL / 2 oz of Sanitaire 2X^© formula to the tank.
4. Replace the bottle insert in the tank and tighten the black cap. Replace the tank on the machine.

NOTICE

Some Berber carpets have a tendency to fuzz with wear. Repeated strokes in the same area may aggravate this condition.

TIP: Make only one trip to the sink by bringing the entire portable cleaner. Fill and empty in the same trip.

1.

2.

Operations

Cleaning with your Deep Cleaner

1. Plug unit in and turn ON by pressing the Power Button.
2. Hold cleaning tool approximately 2.5cm above soiled surface. Press spray trigger to apply cleaning formula to soiled area.
3. Using the brush on the cleaning tool, gently scrub area to be cleaned.
4. For thorough cleaning, spray additional formula while brush and suction are in contact with surface.
5. Apply downward pressure on cleaning tool and pull it toward you. The suction will remove the dirt and cleaning formula. Continue until no more dirt can be removed.
6. As a final step, use "drying strokes" (by not pressing the spray trigger) to remove as much liquid as possible. Repeat this step as often as necessary.

Cleaning with 6" Tool

1. Attach the 3''/4''/6'' Tough Stain Tool to the handheld cleaning hose.
2. Press the spray trigger to mist formula over and onto the soiled area.
3. Release spray trigger and gently scrub the stain.
4. To lift the stain away, apply downward pressure on the tool and slowly pull it toward you. Then use "drying strokes" to remove remaining moisture. Repeat as needed.

WARNING

Keep spray away from face. Failure to do so may result in personal injury.

IMPORTANT

Check the manufacturer's tag before cleaning upholstery. Test a small, hidden area for colourfastness. If colour is affected, do not use. If manufacturer's tag is missing or not coded, check with your furniture dealer.

Maintenance & Care

Empty Dirty Water Tank

1. When the Dirty Water Tank reaches the "FULL" line on the tank it is time to empty.
2. Remove tank and carry to a utility sink, toilet or outside (where you will dispose of the dirty water).
3. To unlock the tank's lid, rotate handle over the back of the tank. Remove lid and pour out dirty water. Rinse out tank to remove any debris.
4. Replace top of tank, and rotate the handle forward to lock in place on front of tank.
5. Before replacing tank on machine, wipe debris off red filter.

Cleaning your Machine

1. Remove and rinse the tools under clean, running water. Allow tools to dry.
2. It is recommended that you suction clean water from a bowl to rinse out the hose. Then lift end of hose and stretch out to ensure all water is cleared from hose.
3. Wrap the Flex Hose around the hose wrap and secure with latch.

WARNING

To reduce the risk of fire, electric shock or injury, turn power OFF and disconnect plug from electrical outlet before performing maintenance or troubleshooting.

TIP: For best results empty, rinse and dry tanks and tools before storing.

Caring for your Machine

Cleaning Debris Filter

1. Remove all hair and debris from the red filter.
2. Place the Dirty Water Tank back onto the machine.

Machine Storage

Store machine in a protected dry area.

Debris Filter

NOTICE

To reduce the risk of a leaking condition, do not store unit where freezing may occur. Damage to internal components may result.

WARNING

To reduce the risk of fire, electric shock or injury, turn power OFF and disconnect plug from electrical outlet before performing maintenance or troubleshooting.

Problem Possible causes Remedies
Reduced spray or no spray	Formula and Clean Water Tank may be empty	Refill tank
	Formula and Clean Water Tank may not be seated completely	Turn power OFF; Remove and reseat tank
	Pump may have lost prime Hold end of hose below water level in tank to prime
Loss of suction power	Tanks may not be seated properly	Pick up both tanks and reseat them so they fit snuggly on the unit
	Dirty Water Tank has picked up maximum amount of dirty water and has reached full line	Empty tank
	Formula and Clean Water Tank is empty	Check fluid levels in tank

Warranty

This warranty gives you specific legal rights, and you may also have other rights which may vary from state to state. If you need additional instruction regarding this warranty or have questions regarding what it may cover, please contact Sanitaire Consumer Care by e-mail or telephone as described below.

Limited One-Year Warranty

Subject to the *EXCEPTIONS AND EXCLUSIONS identified below, upon receipt of the product Sanitaire will repair or replace (with new, refurbished, lightly used, or remanufactured components or products), at Sanitaire's option, free of charge from the date of purchase by the original purchaser, for one year, any defective or malfunctioning part. See information below on "If your Sanitaire product should require service". This warranty does not apply to fans or routine maintenance components such as filters, belts, or brushes. Damage or malfunction caused by negligence, abuse, neglect, unauthorized repair, or any other use not in accordance with the user guide is not covered.

SANITAIRE IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL

DAMAGES OF ANY NATURE ASSOCIATED WITH THE USE OF THIS PRODUCT. SANITAIRE'S LIABILITY WILL NOT EXCEED THE PURCHASE PRICE OF THE PRODUCT. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

* EXCEPTIONS AND EXCLUSIONS FROM THE TERMS OF THE LIMITED WARRANTY

THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ANY OTHER WARRANTIES, EITHER ORAL OR WRITTEN. ANY IMPLIED WARRANTY WHICH MAY ARISE BY OPERATION OF LAW, INCLUDING THE IMPLIED WARRANTYES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO THE ONE-YEAR DURATION FROM THE DATE OF PURCHASE AS DESCRIBED ABOVE.

Some states do not allow limitations on how long an implied warranty lasts so the above limitation may not apply to you.

NOTE: Please keep your original sales receipt. It provides proof of date of purchase in the event of a warranty claim.

Sanitaire Customer Service

If your Sanitaire product should require service:

You will find the nearest Sanitaire Authorized Service Center in your area online at sanitairecommercial.com under service locator or contact Sanitaire Customer Service. For information about repairs or replacement parts, or questions about your warranty, call:

Sanitaire Customer Service

1-800-800-8975

Monday - Friday 9 a.m. - 8:30 p.m. EST

Or visit the Sanitaire website: www.sanitairecommercial.com

When contacting Sanitaire, have model number of cleaner available.

Please record your Model Number:

Please record your Purchase Date:

NOTE: Please keep your original sales receipt. It provides proof of purchase date in the event of a warranty claim. See Warranty page for details.

Sanitaire®

THE ULTIMATE TIME MACHINE

GUIA DEL USUARIO

SC6060A

Extractor de manchas série comercial 6060

EXCEPTIONS ET EXCLUSIONS DES CONDITIONS DE LA GARANTIE LIMITÉE
