Product Type	Cordless Backpack Vacuum
Usage	Commercial
Power Source	Lithium-ion battery 24 V, 8 Ah (2 battery packs)
Tank Capacity	4 quarts (approximately 3.8 L)
Filter Type	HEPA exhaust filter and pre-motor filter
Included Accessories	Hard floor tool, easy-glide carpet tool, dusting brush, upholstery tool, crevice tool, 2-piece extension wand, 5-foot hose, battery charger
Charge Time	2 hours for two batteries simultaneously
Warranty	2-year limited (1 year for battery pack)
Weight	Not specified in the manual
Dimensions	Not specified in the manual
Noise Level	Not specified in the manual
Runtime	Not specified in the manual
Compatible Battery Models	3719 (1633728 / 1635147)
Charger Model	3717 (1633730 / 1635149)
Maintenance	Change the paper bag and clean the cloth bag regularly; replace the HEPA filter and pre-motor filter every 6 months
Safety	Do not vacuum liquids, flammable or toxic materials; use only with provided batteries and charger; store indoors
Repairability	Repairs by authorized service center only

Frequently Asked Questions - TRANSPORT Cordless SC580A Sanitaire

How to charge the batteries of the SC580A vacuum?

Use the provided 3717 charger. Insert one or two batteries into the charging station. Green lights indicate full charge. Charge time is approximately 2 hours for two batteries.

What to do if the vacuum does not start?

Check that the batteries are fully charged and properly installed in the compartment. Ensure the switch is in the on position.

How to change the dust bag?

Turn off the vacuum and remove the batteries. Release the latches and open the cover. Remove the used paper bag, clean the cloth bag, then insert a new paper bag. Close the cover ensuring the cloth bag ring provides a seal.

How often should the filters be replaced?

The pre-motor filter and HEPA exhaust filter should be replaced approximately every six months. Clean the HEPA filter by shaking or rinsing with warm water if necessary.

Can I use the vacuum to pick up liquids?

No, this vacuum is designed for dry cleaning only. Never vacuum liquids or use on wet surfaces.

How to assemble the hose and wands?

Push the hose into the cover sleeve. Attach the extension wands and floor tool. For the floor tool, unscrew the locking nut, slide the tool, then retighten the nut.

Can the vacuum operate with only one battery?

Yes, the vacuum operates with one battery, but runtime will be reduced. It is recommended to use both batteries for optimal performance.

What to do in case of battery liquid leakage?

Do not touch the liquid. Wear gloves and dispose of the battery according to local regulations. If contact with skin, wash with soap and water. If contact with eyes, rinse thoroughly with water for 10 minutes and consult a doctor.

How to clean the cloth bag?

Remove the cloth bag, turn it inside out and shake to remove dust. Do not wash. For best performance, use a paper bag inside the cloth bag.

Where to find replacement parts?

Visit www.sanitairecommercial.com/professional or call 1-800-800-8975 to order genuine Sanitaire parts.

USER MANUAL TRANSPORT Cordless SC580A Sanitaire

Commercial Cordless Backpack Vacuum

OWNER'S GUIDE

Series SC580A

For assembly and maintenance videos go to www.youtube.com/sanitairevacs

Index

Important safety instructions .....2 -3

How to identify parts .....4

How to assemble and use .....5

How to maintain ....6

Problem solving .....7

Warranty 7

How to order replacement parts . . .22

Sanitaire battery charger .....23

French owner's guide .....8-14, 22

Spanish owner's guide .....15-22

...2 -3 ...4 ...5 ...6 ...7 ...7 3 ...22 ...23 -14, 22 .15-22 Sanitaire TRANSPORT CORNERS

IMPORTANT SAFETY INSTRUCTIONS

IMPORTANT: READ ALL INSTRUCTIONS BEFORE USE. RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.

WARNING: Basic safety precautions should always be observed when using an electrical appliance, including the following to reduce the risk of fire, electrical shock, or injury:

Personal safety:

• Store indoors in a dry place out of the reach of children.
  • Always use responsibly. This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Do not let children play with the appliance. Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• Use only manufacturer's recommended attachments as described in this manual; misuse or use of any accessory or attachment other than those recommended, may present a risk of personal injury.
  • Take extra care when cleaning stairs.
• Keep the appliance and accessories away from hot surfaces.
• Do not pick up toxic material (bleach, ammonia, drain cleaner, etc.)
• Do not block the appliances openings or hinder airflow; keep openings free of any objects including dust, lint, clothing, fingers (and all parts of the body).
  • Particularly keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Prevent unintentional starting. Ensure the switch is in the off-position before connecting to battery pack, picking up or carrying the appliance. Carrying the appliance with your finger on the switch or energizing appliance that have the switch on invites accidents.
• Disconnect the battery pack from the appliance before making any adjustments, changing accessories, or storing appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally.
• Do not leave backpack unattended when batteries are installed.

Electrical safety:

• Only use batteries and chargers supplied by Sanitaire.
• Keep battery pack out of reach of children.
• Never modify the charger in any way.
• The charger has been designed for a specific voltage. Always check that the electrical voltage is the same as that stated on the rating plate. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack; never use the charger with another appliance or attempt to charge this product with another charger.
• Before use, check the charger cord for signs of damage or aging. A damaged or entangled charger cord increases the risk of fire and electric shock.
• Do not abuse the charger cord. Unplug the charger cord when not in use and before servicing. Do not use with damaged charger cord or plug.
• Never carry the charger by the cord.
• Do not pull the cord to disconnect from a socket; grasp the plug and pull to disconnect.
• Don't wrap the cord around the charger when storing. Do not use cord as a handle.
• Keep the charger cord away from hot surfaces and sharp edges.
• The supply cord cannot be replaced. If the cord is damaged the charger should be discarded and replaced.
• Do not handle the charger or the appliance with wet hands.
• Do not store or charge the appliance outdoors.
• The charger must be removed from the socket before removing the battery, cleaning or maintaining the appliance.

FOR INDOOR USE ONLY

THIS MODEL IS FOR COMMERCIAL USE

Battery safety:

• Use appliances only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
• This appliance includes Li-Ion batteries. Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 130^ / 266^ may cause explosion.
• Do not use a battery pack or appliance that is damaged or modified.
  • In an emergency situation contact professional help immediately!
• Leaks from the battery cells can occur under extreme conditions. Do not touch any liquid that leaks from the battery. If the liquid gets on the skin wash immediately with soap and water. If the liquid gets into the eyes, flush them immediately with clean water for a minimum of 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of immediately in accordance with local regulations. Liquid ejected from the battery may cause irritation or burns.
• Shorting the battery terminals may cause burns or fire.
• When the battery pack is not in use, keep it away from paper clips, coins, keys, nails, screws or other small metal objects that could make a connection from one terminal to another.
• When you dispose of the appliance remove the battery and dispose of the battery safely in accordance with local regulations.
• Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
• Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire.
• For use: recommended ambient temp
• 14°C – 45°C / 7°F – 113°F For charging: recommended ambient temp 6°C – 40°C / 43°F – 104°F For storage : recommended ambient temp 0°C – 60°C / 32°F – 140°F
• Use only battery pack 3719 (1633728 / 1635147).
• Use only charger 3717 (1633730 / 1635149).

Service:

- Before using the appliance and after any impact, check for signs of wear or damage and repair as necessary.

- Do not use the appliance if any part is damaged or defective.

- If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.

- Repairs should be carried out by a service agent or a suitably qualified person in accordance with relevant safety regulations. Repairs by unqualified persons could be dangerous.

- Never modify or attempt to repair the appliance or battery pack in any way as this may increase the risk of personal injury.

- Only use replacement parts or accessories provided or recommended by Sanitaire.

Intended use:

• This appliance has been designed for commercial dry vacuum cleaning only.
• Do not pick up liquids or use outdoors or on wet surfaces.
• Do not pick up anything that is flammable, burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
• Use only as described in this manual.

WARNING:

• Do not use water, solvents, or polishes to clean the outside of the appliance; wipe clean with a dry cloth.
• Never immerse the vacuum in water and do not clean in a dishwasher.
• Never use the appliance without the filter in place.

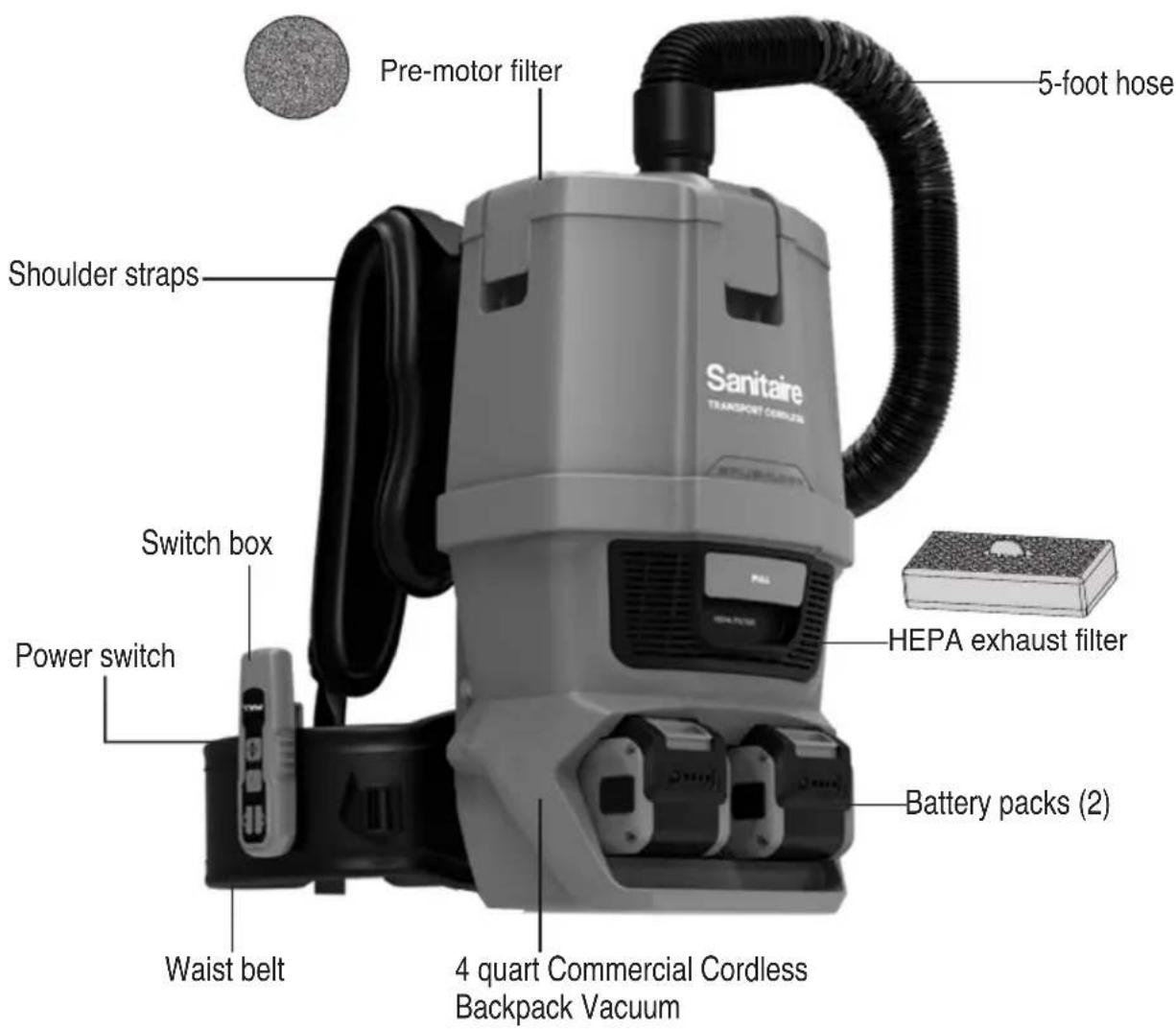

Pre-motor filter 5-foot hose Shoulder straps Switch box Power switch Waist belt 4 quart Commercial Cordless Backpack Vacuum Battery packs (2) HEPA exhaust filter

Attachments

Black vacuum cleaner with white stitching, isolated on white background (no text or symbols)

Hard floor tool

Black plastic push-button clip with handle and neck (no text or symbols visible)

Easy glide carpet tool

Exterior view of a gray electronic device with dual leads and cables (no visible text or symbols)

Battery charger

Dusting brush Upholstery tool

Crevice tool

Two metallic pipe fittings with a bulb, shown against a white background (no text or symbols)

Two-piece wand set

How to assemble and use

Follow these simple steps for easy and effective operation of the Backpack vacuum.

Open the lid and ensure that the cloth bag is correctly located and the flexible ring provides a proper seal when the lid is closed. For optimum performance, filtration and maximum hygiene, it is advisable to use a paper vacuum bag in addition to the standard cloth bag.

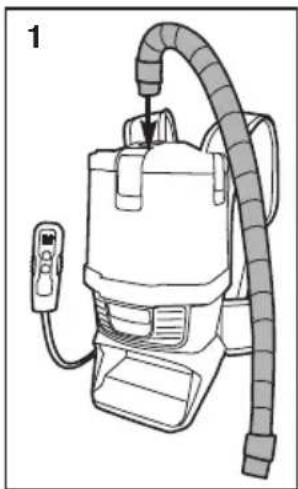

• Push vacuum hose into the cuff in the lid (Fig.1). It should not be necessary to remove the hose in normal operation.

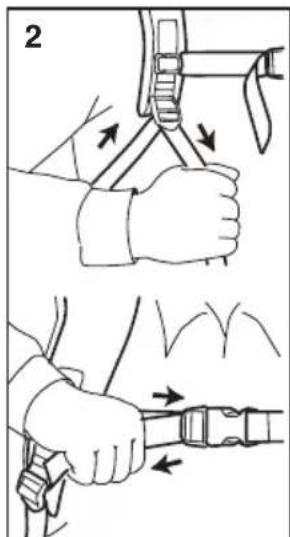

• Place the Backpack vacuum on your back, adjust the shoulder straps until you feel comfortable and then tighten the waist belt. The Backpack vacuum is designed to ride higher on your back for maximum comfort (Fig. 2).

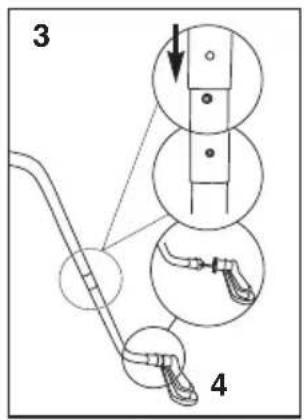

• Attach hose, wands and floor tool (Fig. 3 and 4). To attach floor tool, loosen lock nut at the end of the wand, slide on tool, then tighten lock nut.

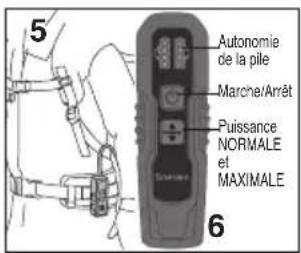

• Turn the vacuum on. The switch is located on the switch box. The switch box can be secured to the waist belt (Fig. 5). It has 2 modes: NORMAL power and MAX power (Fig. 6).
  • After you finish cleaning, turn off the main power switch before removing the Backpack.

Line drawing of a vacuum cleaner with attached hose and control panel (no text or symbols)

3 4

Battery life On / Off NORMAL & MAX power

2

Illustration of a hand holding a tool with a curved handle and arrow indicating direction (no text or symbols)

Line drawing of a person wearing a full-body safety harness (no text or symbols)

Battery Charging

This vacuum is equipped with two 24volt 8Ah batteries. They can be charged at the same time or only one at a time in the dual charging station provided.

- When the state of charge indicators are all green, the battery is fully charged and ready for use. When there is only one green indicator light on and flashing or no green indicators on, battery needs to be recharged (Fig. 7).

• To recharge, attach battery or batteries to charger as shown (Fig. 8). The charger will recharge two batteries at the same time in 2 hours.
- Once fully charged, install batteries in vacuum housing (Fig. 9). The vacuum will operate on one battery but run time will be shortened.

Use only battery pack 3719 (1633728 / 1635147) Use only charger 3717 (1633730 / 1635149)

7

Exterior view of a modern office building (no signage)

LED lights

All green – full charge 1 flashing green – recharge

8

Exterior view of a modern office building (no signage)

Charging lights

Red – not charging Flashing green – charging Solid green – fully charged.

9

Close-up of a mechanical device with two buttons and a display (no visible text or symbols)

Slide in place until it locks. Press button to remove.

How to maintain

Changing the filter collection bags

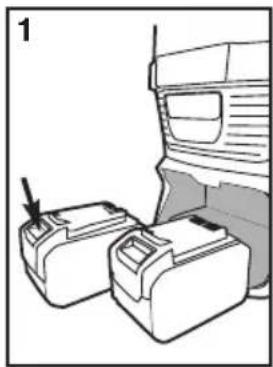

• Turn off the power switch and remove batteries (Fig. 1).

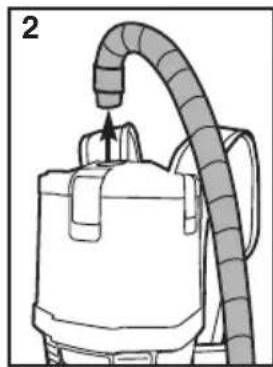

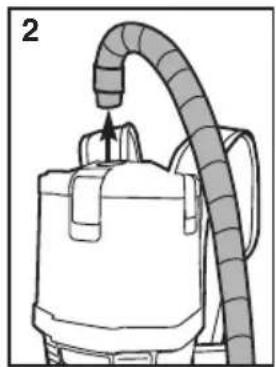

• Remove vacuum hose from top of vacuum (Fig 2).
• Release the three latches and lift off lid (Fig. 3).
• Separate lid from paper bag insert and dispose of paper bag (Fig. 4).
• Remove the cloth bag, clean and reinstall.
• Insert new paper bag making sure to align lid nozzle with bag hole and secure latches.

Changing the pleated HEPA exhaust filter

The vacuum cleaner is equipped with a pre-motor filter and an exhaust HEPA filter. The pre-motor filter protects the motor from dirt. The HEPA filter captures 99.97% of dust particles down to .03 micron in size. It is important to replace the pre-motor filter and exhaust filter approximately every six months.

To replace the HEPA exhaust filter

• Turn off the power switch and remove batteries.

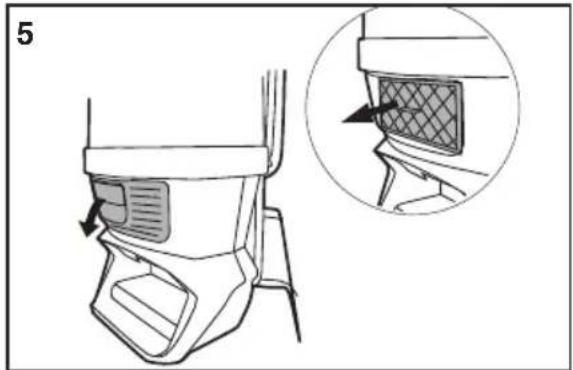

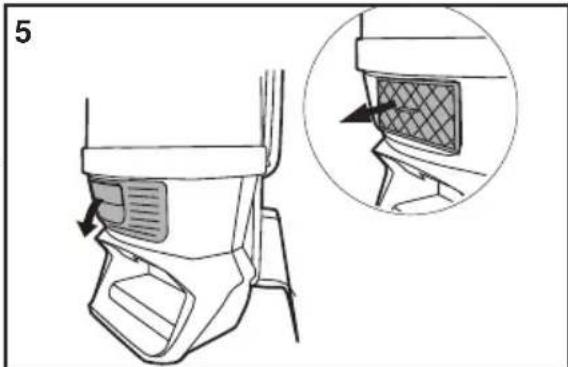

• Detach the exhaust filter cover from the front of the vacuum (Fig. 5).
• Remove the exhaust filter.

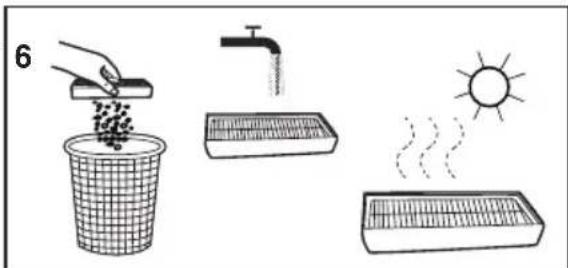

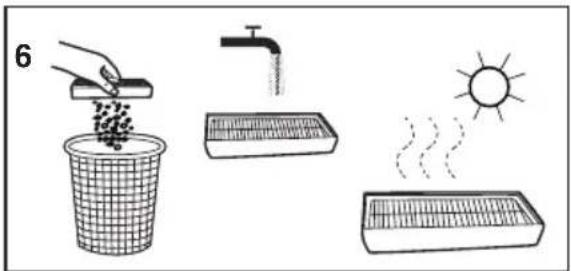

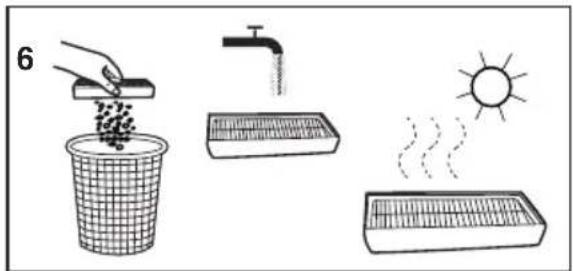

• Clean or replace filter. To clean, shake off loose dust, rinse with warm water then allow to dry (Fig. 6).

Changing the pre-motor filter

• Turn off the power switch and remove batteries.
• Remove the lid, paper bag and cloth bag to expose the filter.

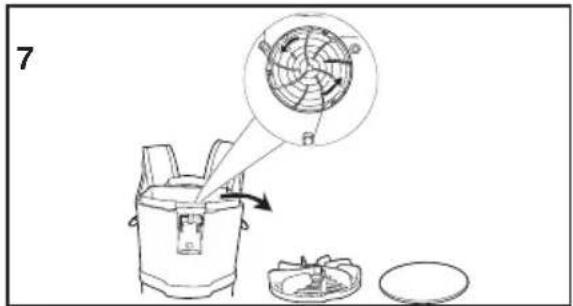

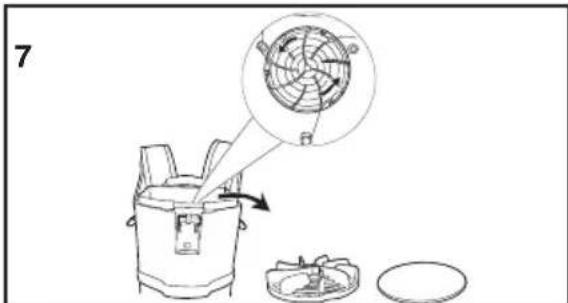

• Remove the plastic filter cap on the top of the filter by twisting counter-clockwise (Fig. 7).
• Remove the filter from the dust compartment.

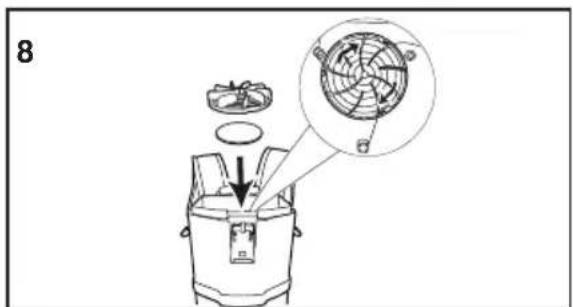

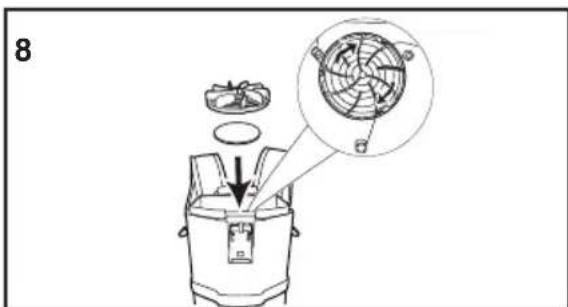

• Insert a new filter and replace the filter cap (Fig. 8). Refit the cloth bag, paper bag, and replace lid.

NOTE: The cloth bag can NOT be washed and reused.

• Clean the cloth bag regularly. After removing the cloth bag, turn it inside out and shake as much dust out of the fabric as possible. Optimum performance is achieved by using a paper filter bag with the cloth bag.
• Use only approved paper filter bags.
• Ensure the vacuum hose, the extension wand and the vacuuming accessories are not blocked.
• Ensure the batteries are securely installed. Incorrect connections may cause damage to the vacuum or the batteries.
• Have your vacuum serviced by an authorized repair service center if you suspect any potential problems.
• Ensure that the flexible cloth bag ring provides a proper seal before attaching the lid.

Diagram showing two battery compartments with an arrow pointing to one (no text or symbols present)

Line drawing of a vacuum cleaner with a coiled hose and attached bag (no text or symbols)

3

Illustration of a hand placing a container into a bin with an arrow indicating rotation, next to a woven basket (no text or symbols)

Technical line drawing of a car interior component with an inset showing a meshed panel detail (no text or symbols)

6

7

8

Problem solving

WARNING: To reduce the risk of electric shock, turn power switch off and remove battery before performing maintenance or troubleshooting checks.

Problem Solution
Motor will not start	Fully charge batteries.Properly install batteries.
Cleaner does not clean	Clean or replace the filters or cloth bag.Hint:If picking up fine dust, the filters may not look dirty, but a fine substance tends to reduce suction when it blocks the airflow through the filters.
No suction at the end of hose	Be sure hose adapter is secure.Clean or replace the filters or cloth bag.Hint:If picking up fine dust, the filters may not look dirty, but a fine substance tends to reduce suction when it blocks the airflow through the filters.Remove any clogs from the hose that restrict the airflow.

WARRANTY

This warranty gives you specific legal rights, and you may also have other rights which may vary from state to state. If you need additional instruction regarding this warranty or have questions regarding what it may cover, please contact Sanitaire® Customer Service by E-mail, telephone or regular mail as described below.

Limited Two-Year Warranty

Subject to the *EXCEPTIONS AND EXCLUSIONS identified below, upon receipt of the product Sanitaire will repair or replace (with new, refurbished, lightly used, or remanufactured components or products), at Sanitaire's option, free of charge from the date of purchase by the original purchaser, for two years any defective or malfunctioning part excluding the battery pack which as a limited warranty of one year.

See information below on "If your Sanitaire product should require service".

This warranty does not apply to fans or routine maintenance components such as filters, belts or brushes. Damage or malfunction caused by negligence, abuse, neglect, unauthorized repair, or any other use not in accordance with the user guide is not covered.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

\*EXCEPTIONS AND EXCLUSIONS FROM THE TERMS OF THE LIMITED WARRANTY

THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ANY OTHER WARRANTIES, EITHER ORAL OR WRITTEN. ANY IMPLIED WARRANTIES WHICH MAY ARISE BY OPERATION OF LAW, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO THE TWO-YEAR DURATION FROM THE DATE OF PURCHASE AS DESCRIBED ABOVE.

Some states do not allow limitations on how long an implied warranty last so the above limitation may not apply to you.

NOTE: Please keep your original sales receipt. It provides proof of date of purchase in the event of a warranty claim.

Service information

If your Sanitaire product should require service

You will find the nearest Sanitaire Authorized Service Center in your area online at sanitairecommercial.com under service locator or contact Sanitaire Customer Service.

If you need information about repairs or replacement parts, or if you have questions about your warranty, contact Sanitaire Customer Service.

Website: www.sanitairecommercial.com

Call: Sanitaire Customer Service 1-800-800-8975

Aspirateur commercial dorsal sans fil GUIDE DU PROPRIÉTAIRE

Série SC580A

Comment assembler .....12

Comment entretenir .....13

Black vacuum cleaner with white stitching, isolated on white background (no text or symbols)

Black rubber hover tool with handle and base (no text or symbols visible)

Exterior view of a gray electronic device with dual leads and cables (no visible text or symbols)

Two metallic pipe fittings with a bulb, shown against a plain white background (no text or symbols)

Line drawing of a vacuum cleaner with attached hose and control panel (no text or symbols)

3 4

Line drawing of a hand holding a tool with a curved tool, no text or symbols present

Line drawing of a person wearing a full-body safety harness (no text or symbols)

Exterior view of a black and gray electronic device (no visible text or symbols)

Voyants DEL

Exterior view of a mechanical device with dual ports and ventilation slots (no visible text or symbols)

Voyants clignotants

Close-up of a mechanical device with two ports and a display (no visible text or symbols)

Diagram showing two labeled mechanical components with an arrow pointing to one (no text or symbols present)

Line drawing of a vacuum cleaner with a coiled hose and attached bag (no text or symbols)

3

Illustration of a hand placing a container into a bin with an arrow indicating rotation, next to a woven basket (no text or symbols)

Technical line drawing of a vehicle front panel with an inset showing a meshed component detail (no text or symbols)

6

7

8

\*EXCEPTIONS ET EXCLUSIONS DES CONDITIONS DE LA GARANTIE LIMITÉE

CETTE GARANTIE EST EXCLUSIVE ET REMPLACE TOUTE AUTRE GARANTIE, VERBALE OU ÉCRITE. TOUTES LES GARANTIES IMPLICITES POUVANT RÉSULTER DE L'APPLICATION D'UNE LOI, Y COMPRIS LES GARANTIES IMPLICITES DE QUALITÉ MARCHANDE ET DE CONVENANCE À UN USAGE PARTICULIER, SONT LIMITÉES À LA DURÉE DE DEUX ANS À COMPTER DE LA DATE D'ACHAT, TEL QUE STIPULÉ CI-DESS.

Line drawing of a vacuum cleaner with coiled hose and control panel (no text or symbols)

3 4

Illustration of a hand holding a tool with a curved tool, showing motion direction (no text or symbols)

Line drawing of a person wearing a full-body safety harness (no text or symbols)

Exterior view of a black and white electronic device (no visible text or symbols)

Luces LED

Exterior view of a modern office building (no signage)

Luces de carga

Close-up of a mechanical device with two ports and a digital display (no visible text or symbols)

Diagram showing two mechanical components with an arrow pointing to one (no text or symbols present)

Line drawing of a vacuum cleaner with a coiled hose and attached bag (no text or symbols)

3

Illustration of a hand placing a container into a bin with an arrow indicating rotation, next to a woven basket (no text or symbols)

Technical line drawing of a vehicle interior component with an inset showing a meshed panel detail (no text or symbols)

6

7

8

Order genuine Sanitaire replacement parts

This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Caution: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment OFF and ON, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Sanitaire®

© 2025 BISSELL Inc

Part Number PN 1643191 04/2025
