USER MANUAL CMCPW350 Craftsman

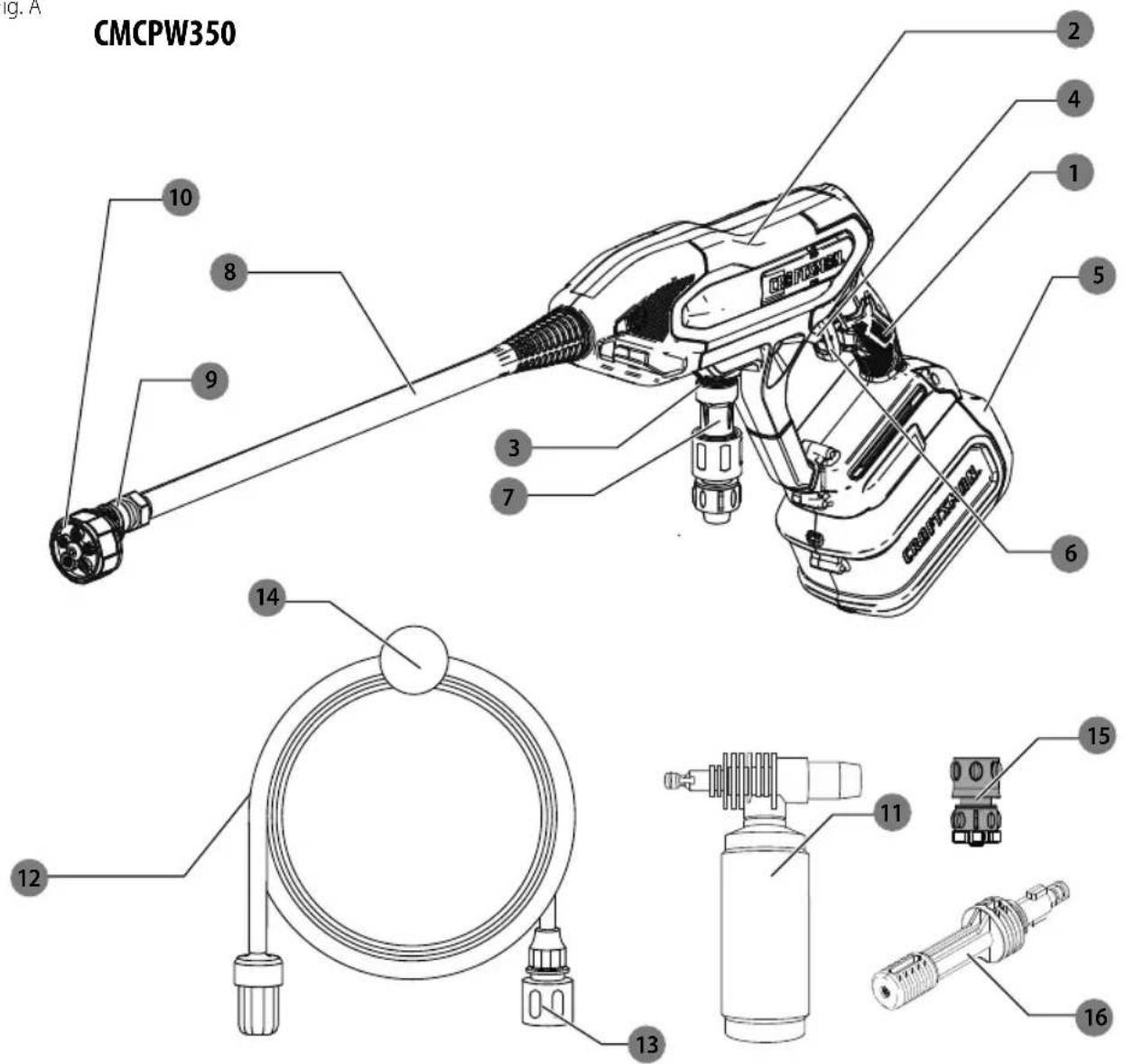

Quick connect filter

Quick connect collar

Quick connect hose connector

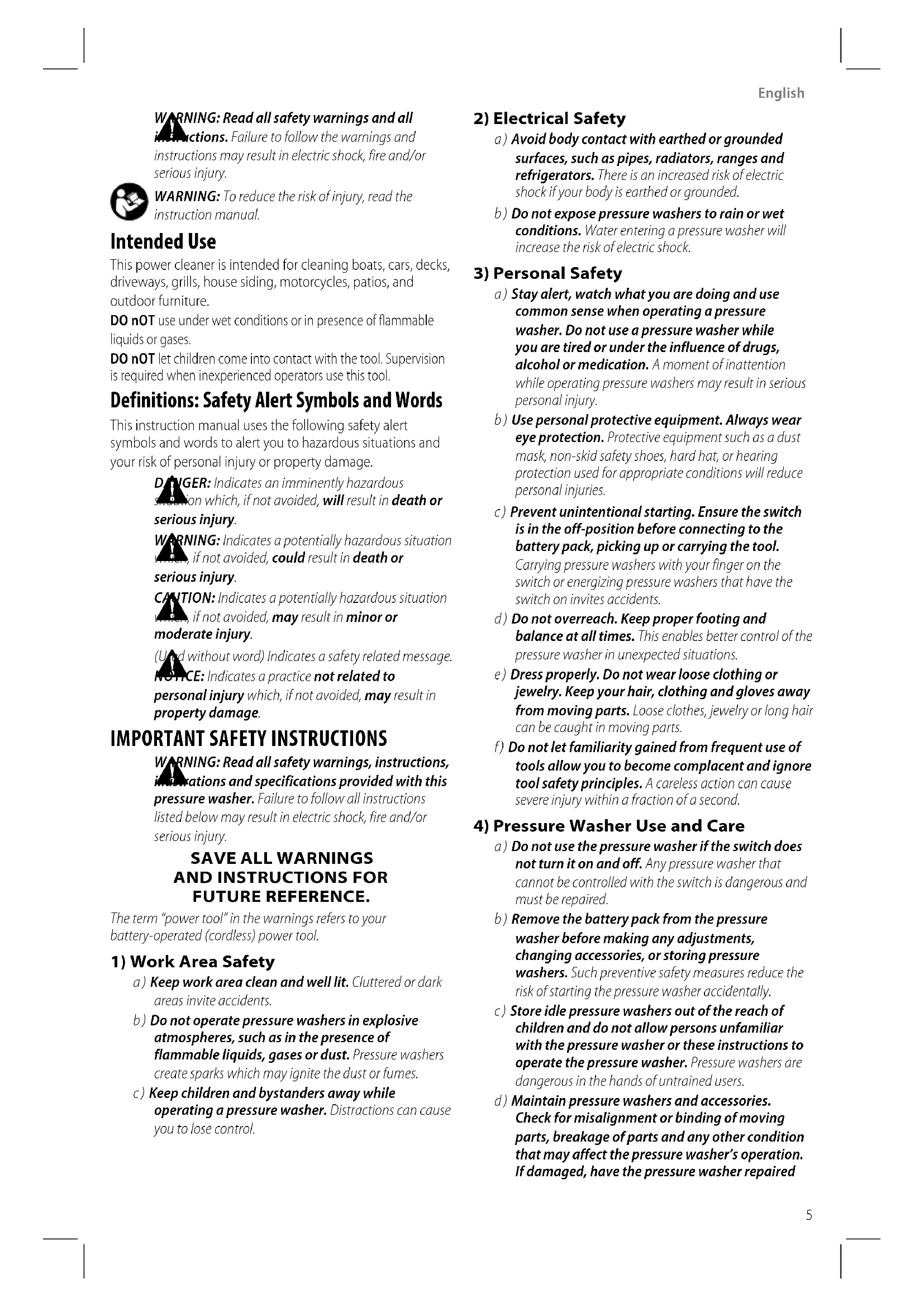

a ) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed orgrounded. b ) Do not expose pressure washers to rain or wet conditions. Water entering a pressure washer will increase the risk of electricshock.

a ) Stay alert, watch what you are doing and use common sense when operating a pressure washer. Do not use a pressure washer while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating pressure washers may result in serious personalinjury. b ) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non‑skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personalinjuries. c ) Prevent unintentional starting. Ensure the switch is in the off‑position before connecting to the battery pack, picking up or carrying the tool. Carrying pressure washers with your finger on the switch or energizing pressure washers that have the switch on invitesaccidents. d ) Do not overreach. Keep proper footing and balance at all times. This enables better control of the pressure washer in unexpectedsituations. e ) Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in movingparts. f ) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of asecond.

4) Pressure Washer Use and Care

a ) Do not use the pressure washer if the switch does not turn it on and off. Any pressure washer that cannot be controlled with the switch is dangerous and must berepaired. b ) Remove the battery pack from the pressure washer before making any adjustments, changing accessories, or storing pressure washers. Such preventive safety measures reduce the risk of starting the pressure washeraccidentally. c ) Store idle pressure washers out of the reach of children and do not allow persons unfamiliar with the pressure washer or these instructions to operate the pressure washer. Pressure washers are dangerous in the hands of untrainedusers. d ) Maintain pressure washers and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the pressure washer’s operation. If damaged, have the pressure washer repaired

WARNING: Read all safety warnings, instructions,

illustrations and specifications provided with this pressure washer. Failure to follow all instructions listed below may result in electric shock, fire and/or seriousinjury.

AND INSTRUCTIONS FOR

FUTUREREFERENCE. The term “power tool” in the warnings refers to your battery‑operated (cordless) powertool.

a ) Keep work area clean and well lit. Cluttered or dark areas inviteaccidents. b ) Do not operate pressure washers in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Pressure washers create sparks which may ignite the dust orfumes. c ) Keep children and bystanders away while operating a pressure washer. Distractions can cause you to losecontrol. Definitions: Safety Alert Symbols andWords This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk of personal injury or propertydamage.

DANGER: Indicates an imminently hazardous

situation which, if not avoided, will result in death or seriousinjury.

WARNING: Indicates a potentially hazardous situation

which, if not avoided, could result in death or seriousinjury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderateinjury.

(Used without word) Indicates a safety relatedmessage. NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in propertydamage. Intended Use This power cleaner is intended for cleaning boats, cars, decks, driveways, grills, house siding, motorcycles, patios, and outdoorfurniture. DO nOT use under wet conditions or in presence of flammable liquids orgases. DO nOT let children come into contact with the tool. Supervision is required when inexperienced operators use thistool. English (original instructions)

WARNING: Read all safety warnings and all

instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or seriousinjury.

WARNING: To reduce the risk of injury, read the

When using this appliance, basic safety precautions should always be followed including thefollowing:

• Read all the instructions before using theproduct.

• To reduce the risk of injury, close supervision is necessary when a product is used nearchildren.

• Know how to stop the product and bleed pressures quickly. Be thoroughly familiar with thecontrols.

• Stay alert – watch what you aredoing.

• Do not operate the product when fatigued or under the influence of alcohol ordrugs.

• Keep operating area clear of allpersons.

• Do not overreach or stand on unstable support. Keep good footing and balance at alltimes.

WARNING: Risk of Injection or Injury– Do Not Direct

WARNING: Risk of Injection or Severe Injury – Keep

Clear of Nozzle – Do Not Direct Discharge Stream at Persons – This Product Is To Be Used Only By TrainedOperators.

SAVE THESE INSTRUCTIONS

WARNING: Read this entire manual before attempting

to assemble, operate or install the product.

WARNING: This unit was designed for specific

applications. It should not be modified and/or used for any application other than that which it was designed. NOTICE: Always store your pressure washer in a location where the temperature will not fall below40°F(4°C). freeze damage is not covered by the warranty. 1 . Avoid accidental starts. Move switch on unit to OFF position before connecting or disconnecting batterypack. 2 . Water spray must never be directed towards any electric wiring or fatal electric shock mayoccur. 3 . The narrow pin point stream is very powerful. It is not recommended for use on painted surfaces, wood surfaces or items attached with an adhesivebacking. 4 . Keep operating area clear of all persons andanimals. 5 . Always use both hands when operating pressure washer to maintain complete control of thewand. 6 . Do not touch nozzle or water spray while operating. Never place hands in front ofnozzle. 7 . Wear safety goggles while operating. Wear protective clothing and footwear to protect against accidentalspraying. 8 . Disconnect battery pack when not in use and prior to the detaching of the high pressurehose. 9 . Do not operate or store this product in temperatures below 40°F(4°C). Freeze damage is not covered by thewarranty. before use. Many accidents are caused by poorly maintained pressurewasher. e ) Use the pressure washer, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the pressure washer for operations different from those intended could result in a hazardoussituation. f ) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpectedsituations.

5) Battery Tool Use and Care

a ) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another batterypack. b ) Use pressure washers only with specifically designated battery packs. Use of any other battery packs may create a risk of injury andfire. c ) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or afire. d ) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation orburns. e ) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk ofinjury. f ) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 265°F (130°C) may causeexplosion. g ) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk offire.

a ) Have your pressure washer serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the pressure washer ismaintained. b ) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized serviceproviders.7 English

READ ALL INSTRUCTIONS

Important Safety Instructions for All Battery Packs

WARNING: Read all safety warnings, instructions,

and cautionary markings for the battery pack, charger and product. Failure to follow the warnings and instructions may result in electric shock, fire and/or seriousinjury.

• Do not charge or use the battery pack in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Inserting or removing the battery pack from the charger may ignite the dust orfumes.

• NEVER force the battery pack into the charger. DO NOT modify the battery pack in any way to fit into a non‑compatible charger as battery pack may rupture causing serious personal injury. Consult the chart at the end of this manual for compatibility of batteries andchargers.

• Charge the battery packs only in CRAFTSMANchargers.

• DO NOT splash or immerse in water or otherliquids.

• DO NOT allow water or any liquid to enter batterypack.

• Do not store or use the tool and battery pack in locations where the temperature may reach or exceed 104°F (40°C) (such as outside sheds or metal buildings in summer). For best life store battery packs in a cool, drylocation.

BATTERIES AND CHARGERS

The battery pack is not fully charged out of the carton. Before using the battery pack and charger, read the safety instructions below and then follow charging proceduresoutlined. When ordering replacement battery packs, be sure to include the catalog number andvoltage. The label on your tool may include the following symbols. The symbols and their definitions are asfollows: BPM .................... beats per minute V ......................... volts min ..................... minutes

..................... Class II Construction (double insulated)

..................... wear hearing protection

or AC............alternating current Ah ....................... amp hours battery pack will stand upright but may be easily knockedover.

• Air vents often cover moving parts and should be avoided. Loose clothes, jewelry or long hair can be caught in movingparts. Additional Safety Information

WARNING: Never modify the power tool or any part of

it. Damage or personal injury couldresult.

WARNING: ALWAYS use safety glasses. Everyday

eyeglasses are NOT safety glasses. Also use face or dust mask if operation is dusty. ALWAYS WEAR CERTIFIED SAFETYEQUIPMENT:

WARNING: Some dust contains chemicals known

to State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• compounds in fertilizers,

• compounds in insecticides, herbicides andpesticides,

• arsenic and chromium from chemically treatedlumber. To reduce your exposure to these chemicals, wear approved safety equipment such as dust masks that are specially designed to filter out microscopicparticles.

WARNING: Use of this tool can generate and/or

disperse dust, which may cause serious and permanent respiratory or other injury. Always use NIOSH/OSHA approved respiratory protection appropriate for the dust exposure. Direct particles away from face andbody.

WARNING: Always wear proper personal hearing

protection that conforms to ANSI S12.6 (S3.19) during use. Under some conditions and duration of use, noise from this product may contribute to hearingloss.

CAUTION: When not in use, place tool on its side on a stable surface where it will not cause a tripping or falling hazard. Some tools with a large 10 . Carefully observe all chemical instructions and warnings before using. Use only approved pressure washer cleaners. Do not use bleach, chlorine, or any cleaners containing acids. Always follow manufacturer’s label recommendations for proper use of cleaners. Always protect eyes, skin and respiratory system fromcleaners. 11 . The pressure washer should not be used in areas where gas vapors may be present. An electric spark could cause an explosion orfire. 12 . To prevent accidental discharge, the spray gun should be secured by locking the trigger when not inuse. 13 . Use only hoses and accessories rated for pressure higher than your pressure washer’s psi. Never use with any other manufacturer’s accessories orcomponents. 14 . Never defeat the safety features of thisproduct. 15 . Do not operate machine with missing, broken or unauthorisedparts. 16 . Never spray flammable liquids or use pressure washer in areas containing combustible dust, liquid, orvapors.ENGLISH

Important Safety Instructions for All Battery Chargers

WARNING: Read all safety warnings, instructions,

and cautionary markings for the battery pack, charger and product. Failure to follow the warnings and instructions may result in electric shock, fire and/or seriousinjury.

• DO NOT attempt to charge the battery pack with any chargers other than a CRAFTSMAN charger. CRAFTSMAN chargers and battery packs are specifically designed to worktogether.

• These chargers are not intended for any uses other than charging CRAFTSMAN rechargeable battery packs. Charging other types of battery packs may cause them to overheat and burst, resulting in personal injury, property damage, fire, electric shock orelectrocution.

• Do not expose the charger to rain orsnow.

• Do not allow water or any liquid to entercharger.

• Pull by the plug rather than the cord when disconnecting the charger. This will reduce the risk of damage to the electric plug andcord.

• Make sure that the cord is located so that it will not be stepped on, tripped over or otherwise subjected to damage orstress.

• Do not use an extension cord unless it is absolutely necessary. Use of improper extension cord could result in risk of fire, electric shock orelectrocution.

• When operating a charger outdoors, always provide a dry location and use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electricshock.

• An extension cord must have adequate wire size (AWG or American Wire Gauge) for safety. The smaller the gauge number of the wire, the heavier the cord and thus the greater its capacity. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. The following table shows the correct size to use depending on total length of all extension cords The RBRC® Seal Please take your spent battery packs to an authorized service center or to your local retailer for recycling. In some areas, it is illegal to place spent battery packs in the trash. You may also contact your local recycling center for information on where to drop off the spent battery pack. Do not place in curbside recycling. For more information visit www.call2recycle.org. or call the toll free number in the RBRC®Seal. RBRC® is a registered trademark of Call 2Recycle,Inc. with loose nails, screws, keys, coins, hand tools, etc. When transporting individual battery packs, make sure that the battery terminals are protected and well insulated from materials that could contact them and cause a short circuit. NOTE: Li‑ion battery packs should not be put in checked baggage on airplanes and must be properly protected from short circuits if they are in carry‑onbaggage. NOTE: Do not store the battery packs in a tool with the trigger switch locked on. Never tape the trigger switch in the ONposition.

• Do not incinerate the battery pack even if it is severely damaged or is completely worn out. The battery pack can explode in a fire. Toxic fumes and materials are created when lithium‑ion battery packs areburned.

• Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 265°F (130°C) may causeexplosion.

• Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk offire.

• If battery contents come into contact with the skin, immediately wash area with mild soap and water. If battery liquid gets into the eye, rinse water over the open eye for 15minutes or until irritation ceases. If medical attention is needed, the battery electrolyte is composed of a mixture of liquid organic carbonates and lithiumsalts.

• Contents of opened battery cells may cause respiratory irritation. Provide fresh air. If symptoms persist, seek medicalattention.

• Battery liquid may be flammable if exposed to spark orflame.

• Never attempt to open the battery pack for any reason. If the battery pack case is cracked or damaged, do not insert into the charger. Do not crush, drop or damage the battery pack. Do not use a battery pack or charger that has received a sharp blow, been dropped, run over or damaged in any way (e.g., pierced with a nail, hit with a hammer, stepped on). Damaged battery packs should be returned to the service center forrecycling. Storage Recommendations The best storage place is one that is cool and dry, away from direct sunlight and excess heat or cold. Store the fully charged battery pack out of thecharger. Battery Pack Cleaning Instructions Dirt and grease may be removed from the exterior of the battery pack using a cloth or soft non‑metallic brush. Do not use water or any cleaningsolutions. Fuel Gauge Battery Packs (Fig.B) Some battery packs include a fuel gauge. When the fuel gauge button is pressed and held, the LED lights will indicate the approximate level of charge remaining. This does not indicate tool functionality and is subject to variation based on product components, temperature, and end‑userapplication. Transportation

WARNING: Fire hazard. Do not store, carry, or

transport the battery pack so that metal objects can contact exposed battery terminals. For example, do not place the battery pack in aprons, pockets, tool boxes, product kit boxes, drawers, etc.,9 ENGLISH Wall Mounting Some CRAFTSMAN chargers are designed to be wall mountable or to sit upright on a table or work surface. If wall mounting, locate the charger within reach of an electrical outlet, and away from a corner or other obstructions which may impede air flow. Use the back of the charger as a template for the location of the mounting screws on the wall. Mount the charger securely using drywall screws (purchased separately) at least 1” (25.4mm) long, with a screw head diameter of 0.28–0.35” (7–9mm), screwed into wood to an optimal depth leaving approximately 7/32” (5.5 mm) of the screw exposed. Align the slots on the back of the charger with the exposed screws and fully engage them in theslots. suspending charging until the battery pack has reached an appropriate temperature. The charger then automatically switches to the pack charging mode. This feature ensures maximum battery packlife. A cold battery pack may charge at a slower rate than a warm batterypack. The hot/cold pack delay will be indicated by the green light continuing to blink but with the red light continuously ON. Once the battery pack has reached an appropriate temperature, the red light will turn OFF and the charger will resume the chargingprocedure. Electronic Protection System Li‑Ion tools are designed with an Electronic Protection System that will protect the battery pack against overloading, overheating or deep discharge. The tool will automatically turn off and the battery pack will need to berecharged. Important Charging Notes

1. The charger and battery pack may become warm to the

touch while charging. This is a normal condition, and does not indicate a problem. To facilitate the cooling of the battery pack after use, avoid placing the charger or battery pack in a warm environment such as in a metal shed or an uninsulatedtrailer.

2. If the battery pack does not charge properly:

a. Check operation of receptacle by plugging in a lamp or other appliance; b. Check to see if receptacle is connected to a light switch which turns power off when you turn out the lights; c. If charging problems persist, take the tool, battery pack and charger to your local servicecenter.

3. You may charge a partially used pack whenever you

desire with no adverse effect on the batterypack. Charger Cleaning Instructions

WARNING: Shock hazard. Disconnect the charger

from the AC outlet before cleaning. Dirt and grease may be removed from the exterior of the charger using a cloth or soft non‑metallic brush. Do not use water or any cleaningsolutions. plugged together, and nameplate ampere rating. If in doubt, use the next heaviergauge. Minimum Gauge for Cord Sets Volts Total Length of Cord in Feet (meters) 120V 25 (7.6) 50 (15.2) 100 (30.5) 150 (45.7) Ampere Rating American Wire Gauge More Than Not More Than

• Do not place any object on top of the charger or place the charger on a soft surface that might block the ventilation slots and result in excessive internal heat. Place the charger in a position away from any heat source. The charger is ventilated through slots in the top and the bottom of thehousing.

• Do not operate the charger with a damaged cord orplug. Have them replacedimmediately.

• Do not operate the charger if it has received a sharp blow, been dropped or otherwise damaged in any way. Take it to an authorized servicecenter.

• Do not disassemble the charger; take it to an authorized service center when service or repair is required. Incorrect reassembly may result in a risk of electric shock, electrocution orfire.

• The charger is designed to operate on standard 120V household electrical power. Do not attempt to use it on any other voltage. This does not apply to the vehicularcharger.

• Foreign materials of a conductive nature, such as, but not limited to, grinding dust, metal chips, steel wool, aluminum foil or any buildup of metallic particles should be kept away from the charger cavities and ventilation slots.

• Always unplug the charger from the power supply when there is no battery pack in thecavity. Charging a Battery (Fig.C)

1. Plug the charger into an appropriate outlet.

2. Insert and fully seat battery pack. Green charging light

will continuously blink whilecharging.

3. Charging is complete when the green charging light

remains continuously ON. Battery pack can be left in charger or removed.

WARNING: Only charge batteries in air temperature

over 40° F (4.5° C) and below 105° F (+40.5°C).

4. Charger will not charge a faulty battery pack, which

may be indicated by the light staying OFF. Take charger and battery pack to an authorized service center if light staysOFF. NOTE: Refer to label near charging light on charger for blinkpatterns. Hot/Cold Pack Delay When the charger detects a battery pack that is too hot or too cold, it automatically starts a Hot/Cold Pack Delay,English

1. To connect the quick connect hose adapter

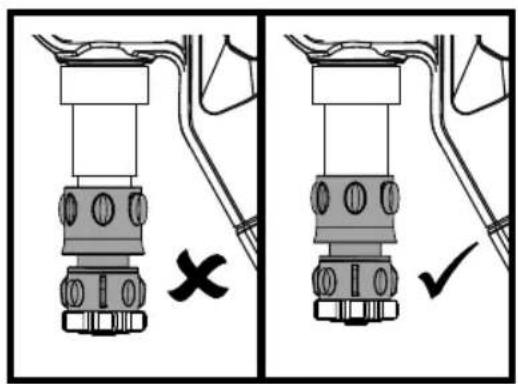

to a garden hose, thread the quick connect hose adapter onto the end of the garden hose. Tighten the garden hose byhand. nOTE: Avoid cross threading when installing the hose. Cross threading will causeleaks. nOTE: Before connecting the garden hose to the power cleaner, run water through the garden hose for thirty seconds to clear any debris from the mouth of thegarden pressurehose.

2. To connect the quick connect hose adapter

to the quick connect filter

on the power cleaner

, push the quick connect hose adapter firmly onto the quick connectfilter. nOTE: Before use, gently tug on the garden hose to ensure the connection issecured. Make sure the quick connect hose adapter is flush with the quick connect filter as shown in Figure F.

3. Always disconnect the garden hose afterusage. To

disconnect, pull back the collar on the quick connect hose adapter and remove from the quick connectfilter. To Attach the Suction Hose (Fig.F, G) Use the suction hose to pull water from a bucket or other fresh watersource. NOTICE: Do not use to suction soap, chemicals, dirty or corrosive liquids, such as window cleaner, plant food, fertilizers or bleach. Do not use saltwater.

1. To connect the quick connect hose adapter

on the end of the suction hose to the quick connect filter

on the power cleaner

, push the quick connect hose adapter firmly onto the quick connectfilter. nOTE: Before use, gently tug on the garden hose to ensure the connection issecured. Make sure the quick connect hose adapter on the end of the suction hose is flush with the quick connect filter as shown in the FigureFinset.

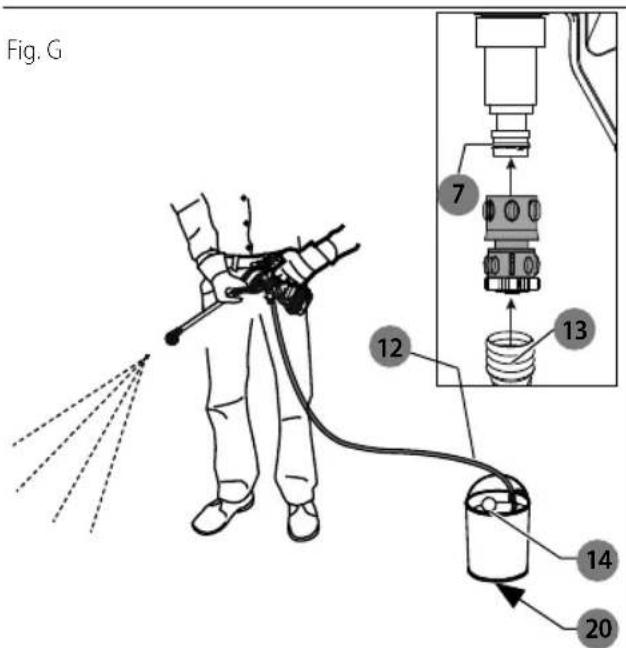

2. Place other end of suction hose with filter on it into

container of fresh water or a fresh water source. Adjust the float ball

on the suction hose so the filter

stays covered in theliquid.

3. Select the correct nozzle to be used. nOTE:Turn the

nozzle to low pressure setting forwatering. See How to Use the Multi‑Spray Nozzleparagraph.

4. After the job being performed is complete, place the

suction hose into container of clean water and draw the clean water through the system torinse. Attachments (Fig.E)

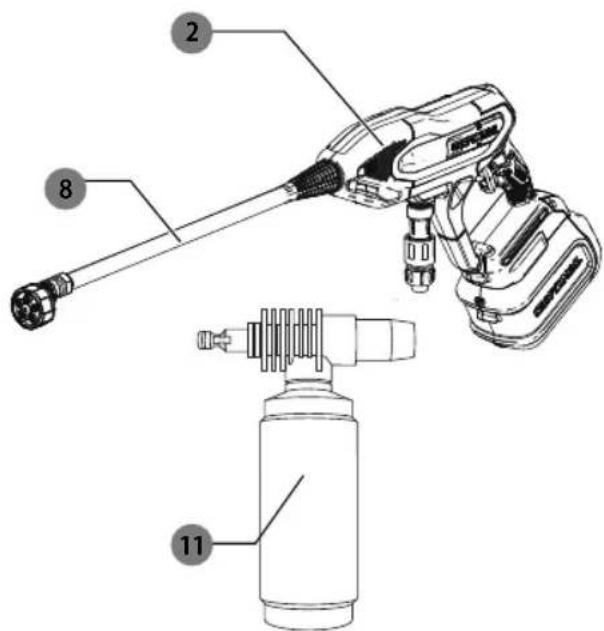

• Insert the end of the attachment into the opening on the power cleaner

. Push in and turn the attachment clockwise until its secured into workingposition.

• To remove the attachment, push in and turn the attachment counterclockwise and pull from the power cleaner

nOTE: Other accessories are available for use with this power cleaner, refer to the Accessoriessection. Attaching Quick Connect Filter (Fig.D) This power cleaner must be used with the quick connect adapters. The garden or suction hose can only be attached when the quick connect filter

1. To connect the quick connect filter

to the power cleaner

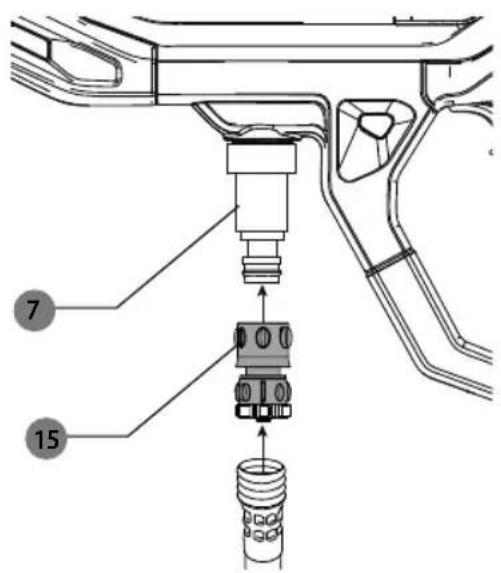

, place the end of the quick connect filter onto the water intake

. Tighten the quick connect filter byhand. nOTE: Avoid cross threading when installing the hose. Cross threading will causeleaks. SPECIFICATIONS Maximum Pounds per Square Inch 350 Rated Gallons per Minute 0.5 Battery 20V DC Inlet Hose 20 ft (6 m) Pressure of Inlet Water 0‑80 PSI Inlet Water Cold Tap

ASSEMBLY AND ADJUSTMENTS

WARNING: To reduce the risk of serious personal

injury, turn unit off and remove the battery pack before making any adjustments or removing/ installing attachments or accessories. An accidental start‑up can causeinjury. VersaTrack™

WARNING: Do not charge batteries while charger is

hung onTrackwall. CRAFTSMAN chargers can be stored on CRAFTSMAN VersaTrack™ Trackwall. Hooks and accessories are sold separately. Please refer to the VersaTrack™ Trackwall accessory sheet for furtherinformation.

SAVE THESE INSTRUCTIONS FOR

FUTURE USE To Attach the Garden or Suction Hose (Fig.F, G) Connecting the garden hose or suction hose will depend on the job to beperformed. To Attach Garden Hose (Fig.F) This power cleaner must be used with the quick connectadapters. To Attach Nozzle to Spray Wand (Fig.H)

DANGER: Risk of fluid injection. Do not direct

discharge stream toward persons, unprotected skin, eyes or any pets or animals. Serious injury willoccur.

WARNING: Flying objects could cause risk of serious

injury. DO NOT attempt to change nozzles while power cleaner is running. Turn power cleaner off before changingnozzles. To connect the nozzle to the spray wand

, pull the quick connect collar

toward the spray wand and insert the11 ENGLISH Pressure Washing Preparing Surface for Cleaning

• Remove objects from the area which could create ahazard.

• Ensure that all doors and windows are closed tight. Protect all plants and trees in the adjacent area with a drop cloth ensuring that they will not be harmed by anyoverspray.

• Pre‑rinse cleaning area with freshwater.

• Use only detergents formulated for pressurewashers.

• Always test detergent in an inconspicuous area beforeuse. Speed Selector (Fig.A, K) This power cleaner gives you the choice to operate at a lower pressure for more delicate jobs, or accelerate the power cleaner speed for high‑performancecleaning. To accelerate, pull the speed selector

back toward the main handle

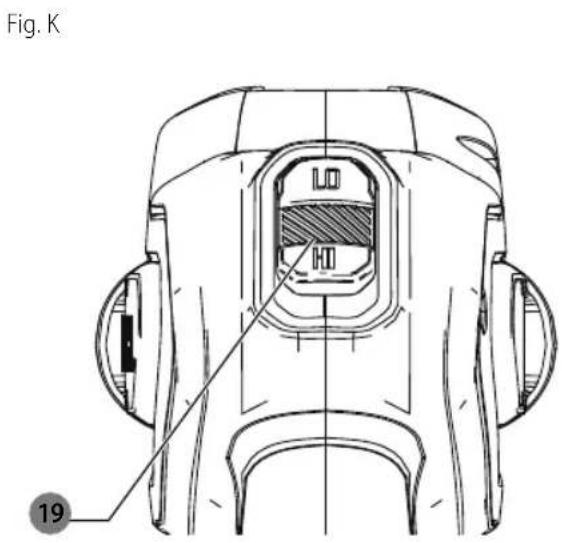

into the "HI" position. This mode is best for applications that need higherPSI. For lower pressure, push the speed selector forward toward the spray wand

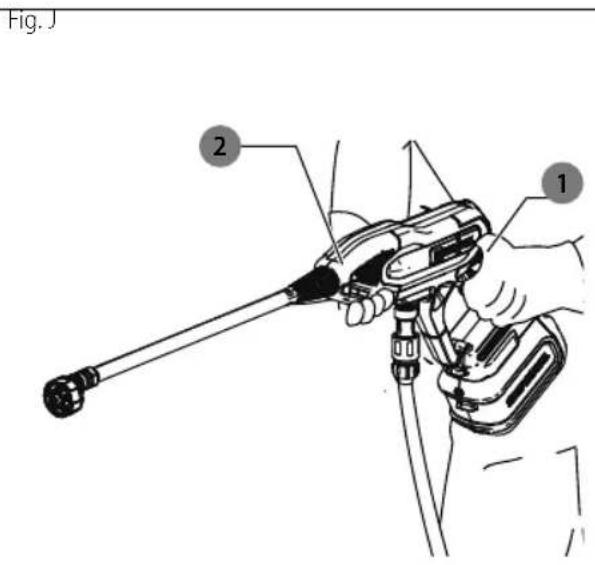

into the "LO" position. This mode is best for larger projects that require more time tocomplete. NOTE: When in "HI" mode, runtime will be decreased as compared to when pressure cleaner is in "LO"mode. Proper hand position requires one hand on the main handle

and the other hand on the power cleaner's

WARNING: To reduce the risk of serious personal injury,

WARNING: To reduce the risk of serious personal

injury, ALWAYS hold securely in anticipation of a suddenreaction. appropriate nozzle. Release the quick connect collar to lock the nozzle inplace. To ensure nozzle is locked into place, give the nozzle a firm tug after the quick connect collar has locked intoplace. NOTE: The multi‑spray nozzle is supplied with this power cleaner, other nozzles are available, refer to the Accessoriessection. How to Use the Multi‑Spray Nozzle There are five spray pattern settings located on the Multi‑Spray nozzle. To select a spray pattern, rotate the spray selector to the desired setting. DO NOT change spray patterns with the power cleaner powered on. Refer to the following chart to choose the correct nozzle for the job to beperformed. Nozzle Uses Surfaces* Powerful pinpoint for spot cleaning of hard, unpainted surfaces or for high reach areas Unpainted metal or concrete. DO NOT use on wood Intense cleaning of unpainted hard surfaces Grills, driveways, concrete or brick walkways, unpainted brick or stucco Standard cleaning nozzle for most applications Yard tools, sidewalks, lawn furniture, unpainted siding, stucco, gutters and eaves, concrete, brick surfaces Cleaning of painted or delicate surfaces Auto/RV, marine, wood, painted brick and stucco, vinyl, painted siding Low pressure setting for most watering needs Low pressure spray is safe for all surfaces *NOTICE: The high pressure spray from your power cleaner is capable of causing damage to surfaces such as wood, glass, automobile paint, auto striping and trim, and delicate objects such as flowers and shrubs. Before spraying, check the item to be cleaned to assure yourself that it is strong enough to resist damage from the force of thespray. Installing and Removing the Battery Pack (Fig.I) NOTE: For best results, make sure your battery pack is fullycharged. To Install the Battery Packs

1. Lift and hold the battery port cover

up to expose the batteryport.

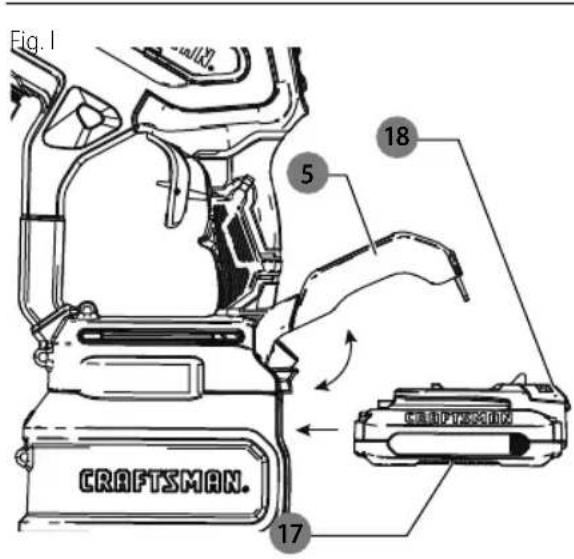

2. Align the battery pack with the rails inside the tool’s

handle and slide it into the handle until the battery pack is firmly seated in the tool and ensure that it does not disengage.

3. Close the battery port cover

. Ensure the cover is fully latched into position before startingtool. To Remove the Battery Pack

1. Lift and hold the battery port cover

up to expose the battery pack

2. Press the battery release button

and firmly pull the battery pack

3. Insert the battery into the charger as described in the

WARNING: To reduce the risk of serious personal

injury, turn unit off and remove the battery pack before making any adjustments or removing/ installing attachments or accessories. An accidental start‑up can causeinjury.ENGLISH

becomes clogged with foreign materials, such as dirt, excessive pressure may develop. If the nozzle becomes partially clogged or restricted, the pump pressure will pulsate. Clean the nozzleimmediately.

1. Shut off the power cleaner

and and remove the battery and turn off the watersupply.

to relieve any waterpressure.

3. Open the nozzle as wide as it willopen.

4. Unclog any debris from thenozzle.

5. Run water from a faucet or garden hose through

thenozzle. Suction Hose (Fig.N)

1. To clean the suction hose

, shut off the powercleaner.

2. Pull trigger switch to relieve any waterpressure.

3. Decouple the suction hose

from the powercleaner.

4. To clean the suction hose, use water from a garden hose

to thoroughly rinse out the suction hose and allow it todry. Suction Hose Filter (Fig.N)

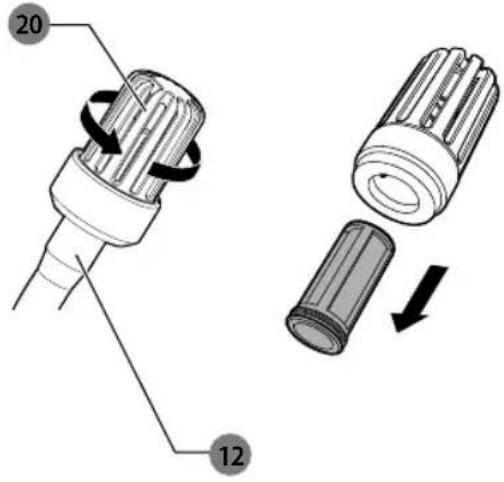

on the end of the suction hose

counterclockwise and remove. Remove the strainer from inside of the filter. Rinse all of the parts with clean water andreassemble. Quick Connect Filter (Fig.O)

1. Pull back the collar on the quick connect hose

and remove the garden or suction hose from the quick connect filter

2. Remove the quick connect filter from the powercleaner.

3. Inside the quick connect filter

Remove the screen filter and rinse with clean water andreassemble. Cleaning

WARNING: Blow dirt and dust out of all air vents with

clean, dry air at least once a week. To minimize the risk of eye injury, always wear ANSI Z87.1approved eye protection when performingthisprocedure.

WARNING: Never use solvents or other harsh

chemicals for cleaning the non‑metallic parts of the tool. These chemicals may weaken the plastic materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into aliquid. MAINTENANCE

WARNING: To reduce the risk of serious personal

injury, turn unit off and remove the battery pack before making any adjustments or removing/ installing attachments or accessories. An accidental start‑up can causeinjury. Shutdown (Fig.A)

1. To stop the power cleaner, release thetriggerand remove

2. Turn off water at thefaucet.

3. Discharge residual pressure by squeezing the trigger

until no more water comes out of the spray wand

4. Disconnect the garden hose from the water intake

5. Remove garden hose from power cleaner by pulling

back the collar on the quick connect hose adapter and removing it from the quick connectfilter. Cleaning a Surface (Fig.L)

WARNING: Risk of injury from spray. Always engage

the trigger lock when gun is not in use. Failure to do so could cause accidentalspraying.

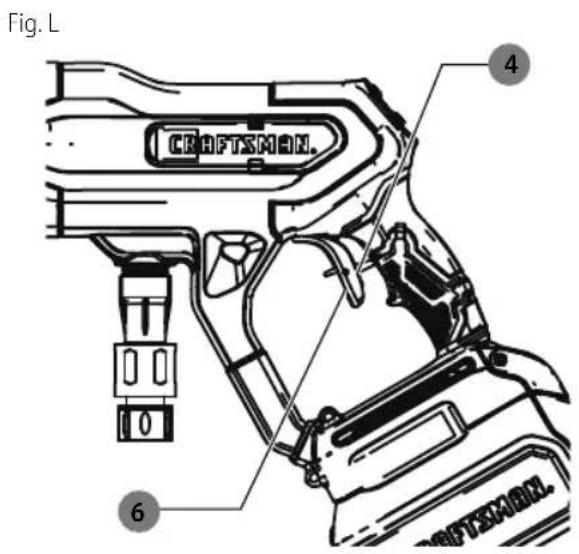

1. To start the power cleaner, disengage the trigger

and squeeze the trigger

NOTE: The best angle for spraying water against a cleaning surface is 45°. Spraying head on tends to cause dirt particles to embed in the surface. When working on vertical surfaces, it is best to apply detergent starting at the bottom and working upwards which will prevent the detergent from sliding down and causingstreaks.

2. To stop the power cleaner, release thetrigger.

NOTE: Excessive pump pressure may be the result of clogged nozzle. Always turn off the power cleaner and remove the battery before attempting to unclog a nozzle

WARNING: Never draw from water that contains

chemicals. Only draw from fresh watersources. Preparing the Power Cleaner (Fig.L) IMPORTANT: D isengage the trigger lock‑off

and hold the trigger for 30seconds to purge the system of air. If air is still found in the water stream, continue to run water through the sprayhandle.

Preparing Power Cleaner Unit for Use

DANGER: Risk of fluid injection and laceration.

When using the high‑pressure setting, DO NOT allow the high‑pressure spray to come in contact with unprotected skin, eyes, or with any pets or animals. Serious injury willoccur.

CAUTION: Before operation:

• Connect the water supply to the power cleaner. For instructions on connecting the water supply to the power cleaner, please refer to Attaching Garden or Suction Hose under Assembly andAdjustments.

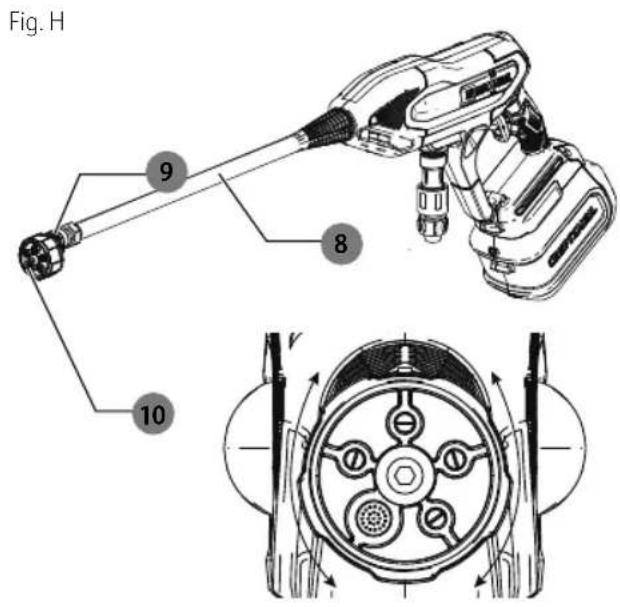

• Connect the attachment. For instructions on connecting the pressure spray wand, please refer to Attachments under Assembly andAdjustments.13 ENGLISH Three Year Limited Warranty CRAFTSMAN will repair or replace, without charge, any defects due to faulty materials or workmanship for three years from the date of purchase (two years for batteries). This warranty does not cover part failure due to normal wear or tool abuse. For further detail of warranty coverage and warranty repair information, visit www.craftsman.com or call 1-888-331-4569. This warranty does not apply to accessories or damage caused where repairs have been made or attempted by others. THIS LIMITED WARRANTY IS GIVEN IN LIEU OF ALL OTHERS, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A

PARTICULAR PURPOSE, AND EXCLUDES ALL INCIDENTAL

OR CONSEQUENTIAL DAMAGES. Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so these limitations may not apply to you. This warranty gives you specific legal rights and you may have other rights which vary in certain states orprovinces.

CMCB201, CMCB2011, CMCB2015

CMCB202, CMCB204, CMCB205, CMCB206

NOTE: Battery warranty voided if the battery pack is tampered with in any way. CRAFTSMAN is not responsible for any injury caused by tampering and may prosecute warranty Register Online Thank you for your purchase. Register your product nowfor:

• WARRANTY SERVICE: Registering your product will help you obtain more efficient warranty service in case there is a problem with yourproduct.

• CONFIRMATION OF OWNERSHIP: In case of an insurance loss, such as fire, flood or theft, your registration of ownership will serve as your proof ofpurchase.

• FOR YOUR SAFETY: Registering your product will allow us to contact you in the unlikely event a safety notification is required under the Federal Consumer SafetyAct.

• Register online at www.craftsman.com/registration Repairs The charger and battery pack are notserviceable. There are no serviceable parts inside the charger or batterypack.

WARNING: To assure product SAFETY and RELIABILITY,

repairs, maintenance and adjustment (including brush inspection and replacement, when applicable) should be performed by a CRAFTSMAN factory service center or a CRAFTSMAN authorized service center. Always use identical replacementparts. NOTE: VersaTrack™ accessories for use with your tool are available at extra cost from your local dealer or authorized service center. If you need assistance in locating any accessory, please contact CRAFTSMAN, call 1-888-331-4569. VersaTrack™ (Fig. M)

WARNING: To reduce the risk of serious personal

injury, turn unit off and remove the battery pack before making any adjustments or removing/ installing attachments or accessories. An accidental start‑up can causeinjury.

WARNING: To reduce the risk of serious personal

injury, do not use a damaged VersaTrack™ hang hook or VersaTrack™ Trackwall. A damaged VersaTrack™ hang hook or VersaTrack™ Trackwall will not support the weight of thetool.

WARNING: To reduce the risk of serious personal

injury, ensure the screw holding the VersaTrack™ hang hook is securelytightened.

WARNING: To reduce the risk of serious personal

injury, DO NOT suspend tool overhead or suspend objects from the hang hook. ONLY suspend tool on the VersaTrack™ Trackwall using the hanghook.

WARNING: Ensure that the tool weight does not

exceed the maximum rated weight of 20lb (9 kg) for the selected VersaTrack™hook.

WARNING: When hanging objects on a VersaTrack™

Trackwall rail, adequately space the tools in order to not exceed 75lb (35 kg) per linearfoot. IMPORTANT: When attaching the VersaTrack™ hang hook, use only the screw that is provided. Be sure to securely tighten the screw. VersaTrack™ accessories mount compatible tools securely to the VersaTrack™ Trackwallsystem.

1. Turn the tool off, remove the battery pack

CAUTION: Any product with exposed cutting teeth must have them covered securely if it is to be on theVersaTrack™Trackwall.

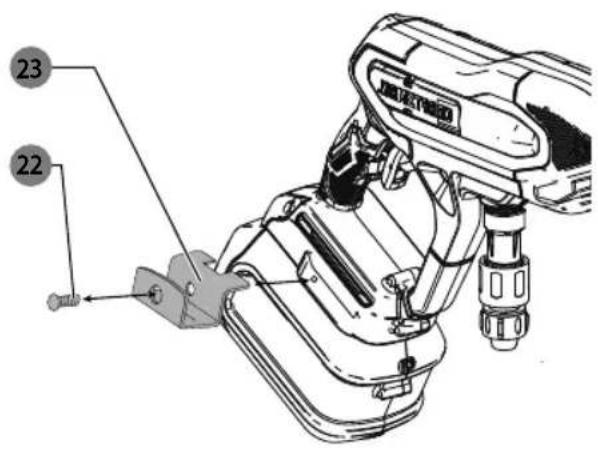

on thetool. a. Place the VersaTrack™ hang hook onto the mounting location at the base of thetool. b. Use a screwdriver to secure the hang hook with the provided screw

. Do not use any other screw forthis. Accessories

WARNING: Since accessories, other than those

offered by CRAFTSMAN, have not been tested with this product, use of such accessories with this tool could be hazardous. To reduce the risk of injury, only CRAFTSMAN recommended accessories should be used with thisproduct. Recommended accessories for use with your tool are available at extra cost from your local dealer or authorized service center. If you need assistance in locating any accessory, please contact CRAFTSMAN call 1-888-331-4569 . Storage

• Always completetely empty water from the suction hose, power cleaner, spray wand, nozzles.

• Store in a dry, covered location above freezing temperature. STOREINDOORS.English

fraud to the fullest extent permitted bylaw. 90DAY MOnEY BACK gUARAnTEE If you are not completely satisfied with the performance of your CRAFTSMAN Power Tool or Nailer for any reason, you can return it within 90days from the date of purchase with a receipt for a full refund – no questionsasked. lATin AMERiCA: This warranty does not apply to products sold in Latin America. For products sold in Latin America, see country specific warranty information contained in the packaging, call the local company or see website for warrantyinformation. FREE WARning lABEl REPlACEMEnT: If your warning labels become illegible or are missing, call 1‑888‑331‑4569 for a freereplacement.FRAnçAis

CMCB201, CMCB2011, CMCB2015

CONTRAT D’ENTRETIEN GRATUIT DETROIS ANS SUR LESBLOC-PILES CRAFTSMAN

CMCB202, CMCB204, CMCB205, CMCB206

CMCB201, CMCB2011, CMCB2015

CMCB202, CMCB204, CMCB205, CMCB206

• Maximum initial battery voltage (measured without a workload) is 20volts. Nominal voltage is18.

WARNING: Use of any other battery packs may create a risk of injury andfire.
