Product Type	Pressure Washer
Brand	Craftsman
Model	580.752630
Max Pressure	3000 PSI
Max Flow Rate	2.7 GPM
Engine Type	Honda GCV190, 187 cc, 4-stroke
Fuel Type	Regular unleaded (86 octane min)
Fuel Capacity	0.25 gallons (0.93 L)
Oil Capacity	18.56 fl. oz. (0.55 L), SAE 10W-30
Water Supply Temperature	Max 100°F (38°C)
Pump Type	High-pressure axial cam pump (pre-lubricated, sealed)
Nozzle System	5 PrecisionSpray quick-connect nozzles (Max, General, Flush, Jet Soap, Fan Soap)
Detergent System	2-in-1: PerfectMix siphon (undiluted) + standard siphon (diluted)
Cool Down System	Automatic thermal relief (discharges warm water at 125-155°F)
Dimensions (folded)	Approx. 36 x 22 x 36 inches (estimate)
Weight	Approx. 55 lbs (estimated)
Hose Length	30 ft high-pressure hose (included)
Spray Gun	With trigger lock and red pressure release button
Safety Features	Kickback prevention, thermal relief, spark arrester (optional)
Maintenance	Oil change every 50 hrs, air filter every 25 hrs, spark plug annually
Warranty	2 years limited (90 days for commercial use)
Includes	Pressure washer, spray gun, nozzle extension, 5 nozzles, high-pressure hose, detergent siphon hoses, oil bottle

Frequently Asked Questions - 580.752630 Craftsman

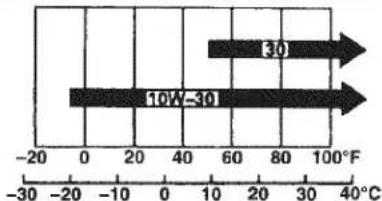

What type of oil should I use?

Use high-quality 4-stroke automotive detergent oil rated SAE 10W-30 with API service classification SJ or SL. Capacity is 18.56 fl. oz. (0.55 L).

How do I start the pressure washer?

Ensure water is connected and turned on. Turn fuel valve to ON, choke to CLOSED (if cold), engine stop switch to ON. Pull starter cord slowly until resistance, then pull rapidly. Once started, slowly open choke. If engine doesn't start, release pressure by pressing red button and squeezing trigger.

Why is the pressure fluctuating or pulsing?

A pulsing sensation is often caused by a clogged or restricted nozzle. Clean the nozzle by removing it and using a paper clip to clear debris, then back-flush the nozzle extension with a garden hose for 30-60 seconds.

Can I use bleach or caustic cleaners?

No. Only use pressure washer-safe detergents or soaps. Avoid caustic liquids as they can cause injury and damage the unit.

How do I store the pressure washer for winter?

Flush detergent system, drain water from pump by pulling recoil handle 6 times, and treat pump with PumpSaver (item 7174403) or RV antifreeze. For long-term storage (>30 days), drain fuel and run engine until it stops, change oil, and store in a clean, dry area.

What is the maximum water supply temperature?

Do not use water hotter than 100°F (38°C). Hot water can damage the pump.

How do I apply detergent?

Attach the PerfectMix siphon for undiluted concentrate or the standard siphon for diluted solution. Use the black fan soap or magenta jet soap nozzle. Apply to a dry surface from bottom to top, let soak 3-5 minutes, then rinse with a high-pressure nozzle.

The engine won't start. What should I check?

Check that fuel valve is ON, engine stop switch is ON, oil level is adequate, and spark plug wire is connected. Also ensure fresh fuel and clean air filter. If still no start, see troubleshooting in manual.

Can I repair the high-pressure hose?

No. Never repair a high-pressure hose; replace it immediately if damaged. The replacement hose must have a rating exceeding the unit's max pressure (3000 PSI).

How do I clean the nozzle extension?

Remove nozzle, use a paper clip to clear debris from the nozzle hole. Remove nozzle extension from gun, back-flush with garden hose for 30-60 seconds, reinstall nozzle and extension.

USER MANUAL 580.752630 Craftsman

Model No. 580.752630

HOURS: Mon. - Fri. 8 a.m. to 5 p.m. (CT)

WARNING

Before using this product, read this manual and follow all Safety Rules and Operating Instructions.

ADVERTENCIA

Line drawing of a craftsmar pressure water heater with visible branding and model number 9000 (no text or symbols on the device itself)

• Safety
• Assembly
  • Operation
• Maintenance
• Parts
• Español, p. 32

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

Visit our Craftsman website: www.craftsman.com

Part No. 208718GS Draft B (11/04/2009)

TABLE OF CONTENTS

WARRANTY	2
REPAIR PROTECTION AGREEMENT	2
SAFETY RULES	3-5
FEATURES AND CONTROLS	6
ASSEMBLY	7-10
OPERATION	11-15
SPECIFICATIONS	16
MAINTENANCE	17-21

STORAGE	22-23
TROUBLESHOOTING	24
REPLACEMENT PARTS	25-28
NOTES	29
EMISSION CONTROL WARRANTY	30-31
ESPAÑOL	32-55
HOW TO ORDER PARTS	BACK PAGE

WARRANTY

CRAFTSMAN LIMITED WARRANTY

If this Craftsman product fails due to a defect in material or workmanship within two years from the date of purchase, return it to any Sears store, Sears Parts & Repair Service Center, or other Craftsman outlet in the United States for free repair (or replacement if repair proves impossible).

This warranty applies for only 90 days from the date of purchase if this product is ever used for commercial or rental purposes.

This warranty covers ONLY defects in material and workmanship. Sears will NOT pay for:

• Expendable items that can wear out from normal use within the warranty period, such as spray guns, hoses, nozzle extensions, nozzles, filters and spark plugs.
  • Repairs necessary because of accident, or failure to operate or maintain the product according to all supplied instructions.
  • Preventive maintenance, or repairs necessary due to improper fuel mixture, contaminated or stale fuel.
  This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Sears, Roebuck and Co., Hoffman Estates, IL 60179

REPAIR PROTECTION AGREEMENT

Congratulations on making a smart purchase.

Your new Craftsman® product is designed and manufactured for years of dependable operation. But like all products, it may require repair from time to time. That's when having a Repair Protection Agreement can save you money and aggravation.

Here's what the Repair Protection Agreement\* includes:

• Expert service by our 10,000 professional repair specialists
- Unlimited service and no charge for parts and labor on all covered repairs
- Product replacement up to \$1500 if your covered product can't be fixed
- Discount of 10% from regular price of service and related installed parts not covered by the agreement; also, 10% off regular price of preventive maintenance check
- Fast help by phone – we call it Rapid Resolution – phone support from a Sears representative. Think of us as a “talking owner’s manual”.

Once you purchase the Repair Protection Agreement, a simple phone call is all it takes for you to schedule service. You can call anytime day or night, or schedule a service appointment online.

The Repair Protection Agreement is a risk-free purchase. If you cancel for any reason during the product warranty period, we will provide a full refund. Or, a prorated refund anytime after the product warranty period expires. Purchase your Repair Protection Agreement today!

Some limitations and exclusions apply. For prices and additional information in the U.S.A. call 1-800-827-6655.

* Coverage in Canada varies on some items. For full details, call Sears Canada at 1-800-361-6665.

Sears Installation Service

For Sears professional installation of home appliances, garage door openers, water heaters, and other major home items, in the U.S.A. or Canada call 1-800-4-MY-HOME®.

SAFETY RULES

Read this manual carefully and become familiar with your pressure washer. Know its applications, its limitations, and any hazards involved.

Important Safety Information

Safety Symbols and Meanings

Toxic Fumes

Kickback

Electrical Shock

Slippery Surface

Fall

Fluid Injection

Fire

Explosion

Operator's Manual

Moving Parts

Flying Objects

Chemical Burn

Hot Surface

The safety alert symbol indicates a potential personal injury hazard. A signal word (DANGER, WARNING, or CAUTION) is used with the alert symbol to designate a degree or level of hazard seriousness. A safety symbol may be used to represent the type of hazard. The signal word NOTICE is used to address practices not related to personal injury.

▲ DANGER indicates a hazard which, if not avoided, will result in death or serious injury.
▲ WARNING indicates a hazard which, if not avoided, could result in death or serious injury.
▲ CAUTION indicates a hazard which, if not avoided, could result in minor or moderate injury.

NOTICE address practices not related to personal injury.

▲ WARNING The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

▲ WARNING This product contains lead and lead compounds, known to the State of California to cause birth defects or other reproductive harm. Wash your hands after handling this product.

▲ WARNING Running engine gives off carbon monoxide, an odorless, colorless, poison gas. Breathing carbon monoxide can cause headache, fatigue, dizziness, vomiting, confusion, seizures, nausea, fainting or death.

Some chemicals or detergents may be harmful if inhaled or ingested, causing severe nausea, fainting, or poisoning.

• Operate pressure washer ONLY outdoors.

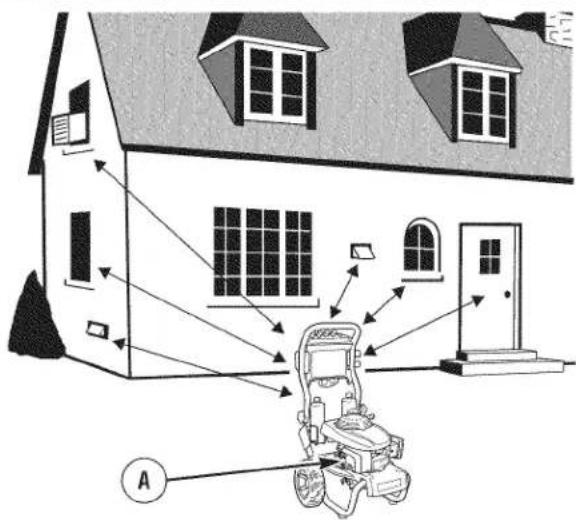

• Keep exhaust gas from entering a confined area through windows, doors, ventilation intakes, or other openings.
• DO NOT start or run engine indoors or in an enclosed area, even if windows and doors are open.
• Use a respirator or mask whenever there is a chance that vapors may be inhaled.
• Read all instructions with mask so you are certain the mask will provide the necessary protection against inhaling harmful vapors.

▲ WARNING Chemical Burn Hazard. Chemicals could cause bodily injury, property damage or death.

• DO NOT use caustic liquid with pressure washer.
- Use ONLY pressure washer safe detergents/soaps. Follow all manufacturers instructions.

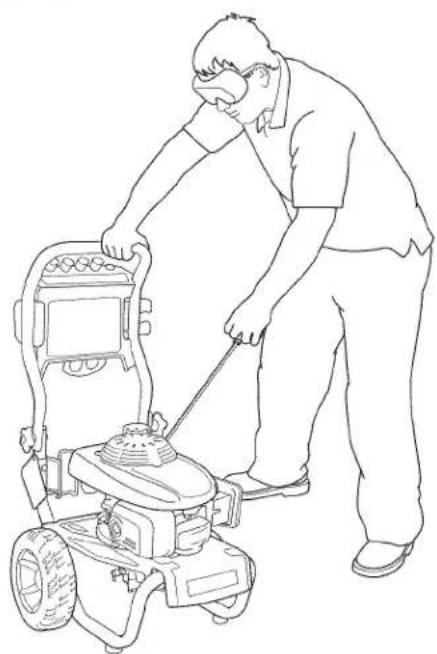

⚠ WARNING Starter cord kickback (rapid retraction) can result in bodily injury. Kickback will pull hand and arm toward engine faster than you can let go. Broken bones, fractures, bruises, or sprains could result.

• NEVER pull starter cord without first relieving spray gun pressure.
• When starting engine, pull cord slowly until resistance is felt and then pull rapidly to avoid kickback.
• After each starting attempt, where engine fails to run, always point spray gun in safe direction, press red button and squeeze spray gun trigger to release high pressure.
• Firmly grasp spray gun with both hands when using high pressure spray to avoid injury when spray gun kicks back.

▲ WARNING Risk of electrocution. Contact with power source can cause electric shock or burn.

• NEVER spray near power source.

▲ WARNING The high pressure stream of water that this equipment produces can cut through skin and its underlying tissues, leading to serious injury and possible amputation.

Spray gun traps high water pressure, even when engine is stopped and water is disconnected, which can cause injury.

• DO NOT allow CHILDREN to operate pressure washer.
- NEVER repair high pressure hose. Replace it.
- NEVER repair leaking connections with sealant of any kind. Replace o-ring or seal.
- NEVER connect high pressure hose to nozzle extension.
- Keep high pressure hose connected to pump and spray gun while system is pressurized.
- ALWAYS point spray gun in safe direction, press red button and squeeze spray gun trigger to release high pressure, every time you stop engine.
- NEVER aim spray gun at people, animals, or plants.
• DO NOT secure spray gun in open position.
• DO NOT leave spray gun unattended while machine is running.
- NEVER use a spray gun which does not have a trigger lock or trigger guard in place and in working order.
• Always be certain spray gun, nozzles and accessories are correctly attached.

▲ WARNING Fuel and its vapors are extremely flammable and explosive. Fire or explosion can cause severe burns or death.

WHEN ADDING OR DRAINING FUEL

• Turn pressure washer OFF and let it cool at least 2 minutes before removing fuel cap. Loosen cap slowly to relieve pressure in tank.
  • Fill or drain fuel tank outdoors.

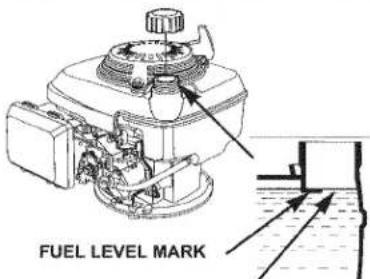

• DO NOT overfill tank. Allow space for fuel expansion.
• If fuel spills, wait until it evaporates before starting engine.
• Keep fuel away from sparks, open flames, pilot lights, heat, and other ignition sources.
  • DO NOT light a cigarette or smoke.

WHEN STARTING EQUIPMENT

• Ensure spark plug, muffler, fuel cap, and air cleaner are in place.
  • DO NOT crank engine with spark plug removed.

WHEN OPERATING EQUIPMENT

• DO NOT tip engine or equipment at angle which causes fuel to spill.
  • DO NOT spray flammable liquids.

WHEN TRANSPORTING, MOVING OR REPAIRING EQUIPMENT

• Transport/move/repair with fuel tank EMPTY or with fuel shutoff valve OFF.
• DO NOT tip engine or equipment at angle which causes fuel to spill.
• Disconnect spark plug wire.

WHEN STORING FUEL OR EQUIPMENT WITH FUEL IN TANK

- Store away from furnaces, stoves, water heaters, clothes dryers, or other appliances that have pilot light or other ignition source because they can ignite fuel vapors.

▲ WARNING Contact with muffler area can result in serious burns.

Exhaust heat/gases can ignite combustibles, structures or damage

fuel tank causing a fire.

• DO NOT touch hot parts and AVOID hot exhaust gases.
- Allow equipment to cool before touching.
- Keep at least 5 feet (152 cm) of clearance on all sides of pressure washer including overhead.
- It is a violation of California Public Resource Code, Section 4442, to use or operate the engine on any forest-covered, brush-covered, or grass-covered land unless the exhaust system is equipped with a spark arrester, as defined in Section 4442, maintained in effective working order. Other states or federal jurisdictions may have similar laws.
Contact the original equipment manufacturer, retailer, or dealer to obtain a spark arrester designed for the exhaust system installed on this engine.
- Replacement parts must be the same and installed in the same position as the original parts.

WARNING

Use of pressure washer can create puddles and slippery surfaces.

Kickback from spray gun can cause you to fall.

• Operate pressure washer from a stable surface.
• The cleaning area should have adequate slopes and drainage to reduce the possibility of a fall due to slippery surfaces.
• Be extremely careful if you must use the pressure washer from a ladder, scaffolding, or any other similar location.
• Firmly grasp spray gun with both hands when using high pressure spray to avoid injury when spray gun kicks back.

WARNING

Unintentional sparking can result in fire or electric shock.

WHEN ADJUSTING OR MAKING REPAIRS TO YOUR PRESSURE WASHER

• Disconnect the spark plug wire from the spark plug and place the wire where it cannot contact spark plug.
  • Use approved spark plug tester.
• DO NOT check for spark with spark plug removed.

WHEN TESTING FOR ENGINE SPARK

WARNING

NING Starter and other rotating parts can entangle hands, hair, clothing, or accessories.

• NEVER operate pressure washer without protective housing or covers.
• DO NOT wear loose clothing, jewelry or anything that may be caught in the starter or other rotating parts.
• Tie up long hair and remove jewelry.

WARNING

Risk of eye injury.

Spray can splash back or propel objects.

• Always wear indirect vented (chemical splash) safety goggles marked to comply with ANSI Z87.1 when using or in vicinity of this equipment.
• NEVER substitute safety glasses or dry-condition goggles for indirect vented safety goggles.

NOTICE High pressure spray may damage fragile items including glass.

• DO NOT point spray gun at glass when using MAX (0°) nozzle.
  • NEVER aim spray gun at plants.

NOTICE Improper treatment of pressure washer can damage it and shorten its life.

• If you have questions about intended use, ask dealer or contact Sears.
• NEVER operate units with broken or missing parts, or without protective housing or covers.
  • DO NOT by-pass any safety device on this machine.
  • DO NOT tamper with governed speed.
  • DO NOT operate pressure washer above rated pressure.
  • DO NOT modify pressure washer in any way.
• Before starting pressure washer in cold weather, check all parts of the equipment to be sure ice has not formed there.
• NEVER move machine by pulling on hoses. Use handle provided on unit.
• Check fuel system for leaks or signs of deterioration, such as chafed or spongy hose, loose or missing clamps, or damaged tank or cap. Correct all defects before operating pressure washer.
• This equipment is designed to be used with Sears authorized parts ONLY. If equipment is used with parts that DO NOT comply with minimum specifications, user assumes all risks and liabilities.

FEATURES AND CONTROLS

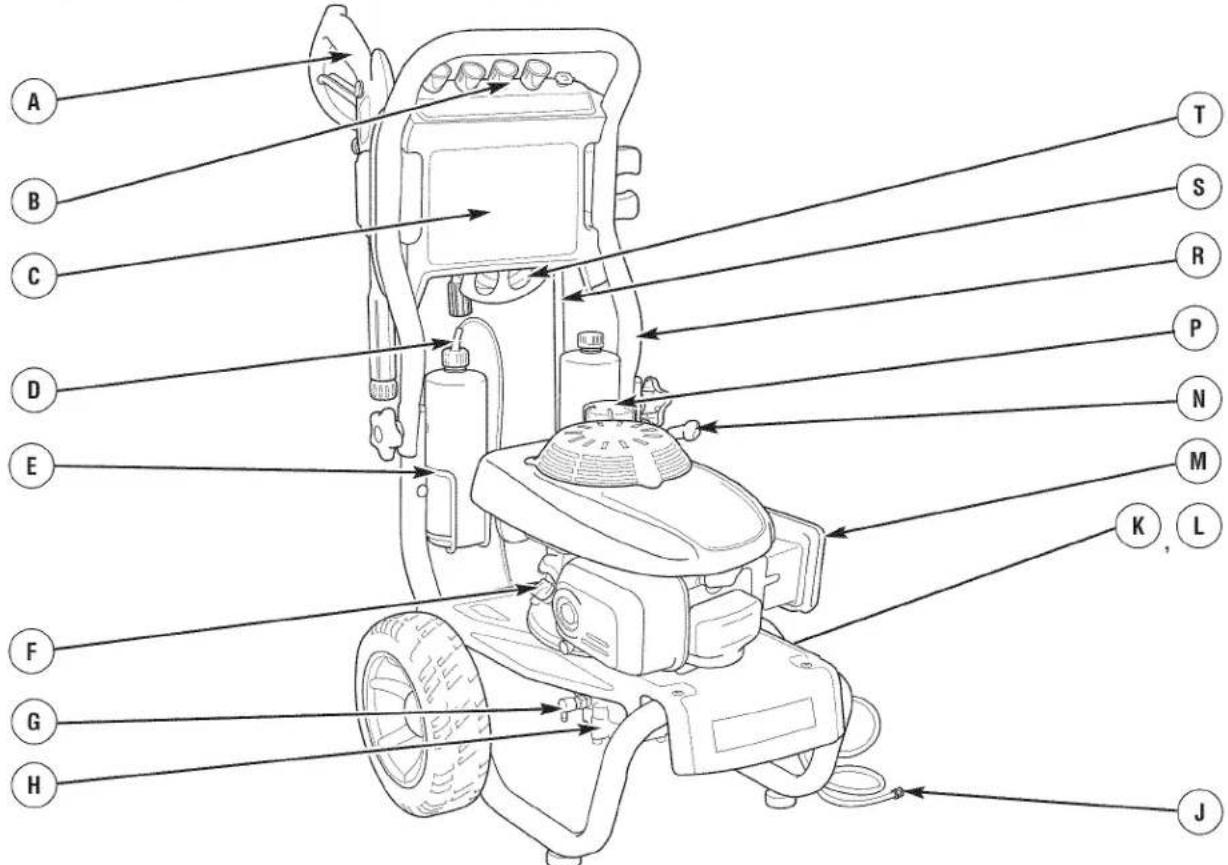

KNOW YOUR PRESSURE WASHER

Read the Operator's Manual and safety rules before operating your pressure washer.

Compare the illustrations with your pressure washer to familiarize yourself with the locations of various controls and adjustments. Save this manual for future reference.

A - Spray Gun — Controls the application of water onto cleaning surface with trigger device. Includes trigger lock.

B - PrecisionSpray™ Nozzles — Max, General, Flush, Jet Soap and Detergent Nozzles: for various cleaning applications.

C - Accessory Tray — Provides convenient storage for accessories, such as gun, spray tips, etc.

D - Project Pro® PerfectMix™ Siphon — Mixes concentrate with pressure washer spray.

E - Bottle Bracket — Cleaning solution bottle fits in wire form bracket here. Concentrate bottle not included.

F - Oil Fill/Dipstick — Check, add and drain engine oil here.

G - Automatic Cool Down System — Cycles water through pump when water reaches 125°-155°F. Warm water will discharge from pump onto ground. This system prevents internal pump damage.

H - Pump — Develops high pressure.

J - Detergent Siphoning Tube/Filter — Use to siphon pressure washer safe detergents into the low pressure stream.

K - High Pressure Outlet — Connection for high pressure hose.

L - Water Inlet — Connection for garden hose.

M - Air Filter — Protects engine by filtering dust and debris out of intake air.

N - Recoil Starter — Used for starting the engine manually.

P - Fuel Tank — Fill tank with regular unleaded fuel. Always leave room for fuel expansion.

R - Fold Down Handle — Handle and accessory tray fold flat atop cold engine for space-saving storage.

S - Nozzle Extension with Quick Connect — Allows you to switch between five different PrecisionSpray™ nozzles.

T - Hose Wrap and High Pressure Hose — Hose wrap provides easy transport and handling of the high pressure hose. Connect one end of hose to water pump and the other end to spray gun.

Items Not Shown:

Fuel Valve — Used to turn fuel supply on and off to engine.

Engine Switch — Sets engine in starting mode for recoil starter and stops a running engine.

Choke Rod — Prepares a cold engine for starting.

Identification Label (near rear of base plate) — Provides model and serial number of pressure washer. Please have these readily available if calling for assistance.

Warning/Operating Instructions Tag — Identifies hazards and proper procedure to start/stop pressure washer.

ASSEMBLY

Your pressure washer requires some assembly and is ready for use only after it has been properly serviced with the recommended oil and fuel.

If you have any problems with the assembly of your pressure washer, please call the pressure washer helpline at 1-800-222-3136.

UNPACK THE PRESSURE WASHER

1. Remove everything from carton except pressure washer.
2. Open carton completely by cutting each corner from top to bottom.
3. Remove pressure washer from carton.

CARTON CONTENTS

Check all contents. If any parts are missing or damaged, call the pressure washer helpline at 1-800-222-3136.

• Main Unit
• Handle
• Accessory Tray
  • High Pressure Hose
• Spray Gun
• Nozzle Extension with Quick Connect Fitting
• Oil Bottle
• Hose Wrap
  • Detergent Siphoning Hose/Filter
  • Bottle Bracket Wireform (2)
  • PerfectMix™ Siphoning Unit/Hose
• Parts Bag (which includes the following):

• Operator's Manual
• Owner's Registration Card
• Bag containing 5 PrecisionSpray™ Nozzles
• Handle Fastening Hardware Kit (which includes):
- Handle Bolts (2)
- Carriage Bolt (2)
• Plastic Knobs for Handle (2)
- Plastic Knob (2)
- Tree Clips (4)

Become familiar with each piece before assembling the pressure washer. Identify all contents with the illustration on page 6. If any parts are missing or damaged, call the pressure washer helpline at 1-800-222-3136.

ASSEMBLING PRESSURE WASHER

Your Craftsman pressure washer will need assembly before operation:

1. Fill out and send in registration card.
2. Attach handle and accessory tray.
3. Connect detergent siphon hose to pump.
4. Add oil to engine crankcase.
5. Add fuel to fuel tank.

6. Connect pressure hose to spray gun and pump.

7. Connect water supply to pump.

8. Attach nozzle extension to spray gun.
9. Select/attach quick connect PrecisionSpray™ nozzle to nozzle extension.

Attach Handle and Accessory Tray

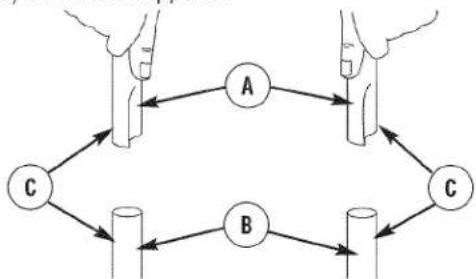

1. Place handle (A) onto handle supports (B) connected to main unit. Make sure holes (C) in handle align with holes (C) on handle supports.

1. Insert handle carriage bolts (D) through holes from inside of unit and attach a plastic knob (E) from outside of unit. Tighten by hand. By loosening both knobs to the middle section of the attachment bolt, the upper handle can fold forward to store flat atop the cold engine.

NOTICE DO NOT fold the handle down while the engine is hot.

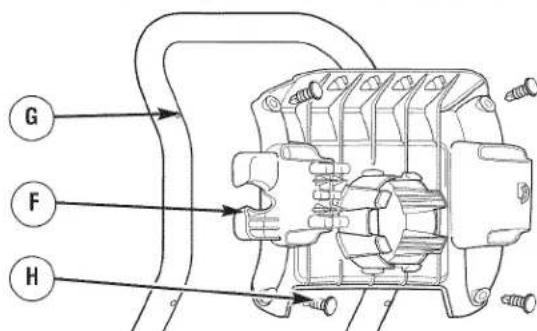

1. Place accessory tray (F) over holes (G) on handle (viewing from back of unit). Push the tree clips (H) into the holes until they sit flat against the accessory tray.

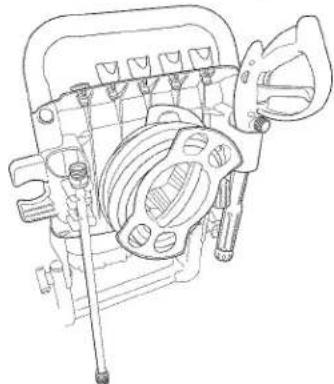

1. Insert multi-colored quick connect nozzles and other supplied accessories in spaces provided in accessory tray. See How to Use Accessory Tray.

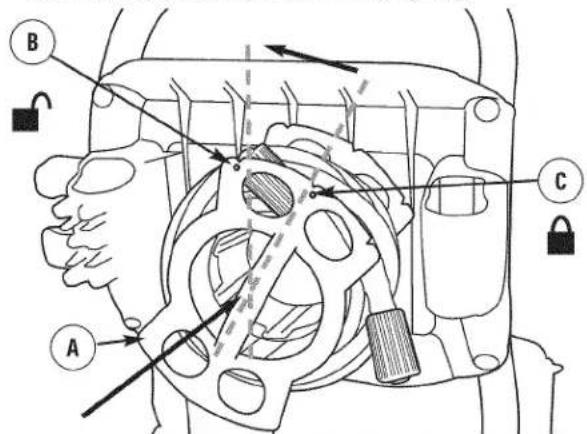

2. Align hose wrap (A) to the back side of accessory tray. Locate notch with "unlock" icon (B) on hose wrap. Position notch at top with hose wrap in vertical position. Clips in the back of accessory tray should slide into the grooves on the inside surface of hose wrap. Slide hose wrap on back of accessory tray and rotate 1/8 turn until "locked" icon (C) is in vertical position. Hose wrap is easily removed from the accessory tray for wrapping and unwrapping of the high pressure hose. A clip to secure the hose on the reel makes it easy to wrap the hose while it is detached from the accessory tray.

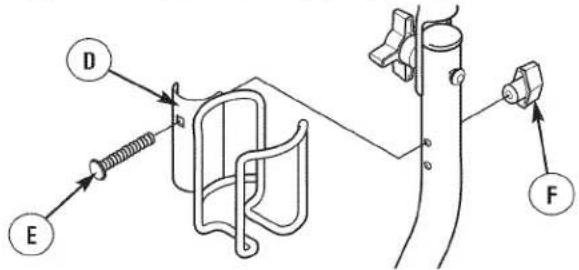

1. Attach bottle brackets (D) to handle with carriage bolts (E) and black plastic knobs (F). Tighten by hand.

2-IN-1 Soap System

The pressure washer is equipped with two detergent siphoning hoses.

Project Pro PerfectMix™ Siphon

Blue tube with blue bottle cap: When using the blue PerfectMix™ siphon, use the PerfectMix™ Extreme Concentrate straight from the bottle.

Standard Siphon Tube

Clear tube with filter: When using the clear siphon tube, dilute 1 part PerfectMix™ Extreme Concentrate to 16 parts water (4 oz of concentrate makes 1/2 gallon of mix.)

Attach Project Pro® PerfectMix™ Siphon to Pump

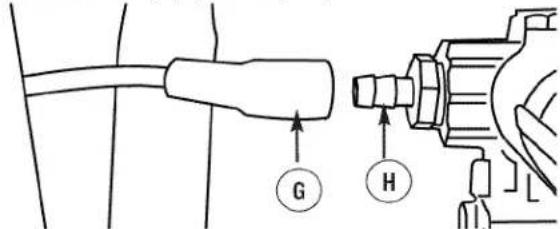

Attach the hose end of the blue PerfectMix™ Siphon (G) to the barbed hose fitting (H) on the pump.

Attach PerfectMix™ Detergent Siphon to Concentrate Bottle

Place PerfectMix™ bottle (not included) in the wire-form bracket on the handle. Remove cap from bottle and insert the PerfectMix™ Siphon (G). Screw the siphon unit to the top of the bottle (J). Use the clip on the cap (K) to snap siphon to wire form bracket when siphon is not in a concentrate bottle.

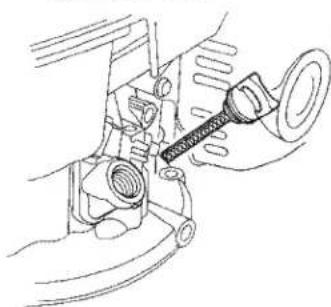

Add Engine Oil

1. Place pressure washer on a flat, level surface.
2. Clean area around oil fill and remove yellow oil fill cap/dipstick.
3. Using oil funnel (optional), slowly pour contents of provided oil bottle into oil fill opening.

NOTICE Improper treatment of pressure washer can damage it and shorten its life.

- DO NOT attempt to crank or start the engine before it has been properly serviced with the recommended oil. This may result in an engine failure.

1. Replace oil fill cap/dipstick and fully tighten.

Add Fuel

WARNING

Fuel and its vapors are extremely flammable and explosive.

Fire or explosion can cause severe burns or death.

WHEN ADDING FUEL

• Turn pressure washer OFF and let it cool at least 2 minutes before removing fuel cap. Loosen cap slowly to relieve pressure in tank.
• Fill fuel tank outdoors.
  • DO NOT overfill tank. Allow space for fuel expansion.
• If fuel spills, wait until it evaporates before starting engine.

• Keep fuel away from sparks, open flames, pilot lights, heat, and other ignition sources.
  • DO NOT light a cigarette or smoke.

• Use clean, fresh, regular unleaded fuel with a minimum of 86 octane with equipment. DO NOT mix oil with fuel.

• Place pressure washer on a level surface. Clean area around fuel fill cap, remove cap.
• Slowly add regular unleaded fuel to bottom of fuel level limit in neck of fuel tank. Be careful not to overfill.

MAXIMUM FUEL LEVEL

1. Install fuel cap and allow any spilled fuel to evaporate before starting engine.

CAUTION! Alcohol-blended fuels (called gasohol, ethanol or methanol) can attract moisture, which leads to separation and formation of acids during storage. Acidic gas can damage the fuel system of an engine while in storage.

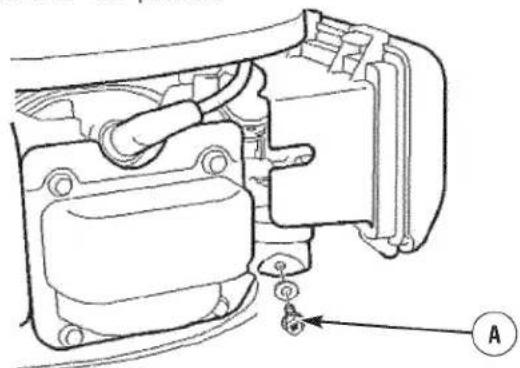

To avoid engine problems, the fuel system should be emptied before storage of 30 days or longer. Drain the fuel tank, start the engine and let it run until the fuel lines and carburetor are empty. Use fresh fuel next season. See Storage for additional information.

NEVER use engine or carburetor cleaner products in the fuel tank as permanent damage may occur.

Connect Hose and Water Supply to Pump

NOTICE DO NOT run the pump without the water supply connected and turned on.

- Damage to equipment resulting from failure to follow this instruction will void warranty.

NOTICE Remove and discard the shipping caps from the pump's high pressure outlet and water inlet before attaching hoses.

1. Uncoil high pressure hose and attach one end of hose to base of spray gun. Tighten by hand.

Line drawing of a tool with handle and screw base (no text or symbols)

▲ WARNING The high pressure stream of water that this equipment produces can cut through skin and its underlying tissues, leading to serious injury and possible amputation.

• NEVER connect high pressure hose to nozzle extension.

• Keep high pressure hose connected to pump and spray gun while system is pressurized.
  • Always be certain spray gun, nozzles and accessories are correctly attached.

• Attach other end of high pressure hose to high pressure outlet on pump. Tighten by hand.

Technical line drawing of two threaded fasteners or connectors (no text or symbols)

1. Before connecting garden hose to water inlet, inspect inlet screen (A). Clean screen if it contains debris or have it replaced if damaged. DO NOT run pressure washer if inlet screen is damaged or missing.

Diagram of a connector with threaded ends and a labeled point A (no text or symbols beyond label)

1. Run water through garden hose for 30 seconds to flush it of debris. Turn off water.

NOTICE DO NOT siphon standing water for the water supply. Use ONLY cold water (less than 100°F).

1. Connect garden hose (not to exceed 50 feet in length) to water inlet. Tighten by hand.

NOTICE Using a One Way Valve (vacuum breaker or check valve) at pump inlet can cause pump or inlet connector damage.

• There MUST be at least ten feet of unrestricted garden hose between the pressure washer inlet and any device, such as a vacuum breaker or check valve.
• Damage to equipment resulting from failure to follow this instruction will void warranty.

▲ WARNING Risk of eye injury. Spray can splash back or propel objects.

• Always wear indirect vented (chemical splash) safety goggles marked to comply with ANSI Z87.1 when using or in vicinity of this equipment.

• NEVER substitute safety glasses or dry-condition goggles for indirect vented safety goggles.

• Turn ON the water, press red button (B) on the gun and squeeze the trigger to purge the pump system of air and impurities.

Checklist Before Starting Engine

Review the unit to ensure you have performed all of the following:

1. Be sure to read Safety Rules and Operation sections before using the pressure washer.
2. Make sure handle is in place and secure.
3. Check that oil has been added to proper level in engine crankcase.
4. Add proper fuel to fuel tank.
5. Check for proper hose connections (high pressure and water supply) and that there are no kinks, cuts, or damage to the high pressure hose.
6. Provide proper water supply (not to exceed 100^ F).

OPERATION

HOW TO USE YOUR PRESSURE WASHER

If you have any problems operating your pressure washer, please call the pressure washer helpline at 1-800-222-3136.

Pressure Washer Location

Pressure Washer Clearance

▲ WARNING Exhaust heat/gases can ignite combustibles, structures or damage fuel tank causing a fire.

- Keep at least 5 ft. (152 cm) clearance on all sides of pressure washer including overhead.

Place pressure washer outdoors in an area that will not accumulate deadly exhaust gas. DO NOT place pressure washer where exhaust gas (A) could accumulate and enter inside or be drawn into a potentially occupied building. Ensure exhaust gas is kept away from any windows, doors, ventilation intakes, or other openings that can allow exhaust gas to collect in a confined area. Prevailing winds and air currents should be taken into consideration when positioning pressure washer.

▲ WARNING Running engine gives off carbon monoxide, an odorless, colorless, poisonous gas. Breathing carbon monoxide can cause headache, fatigue, dizziness, vomiting, confusion, seizures, nausea, fainting or death.

• Operate pressure washer ONLY outdoors.
• Keep exhaust gas from entering a confined area through windows, doors, ventilation intakes, or other openings.
• DO NOT start or run engine indoors or in an enclosed area, even if windows and doors are open.

To Start Your Pressure Washer

To start your engine-powered pressure washer for the first time, follow these instructions step-by-step. This information also applies whenever you start the engine after you have let the pressure washer sit idle for at least a day.

1. Place pressure washer outside near an water source capable of supplying water at a flow rate greater than 3.7 gallons per minute and no less than 20 PSI at pressure washer end of garden hose.
2. Check that high pressure hose is tightly connected to spray gun and pump. See Assembly for illustrations.
3. Make sure unit is in a level position.
4. Connect garden hose to water inlet on pressure washer pump.

NOTICE DO NOT run the pump without the water supply connected and turned on.

• Damage to equipment resulting from failure to follow this instruction will void warranty.
• Turn ON the water, press red button on the gun and squeeze the trigger to purge the pump system of air and impurities.
• Attach nozzle extension to spray gun. Tighten by hand.

Line drawing of two hands holding a connector, no text or symbols present

1. Choose PrecisionSpray™ nozzle you want to use, pull back on collar of nozzle extension, insert nozzle and release collar. Tug on nozzle to make sure it is securely in place. See How to Use PrecisionSpray™ Nozzle System.

Technical line drawing of a mechanical component with two views: top shows a flanged cylindrical part, bottom shows a threaded bolt (no text or symbols)

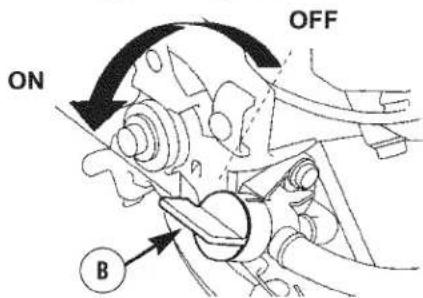

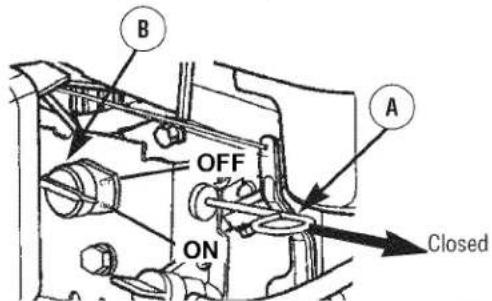

1. Turn fuel valve (B) to "On" position.

1. Pull choke rod (A) to "Closed" position.

NOTICE For a warm engine, be sure the choke rod (A) is in the "Open" position.

1. Move engine stop switch (B) to "On" position.

NOTICE Before starting the pressure washer, be sure you are wearing safety goggles as described below.

▲ WARNING

Risk of eye injury.

Spray can splash back or propel objects.

• Always wear indirect vented (chemical splash) safety goggles marked to comply with ANSI Z87.1 when using or in vicinity of this equipment.

• NEVER substitute safety glasses or dry-condition goggles for indirect vented safety goggles.

• When starting engine, position yourself as recommended and grasp starter grip handle and pull slowly until you feel some resistance. Then pull rapidly to start engine.

Line drawing of a person using a lawn mower to clean or adjust equipment (no text or symbols)

WARNING

Starter cord kickback (rapid retraction) can

result in bodily injury. Kickback will pull hand and

arm toward engine faster than you can let go.

Broken bones, fractures, bruises, or sprains

could result

• NEVER pull starter cord without first relieving spray gun pressure.
• When starting engine, pull cord slowly until resistance is felt and then pull rapidly to avoid kickback.
• After each starting attempt, where engine fails to run, always point spray gun in safe direction, press red button and squeeze spray gun trigger to release high pressure.

• Firmly grasp spray gun with both hands when using high pressure spray to avoid injury when spray gun kicks back.

• Return recoil starter slowly. DO NOT let rope "snap back" against starter.

• When engine starts, slowly move choke rod to "Open" position as engine warms. If engine falters, move choke rod to "Closed" position, then to "Open" position.

WARNING

NING The high pressure stream of water that this equipment produces can cut through skin and its underlying tissues, leading to serious injury and possible amputation.

Spray gun traps high water pressure, even when engine is stopped and water is disconnected, which can cause injury.

• DO NOT allow CHILDREN to operate pressure washer.
- Keep high pressure hose connected to pump and spray gun while system is pressurized.
• NEVER aim spray gun at people, animals, or plants.
• DO NOT secure spray gun in open position.
• DO NOT leave spray gun unattended while machine is running.
- NEVER use a spray gun which does not have a trigger lock or trigger guard in place and in working order.
• Always be certain spray gun, nozzles and accessories are correctly attached.

WARNING

Contact with muffler area can result in serious burns.

Exhaust heat/gases can ignite combustibles, structures or damage

fuel tank causing a fire.

• DO NOT touch hot parts and AVOID hot exhaust gases.
- Allow equipment to cool before touching.
- Keep at least 5 feet (152 cm) of clearance on all sides of pressure washer including overhead.
- It is a violation of California Public Resource Code, Section 4442, to use or operate the engine on any forest-covered, brush-covered, or grass-covered land unless the exhaust system is equipped with a spark arrester, as defined in Section 4442, maintained in effective working order. Other states or federal jurisdictions may have similar laws.
Contact the original equipment manufacturer, retailer, or dealer to obtain a spark arrester designed for the exhaust system installed on this engine.
- Replacement parts must be the same and installed in the same position as the original parts.

How to Stop Your Pressure Washer

1. Release spray gun trigger and let engine idle for two minutes.
2. Move engine stop switch to "Off" position.
3. ALWAYS point spray gun in a safe direction, push red button and squeeze spray gun trigger to release retained high water pressure.

NOTICE Spray gun traps high water pressure, even when engine is stopped and water is disconnected.

WARNING

The high pressure stream of water that equipment produces can cut through skin's underlying tissues, leading to serious and possible amputation.

Spray gun traps high water pressure, even when engine is stopped and water is disconnected, which can cause injury.

• Keep high pressure hose connected to pump and spray gun while system is pressurized.
• ALWAYS point spray gun in safe direction, press red button and squeeze spray gun trigger to release high pressure, every time you stop engine.

How to Use Accessory Tray

The unit is equipped with an accessory tray with places to store your spray gun, nozzle extension and quick connect spray tips. There is also a detachable hose wrap at the back of the accessory tray to hold your high pressure hose.

1. Place nozzle extension in clip on back of accessory tray.

Technical line drawing of a mechanical device with no visible text or symbols

1. Place spray gun through hole on accessory tray on right side of unit.
2. Insert multi-colored PrecisionSpray™ nozzles in spaces provided in accessory tray.
3. Wrap high pressure hose on hose wrap then attach hose wrap to back of accessory tray.
4. Hook provided on back of accessory tray for safely storing safety goggles.

How to Use PrecisionSpray™ Nozzle System

The quick-connect on the nozzle extension allows you to switch between five different PrecisionSpray™ system nozzles. PrecisionSpray™ nozzles can be changed while pressure washer is running once spray gun trigger lock is engaged.

Follow these instructions to change PrecisionSpray™ nozzles:

1. Pull back collar on quick-connect and pull current PrecisionSpray™ nozzle off. Store PrecisionSpray™ nozzles in holder provided on the accessory tray.

WARNING

The high pressure stream of water that equipment produces can cut through skin its underlying tissues, leading to serious y and possible amputation.

• NEVER exchange PrecisionSpray™ nozzles without the trigger lock being engaged on the spray gun.

• DO NOT twist PrecisionSpray™ nozzles while spraying.

• Select desired PrecisionSpray™ nozzle:

- Select orange general PrecisionSpray™ nozzle for all purpose cleaning. Cleans vinyl siding, brick patios, concrete driveways and other surfaces.

GENERAL

Black-and-white photo of a person cleaning or sweeping the floor in a residential area (no visible text or symbols)

- Select red max PrecisionSpray™ nozzle for maximum cleaning. Great for cleaning stubborn stains, including grease, tar, wax, and other hard to remove stains.

Close-up of a mechanical component with a black outline and a circular indicator symbol (no readable text or symbols)

Silhouette of a person standing outdoors with a large abstract shape in the background (no text or symbols visible)

- Select cyan jet flush PrecisionSpray™ nozzle for quick high flow clean up and long reach cleaning of second story siding and windows.

JET FLUSH

Exterior view of a person standing in front of a building with a chimney and stone wall (no signage or text visible)

- Select magenta jet soap PrecisionSpray™ nozzle to launch soap to second story siding and windows.

Black-and-white photo of a person spraying water from a chimney in an alley (no visible text or symbols)

- Select black fan soap PrecisionSpray™ nozzle for general cleaning. Great for applying soap to vehicles, boats, driveways, decks, and patios.

Close-up of a metallic connector with a circular inset showing a floral pattern (no text or symbols)

Person spraying water outdoors at night, no visible text or symbols

1. Pull back on collar, insert new PrecisionSpray™ nozzle and release collar. Tug on nozzle to make sure it is securely in place.

Usage Tips

• For most effective cleaning, keep PrecisionSpray™ nozzle from 8 to 24 inches (20 to 61 cm) away from cleaning surface.
• If you get PrecisionSpray™ nozzle too close, especially using a high pressure nozzle, you may damage surface being cleaned.
• DO NOT get closer than 6 inches (15 cm) when cleaning tires.

2-IN-1 Soap System

WARNING Chemical Burn Hazard.

Chemicals could cause bodily injury, property damage or death.

• DO NOT use caustic liquid with pressure washer.
- Use ONLY pressure washer safe detergents/soaps. Follow all manufacturers instructions.

Cleaning and Applying Detergent with the Project Pro® PerfectMix™ Siphon

To apply undiluted detergent using the blue PerfectMix™ siphon, follow these steps:

1. Review use of PrecisionSpray™ nozzles.
2. Attach PerfectMix™ siphon hose to pump and PerfectMix™ concentrate bottle.

NOTICE Contact with the hot muffler can damage detergent siphoning tube.

• When inserting the siphon into a detergent solution bottle, route the tube so as to keep it from inadvertently contacting the hot muffler.
• Make sure fan soap (black) or jet soap nozzle (magenta) is installed.
  NOTICE Detergent cannot be applied with the high pressure nozzles (Cyan, Orange or Red).
• Make sure garden hose is connected to water inlet. Check that high pressure hose is connected to spray gun and pump. Turn on water.

NOTICE You must attach all hoses before you start the engine.

• Starting the engine without all the hoses connected and without the water turned ON will damage the pump.

• Damage to equipment resulting from failure to follow this instruction will void warranty.

• Start engine following instructions How to Start Your Pressure Washer.

• Apply detergent to a dry surface, starting at lower portion of area to be washed and work upward, using long, even, overlapping strokes.
• Allow detergent to "soak in" for 3-5 minutes before washing and rinsing. Reapply as needed to prevent surface from drying. DO NOT allow detergent to dry on (prevents streaking).

Cleaning and Applying Detergent with the Standard Clear Siphon

To apply diluted detergent using the standard clear siphon tube, follow these steps:

1. Review use of PrecisionSpray™ nozzles.
2. Attach clear siphon hose to barbed fitting on pump.
3. Mix detergent solution as required by job.
4. Place small filter end of clear siphoning tube into container with diluted solution as described above.

NOTICE DO NOT insert standard siphon hose in Extreme Concentrate. Failure to dilute concentrate will cause excessive application and consumption of solution.

NOTICE Make sure the filter is fully submerged in fluid while applying solution.

NOTICE Contact with the hot muffler can damage detergent siphoning tube.

• When inserting the siphon into a detergent solution bottle, route the tube so as to keep it from inadvertently contacting the hot muffler.
• Make sure fan soap (black) or jet soap nozzle (magenta) is installed.

NOTICE Detergent cannot be applied with the high pressure nozzles (Cyan, Orange or Red).

1. Make sure garden hose is connected to water inlet. Check that high pressure hose is connected to spray gun and pump. Turn on water.

NOTICE You must attach all hoses before you start the engine.

• Starting the engine without all the hoses connected and without the water turned ON will damage the pump.

• Damage to equipment resulting from failure to follow this instruction will void warranty.

• Start engine following instructions How to Start Your Pressure Washer.

• Apply detergent to a dry surface, starting at lower portion of area to be washed and work upward, using long, even, overlapping strokes.
• Allow detergent to "soak in" for 3-5 minutes before washing and rinsing. Reapply as needed to prevent surface from drying. DO NOT allow detergent to dry on (prevents streaking).

NOTICE You must flush the detergent siphoning system after each use by placing the filter into a bucket of clean water, then run the pressure washer in low pressure for 1-2 minutes.

Pressure Washer Rinsing

For Rinsing:

1. Remove soap PrecisionSpray™ nozzle from nozzle extension.
2. Select and install desired high pressure nozzle following instructions How to Use PrecisionSpray™ Nozzle System.
3. Keep spray gun a safe distance from area you plan to spray.

WARNING

Kickback from spray gun can cause you to

• Operate pressure washer from a stable surface.
• Be extremely careful if you must use the pressure washer from a ladder, scaffolding, or any other similar location.

• Firmly grasp spray gun with both hands when using high pressure spray to avoid injury when spray gun kicks back.

• Apply a high pressure spray to a small area and then check surface for damage. If no damage is found, you can assume it is okay to continue rinsing.

• Start at top of area to be rinsed, working down with same overlapping strokes as you used for cleaning.

Cleaning Detergent Siphoning Tube

If you used the clear detergent siphoning tube, you must flush it with clean water before stopping the engine.

1. Place detergent siphoning tube/filter in a bucket full of clean water.
2. Remove high pressure nozzle from nozzle extension.
3. Select and install a soap nozzle following instructions How to Use PrecisionSpray™ Nozzle System.
4. Flush for 1-2 minutes.
5. Shut off engine following instructions How to Stop Pressure Washer and turn off water supply.
6. ALWAYS point spray gun in a safe direction push red button and squeeze spray gun trigger to release retained high water pressure.

NOTICE Spray gun traps high water pressure, even when engine is stopped and water is disconnected.

WARNING The high pressure stream of water that this equipment produces can cut through skin and its underlying tissues, leading to serious injury and possible amputation.

Spray gun traps high water pressure, even when engine is stopped and water is disconnected, which can cause injury.

• Keep high pressure hose connected to pump and spray gun while system is pressurized.
• ALWAYS point spray gun in safe direction, press red button and squeeze spray gun trigger to release high pressure, every time you stop engine.

Automatic Cool Down System (Thermal Relief)

If you run the engine on your pressure washer for 3-5 minutes without pressing the trigger on the spray gun, circulating water in the pump can reach temperatures above 125°F. The system engages to cool the pump by discharging the warm water onto the ground.

SPECIFICATIONS

Pressure Washer Specifications

Max Outlet Pressure 3,000 PSI*

Max Flow Rate 2.7 GPM

Detergent Mix Use as directed

Water Supply Temperature ..... Not to exceed 100°F

Engine Specifications

Bore 2.7 in. (69 mm)

Stroke 2.0 in. (50 mm)

Displacement 11.4 cu. in. (187 cc)

Spark Plug

Resistor NGK BPR6ES

Set Gap To: 0.028-0.031 in (0.70-0.80 mm)

Intake Valve Clearance 0.15 ± 0.04 mm (cold)

Exhaust Valve Clearance 0.20 ± 0.04 mm (cold)

Fuel Capacity 0.25 Gallons (0.93 l)

Oil Capacity 18.56 fl. oz. (0.55 l)

* This pressure washer is rated in accordance to the Pressure Washer Manufacturers Association (PWMA) standard PW101 (Testing and Rating Performance of Pressure Washers).

MAINTENANCE

OWNER'S RESPONSIBILITIES

Follow the hourly or calendar intervals, whichever occurs first. More frequent service is required when operating in adverse conditions noted below.

First 5 Hours

· Change engine oil

Every 8 Hours or Daily

· Check/clean water inlet screen1

· Check high pressure hose

· Check detergent siphoning hose

· Check spray gun and assembly for leaks

· Clean debris

· Check engine oil level

Every 25 Hours or 3 Months

· Clean engine air cleaner2

Every 50 Hours or 6 Months

· Change engine oil2

Every 100 Hours or Yearly

· Check/adjust spark plug

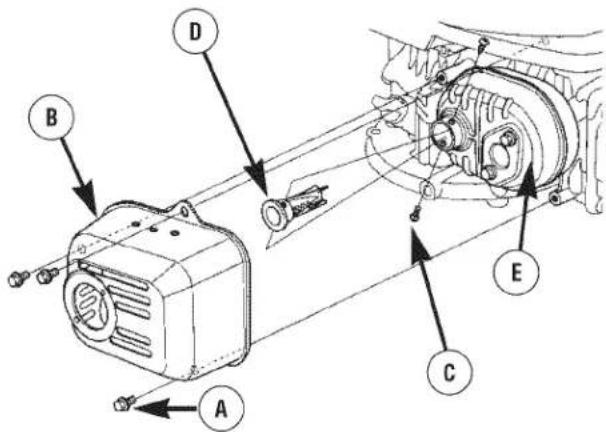

· Inspect muffler and spark arrester

· Check/adjust idle speed3

· Check/adjust valve clearance3

· Clean fuel tank & filter3

Every 250 Hours

· Clean combustion chamber3

Every 250 Hours or 2 Years

· Replace engine air cleaner

· Replace spark plug

Every 2 Years

· Check fuel tube3 (Replace if necessary)

^1 Clean if clogged. Replace if perforated or torn.

^2 Service more often under dirty or dusty conditions.

^3 These items should be serviced by your servicing dealer.

General Recommendations

Regular maintenance will improve the performance and extend the life of the pressure washer. See any Sears or other qualified service dealer for service.

The pressure washer warranty does not cover items that have been subjected to operator abuse or negligence. To receive full value from the warranty, the operator must maintain pressure washer as instructed in this manual including proper storage as detailed in Storage.

Some adjustments will need to be made periodically to properly maintain your pressure washer.

All service and adjustments should be made at least once each season. Follow the requirements in the Maintenance Schedule chart above.

NOTICE Once a year you should clean or replace the spark plug and replace the air filter. A new spark plug and clean air filter assure proper fuel-air mixture and help your engine run better and last longer.

Pump Oil

DO NOT attempt any oil maintenance on this pump. The pump is pre-lubricated and sealed from the factory, requiring no additional maintenance for the life of the pump.

Emissions Control

Maintenance, replacement, or repair of the emissions control devices and systems may be performed by any non-road engine repair establishment or individual. However, to obtain "no charge" emissions control service, the work must be performed by a factory authorized dealer. See the Emissions Warranty.

Before Each Use

1. Check engine oil level.
2. Clean debris.
3. Check water inlet screen for damage.
4. Check high pressure hose for leaks.
5. Check gun and nozzle extension assembly for leaks.
6. Purge pump of air and contaminants.

PRESSURE WASHER MAINTENANCE

Clean Debris

Daily or before use, clean accumulated debris from pressure washer. Keep linkage, spring and controls clean. Keep area around and behind muffler free from any combustible debris. Inspect cooling air slots and openings on the pressure washer. These openings must be kept clean and unobstructed.

Pressure washer parts should be kept clean to reduce the risk of overheating and ignition of accumulated debris.

• Use a damp cloth to wipe exterior surfaces clean.

NOTICE Improper treatment of pressure washer can damage it and shorten its life.

• DO NOT insert any objects through cooling slots.
  • Use a soft bristle brush to loosen caked on dirt, oil, etc.
  • Use a vacuum cleaner to pick up loose dirt and debris.

Check and Clean Inlet Screen

Examine garden hose inlet screen. Clean if it is clogged or replace if it is torn.

Check High Pressure Hose

High pressure hoses can develop leaks from wear, kinking, or abuse. Inspect hose before each use. Check for cuts, leaks, abrasions, bulging of cover, or damage or movement of couplings. If any of these conditions exist, replace hose immediately.

▲ WARNING The high pressure stream of water that this equipment produces can cut through skin and its underlying tissues, leading to serious injury and possible amputation.

• NEVER repair high pressure hose. Replace it.
• Replacement hose rating MUST exceed maximum pressure rating of unit.

Check Gun and Nozzle Extension

Examine hose connection to spray gun and make sure it is secure. Test trigger by pressing it and making sure it springs back into place when you release it. Do not depress red button and test trigger. You should not be able to press trigger. Replace spray gun immediately if it fails any of these tests.

Nozzle Maintenance

A pulsing sensation felt while squeezing the spray gun trigger may be caused by excessive pump pressure. The principal cause of excessive pump pressure is a nozzle clogged or restricted with foreign materials, such as dirt, etc. To correct the problem, immediately clean the nozzle following these instructions:

1. Shut off engine and turn off water supply.
2. ALWAYS point spray gun in a safe direction, press red button and and squeeze spray gun trigger to release retained high water pressure.

▲ WARNING The high pressure stream of water that this equipment produces can cut through skin and its underlying tissues, leading to serious injury and possible amputation.

Spray gun traps high water pressure, even when engine is stopped and water is disconnected, which can cause injury.

• Keep high pressure hose connected to pump and spray gun while system is pressurized.

• ALWAYS point spray gun in safe direction, press red button and squeeze spray gun trigger to release high pressure, every time you stop engine.

• Remove nozzle from end of nozzle extension.

• Use a small paper clip to free any foreign material clogging or restricting nozzle (A).

1. Remove nozzle extension from spray gun.
2. Using a garden hose, remove additional debris by back flushing water through nozzle extension. Back flush between 30 to 60 seconds.

Diagram of two types of connectors with threaded ends, showing internal structure (no text or symbols)

1. Reinstall nozzle into nozzle extension.
2. Reconnect nozzle extension to spray gun.
3. Make sure garden hose is connected to water inlet. Check that high pressure hose is connected to spray gun and pump. Turn on water.
4. Start engine following instructions How to Start Your Pressure Washer.
5. Test pressure washer by operating with each quick connect nozzle.

0-Ring Maintenance

Purchase an O-Ring Repair Kit, item 7175116, at your local Sears or by calling 1-800-4-MY-HOME (469-4663) or online at www.sears.com. It is not included with the pressure washer. This kit includes replacement o-rings and a water inlet filter. Refer to the instruction sheet provided in the kit to service your unit's o-rings.

▲ WARNING The high pressure stream of water that this equipment produces can cut through skin and its underlying tissues, leading to serious injury and possible amputation.

- NEVER repair leaking connections with sealant of any kind. Replace o-ring or seal.

ENGINE MAINTENANCE

WARNING

Unintentional sparking can result in fire or electric shock.

WHEN ADJUSTING OR MAKING REPAIRS TO YOUR PRESSURE WASHER

- Disconnect the spark plug wire from the spark plug and place the wire where it cannot contact spark plug.

WHEN TESTING FOR ENGINE SPARK

• Use approved spark plug tester.
• DO NOT check for spark with spark plug removed.

Oil

Oil Recommendations

NOTICE When adding oil to the engine crankcase, use only high quality 4-stroke automotive detergent oil rated with API service classification SJ or SL rated SAE 10W-30 weight. DO NOT use special additives.

1. Choose a viscosity according to table below.

AMBIENT TEMPERATURE

NOTICE Other viscosities shown in the chart may be used when the average temperature in your area is within the recommended range.

Checking Oil Level

Oil level should be checked prior to each use or at least every 8 hours of operation. Keep oil level maintained.

1. Place pressure washer on a level surface and clean area around oil dipstick.
2. Remove oil dipstick and wipe dipstick with clean cloth. Insert and remove dipstick without screwing it into the filler neck.
3. Verify oil is at upper limit mark on dipstick. Replace and tighten dipstick.

Technical line drawing of a mechanical assembly with a bolt and spring (no text or symbols)

OIL FILLER CAP/DIPSTICK

Add Engine Oil

1. Place pressure washer on a flat, level surface.
2. Clean area around oil fill and remove oil fill cap/dipstick.
3. Check oil level as described in Checking Oil Level.
4. If needed, slowly pour oil into oil fill opening. Pause to permit oil to settle. Fill to upper limit mark on dipstick. DO NOT overfill.

NOTICE Overfilling with oil may cause the engine to not start, or hard starting.

• DO NOT overfill.

• If over the FULL mark on dipstick, drain oil to reduce oil level to FULL mark on dipstick.

• Replace oil fill cap/dipstick and fully tighten.

Changing Engine Oil

If you are using your pressure washer under extremely dirty or dusty conditions, or in extremely hot weather, change oil more often.

▲ CAUTION Avoid prolonged or repeated skin contact with used motor oil.

• Used motor oil has been shown to cause skin cancer in certain laboratory animals.
  • Thoroughly wash exposed areas with soap and water.

KEEP OUT OF REACH OF CHILDREN. DON'T POLLUTE. CONSERVE RESOURCES. RETURN USED OIL TO COLLECTION CENTERS.

Change oil while engine is still warm from running, as follows:

1. Drain fuel tank by running pressure washer until fuel tank is empty.
2. Disconnect spark plug wire and keep it away from spark plug.
3. Clean area around oil fill, remove oil fill cap/dipstick. Wipe dipstick clean.
4. Tip your pressure washer toward the oil fill neck to drain oil into a suitable container. When crankcase is empty, return pressure washer to upright position.
5. Slowly pour recommended oil (approximately 18 oz.) into oil fill opening. Pause to permit oil to settle. Fill to upper limit mark on dipstick.
6. Replace and tighten dipstick.
7. Wipe up any remaining oil.
8. Reconnect spark plug wire to spark plug.

Service Air Cleaner

Your engine will not run properly and may be damaged if you run it with a dirty air cleaner. Service more often if operating under dirty or dusty conditions. Replacements are available at your local Sears service center.

To service the air cleaner, follow these steps:

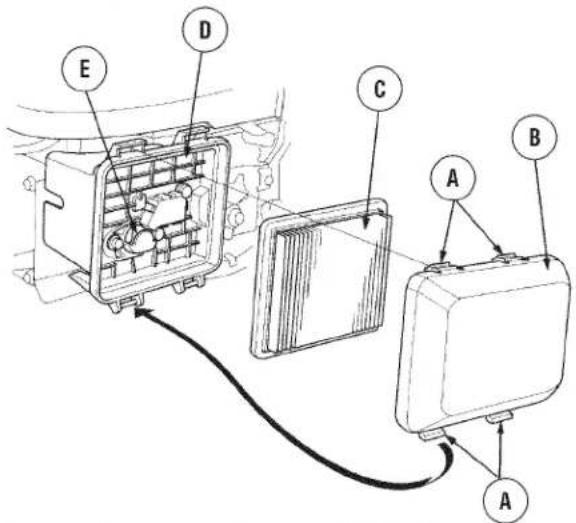

1. Press latch tabs (A) on top of air cleaner cover (B), and remove cover.

1. Carefully remove air cleaner (C) from base (D).

2. Clean air cleaner by tapping it several times on a hard surface to remove dirt, or blow compressed air (not to exceed 30 psi) through air cleaner from clean side that faces engine.

NOTICE NEVER try to brush off dirt. Brushing will force dirt into the fibers.

1. Wipe dirt from air cleaner body and cover using a moist rag. Be careful to prevent dirt from entering air duct (E) that leads to the carburetor.

2. Install clean (or new) air cleaner in base. Air cleaner must fit securely in base.

3. Reinstall air cleaner cover.

NOTICE You can purchase new air filter elements by calling 1-800-4-MY-HOME (469-4663).

Service Spark Plug

Changing the spark plug will help your engine to start easier and run better.

1. Disconnect the cap from the spark plug and clean area around spark plug.

2. Remove and inspect spark plug.

3. Replace spark plug if electrodes are worn, or if insulator is cracked or chipped.

4. For replacement, use recommended spark plug, NGK BPR6ES.

5. Check electrode gap with wire feeler gauge and set gap at 0.028-0.031 inches (0.70-0.80 mm), if necessary.

Line drawing of two hands holding a coiled spring or nut (no text or symbols)

6A. When reinstalling original spark plug, tighten 1/8-1/4 turn after the spark plug seats to compress the washer.

6B. When installing new spark plug, tighten 1/2 turn after the spark plug seats to compress the washer.

1. Attach the spark plug cap to the spark plug.

NOTICE You can purchase a new spark plug by calling 1-800-4-MY-HOME (469-4663).

Carburetor

If you think your carburetor needs adjusting, see your nearest Sears service center. Engine performance may be affected at altitudes above 5000 feet. For operation at higher elevations, contact your nearest Sears service center.

Inspect Muffler and Spark Arrester

Inspect the muffler for cracks, corrosion, or other damage. Remove the spark arrester, if equipped, and inspect for damage or carbon blockage. If replacement parts are required, make sure to use only original equipment replacement parts.

WARNING

Contact with muffler area can result in serious burns.

Exhaust heat/gases can ignite combustibles, structures or damage

fuel tank causing a fire.

• DO NOT touch hot parts and AVOID hot exhaust gases.
• Allow equipment to cool before touching.
• Keep at least 5 feet (152 cm) of clearance on all sides of pressure washer including overhead.
• It is a violation of California Public Resource Code, Section 4442, to use or operate the engine on any forest-covered, brush-covered, or grass-covered land unless the exhaust system is equipped with a spark arrester, as defined in Section 4442, maintained in effective working order. Other states or federal jurisdictions may have similar laws.

Contact the original equipment manufacturer, retailer, or dealer to obtain a spark arrester designed for the exhaust system installed on this engine.

- Replacement parts must be the same and installed in the same position as the original parts.

Clean and inspect the spark arrester as follows:

1. Remove the three 6 mm bolts (A) from the muffler protector (B), and remove the muffler protector.

1. Remove the two special screws (C) from the spark arrester, and remove the spark arrester (D) from muffler (E).
2. Use a brush to remove carbon deposits from the spark arrester screen. Be careful not to damage the screen.

NOTICE Replace spark arrester if it has breaks or holes.

1. Install clean (or new) spark arrester in reverse order of removal.

AFTER EACH USE

Water should not remain in the unit for long periods of time. Sediments or minerals can deposit on pump parts and "freeze" pump action. Follow these procedures after every use:

1. Shut off engine, turn off water supply, point gun in a safe direction, press red button and squeeze trigger to relieve trapped pressure and let engine cool.

WARNING The high pressure stream of water that this equipment produces can cut through skin and its underlying tissues, leading to serious injury and possible amputation.

Spray gun traps high water pressure, even when engine is stopped and water is disconnected, which can cause injury.

• Keep high pressure hose connected to pump and spray gun while system is pressurized.

• ALWAYS point spray gun in safe direction, press red button and squeeze spray gun trigger to release high pressure, every time you stop engine.

• Disconnect hose from spray gun and high pressure outlet on pump. Drain water from hose, gun, and nozzle extension. Use a rag to wipe off the hose.

• Empty pump of all pumped liquids by pulling recoil handle about 6 times. This should remove most liquid in pump.
• Coil high pressure hose on hose wrap provided on accessory tray.
• Store unit in a clean, dry area.
• If storing for more than 30 days see Long Term Storage on next page.

WARNING Fuel and its vapors are extremely

flammable and explosive.

Fire or explosion can cause severe burns or death.

WHEN STORING FUEL OR EQUIPMENT WITH FUEL IN TANK

- Store away from furnaces, stoves, water heaters, clothes dryers, or other appliances that have pilot light or other ignition source because they can ignite fuel vapors.

STORAGE

WINTER STORAGE

NOTICE You must protect your unit from freezing temperatures.

• Failure to do so will permanently damage your pump and render your unit inoperable.
• Freeze damage is not covered under warranty.

To protect the unit from freezing temperatures:

1. Follow steps 1-4 in the previous section After Each Use.
2. Use pump saver, available at Sears retail item 7174403, to treat pump. This minimizes freeze damage and lubricates pistons and seals.
3. If pump saver is not available, connect a 3-foot section of garden hose to water inlet adapter. Pour RV-antifreeze (antifreeze without alcohol) into hose. Pull recoil handle twice. Disconnect 3-foot hose.
4. Store unit in a clean, dry area.

LONG TERM STORAGE

If you do not plan to use the pressure washer for more than 30 days, you must prepare the engine and pump for long term storage.

It is important to prevent gum deposits from forming in essential fuel system parts such as the carburetor, fuel filter, fuel hose or tank during storage. Also, experience indicates that alcohol-blended fuels (called gasohol, ethanol or methanol) can attract moisture, which leads to separation and formation of acids during storage. Acidic gas can damage the fuel system of an engine while in storage.

Protect Fuel System

Fuel Additive:

If adding a fuel additive, fill the fuel tank with fresh fuel. If only partially filled, air in the tank will promote fuel deterioration during storage.

• Add fuel additive following manufacturer's instructions.
  • Make sure you have water supply to pump inlet connected and turned ON.
• Run the engine outdoors for several minutes to be sure that treated fuel has replaced the untreated fuel in the carburetor.

If fuel additive is not used, remove all fuel from tank and run engine until it stops from lack of fuel.

Draining Fuel Tank and Carburetor:

If fuel additive is not used, remove all fuel from tank and carburetor.

• Place an approved fuel container below carburetor and use a funnel to avoid spilling fuel.
• Remove carburetor drain bolt (A), then move fuel valve lever to "On" position.

Technical diagram of a mechanical assembly with labeled component A (no text or symbols beyond label)

- After all fuel has drained into container, reinstall drain bolt. Tighten both securely.

Change Engine Oil

While engine is still warm, drain oil from crankcase. Refill with recommended grade. See Changing Engine Oil.

Oil Cylinder Bore

• Remove spark plug. Squirt about a tablespoon of clean engine oil into the cylinder. Cover spark plug hole with rag. Pull recoil handle slowly to distribute oil. Avoid spray from spark plug hole.
  • Install spark plug. DO NOT connect spark plug wire.

Protect Pump

To protect the pump from damage caused by mineral deposits or freezing, use PumpSaver, item 7174403, to treat pump. This prevents freeze damage and lubricates pistons and seals.

NOTICE PumpSaver is available as an optional accessory. It is not included with the pressure washer. Contact your local Sears service center to purchase PumpSaver.

NOTICE You must protect your unit from freezing temperatures.

• Failure to do so will permanently damage your pump and render your unit inoperable.
• Freeze damage is not covered under warranty.

To use PumpSaver, make sure the pressure washer is turned off and disconnected from supply water. Read and follow all instructions and warnings given on the PumpSaver container.

Other Storage Tips

1. DO NOT store fuel from one season to another unless it has been treated as described in Protect Fuel System.
2. Replace fuel container if it starts to rust. Rust and/or dirt in fuel can cause problems if it's used with this unit.
3. Cover unit with a suitable protective cover that does not retain moisture.

▲ WARNING Storage covers can be flammable.

• DO NOT place a storage cover over a hot pressure washer.
- Let equipment cool for a sufficient time before placing the cover on the equipment.

1. Store unit in a clean and dry area.

TROUBLESHOOTING

Problem	Cause	Correction
Pump has following problems: failure to produce pressure, erratic pressure, chattering, loss of pressure, low water volume.	1.Low pressure nozzle installed.2.Water inlet is blocked.3.Inadequate water supply.4.Inlet hose is kinked or leaking.5.Clogged inlet hose strainer.6.Water supply is over 100°F.7.High pressure hose is blocked or leaks.8.Gun leaks.9.Nozzle is obstructed.10.Pump is faulty.	1.Replace nozzle with high pressure nozzle.2.Clear inlet.3.Provide adequate water flow.4.Straighten inlet hose, patch leak.5.Check and clean inlet hose strainer.6.Provide cooler water supply.7.Clear blocks in outlet hose.8.Replace gun.9.Clean nozzle.10.Contact Sears service facility.
Detergent fails to mix with spray.	1.Detergent siphoning tube is not submerged.2.Detergent siphoning tube/filter is clogged or cracked.3.High pressure nozzle installed.	1.Insert detergent siphoning tube into detergent.2.Clean or replace filter/detergent siphoning tube.3.Replace nozzle with low pressure nozzle.
Engine will not start; or starts and runs rough.	1.Fuel valve is in “Off” position.2.Engine stop switch in “Off” position.3.Low oil level.4.Dirty air cleaner.5.Out of fuel.6.Stale fuel.7.Spark plug wire not connected to spark plug.8.Bad spark plug.9.Water in fuel.10.Overchoking.11.Excessively rich fuel mixture.12.Intake valve stuck open or closed.13.Engine has lost compression.	1.Turn fuel valve to “On” position.2.Place engine stop switch in “On” position.3.Fill crankcase to proper level.4.Clean or replace air cleaner.5.Fill fuel tank.6.Drain fuel tank; fill with fresh fuel.7.Connect wire to spark plug.8.Replace spark plug.9.Drain fuel tank; fill with fresh fuel.10.Open choke fully and crank engine.11.Contact Sears service facility.12.Contact Sears service facility.13.Contact Sears service facility.
Engine shuts down during operation.	Out of fuel.	Fill fuel tank.
Engine lacks power.	Dirty air filter.	Replace air filter.
Engine “hunts” or falters.	Choke is opened too soon.	Move choke to halfway position until engine runs smoothly.

PARTS

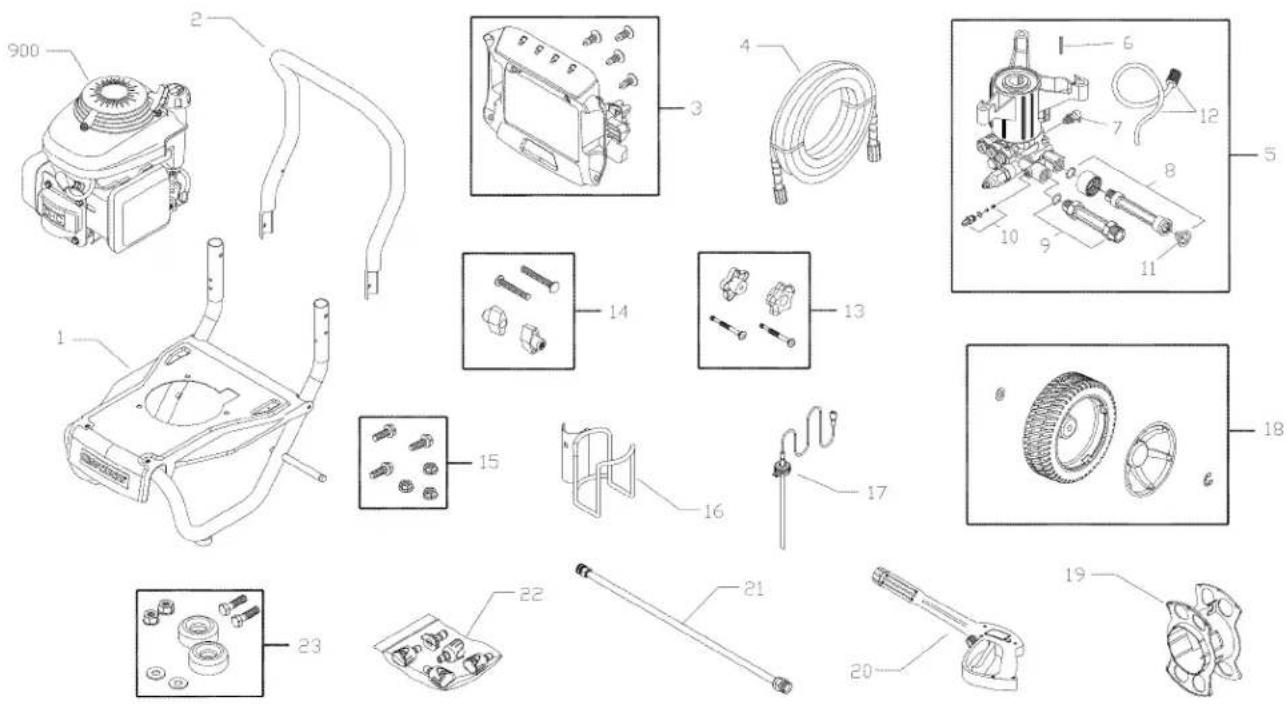

CRAFTSMAN 3000 PSI Pressure Washer 580.752630 Main Unit — Exploded View and Parts List

Item	Part #	Description	Item	Part #	Description
1	205961GS	BASE	23	192310GS	MOUNT-VIBRATION
2	B204257GS	HANDLE	900	NSP	ENGINE (GCV190LAN5AF) (see pages 26-28)
3	209260GS	BILLBOARD
	B1797GS	CLIP
4	205291GS	HOSE	Parts Not Illustrated
5	209261GS	PUMP	Part #		Description
6	23139DGS	KEY	208718GS		MANUAL-OPERATOR'S
7	208673GS	VALVE-THERMAL RELIEF	AB3061BGS		OIL BOTTLE
8	201496GS	KIT-WATER INLET	189332GS		PLUG-HOLE
9	201497GS	FITTING	208538GS		DECAL-SPARK
10	192914GS	KIT-CHEMICAL INJ	194256GS		TAG-WARNING
11	B2384GS	FILTER-GARDEN HOSE
12	189971GS	KIT-CHEMICAL HOSE	Optional Accessories		Not Illustrated
13	205910GS	KIT-HARDWARE HANDLE	7175187		Garden Hose Quick Connect
14	B2203GS	KIT-HARDWARE HANDLE	7175197		Accessory Quick Connect
15	200199GS	KIT-HARDWARE PUMP MOUNTING	7175124		Rotating Brush Kit
16	206566GS	WIREFORM	7175122		30' Replacement Hose
17	204658GS	HOSE	7175116		O Ring Repair Kit
18	205964GS	KIT-WHEEL	7175129		Turbo Nozzle
	192050GS	E-RING	7175121		25' Extension Hose
	200517GS	CAP-HUB	7174402		Hose Reel
19	204684GS	WRAP-HOSE	7174403		Pump Saver
20	204627GS	GUN	7174404		Project Pro® PerfectMixTM Multi-Purpose and Vehicle Cleaner
21	200595GS	EXTENSION-QC
22	205710GS	KIT-QC NOZZLES	7174405		Project Pro® PerfectMixTM Concrete, Brick, and Tile Cleaner
	198841GS	NOZZLE-QC BLACK
	201580AWGS	NOZZLE-QC CYN	7174406		Project Pro® PerfectMixTM Mold and Mildew Cleaner
	201580AXGS	NOZZLE-QC MGNTA
	201580XGS	NOZZLE-QC ORANGE
	201580AAGS	NOZZLE-QC RED

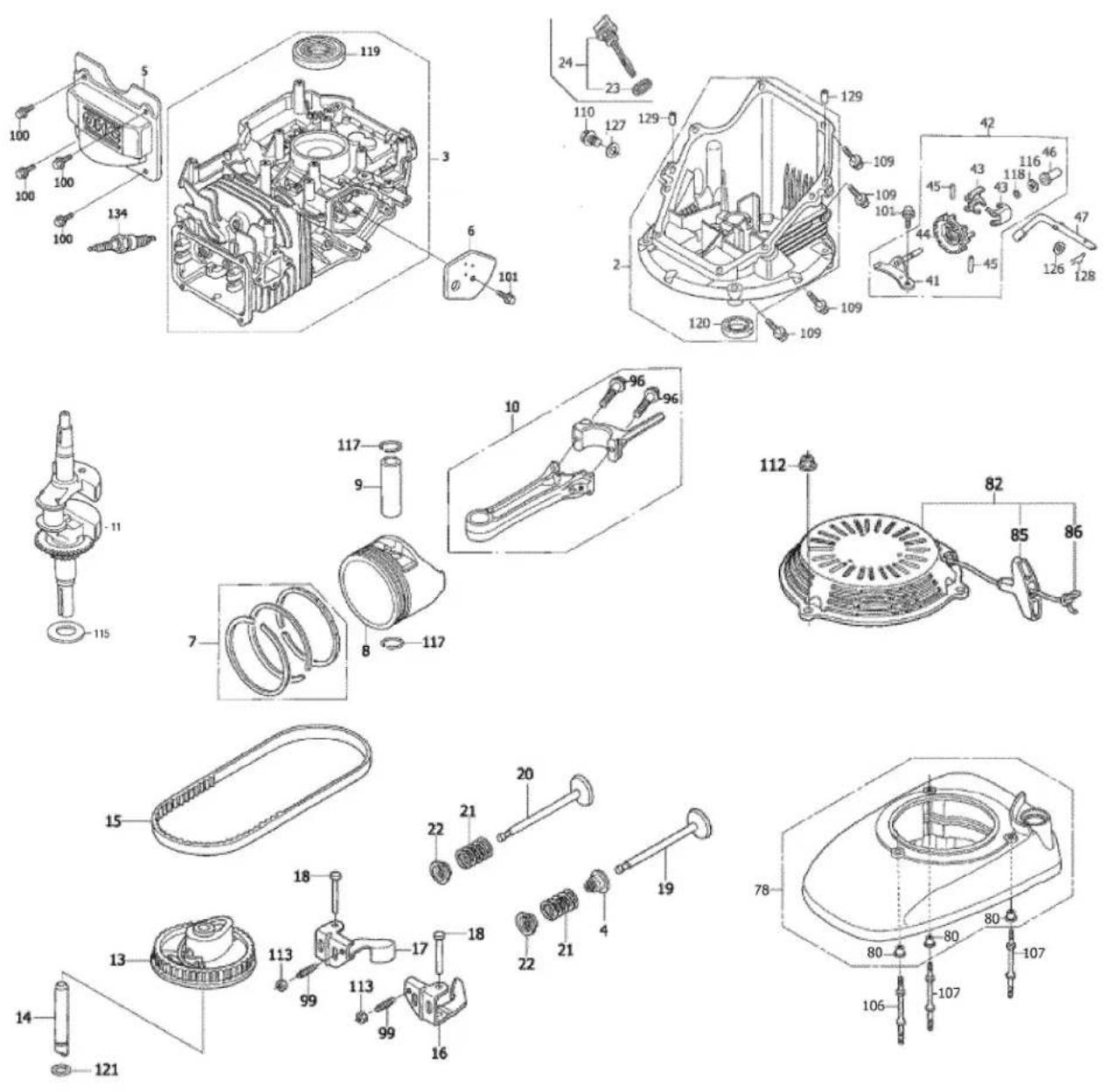

ENGINE, Honda, GCV190LAN5AF – Exploded View

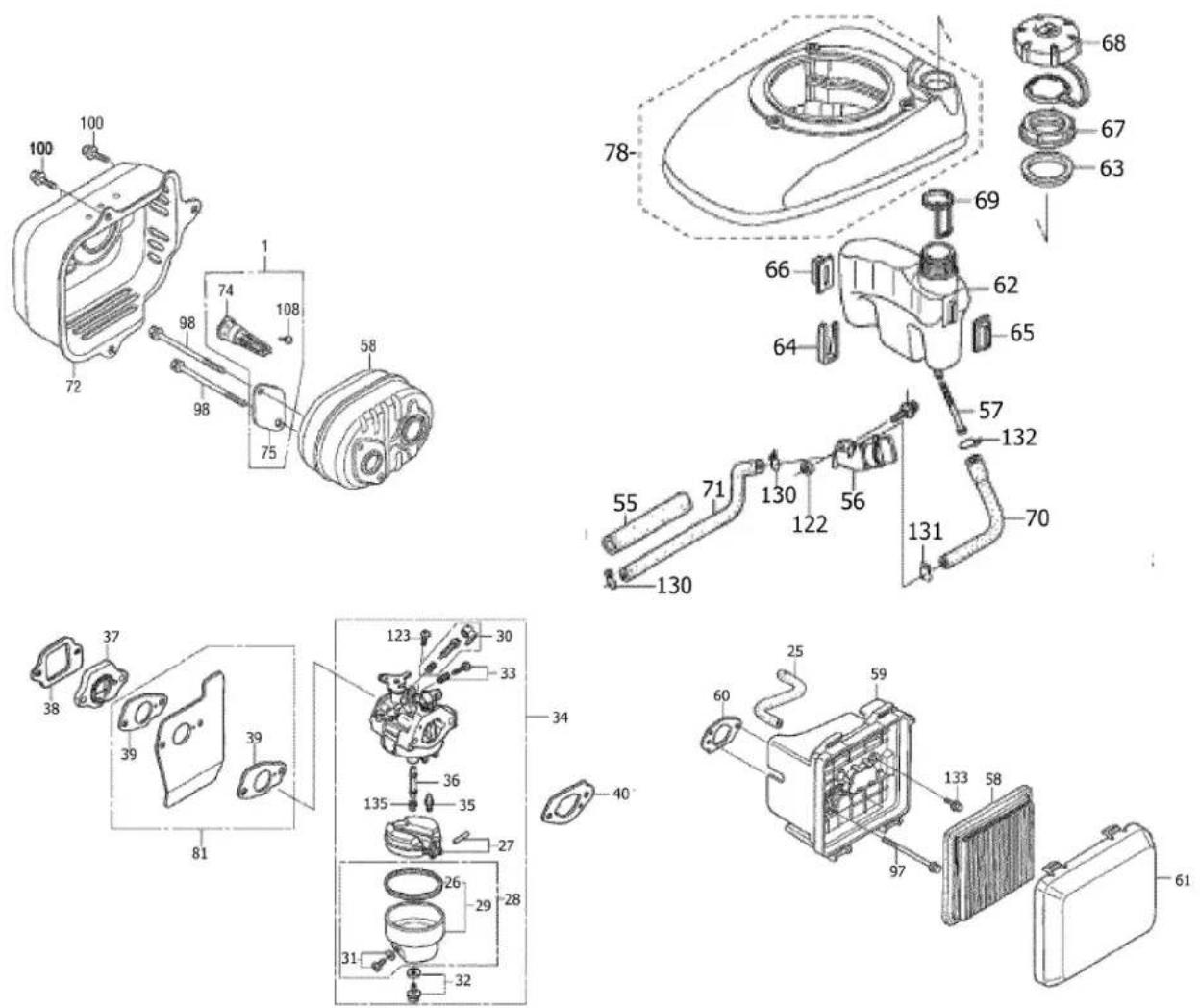

ENGINE, Honda, GCV190LAN5AF – Exploded View

ENGINE, Honda, GCV190LAN5AF – Parts List

Item	Part #	Description	Item	Part #	Description
1	06180-Z0J-000	ARRESTER KIT, SPARK	70	17701-Z0L-810	TUBE, FUEL TANK
2	11300-Z0L-821	PAN ASSY., OIL (SAE)	71	17702-ZM0-800	TUBE, FUEL
3	12000-Z0Y-010	CYLINDER ASSY	72	18310-Z0Y-000	MUFFLER
4	12209-ZM0-003	SEAL, VALVE STEM	73	18321-Z0L-000	PROTECTOR, MUFFLER
5	12310-Z0J-000	COVER, CYLINDER HEAD	74	18350-ZL8-000	ARRESTER, SPARK
5	12311-ZL8-000	COVER, HEAD	75	18356-ZL8-000	PLATE, ARRESTER NUMBER
5	12311-ZL8-D00	COVER, HEAD	76	18381-ZL8-305	GASKET, MUFFLER
6	12355-ZL8-000	COVER, BREATHER VALVE ASSY	77	19511-Z0J-900	FAN, COOLING
7	13010-Z0Y-014	RING SET, PISTON (STD)	78	19610-Z0L-850ZA	COVER, FAN *NH1* (BLACK)
8	13101-Z0Y-010	PISTON	78	19610-Z0L-850ZE	COVER, FAN *R280* (RED)
9	13111-Z0Y-000	PIN, PISTON	79	19612-Z0L-000	PLATE, SIDE
10	13200-Z0Y-010	ROD ASSY., CONNECTING	80	19619-ZL8-300	COLLAR, FAN COVER
11	13310-Z0Y-650	CRANKSHAFT	81	19650-ZM0-000	GUIDE, AIR
12	13331-357-000	KEY, SPECIAL WOODRUFF (25X18)	82	28400-Z1A-013ZA	STARTER ASSY RECOIL NH1(BLACK)
13	14320-Z0Y-000	PULLEY, CAMSHAFT	82	28400-Z1A-013ZB	STARTER ASSY RECOIL R280(RED)
14	14324-ZL8-000	SHAFT, CAM PULLEY	83	28451-Z0J-900	PULLEY, STARTER
15	14400-Z0J-014	BELT, TIMING (84HU7 G-200)	84	28452-Z0J-900	GRID, SCREEN
16	14431-Z0J-000	ARM, IN. VALVE ROCKER	85	28461-ZL8-003	GRIP, STARTER
17	14441-Z0J-000	ARM, EX VALVE ROCKER	86	28462-ZL8-003	ROPE, RECOIL STARTER
18	14461-ZL8-000	SHAFT, ROCKER ARM	87	30500-Z0J-003	COIL ASSY IGNITION (PHELON)
19	14711-Z0J-000	VALVE, IN. (ROCKNEL)	88	30500-Z0J-004	COIL ASSY, IGNITION (TOYO)
19	14711-ZL8-000	VALVE, IN. (TECHNOSTAR)	89	31110-Z0J-004	FLYWHEEL
20	14721-ZL8-000	VALVE, EX	90	31110-Z0J-013	FLYWHEEL (PHELON)
21	14751-ZL8-000	SPRING, VALVE	91	35120-Z0L-801	SWITCH ASSY, ENGINE STOP
22	14771-Z0J-000	RETainer, VALVE SPRING	91	35120-Z0L-901	SWITCH ASSY, ENGINE STOP
23	15625-Z2L-801	GASKET, OIL FILLER CAP	92	90681-959-003	CLIP A, CABLE (3.8MM BLACK)
24	15650-Z0L-000	GAUGE ASSY., OIL LEVEL	93	87101-Z0Y-010	MARK, EMBLEM (GCV190)
25	15721-ZM0-000	TUBE, BREATHER	94	87114-ZH7-821	LABEL, WARNING
26	16010-883-015	GASKET, SET	95	87528-ZL8-000	MARK, CHoke
27	16013-ZL1-003	FLOAT SET	96	90001-ZE1-000	BOLT, CONNECTING ROD
28	16015-887-782	CHAMBER SET, FLOAT	97	90003-ZM0-000	BOLT, FLANGE (6X86) (CT200)
29	16015-Z0L-881	CHAMBER SET, FLOAT	97	90003-ZM0-010	BOLT, FLANGE (6X83.5) (CT200)
30	16016-ZG0-W00	SCREW SET	98	90004-ZL8-000	BOLT, FLANGE (6X79) (CT200)
31	16024-ZE1-811	SCREW SET, DRAIN	99	90012-333-000	SCREW, TAPPET ADJUSTING
32	16028-ZE0-005	SCREW SET	100	90013-883-000	BOLT, FLANGE (6X12) (CT200)
33	16029-ZG0-901	SCREW SET (THROTTLE STOP)	101	90014-952-000	BOLT, FLANGE (6X14) (CT200)
34	16100-Z0Y-811	CARBURETOR ASSY. (BB65B A)	102	90015-ZE5-010	BOLT, GOVERNOR ARM
35	16155-ZM0-013	VALVE, FLOAT	103	90016-ZE8-000	BOLT, FLANGE (6X45) (CT200)
36	16166-Z0Y-003	NOZZLE, MAIN	104	90018-ZE1-000	BOLT, FLANGE (6X23) (CT200)
37	16211-ZL8-000	INSULATOR, CARBURETOR	105	90022-888-010	BOLT, FLANGE (6X20) (CT200)
38	16212-ZL8-000	GASKET, INSULATOR	106	90043-Z0J-900	BOLT, STUD (H=39.5MM)
39	16221-883-800	GASKET, CARBURETOR	107	90043-ZL8-000	BOLT, STUD (H=42.5MM)
40	16228-ZL8-000	GASKET, CARBURETOR	108	90055-ZE1-000	SCREW, TAPPING (4X6)
41	16508-ZM0-010	SHAFT, GOVERNOR HOLDER	109	90121-952-000	BOLT, FLANGE (6X25) (CT200)
42	16510-ZM0-010	GOVERNOR ASSY	110	90131-896-650	BOLT, DRAIN PLUG
43	16511-ZL8-000	WEIGHT, GOVERNOR	111	90201-Z0T-800	NUT, SPECIAL (14MM)
44	16512-ZM0-000	HOLDER, GOVERNOR WEIGHT	112	90201-ZM0-000	NUT, FLANGE (6MM)
45	16513-ZE1-000	PIN, GOVERNOR WEIGHT	113	90206-001-000	NUT, TAPPET ADJUSTING
46	16531-ZE1-000	SLIDER, GOVERNOR	114	90213-S3Y-000	NUT, FLANGE (14MM)
47	16541-ZM0-000	SHAFT, GOVERNOR ARM	115	90402-ZL8-000	WASHER, THRUST
48	16551-ZM0-010	ARM, GOVERNOR	116	90451-ZE1-000	WASHER, THRUST (6MM)
49	16555-Z0L-800	ROD, GOVERNOR	117	90551-ZE0-000	CLIP, PISTON PIN (13MM)
50	16555-Z0L-801	ROD, GOVERNOR	118	90602-ZE1-000	CLIP, GOVERNOR HOLDER
51	16561-ZM0-V30	SPRING, THROTTLE RETURN	119	91201-Z0Y-003	OIL SEAL (25.4X62X6)
52	16580-Z0L-800	BASE, CONTROL	120	91202-ZM0-V31	OIL SEAL (28X41.25X6)
53	16613-893-000	GROMMET, CHOKE ROD	121	91301-ZM0-V31	O-RING (6.8X1.9) (ARAI)
54	16674-Z0L-800	ROD, CHOKE	122	91501-Z0L-800	COLLAR, FUEL PETCOCK
55	16854-ZH8-000	RUBBER, SUPPORTER (107MM)	123	93500-05006-OH	SCREW, PAN (5X6)
56	16950-ZM0-003	PETCOCK ASSY	124	93891-05010-08	SCREW-WASHER (5X10)
57	16952-ZA8-800	FILTER, FUEL	125	94050-06000	NUT, FLANGE (6MM)
58	17211-ZL8-023	ELEMENT, AIR CLEANER	126	94101-06800	WASHER, PLAIN (6MM)
59	17220-ZM0-000	CASE ASSY., AIR CLEANER	127	94109-12000	WASHER, DRAIN PLUG (12MM)
60	17228-ZM0-000	GASKET, AIR CLEANER	128	94251-08000	PIN, LOCK (8MM)
61	17231-Z0L-030	COVER, AIR CLEANER	129	94301-08200	PIN, DOWEL (8X20)
62	17511-Z0L-000	TANK, FUEL	130	95002-02080	CLIP, TUBE (B8)
62	17511-Z0L-010	TANK, FUEL	131	95002-02100	CLIP, TUBE (B10)
63	17514-Z0L-000	SEAL, FUEL FILLER NECK	132	95002-70000	CLIP, TUBE (C11)
64	17516-Z0L-000	CLIP, TANK MOUNTING	133	95701-06014-08	BOLT, FLANGE (6X14)
65	17532-Z0L-000	RUBBER A, TANK MOUNTING	134	98079-56846	SPARK PLUG (BRPGES) (NGK)
66	17533-Z0L-000	RUBBER B, TANK MOUNTING	135	99101-124-0650	JET, MAIN (#65)
67	17534-Z0L-000	NUT, TANK MOUNTING	135	99101-124-0680	JET, MAIN (#68)
68	17620-Z0J-800	CAP ASSY., FUEL TANK	135	99101-124-0700	JET, MAIN (#70)
69	17636-Z0L-000	GAUGE, FUEL LEVEL

NOTES

EMISSION CONTROL SYSTEM WARRANTY

California, U.S. EPA, and Sears Emissions Control Warranty Statement

Your Warranty Rights And Obligations

The California Air Resources Board, U.S. EPA, and Sears, Roebuck and Co., U.S.A. (Sears) are pleased to explain the emissions control system warranty on your Model Year 2008 and later engine/equipment. In California, new small off-road engines must be designed, built, and equipped to meet the State's stringent anti-smog standards. Sears must warrant the emissions control system on your engine/equipment for the periods of time listed below provided there has been no abuse, neglect, or improper maintenance of your small off-road engine.

Your emissions control system may include parts such as the carburetor or fuel injection system, fuel tank, ignition system, and catalytic converter. Also included may be hoses, belts, connectors, sensors, and other emissions-related assemblies. Where a warrantable condition exists, Sears will repair your engine/equipment at no cost to you including diagnosis, parts, and labor.

Manufacturer's Warranty Coverage:

Small off-road engines are warranted for two years. If any emissions-related part on your engine/equipment is defective, the part will be repaired or replaced by Sears.

Owner's Warranty Responsibilities:

• As the small engine/equipment owner, you are responsible for the performance of the required maintenance listed in your owner's manual. Sears recommends that you retain all receipts covering maintenance on your engine/equipment, but Sears cannot deny warranty solely for the lack of receipts or your failure to ensure the performance of all scheduled maintenance.
• As the engine/equipment owner, you should however be aware that Sears may deny you warranty coverage if your engine/equipment or a part has failed due to abuse, neglect, improper maintenance, or unapproved modifications.
• You are responsible for presenting your engine/equipment to a Sears distribution center, servicing dealer, or other equivalent entity, as applicable, as soon as a problem exists. The warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days. If you have any questions regarding your warranty rights and responsibilities, you should contact Sears at [phone].

Sears Emissions Control Warranty Provisions

The following are specific provisions relative to your Emissions Control Warranty Coverage. It is in addition to the Sears engine warranty for non-regulated engines found in the Operator's Manual.

1. Warranted Emissions Parts

Coverage under this warranty extends only to the parts listed below (the emissions control systems parts) to the extent these parts were present on the engine purchased.

a. Fuel Metering System
• Cold start enrichment system (soft choke)
• Carburetor and internal parts
- Fuel pump
• Fuel line, fuel line fittings, clamps
- Fuel tank, cap and tether
- Carbon canister

b. Air Induction System

• Air cleaner
• Intake manifold
• Purge and vent line

c. Ignition System

• Spark plug(s)
  • Magneto ignition system

d. Catalyst System

• Catalytic converter
• Exhaust manifold
  • Air injection system or pulse valve

e. Miscellaneous Items Used in Above Systems

• Vacuum, temperature, position, time sensitive valves and switches
- Connectors and assemblies

1. Length of Coverage

For a period of two years from date of original purchase, Sears warrants to the original purchaser and each subsequent purchaser that the engine is designed, built, and equipped so as to conform with all applicable regulations adopted by the Air Resources Board; that it is free from defects in material and workmanship that could cause the failure of a warranted part; and that it is identical in all material respects to the engine described in the manufacturer's application for certification. The warranty period begins on the date the engine is originally purchased.

The warranty on emissions-related parts is as follows:

- Any warranted part that is not scheduled for replacement as required maintenance in the owner's manual supplied, is warranted for the warranty period stated above. If any such part fails during the period of warranty coverage, the part will be repaired or replaced by Sears at no charge to the owner. Any such part repaired or replaced under the warranty will be warranted for the remaining warranty period.

- Any warranted part that is scheduled only for regular inspection in the owner's manual supplied, is warranted for the warranty period stated above. Any such part repaired or replaced under warranty will be warranted for the remaining warranty period.

- Any warranted part that is scheduled for replacement as required maintenance in the owner's manual supplied, is warranted for the period of time prior to the first scheduled replacement point for that part. If the part fails prior to the first scheduled replacement, the part will be repaired or replaced by Sears at no charge to the owner. Any such part repaired or replaced under warranty will be warranted for the remainder of the period prior to the first scheduled replacement point for the part.

- Add on or modified parts that are not exempted by the Air Resources Board may not be used. The use of any non exempted add on or modified parts by the owner will be grounds for disallowing a warranty claim. The manufacturer will not be liable to warrant failures of warranted parts caused by the use of a non exempted add on or modified part.

1. Consequential Coverage

Coverage shall extend to the failure of any engine components caused by the failure of any warranted emissions parts.

1. Claims and Coverage Exclusions

Warranty claims shall be filed according to the provisions of the Sears engine warranty policy. Warranty coverage does not apply to failures of emissions parts that are not original equipment Sears parts or to parts that fail due to abuse, neglect, or improper maintenance as set forth in the Sears engine warranty policy. Sears is not liable for warranty coverage of failures of emissions parts caused by the use of add-on or modified parts.

Look For Relevant Emissions Durability Period and Air Index Information On Your Engine Emissions Label

Engines that are certified to meet the California Air Resources Board (CARB) Emissions Standard must display information regarding the Emissions Durability Period and the Air Index. The engine manufacturer makes this information available to the consumer on emissions labels. The engine emissions label will indicate certification information.

The Emissions Durability Period describes the number of hours of actual running time for which the engine is certified to be emissions compliant, assuming proper maintenance in accordance with the Operating & Maintenance Instructions. The following categories are used:

Moderate: Engine is certified to be emissions compliant for 125 hours of actual engine running time.

Intermediate: Engine is certified to be emissions compliant for 250 hours of actual engine running time.

Extended: Engine is certified to be emissions compliant for 500 hours of actual engine running time.

For example, a typical walk-behind lawn mower is used 20 to 25 hours per year. Therefore, the Emissions Durability Period of an engine with an intermediate rating would equate to 10 to 12 years.

Small off-road engines are certified to meet the United States Environmental Protection Agency (USEPA) Phase 2 emissions standards. For Phase 2 certified engines, the Emissions Compliance Period referred to on the Emissions Compliance label indicates the number of operating hours for which the engine has been shown to meet Federal emissions requirements.

For engines less than 225 cc displacement.

Category C = 125 hours

Category B = 250 hours

Category A = 500 hours

For engines of 225 cc or more displacement.

Category C = 250 hours

Category B = 500 hours

Category A = 1000 hours

TABLA DE CONTENIDOS

Sears, Roebuck and Co., Hoffman Estates, IL 60179

Agregue Aceite de Motor

Line drawing of a medical or laboratory tool with a handle and screw-like component (no text or symbols)

Technical line drawing of two threaded fasteners or connectors (no text or symbols)

Technical line drawing of a mechanical component with labeled part B (no text or symbols beyond label)

Line drawing of two hands holding a connector with a threaded tube (no text or symbols)

Technical line drawing of a mechanical component with two views: top shows a cylindrical component, bottom shows a threaded fastener (no text or symbols)

Line drawing of a person using a lawn mower to clean or adjust equipment (no text or symbols)

Technical line drawing of a mechanical device with gears and shafts (no text or symbols)

Black-and-white photo of a person cleaning or sweeping indoors, no visible text or symbols

Medical device component labeled MAX, showing a black and white body with a metallic connector (no text or symbols on the device itself)

Silhouette of a person operating a handheld device near a circular object (no visible text or symbols)

Black-and-white photo of a person standing near a doorway in front of a building with windows (no visible text or symbols)

Black-and-white illustration of a person observing a large fire or explosion in an arched doorway (no text or symbols visible)

Close-up of a metallic mechanical component with a circular logo above it (no readable text or symbols)

Person spraying water outdoors near a building (no visible text or symbols)

Technical line drawing of a connector with threaded ends and a cross-sectional view (no text or symbols)

Line drawing of two hands holding a screw component (no text or symbols)

Technical diagram of a vehicle engine compartment showing internal components and a labeled component (A), with no readable text or symbols beyond the label.

Get it fixed, at your home or ours!

Your Home

For expert troubleshooting and home solutions advice:

manage

home

www.managemyhome.com

For repair – in your home – of all major brand appliances, lawn and garden equipment, or heating and cooling systems, no matter who made it, no matter who sold it!

For the replacement parts, accessories and owner's manuals that you need to do-it-yourself.

For Sears professional installation of home appliances and items like garage door openers and water heaters.

1-800-4-MY-HOME®

(1-800-469-4663)

Call anytime, day or night (U.S.A. and Canada)

www.sears.com

www.sears.ca

Our Home

For repair of carry-in items like vacuums, lawn equipment, and electronics, call anytime for the location of your nearest

Sears Parts & Repair Service Center

1-800-488-1222 (U.S.A.)

www.sears.com

1-800-469-4663 (Canada)

www.sears.ca

To purchase a protection agreement on a product serviced by Sears:

1-800-827-6655 (U.S.A.)

1-800-361-6665 (Canada)
