USER MANUAL CMEPW2800 Craftsman

English (original instructions) 6

1 Frame handle
2 ON/OFF switch
3 Spray wand
4 Quick connect collar
5 Spray handle
6 Spray handle grip
7 Trigger lock-off
8 Trigger
9 Pressure washer unit
10 Pump valve
11 Garden hose water intake
12 High pressure water outlet
13 High pressure hose
14 Spray handle storage hook
15 Power cord storage hook
16 Hose storage hook
17 Black turbo nozzle
18 15° Orange nozzle
19 25° Green nozzle
20 40° White nozzle
21 Soap nozzle
22 Nozzle cleaning tool
23 Soap tank
24 Soap tank cap
25 Soap outlet
26 Soap hose
27 Soap intake port
28 Power cord
29 GFCI plug
30 Wheels
31 Frame

CRAFTSMAN 38

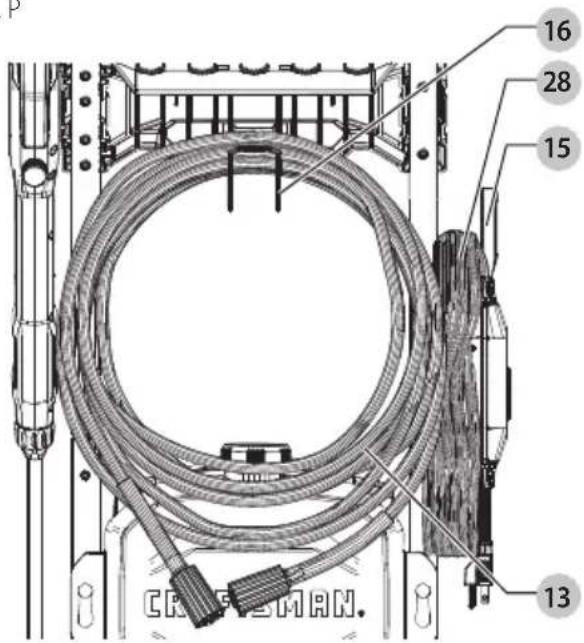

Fig. P

16 28 15 13 CR # S M A N.

English

WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

WARNING: To reduce the risk of injury, read the instruction manual.

Intended Use

The CMEPW2800 is intended for household use only. You can use this pressure washer for cleaning boats, cars, decks, driveways, grills, house siding, motorcycles, patios, and outdoor furniture.

DO nOT let children come into contact with the tool. Supervision is required when inexperienced operators use this tool.

SPECIFICATIONS

Maximum Pounds per Square Inch* 2800
Rated Gallons per Minute* 1.1
Electrical Requirements 120V	AC ~60Hz, 13A
Electrical Cord 35 ft. (10.6 m)
High Pressure Hose 25 ft. (7.6 m)
Minimum Amp Source 15A
Pressure of Inlet Water 20–100 PSI
Inlet Water Cold Tap
Soap Consumption Rate 10% MAX

*Water flow and maximum pressure ratings determined in accordance with CETA CPC-100.

Definitions: Safety Alert Symbols and Words

This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk of personal injury or property damage.

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

(Used without word) Indicates a safety related message.

NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: When using this pressure washer, basic safety precautions should always be followed including the following:

• Read all the instructions before using the product.
  • To reduce the risk of injury, close supervision is necessary when a product is used near children.

• Know how to stop the product and bleed pressures quickly. Be thoroughly familiar with the controls.

• Stay alert – watch what you are doing.
• Do not operate the product when fatigued or under the influence of alcohol or drugs.
• Keep operating area clear of all persons.
• Do not overreach or stand on unstable support. Keep good footing and balance at all times.
• Follow the maintenance instructions specified in the manual.
• This product is provided with a ground fault circuit interrupter built into the power cord plug. If replacement of the plug or cord is needed, use only identical replacement parts.

WARNING: Risk of injection or injury – do not direct discharge stream at persons.

SAVE THESE INSTRUCTIONS

WARNING: Read this entire manual before attempting to assemble, operate or install the product.

WARNING: This unit was designed for specific applications. It should not be modified and/or used for any application other than that which it was designed.

NOTICE: Always store your pressure washer in a location where the temperature will not fall below 40 °F (4 °C). damage is not covered by the warranty.

1. Do not touch plug or outlet with wet hands.
2. Avoid accidental starts. Move switch on unit to OFF position before connecting or disconnecting cord to electrical outlets.
3. Water spray must never be directed towards any electric wiring or directly towards the pressure washer machine itself or fatal electric shock may occur.
4. Never carry your pressure washer by the cord. Do not pull on the cord to disconnect from the outlet.
5. To prevent damage, the cord should not be crushed, placed next to sharp objects or near a heat source.
6. Check power cords before using. Damaged cords can reduce performance of pressure washer or cause a fatal electrical shock.
7. The narrow pinpoint stream is very powerful. It is not recommended for use on painted surfaces, wood surfaces or items attached with an adhesive backing.
8. Keep operating area clear of all persons and animals.
9. Always use both hands when operating pressure washer to maintain complete control of the wand.
10. Do not touch nozzle or water spray while operating. Never place hands in front of nozzle.
11. Wear safety goggles while operating. Wear protective clothing and footwear to protect against accidental spraying.
12. Disconnect power plug from the outlet when not in use and prior to the detaching of the high pressure hose.
13. Never tie knots or kink the high pressure hose as damage could result. Inspect the high pressure

hose regularly. Replace the hose immediately if it is damaged, worn, or shows any signs of cracks, bubbles, pinholes, or other leakage. Never grasp a high pressure hose that is leaking or damaged.

1. Do not operate or store this product in temperatures below 40 °F ( 4 °C ). Freeze damage is not covered by the warranty.
2. Carefully observe all chemical instructions and warnings before using. Use only approved pressure washer cleaners. Do not use bleach, chlorine, or any cleaners containing acids. Always follow manufacturer's label recommendations for proper use of cleaners. Always protect eyes, skin and respiratory system from cleaners.
3. The pressure washer should not be used in areas where gas vapors may be present. An electric spark could cause an explosion or fire.
4. To minimize the amount of water sprayed on the pressure washer, the unit should be placed as far as possible from the cleaning site during operation.
5. To prevent accidental discharge, the spray gun should be secured by locking the trigger when not in use.
6. To allow free air circulation, the pressure washer should NOT be covered during operation.
7. Never touch, grasp or attempt to cover a pinhole or similar water leak on the high pressure hose. The stream of water IS under high pressure and WILL penetrate skin.
8. Use only hoses and accessories rated for pressure higher than your pressure washer's psi. Never use with any other manufacturer's accessories or components.
9. Never defeat the safety features of this product.
10. Do not operate machine with missing, broken or unauthorized parts.
11. Never spray flammable liquids or use pressure washer in areas containing combustible dust, liquid, or vapors.

Ground Fault Circuit Interrupter Protection

This pressure washer is provided with a ground-fault circuit-interrupter (GFCI) built into the plug of the power supply cord. This device provides additional protection from the risk of electric shock. Should replacement of the plug or cord become necessary, use only identical replacement parts that include GFCI protection.

Extension Cords

Use only extension cords that are intended for outdoor use. These extension cords are identified by a marking: "Acceptable for use with outdoor appliances; store indoors while not in use." Use only extension cords having an electrical rating not less than the rating of the product. Do not use damaged extension cords. Examine extension cord before using and replace if damaged. Do not abuse extension cord and do not yank on any cord to disconnect. Keep cord away from heat and sharp edges. Always disconnect the extension cord from the receptacle before disconnecting the product from the extension cord.

WARNING: To reduce the risk of electrocution, keep all connections dry and OFF the ground. Do not touch plug with wet hands.

Servicing of Double Insulated Appliances

Your appliance is double insulated to give you added safety. In a double insulated appliance, two systems of insulation are provided instead of grounding. No grounding means is provided on a double insulated appliance, nor should a means for grounding be added to the appliance. Servicing a double insulated appliance requires extreme care and knowledge of the system and should be done only by qualified service personnel. Replacement parts for a double insulated appliance must be identical to the parts they replace. A double insulated appliance is marked with the words double insulated or "double insulation." The symbol ☐ (square within a square) may also be marked on the appliance.

Additional Safety Information

WARNING: Never modify the power tool or any part of it. Damage or personal injury could result.

WARNING: ALWAYS use safety glasses. Everyday ey glasses are NOT safety glasses. Also use face or dust mask if operation is dusty. ALWAYS WEAR CERTIFIED SAFETY EQUIPMENT:

• ANSI Z87.1 eye protection (CAN/CSA Z94.3),
• ANSI S12.6 (S3.19) hearing protection,
• NIOSH/OSHA/MSHA respiratory protection.

WARNING: Some dust contains chemicals known to cause of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• compounds in fertilizers,
• compounds in insecticides, herbicides and pesticides,
• arsenic and chromium from chemically treated lumber. To reduce your exposure to these chemicals, wear approved safety equipment such as dust masks that are specially designed to filter out microscopic particles.

- Avoid prolonged contact with dust from power sanding, sawing, grinding, drilling, and other construction activities. Wear protective clothing and wash exposed areas with soap and water. Allowing dust to get into your mouth, eyes, or lay on the skin may promote absorption of harmful chemicals.

WARNING: Use of this tool can generate and/or disperse dust, which may cause serious and permanent respiratory or other injury. Always use NIOSH/OSHA approved respiratory protection appropriate for the dust exposure. Direct particles away from face and body.

• Air vents often cover moving parts and should be avoided. Loose clothes, jewelry or long hair can be caught in moving parts.
- An extension cord must have adequate wire size (AWG or American Wire Gauge) for safety. The smaller the gauge number of the wire, the greater the capacity of the cable, that is, 16 gauge has more capacity than 18 gauge. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. When

ENGLISH

using more than one extension to make up the total length, be sure each individual extension contains at least the minimum wire size. The following table shows the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gauge. The lower the gauge number, the heavier the cord.

MINIMUM GAUGE FOR CORD SETS

Volts		Total Length of Cord in Feet (meters)
120V 25 (7.6)		50 (15.2) 100 (30.5) 150 (45.7)
240V 50 (15.2)		100 (30.5) 200 (61.0) 300 (91.4)
Ampere Rating		American Wire Gauge
More Than	Not More Than
0 6 18	16 16 14
6 10	18 16 14 12
10 12	16 16 14 12
12 16	14 12 Not Recommended

The label on your tool may include the following symbols. The symbols and their definitions are as follows:

V....volts

Hz....hertz

min......minutes

- - - - or DC.....direct current

Class I Construction (grounded)

.../min.....per minute

BPM.....beats per minute

Class II Construction (double insulated)

r_0 ......no load speed

n......rated speed

PSI.....pounds per square inch

earthing terminal

⚠️ ......safety alert symbol

▲......visible radiation—do not stare into the light

......wearrespiratory protection

...... wear eye protection

O....wearhearing protection

read all documentation

do not expose to rain

Motor

Be sure your power supply agrees with the nameplate marking. Voltage decrease of more than 10% will cause loss of power and overheating. These tools are factory tested; if this tool does not operate, check power supply.

ASSEMBLY AND ADJUSTMENTS

WARNING: To reduce the risk of serious personal injury, turn unit off and disconnect it from power source before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury.

Assemble Wheels (Fig. B)

Your pressure washer is not fully assembled in the carton.

1. To assemble the wheels 30 to the frame 31, insert an axle pin 32 through the wheel hub 33.

NOTE: Follow this process for left and right wheels.

1. With the wheel attached, insert the axle pin 32 into the axle bracket 34 and install the retaining pin 35 as shown in Fig. B to the axle pin 32 until it snaps into place. NOTE: Follow this process for left and right wheels.

2. Ensure wheels 30 are fully secured to the frame 31.

Assemble Frame Handle (Fig. C)

Your pressure washer is not fully assembled in the carton.

1. To assemble the frame handle 1 to the pressure washer unit 9, align the upper poles 36 with the lower poles 37 so the detent pins 50 snap into position.

High Pressure Hose Storage Hook (Fig. D)

Your pressure washer is not fully assembled in the carton.

1. To assemble the high pressure hose storage hook 16 to the crossmember 38, squeeze the detent end 39 of the hook so it will slide between the retaining slots 40 on the rear of the crossmember 38.

2. Release the pressure hose storage hook 16 allowing the detents 39 to rest securely in the retaining slots 40.

3. Press the high pressure hose storage hook 16 onto the locking detents 41 on the rear of the crossmember 38 until it clicks into place.

Attaching Spray Wand (Fig. E)

1. To connect the spray wand 3 to the spray handle 5, insert the end of the spray wand inside the spray handle and turn the spray wand clockwise until it's firmly in working position.

Attaching Soap Tank (Fig. F)

1. To connect the soap tank 23 to the frame, align the tank slots 42 with the frame pegs 43 and slide the soap tank 23 down to secure it in place.

2. Attach soap hose 26 to the soap outlet 44 on the bottom of the soap tank 23.

3. Attach the other end of the soap hose 26 to the soap intake port 27 on the pump valve 10.

Attaching High Pressure Hose (Fig. G, H)

NOTICE: Never pull water supply hose to move pressure washer. This could damage hose and/or pump inlet.

1. To connect the high pressure hose 13 to the spray handle 5, screw the hose collar 49 onto the inlet coupler 47.

2. To connect the high pressure hose to the pressure washer unit 9, screw the hose collar 49 onto the high pressure water outlet 12.

NOTE: Uncoil the high pressure hose before installation to prevent kinks.

NOTE: Avoid cross threading when installing the hose. Cross threading will cause leaks.

Attaching Garden Hose (Fig. I)

NOTE: Before connecting the garden hose to the pressure washer unit, run water through the garden hose for thirty seconds to clear any debris from inside the garden hose.

1. To connect a garden hose to the pressure washer unit 9, place the end of the garden hose 48 inside the water intake 11.
2. Securely tighten the garden hose by hand. nOTE: Always disconnect the garden hose after usage.

Attaching Nozzles (Fig. J)

DANGER: Risk of fluid injection. Do not direct discharge stream toward persons, unprotected skin, eyes or any pets or animals. Serious injury will occur. WARNING: Flying objects could cause risk of serious injury. DO NOT attempt to change nozzles while pressure washer is running. Turn pressure washer unit OFF before changing nozzles.

1. To connect a nozzle to the spray wand 3, pull the quick connect collar 4 toward the spray wand and insert the appropriate nozzle.
2. Release the quick connect collar to lock the nozzle in place.
3. Give the nozzle a firm tug after the quick connect collar has locked into place to ensure the nozzle is locked into place.

nOTE: The nozzles listed below might not be included with your pressure washer but are available for purchase at an additional cost.

Common Spray Nozzles Common Applications

15 ° Orange Nozzle For brick or masonry.

25 ° Green Nozzle For vinyl siding.

40 ° White Nozzle For automotive washing.

Soap Nozzle To apply detergents .

Black Turbo Nozzle For abrasive cleaning.

OPERATION

WARNING: To reduce the risk of serious personal injury, turn unit off and disconnect it from power source before making any adjustments or removing/installing attachments or accessories.

An accidental start-up can cause injury.

Proper Hand Position (Fig. K)

WARNING: To reduce the risk of serious personal injury, YS use proper hand position as shown.

WARNING: To reduce the risk of serious personal injury, ALWAYS hold securely in anticipation of a sudden reaction.

Proper hand position requires one hand on the spray handle grip 6 and the other hand on the spray handle 5.

Test Ground Fault Circuit Interrupter (GFCI) Before Each Use (Fig. A)

This pressure washer is provided with a ground fault circuit interrupter (GFCI) built into the plug of the power supply cord. This device provides additional protection from the risk of electric shock.

1. Plug the Ground Fault Circuit Interrupter (GFCI) 29 into a working grounded outlet.

2. The indicator at the top of the GFCI should turn green when product is ready to use.

3. Press the "TEST" button (bottom). The green indicator should disappear.
4. Press "RESET" button for use.
5. Do not use the pressure washer if the above test fails.

Pressure Washing

Preparing Surface for Cleaning

• Remove objects from the area which could create a hazard such as children's toys or outdoor furniture.
• Insure that all doors and windows are closed tight. Protect all plants and trees in the adjacent area with a drop cloth ensuring that they will not be harmed by any overspray.
  • Pre-rinse cleaning area with fresh water.
• Use only detergents formulated for pressure washers.
  • Always test detergent in an inconspicuous area before use.

Preparing Pressure Washer Unit for Use (Fig. A)

DANGER: Risk of fluid injection and laceration. While using the high-pressure setting, DO NOT allow the high-pressure spray to come in contact with unprotected skin, eyes, or with any pets or animals. Serious injury will occur.

CAUTION: Before operation:

1. Connect the water supply to the pressure washer. For instructions on connecting the water supply to the pressure washer, please refer to Attaching Garden Hose under Assembly and Adjustments.
2. Connect the high pressure hose to the pressure washer and the pressure wand. For instructions on connecting the high pressure hose to the pressure washer and pressure wand, please refer to Attaching High Pressure Hose under Assembly and Adjustments.

Preparing Spray Handle

iIMPORTAnT: Before turning on the pressure washer unit, disengage the trigger lock-off 7 and squeeze the trigger 8.

1. Disengage the trigger lock-off 7.
2. Squeeze the trigger 8. Hold the trigger for 30 seconds to purge the system of air.
3. If air is still found in the water stream, continue to run water through the spray handle.

Cleaning a Surface (Fig. A, L)

1. To start the pressure washer, rotate the ON/OFF switch 2 to the ON position.
2. The best angle for spraying water against a cleaning surface is 45^ .
3. Spraying head on tends to cause dirt particles to imbed in the surface.
4. When working on vertical surfaces, it is best to apply detergent starting at the bottom and working upwards, which will prevent the detergent from sliding down and causing streaks.
5. To disengage the spray handle, release the trigger.

English

Moving the Pressure Washer (Fig. A)

1. Turn OFF the pressure washer unit 9 by rotating the ON/OFF switch 2 to the OFF position. Then turn OFF the water supply.
2. Point the spray wand 3 in a safe direction and pull the trigger 8 to release remaining water pressure.
3. When the spray wand is completely empty, lift the pressure washer by the frame handle 1.

Shutdown (Fig. A)

1. Turn OFF the pressure washer unit 9 by rotating the ON/OFF switch 2 to the OFF position. Then turn OFF the water supply and unplug the cord from the outlet.
2. Discharge residual pressure by squeezing the trigger 8 until no more water comes out of the spray wand 3.
3. Engage the spray trigger lock-off 7.
4. Disconnect the garden hose from the water intake 11.
5. Disconnect the high pressure hose 13 from the high pressure water outlet 12 and drain hose.

Soap Tank (Fig. F)

This pressure washer has a built-in soap tank 23.

1. To fill the soap tank 23, turn off the pressure washer and turn off the water supply.
2. Pull trigger on spray handle grip 6 to relieve any water pressure.
3. Remove soap tank cap 24 and fill the soap tank 23 with appropriate detergent following the detergent manufacture's instructions.
4. Fit and tighten soap tank cap 24 back onto the soap tank 23.
5. Attach the soap nozzle 21 to the spray wand 3 to dispense soap.

MAINTENANCE

WARNING: To reduce the risk of serious personal injury, turn unit off and disconnect it from power source before making any adjustments or removing/installing attachments or accessories.

An accidental start-up can cause injury.

Your CRAFTSMAN power tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.

Cleaning

WARNING: Blow dirt and dust out of all air vents with dry air at least once a week. To minimize the risk of eye injury, always wear ANSI Z87.1 approved eye protection when performing this procedure.

WARNING: Never use solvents or other harsh chemicals for cleaning the non-metallic parts of the tool. These chemicals may weaken the plastic materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into a liquid.

Nozzle Cleaning (Fig. A, M)

If the nozzle becomes clogged with foreign materials, such as dirt, excessive pressure may develop. If the nozzle becomes partially clogged or restricted, the pump pressure will pulsate. Clean the nozzle immediately using the nozzle cleaner.

1. Turn OFF and unplug the pressure washer unit 9.
2. Turn OFF the water supply.
3. Pull trigger 8 on spray handle 5 to relieve any water pressure.
4. Remove the nozzle from the spray wand 3 by pulling the quick connect collar 4 toward the spray wand.
5. Using the nozzle cleaning tool 22, unclog any debris from the nozzle.
6. Run water from a faucet or garden hose through the nozzle.

Soap Tank Cleaning (Fig. A, F)

To clean the soap tank, decouple the hose from the pump.

1. Turn OFF and unplug the pressure washer unit 9.
2. Turn OFF the water supply.
3. Pull trigger on spray handle grip 6 to relieve any water pressure.
4. Decouple the soap hose 26 from the soap intake port 27.
5. Empty any remaining detergent back into its own bottle.
6. Use water from a garden hose to thoroughly rinse out the soap tank 23.
7. Empty the soap tank 23 and allow it to fully dry.
8. Reinstall soap tank 23 to frame and ensure the soap tank 23 is fully secured to the frame pegs 43.

Storage (Fig. N-P)

• Store in a dry, covered location above freezing temperature. sSTORE inDOORs.
  • Always completely empty water from high pressure hose, pressure washer unit, nozzles, and spray wand.
• The spray handle 5 can be attached to the spray handle storage hook 14 on the crossmember 38 as shown in Fig. N.
• Nozzles can be stored on the crossmember 38 as shown in Fig. O.
• The power cord 28 can be stored coiled up on the power cord storage hook 15 as shown in Fig. P.
• The high pressure hose 13 can be stored coiled up and secured to the high pressure hose storage hook 16 as shown in Fig. P.

Accessories

WARNING: Since accessories, other than those offered by CRAFTSMAN, have not been tested with this product, use of such accessories with this tool could be hazardous. To reduce the risk of injury, use only CRAFTSMAN accessories recommended for this product.

Recommended accessories for use with your tool are available at extra cost from your local dealer or authorized service center. If you need assistance in locating any accessory, please contact CRAFTSMAN call 1-888-331-4569.

Repairs

WARNING: To assure product SAFETY and RELIABILITY, repairs, maintenance and adjustment (including brush inspection and replacement, when applicable) should be performed by a factory service center or an authorized service center. Always use identical replacement parts.

Register Online

Thank you for your purchase. Register your product now for:

• WARRANTY SERVICE: Registering your product will help you obtain more efficient warranty service in case there is a problem with your product.
• CONFIRMATION OF OWNERSHIP: In case of an insurance loss, such as fire, flood or theft, your registration of ownership will serve as your proof of purchase.
• FOR YOUR SAFETY: Registering your product will allow us to contact you in the unlikely event a safety notification is required under the Federal Consumer Safety Act.
• Register online at www.craftsman.com/registration.

Three-Year Limited Warranty

For warranty terms, go to https://www.craftsman.com/support/warranty.

To request a written copy of the warranty terms, contact: Customer Service at CRAFTSMAN, 701 East Joppa Road, Towson, MD 21286 or call 1-888-331-4569.

LATIN AMERICA: This warranty does not apply to products sold in Latin America. For products sold in Latin America, see country-specific warranty information contained in the packaging, call the local company, or see website for warranty information.

FREE WARNING LABEL REPLACEMENT: If your warning labels become illegible or are missing, call 1-888-331-4569 for a free replacement.

TROUBLESHOOTING

WARNING: Risk of unsafe operation. Before servicing unit, unplug or disconnect electrical supply, turn water supply off, discharge residual pressure, and engage spray handle lock-off.

PROBIEM CAUsE CORRECTiOn

Motor does not start. Unit not plugged in. Plug in power cord.
	ON/OFF switch is in the OFF position. Turn switch to the "ON" position.
	Wand trigger not being squeezed. Squeeze trigger with switch in "ON" position.
	CFCI tripped. Press reset button at GFCI on plug end of cord. Check the breaker in your household electrical panel. If the breaker is tripped, reset breaker.
Unit does not reach high pressure. Water faucet not fully turned on. Open water valve fully.
Output pressure varies High/low.	Not enough inlet water supply.	Turn water on full force - check hose for leaks and kinks.
	Pump is sucking air. Check that hoses and fittings are air tight. Turn OFF machine and purge pump by squeezing trigger gun until a steady flow of water emerges from the nozzle.
	Water inlet screen clogged.	To unclog, rinse off with water.
	Discharge nozzle is obstructed.	Blow out or remove debris.
Garden hose connection leaks.	Loose fittings.	Tighten fittings.
	Missing/worn rubber washer.	Replace washer in hose adapter.
Spray wand leaks.	Spray wand not properly attached.	Insert the spray wand into the spray handle. Tighten the spray wand connection to the spray handle.
	Broken O-ring.	Contact CRAFTSMAN customer service representative at 1-888-331-4569.
Pump is excessively noisy.	Pump is sucking air.	Check that hoses and fittings are air tight. Turn OFF machine and purge pump by squeezing trigger gun until a steady flow of water emerges from the nozzle.
Water leaks from pump.	Loose fittings.	Check that all fittings are tight.
	Water seals are damaged or worn.	Contact CRAFTSMAN customer service representative at 1-888-331-4569.
Oil leaks.	Oil seals are damaged or worn.	Contact CRAFTSMAN customer service representative at 1-888-331-4569.
Motor buzzes but fails to run.	Supply voltage below minimum.	Verify that only the pressure washer is running on this circuit.
	System has residual pressure.	Turn unit off, squeeze trigger on spray wand to release pressure, then turn unit on.
	Voltage loss due to extension cord.	Plug directly into outlet.
	Cleaner not used for long periods.	Contact CRAFTSMAN customer service representative at 1-888-331-4569.
No detergent.	Soap tank is empty.	Add more detergent.
	Soap tank or detergent suction tube is not properly connected.	Check connections.
	Detergent is too thick.	Use detergent recommended for use in pressure washers only.
	Damaged or clogged detergent suction tube.	Remove obstruction or replace detergent suction tube.
	Discharge nozzle is obstructed.	Blow out or remove debris.
	Detergent not dispensing.	Check that soap nozzle is being used.

--- o CD.....corriente directa

Eje Central Lázaro Cárdenas No. 18 - Local (55) 5588 9377 D, Col. Obrera

MERIDA, YUC

Calle 63 #459-A - Col. Centro [phone]

MONTERREY, N.L.

Av. Francisco I. Madero 831 Poniente - Col. (818) 375 23 13 Centro

PUEBLA, PUE

17 Norte #205 - Col. Centro [phone]

QUERETARO, QRO

Av. San Roque 274 - Col. San Gregorio (442) 2 17 63 14

SAN LUIS POTOSI, SLP

Col. Santa Fe Alvaro Obregon,

Ciudad de Mexico, Mexico.

C.P 01210

TEL[phone]

R.F.C.BDE8106261W7

Registro en Línea

www.craftsman.com/support/warranty.
