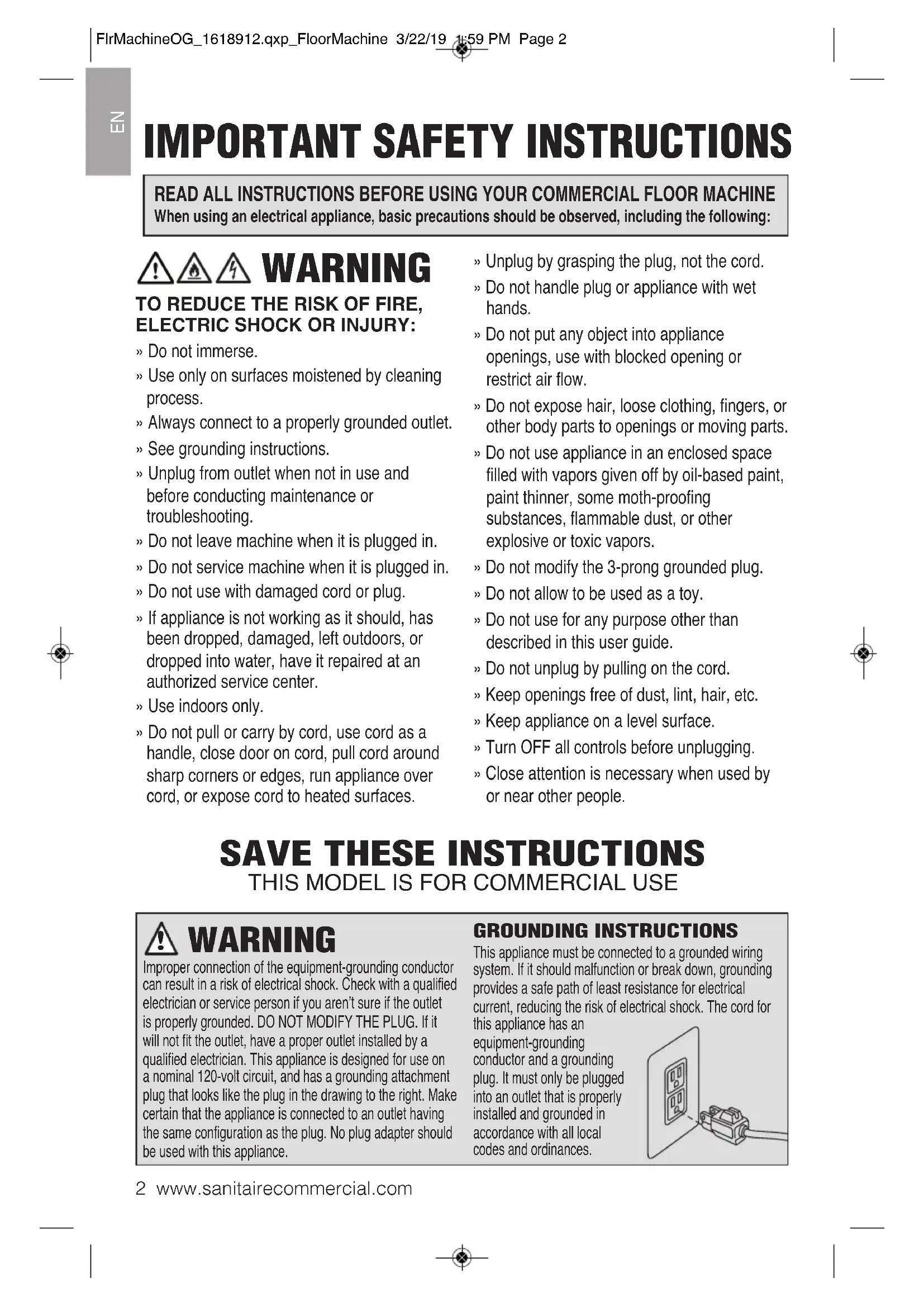

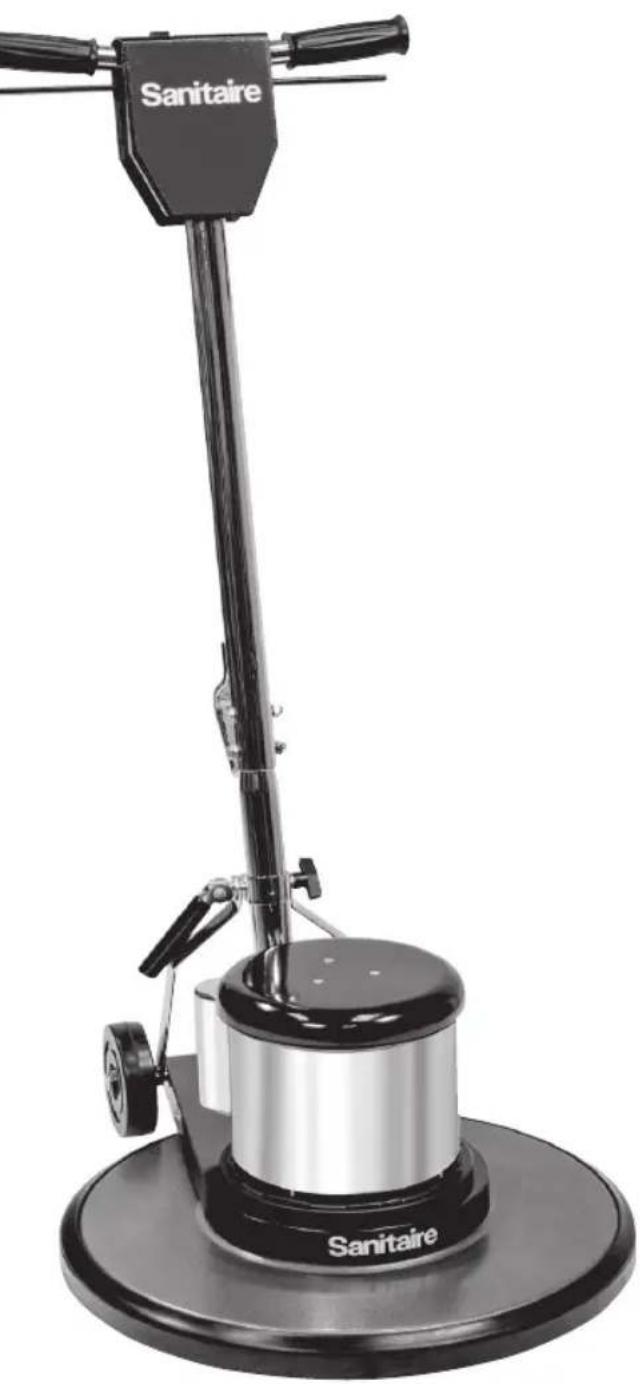

READ ALL INSTRUCTIONS BEFORE USING YOUR COMMERCIAL FLOOR MACHINEWhen using an electrical appliance, basic precautions should be observed, including the following:TO REDUCE THE RISK OF FIRE,ELECTRIC SHOCK OR INJURY:» Do not immerse.» Use only on surfaces moistened by cleaningprocess.» Always connect to a properly grounded outlet.» See grounding instructions.» Unplug from outlet when not in use andbefore conducting maintenance ortroubleshooting.» Do not leave machine when it is plugged in.» Do not service machine when it is plugged in.» Do not use with damaged cord or plug.» If appliance is not working as it should, hasbeen dropped, damaged, left outdoors, ordropped into water, have it repaired at anauthorized service center.» Use indoors only.» Do not pull or carry by cord, use cord as ahandle, close door on cord, pull cord aroundsharp corners or edges, run appliance overcord, or expose cord to heated surfaces.» Unplug by grasping the plug, not the cord.» Do not handle plug or appliance with wethands.» Do not put any object into applianceopenings, use with blocked opening orrestrict air flow.» Do not expose hair, loose clothing, fingers, orother body parts to openings or moving parts.» Do not use appliance in an enclosed spacefilled with vapors given off by oil-based paint,paint thinner, some moth-proofingsubstances, flammable dust, or otherexplosive or toxic vapors.» Do not modify the 3-prong grounded plug.» Do not allow to be used as a toy.» Do not use for any purpose other thandescribed in this user guide.» Do not unplug by pulling on the cord.» Keep openings free of dust, lint, hair, etc.» Keep appliance on a level surface.» Turn OFF all controls before unplugging.» Close attention is necessary when used by or near other people. WARNING

SAVE THESE INSTRUCTIONS

THIS MODEL IS FOR COMMERCIAL USE

WARNING 2 www.sanitairecommercial.comImproper connection of the equipment-grounding conductorcan result in a risk of electrical shock. Check with a qualifiedelectrician or service person if you aren’t sure if the outlet is properly grounded. DO NOT MODIFY THE PLUG. If it will not fit the outlet, have a proper outlet installed by aqualified electrician. This appliance is designed for use on a nominal 120-volt circuit, and has a grounding attachmentplug that looks like the plug in the drawing to the right. Makecertain that the appliance is connected to an outlet havingthe same configuration as the plug. No plug adapter should be used with this appliance.GROUNDING INSTRUCTIONSThis appliance must be connected to a grounded wiringsystem. If it should malfunction or break down, groundingprovides a safe path of least resistance for electricalcurrent, reducing the risk of electrical shock. The cord forthis appliance has anequipment-groundingconductor and a groundingplug. It must only be pluggedinto an outlet that is properlyinstalled and grounded inaccordance with all localcodes and ordinances.

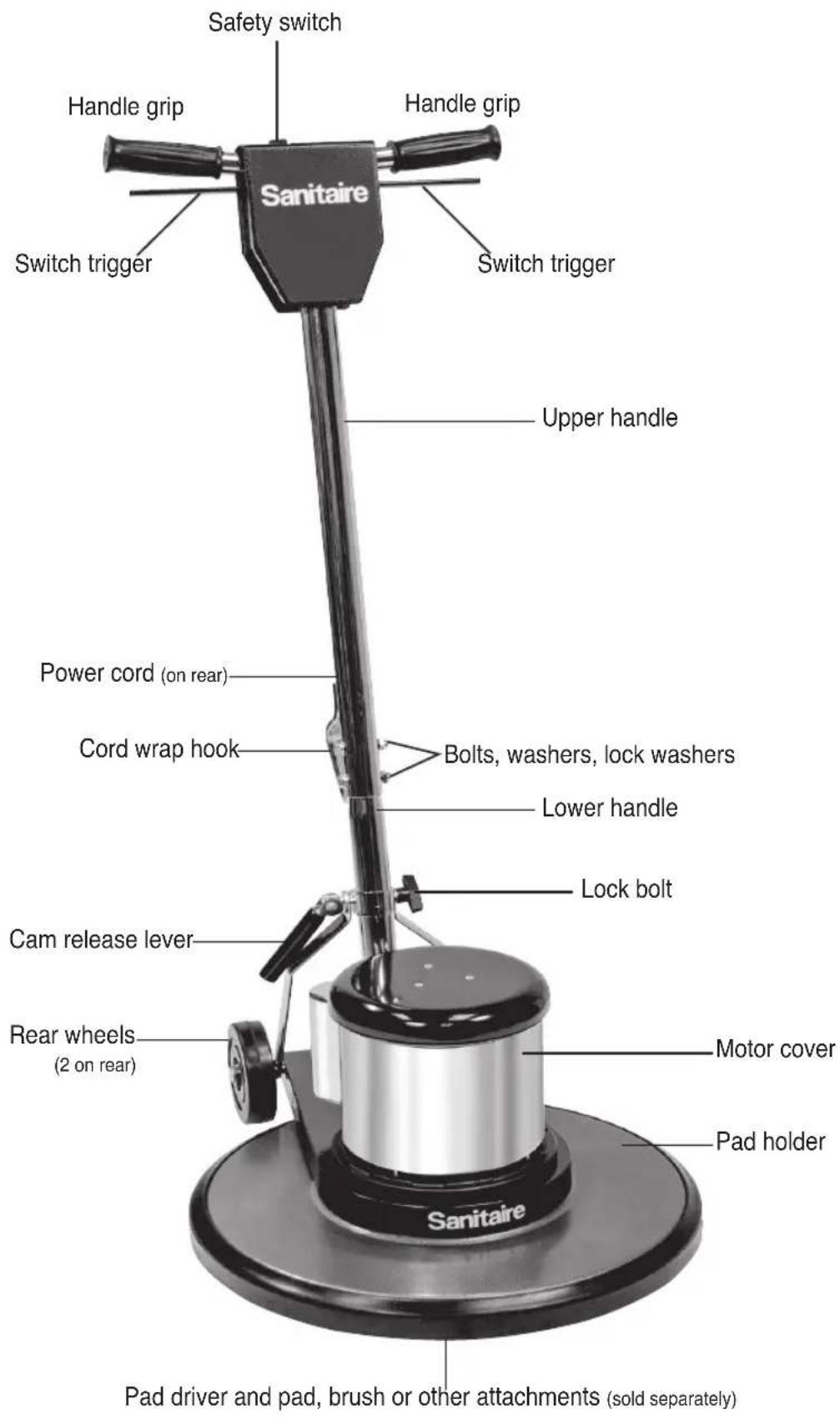

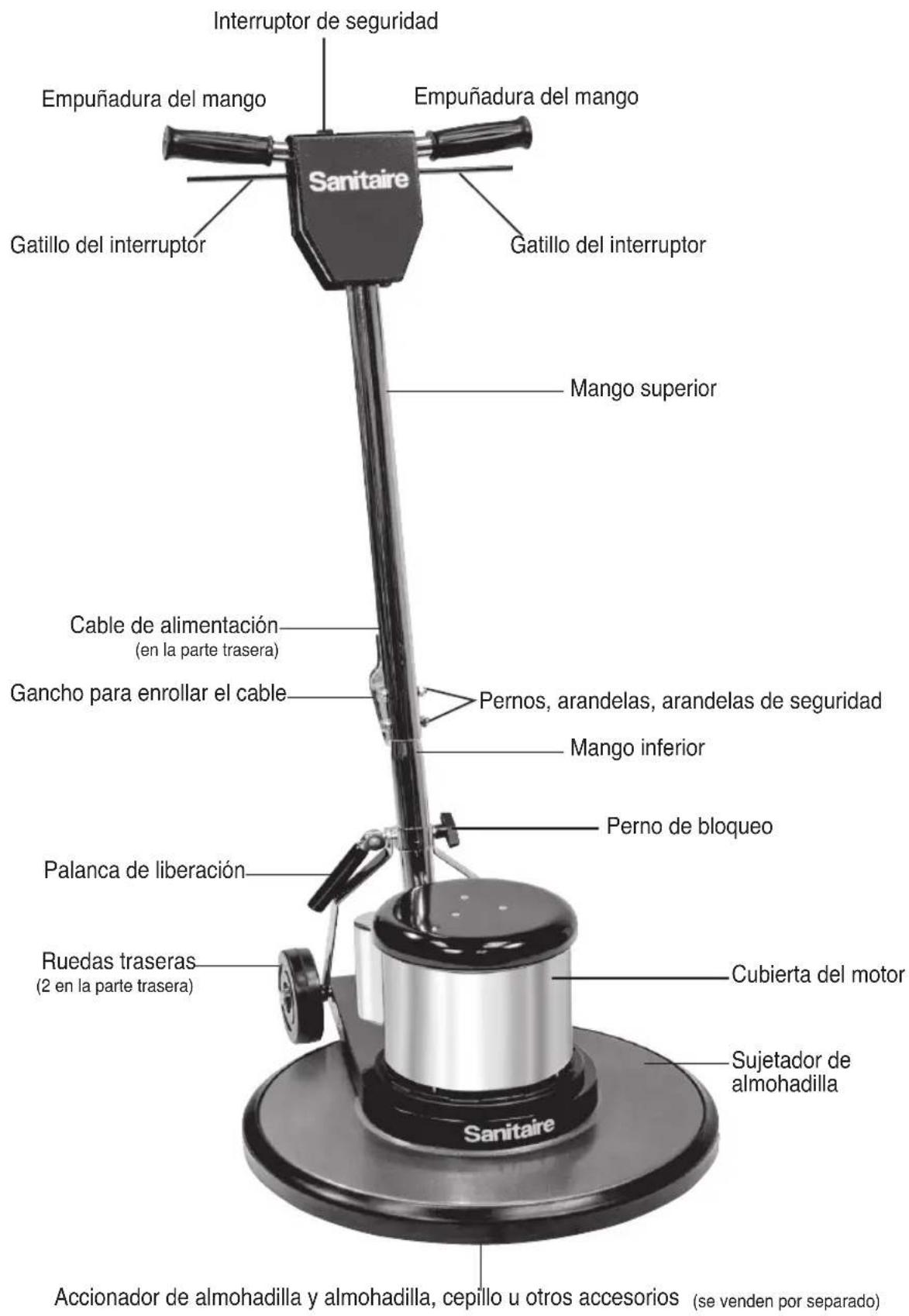

PRODUCT VIEW Handle grip Safety switch Handle grip Upper handle Switch trigger Lower handle Lock bolt Pad driver and pad, brush or other attachments (sold separately) Bolts, washers, lock washers Motor cover Pad holder Cam release lever Cord wrap hook Power cord (on rear) Switch trigger Rear wheels (2 on rear) FlrMachineOG_1618912.qxp_FloorMachine 3/22/19 1:59 PM Page 34 www.sanitairecommercial.com

HOW TO ASSEMBLE HANDLE AND REMOVE

FLOOR MACHINE FROM BOX

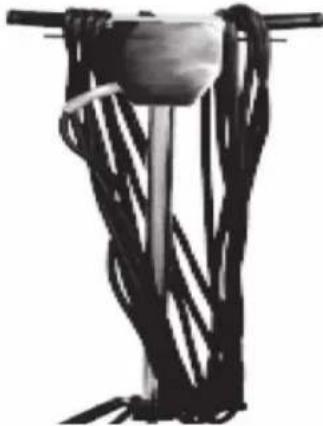

The floor machine comes with a two piece handle in the box. This handle will need to be assembled before removing the floor machine from the box.

5. Then, attach a nut on the end of the

bolt and fasten tightly.

6. After the handle is completely

pushing it down to lock the handle in place.

2. Lift the upper handle and place it

over the lower handle. Slide the upper handle down until all the holes are aligned.

7. After the handle is completely

pushing it down to lock the handle in place.

3. Slide the washer onto the bolt.

Insert the bolt with the washer into the aligned holes. If needed, use a screwdriver to line up the holes to help guide the bolt through the handle.

4. Once the bolt and washers are

8. With the machine in the upright

nd two (2) Phillips head screws from the bag. With the hook pointing towards the ground, position the cord wrap hook over the 2 holes on the back of the handle. Insert the two screws into the holes and tighten with a screwdriver.

9. When storing the machine, wrap the

power cord around the operator

andle grips and the cord wrap hook. CAUTION: Disconnect the power cord from the electrical outlet before installing a brush or pad driver.

1. To install a brush or pad driver, leave the

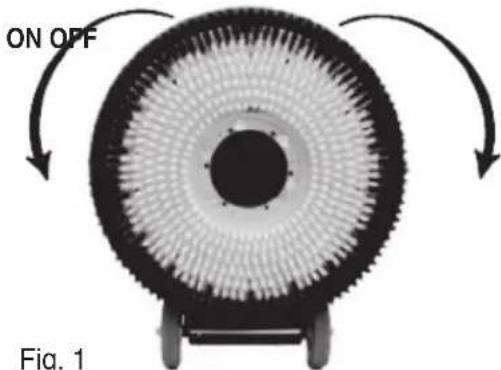

handle in the upright position and tip the machine backwards so it rests on its wheels and upper handle section (Fig. 1).

2. The brush and pad driver both attach in the

same manner: align the cutouts on the inner ring of the brush or pad driver with the tabs on the inside of the ring of the drive hub (Fig. 2). Push the brush or pad driver firmly in position, then turn it counterclockwise until it locks into place. To remove, turn the brush or pad driver clockwise until it stops, then lift it off. Note: Always remove the brush or pad driver when the machine is not in use. CAUTION: This is the only proper way to install a drive block, brush or attachment. NEVER put a drive block, brush or attachment on the machine by placing it on the floor and moving the running machine over it, or by placing the machine over the block or attachment and then starting the motor.

3. Return the floor machine to upright position

and adjust handle to operating position. Recommended handle position is close to the waist with arms extended down. Lock the cam release lever into position. Note: The lock bolt does not require extreme tightening to effectively hold the cam release lever in position. Over- tightening will shorten the functional life of the lock bolt.

4. With the machine in the upright position,

remove the cord wrap hook and two (2) Phillips head screws from the bag. With the hook pointing towards the ground, position the cord wrap over the 2 holes on the back of the handle. Insert the two screws into the holes and tighten with a screwdriver.

HOW TO ORDER REPLACEMENT PARTS

FLOOR MACHINE APPLICATIONS

• Spray buffing with red spray buff pad and spray buff chemical.

• Dry buffing a buffable finish with a tan, beige or white pad or brush.

• Scrubbing with green or blue pad or scrubbing brush.

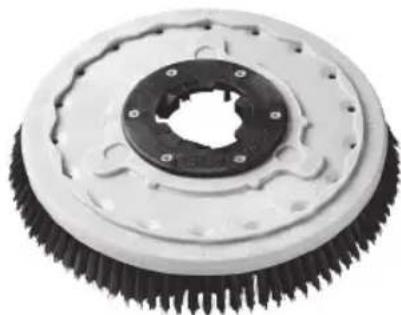

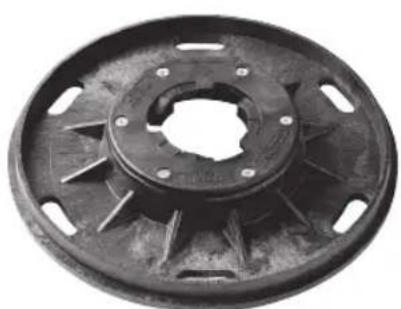

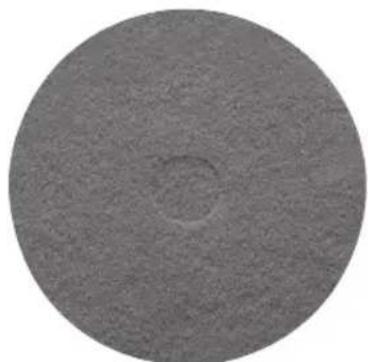

• Stripping with a black pad and a stripping chemical. To install a pad, tip the machine backwards so it rests on the rear wheels and handle. After centering the pad on the pad holder, insert the Pad Centering Lock and twist it clockwise until it securely locks in place. To remove, twist the lock counterclockwise. To order pad driver and accessories, go to: www.sanitairecommercial.com/collections/floor-machine-accessories Floor pads (Available in various sizes) Pad driver (Available in various sizes) Poly brush (Available in various sizes) FlrMachineOG_1618912.qxp_FloorMachine 3/22/19 1:59 PM Page 6www.sanitairecommercial.com 7

1. First install the pad driver and pad, brush or

other attachments to be used.

2. Plug the machine in as directed and lower

the handle to the desired operating height and lock in place using the cam lever handle. (Does not apply to the SC6045 burnisher)

3. Push the safety switch forward and

squeeze the switch triggers beneath the handle grips. This activates the motor and starts the block, brush or attachment in operation. Each time you release the triggers the safety switch will reset. You will need to follow the direction above to restart the machine. CAUTION: When leaving the machine unattended, disconnect the wall plug and return the handle to the “locked” upright position to prevent accidental starting.

TO GUIDE YOUR FLOOR MACHINE

To move to the Right: Raise handle slightly. The higher the handle is lifted, the faster the machine will move to the right. To move to the Left: To change direction, lower the handle until the machine travels to the left. The more the handle is lowered, the faster the movement to the left. If you are not experienced in the operation of this floor machine, practice in an open area away from any people, furniture or other obstacles.

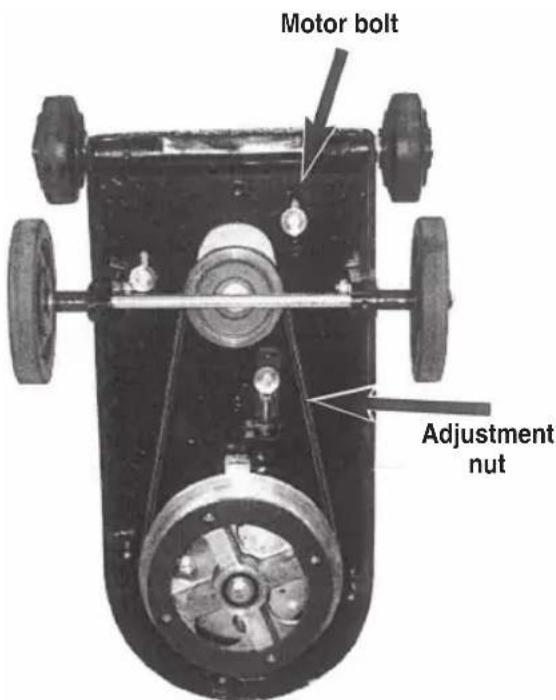

1. Remove three (3) Phillips head screws

holding the pad center grip.

2. Remove four (4) large, slot head screws

3. Loosen pulley mount bolts with 9/16" deep

socket wrench. Do not remove the bolts.

4. Using a 1/2 box wrench, turn adjustment

nut until it touches the adjustment bolt head. Turn the adjustment bolt to tighten or loosen the belt tension.

5. Correct belt tension allows belt no more

than 1/4" of side movement.

6. Tighten the four (4) pulley mount bolts with

the 9/16" socket wrench.

7. Loosen the adjusting bolt until it is snug

against adjustment stop molded in housing and turn adjustment nut against pulley mount bracket.

8. Replace pad driver and pad center grip.

TRANSPORTING THE FLOOR MACHINE MAINTENANCE GUIDE Once a month remove the motor cover and vacuum out any dust or debris which has accumulated on the motor. Replace the motor cover by setting it over the holes in the housing and replace all of the screws. Check and maintain the tightness of all the fasteners.

WARNING: Do not over-tighten the switch

housing screws. Keep the machine clean, especially at the handle tube and collar so the handle tube will move freely through the collar. Inspect the power cord for cuts, gashes, or loose prongs; replace as needed. NOTE: Disassembly of this motor voids the warranty. Improper disassembly and assembly of this motor can permanently damage the field or rotor.

1. Place the handle in the upright

2. Lock the handle cam release lever.

3. Tip the machine back and transport

WARNING To reduce the risk of fire, electric shock or injury, turn power OFF and disconnect plug from electrical outlet before performing maintenance or troubleshooting. Problem Possible causes RemediesMachine doesnot run.The circuit breakerhas tripped.The circuit breaker has tripped. Allow thecircuit breaker 2 minutes to cool beforeresetting.Plug is broken or hasloose contact.Replace.There is a circuit overload.Check the pad and change it if it is rough or dirty.Spray buffing or spray cleaning is not a substitute for scrubbing ormopping a floor.Prepare the floor surface before spray buffing.Eliminate any extension cord that is smaller than 12/3 wire or greaterthan 25 feet in length.Unplug anything other than the machine from the circuit or locateanother circuit.Machine will not start.Circuit breaker is notreset.Reset breaker.Plug is broken or hasa loose contact.Replace.Circuit breaker isdefective or weak.Replace.Switch is defective. Replace switch.Rectifier is defective. Replace rectifier.Machine will notreach operatingspeed.Unplug anything else other than the machine from the circuit or locateanother circuit.Motor runs butbrush or paddoes not turn.Coupling is broken.Note: Coupling is notcovered underwarranty.Replace.Note: Do not attempt to place a runningmachine over a block or brush. Always installand remove the block or brush by hand. Read all instructions, warnings and cautions before using equipment These guidelines are presented for your protection and convenience. Please read them carefully, since a failure to heed these precautions could result in discomfort or injury. When using an electrical appliance, basic safety precautions should always be followed. FlrMachineOG_1618912.qxp_FloorMachine 3/22/19 1:59 PM Page 910 www.sanitairecommercial.com WARRANTY This warranty gives you specific legal rights, and you may also have other rights which may vary from state to state. If you need additional instruction regarding this warranty or have questions regarding what it may cover, please contact Sanitaire

Customer Service by E-mail, telephone or regular mail as described below. Limited One-Year Warranty Subject to the *EXCEPTIONS AND EXCLUSIONS identified below, upon receipt of the product Sanitaire will repair or replace (with new, refurbished, lightly used, or remanufactured components or products), at Sanitaire's option, free of charge from the date of purchase by the original purchaser, for one year any defective or malfunctioning part. See information below on "If your Sanitaire product should require service". This warranty does not apply to fans or routine maintenance components such as filters, belts or brushes. Damage or malfunction caused by negligence, abuse, neglect, unauthorized repair, or any other use not in accordance with the user guide is not covered. Some states do not allow the exclusion or

imitation of incidental or conse quential damages, so the above limitation or exclusion may not apply to you.

*EXCEPTIONS AND EXCLUSIONS FROM

EITHER ORAL OR WRITTEN. ANY IMPLIED

WARRANTIES WHICH MAY ARISE BY

OPERATION OF LAW, INCLUDING THE

IMPLIED WARRANTIES OF

ABOVE. Some states do not allow limitations on how long an implied warranty last so the above limitation may not apply to you. NOTE: Please keep your original sales receipt. It provides proof of date of purchase in the event of a warranty claim. SERVICE INFORMATION If your Sanitaire product should require service You will find the nearest Sanitaire Authorized Service Center in your area online at sanitairecommercial.com under service locator or contact Sanitaire Customer Service. If you need information about repairs or replacement parts, or if you have questions about your warranty, contact Sanitaire Customer Service. Website: www.sanitairecommercial.com Call: Sanitaire Customer Service 1-800-800-8975 Monday – Friday 9 a.m. – 8:30 p.m. EST
