XCEL Sport - Camcorder Spypoint - Free user manual and instructions

Product type	Sport camcorder
Brand	Spypoint
Model	XCEL Sport
Video resolution	640 x 480 (high resolution) / 320 x 240 (low resolution)
Video format	AVI
External memory	Micro-SD/SDHC up to 8 GB (Class 6 recommended)
Field of view	70°
Exposure	Automatic
TV output	PAL/NTSC
Power supply	2 AA batteries (lithium recommended, alkaline possible, not rechargeable)
Water resistance	Up to 10 meters
Operating temperature	-20 °C to +50 °C
Storage temperature	-30 °C to +75 °C
Compatible operating systems	Windows 2000/XP/Vista, Mac OS X
LCD screen	Displays number of videos, resolution, remaining time
Sound recording	Yes, with removable cap for aquatic/windy conditions
Included mounts	For telescope (1 inch), bow, helmet (two straps), headband
Included cables	USB, audio/video
Warranty	1 year parts and labor

Frequently Asked Questions - XCEL Sport Spypoint

How to insert batteries and memory card?

Unscrew the 4 screws located behind the camera. Insert 2 AA batteries into the compartment respecting polarity. The Micro-SD card slot is in the lower part. Always set the device to OFF before inserting or removing the memory card.

How to choose between high and low resolution?

Press the H/L/SOUND button once to select high resolution (H) or twice for low resolution (L). High resolution offers better quality but takes more space on the memory card.

How to start and stop recording?

Press the START/STOP button to start recording. Press again to stop. The screen displays the duration of the current video.

How to enable or disable sound recording?

Press and hold the H/L/SOUND button for 3 seconds. The screen displays ON (sound on) or OFF (sound off). For use underwater or in strong wind, replace the microphone cap with the one provided in the camera.

How to transfer videos to a computer?

Set the camera to OFF. Connect the USB cable to the camera and computer. The computer recognizes the camera as a removable disk. Open the DCIM > 100DSCIM folder to access the videos. You can also remove the memory card and use a card reader.

How to view videos on a TV?

Connect the audio/video cable to the TV OUT jack on the camera and to the AUDIO/VIDEO IN inputs on the TV. Use the ON/OFF (menu), H/L/SOUND (next), START/STOP (play/pause) buttons to navigate.

What type of memory card to use?

Use a Micro-SD or Micro-SDHC card up to 8 GB. A Class 6 or higher card is recommended for good data transfer. Class 2 or 4 cards may not work properly.

How much recording time with an 8 GB card?

In high resolution (640x480): approximately 200 minutes. In low resolution (320x240): approximately 480 minutes. The times are approximate.

Is the camera waterproof? To what depth?

Yes, the housing is waterproof up to 10 meters. Make sure to use the appropriate cap for the microphone in aquatic or windy conditions.

What mounts are available and how to use them?

Four mounts are included: for telescope (1 inch / 24 mm diameter), for bow (screws on the front), for helmet (with short or long straps), and headband for the head. Each mount allows mounting the camera according to the activity.

USER MANUAL XCEL Sport Spypoint

Thank you for choosing a great SPYPOINT product. You can now enjoy many benefits of a second generation of video cameras. The X-CEL was developed and designed by our team of highly qualified engineers. This camera allows you to capture crisp and clean videos while enjoying many sports and hobbies.

FEATURES

Video resolution 640 x 480
Video file AVI
External memory Micro-SD/SDHC card up to 8 GB
Field of view 70^ FOV (X-CEL SPORT) 40^ FOV (X-CEL HUNT)
- Exposure Auto Exposure
- Play modes Computer / TV
- TV-out PAL / NTSC
Power source 2 x AA batteries
- Operating temperature (-20^ to +50^) (-4^ to +122^)
Storage temperature (-30^ to +75^) (-22^ to +167^)
- Computer operating system WIN 2000 / XP / VISTA / Mac OS X

KIT INCLUDES

SPYPOINT X-CEL camera
- USB cable
Audio/Video cable
- 4 mounting brackets: scope, bow, helmet, forehead mount
- User's Manual

MAIN FEATURES

LCD screen to view the number of recorded videos, video resolution and recording time available on memory card.
Sound recording
Water-resistant casing, up to 30 feet.

POWER

Alkaline batteries

This camera requires 2 AA batteries. We recommend the use of AA lithium batteries since they significantly improve the recording time and are more resistant to cold temperatures. The use of AA alkaline batteries are also recommended. It is important to note that the voltage of rechargeable AA batteries (1.2V) is insufficient to power your SPYPOINT video camera. To insert the batteries, first unscrew the 4 screws behind the camera (see figure below) and insert the batteries as indicated inside the camera case.

Low Battery

When the batteries are low on charge, the resolution setting "H" or "L" (depending on resolution selected) blinks on the screen to notify the user that the batteries must be replaced shortly.

MOUNTING :

Forehead mount

Bow

Helmet
Scope

HELMET

To install the camera directly onto a helmet, use the "helmet" bracket. According to the desired installation, use either the short or the long strap.

SCOPE

The diameter of the scope bracket is 1^ (24mm) and is suitable for most scopes. Some scopes might not be compatible with this kind of bracket. An optional 1.2" (30mm) adaptor is available (SC-30mm). (Refer to the section «OPTIONS »)

BOW

The bracket for the bow is normally positioned to the front of the bow, with the screw (included), where the stabilizer is usually located.

FOREHEAD MOUNT

This bracket is used to directly install the camera on the forehead.

MEMORY CARD

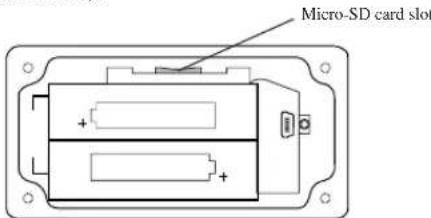

Using a Micro-SD memory card (sold separately, refer to the section « OPTIONS ») is required to operate the camera SPYPOINT X-CEL. To insert the card, unscrew the 4 screws located behind the camera (in the same manner as the batteries). The Micro-SD card slot is located at the bottom of the camera (see figure below).

The camera can accept memory cards up to 8 GB. Before inserting or removing the memory card, the camera must be turned "OFF". Failing to do so may cause the loss of videos or damage to the memory card. When the memory card is full, the LCD panel indicates "FULL". The following chart shows the approximate time available for recording videos depending on the memory card capacity.

	512 MB	1 GB	2 GB	4 GB	8 GB
High Res.: 640 x 480	12 min	25 min	50 min	100 min	200 min
Low Res.: 320 x 240	30 min	60 min	120 min	240 min	480 min

Note: The use of a class 6 or higher memory card is recommended. A class 2 or 4 memory card may not support a data transfer rate high enough to record video from the X-CEL camera.

Class 6

SETTINS

To turn "ON" the camera, press the "ON/OFF" button and hold for 2 seconds. The same procedure is used to turn "OFF" the camera.

This video camera is very easy to use. The only setting needed will be to choose the high resolution "H" or the low resolution "L". To do this, press once on the "H/L/SOUND" button to select "H" or press twice to select "L". In "H" setting, the camera records video in higher quality therefore taking more space on the memory card. See the previous "MEMORY CARD" section to know how much time is available on memory card depending on the setting.

To start recording a video, press the "START/STOP" button. To stop recording, press the same button again.

SOUND RECORDING

For certain activities, such as hunting, the sound recording may not be desired. To enable or disable the sound, press the "H/L/SOUND" button and hold for 3 seconds. When the sound recording is activated, the screen displays "ON" and when it is turned off, the screen displays "OFF".

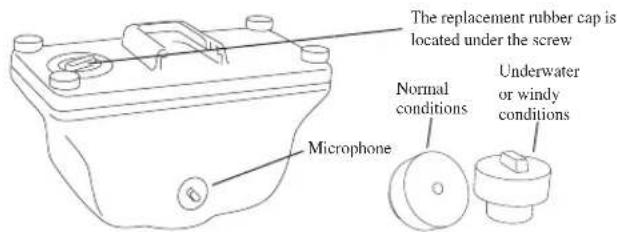

The X-CEL camera has an integrated microphone for recording sound. The rubber cap for "normal conditions" can record sound at all time. If recording video under water, it is important to replace this rubber cap by the "underwater or windy conditions" one to prevent infiltration of water inside the camera. It is also recommended to use this rubber cap in windy conditions. This rubber cap is located inside the camera, under the screw (see figure below).

NUMBERS DISPLAYED ON SCREEN

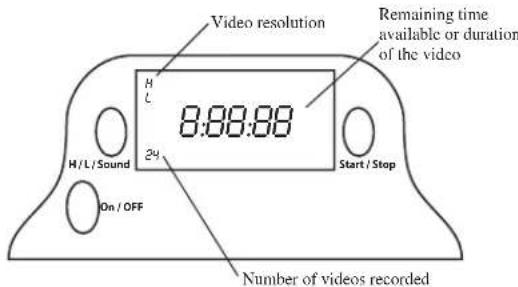

LCD screen indicates, in the lower-left corner, the number of videos recorded on the memory card. The numbers in the middle of the screen refer to the remaining time available on the memory card. When recording a video, these numbers represent the duration of the video.

DOWNLOADING TO A COMPUTER

To transfer or view photos and videos on a PC, you must first turn the camera OFF and connect the USB cable (supplied) to the camera and to your computer. The computer will recognize the camera and install the software automatically. Click on My Computer and select Removable Disk . Then click DCIM and 100DSCIM to find all your photos and videos.

Taking the SD card out of the camera and inserting it into the computer port will achieve same results. If no SD slot is built into the computer, a multi-card reader RD25-1 (sold separately) must be used.

WATCHING FOOTAGE ON A TELEVISION SCREEN

To view recorded videos on TV screen, turn "OFF" your camera. Connect the appropriate cable into "AUDIO /VIDEO IN" of the TV, and the other end of the cable into the "TV OUT" of the camera. (See figure below)

Use the following keys to navigate into the menu displayed on TV:

"ON/OFF" = MENU

"H/L/SOUND" = NEXT

"START/STOP" = PLAY/PAUSE/OK

To watch a video, press "PLAY/PAUSE/OK". The same button is used to stop the video.

To view the following video, press "NEXT".

To see the different options available, press "MENU". To confirm a choice within the menu, press "PLAY/PAUSE/OK"

Delete: deletes the video on the screen (ONE) or all videos on memory card (ALL).

Language: Selects language.

Exit: Returns to viewing screen.

OPTIONS

See your local dealer or visit www.spypoint.com to find available products. The following items are popular options that can be added to a SPYPOINT camera model X-CEL:

Adaptor 24mm (1 inch), SC-24mm

This adaptor allows placing the camera to a 24mm scope, available in black or camo.

Adaptor 30mm (1.2 inch), SC-30mm

This adaptor allows placing the camera to a 30mm scope, available in camo only.

Micro-SD memory card, Micro-SD-4GB

The 3-in-1 kit includes a memory card Micro-SD 4 GB as well as an adaptor for Mini-SD and SD cards. This package can be used for multiple purposes.

Multi-card reader RD25-1

To allow the download of photos and videos directly into a personal computer. This reader works with 25 different types of memory cards and is compatible with SD cards.

Photo and video viewer, PV-9

Photo and video viewer. 2.5'' viewing screen.

LIMITED WARRANTY

SPYPOINT X-CEL designed by GG Telecom, is covered by a one (1) year warranty on material and workmanship starting from its original date of purchase. The sales receipt is your proof of purchase and should be presented if warranty service is needed.

This warranty does not cover any GG Telecom product which has been subjected to misuse, neglect and accidents or has been improperly used or maintained. Any modification or tampering of the product will affect its operation, performance, durability and void this warranty.

REPAIR SERVICE

Repairs for damages not covered by the warranty will be subject to a reasonable charge. For technical assistance, write to [e-mail]. Give a description of the problem with a phone number where you can be reached.

IMPORTANT: Under no circumstances GG Telecom will accept returns without a Return Material Authorization number (RMA).

WWW.SPYPOINT.COM

Note: For the latest update of the user's manual, refer to our website. The version number of this manual is on page 2.
